ZEISS SL 800 Slit lamp
Product

ZEISS SL 800 Slit lamp Premium optical quality with a high level of comfort

With perfectly balanced ZEISS optics, extensive illumination options and a user-friendly operator concept directly at your fingertips, the SL 800 slit lamp from ZEISS reveals details for diagnosis and optimizes your workflow. Furthermore, the modularity and the wide range of optional components and accessories adapt to your individual needs whenever necessary.

Get in contact with us
  • Uncover details
  • Enhance focus
  • Expanded capabilities
Uncover details

Uncover details

  • TrueView Optics: apochromatic ZEISS lenses with anti-reflex coating provide you with true-to-life color and high contrast images.
  • VarioLight: the integrated LED light source is accompanied by a halogen filter giving you advantages of both illumination characteristics.
  • Continuous magnification steps – 6x, 10x, 16x, 25x, 40x – show more detailed structures and give you enhanced insights.
Learn more about magnification steps

Superior optics for high-definition image quality

True-to-life color even in 40x super magnification

Larger ZEISS lenses enable a better light-throughput. And in combination with the anti-reflex coating, they provide a high-definition image in true-to-life color with high contrast – even in 40x super magnification. Moreover, the apochromatic optimization greatly reduces chromatic and spherical aberrations in favor of visualizing structural details.
6x magnification

6x magnification

10x magnification

10x magnification

16x magnification

16x magnification

25x magnification

25x magnification

40x magnification

40x magnification

Extensive illumination and filter options

Extensive illumination and filter options

With the VarioLight feature, you can now select your preferred examination light – cold-white or warm-white. This allows you to gain a sharper and clearer image, as well as a more natural fundus impression. Together with the integrated and optional filters and diffusor, you are equipped with an all-around setup for the observation of anterior and posterior segment.1

Learn more about filter options

Extensive illumination and filter options

VarioLight cold-white

VarioLight cold-white

A slight bluish illumination benefits scattering and helps to identify irregularities within the anterior segment.

VarioLight warm-white

VarioLight warm-white

The warm halogen-like color temperature supports a more natural fundus impression.

Green filter (“red free“)

Green filter (“red free“)

The redesigned filter characteristics provide a red-free, high-contrast image to improve the visualization of blood vessels.

Blue filter

Blue filter

In combination with the optional yellow filter, it provides enhanced contrast during fluorescence analysis.

Red filter

Red filter

For differentiated observation of the retinal layers.

Enhance your focus. Innovative operator concept.

Enhance your focus. Innovative operator concept.

  • With AutoView control, you can easily change magnification with the motorized two-button mechanism next to the joystick.
  • The QuickStop electronic brake activates with no need to release the joystick.
  • The intelligent stand-by EcoMode saves energy by shutting down automatically when not in use.
Learn more about options and accessories

Enhance your focus

Expand capabilities

Next to the modern design of the ZEISS SL 800 slit lamp, the modularity and the wide range of optional components and accessories adapt to your individual needs whenever necessary.
SL Imaging Solution

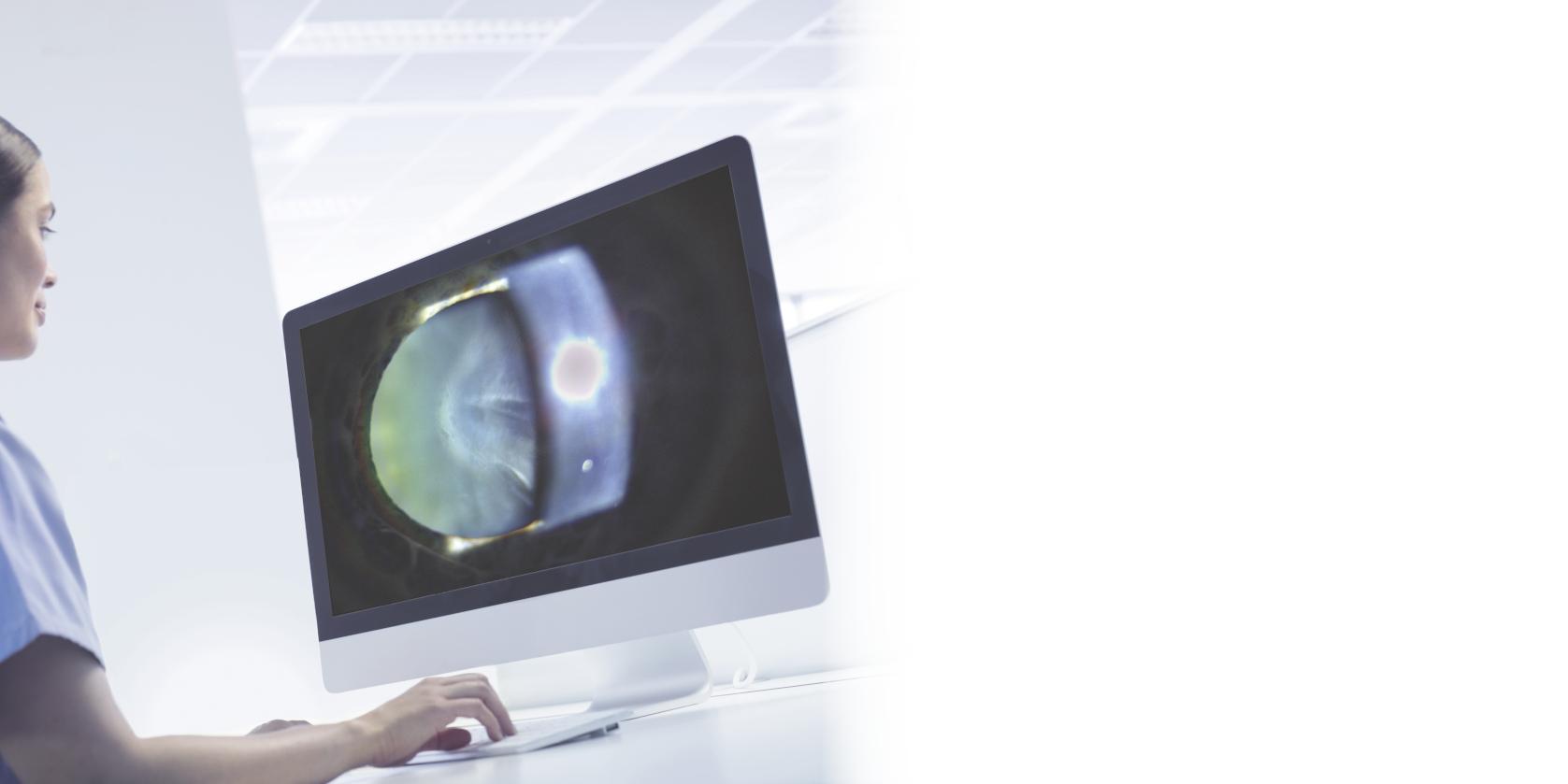

ZEISS SL Imaging Solution

The optional ZEISS SL Imaging Solution enables convenient capturing of high-quality images and videos for documentation, patient consultation or presentation.

Fundus VarioView

Fundus VarioView

Available as optional component the Fundus VarioView enables you to increase binocular field of view while examing the posterior segment.1

Applanation tonometer AT030

Applanation tonometer AT 030

For measuring intraocular pressure the AT 030 applanation tonometer can be integrated.

  • 1

    Optional

Ready to unlock the full potential of your clinic?

ZEISS Retina & Glaucoma Workflow

The ZEISS SL 800 Slit lamp could be just the beginning: Take your workflows to a new level and learn how our products and applications add value beyond the mere sum of their parts.

First impressions

  • Watch Dr. Ike Ahmed share his experience with ZEISS SL 800 and SL Imaging Solution

    Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

  • Watch Prof. Dan Reinstein share his experience with ZEISS SL 800 and SL Imaging Solution

    Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Downloads

Specifications

ZEISS SL 800
Magnification
6x/10x/16x/25x/40x, with 10x eyepiece, compensation of ametropia ±8 dpt
Interpupillary distance
Convergent tube 50 – 84 mm; Parallel tube 52 – 78 mm
Light source
LED
Slit illumination
VarioLight cold-white, VarioLight warm-white
Filters

Blue, halogen, green (red-free), red, diffusor
Slit width
Continuously 0 – 12 mm
Slit length
Continuously 1 – 12 mm
Slit diameter
0.2/1/3/5/9/12 mm
Slit rotation
Continuously 0° – 180°; click stop at 45°/90°/135°
Slit decentration (horizontal)
Available; fixable at 0°
Slit inclination (vertical)
0°/5°/10°/15°/20°
Swivel range of slit projector

>200° with scale; click stop at 0°/±45°/±60°
Operation
Control panel with joystick, brightness control; Controls for AutoView & QuickStop (optional)
Adjusting range
110 mm (side), 30 mm (height), 110 mm (length)
Weight
12 kg (incl. headrest)
Dimensions (W x H x D)
315 mm x 655 mm ± 15 mm x 395 mm
Power supply
100 – 240 V AC, 50/60 Hz
