ZEISS Intraoperative Fluorescence TechnologiesDiscovering the previously unseen
Fluorescence is the property of atoms and molecules, so called fluorophores, to absorb light at a particular wavelength and to subsequently emit light of longer wavelength. Fluorescence microscopy can be based on autofluorescence or the addition of fluorescent dyes.1,2 Under normal light fluorescent dyes might be invisible. But a surgical microscope with integrated fluorescence technology lights up the dye to visualize high-grade glioma tissue or blood vessels during surgery.
The first use of intraoperative fluorescence imaging in surgery dates back to 1948 when surgeons used intravenous fluorescein to enhance intracranial neoplasms during neurosurgery.2,9 Since then, additional fluorescent agents have been used for a variety of surgical applications.4,5,6,9 Intraoperative fluorescence imaging offers the benefits of high contrast and sensitivity, absence of ionizing radiation, ease of use, safety, and high specificity.7,8,9 Moreover, improved visualization can reduce damage to important normal structures such as nerves, blood vessels, ureters, and bile ducts.9
In challenging microsurgery, surgical visualization adjuncts are essential for making the right decisions at the right time. The Intraoperative Fluorescence Technologies1 from ZEISS offer you the tools you need.
Intraoperative visualization of fluorescence-stained structures
Intraoperative visualization of fluorescence-stained structures
Third-party Content Blocked
The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

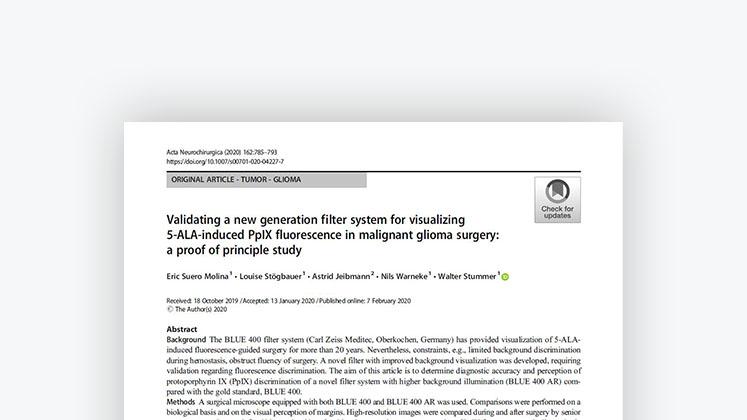

BLUE 400 from ZEISS
BLUE 400 from ZEISS supports intraoperative differentiation between high-grade glioma cells and healthy tissue in suspected high-grade gliomas (grade III and IV). It was the only microscope integrated fluorescence module to prove its efficiency in a successfully conducted Phase III multi-center study.2
According to a 2015 study by Esteves et al., high-grade gliomas (grades III–IV) are the most common brain tumors in Europe, with an incidence of 3.13 per 100,000 residents. The extent of tumor resection is a major prognostic factor for survival.3 Studies show that resection of at least 98% of the tumor tissue is required to significantly impact the survival rate. A randomized controlled trial (RCT) study by Stummer et al. in 2006 showed that the probability of complete resection of the tumor was significantly increased when using 5-ALA fluorescence (5-aminolevulinic acid) (65% vs. 37%, p<0.0001).2
We [...] published a medical economic study [...] to demonstrate that [by] using BLUE 400, we can improve outcome of the patients [...].
Third-party Content Blocked
The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
Prof. Dr. Andreas Raabe
Director and Head of the Department for Neurosurgery, Inselspital Bern, Switzerland

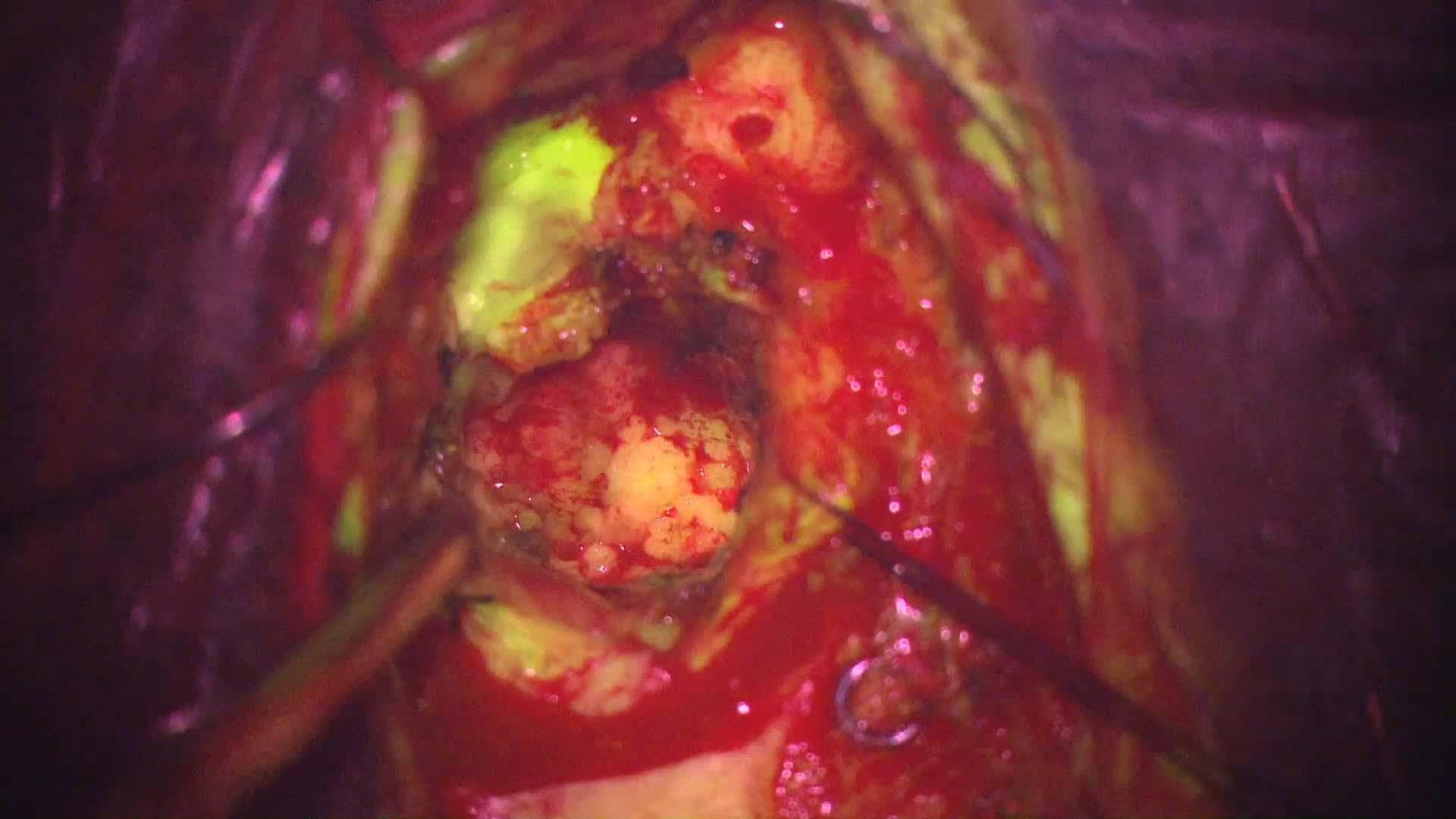

Visualization of fluorescence-stained structures using YELLOW 560. Obtained within the scope of a clinical investigation.
YELLOW 560 from ZEISS
ZEISS YELLOW 56020 is the first intraoperative fluorescence module highlighting green-yellowish fluorescence-stained structures while leaving non-stained tissue in its natural-like color.
