Introducing NULEX

ZEISS MICOR 700

The future of lens extraction in your hands.

Gentle patient treatment
Broadening the intraocular working space
Quick OR setup

The future of lens extraction in your hands

ZEISS MICOR 700 is designed to take lens extraction to a new level: the first hand-held lens removal device that operates ultrasound free. Innovative technology and design measures are used to minimize stress to surrounding eye structures during lens extraction. In addition, ZEISS MICOR 700 increases OR turnover efficiency due to the disposable plug-and-play system and the little set-up and sterilization effort required in between cases.

Gentle patient treatment

Crystalline lens extraction without ultrasound

ZEISS MICOR 700 stands for advanced and gentle lens extraction. The ZEISS NULEX (non-ultrasonic lens extraction) procedure generates less thermal stress in the eye during the lens removal than conventional phaco and minimizes the risk of thermal damage to ocular tissue.  Utilizing an asymmetric movement of the cutter tube allows MICOR to remove lens via cavitation-free oscillation.

I have surprised myself and what MICOR has been able to do for me, and for my patients. So, case times are faster, corneas are now clear. The staff loves it. The setup is easy.

Dr. Seth M. Pantanelli

Broadening the intraocular working space

A new patented blunt and rounded tip design

The ZEISS MICOR 700 tip is designed to be more sensitive in contact with the surrounding tissue than conventional phaco tips. Surveyed early adopter surgeons confirmed that the blunt and rounded tip contributes to a gentler behavior towards the surrounding tissue and increases the comfort zone for maneuvering of the capsular bag.

When we look at the tips, [...] smooth and blunt. So, I find that very, very safe. The safety margin with this technology is great.

Dr. Sonia H. Yoo

Quick OR setup

Free of a console. Single-use front end, reusable back end

Always ready with a disposable "Plug-and-Play" system ensuring convenience and simplicity in the operating room: that is ZEISS MICOR 700. Each extractor comes in a sterile blister pack and only needs to be connected to the drive and plugged into a BSS source - then the surgery can begin. The fluidics system is fully disposable. ZEISS MICOR 700 thus enables a quick setup and breakdown in the OR. It is designed to reduce the sterilization effort compared to phaco devices using standard US handpieces. Surveyed staff reported that ZEISS MICOR 700 is intuitive to use and saves time over the whole surgical day.

I am really impressed with this technology. I love that there is no foot pedal, I love that there is no machine. It really saves space in the O.R., it is quite efficient.

Dr. Sonia H. Yoo

High flexibility with a minimal footprint

Hand-held and finger-controlled design

ZEISS MICOR 700 is the first hand-held system that does not require a console or a foot pedal. It is designed for intuitive finger operation. Surgeons reported that MICOR reduces the necessary space consumption of the lens extraction technology to a new minimum. With the low initial investment of ZEISS MICOR 700, it has never been easier to embrace technology change.

Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

The future of lens extraction in your hands

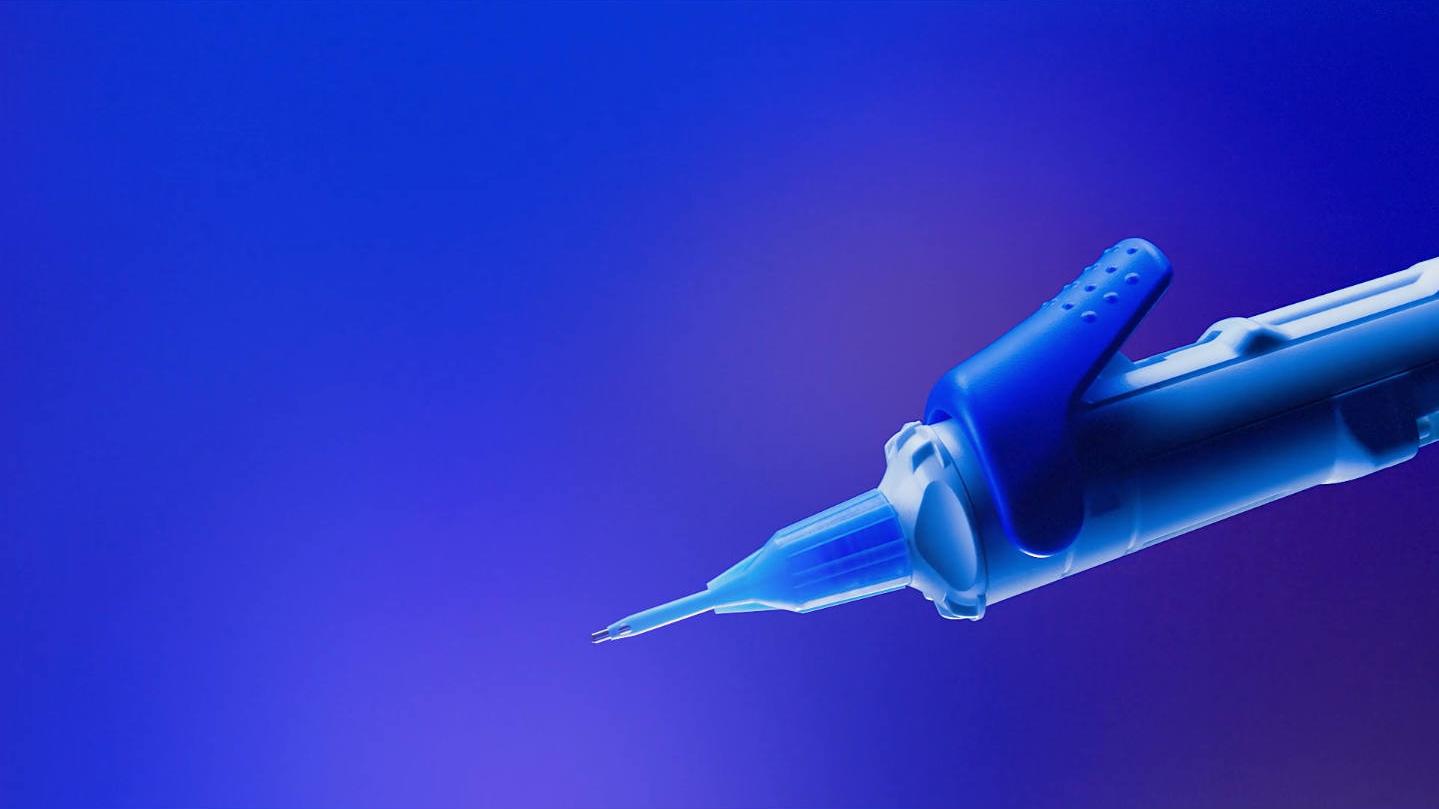

ZEISS MICOR 700

The ZEISS MICOR 700 is a revolutionary hand-held lens extraction device that operates ultrasound free.
¹Data on file

¹Data on file

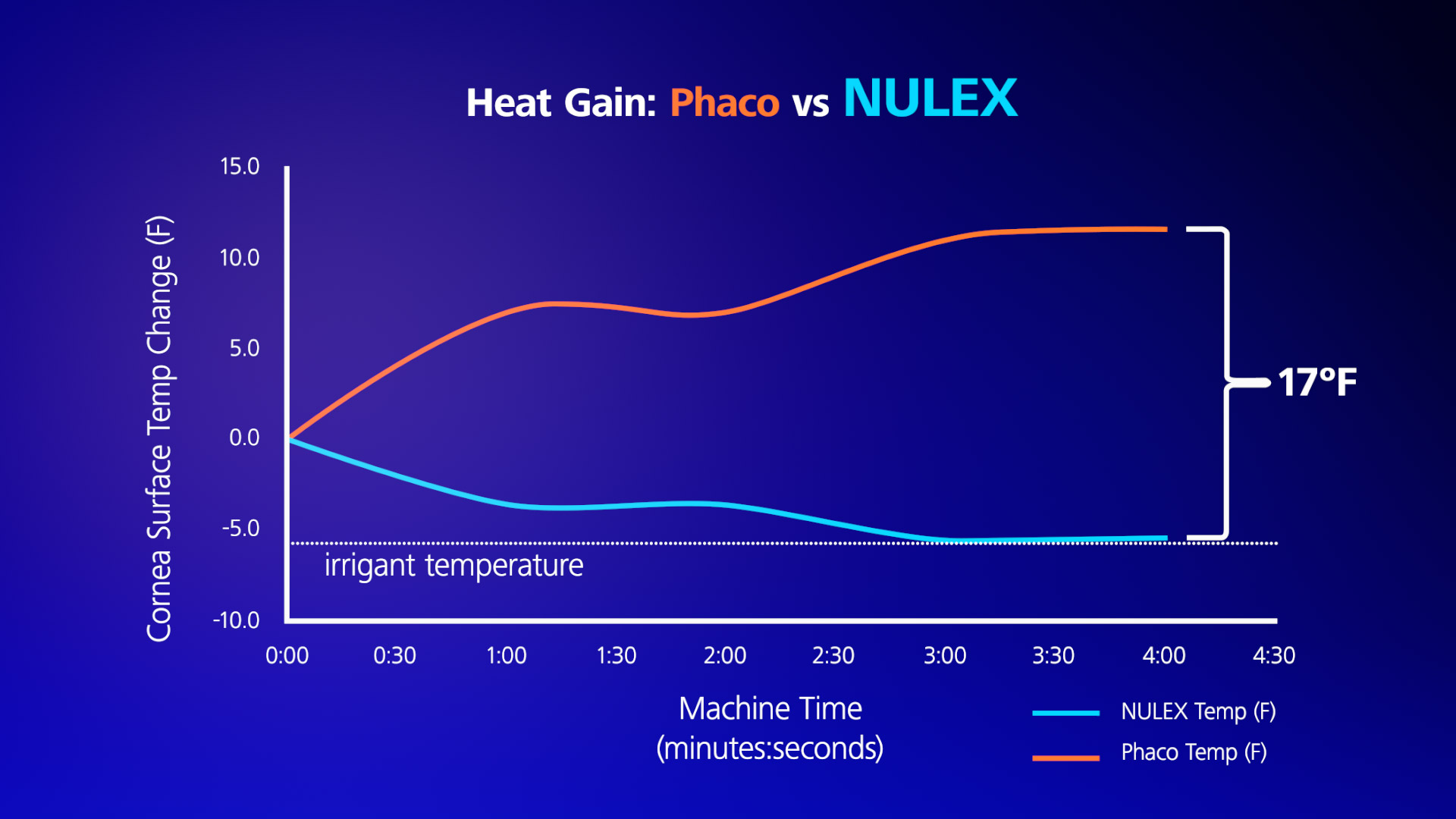

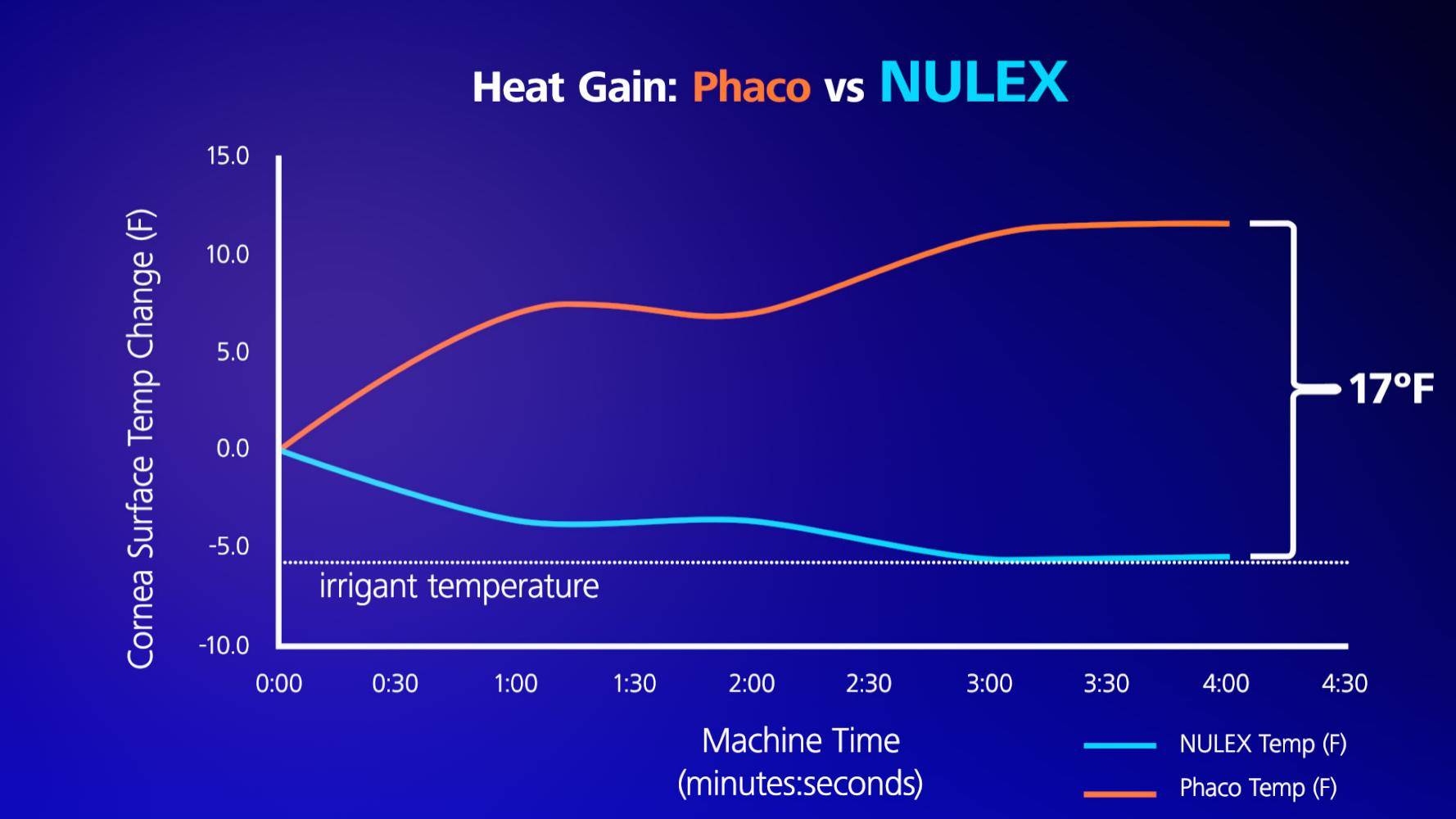

Heat Gain: Phaco vs. NULEX

The ultrasound free technology of ZEISS MICOR 700 does not heat up the corneal surface as much as conventional phaco.¹

I just did not think that there could be something even more disruptive. And on a level that does not utilize ultrasound. Everything that you need is right here. MICOR 700, one button does it all.

Dr. Elizabeth Yeu
This is the most excited I've been about cataract surgery in a while. The corneas are crystal clear, wounds seal well, and the post-op day one wow factor is certainly improved over traditional phaco emulsification.

Dr. Neel R. Desai

Customer Experience

ZEISS MICOR 700 Lens Extraction Device
Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

ZEISS MICOR 700 Lens Extraction Device

Cataract Removal Across Different Grades
Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Lens Fragmentation Device

Cataract Removal using ZEISS MICOR 700 Lens Extraction Device with ZEISS miLOOP

Pump Type	3 Cylinder Positive Displacement Pump
Vacuum	0 to 650 mmHg, Flow Based
Flow Rate	Linear Variable from 7 to 43 cc/min

Irrigation Method	Gravity Based
IOP level	74 mmHg with bag height of 40 in (1 meter) above eye at sea level.

Tip motion	Asymmetric Axial
Frequency	0 to 40 Hz
Amplitude	0 to 150 microns
Velocity	4 to 6 m/s
Cutter Tube	Straight, Round, .85mm diameter
Cutter Tip	Blunt
Incision Size	2.4 mm
Handpiece	Disposable

Handpiece Type	Disposable, dual blade, 21 gauge
Cutting Rate	200 to 5,000 cuts per minute
Vacuum	Peristaltic, 0 to 450 mmHg

Weight	24g	30g
Diameter	20mm	21mm
Length	105mm	146mm

Operating Voltage	9V DC
Power Consumption	11.5mA
Rated frequency	50-60Hz
Power Supply	100-240 VAC
