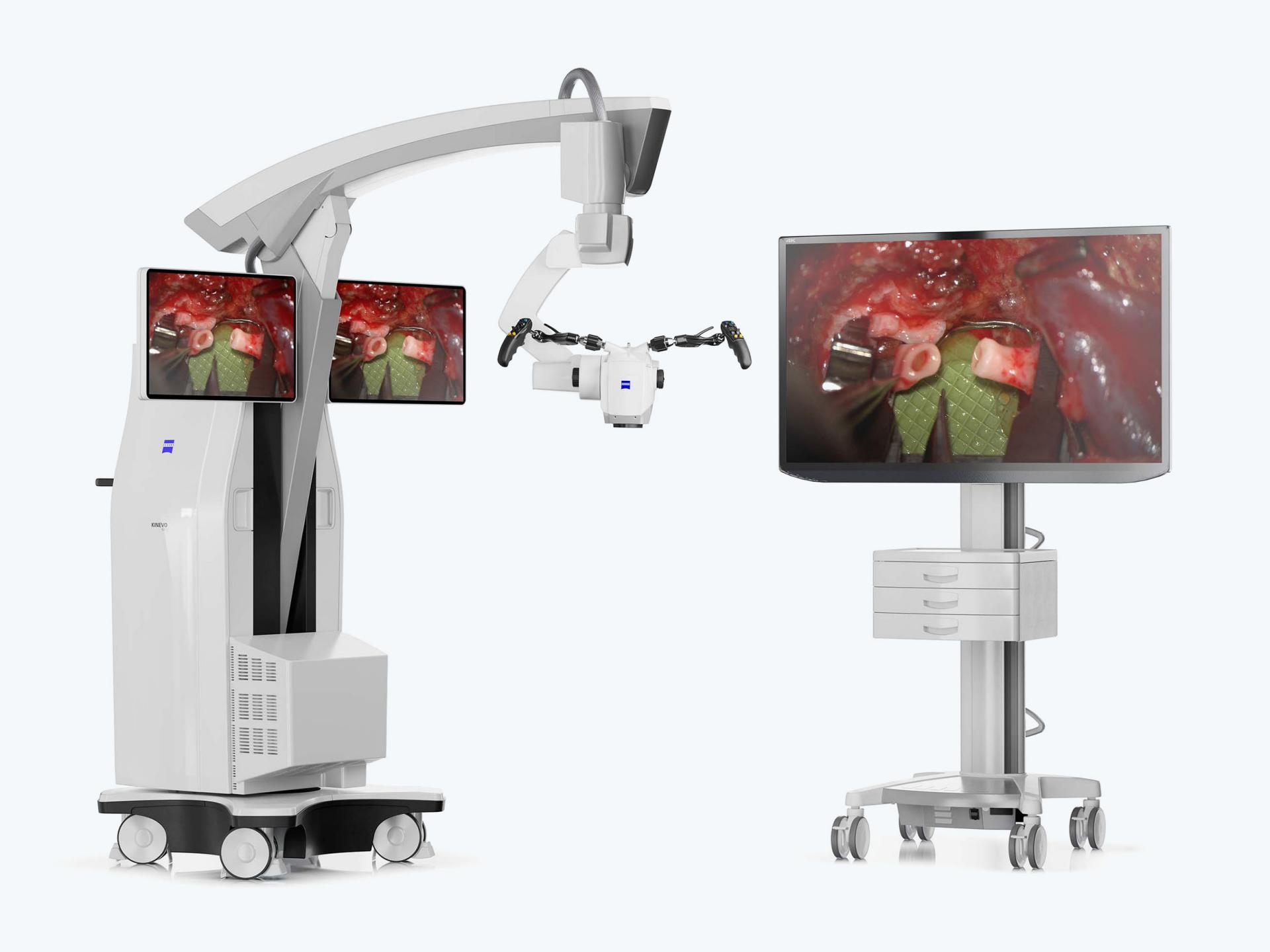

ZEISS KINEVO 900 S

Turning complex into clarity.

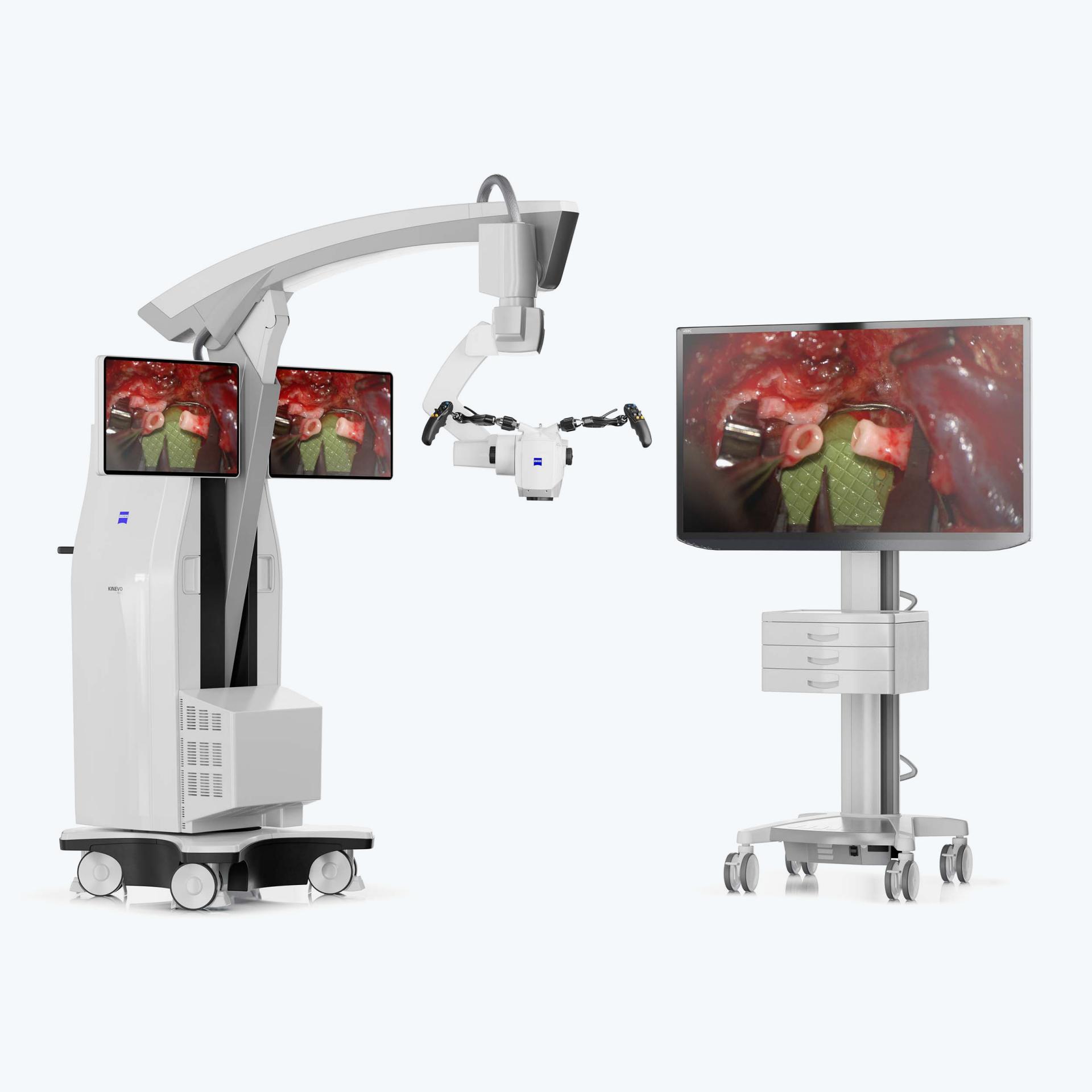

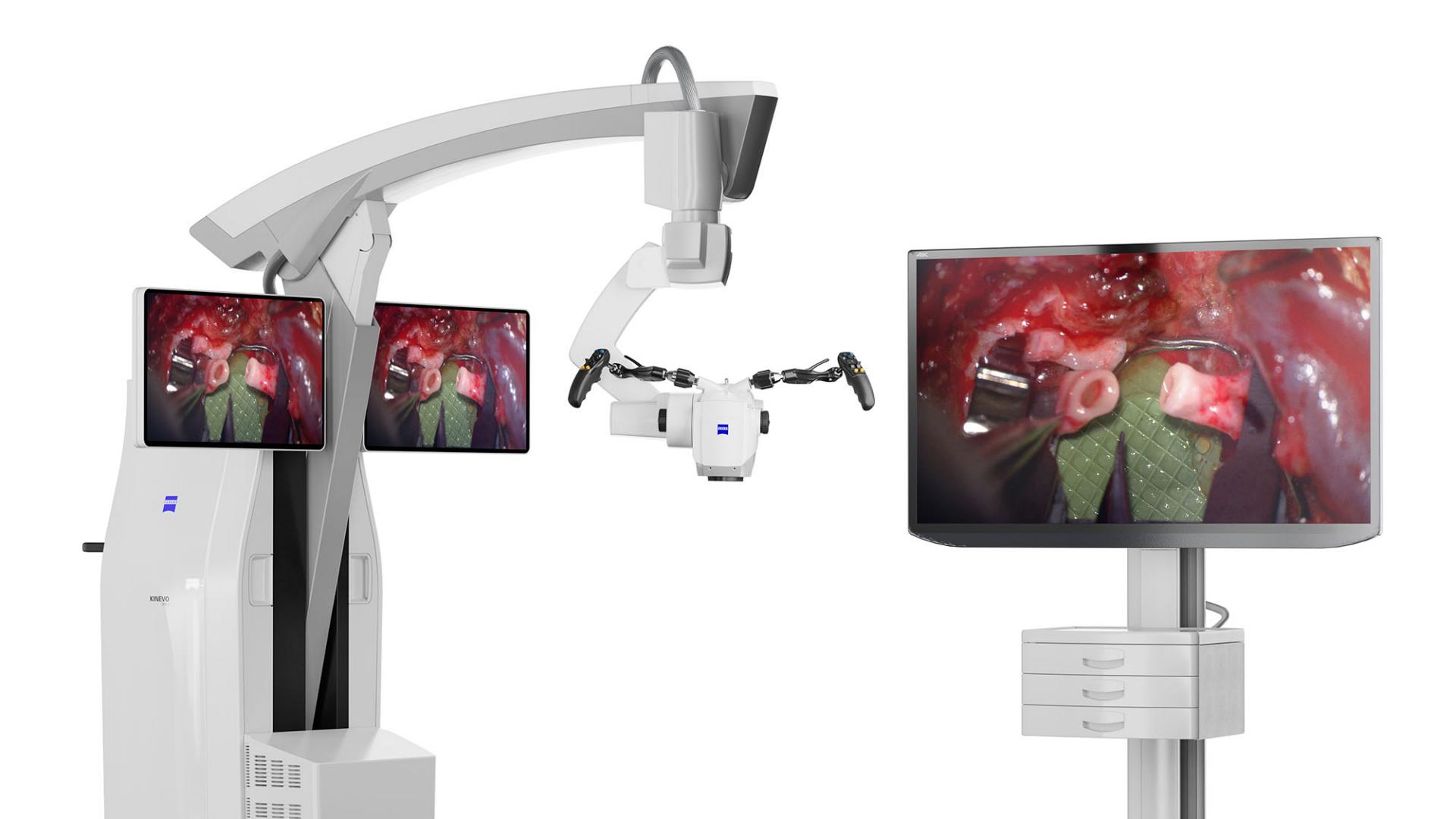

ZEISS KINEVO 900 S

  • Best Digital Visualization
  • Cobotic Assistant
  • Connected Intelligence

Interested in a specialty outside of plastic & reconstructive surgery?

Choose your field of interest:

Join the digital (r)evolution

Simplify your surgical workflow

Complex surgeries require clear solutions. Introduced in 2017, our groundbreaking KINEVO® platform from ZEISS set a new benchmark in assisting surgeons with additional insights for better clinical decisions, while reducing complexity and manual repositioning.

Now, it has undergone a (r)evolution to become the ZEISS KINEVO 900 S and takes on the challenges of modern plastic and reconstructive surgery (PRS) in university and teaching environments.

Best Digital Visualization

Best Digital Visualization

for unsurpassed exoscopic image clarity

Delicate functional tissues and tiny anatomical structures require extreme precision when manipulating these regions during complex reconstructive surgeries.

Best Digital Visualization offers an unparalleled view in native 4K 3D digital image quality. It enables exoscopic procedures and a more ergonomic posture, more effective team involvement, and extended training opportunities. In digital and optical modes, its enhanced ZEISS INFRARED 800 and DepthPro capabilities support intraoperative decision-making.

Experience a new dimension of clarity ZEISS KINEVO 900 S

Native 4K 3D image quality

Work exoscopically with ease

Native 4K 3D imaging and 4K video recording provide highest standard in digital visualization with more lines, resolution, and colors than ever before. By combining synchronized video and appropriate depth-of-field settings, the image even surpasses optical quality in some situations.

This enables exoscopic approaches and delivers ergonomic benefits. Due to the hybrid visualization concept with presets facilitating the exoscopic set-up and the flexibility to switch back to oculars when needed, ZEISS KINEVO 900 S is the ideal device to get started with exoscopic approaches.

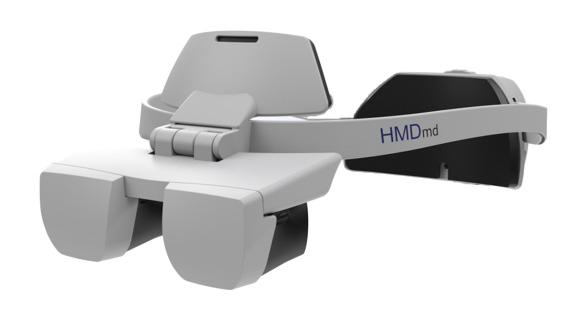

Head-mounted display

Keep the surgical site in front of your eyes

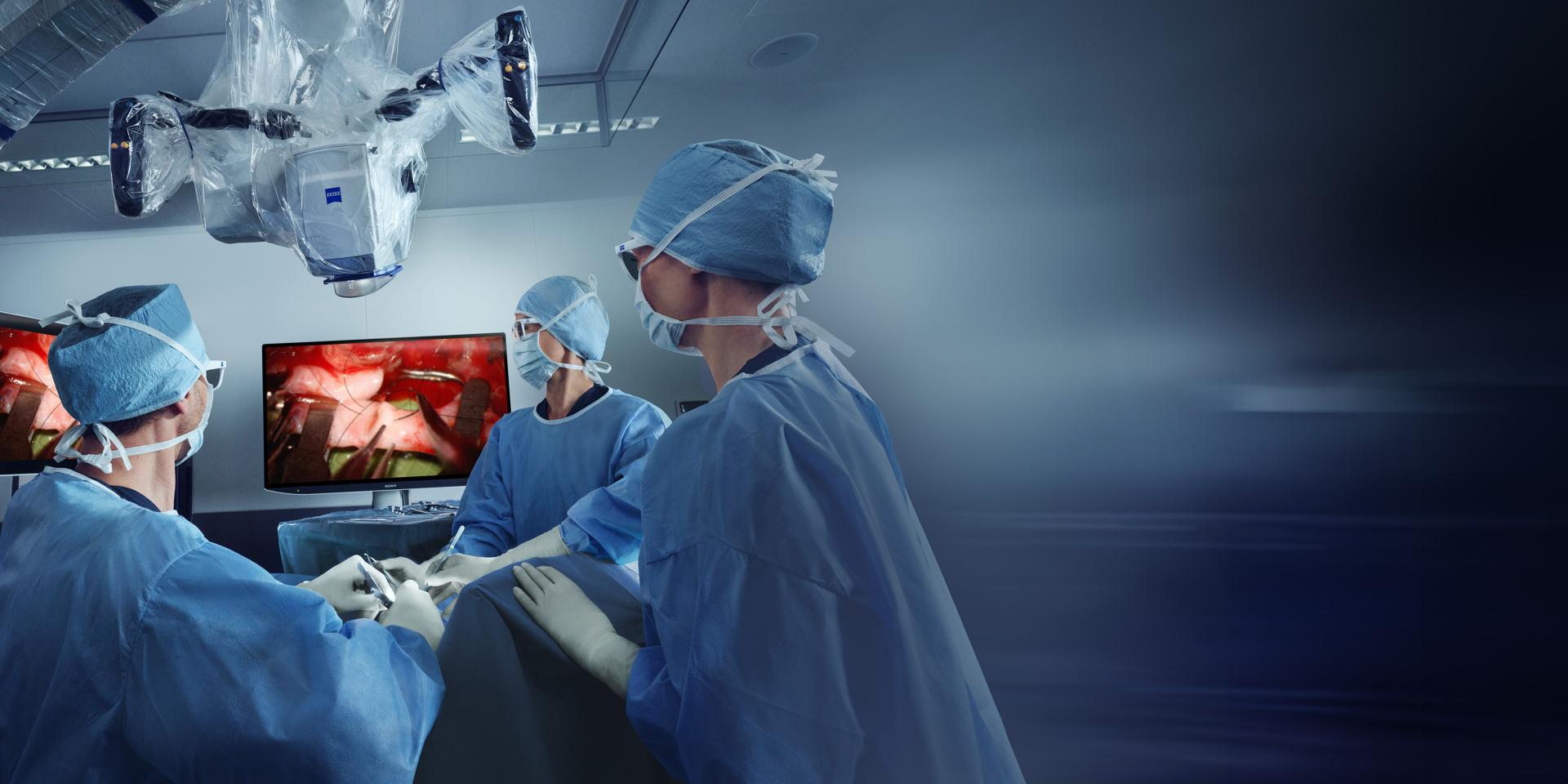

The innovative, lightweight head-mounted display1 (HMD) shows high-definition images in both 2D as well as 3D and ensures optimized positioning of the entire surgical team. Thanks to direct plug & play with ZEISS KINEVO 900 S, students and assistants can now see what the main surgeon sees and the entire team is engaged.

Video presets to go exoscopically in no time

Predefined video settings simplify your work, while synchronized video settings for camera and screen provide greater confidence and time efficiency, e.g. when working completely exoscopically.

Gain information on different anatomical layers with predefined or user-specific settings.
Visualize finest structures with maximum contrast and color.
Enjoy an optimized field of view for exoscopic approaches.
  • DepthPro

    Get deeper insights

    For deep-located procedures, DepthPro provides greater depth of field in digital and optical mode. With the freedom to predefine custom settings, you can see everything in your field of view in focus whenever needed – for enhanced efficiency and precision in your procedures.

  • Depth pro in clinical use
    Depth pro in clinical use

    DepthPro in clinical use

    Visualization during cerebellopontine angle tumor (acoustic neurinoma)

    Get more insights into different anatomical layers. The example shows how DepthPro increases depth of field allowing more details to be seen in the surgical field during acoustic neurinoma surgery.

ZEISS INFRARED 800

ldentify, assess, and check vessels

Autologous reconstruction techniques, which offer patients the advantage of a natural look and feel of the reconstructed tissue, have significantly evolved in the last few decades. Among these techniques, in particular DIEP flap (deep inferior epigastric artery perforator) surgery has developed into a gold standard for breast reconstruction.2 To ensure the success of these procedures, it is crucial to ensure blood supply to the tissue flap.3 Intraoperative visual feedback on blood flow is therefore essential for intraoperative decisions.

The microscope-integrated indocyanine-green (ICG) imaging technology visualizes even submillimeter blood vessels, vascular patency, and perfusion of grafted tissue in brilliant HD quality. The enhanced live overlay, which can be followed in the oculars and on the monitors, enables a real-time assessment of flow. In digital and optical modes, ZEISS KINEVO 900 S supports intraoperative decision-making and smooth surgical workflows in advanced reconstructive procedures.

ZEISS INFRARED 800 in clinical use

Visualization during DIEP flap surgery

During DIEP (deep inferior epigastric artery perforator) flap surgery, it is crucial to ensure blood supply to the tissue flap. Visual feedback on blood flow is therefore essential for intraoperative decisions, as the example shows.

Cobotic Assistant

Cobotic Assistant

for a better performance with robotics

During complex reconstructive procedures, you need your full attention with as little interruptions as possible. Therefore, seamless collaboration between surgeons and advanced technologies is essential.

Collaborative robotics, known as cobotics, foster a working partnership between you and the ZEISS KINEVO 900 S. By utilizing robotics and AI functions, the Cobotic Assistant reduces the need for manual readjustments and helps you keep your hands in the surgical field.

Keep your focus – ZEISS KINEVO 900 S

AutoCenter

Stay in focus

Especially during cases with high magnification needs like peripheral nerve repair, it might be necessary to repeatedly, manually adjust the visualization system. Using a closed AI-trained algorithm to identify surgical tools and center the field of view to the tips, AutoCenter enables hands-free positioning and ensures optimized illumination, visualization, and documentation when activated by the foot control panel.

Voice Assistant

Say “Hey KINEVO”

During complex surgeries, keeping your hands in the surgical field not only saves time, but it also keeps your focus on the task at hand. A unique Voice Assistant functionality has been implemented in ZEISS KINEVO 900 S, which allows intuitive interaction with the system using voice commands.

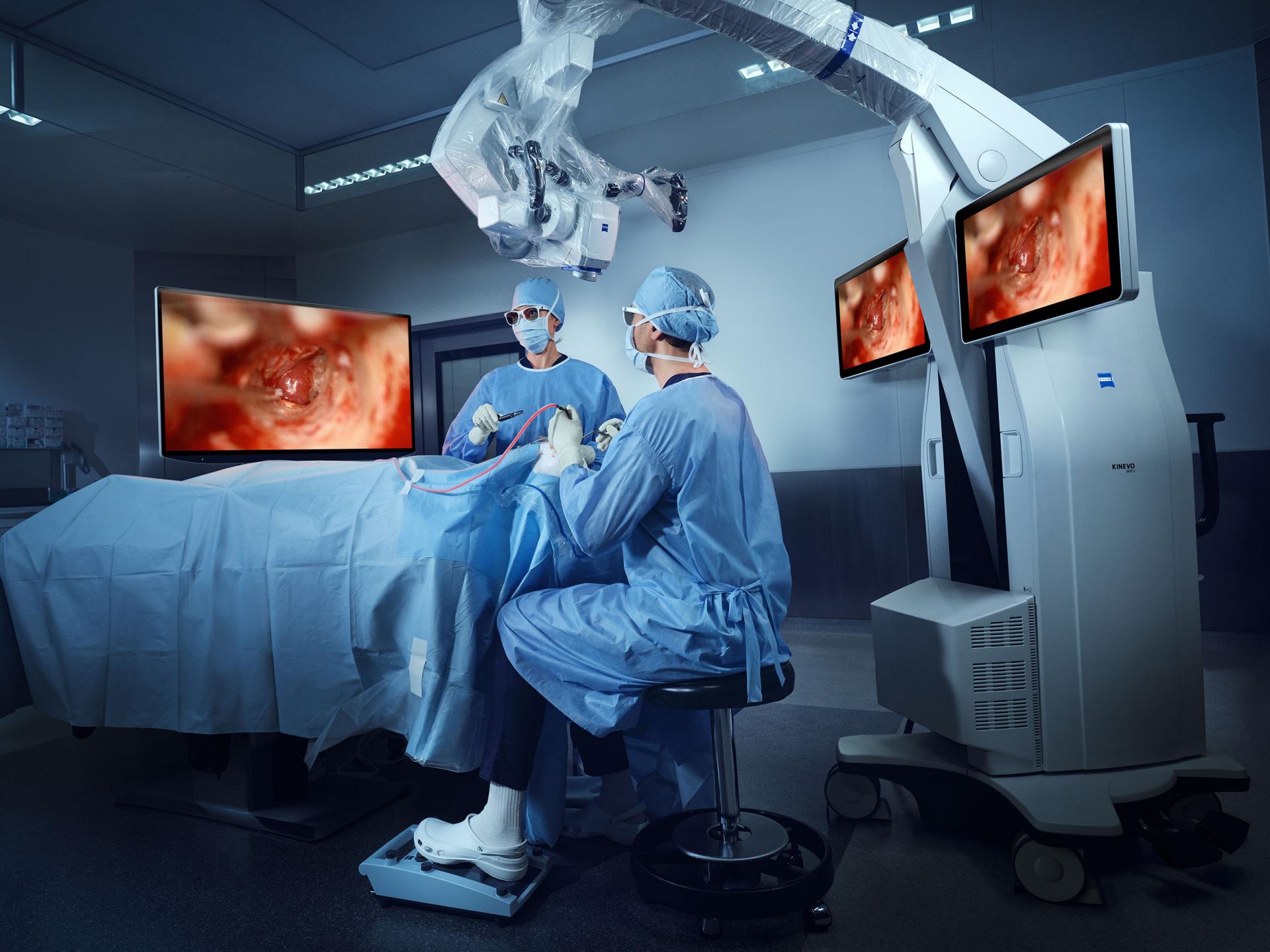

Improved Robotics

Move your system effortlessly

During microsurgical procedures, the visualization system needs to be repositioned multiple times to ensure best visualization of the surgical field. The stand’s kinematic design assists you in addressing this challenge.

Robotic functionalities in detail

  • Z-Mode

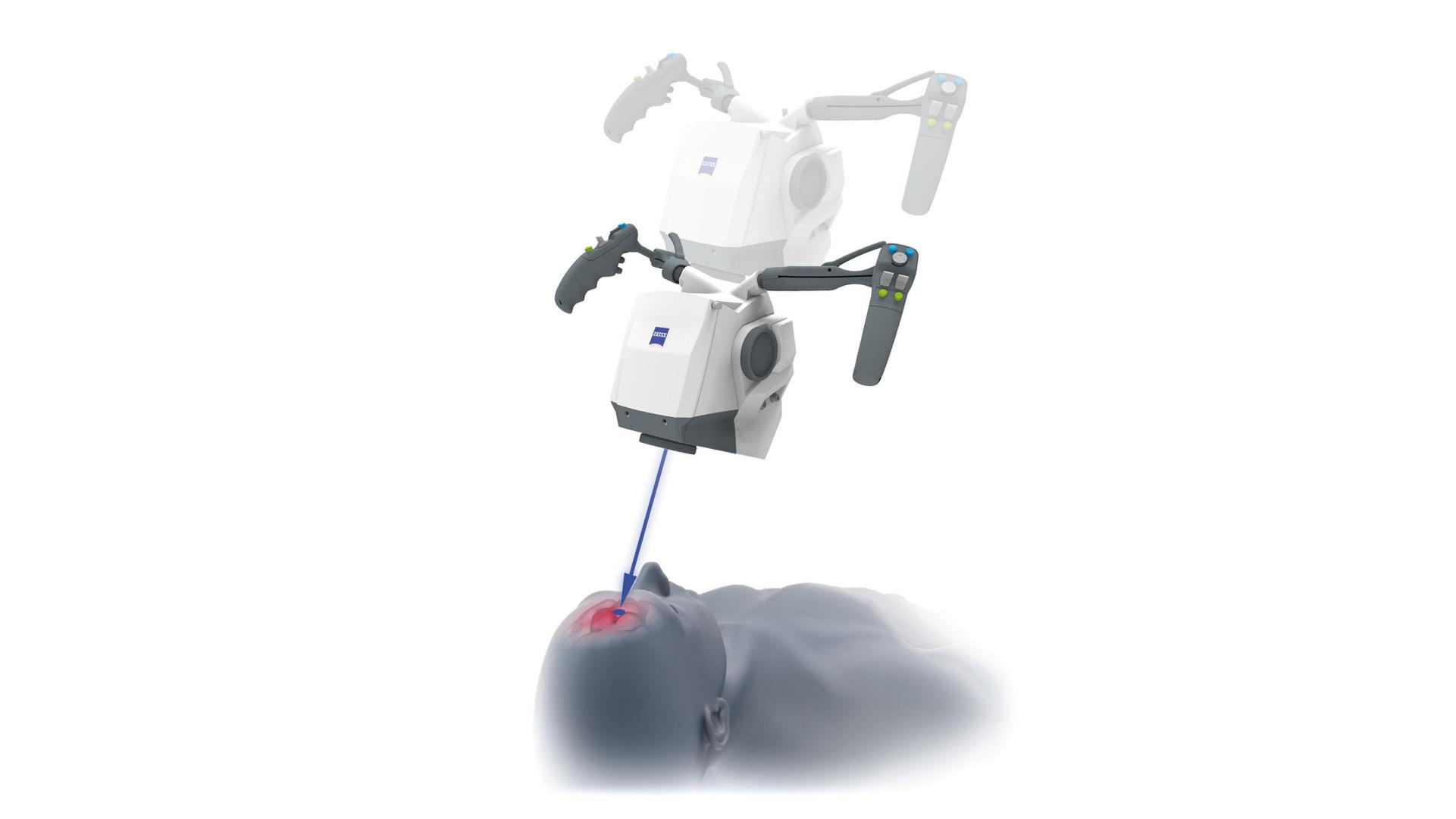

    Z-Mode

    enables a movement function, which only moves along the optical axis, keeping the center and size of the visualized anatomical structures.

  • PositionMemory

    PositionMemory

    stores any position as a bookmark to be recalled. This allows you to precisely position the microscope back to a specific anatomical landmark in the surgical field of view.

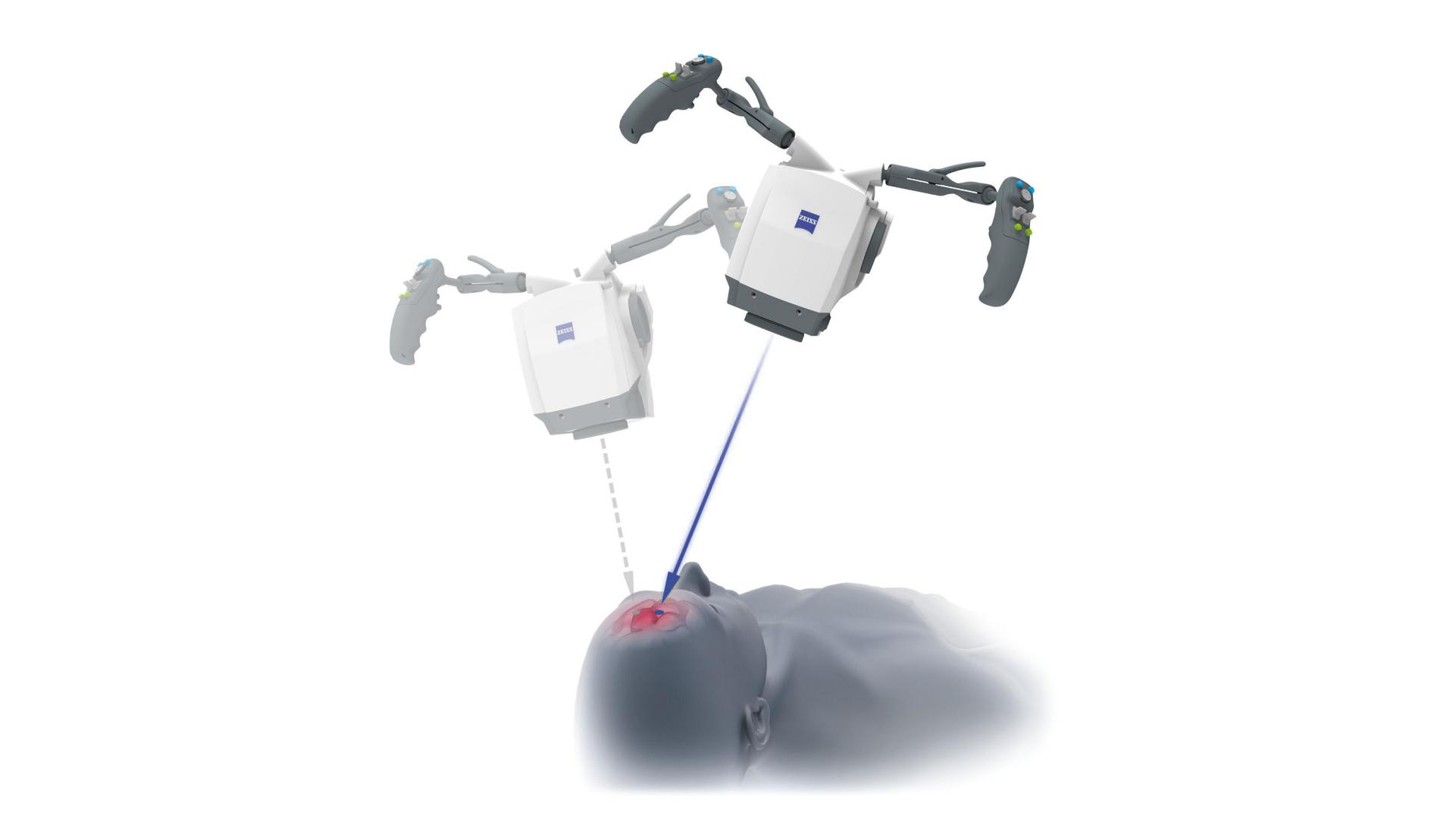

  • PointLock

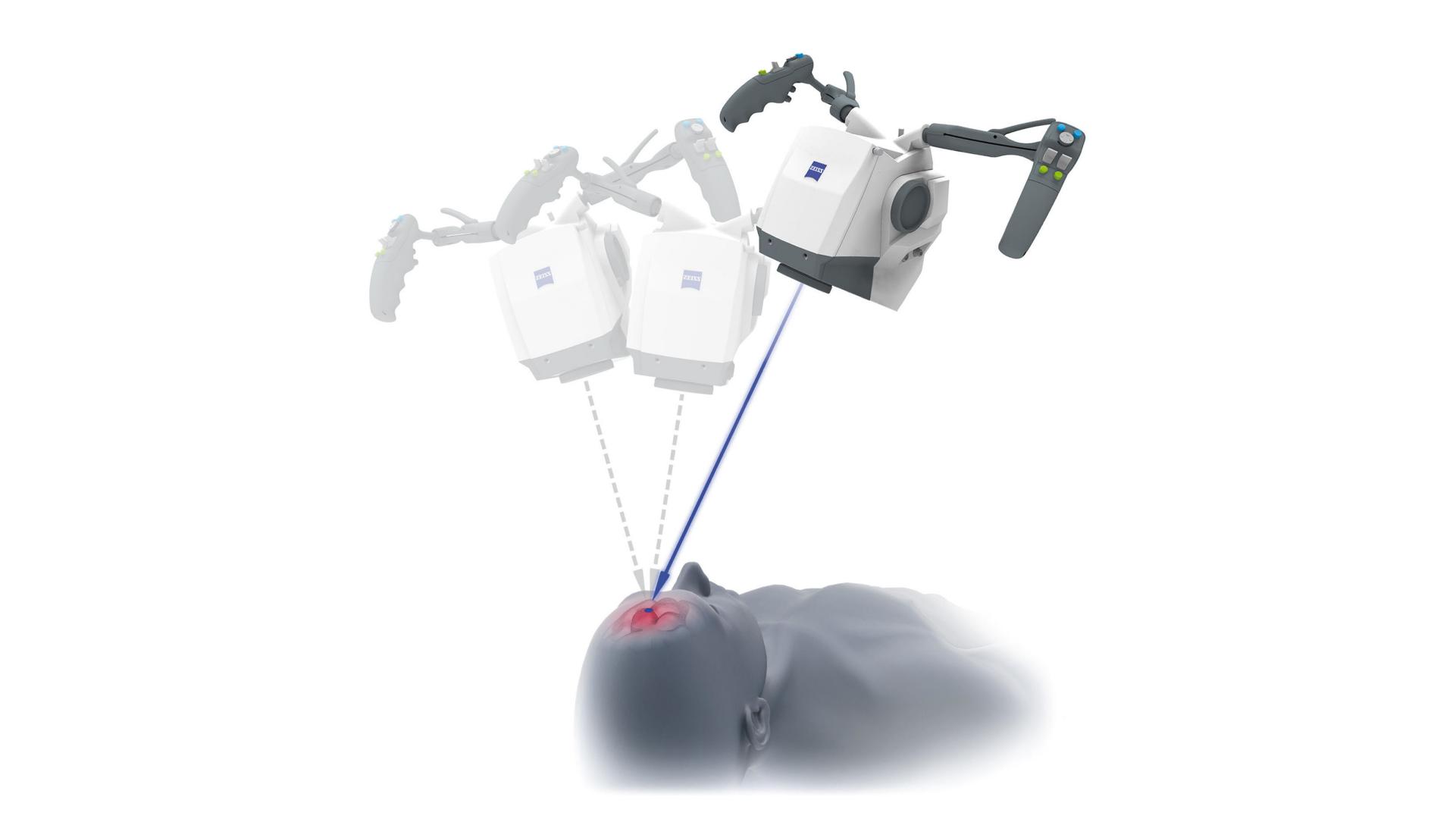

    PointLock

    allows the microscope head to be repositioned easily while keeping the point of interest focused on the center of the field of view, allowing as well the keyhole movement.

  • Park & Height Assistant

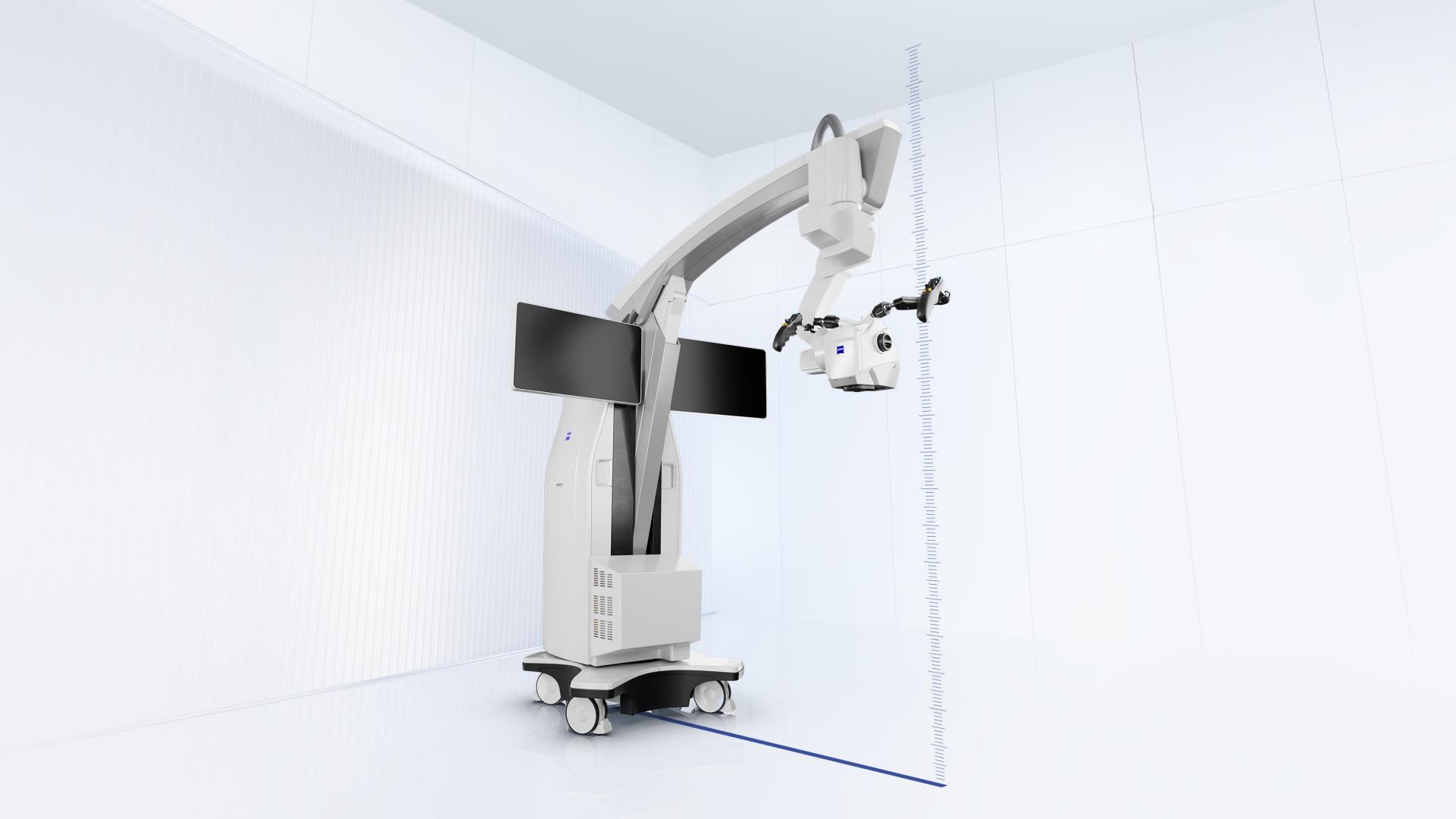

    Park & Height Assistant

    permits to define specific “no-fly-zones”, which help you park the device after your surgery (Park Assistant) or define your OR height as maximum height (Height Assistant).

Connected Intelligence

Connected Intelligence

for teaching, peer exchange and proactive services

In dynamic teaching environments, it is essential for a smooth and efficient process to immediately transfer and utilize the collected data across systems, and share it with a wider audience.

To meet this need, ZEISS KINEVO 900 S provides access to leading digital solutions from ZEISS to simplify data management, facilitate peer exchange, and ensure uptime of your system.

Get connected – ZEISS KINEVO 900 S

Manage your data

Manage your data

with ZEISS Surgical Cloud

Managing data for documentation, collaboration, peer exchange, and education can be very time-consuming. With integrated interfaces to all common hospital systems, our cloud-based solution enables you to securely synchronize, access, and share recorded images anytime, anywhere.

Broadcast your expertise

with ZEISS Livestream

Teaching and knowledge sharing can be limited by OR space or distance. Our integrated livestreaming solution allows you to simply schedule live surgeries, send invitation links to remote participants, and stream your procedure to a broad audience around the world in real time.

HMDmd CR3

ZEISS OPTIME complete+

Ensure uptime

For efficient OR planning, it is essential that your systems are up and running. You can ensure guaranteed uptime4 with OPTIME complete+, a new generation of digital, connected services.5 Powered by data-driven insights, ZEISS OPTIME complete+ provides proactive and convenient services that you can benefit from an optimal system performance and proactive risk mitigation.

Gain the extra in efficiency

with additional functions and accessories

  • Graphical User Interface

    Graphical user interface

    is intuitive and modern, and comes on a high-definition touchscreen.

  • Optical accessories

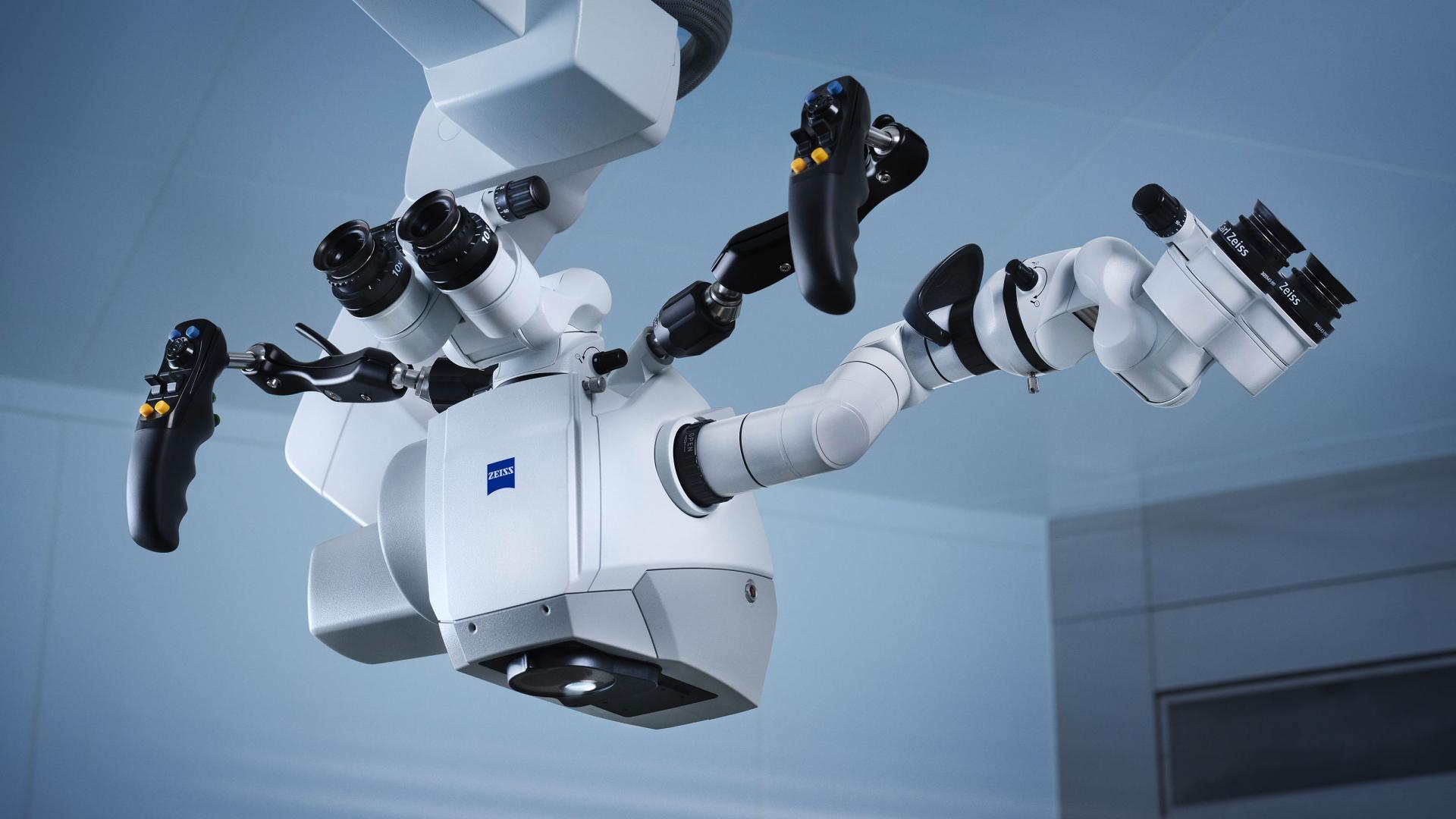

    Optical accessories

    include a wide range of optical tubes, ensuring a comfortable position.

  • ZEISS QEVO

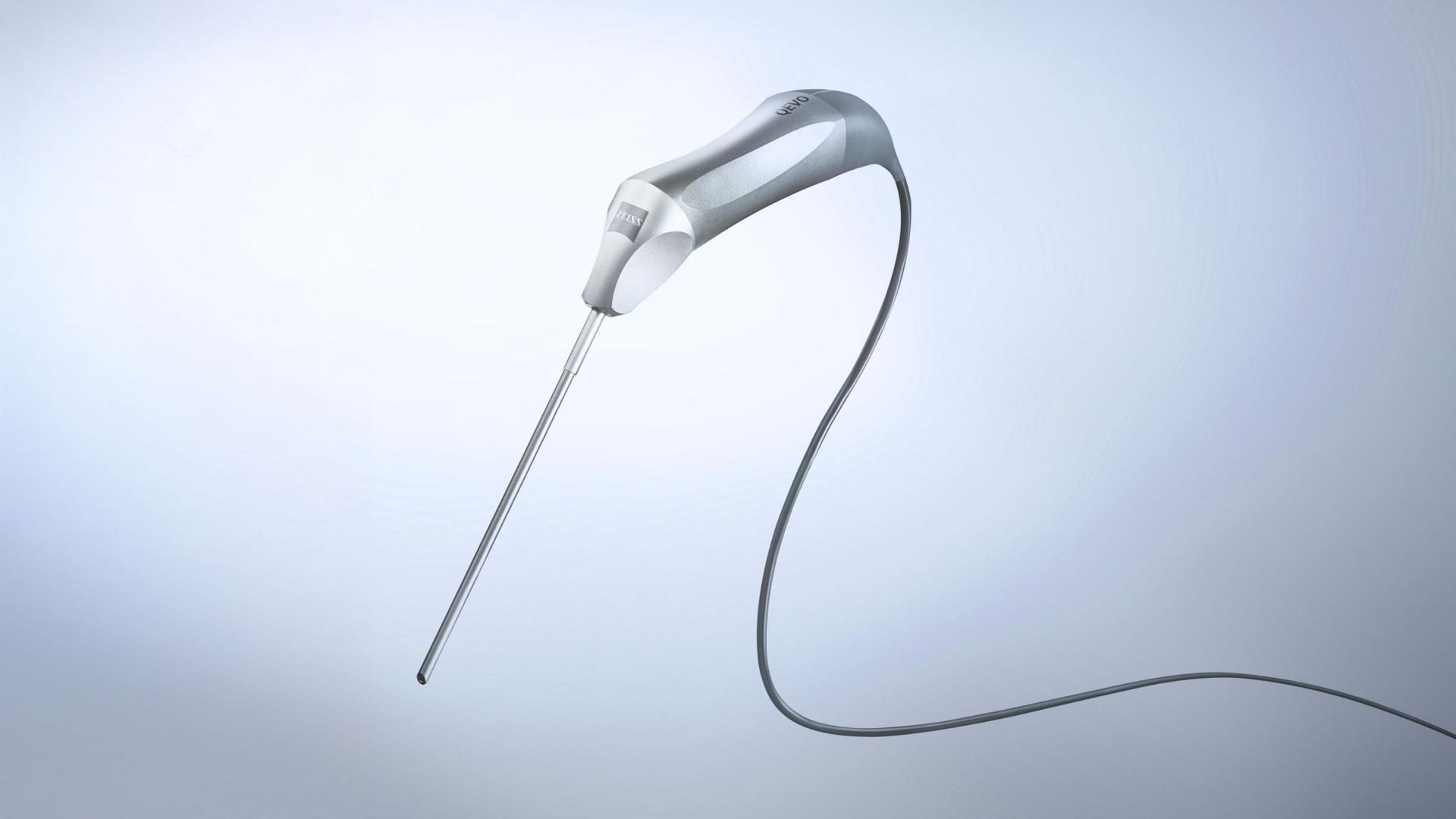

    ZEISS QEVO

    allows to look around corners and eliminate blind spots – for better clinical decisions.

  • Foot Control Panel

    Foot Control Panel

    conveniently controls up to fourteen different functions – including AutoCenter.

  • Draping

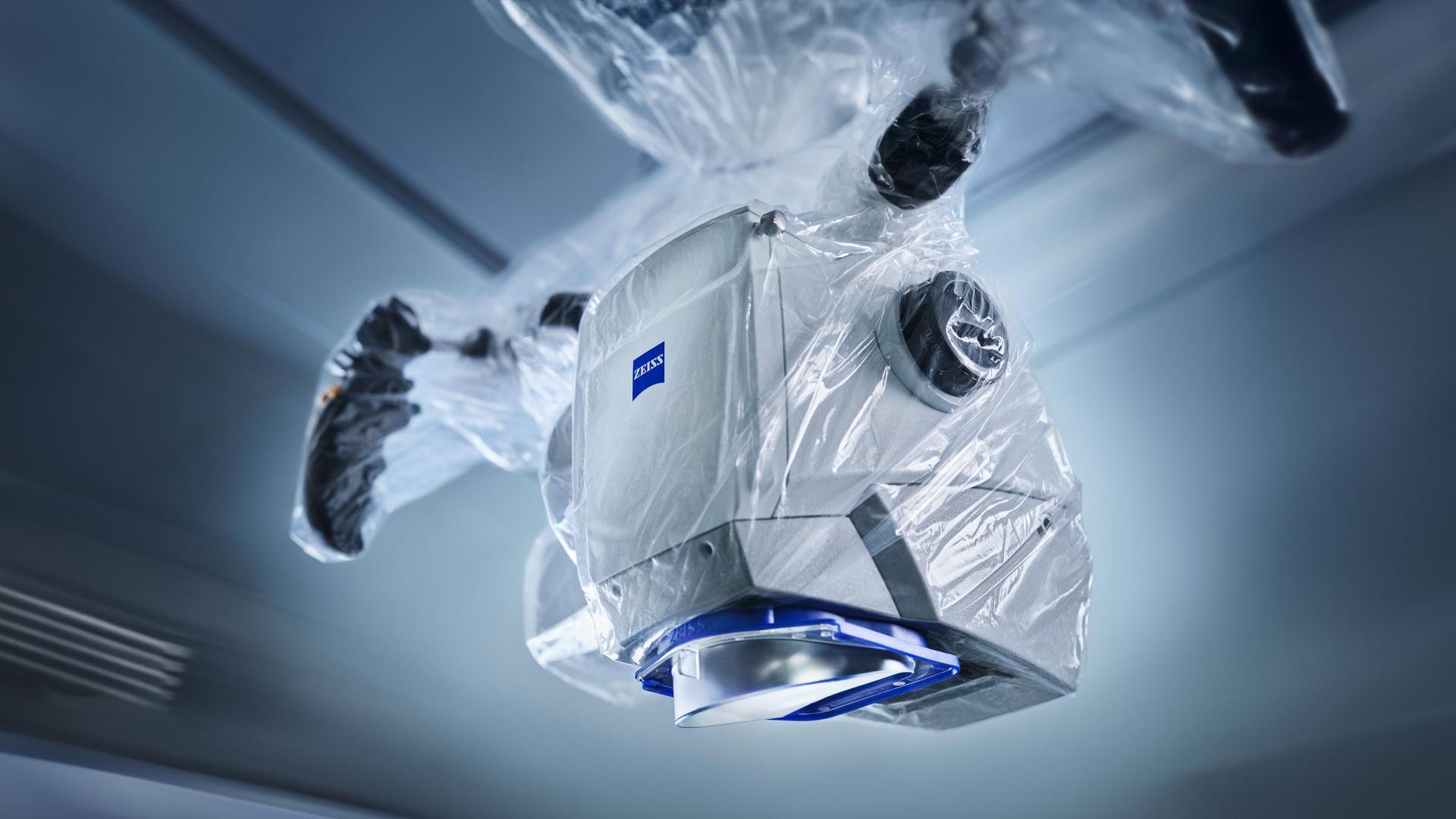

    Draping

    with SMARTDRAPE® and AutoDrape® function supports an efficient OR preparation.

Technical Specifications
Technical Specifications

Technical Specifications

Read more about the technical specifications and the pre-defined packages of the ZEISS KINEVO 900 S.
