ZEISS metrology for interior components in automotive engineering
Automotive components

Interior

Comfort and convenience

Production process secured by statistical process control

To ensure a pleasant driving experience, interior features such as seats, steering wheel, dashboard and infotainment systems should be of high quality. For comfort, convenience and safety, the curvature of the dashboard and the orientation of controls are just as important as the ergonomic design of seats and controls, including their shape and contour. Infotainment systems provide entertainment, navigation and connectivity features that enhance the overall driving experience.

All interior components must be accurately manufactured and correctly fitted. Problems with fitting accuracy can lead to rattling noises, improper operation or even safety risks. Even small parts, such as the button on the seatbelt buckle, are safety-relevant and must be of high quality.

In addition to initial sampling, standard quality checks are required directly in production to ensure that the specified tolerances are met and that the causes of defects are identified at an early stage.

Increase in productivity

Tolerance compliance and early fault detection

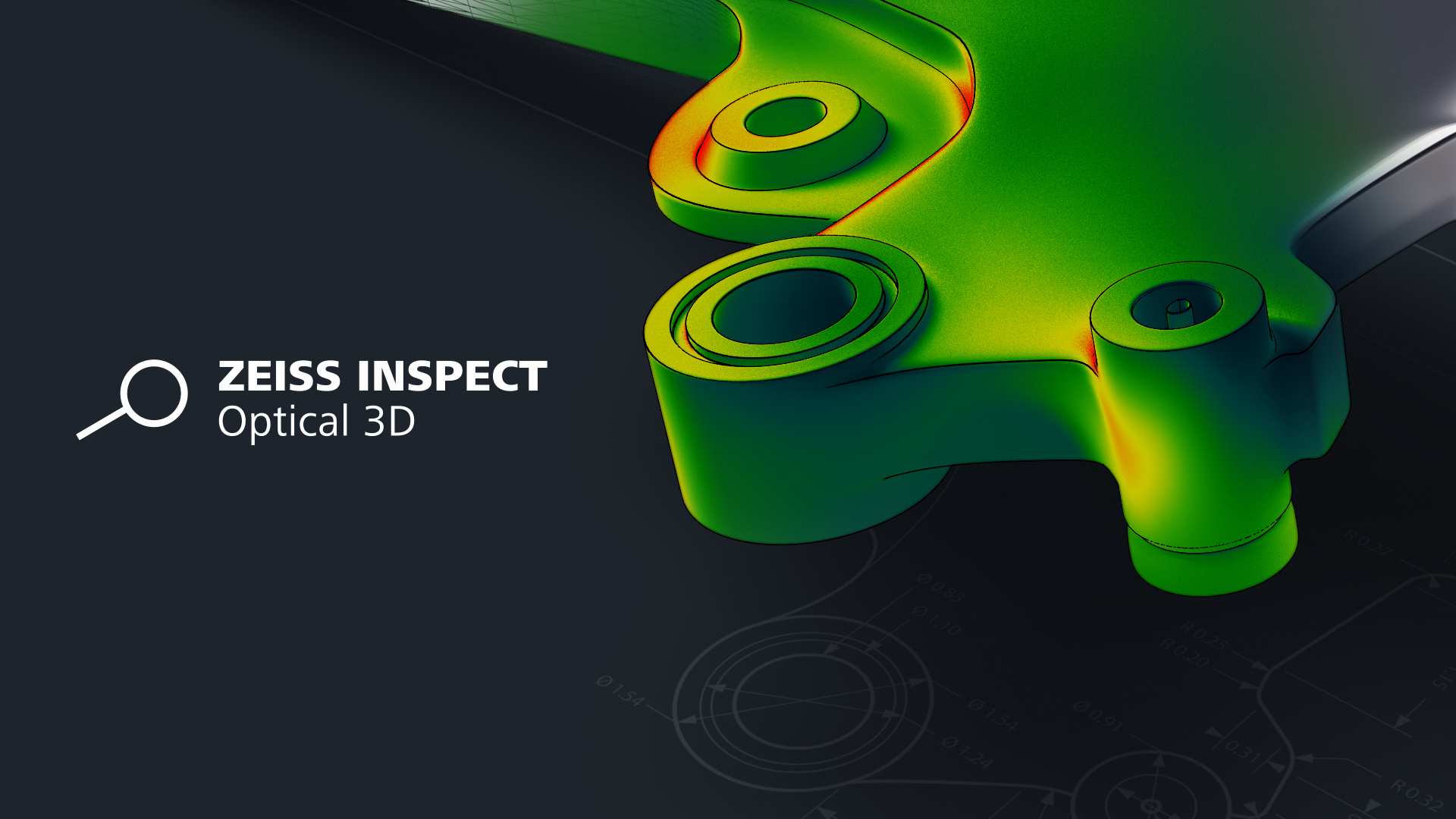

ZEISS INSPECT: Surfaces

Surfaces

You need a complete 3D mesh for visualisation, reverse engineering and target/actual comparisons.

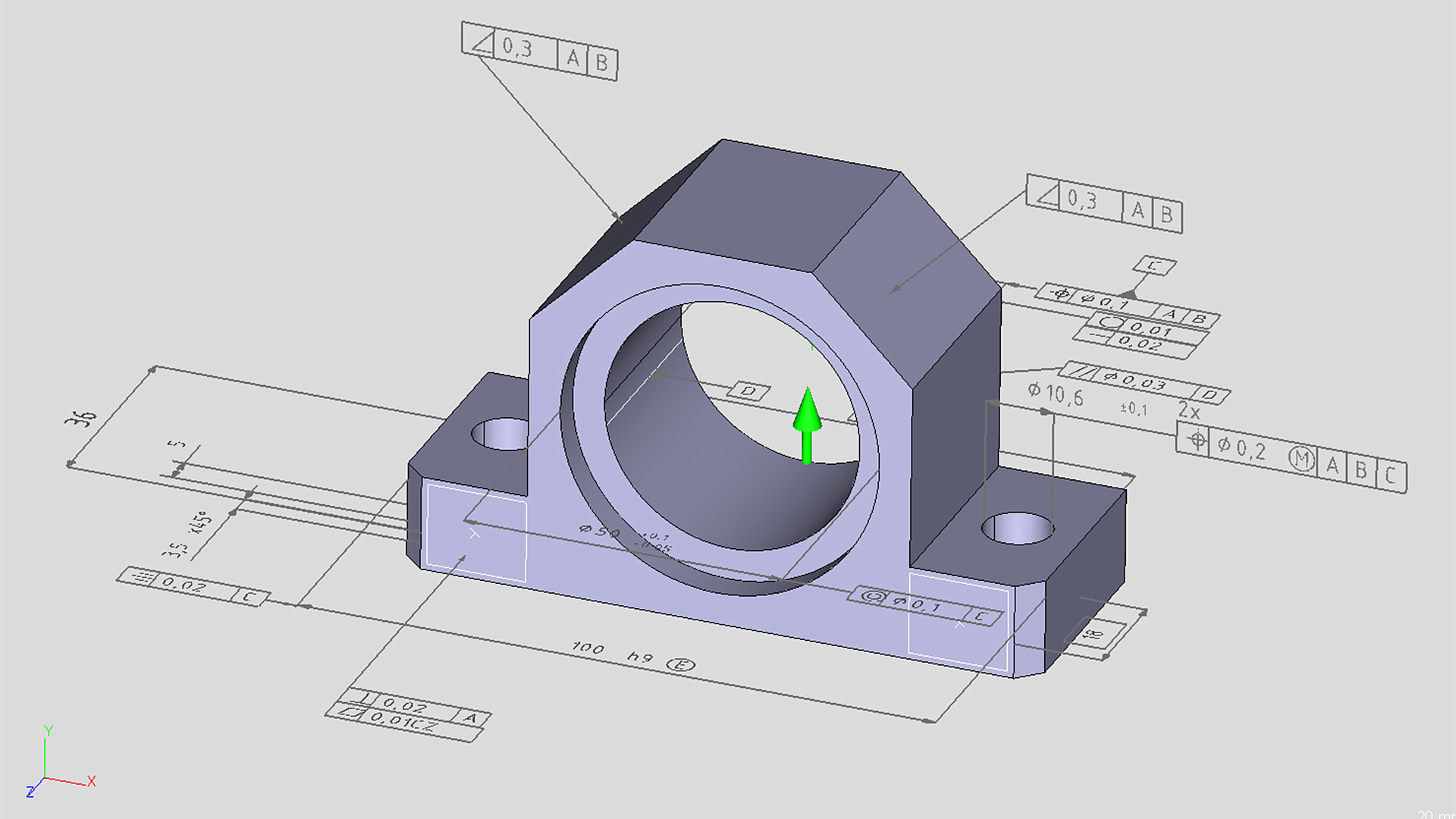

ZEISS CALYPSO: Standard geometry

Standard geometry

The polygon mesh describes standard geometries that can be compared with the CAD data set in the shape and dimension analysis.

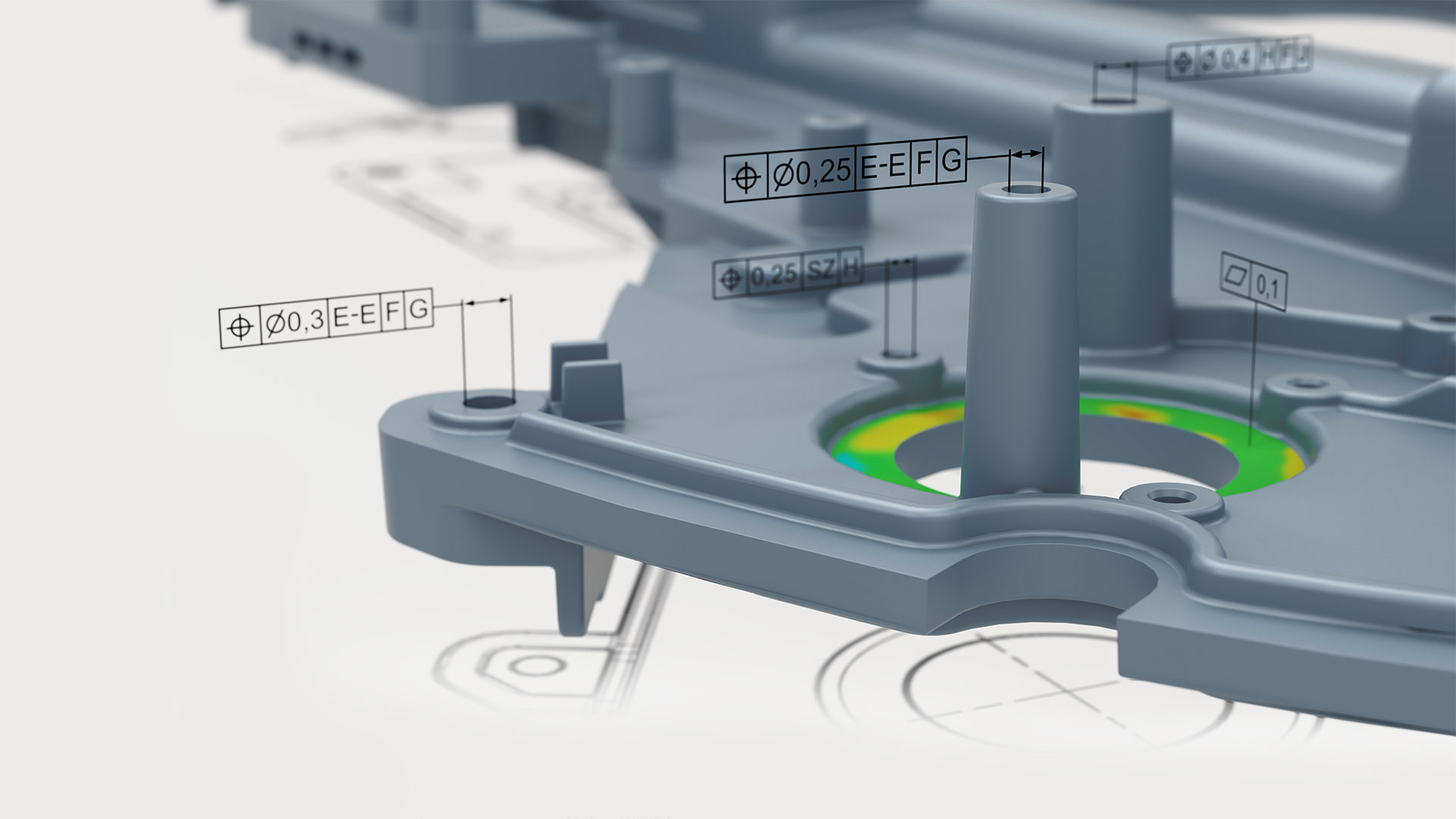

ZEISS INSPECT: GD&T tolerances

GD&T tolerances

In just a few steps, you can check whether the shape and position of the parts are within the defined tolerances.

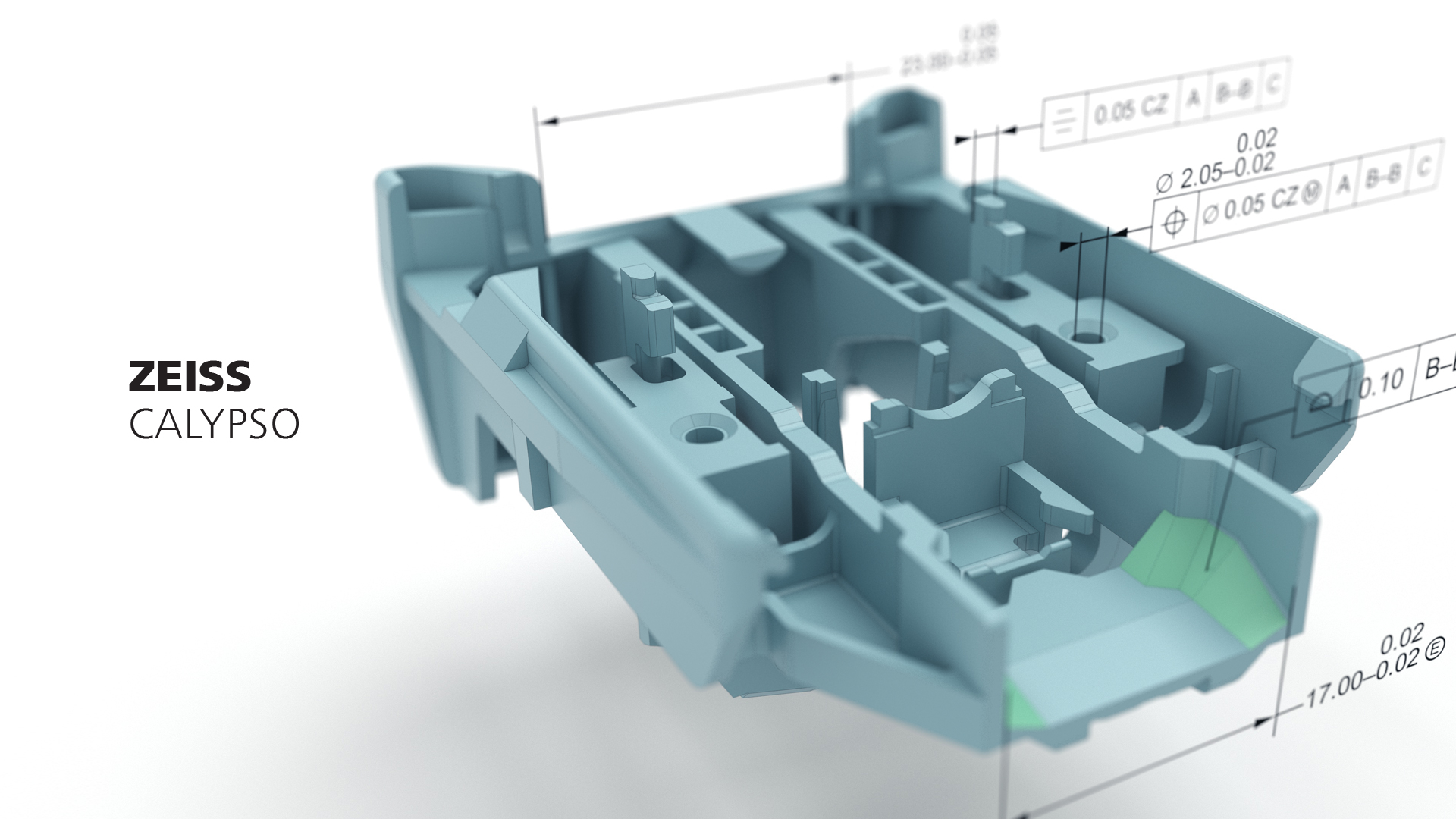

ZEISS CALYPSO: Measurement plan

Measurement plan

You can easily program test plans by clicking on the desired features.

Exclusive insights

ZEISS success stories

Automated Inspection of Cockpit Modules
30.08.2022

Automated Inspection of Cockpit Modules

SAS Autosystemtechnik GmbH produces cockpit modules and covers all process steps – from assembly, shipment and installation to recycling.
