ZEISS metrology for power electronics in automotive engineering
Automotive components

Power Electronics

The heart of modern vehicles

Non-destructive, comprehensive testing of complex geometries

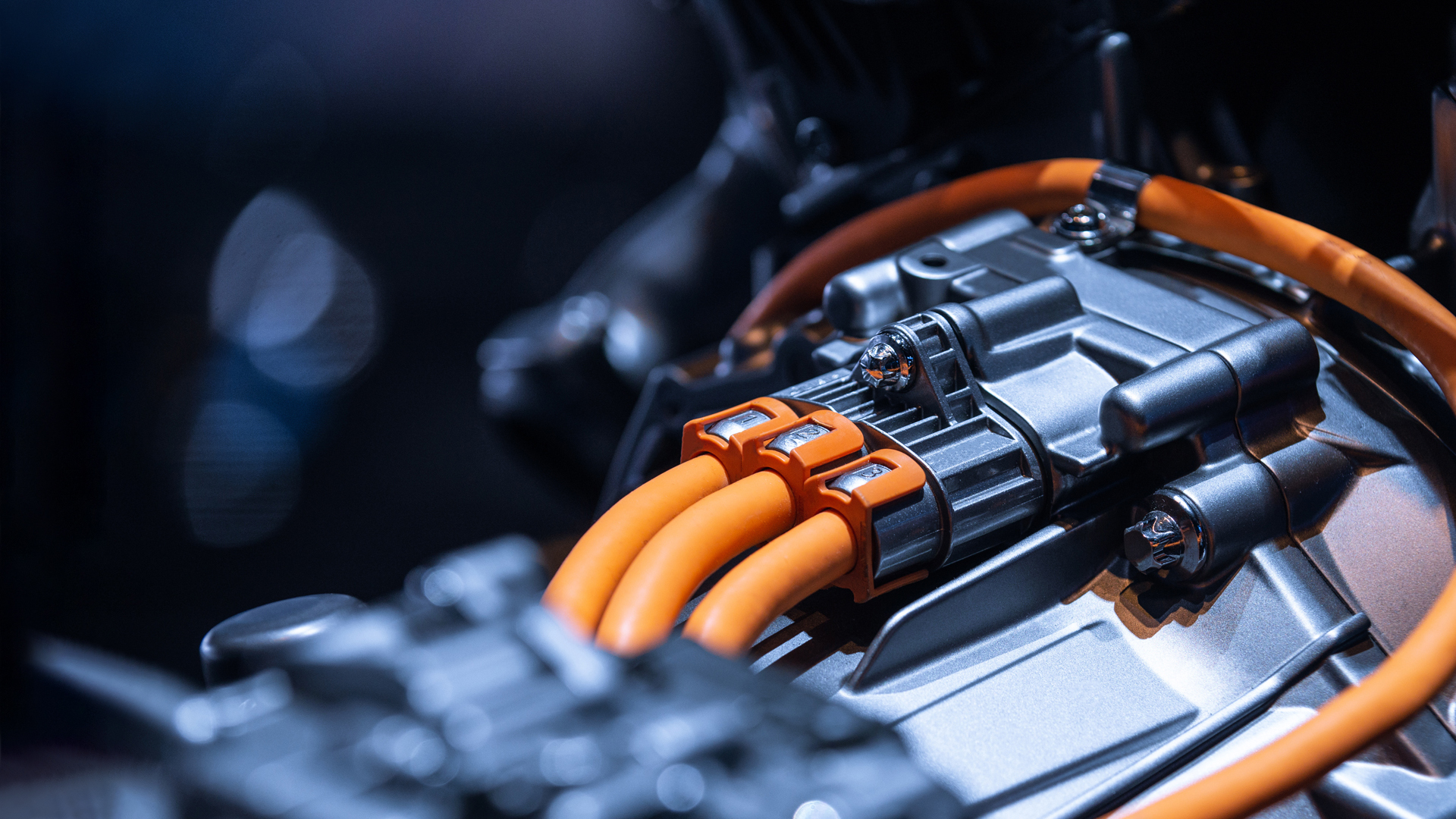

Power electronics are at the heart of modern vehicles, especially with the rise of electric and hybrid drives. Components such as inverters, converters and controllers for electric motors are critical for controlling the flow of energy between the power source and the powertrain. These parts play an important role in improving energy efficiency, controlling regenerative braking and ensuring a smooth transition between different driving modes. Power electronics can also be found in navigation devices, seat heaters and microswitches.

Quality assurance for these components is a major metrology challenge. For example, the plastic of microswitches is highly structured and contains numerous small elements. A complete inspection of these parts is only possible using non-destructive computed tomography. For other parts, the shapes are so complex that many features can no longer be inspected using conventional metrology. Mounting surfaces also often need to be measured to ensure accurate alignment and assembly.

  • ZEISS eMobility Solutions

    From energy to eMotion

    ZEISS eMobility solutions

    The development and introduction of new energy vehicles (NEVs) is accelerating worldwide. A major challenge for quality assurance in this area is the need to meet increased precision requirements - in other words, metrology is changing.

Exclusive insights

ZEISS success stories

ODW
12.10.2021

Analysis of Microswitches with Computed Tomography and ZEISS INSPECT X-Ray

ODW-ELEKTRIK is an innovative development partner and supplier of high-quality cabling, solenoids and mechatronic systems. Bernd Föller, who heads the measuring laboratory for ODW-ELEKTRIK, reports from practice.

Reliability and quality of measurement results increased
03.07.2018

Reliability and quality of measurement results increased

Robert Bosch GmbH tests complex geometries directly in production, thereby achieving higher quality and reliability.
