Reliable components through inspection and quality data

E-motor quality management in production

Highest accuracy for automated processes

Many of the components in compact high-performance electric motors are produced in automated processes. They require checks at every stage of production – though the requirements may vary, precision is a constant need. E-motor performance depends on ensuring proper positioning, accurate dimensions, and high-quality weld seams.

ZEISS excels when it comes to these precision assemblies, which require micrometer-level accuracy and a range of technologies including automated and contact-free solutions.

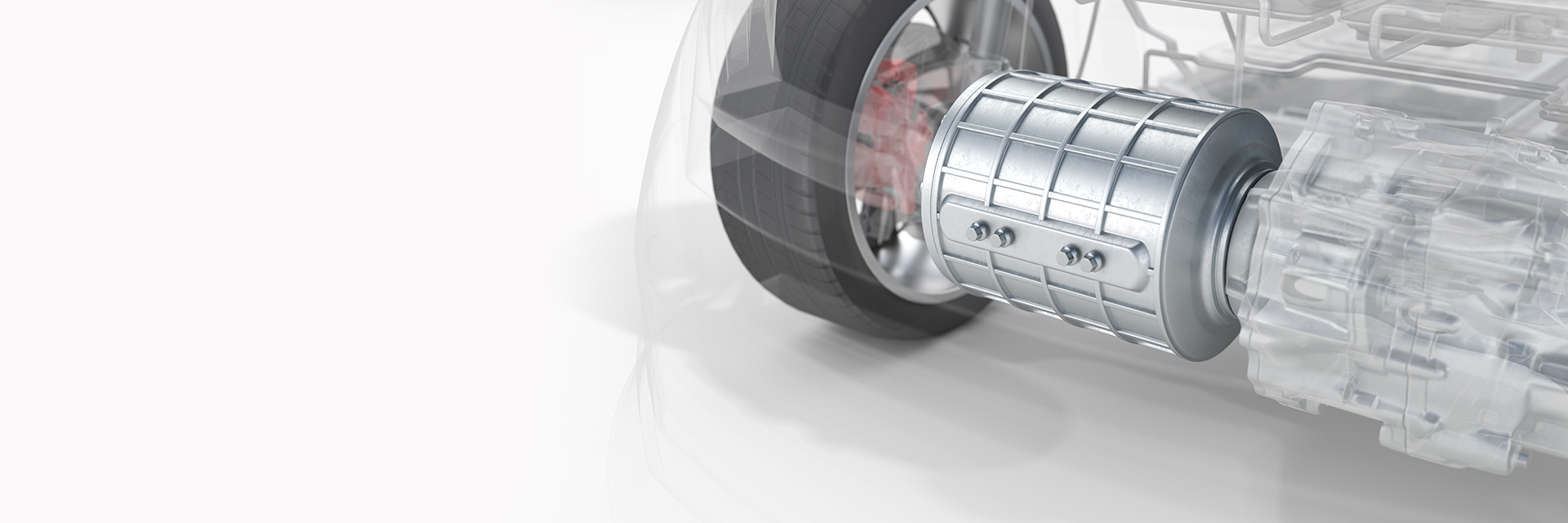

Full coverage of e-motor applications

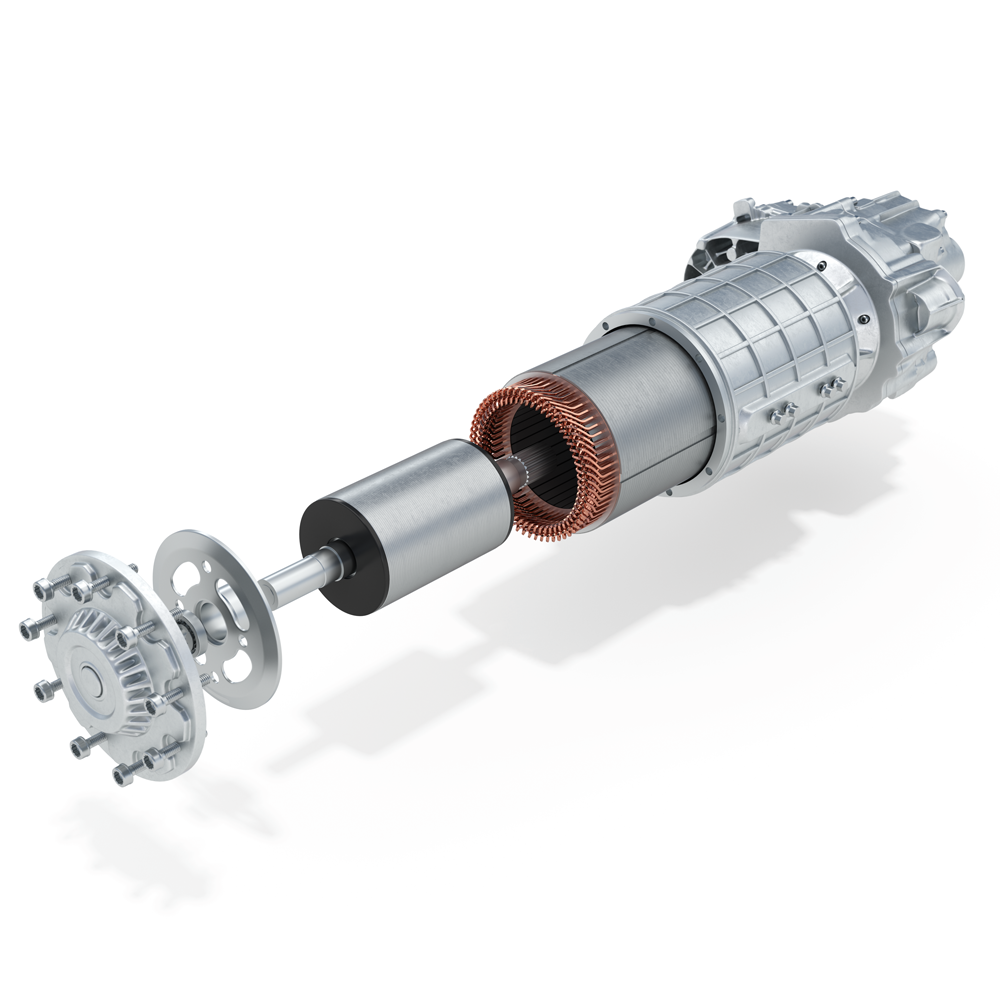

Electric motors are the true powerhouses in electric vehicles, combining high speed and enormous torque while being light and compact. In order to achieve maximum performance with little wear, all components must interlock precisely for perfect interaction. Inspecting the hairpins and sheet stacks, checking weld seams on the stators, measuring the rotors and shafts – you can do it all with the ZEISS portfolio. Click the links below to explore our dedicated quality assurance solutions for electric motor applications.

Hairpins

Inspection of dimensions and positions

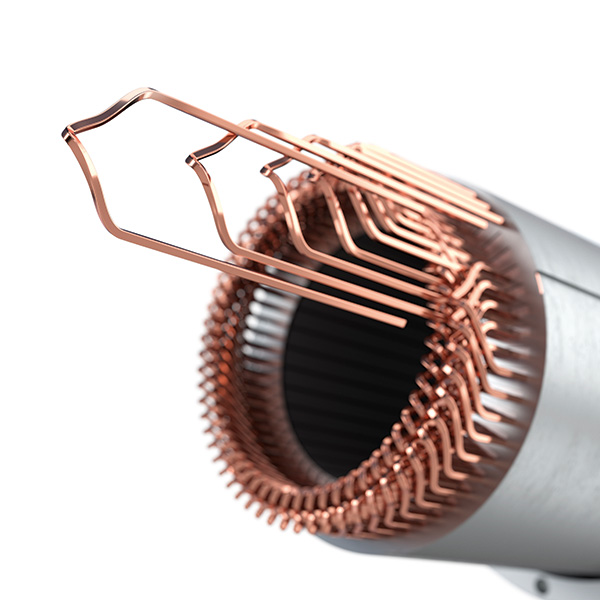

Hairpins consist of a bent rectangular copper wire and are coated with an insulating layer. Since they are highly susceptible to deformation and their ends are difficult to weld, it is necessary to inspect the dimensions and positions of hairpins during the stator assembly process.

Discover solutions

Sheet stacks

Inspection of geometry and surface

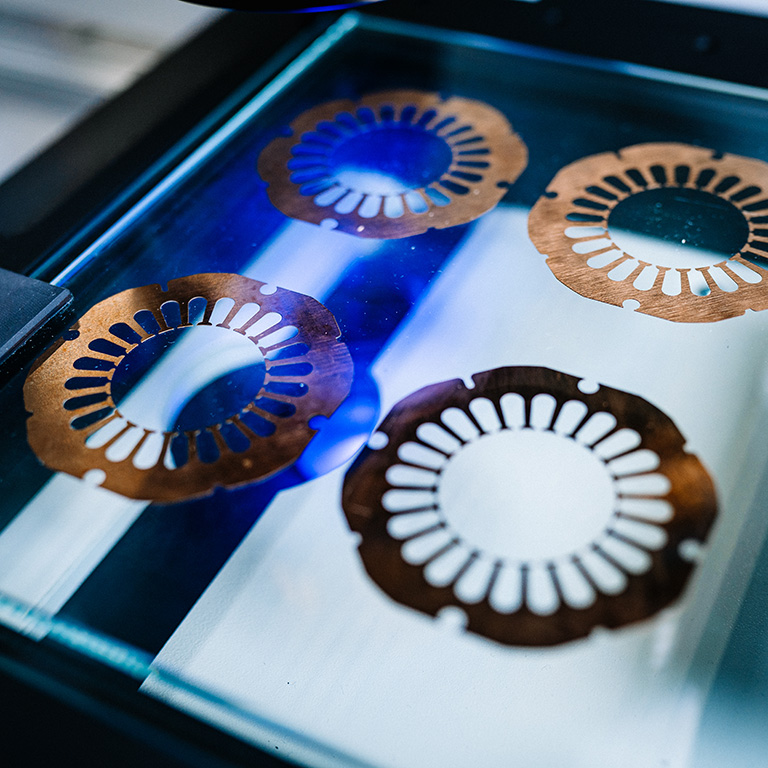

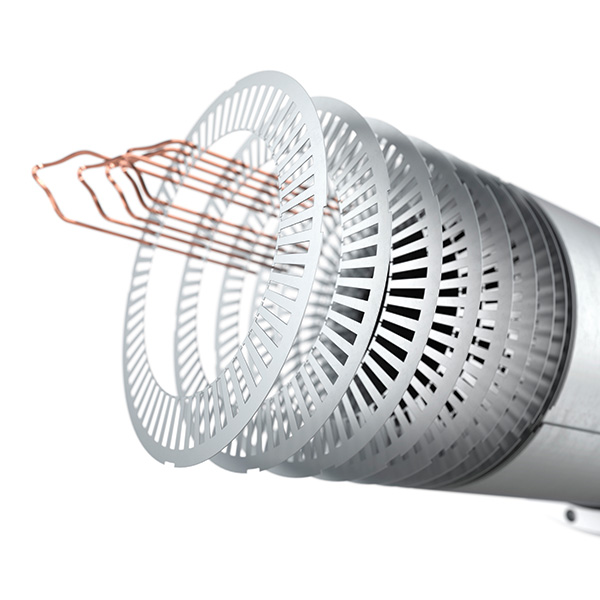

Sheet stacks comprise numerous 2D sheets less than 1 mm thick. Key quality aspects include the cross-section slot geometry for the hairpins, the permanent magnet slots, and the inner and outer diameter of the sheet stack assembly. Micrometer-range tolerances mean the sheets must be flat and burr-free.

Discover solutions

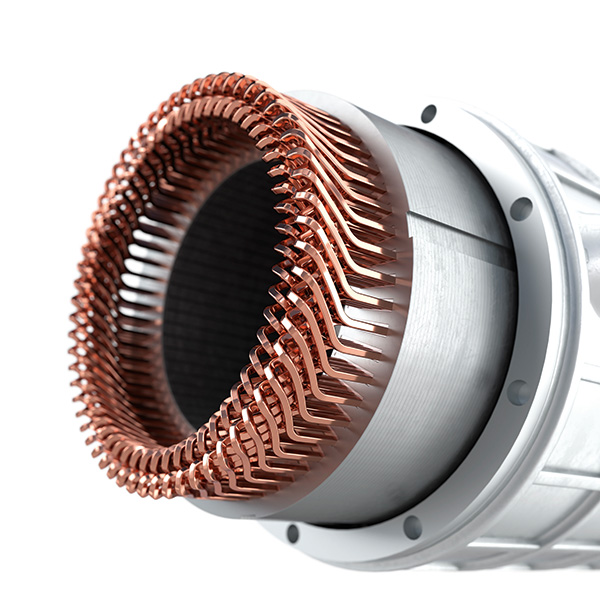

Stators

Defect inspection and digitization

Among all e-motor components, the stator offers the greatest potential for improving performance, power, and efficiency. Given new raw materials and innovative manufacturing technologies, quality assurance is required across all stator production steps to guarantee e-motor safety, reliability, and performance.

Discover solutions

Rotors and shafts

Inspection of shape and location

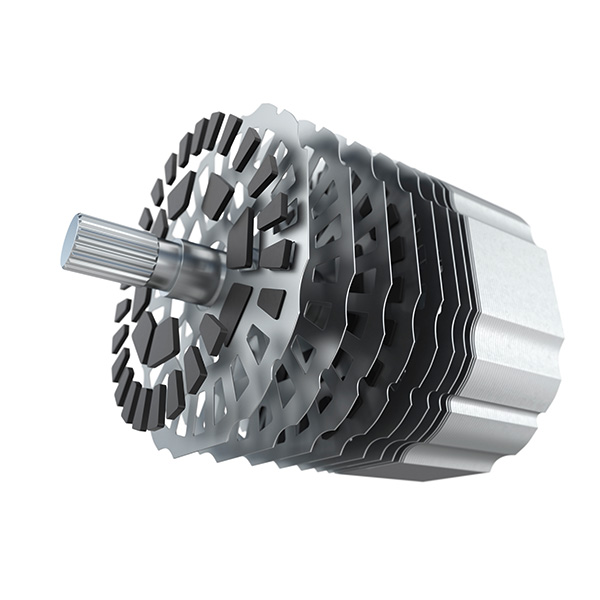

Due to the high performance and speed of the e-motor, the rotor must meet very tight shape and location tolerances that require inspection. The air gap between the rotor and the stator bore is one of the main parameters defining the safety, reliability, and efficiency of the e-motor.

Discover solutions

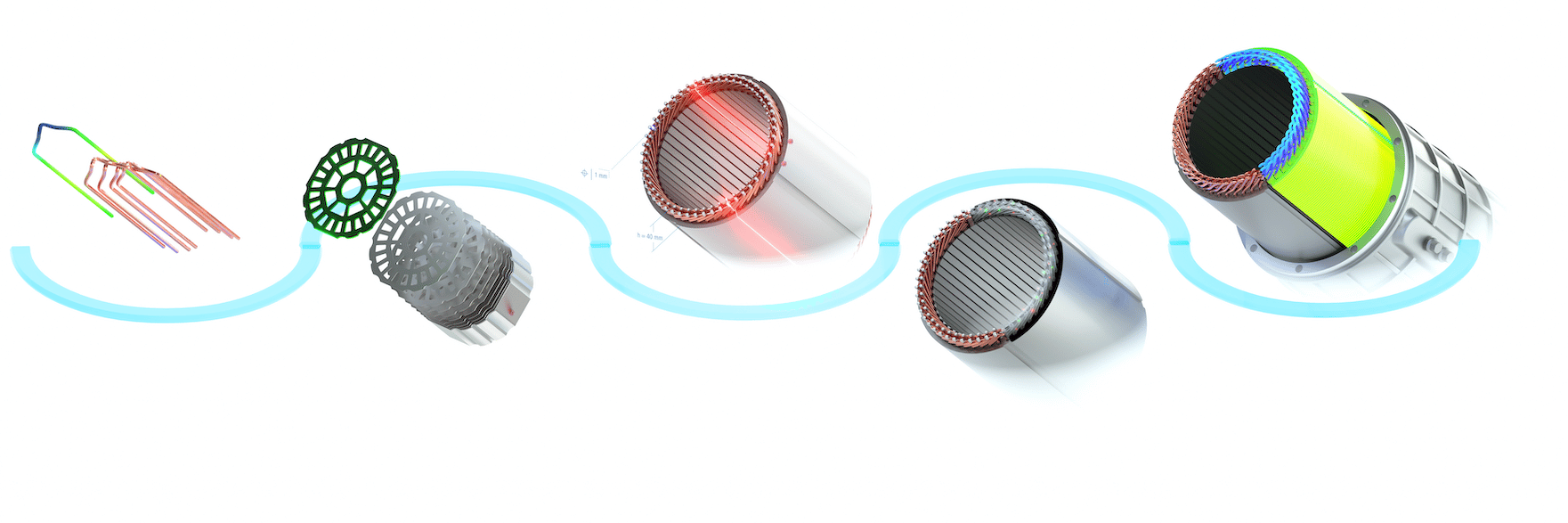

ZEISS eMobility solutions at every manufacturing step

Blue Line for battery development and production

Click through all quality gates

Quality Gate 1: Size, Form, and Position

Geometrical inspection of hairpin production

Challenges

A large number of hairpins are used as current-carrying conductors in electric motors
Difficult to geometrically inspect individual dimensions due to flexible hairpin structure and sensitive coating with insulating lacquer

Your benefits with ZEISS

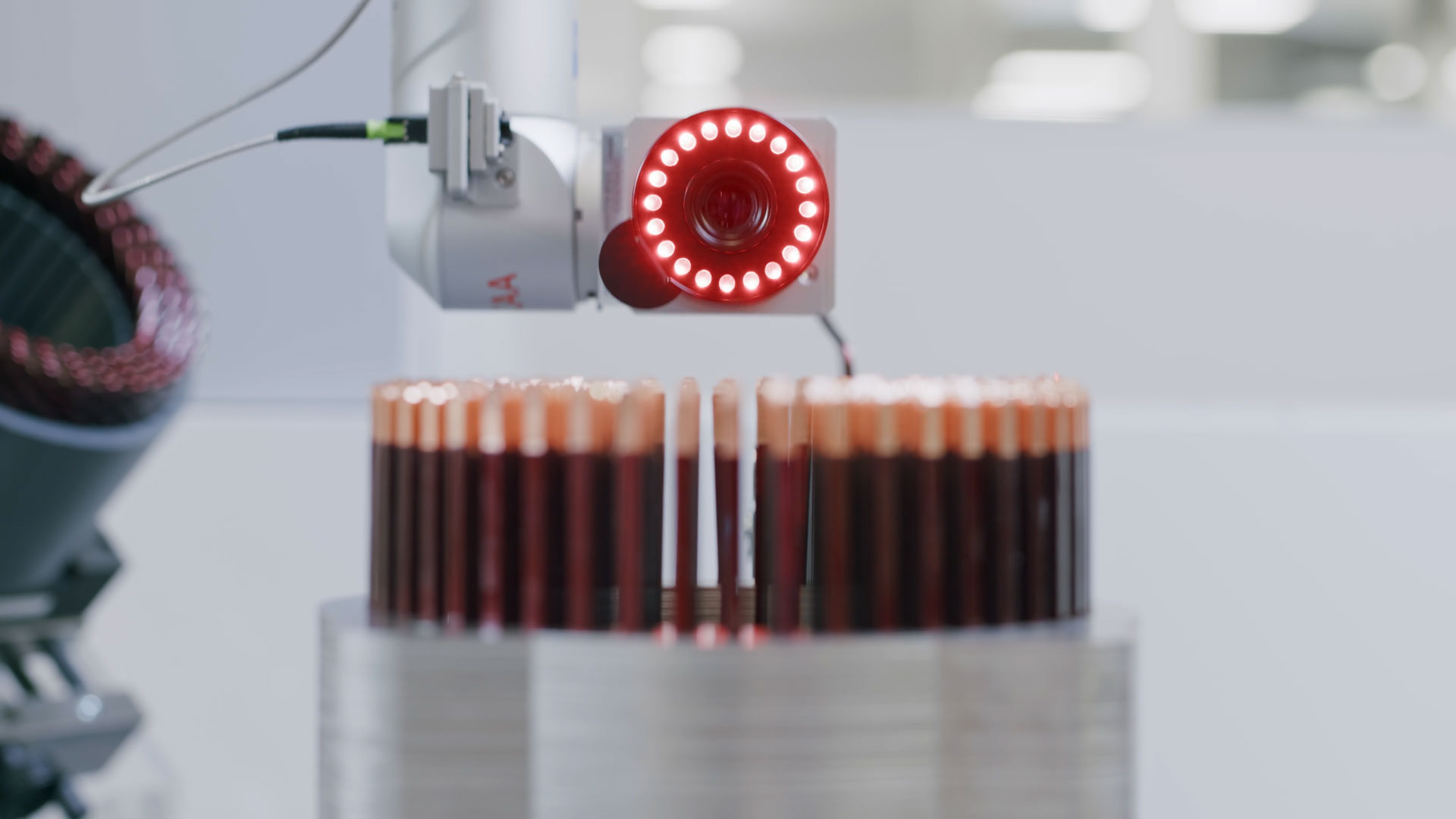

Overcome structural properties of hairpins via contact-free measurement with optical probes on CMMs

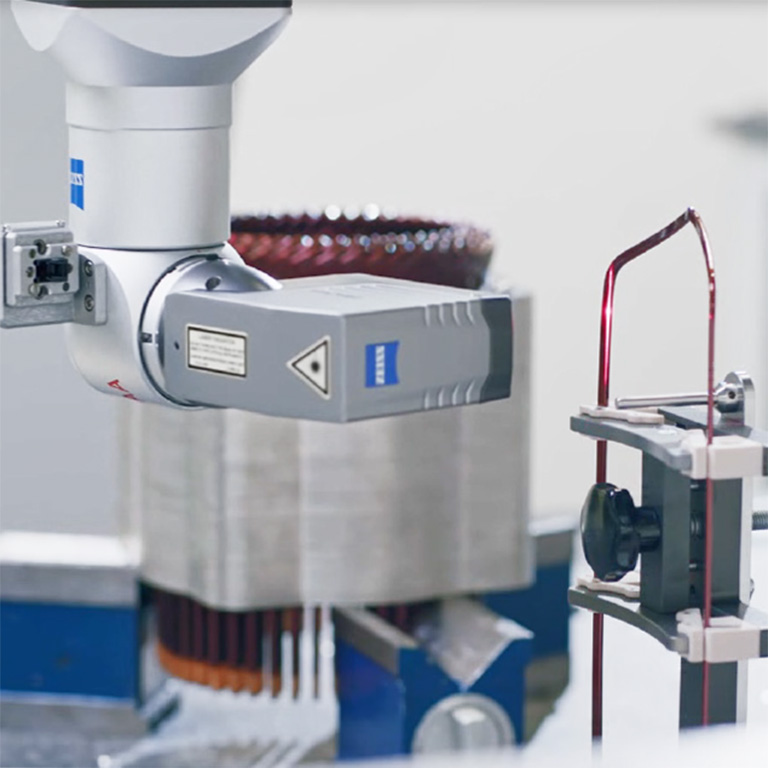

Fast full-field digitization of hairpins without pretreatment thanks to laser triangulation using ZEISS LineScan
Fully automated contact-free digitization of sensitive structures with ZEISS ScanBox for eMotors

ZEISS CMMS

ZEISS ScanBox for eMotors
Quality Gate 2: Single Sheet and Sheet Stack

Geometrical inspection in production of sheet stacks

Challenges

Sheet stacks comprise multiple single sheets each just a few millimeters thick
2D geometry, flatness, and absence of burrs must be assessed on individual sheets
QA with micrometer-level precision ensures proper fit and e-motor performance

Your benefits with ZEISS

Multisensor ZEISS CMMs combine a large number of tactile and optical probes on a single system
This enables automated inspection of component pallets for increased machine utilization and reduced inspection cycle times
Quick and effective internal defect detection with ZEISS X-ray solutions

ZEISS VMMs

ZEISS Quality Software
Quality Gate 3: Insulation Paper and Hairpin Position

Stator installation

Challenges

Positioning and excess length of insulation paper between hairpin and stator must be inspected to prevent stator short circuit
Inspection of hairpin end positions before and after welding is critical for ensuring e-motor safety, reliability, and performance

Your benefits with ZEISS

Insulation paper positioning performed with optical 3D scanning and ZEISS CMMs
Optimum process control and merging of different measurement results via ZEISS PiWeb reporting and statistics software

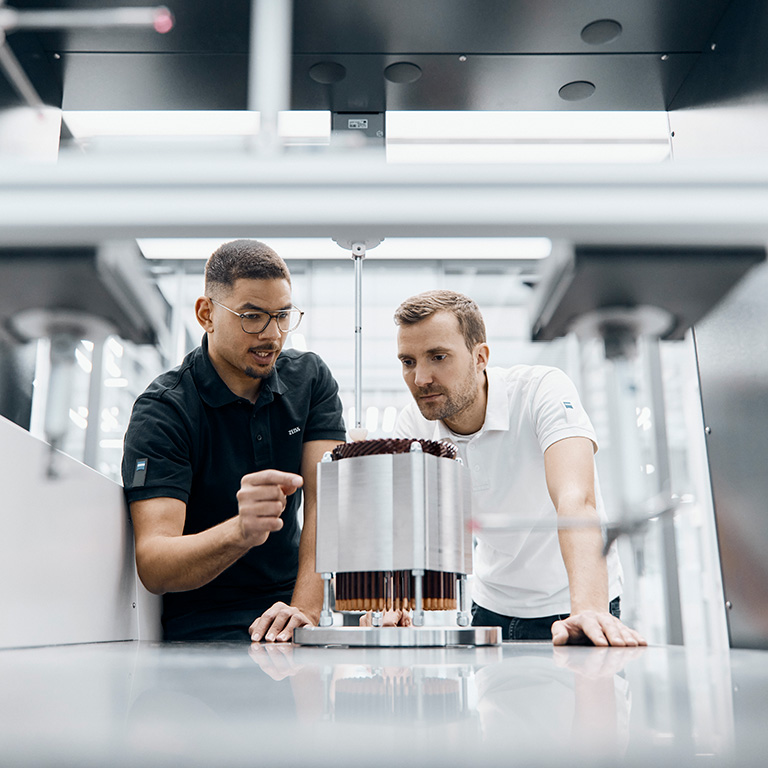

Determine the position of hairpin weld tips using ZEISS PRISMO with tactile styli

ZEISS CMMS

ZEISS ScanBox for eMotors
Quality Gate 4: Weld Seam Inspection

Stator installation

Challenges

Lacquer residue from sealing can result in weld seam porosity that impairs e-motor performance or causes total failure
Non-destructive defect inspection of all weld seams is therefore a critical requirement

Your benefits with ZEISS

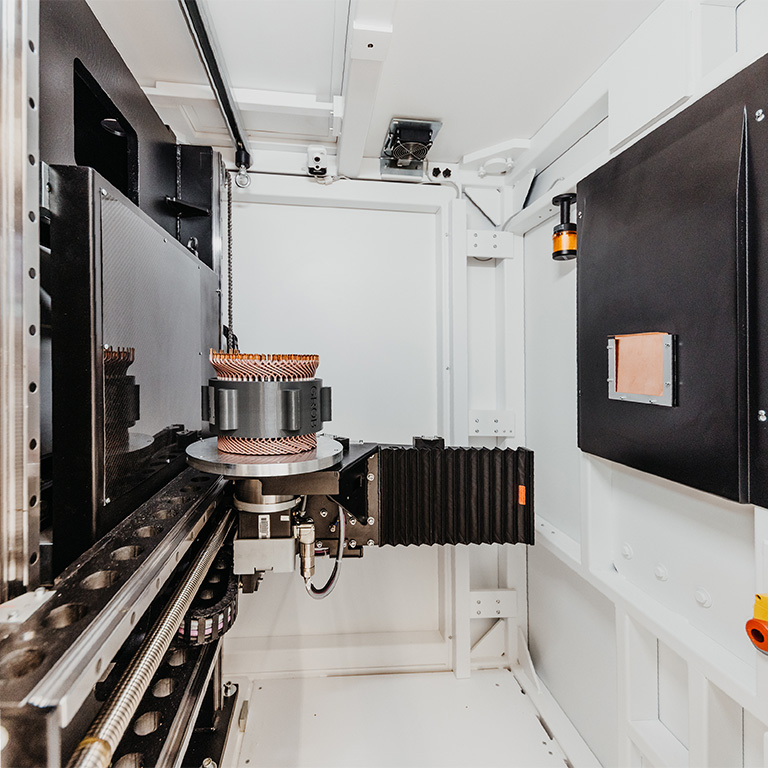

Detection, localization, and classification of pores and defects inside weld seam with industrial CT systems such as ZEISS METROTOM
Ensures non-destructive quality assurance and monitoring of the weld processes

ZEISS X-Ray Solutions

ZEISS Quality Software
Quality Gate 5: Analysis of Installation Space Dimensions

Stator installation

Challenges

The e-motor can only be assembled if external stator dimensions do not exceed installation space in e-motor housing
Complex geometries and mixed materials of stator also increase difficulty of quality assurance for overall component

Your benefits with ZEISS

Automated switching between different sensors supported by ZEISS CMMs equipped with ZEISS mass technology

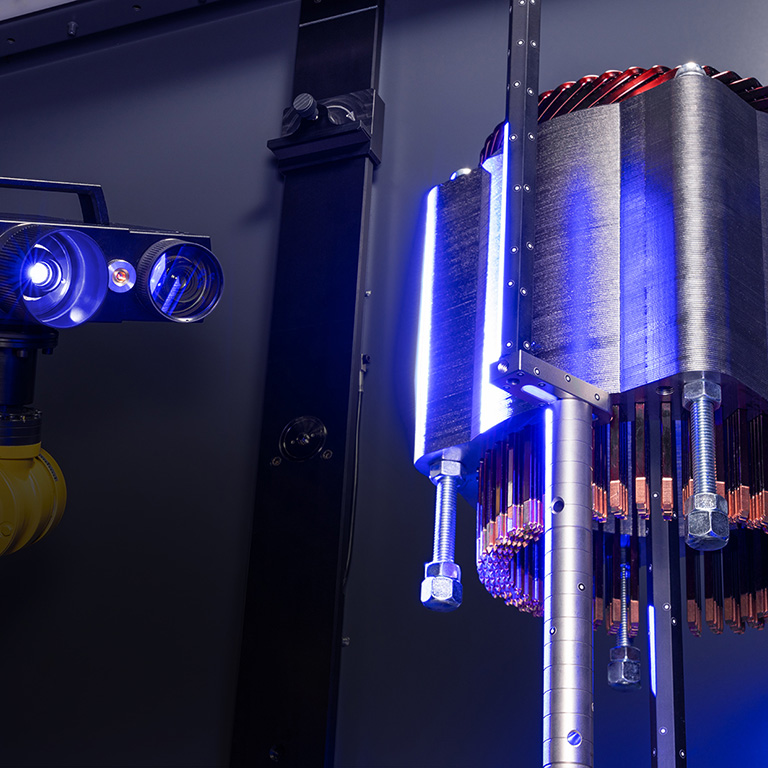

Full QA of pre-assembled stator thanks to combination of laser triangulation probes and tactile stylus systems
Automated inspection of larger quantities with ZEISS Integration Series

ZEISS CMMS

ZEISS Sensors

Extra insights into quality assurance for e-motors

Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Five measurement steps for optimal quality control

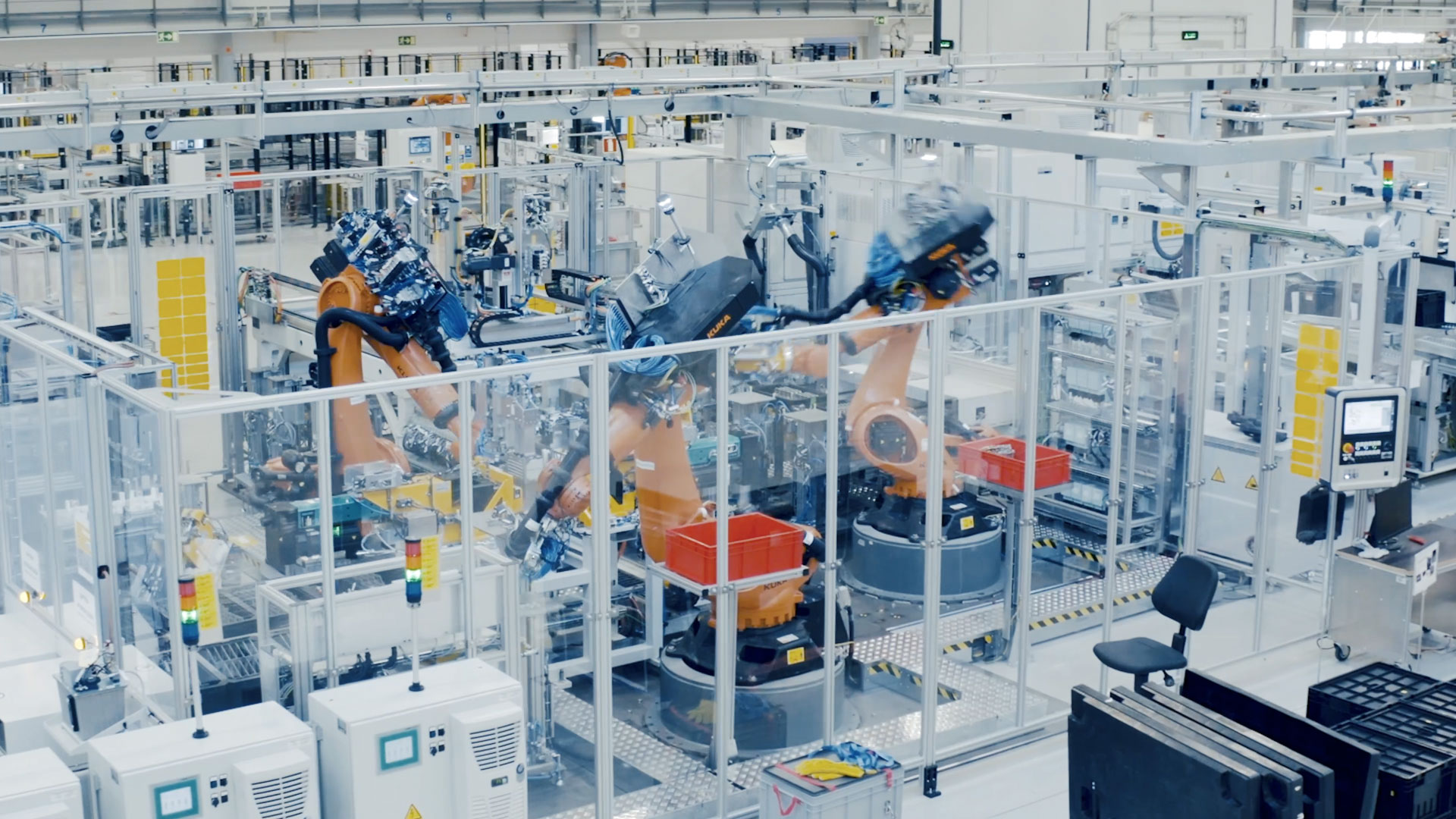

ZEISS eMobility Solutions at GROB: Success Story
Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Multiple measuring tasks handled by precision ZEISS technology

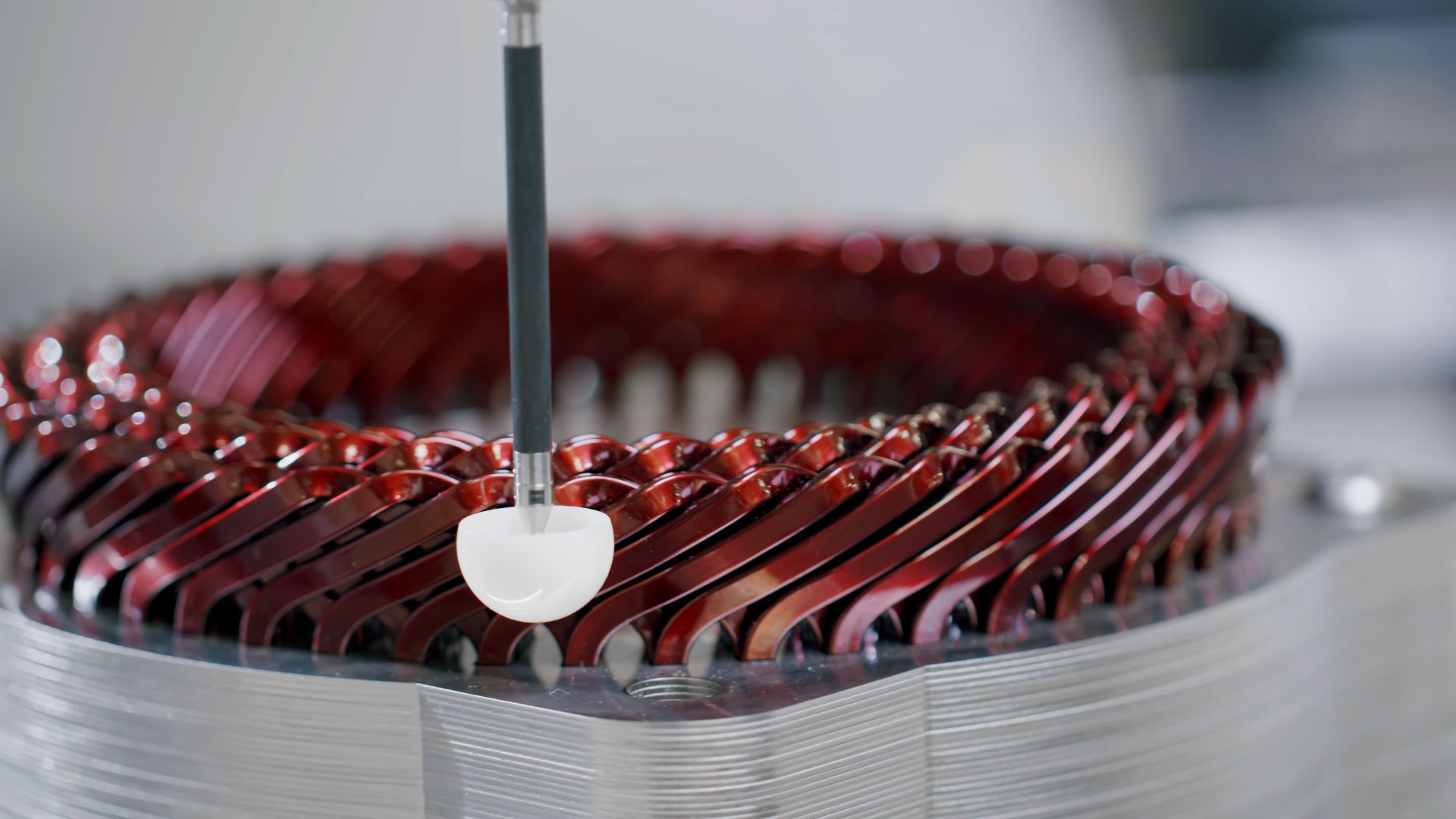

Measurement of E-Motor Stator
Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Multiple measuring tasks handled by precision ZEISS technology

Measurement of E-Motor Stator Features
Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Multiple measuring tasks handled by precision ZEISS technology

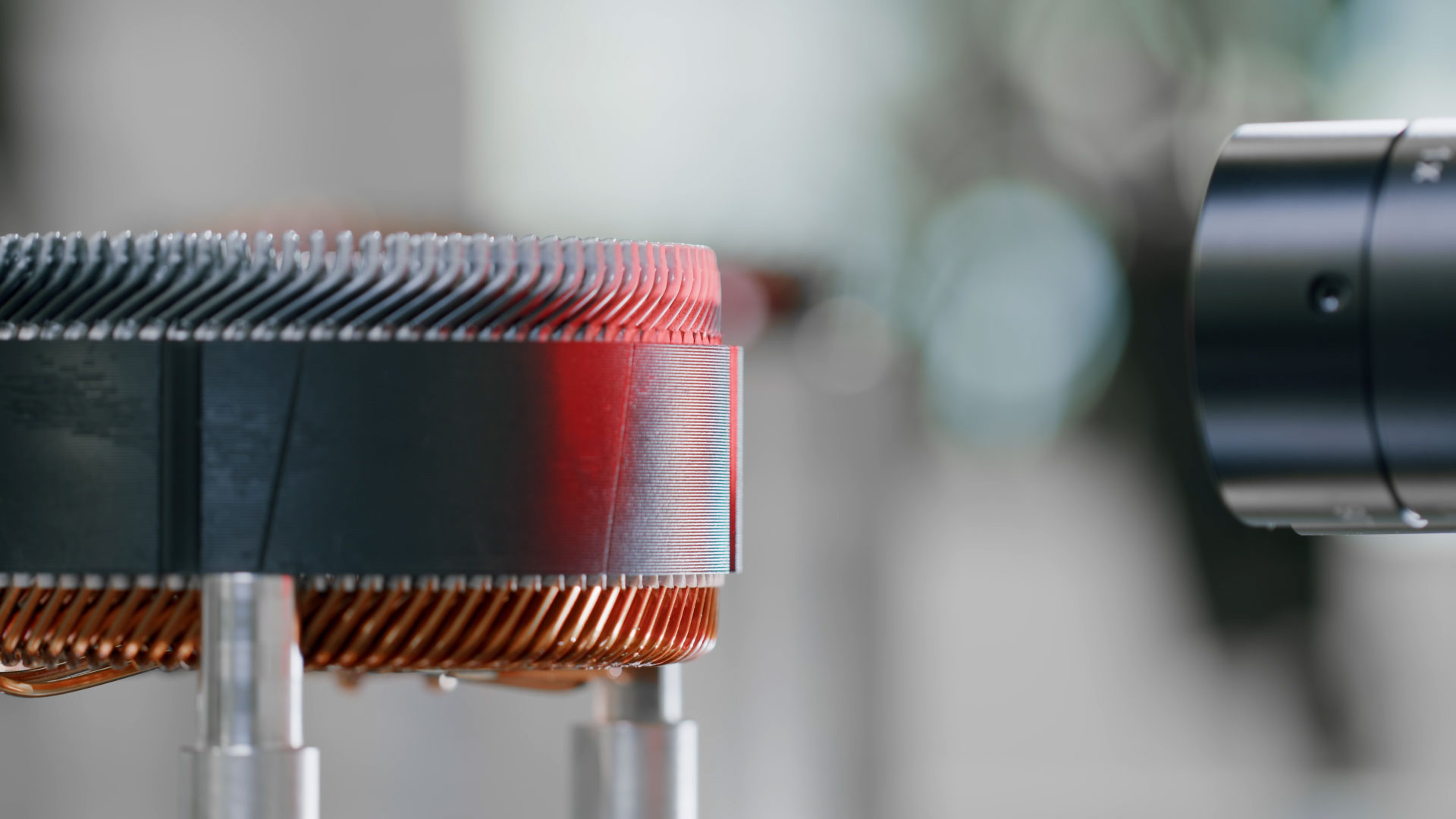

Measurement of E-Motor Winding Head

“That’s why we have to perform constant checks from incoming goods to the fully assembled part: What is the bending behavior of the wire, does the geometry fit, is the paper insulation layer positioned between the hairpins and the sheet metal package, do the welds fit?”

Georg Knoll Head of Inspection Laboratory, GROB
