Setting With ZEISS CALYPSO Preset

from an EDM machine to an automated cell
EDM
Story download

Let your EDM machines do the production

We‘ll take care of the measurement

With a ZEISS coordinate measuring machine and ZEISS CALYPSO preset software, you'll be able to preset your electrodes quickly and safely. You thus will benefit not only from shorter machine setup times, but also from greater accuracy and a considerably increased productivity. Invest in your production of the future step-by-step.

Do you still clamp electrodes and workpieces and align them manually? Do you achieve a maximum of 1000 erosion hours per year and thus tie down a specialist completely?

Eroding, manual alignments and measurement on an EDM machine means longer machine downtime, long setup times, inaccurate results and inefficient processes.

  • Third-party Content Blocked

    The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

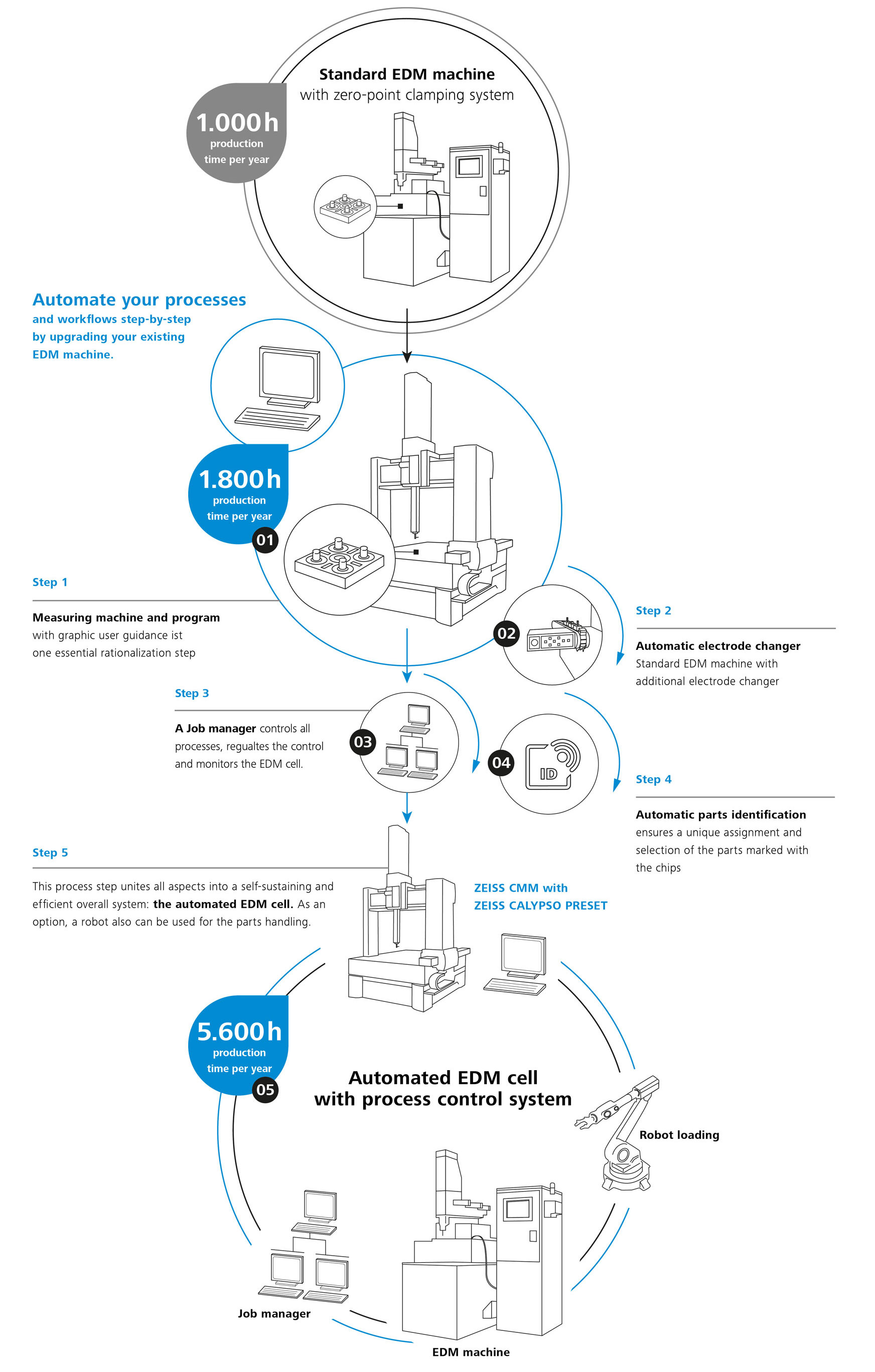

EDM Infographic
EDM Infographic

Streamline your processes

Invest in an efficient ZEISS Solution.

  • Your plus // of Productivity & Machine Efficiency
  • Your plus // of Accuracy & Process Stability
  • Your plus // of Worldwide Competitiveness
  • Your plus // to Prerequisite for 24/7-Production

Manual presetting and measurement on the CMM

ZEISS DuraMax vs. EDM machine – a direct comparison

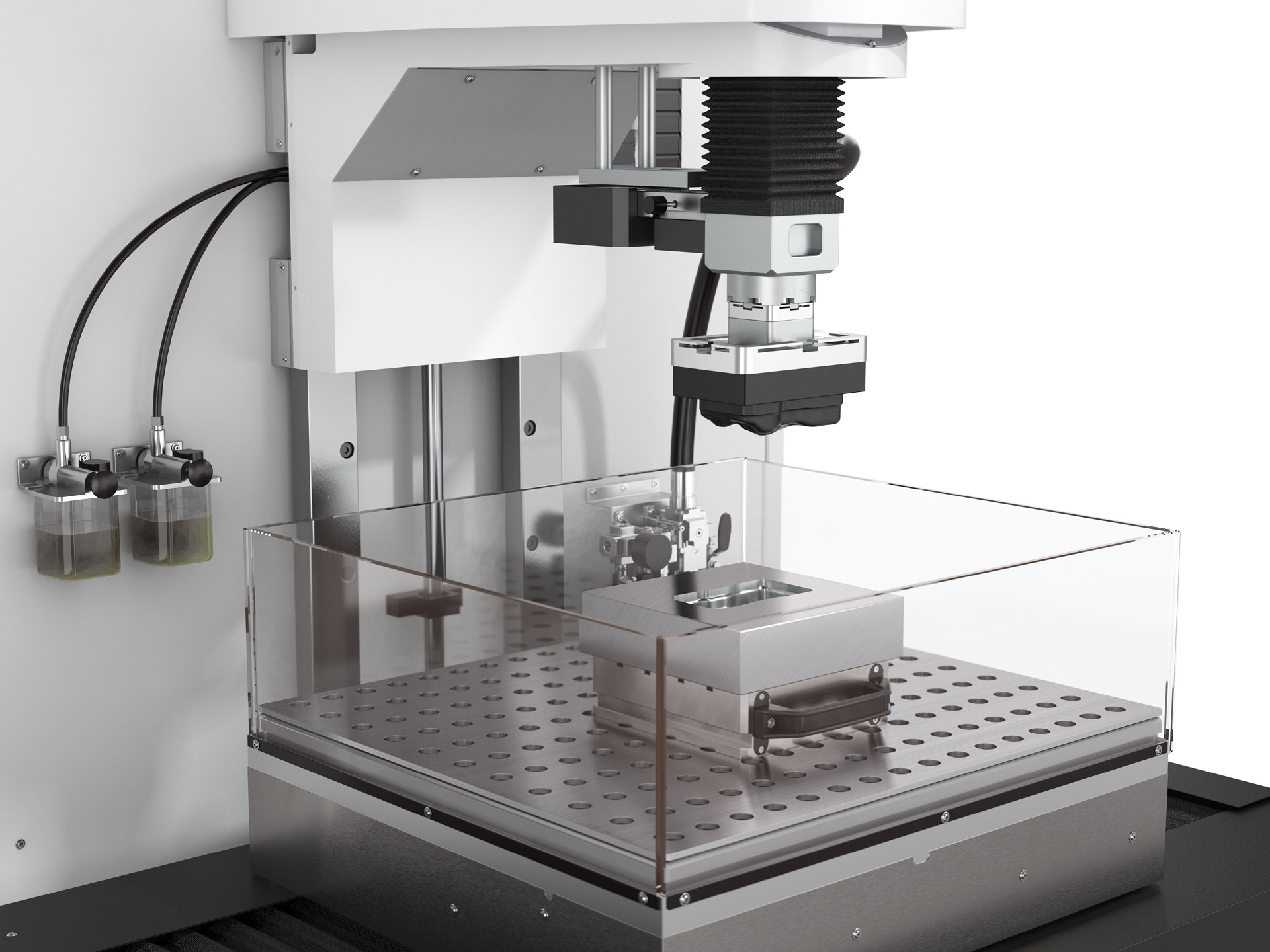

EDM machine

Manual offset measurement on the EDM machine

The offset of electrodes and workpieces often is still measured directly on the EDM machine. But this method poses problems. While the EDM machine is measuring the offset, it is not producing any parts.

Because this measurement on the EDM machine takes a lot of time, the productivity of the machine decreases drastically. The accuracy of the measurement is less precise in direct comparison to a coordinate measuring machine. The quality of the workpiece thus decreases.

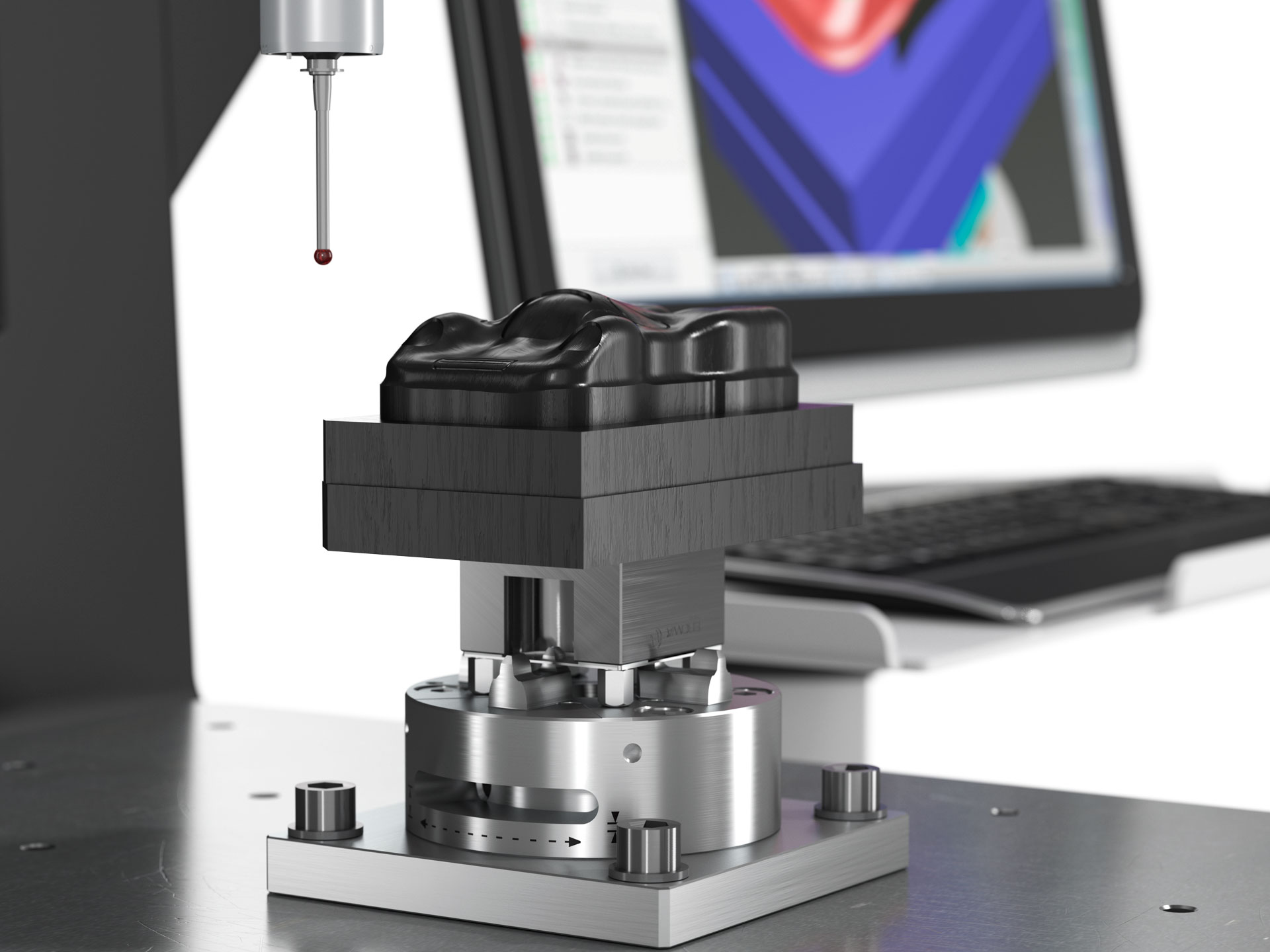

ZEISS Duramax closeup EDM

A ZEISS solution for your production that pays off

Manual measurement on a coordinate measuring machine already pays off with your first EDM machine: shorter setup times, considerably longer machine running times, increasing throughput and the generation of quality data increase your overall productivity.

The offset data are transferred directly to the EDM machine. The CMM thus enables the EDM machine to achieve a much higher degree of utilization while at the same time decreasing production and investment costs.

Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Simple offset and quality measurement: from the electrode to the workpiece and the clamping system

ZEISS CALYPSO preset features simple handling with an interactive user interface in addition to offset measurements of electrodes and workpieces.

The software offers a complete library of all current macros for presetting electrodes and workpieces.

Fully automated EDM cell

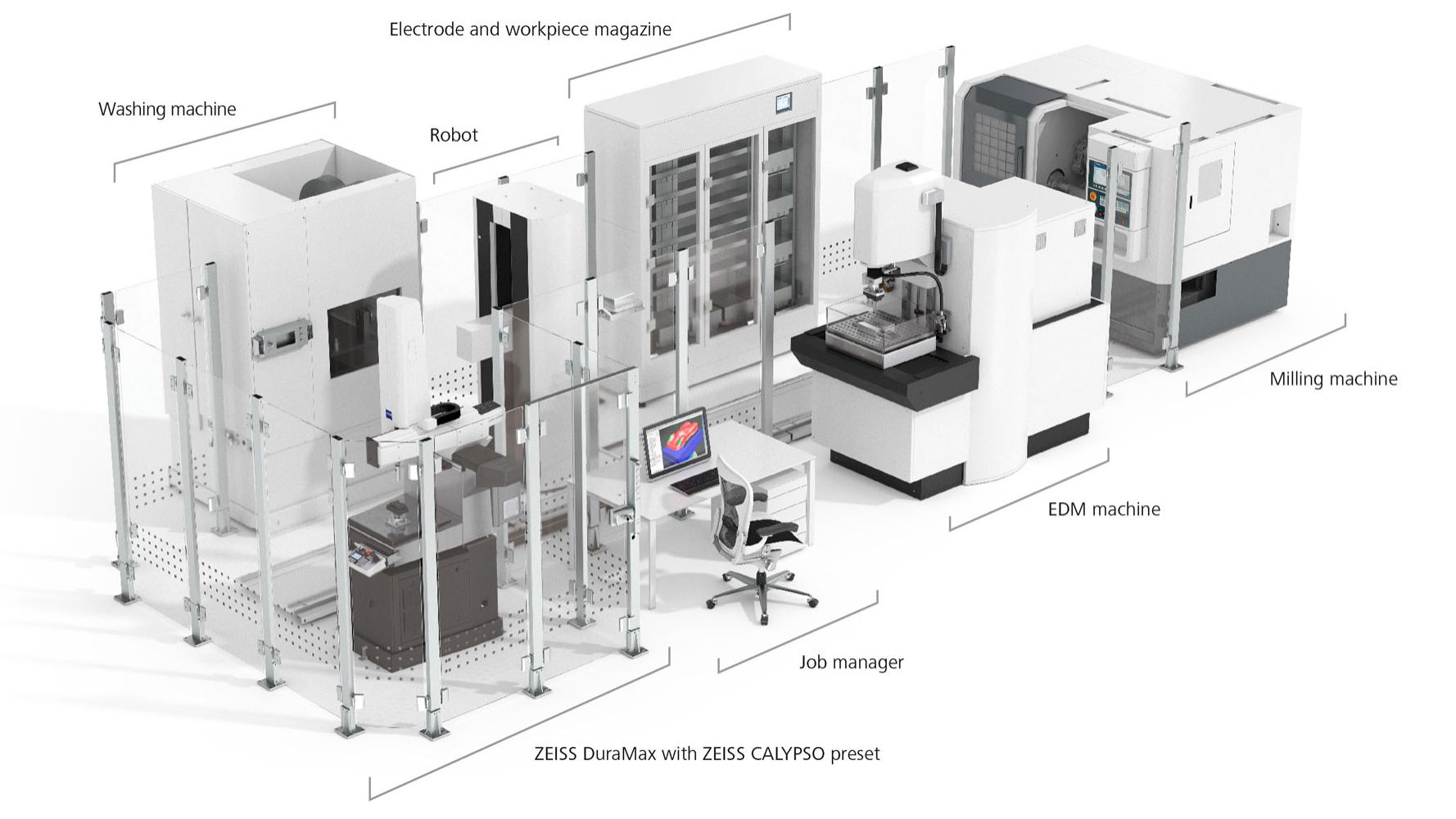

EDM station

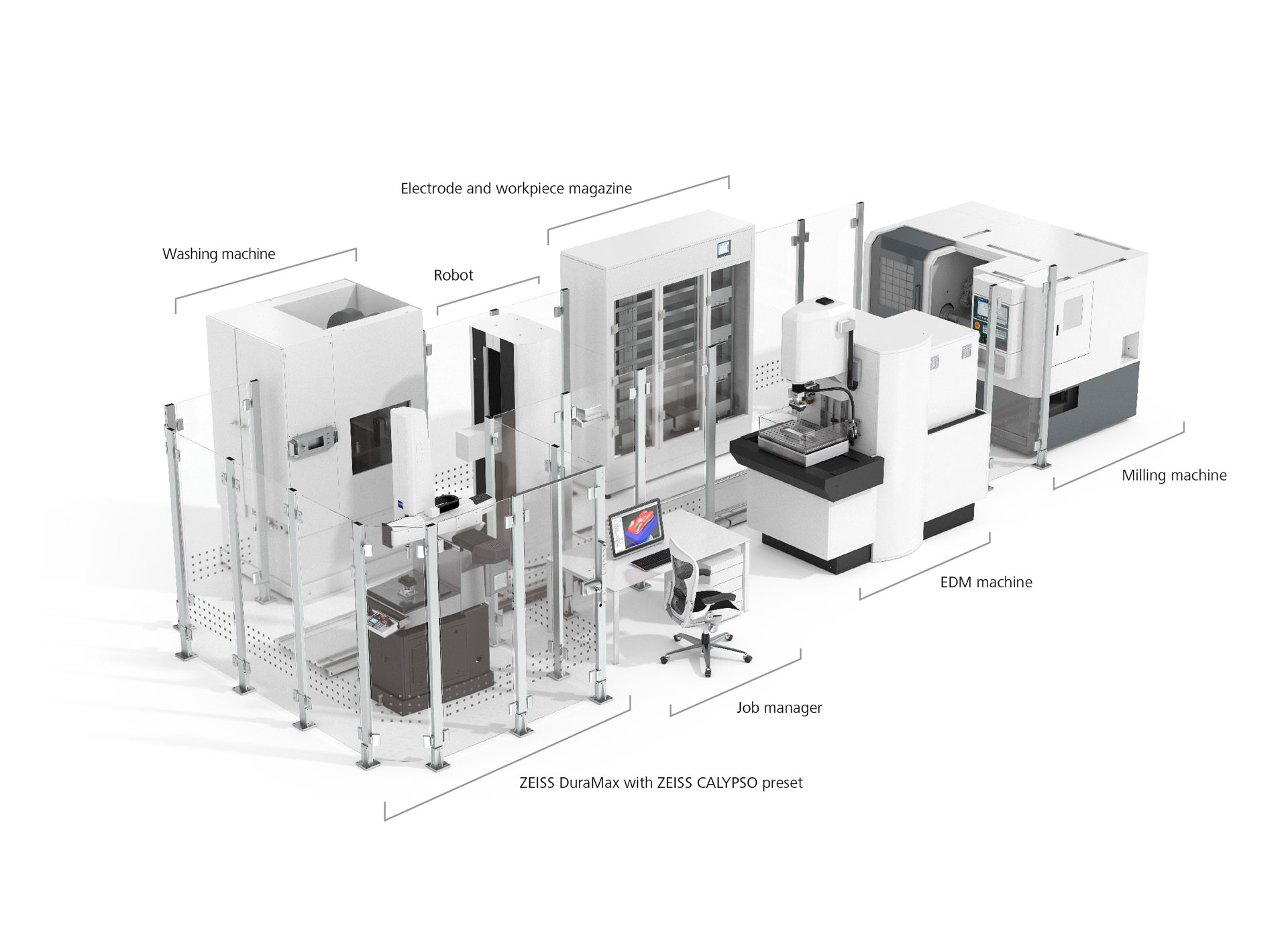

EDM station

With the ZEISS DuraMax, ZEISS CALYPSO preset & job manager

In the fully automated cell, measurements are performed on an integrated coordinate measuring machine in addition to the EDM machine and incl. robot loading, tooling and job manager.

Fill in your data and download our application story for free

Fully Leveraging Machine Uptime: Offset measurements away from the machine tool boost manufacturing efficiency
