GEAR® PRO

The easy way to get from the drawing to the measurement

ZEISS CALYPSO Options

Gear metrology on the CMM

Narrow tolerances are the only way for gear wheels to transfer forces quietly with almost no loss. The precision of production and gear metrology must go hand in hand.

The GEAR PRO option for ZEISS CALYPSO enables gear metrology on coordinate measuring machines. The analytical 3D gear model and the graphic-supported input windows make measuring with GEAR PRO highly effective.

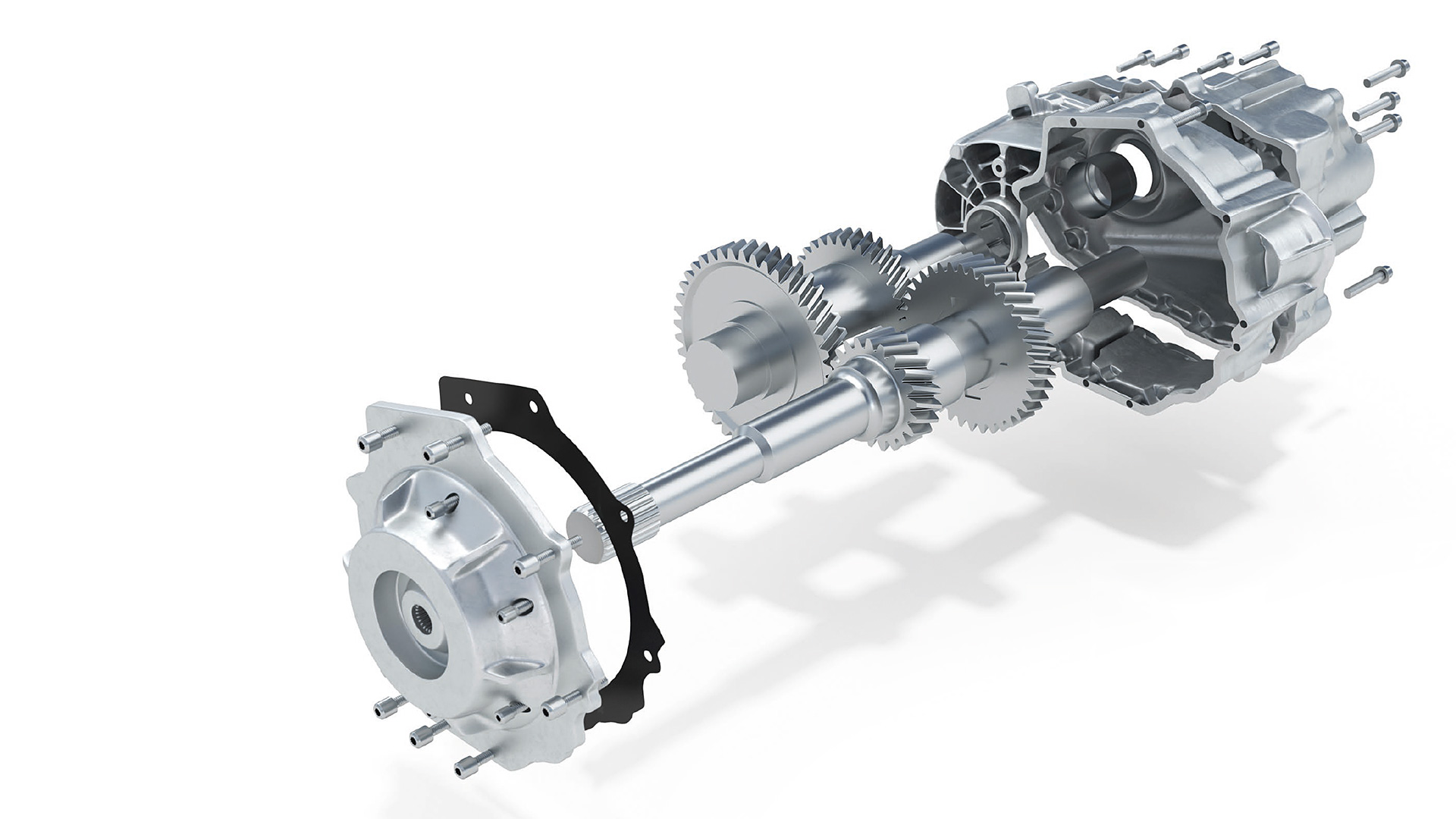

Highlights

Graphic-supported input
CAD simulation of the measuring run
Active and passive sensors
Measurement with and without rotary table
Standard-compliant, automatic evaluation
Application-oriented reporting

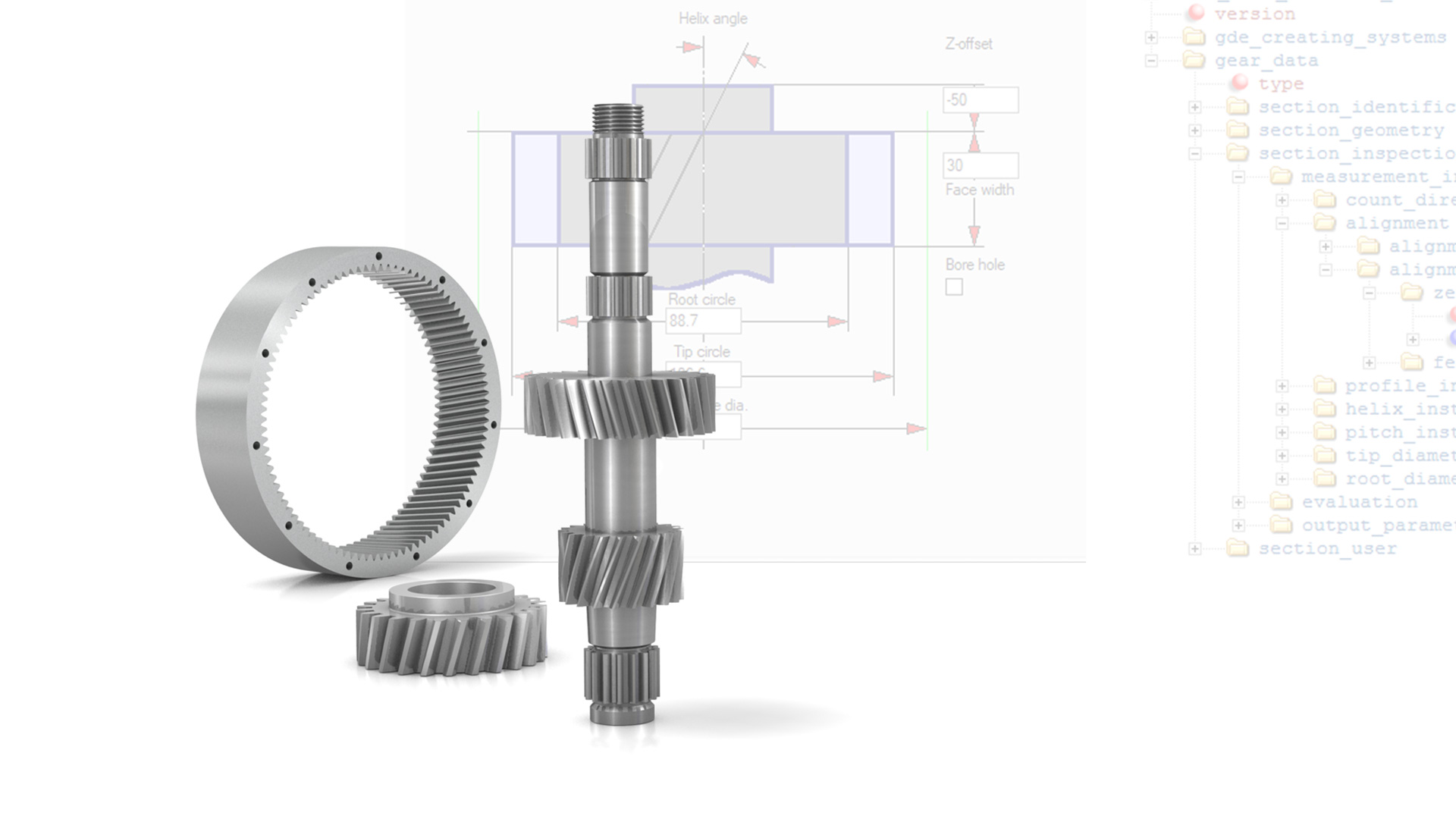

Visual inspection

Through the interaction of the software core and the graphic user interface, the option GEAR PRO generates a CAD model of the gear from the definition of the geometry.

The graphic display of the CAD model allows you to quickly and visually check the input values. A standard measurement can already be started on the basis of the geometry definition.

Available packages

Cylindrical gears - GEAR PRO involute
Bevel gears - GEAR PRO bevel
Worm gears - GEAR PRO worm
Rotors - GEAR PRO rotor
Gear hobs - GEAR PRO hob

More about the packages

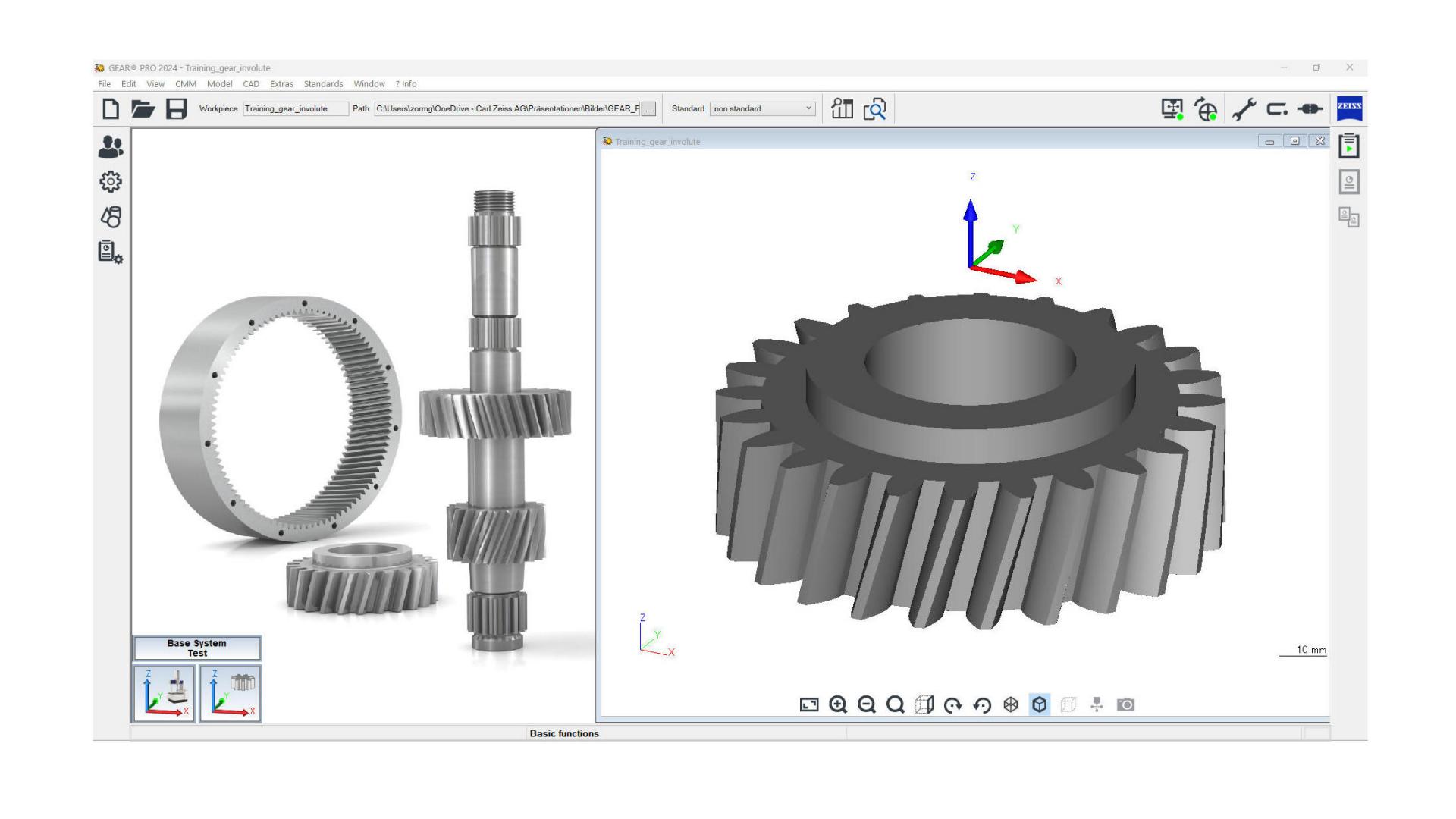

User guidance

GEAR PRO enables gear tooth measurements on coordinate measuring machines — Specialist for spur and helical gears: GEAR PRO involute

Graphic input windows and systematic guidance with each step simplify the adjustment of the measuring run to the respective measuring task.

A few mouse clicks are all that is needed to define, for example, evaluation and measuring ranges, with the aid of windows and graphic visualization.

ZEISS GEAR PRO in action

CAD-based gear wheel

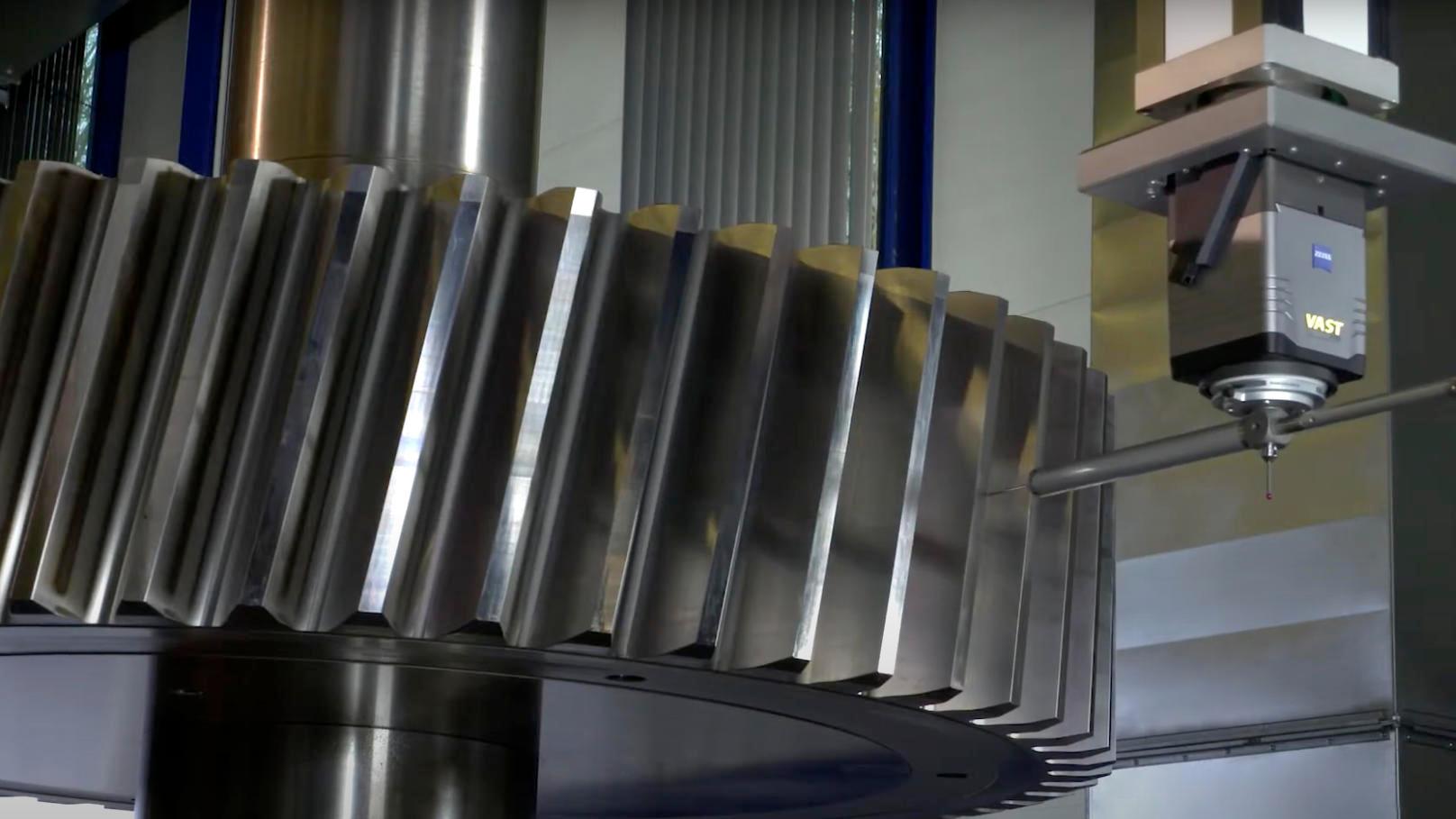

Gear Metrology from ZEISS
