De-Warp

De-Warp

Virtual compensation of warpage on plastic parts

Measure your part without a fixture

  • Compensate warpage

    With De-Warp, you can measure your parts in a virtually clamped state. You do not need a fixture. De-Warp saves time and money.

  • Reduce scrap

    Use virtual forces in De-Warp to check whether the part dimensions are within tolerance in the subsequent assembly.

  • Evaluate your parts correctly

    Get two results (unclamped/clamped) with only one complete measurement and compare them to the CAD model.

How does De-Warp work?

The De-Warp app contains powerful algorithms for virtual compensation of warpage and shrinkage. This makes it possible for the first time to realize over-constrained datum conditions without using mechanical fixtures.

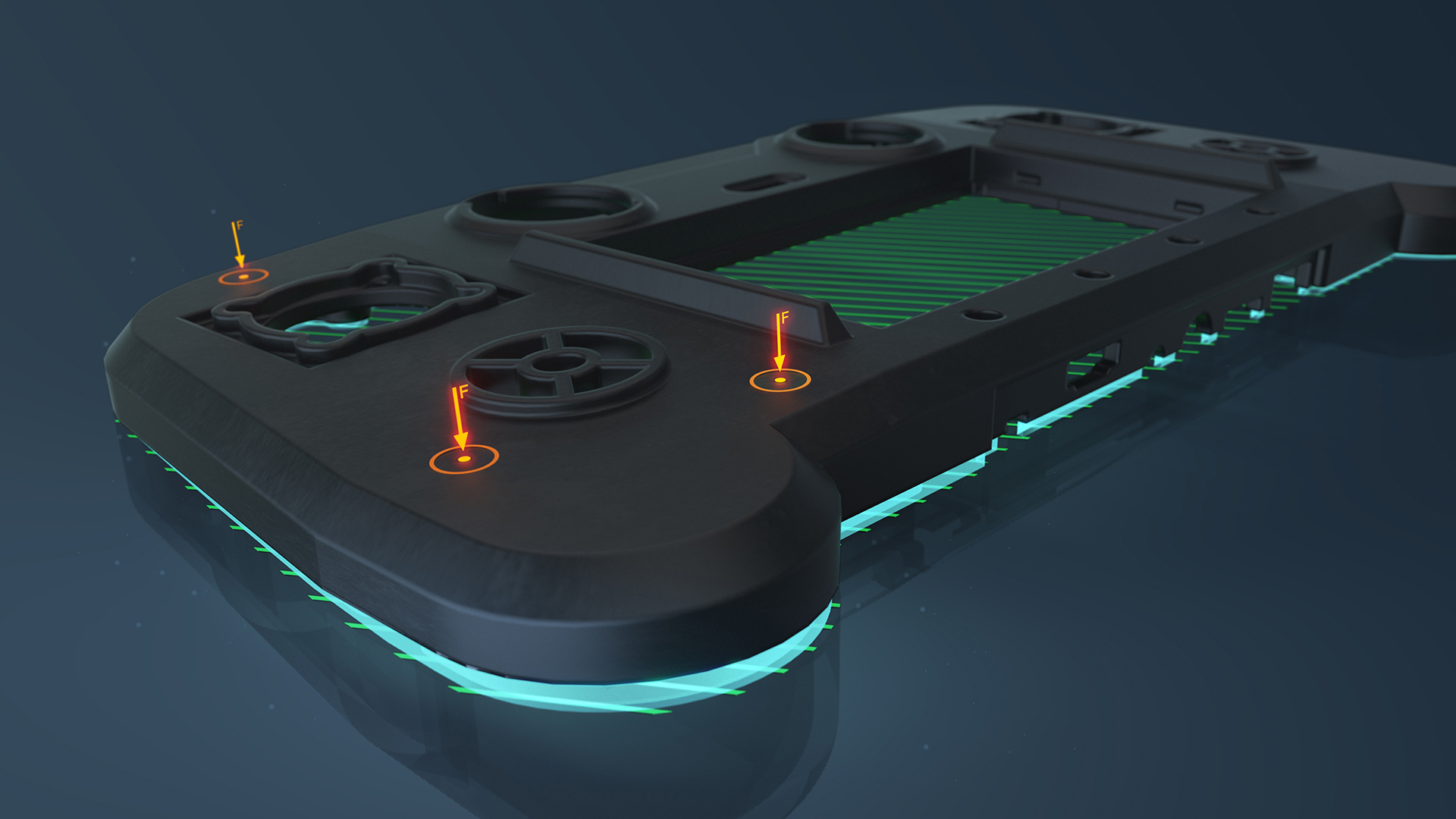

The innovative technology relies on the specially developed Voxelizer. Deformation models are calculated as the basis for virtual clamping. With the “Remove Warpage” function, a virtual force is specifically applied to the part by defining several clamping points. This way, the part is transferred into the clamped state with a single click. In a full-field comparison with the CAD model, the measurement result can be easily switched between the two states (unclamped/clamped).

How can I use De-Warp

De-Warp is available as a free app for the ZEISS INSPECT Optical 3D and ZEISS INSPECT X-Ray software license products. If you already have a full version, you can add and apply the app at any time. Take the opportunity now to test the software including De-Warp for 14 days free of charge.

ZEISS INSPECT Optical 3D

ZEISS INSPECT Optical 3D

Your software for 3D inspections: Making quality easily visible.

ZEISS INSPECT X-Ray

ZEISS INSPECT X-Ray

With ZEISS INSPECT X-Ray, you can visualize volumes and sections in 2D and 3D for a complete evaluation and reporting.
