Less effort, lower costs: Virtual Clamping

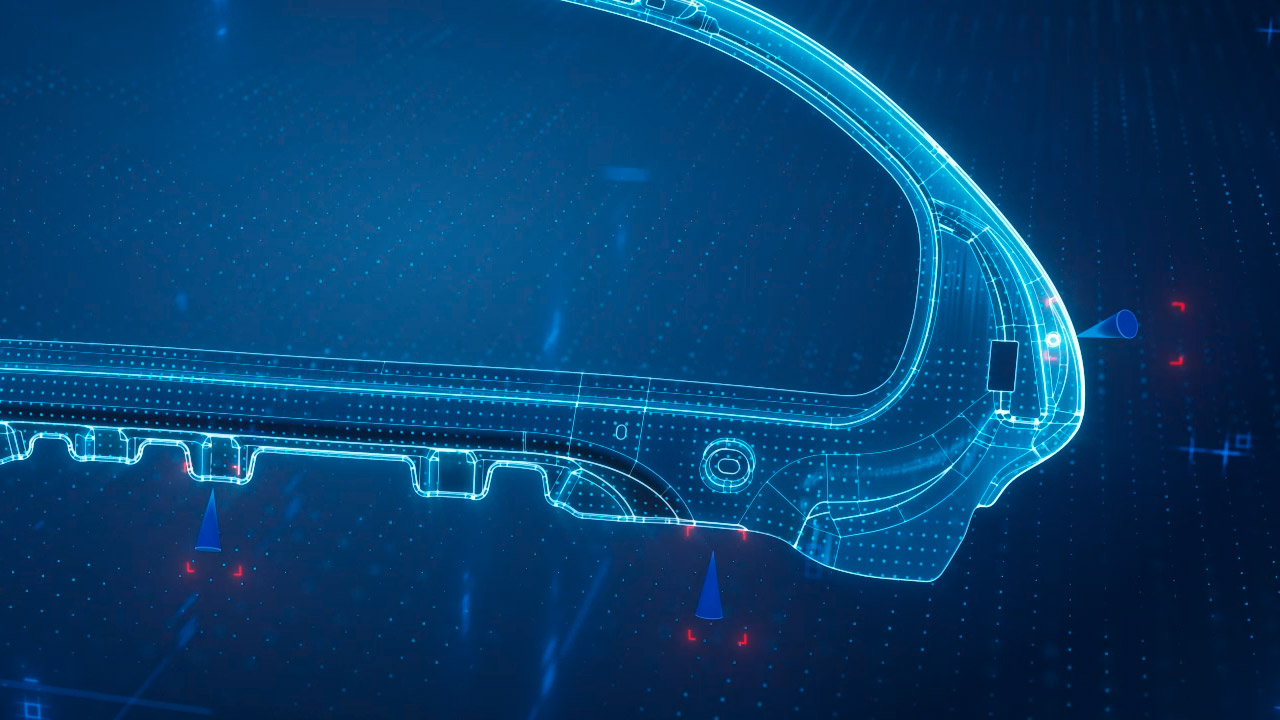

Virtual Clamping in our 3D metrology software simulates the clamping of parts and allows the user to compute the clamped state using the data of the real part in free state. This step is fully integrated into workflow of ZEISS INSPECT and you do not have to leave the proven software interface.

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
Your Benefits of Virtual Clamping

Your benefits of Virtual Clamping

With virtual clamping, you reduce the costs for fixtures. The multiple design and manufacture of fixtures for individual process steps is no longer necessary. The entire surface is freely accessible for the measurement. You obtain reliable test results that are significantly less influenced by the user and allow for higher repeatability.

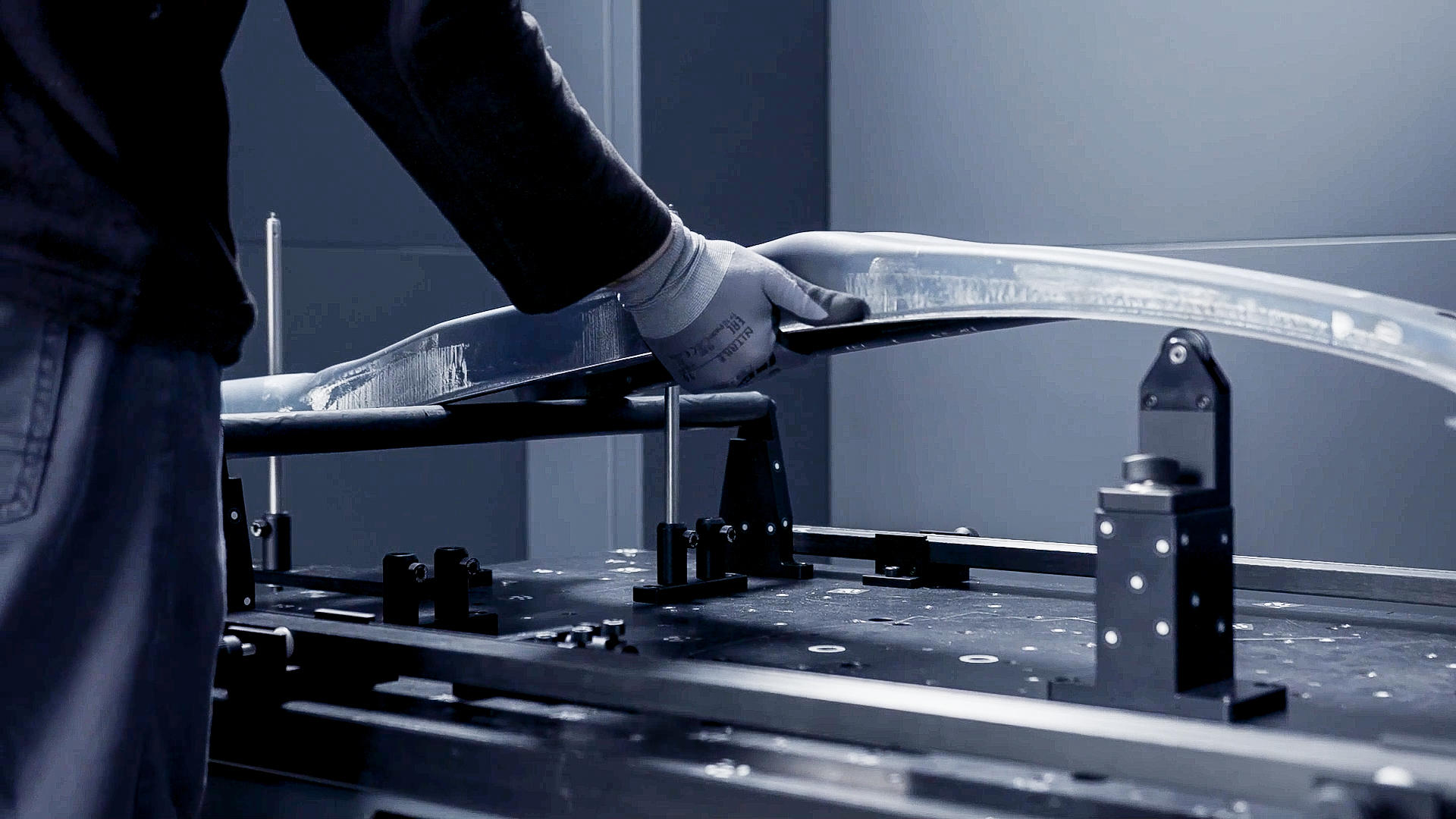

Easy Measurement of Hot Formed Parts

Easy measurement of hot formed parts

Using a universal setup and the ScanBox 3D measuring machine help you to get rid of individual fixtures and to accelerate your production processes.

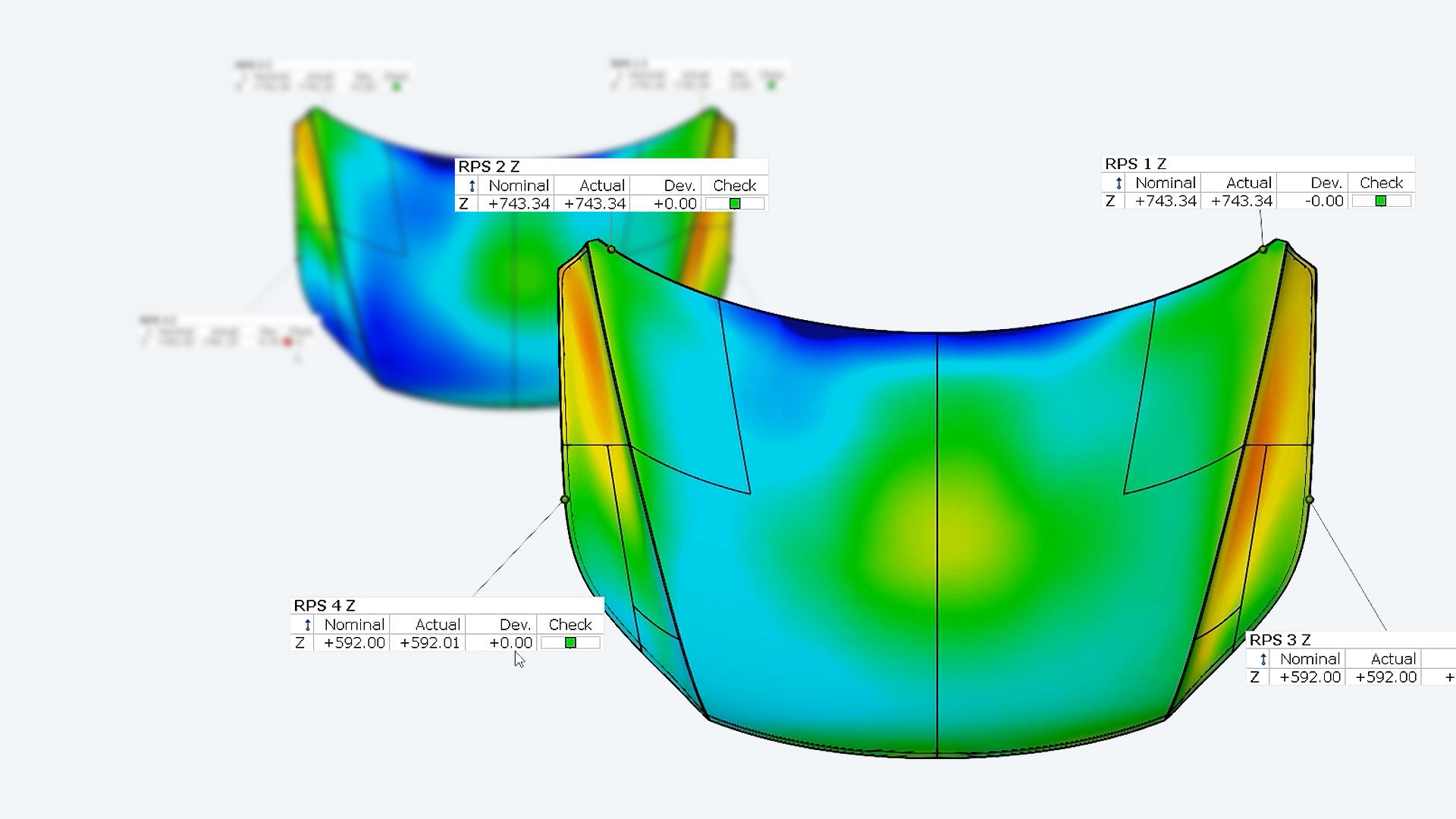

Virtual Clamping for hang-on parts

Virtual Clamping technology avoids multiple measurement loops for parts that are typically measured on mechanical fixtures with four support points.

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

More possibilities

The Virtual Clamping module in our 3D metrology software extends the range of applications for virtual clamping to add-on parts such as doors or flaps of vehicles. Furthermore, users can display both the free and clamped state on one report page without having to measure twice.

Pneumatic fixture

We have developed the Universal Pneumatic Device for gravity compensation that allows users to place parts, especially sheet metal parts, in free state and thus to prepare them for the subsequent virtual clamping process.

Virtual Clamping App für ZEISS INSPECT

Get started now with the Virtual Clamping app

You want to make your work more efficient and save costs? Measure clamped states without any fixture with the Virtual Clamping app for ZEISS INSPECT.

Ready to start?

If you have a pro version of ZEISS INSPECT, you can buy and use the app at any time.
