ZEISS INSPECT Optical 3D 2025

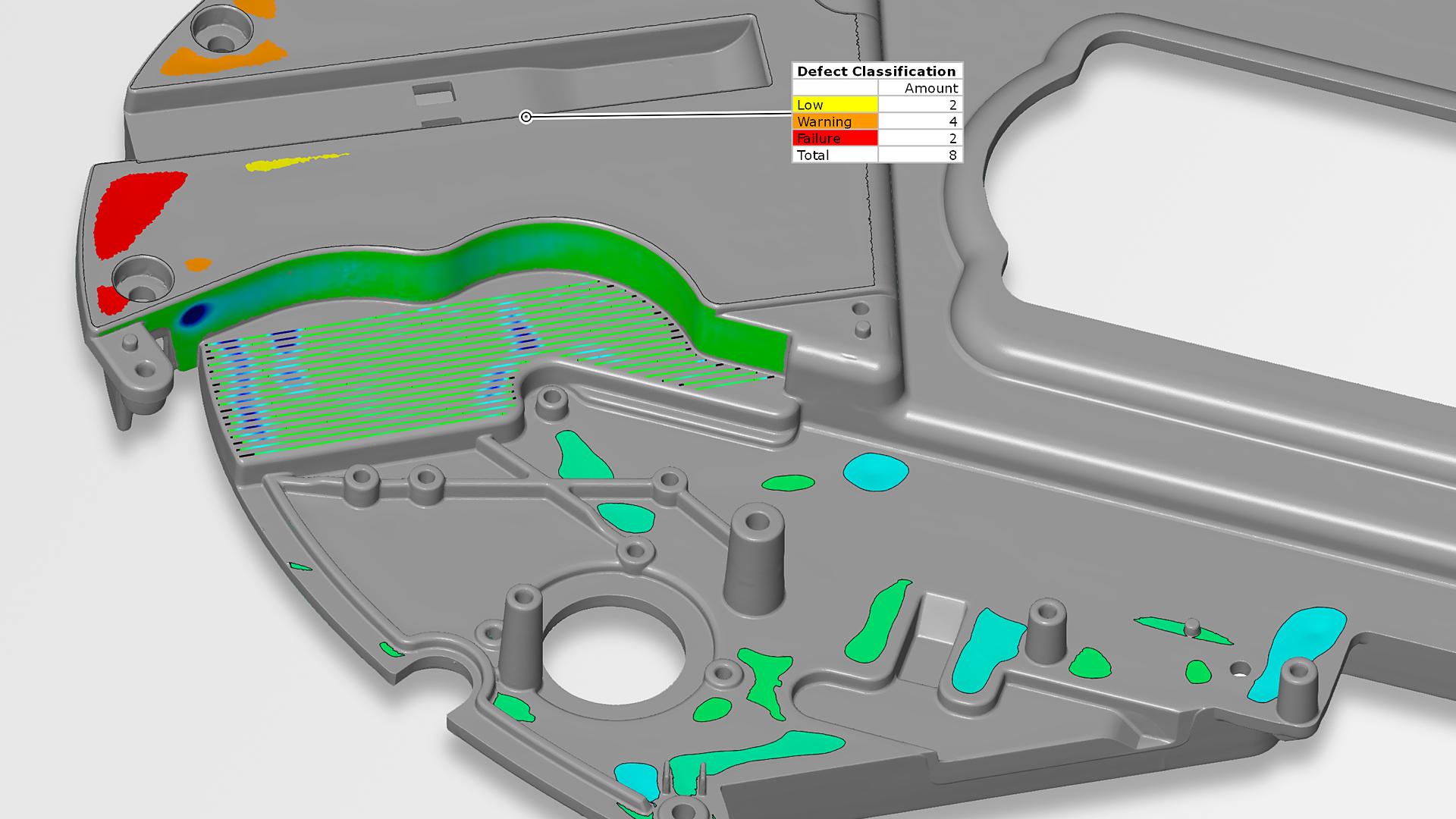

With this release we provide a new more intuitive and task-focused workflow for surface defects that unlocks new possibilities. There is no coding required. Defects defined as elements allow for many more inspections. We offer the ability to remove non-defects by thresholds and filters. Surface defect curves for large areas reduce computation time.

With this release the latest ISO and ASME GD&T standards are supported for the whole project. The enhancements include new integrated GD&T expert filters for geometry primitives and PMI improvements like TED, data management & datum parsing.

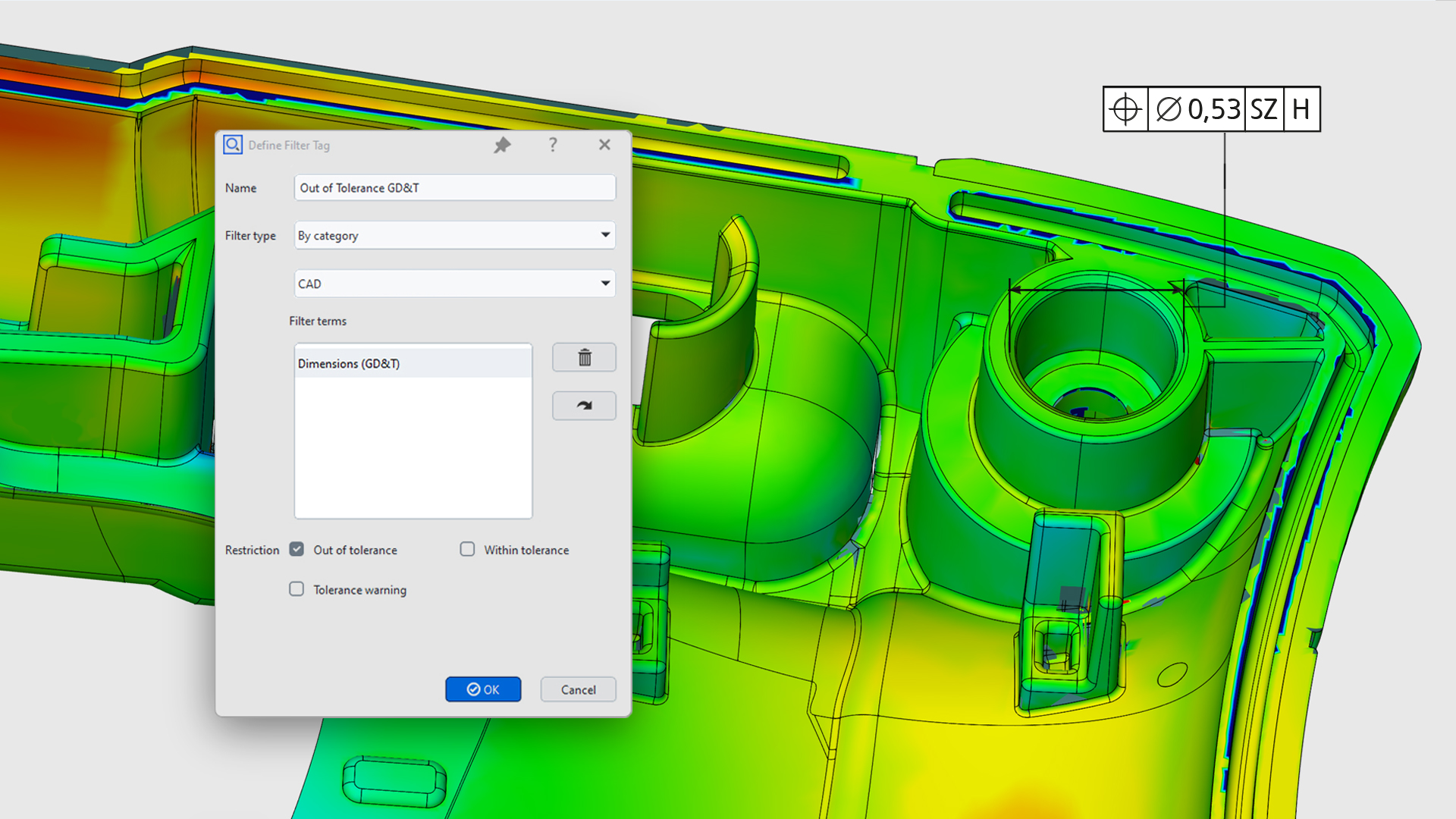

Want to predefine a tag with special criteria? With this release this becomes even easier. Elements parametrically get added or removed from the tag, enabling traceability. Simply filter for example be by name, by range or tolerance status.

With this release clusters become parametric and editing specific clusters is possible. They are now in the explorer under their own category. Benefit from the full traceability of parametric clusters.

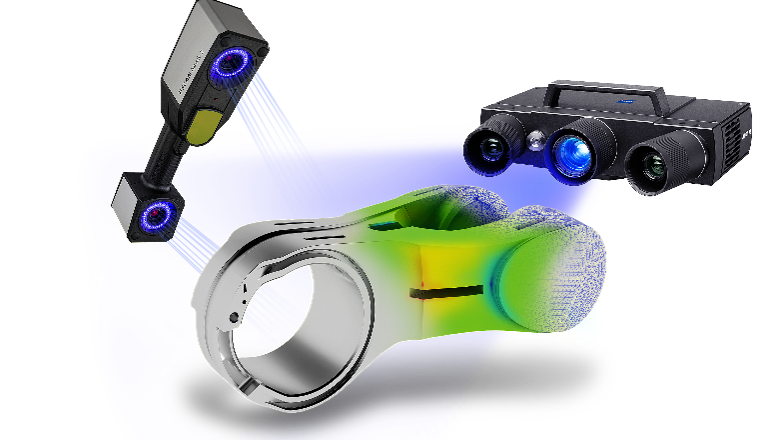

A single project can now handle data from multiple sensors. Both an ATOS sensor and a Laser sensor could acquire data in the same projects and produce a singular mesh, for example. It is also possible with ScanBox Series 8 and other double robot cells to operate via a single PC. All projects can be executed from a single PC, significantly reducing cycle time.

Many improvements to scripting speed and functionalities come with the latest version of the software. For example scripting diagrams were added and allow to import external libraries to graph results in a custom way.
