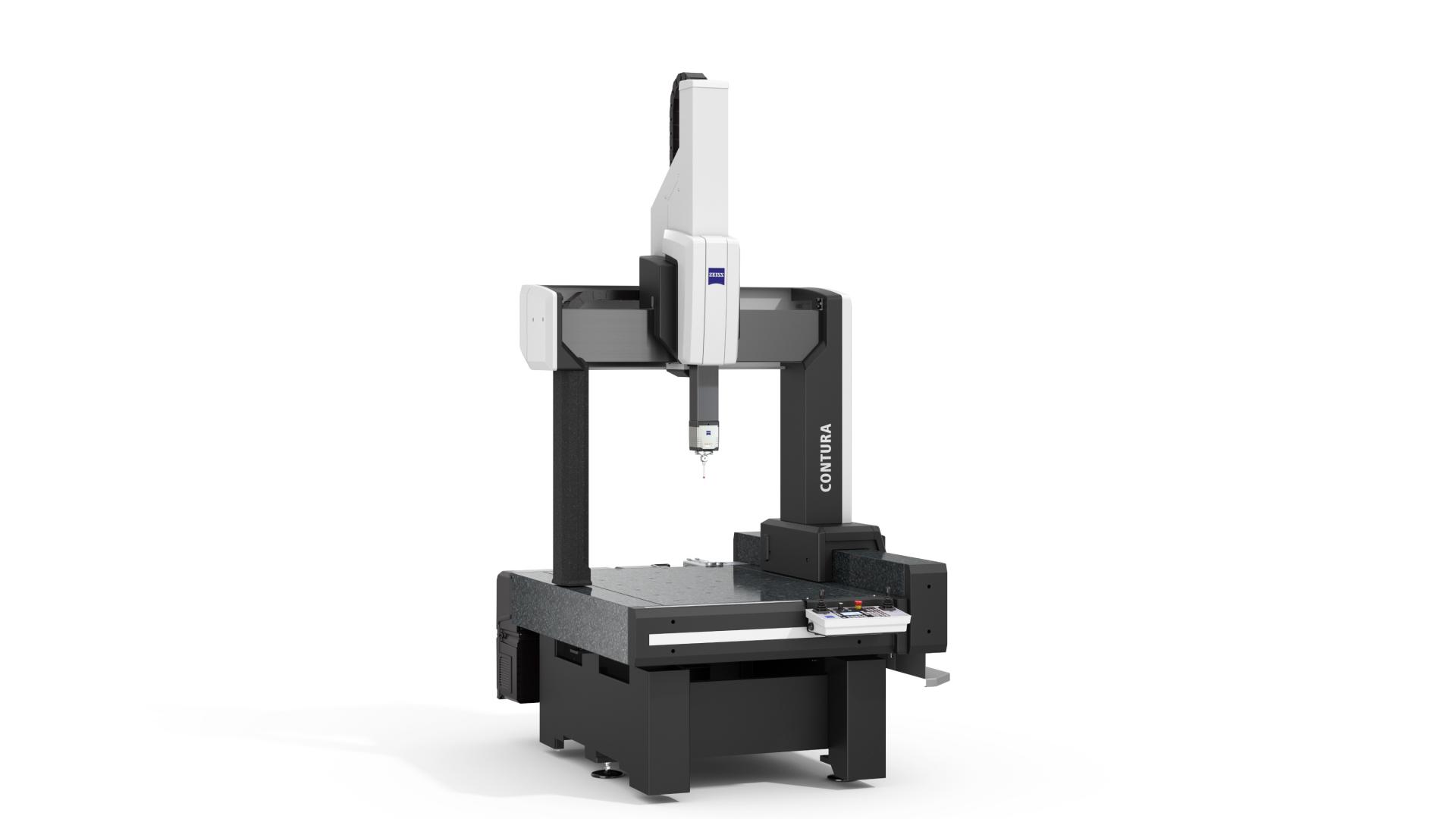

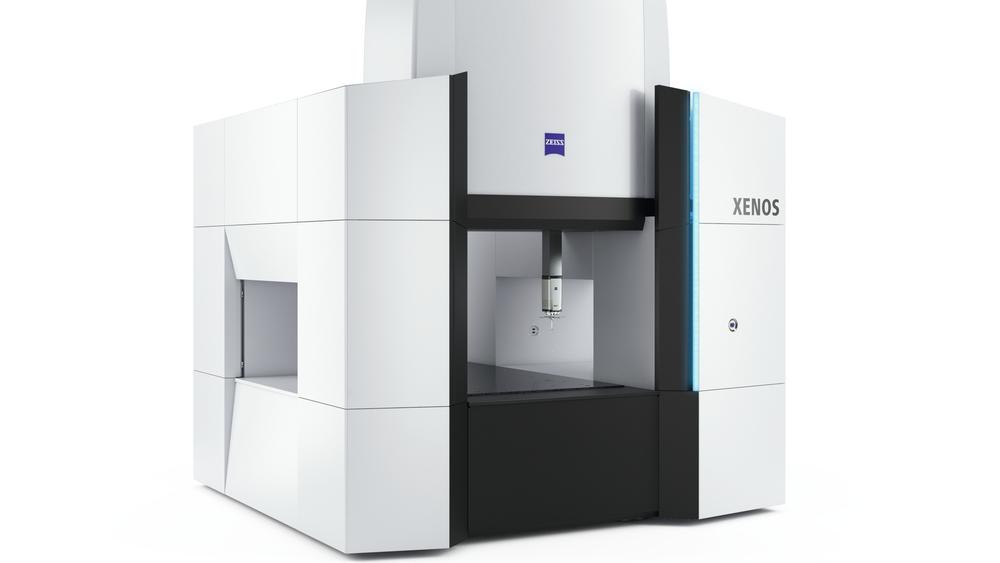

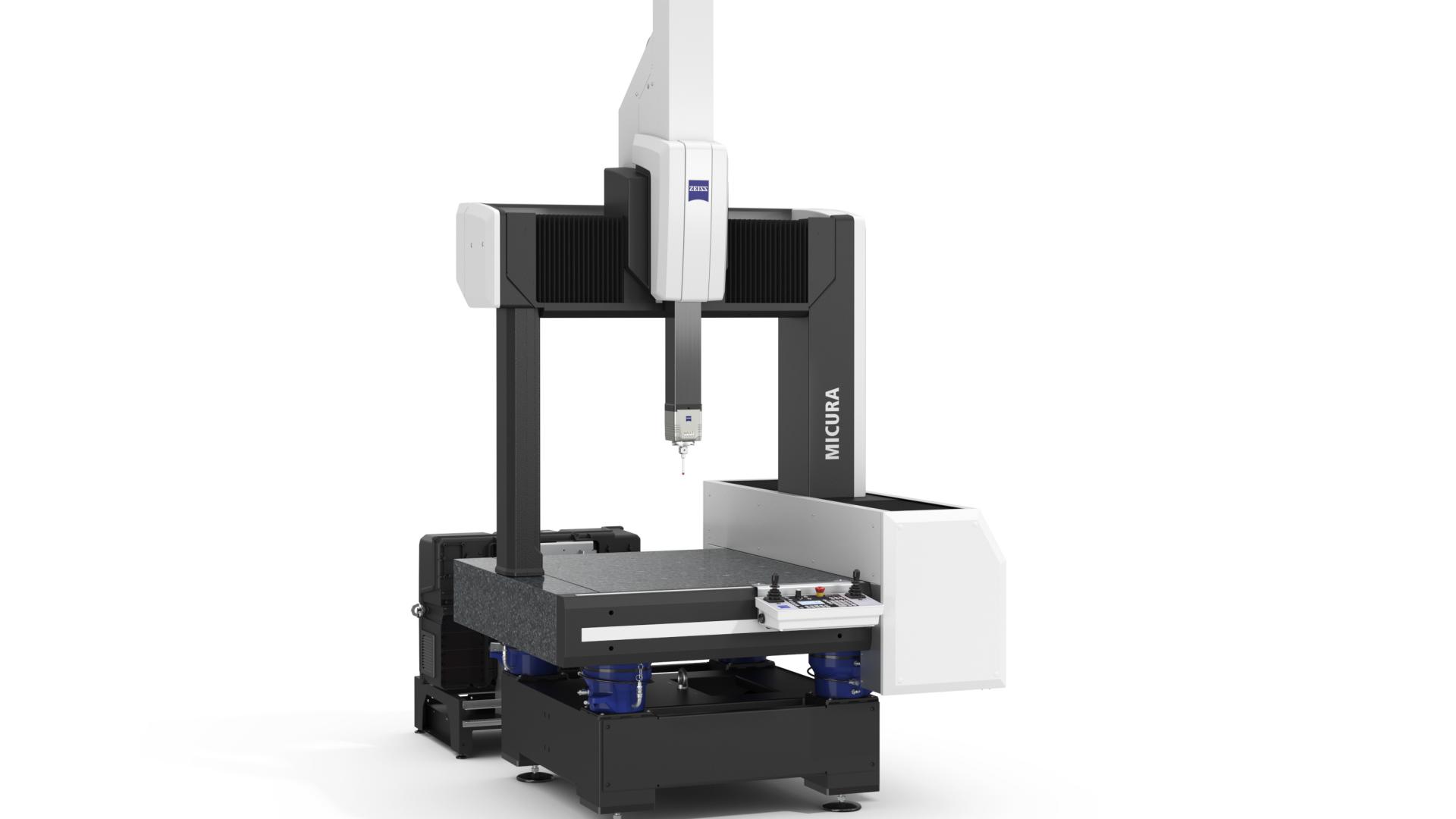

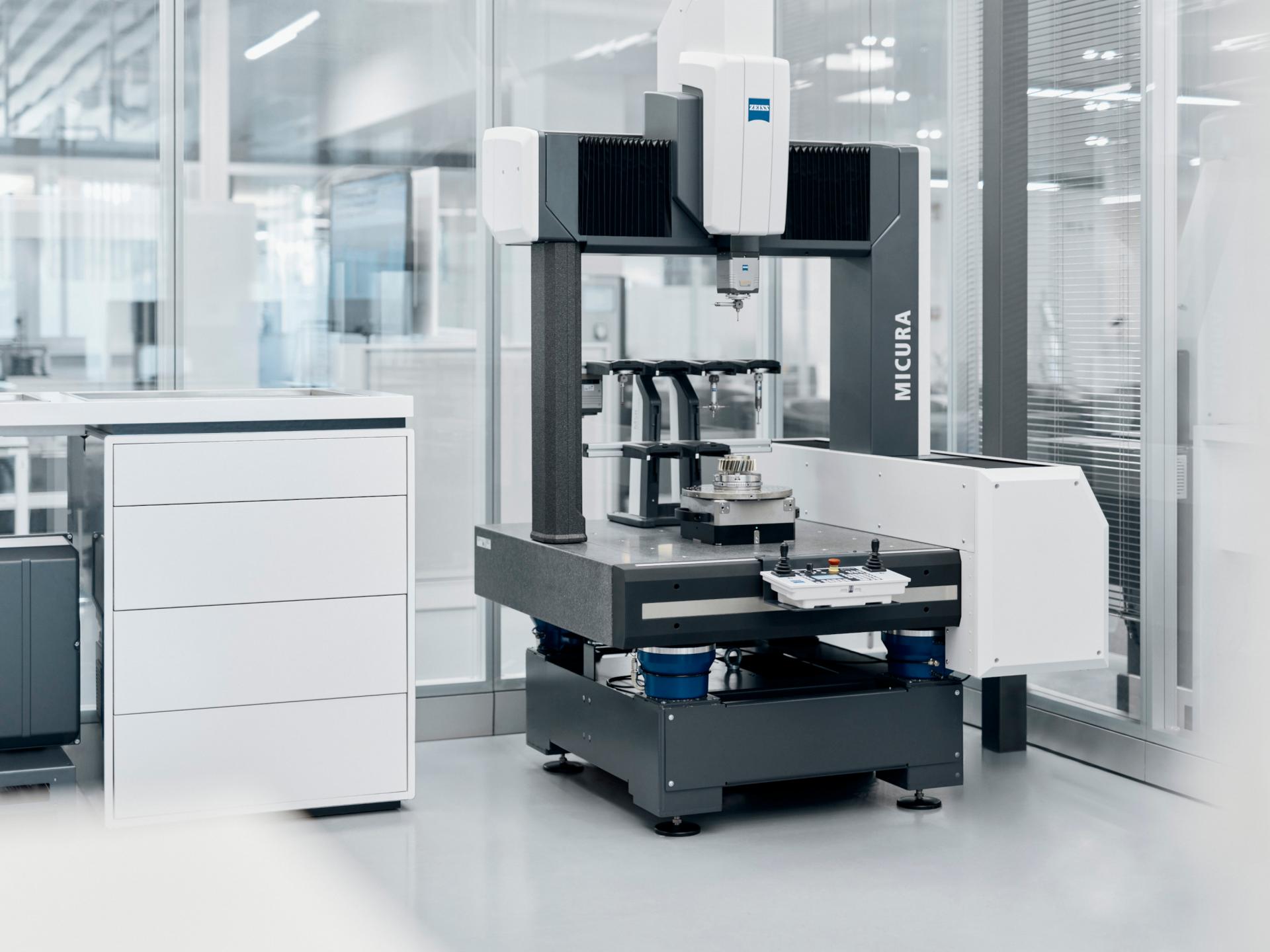

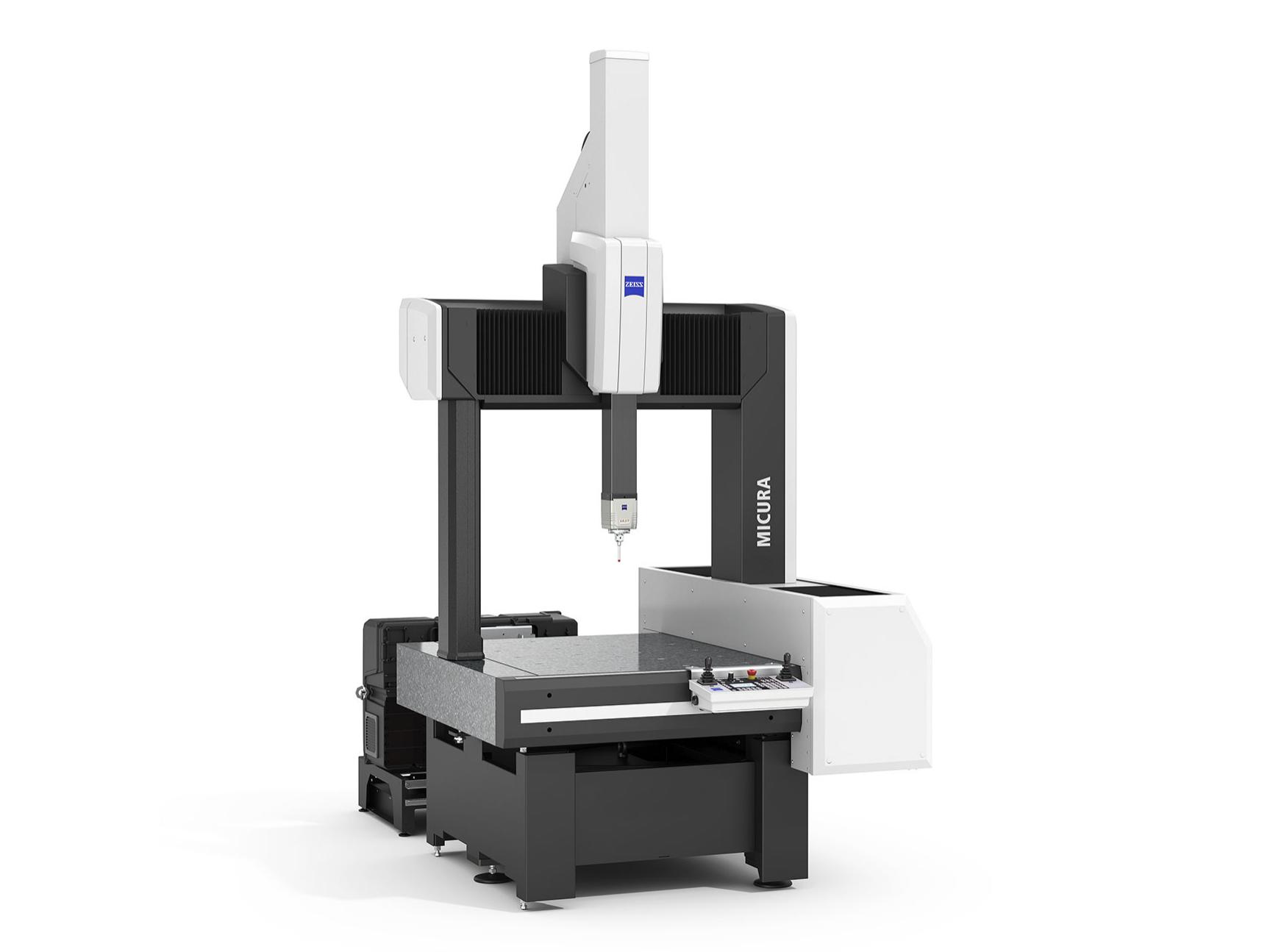

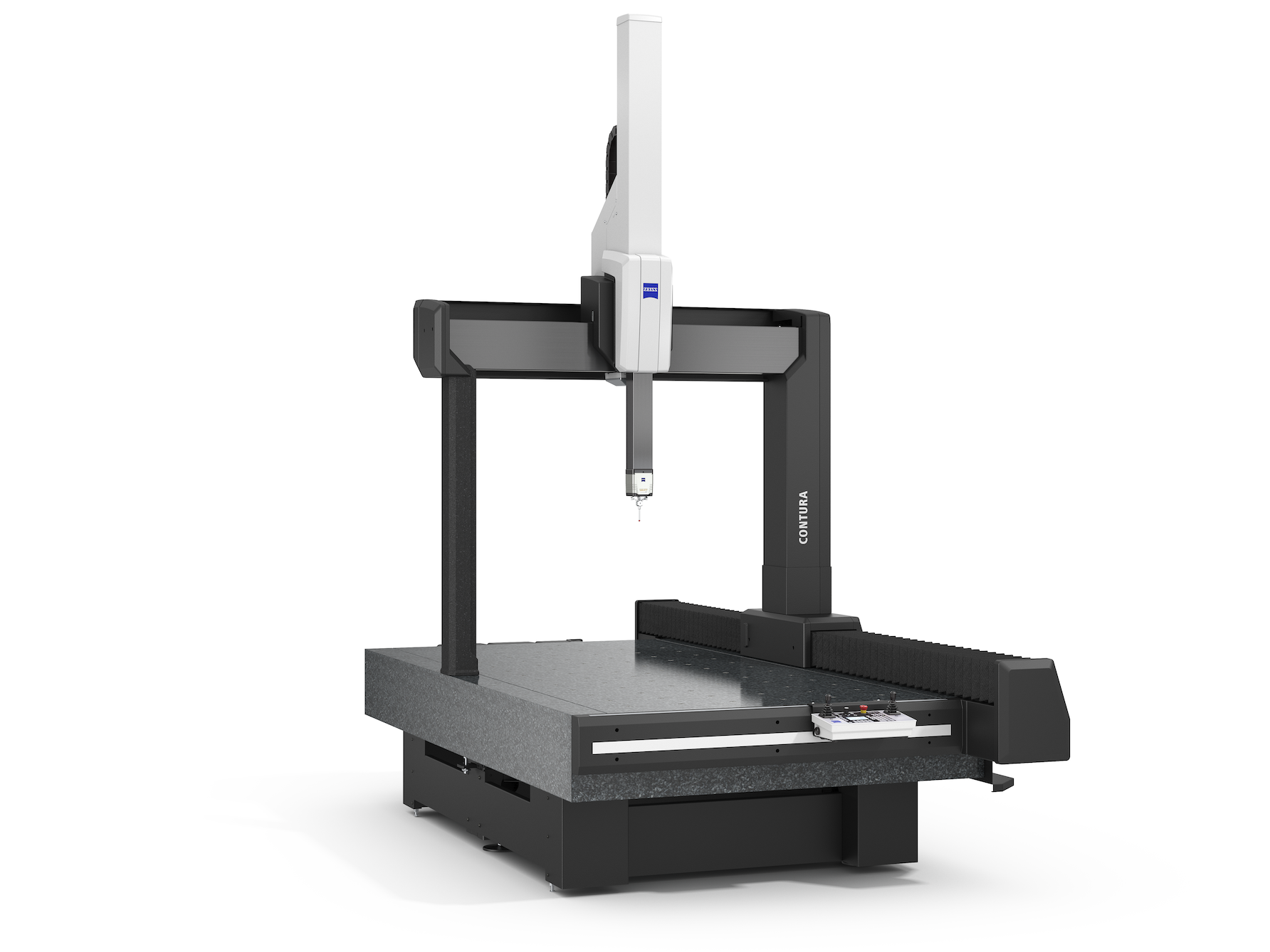

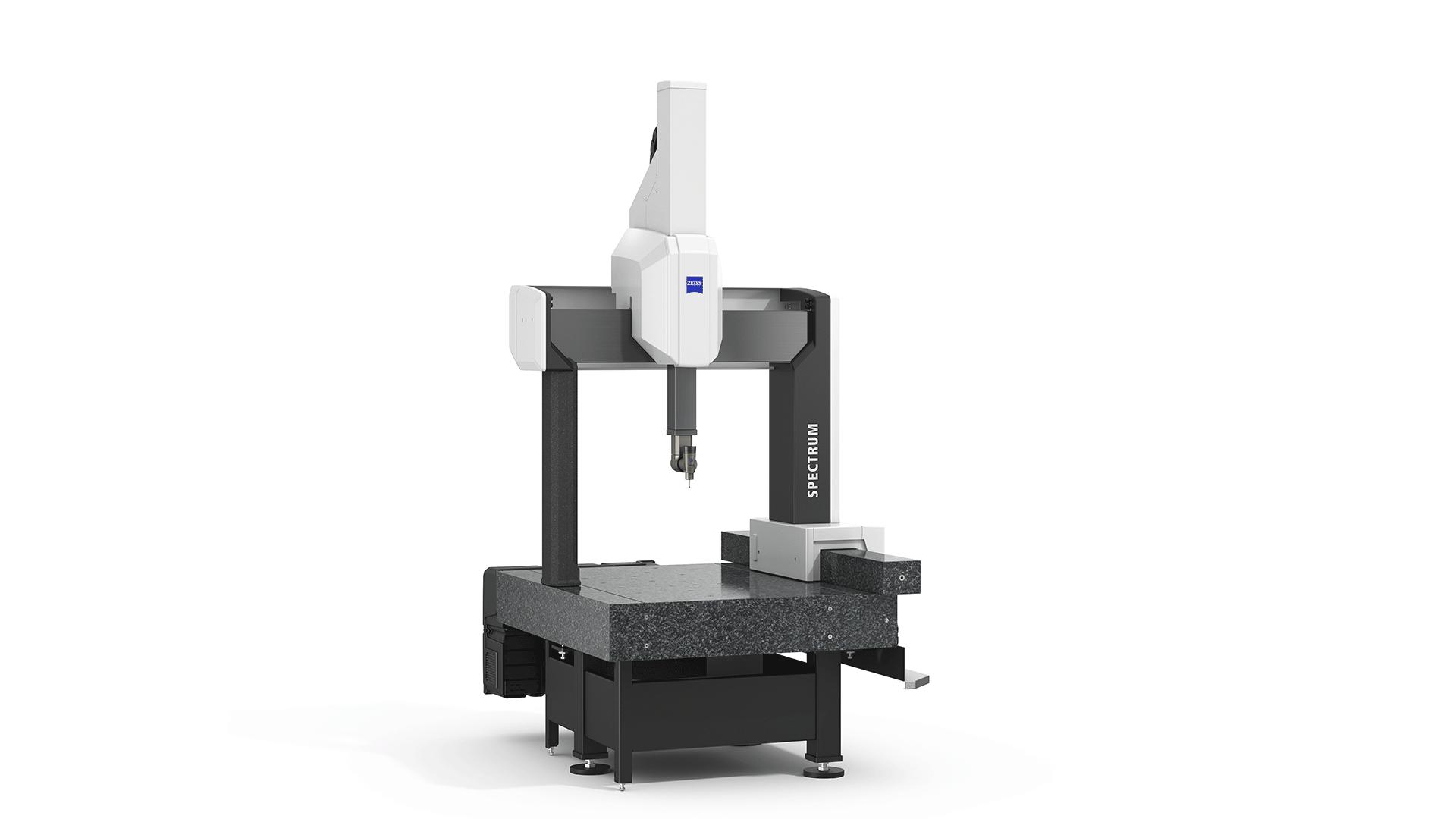

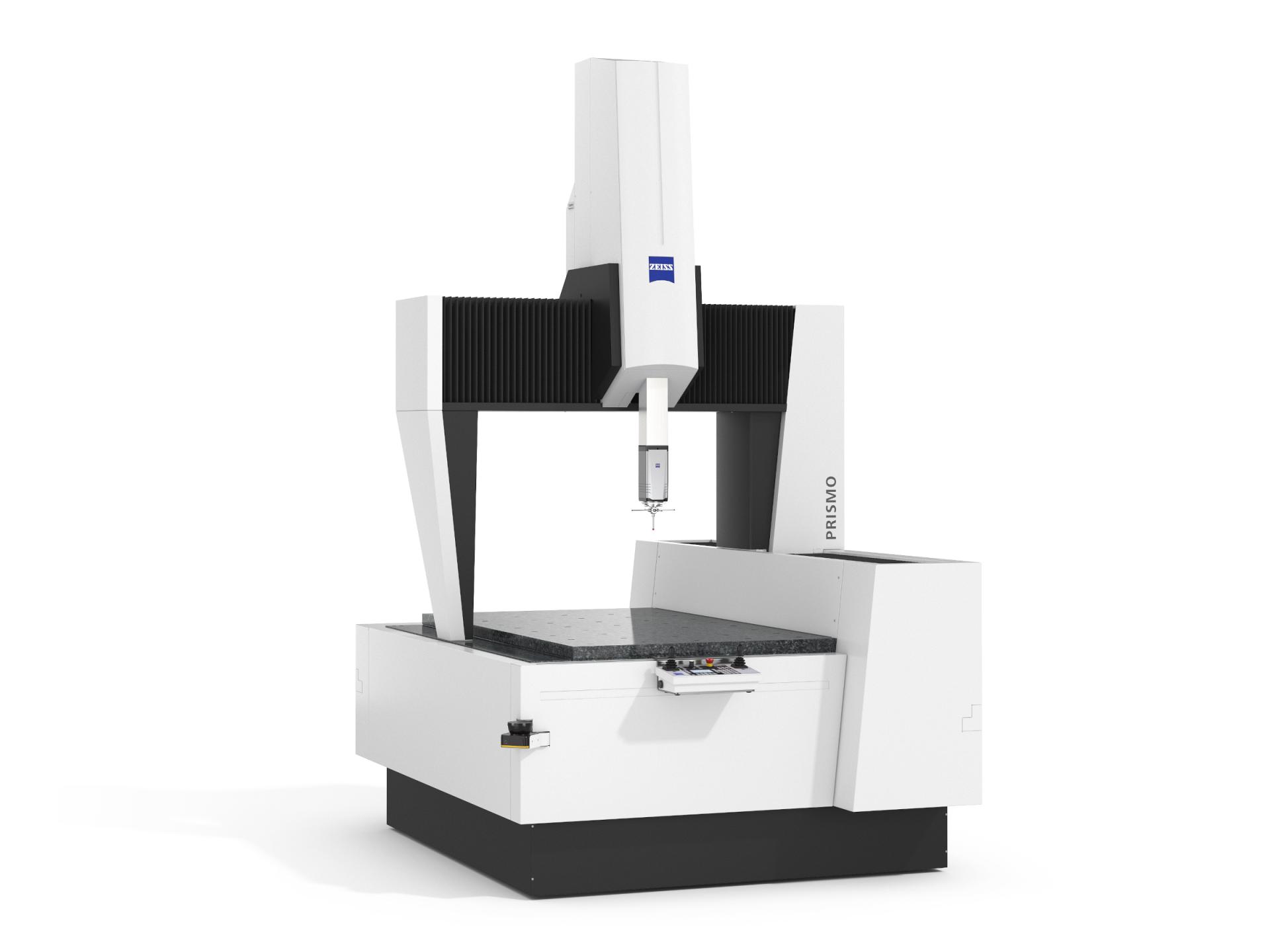

Bridge-Type Coordinate Measuring Machines

To guarantee high quality standards, ZEISS relies on three key features: dynamic rigidity, low weight of the moving workpieces and reliable insulation from environmental influences.

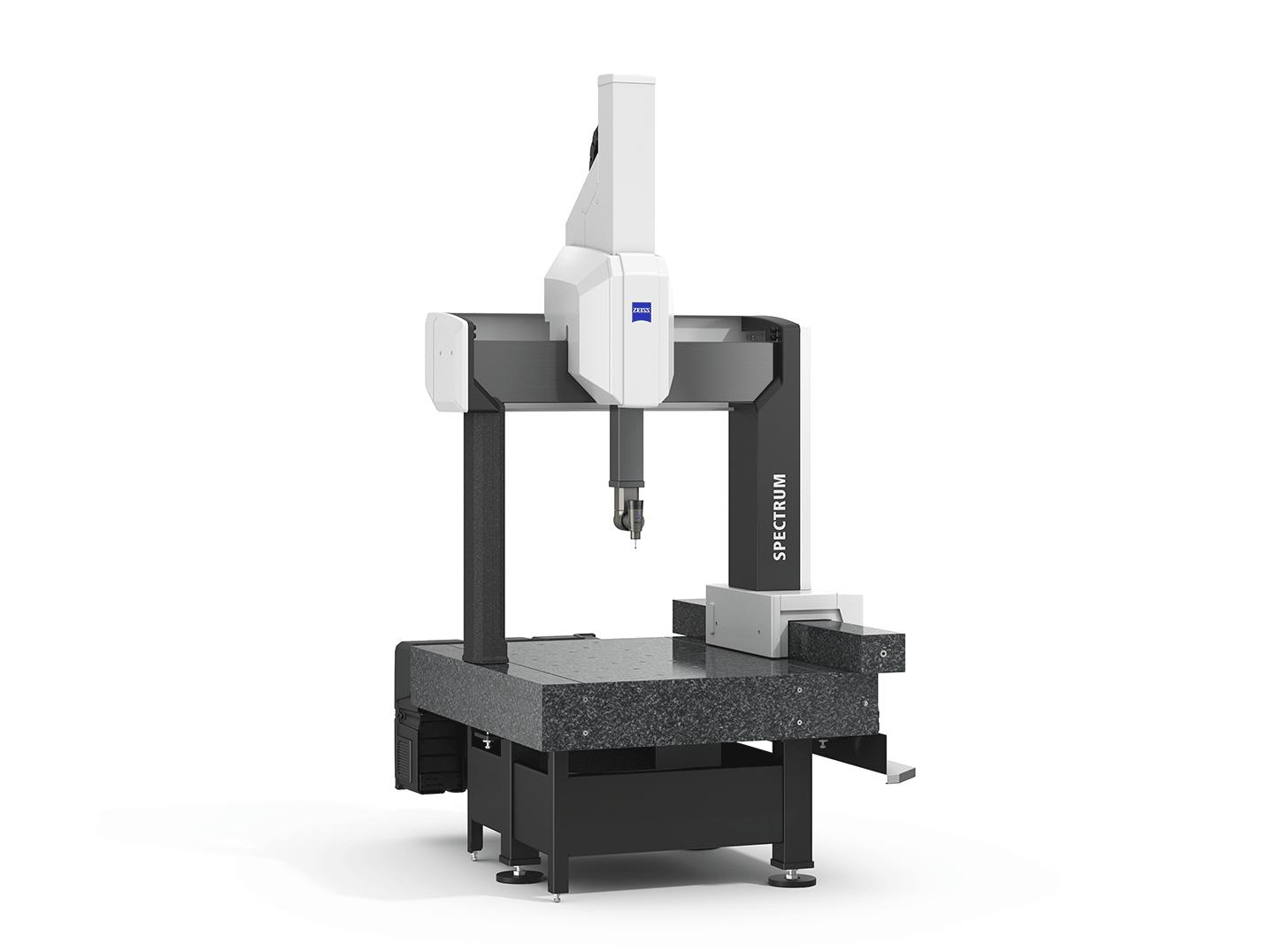

The dynamic rigidity of the coordinate measuring machine is crucial for accuracy. This is the only way to avoid measurement deviations even when scanning at high speeds. To ensure high performance in every application, ZEISS bridge-type coordinate measuring machines are characterized by temperature and vibration insulation as well as shielding covers to protect the coordinate measuring machine from environmental influences. The measuring table of the bridge-type CMMs is made of granite. In order to make the moving parts as light and yet rigid as possible, ZEISS uses ceramic and DLC aluminum. In addition, bridge-type coordinate measuring machines from ZEISS are fitted with air bearings. The optimum distribution of these air bearings guarantees friction-free and wear-free sliding in many applications.

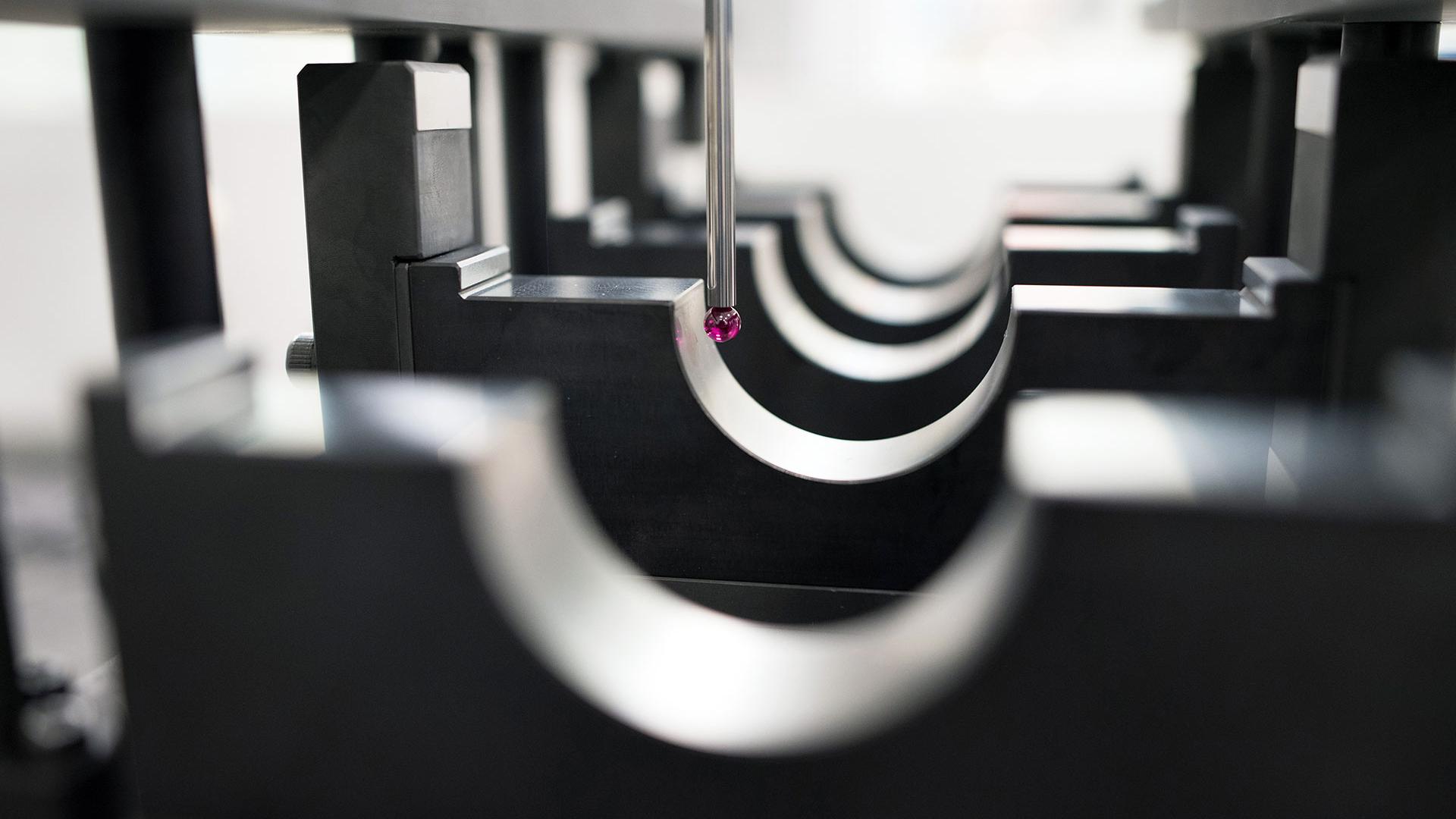

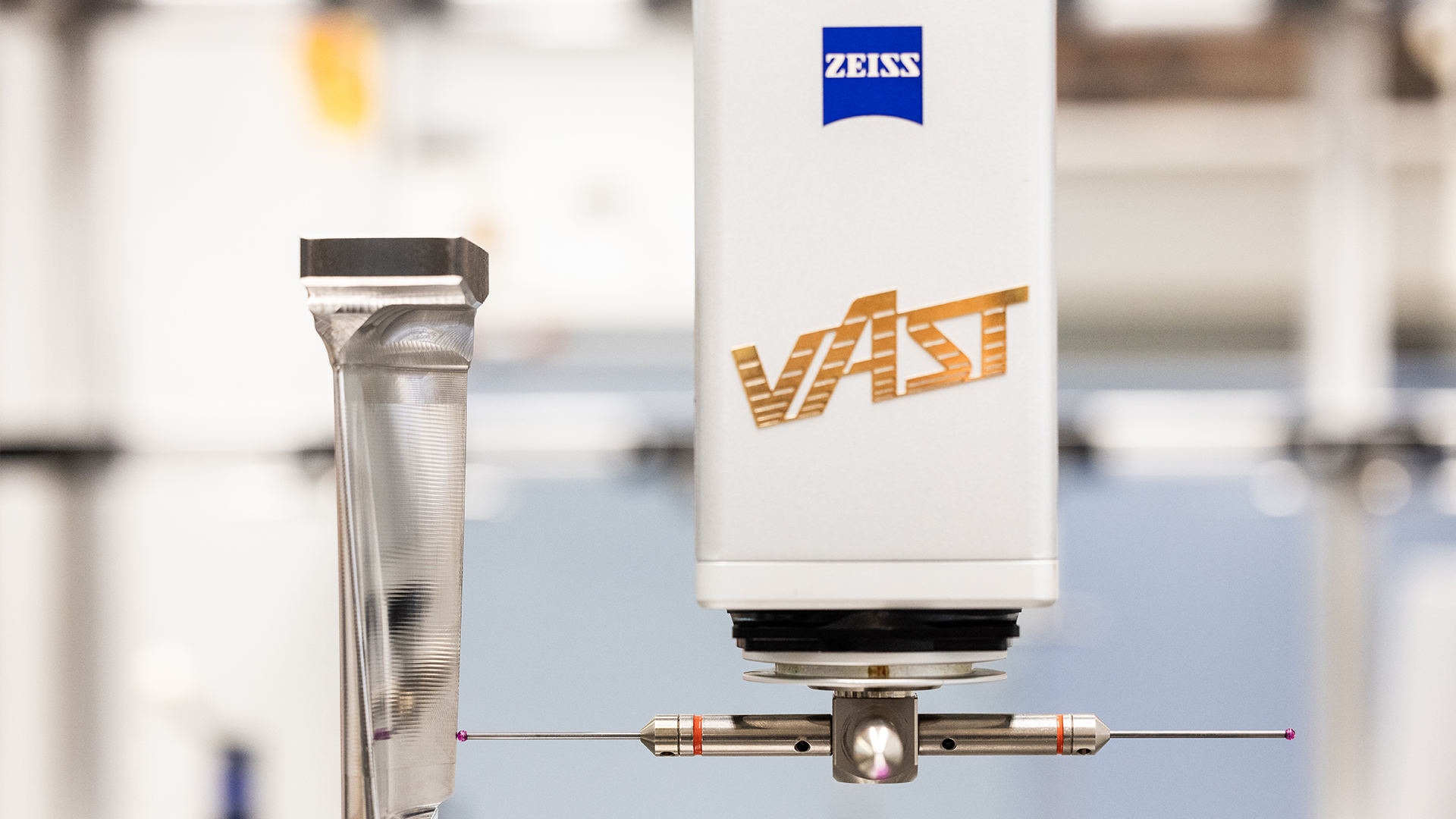

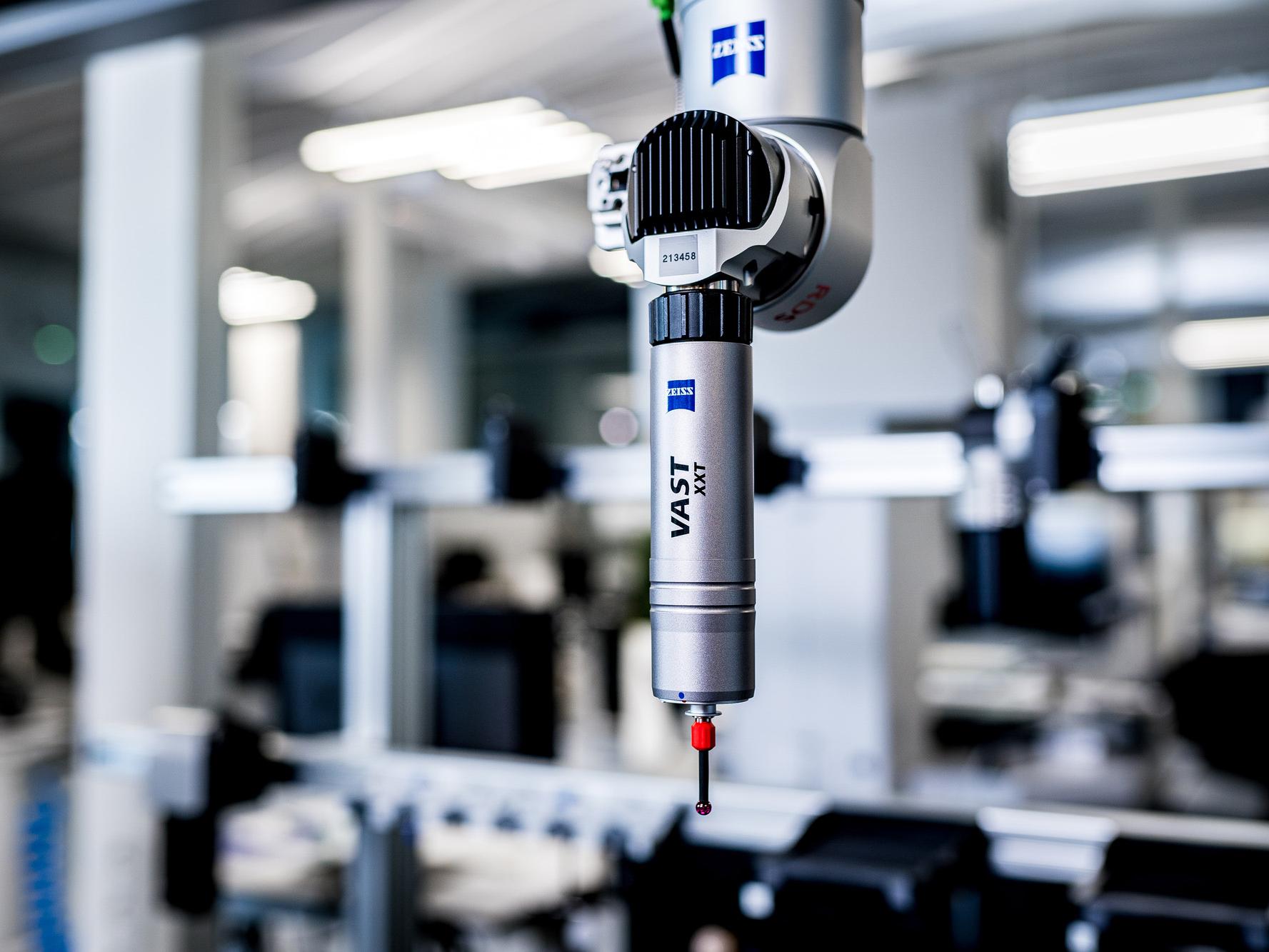

The ZEISS VAST scanning probes also allow the use of long and heavy stylus systems, enabling time-saving scanning of deep-set features on workpieces. Complex stylus systems with differently aligned probes can also be used for maximum flexibility and measuring speed. This allows stylus system changes to be optimized and the measuring times of complex workpieces to be shortened.

The original accessories from ZEISS will help you to achieve the best possible measurement results with every measurement. This is because the tested combination of materials, design and technology only realizes its full potential when the individual components of the coordinate measuring machine are perfectly matched.

You can find the right accessories for your bridge-type coordinate measuring machines in the ZEISS webshop.
