Bridge-type CMM

ZEISS MICURA

Maximum precision for small components

ZEISS MICURA defines the standard in precision for compact workpieces and combines advanced technologies such as the ZEISS VAST XT gold active scanning probe, ZEISS VAST XTR gold, navigator technology, and new innovative CMM corrections for unmatched accuracy in its class.

Highly precise with an accuracy of <1µm
Active scanning and navigator technology
High stability due to air bearing
Optional rotary table for more flexibility with 4-axis scanning

Leader in terms of accuracy

ZEISS MICURA is the solution for new requirements in industrial production, where components are becoming ever more compact and there are increasing demands for accuracy.

Compact and highly precise

Equipped with the high-end VAST XT gold or VAST XTR gold probe from ZEISS and navigator technology, ZEISS MICURA offers active scanning with a measuring accuracy of less than one micrometer. ZEISS MICURA demonstrates its strengths particularly with small complicated components with tight tolerances, such as those used in optics, medical technology or electronics. Despite its compact dimensions, the coordinate measuring machine achieves a measuring volume of 500 x 700 x 600 mm – significantly more than comparable machines.

Precise high-speed scanning

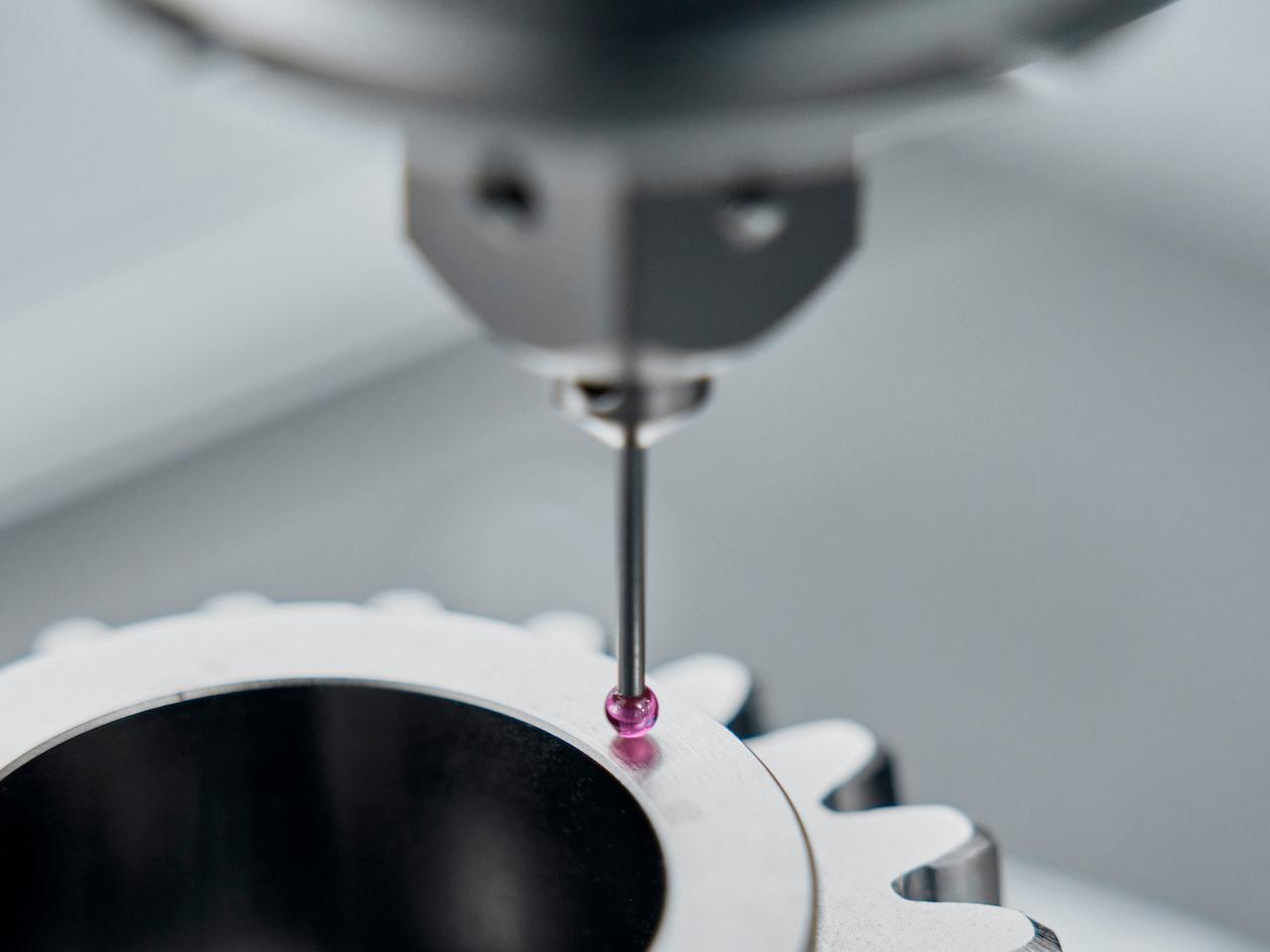

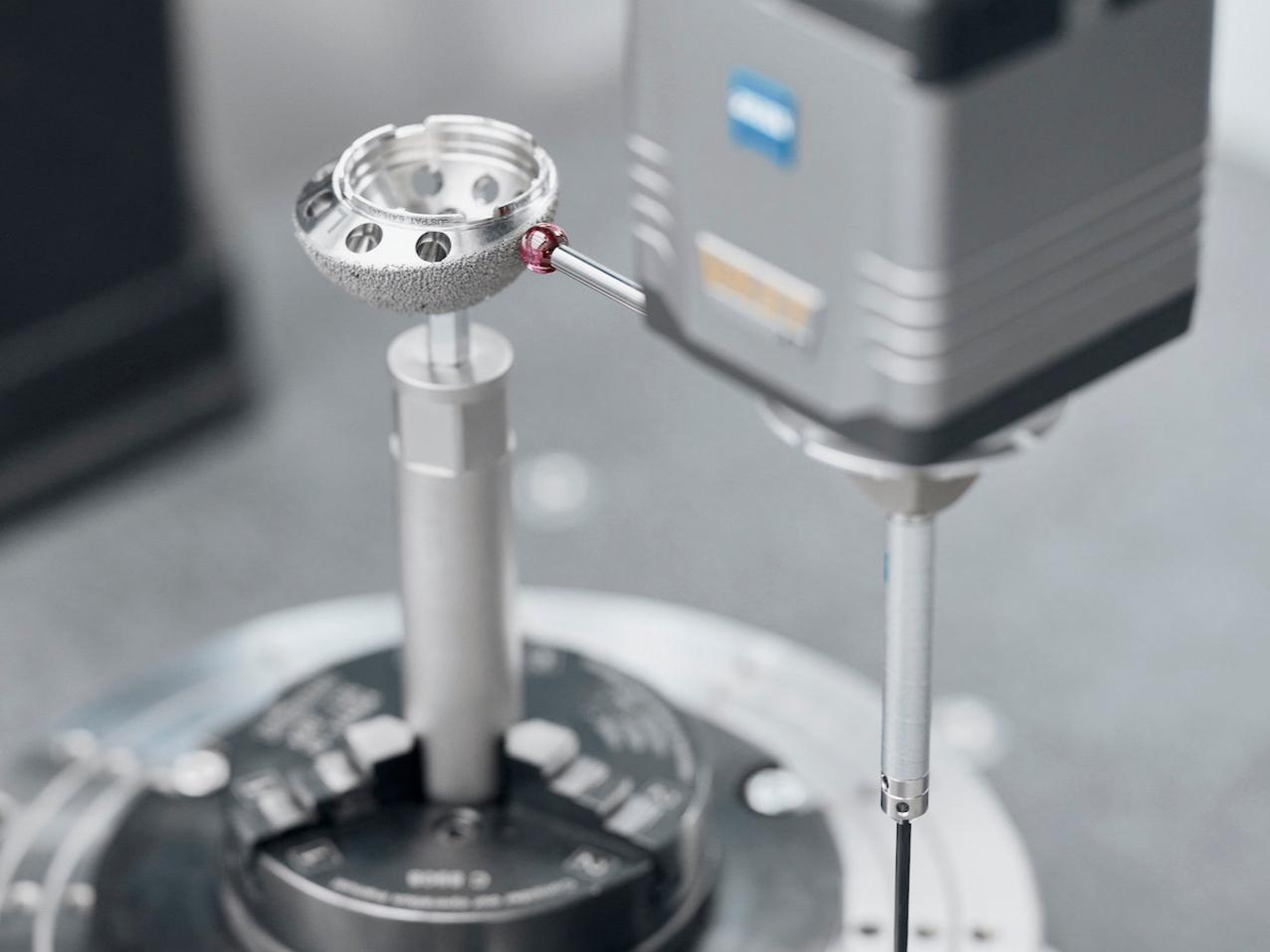

The VAST XT gold and VAST XTR gold probes from ZEISS enable high-speed scanning with up to 500 measuring points per second. In addition to geometric parameters, shape and position parameters such as roundness or flatness can also be precisely measured in a short space of time. The VAST XT gold probe can be equipped with particularly small test spheres. The smallest probe has a diameter of just 0.3 mm.

Automatic measuring speed

ZEISS MICURA is equipped with VAST navigator technology as standard. It automatically sets the optimum measuring speed with guaranteed accuracy – and thus significantly shortens the measuring time. ZEISS MICURA moves a little slower in places with high precision requirements. The coordinate measuring machine moves faster if the contours are simpler or are measured with fewer requirements.

Navigator technology saves even more time thanks to tangential approach and scanning, helix scanning and fast dynamic stylus qualification.

More flexibility with ZEISS rotary table

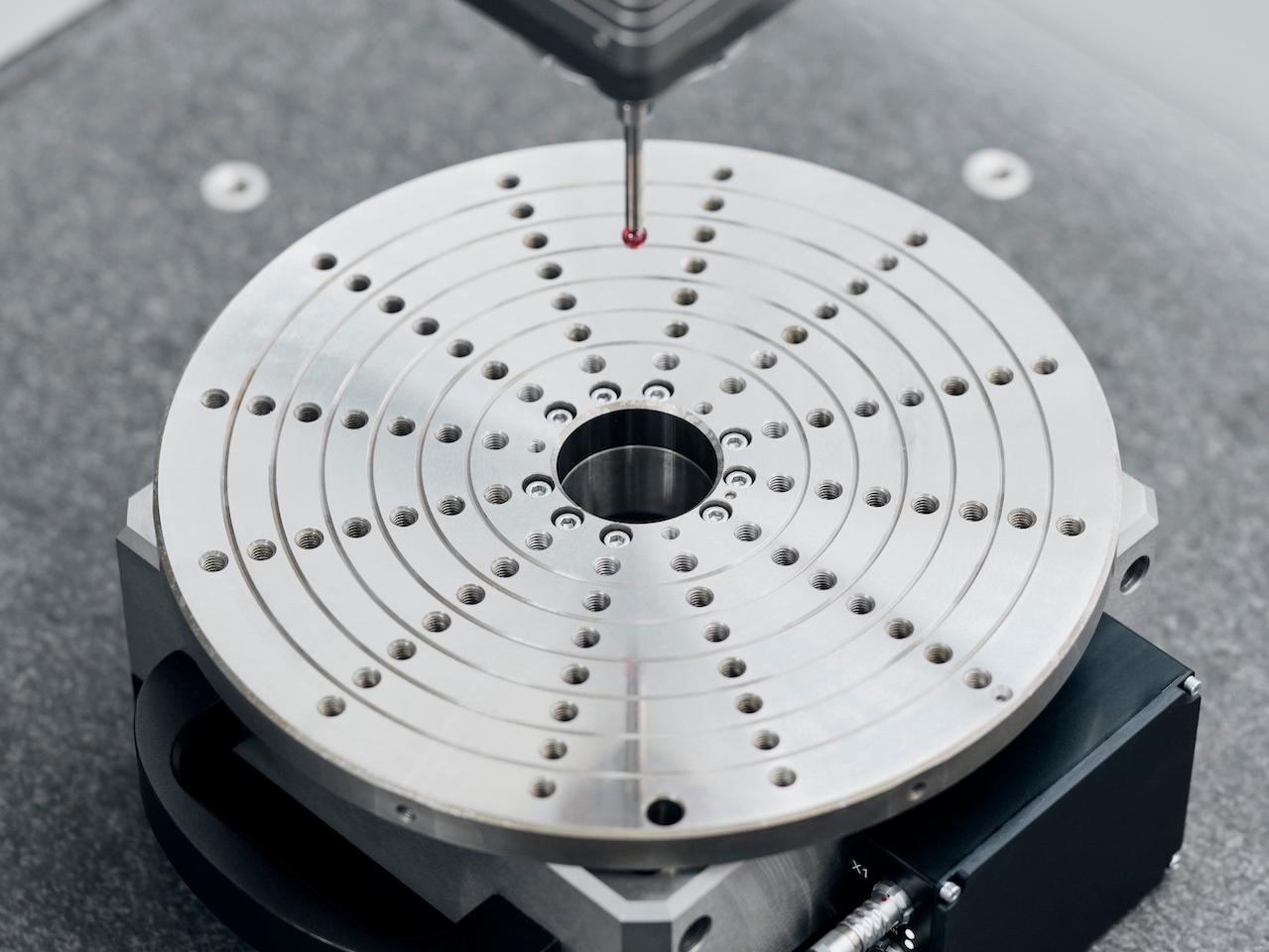

The flexible ZEISS RT-RB-100-1 rotary table can be installed in the measuring area as a setup variant as required and then conveniently moved out of the measuring area again. This option enables measurement in four axes – on just one machine.

Technical highlights

Computer-aided Accuracy (CAA)

Error components due to dynamically induced inertia effects are corrected with the aid of computers.
Air bearings and vibration dampers

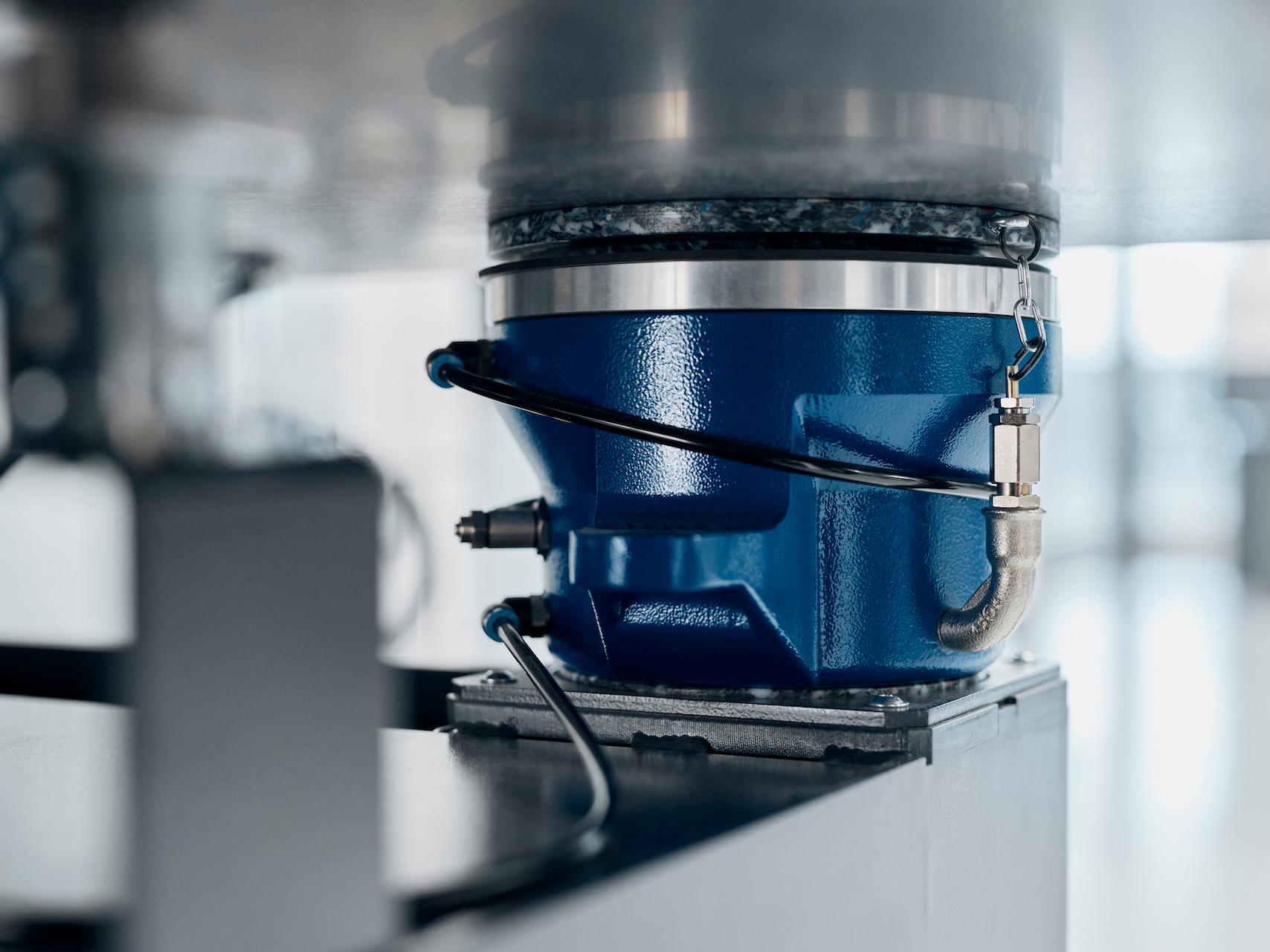

Four-sided air bearings from ZEISS guarantee stability and precision. Active vibration dampers are also available as option for optimum filtering of floor vibrations.
Temperature sensors

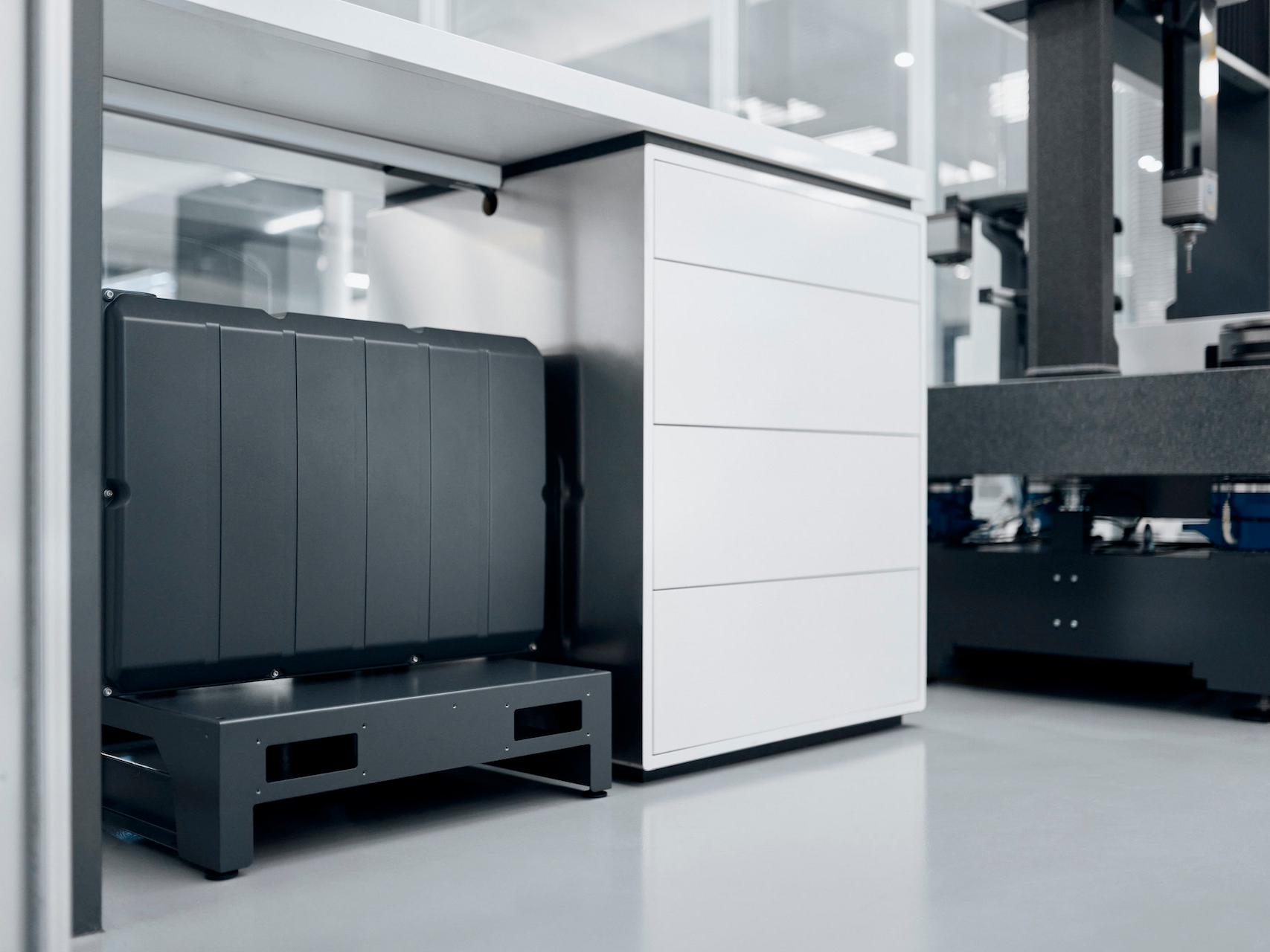

Two sensors for recording the temperature of the workpiece are part of the basic equipment of ZEISS MICURA.
Separate control unit

Thermal influences can be minimized by separating the coordinate measuring machine and controller.
Technically coordinated

All components are technically coordinated with each other: control technology, software, probes and additional components from ZEISS.
Active control of the probing force

The probing force of the probe is actively controlled and is very low – ideal for sensitive materials.

Technical data

Measuring range in dm	5/7/6
Accuracy from	0.7 + L/400 μm
Probes	ZEISS VAST XT gold ZEISS VAST XTR gold
Maximum workpiece weight	730 kg
Software	ZEISS CALYPSO
