ZEISS SPECTRUM family

ZEISS SPECTRUM

Tactile and optical scanning

ZEISS SPECTRUM offers a wide range of optical and tactile scanning sensors for measuring parts with varying geometries and surfaces. This provides flexible quality control and consistent product results, instilling confidence in measuring results.

Increased measuring volume with VAST XXT compact design
Optimal price-performance ratio
Flexibility in sensor selection

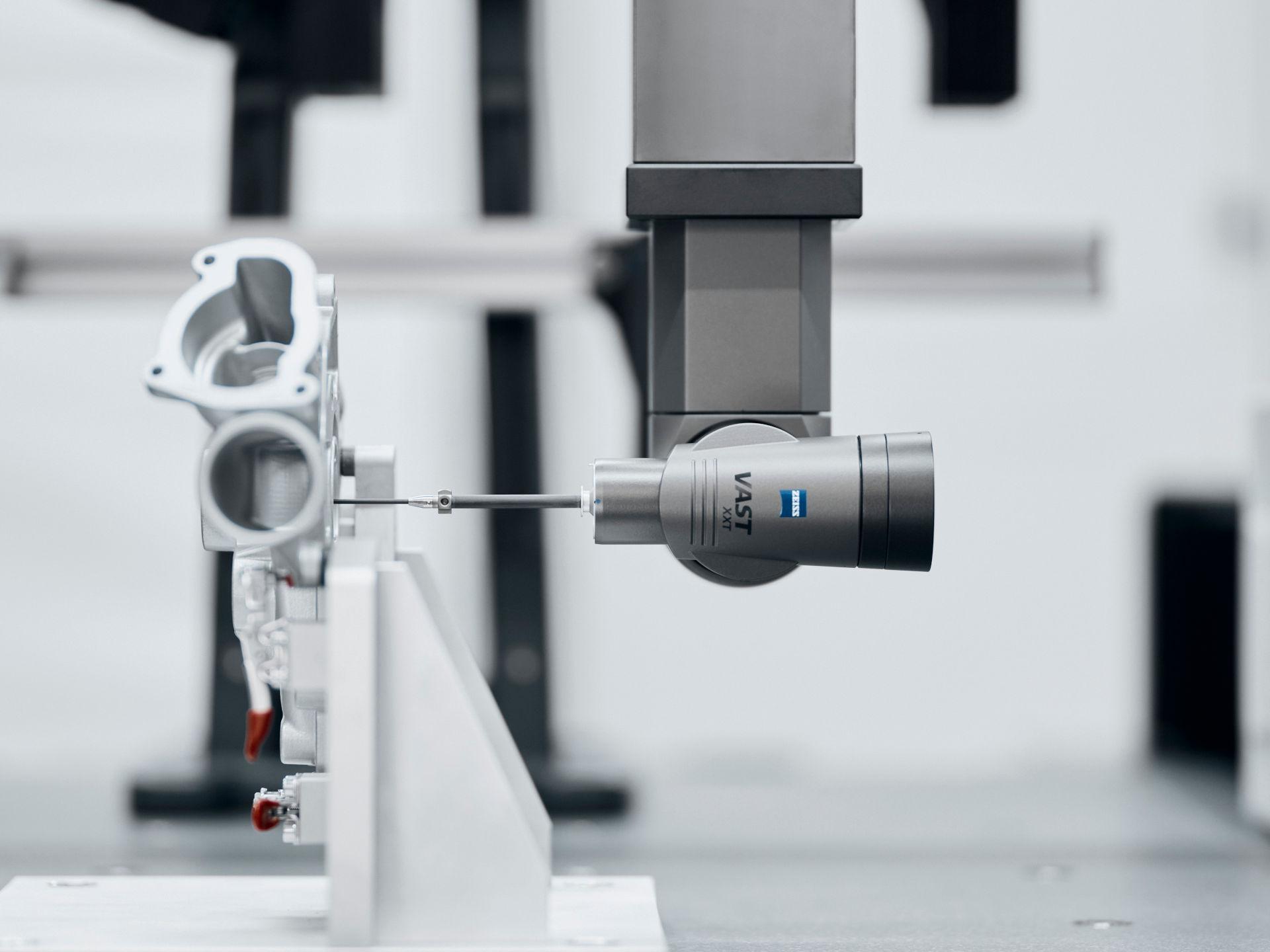

Great measuring volume

The innovative VAST XXT TL3 compact design sensor is a game-changer when it comes to machine measuring volume. With its clever design, it significantly increases the available space for measuring various workpieces. This expanded measuring volume allows for greater flexibility and accessibility in the types of parts that can be accurately measured.

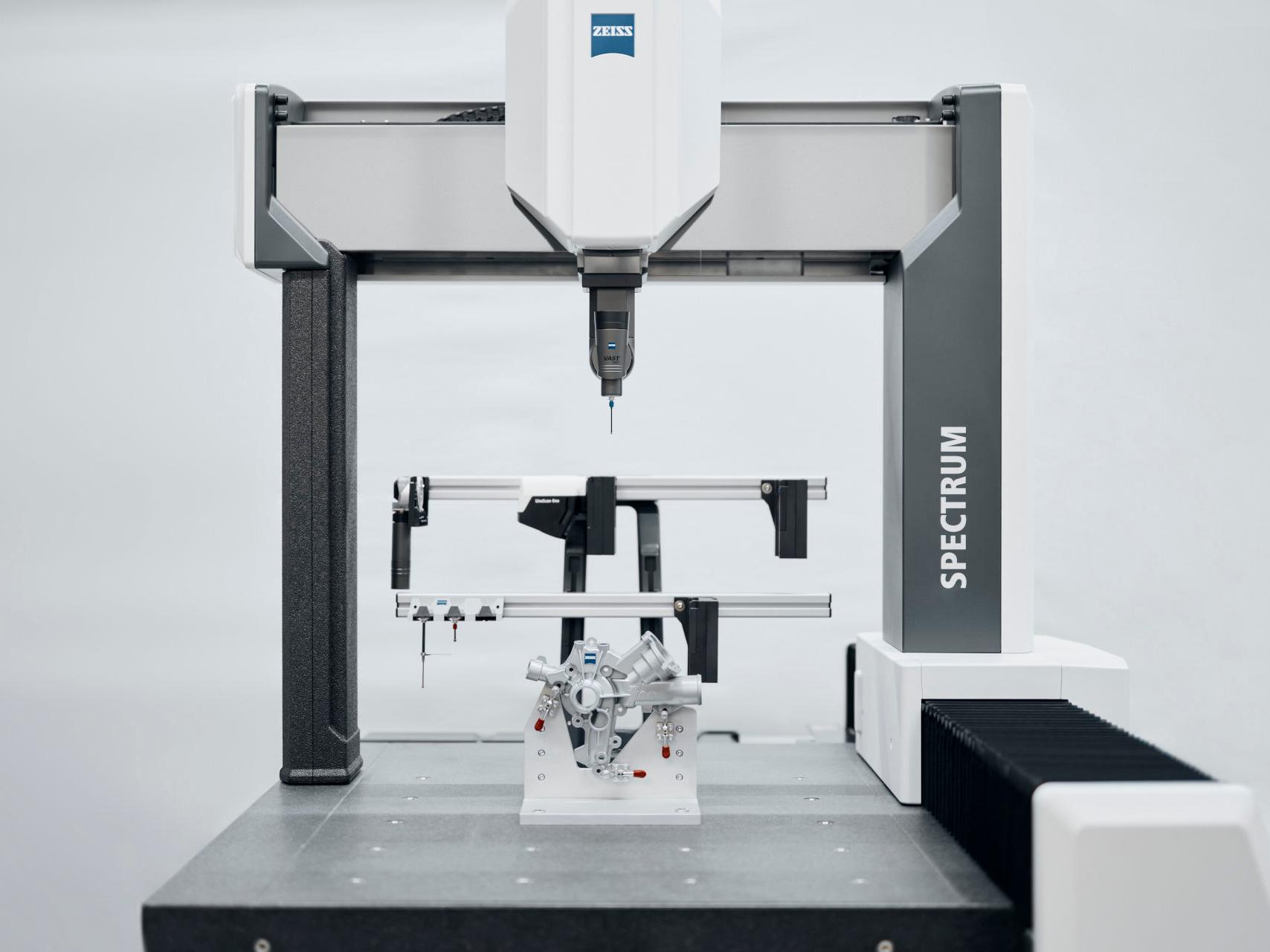

Broad coverage of applications

The broad coverage of applications and availability of different sensor packages make it convenient to make decisions based on the measurement task. Users can easily tailor the sensor package to their specific needs.

Cost effectiveness

The RDS probe head with integrated CAA (Computer-Aided Accuracy) reduces operating time while the compact sensor design significantly increases the available measuring volume on the machine. A larger CMM size is therefore not required for bigger workpieces.
Tailored to your needs

ZEISS SPECTRUM comes in different packages for either single point measurement, scanning mode or with RDS for complex structures as well as optical measurement solutions. This enables easy decision-making based on the application.
Robustness and reliability

ZEISS SPECTRUM is the most stable and reliable high-end CMM in its class. The glass ceramic scales provide temperature resistance over a wide range of temperatures without the need for temperature sensors. A stiffer base frame and tripod construction offer perfect force transition and earthquake protection.
Reduced preparation effort

The extremely quick and easy installation of ZEISS SPECTRUM reduces costs and facilitates a fast system start-up.
Great price-performance ratio

There is no better value in its class. With ZEISS SPECTRUM, you get reliable scanning performance, wide sensor compatibility, hardware know-how and more.

Technical details

	ZEISS SPECTRUM
Type	Bridge CMM in measuring room
Sizes	7/7/6; 7/10/6; 9/12/6; 9/18/6
Compatible sensors	RDS-CR5-CAA / VAST XXT TL3 / TL1 RDS-CR5-CAA / VAST XXT TL3 Compact design VAST XXT direct
Accuracy	Up to: 1.8+L/250 µm
Software	ZEISS CALYPSO
Angle positions	Step angle 5 degree 5,184 possible positions
Optical sensors	ZEISS LineScan One
Options	ZEISS SoftTouch Mode

Applications

Industry

With ZEISS SPECTRUM, you can measure industrial parts such as CNC parts, housings for accessories and mechanical components.
Electronics

ZEISS SPECTRUM is ideal for scanning small electronics including connectors, housings, middle frames or thin foils.
Automotive

In the automotive industry, ZEISS SPECTRUM is suitable for small housings, stamped parts, CNC-machined parts, and plastic parts.
Job Workshops

ZEISS SPECTRUM is a great match for measuring manufacturing parts, sheet metal parts, stamping parts, and plastic parts.

ZEISS CALYPSO Software

Software for dimensional measurement technology

ZEISS CALYPSO measures standard geometries simply, quickly and reliably. Program inspection plans easily by clicking on the desired features. Travel paths are generated automatically and optimally by the software. Thanks to numerous optional extensions, ZEISS CALYPSO also offers the right tools for special requirements, for example with ZEISS CALYPSO VAST probing and ZEISS CALYPSO pallet optimizer. These functions allow measurements to be carried out up to 25% faster.
