ZEISS CALENO

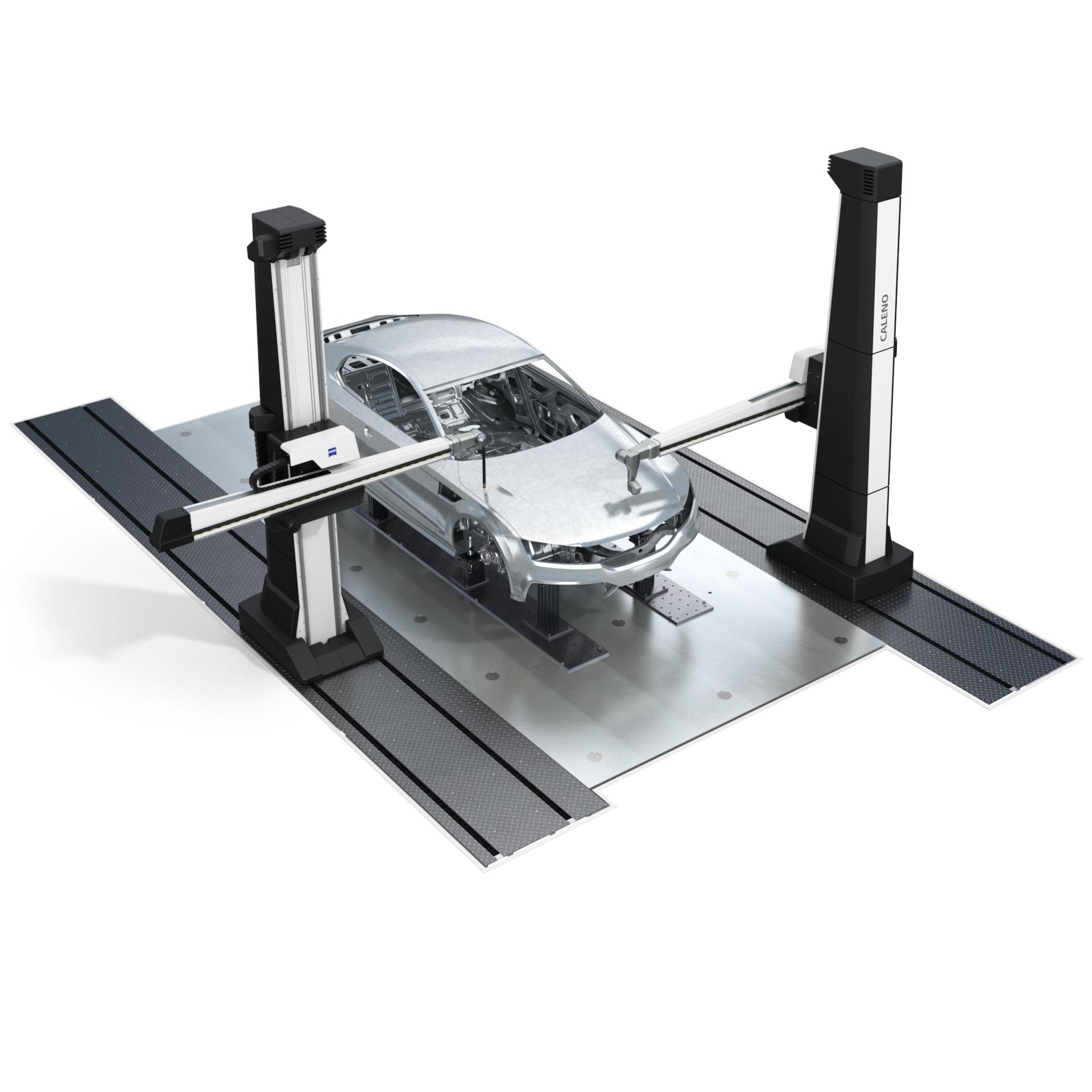

ZEISS CALENO

Multisensor horizontal arm machine

With its combination of high-performance optical and tactile sensors ZEISS CALENO ensures maximum productivity and precision.

  • Enhanced accuracy with multisensor technology
  • Superior productivity with high-speed measurements
  • Optimal safety with integrated protection systems
ZEISS CALENO
Contact

Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

More than a robot. It’s a Hambot.

Hambot is the new generation of horizontal arm machines in metrology combining high performance of a robot with possibilities of traditional horizontal arm machines.

ZEISS CALENO is a combination of CMM accuracy, collaborative system and an outstanding multi-sensor system with an automatic tool changer. Maximum versatility and highest performance capabilities ensure higher travel speed, acceleration and accuracy in the measuring room and near production. With its combination of high-performance optical and tactile sensors ZEISS CALENO ensures maximum productivity and precision.

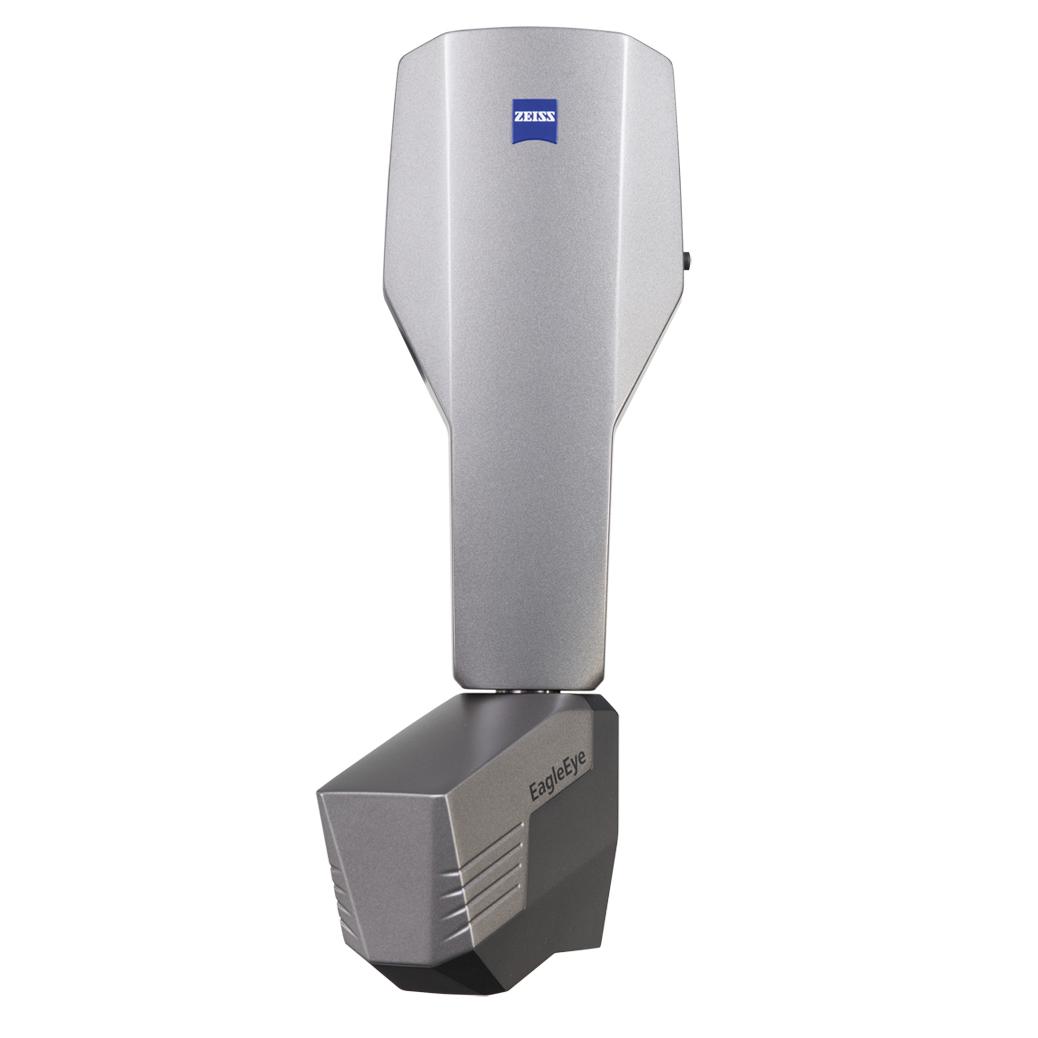

The Optical system ZEISS EagleEye in ZEISS CALENO enables to reduce the measuring time for up to 85%1 with no compromise on quality and accuracy.

  • Productivity & precision

    Maximum versatility and highest performance capabilities ensure higher travel speed, acceleration and accuracy in the measuring room and near production.

  • Individual configuration

    ZEISS CALENO can be easily upgraded with a wide range of options and combinations depending on customer requirements. The measuring system can be customized and fully configured to meet specific accuracy and performance requirements.

  • Safe all around

    The operator and the measuring system are protected by a multilayer safety system. Dedicated collision protection technologies on the sensor, the sensor plate, the sensor carrier (optional), the Y-arm, and further safety systems for the drive in all axes ensure safety all around.

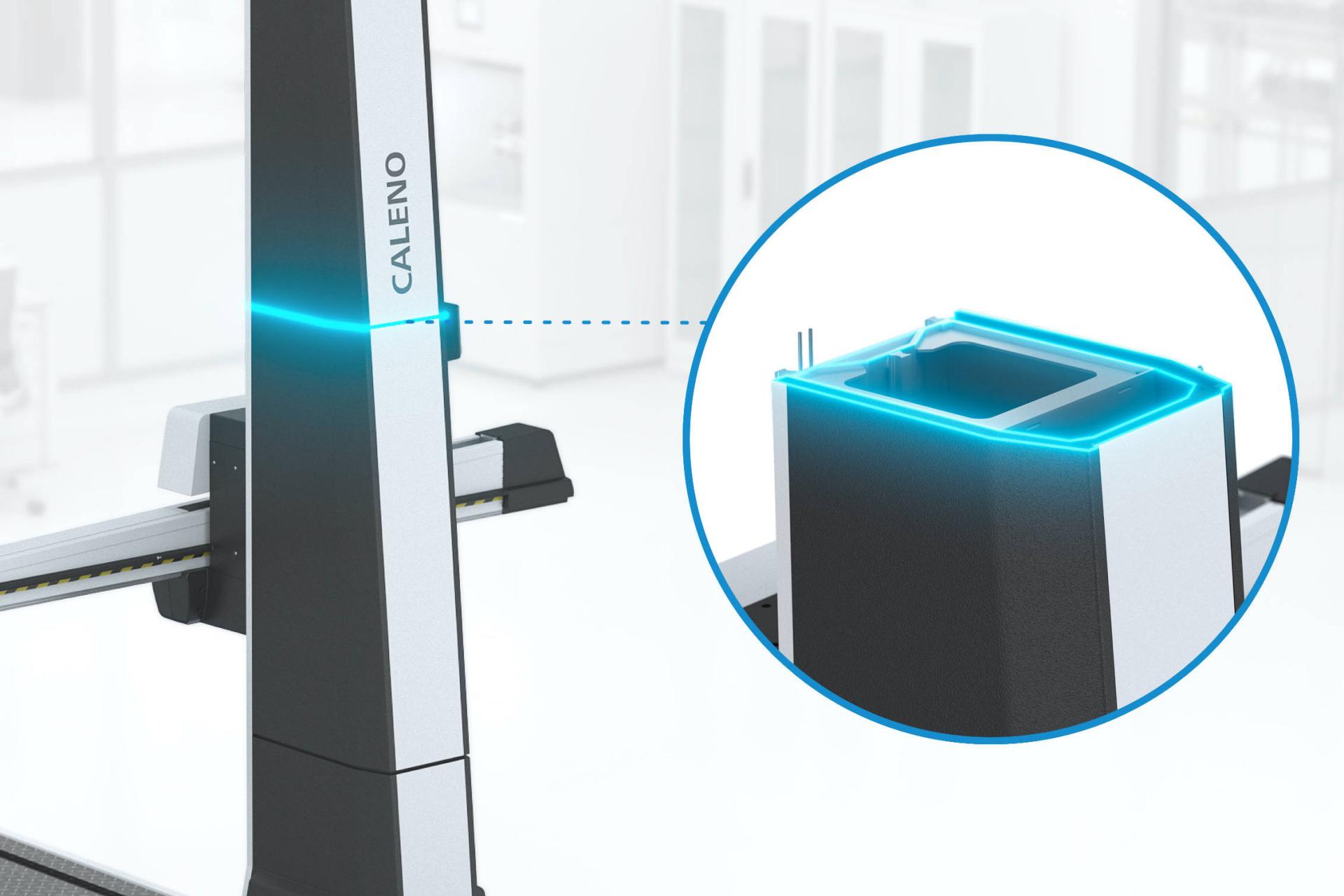

ZEISS CALENO full enclosure cover

Full Cover is standard

Every ZEISS CALENO has a full enclosure in a modern design. It ensures thermal insulation and protection against contamination. This also makes ZEISS CALENO suitable for use in a production environment. In addition, active temperature compensation is optionally available for all machine axes and the part.

ZEISS CALENO Designs

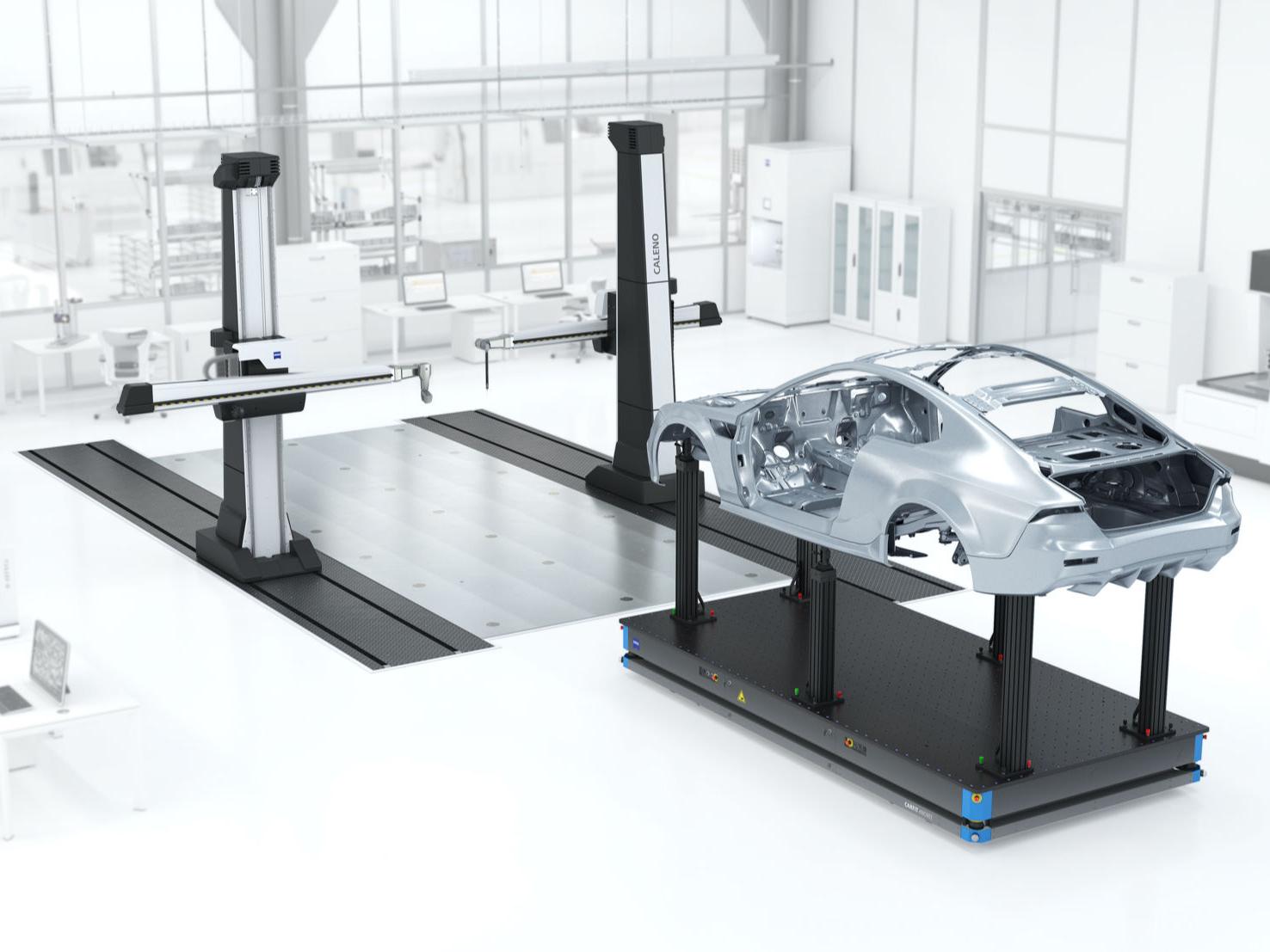

  • Flush floor installation

    Flush floor installation

    In the flush floor version, ZEISS CALENO is optimally accessible and can be driven over with floor conveyors such as ZEISS eMOBEE. For all work on and with the measuring system, the floor-level version offers the best possible ergonomics and productivity - ideal for a high volume of measurements and tight time windows. A suitable foundation is required for installation.

  • ZEISS CALENO T tabletop design

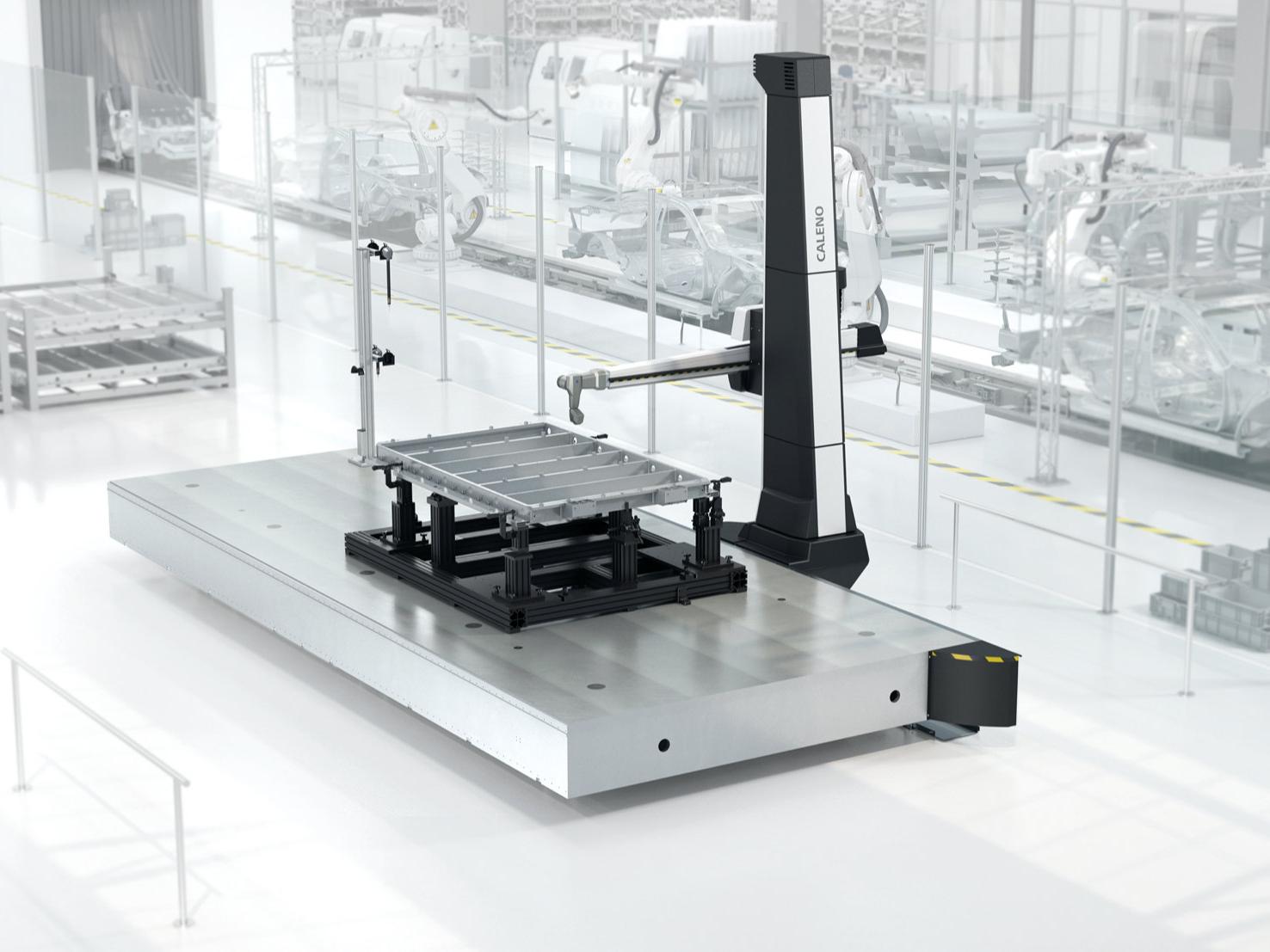

    ZEISS CALENO T tabletop design

    The ZEISS CALENO T tabletop design generally requires no work on the foundation and is less expensive than the floor-level version - with the same outstanding precision and performance. With the tabletop design, the measuring table and measuring columns form an inherently rigid unit. This makes the measuring system less sensitive to the installation site. For this reason, ZEISS CALENO T is ideally suited for subsequent installation and near the production line. With an optionally available air damping system, the system can also be decoupled from the foundation in the best possible way.

  • Flush floor installation

    Flush floor installation

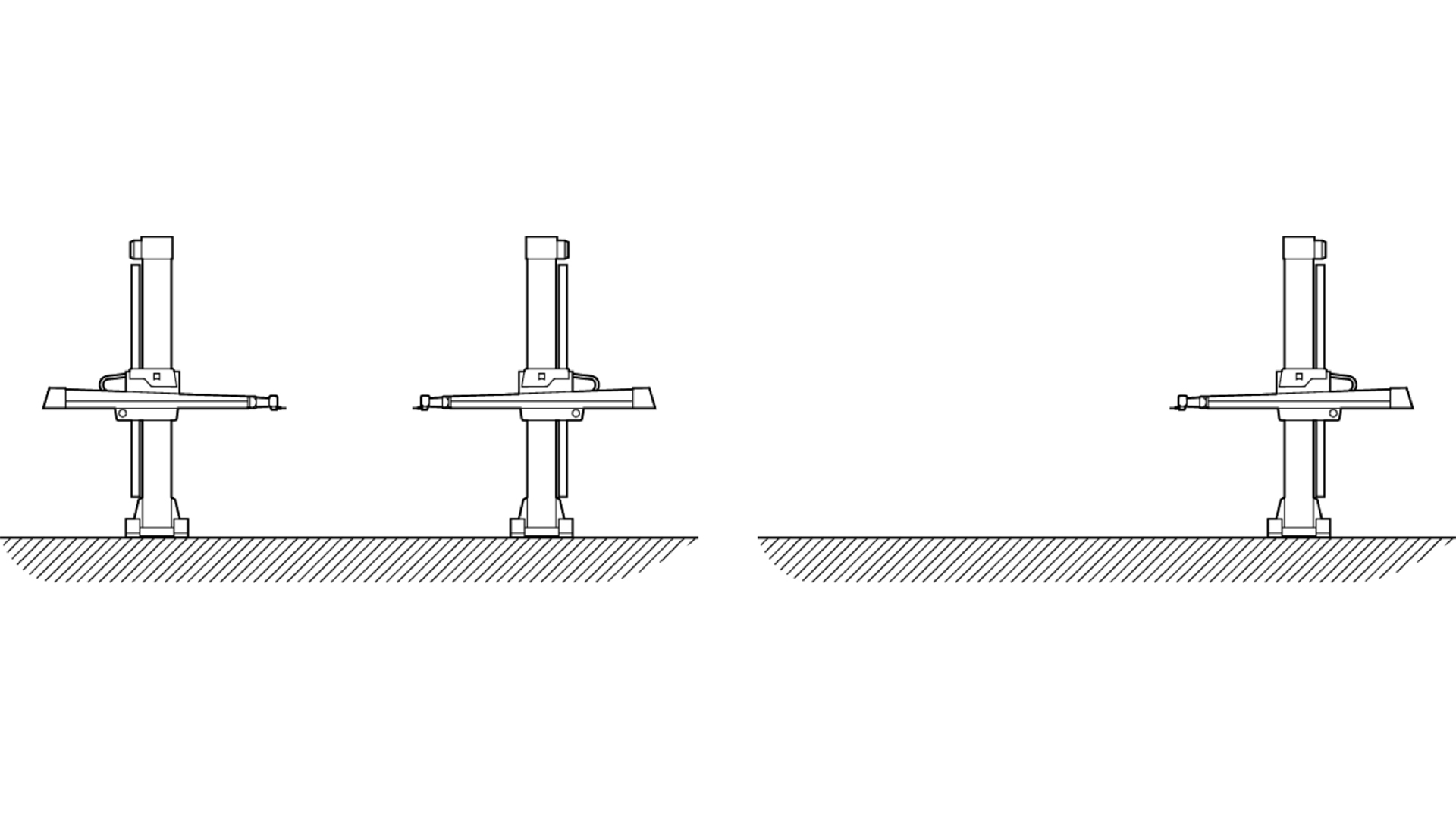

    ZEISS CALENO flush floor as duplex and as single arm system

  • ZEISS CALENO T tabletop design

    ZEISS CALENO T tabletop design

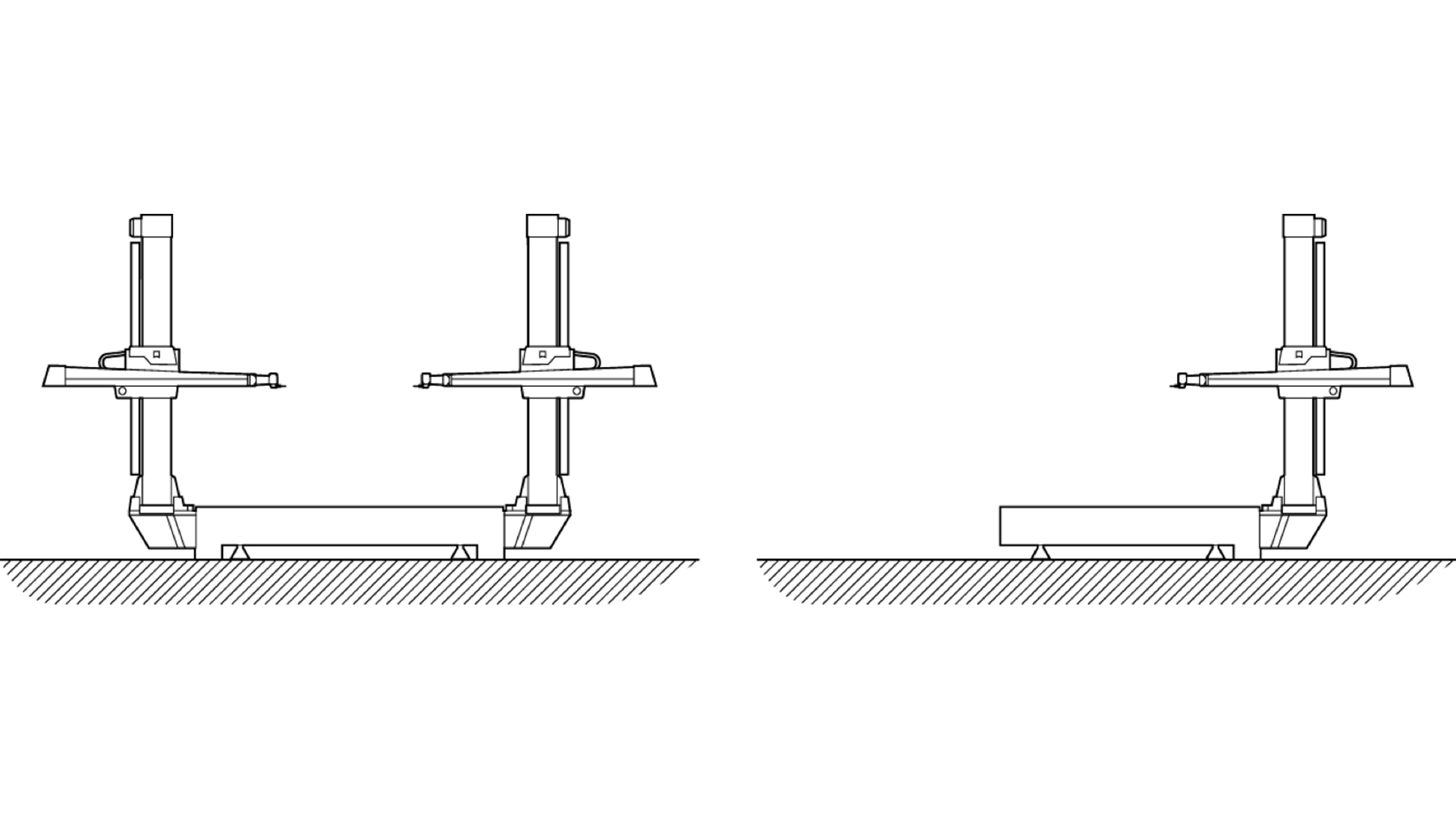

    ZEISS CALENO T as duplex and as single arm system

  • Floor-mounted installation

    Floor-mounted installation

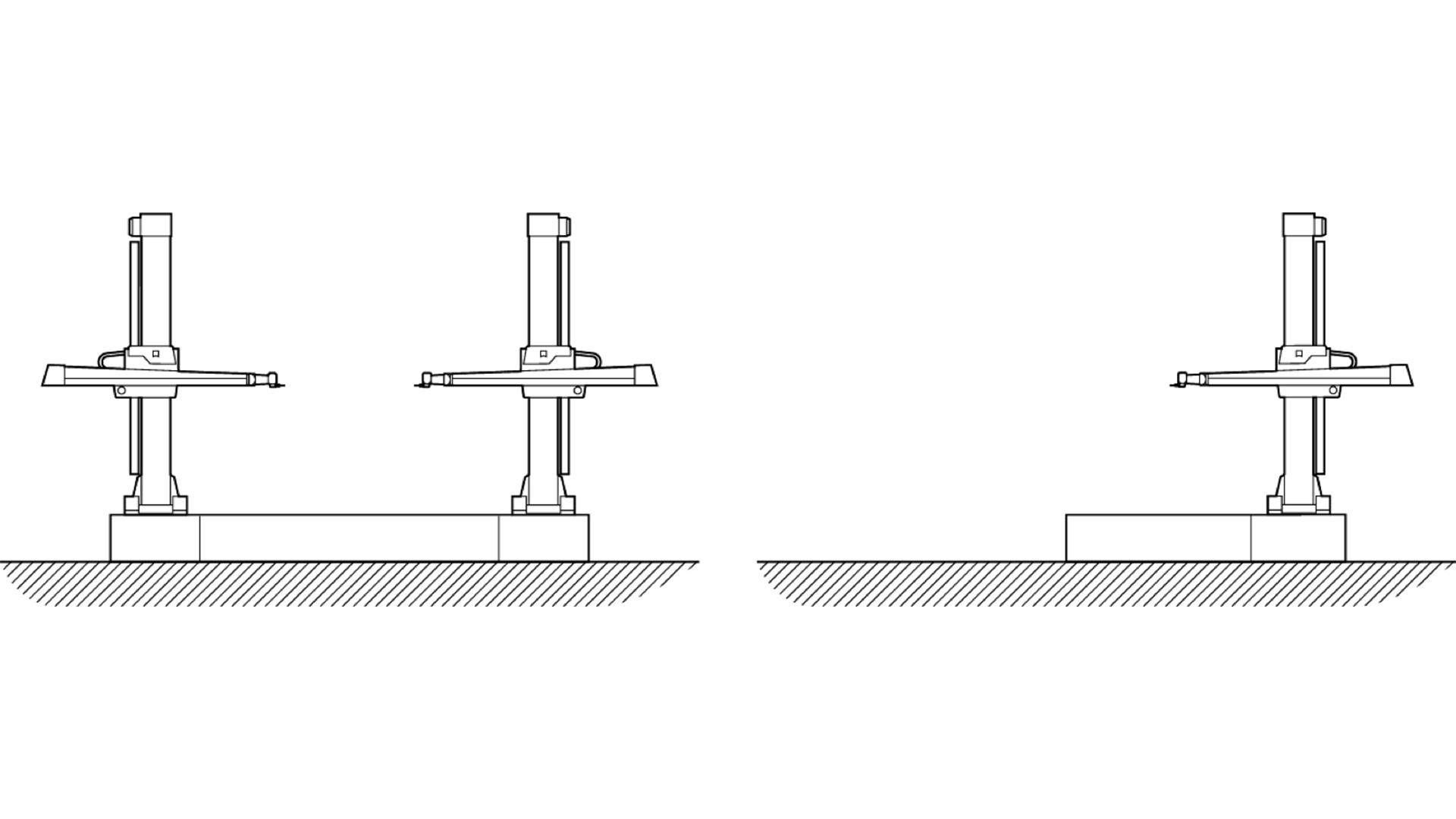

    ZEISS CALENO floor mounted as duplex and as single arm system

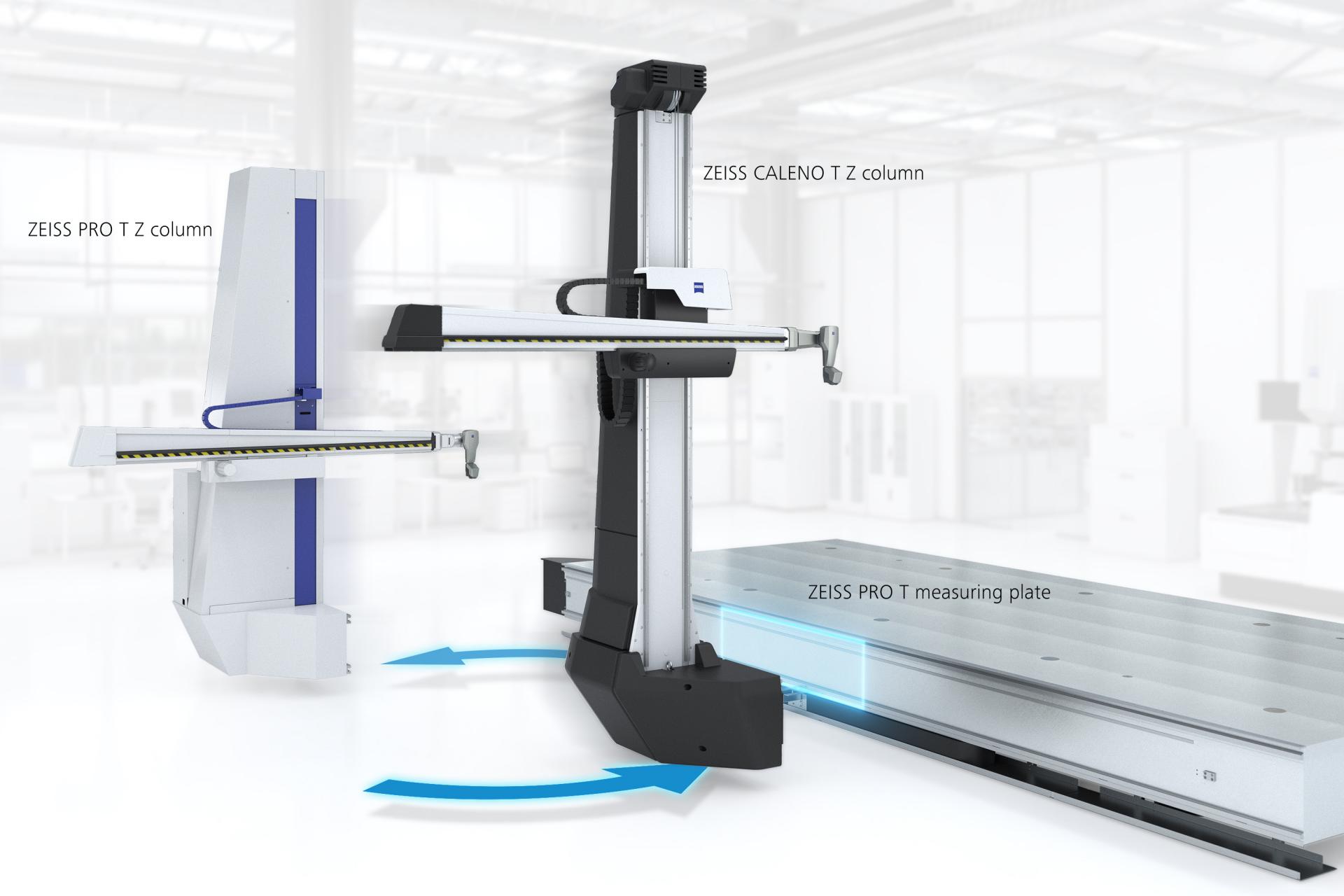

Upgrade from ZEISS PRO T

You would like to upgrade the sensor technology of your ZEISS PRO T?

Upgrade from ZEISS PRO T to CALENO T.

We recommend a complete upgrade to ZEISS CALENO T.

The new ZEISS CALENO T has been designed so that its improved Z-columns are compatible with the ZEISS PRO T measuring plate. By exchanging the column, a ZEISS PRO T can be converted to a ZEISS CALENO T with the latest ZEISS sensor technology.

This gives you the most accurate and efficient ZEISS horizontal arm measuring system ever. The reason: the new Z-columns of the CALENO T provide higher rigidity, first-class temperature isolation as standard and minimized maintenance. And they are the future-proof basis for future further developments in swivel joints and sensor technology.

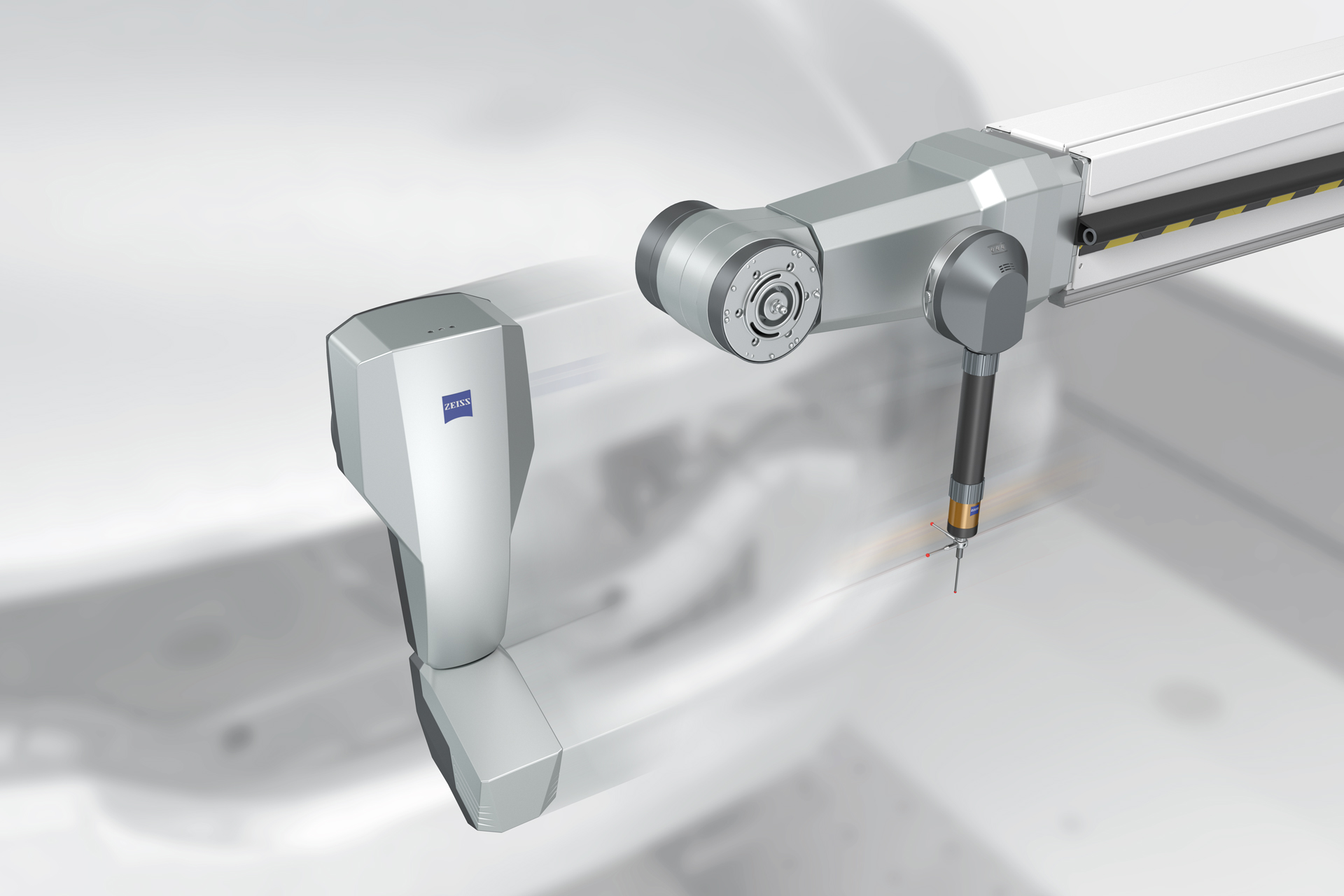

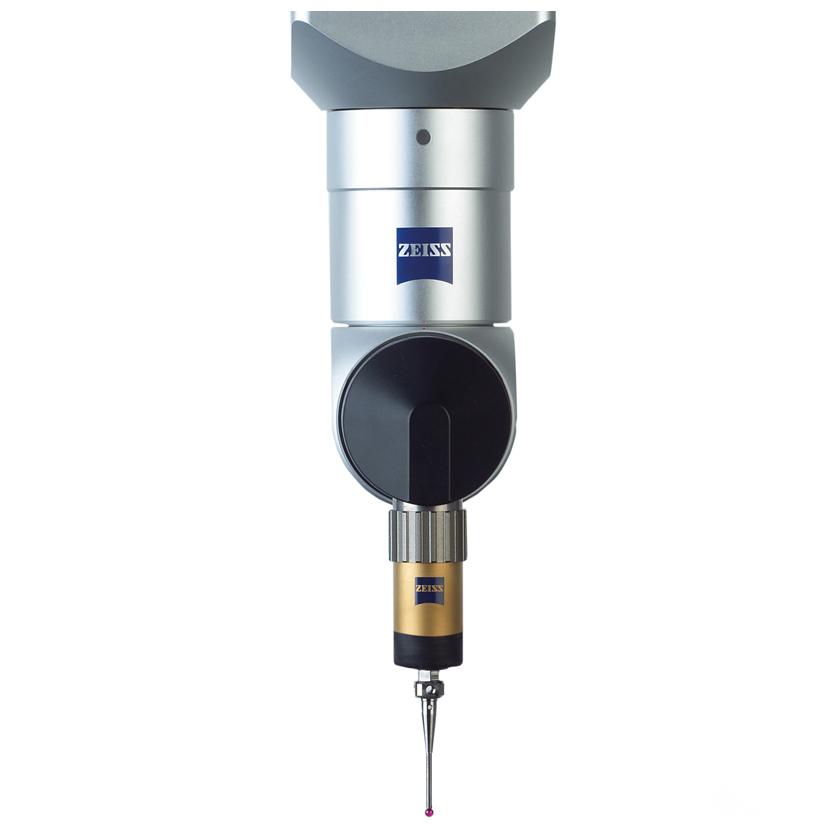

ZEISS CALENO sensors DSC

New non-indexing head DSC

High dynamics, excellent precision and accuracy enable DSC to perform various measuring tasks. It works with both tactile and optical sensor systems, allows to work with extensions of up to 800mm and offers fast rotation speed. Passive probe charger requires neither compressed air nor electricity.

Technical Specifications

ZEISS CALENO flush floor
ZEISS CALENO T

Measuring volume up to

Single

7000 X [mm]
1800 Y [mm]
3000 Z [mm]

Duplex

7000 X [mm]
3086 Y [mm]
3000 Z [mm]

Single

7250 X [mm]
1800 Y [mm]
2500 Z [mm]

Duplex

7000 X [mm]
2800 Y [mm]
2500 Z [mm]

Length measurement error

Standard

16°C –24°C Temperature
27 + L /80 ≤70 E in μm

Option High Accuracy

18°C –22°C Temperature
18 + L/125 ≤50 E in μm

Standard

16°C –24°C Temperature
27 + L /80 ≤70 E in μm

Option High Accuracy

18°C –22°C Temperature
18 + L/125 ≤50 E in μm

Maximum Speed and Acceleration

Standard

260 mm/s V spacial
1000 mm/s2 A spacial

Option Performance with light barrier

866 mm/s V spacial
1500 mm/s2 A spacial

Standard

260 mm/s V spacial
1000 mm/s2 A spacial

Option Performance with light barrier

866 mm/s V spacial
1500 mm/s2 A spacial
