Large Coordinate Measuring Machines

Reliable testing of large components

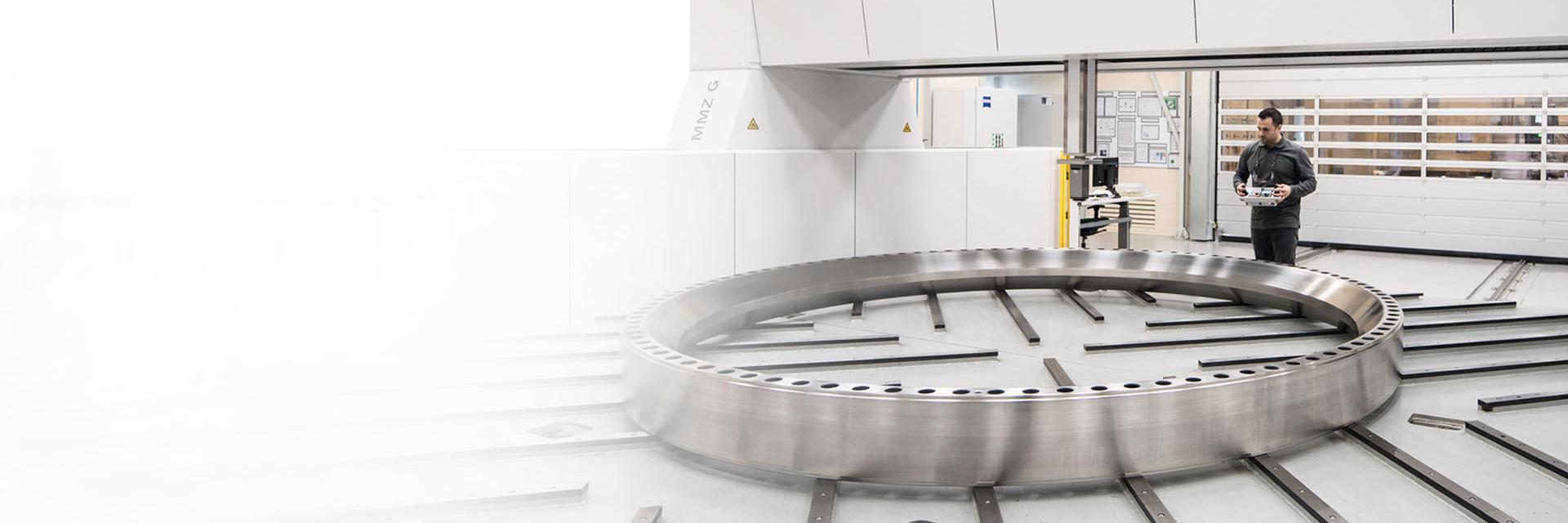

Quality assurance of large components with the ZEISS MMZ family

Coordinate measuring machines with a large measuring range and high load capacity are essential in various sectors such as energy and power generation, mechanical engineering and aerospace. The products of the ZEISS MMZ family can be configured in various sizes and thus guarantee the measurement of the largest workpieces - without compromising on precision.
MMZ 1 table

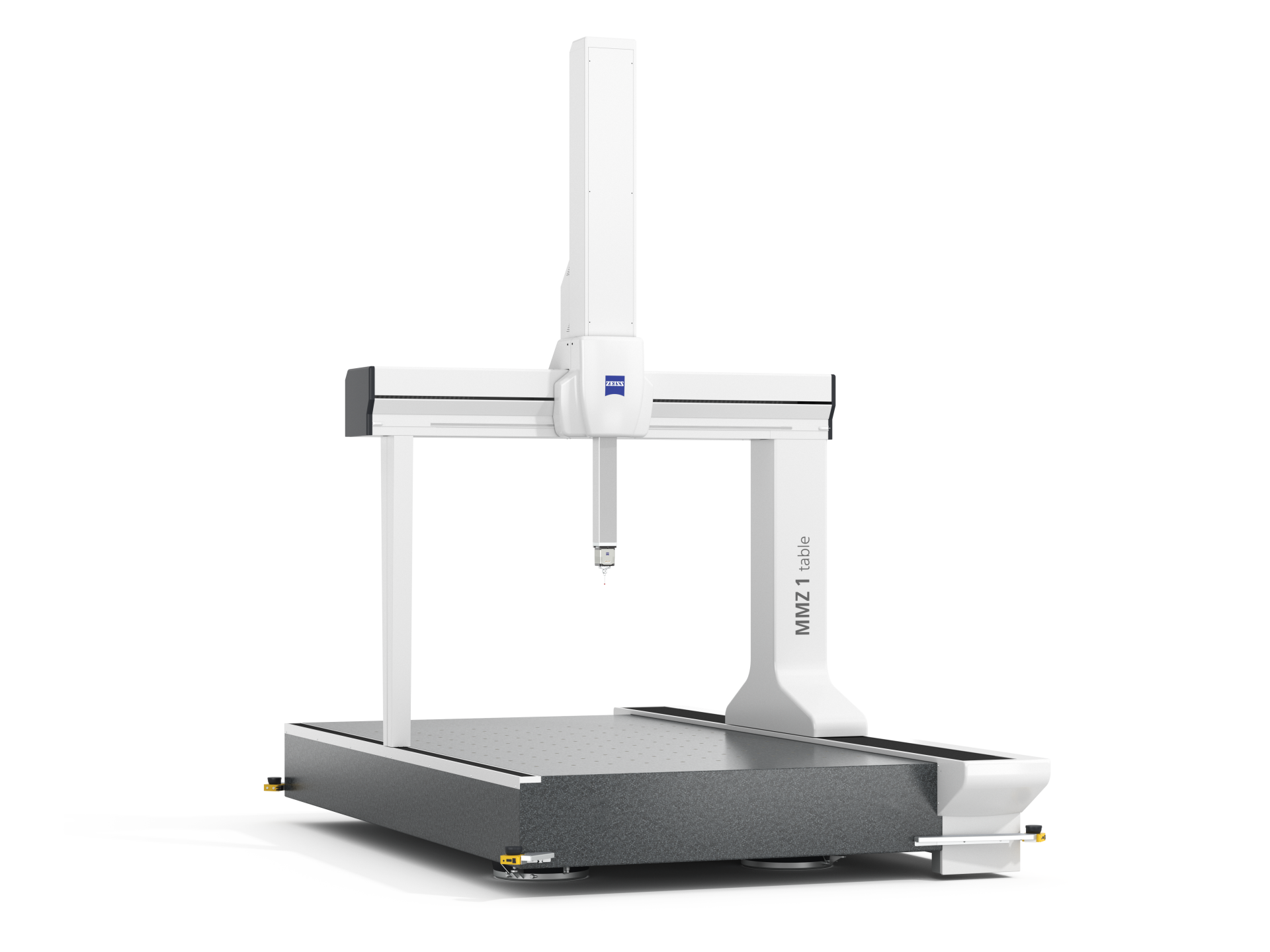

ZEISS MMZ 1 table

Compact solution for large volume parts
Learn more
MMZ T

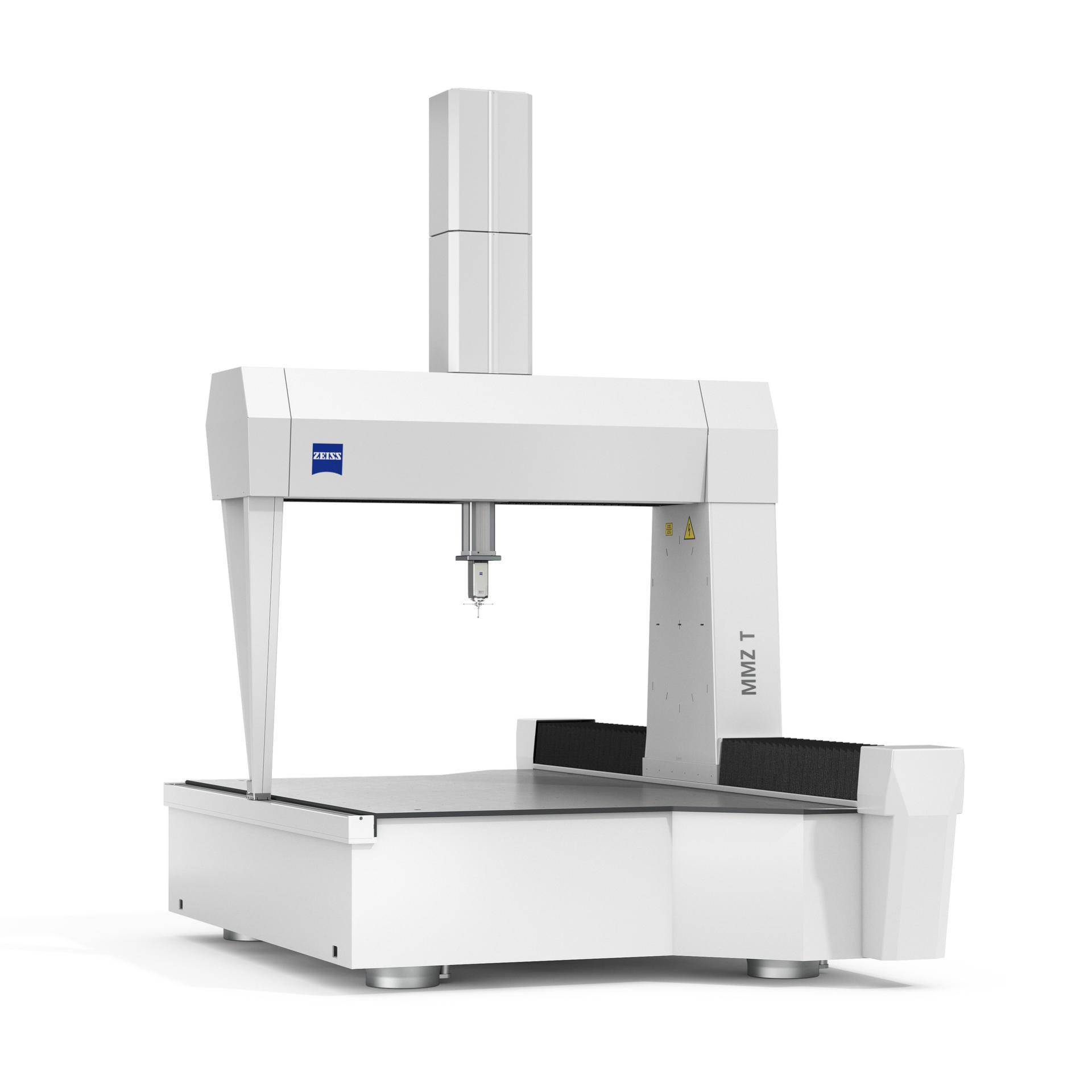

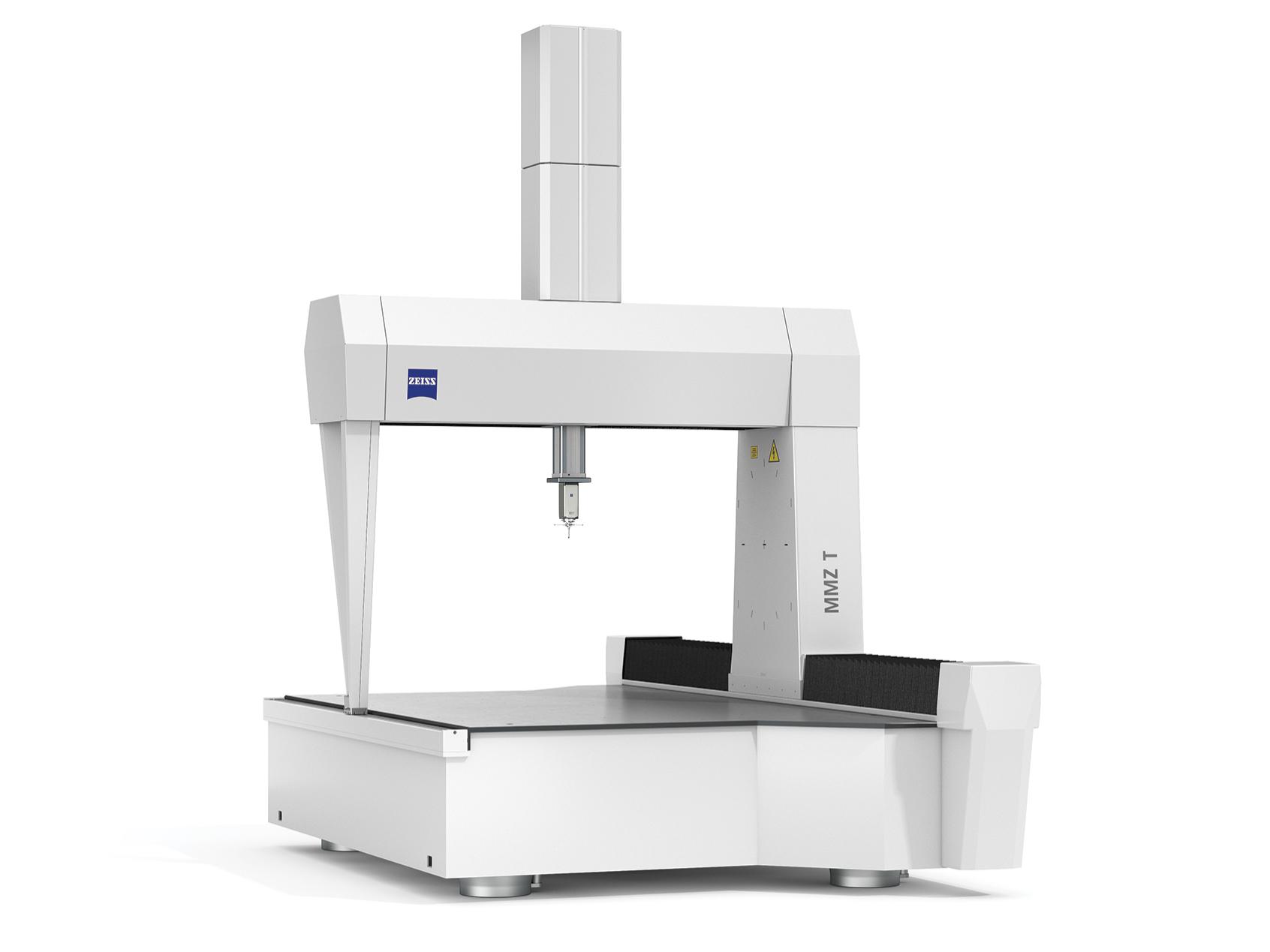

ZEISS MMZ T

Portal measuring machines for very heavy components (10 t)
Learn more
MMZ M

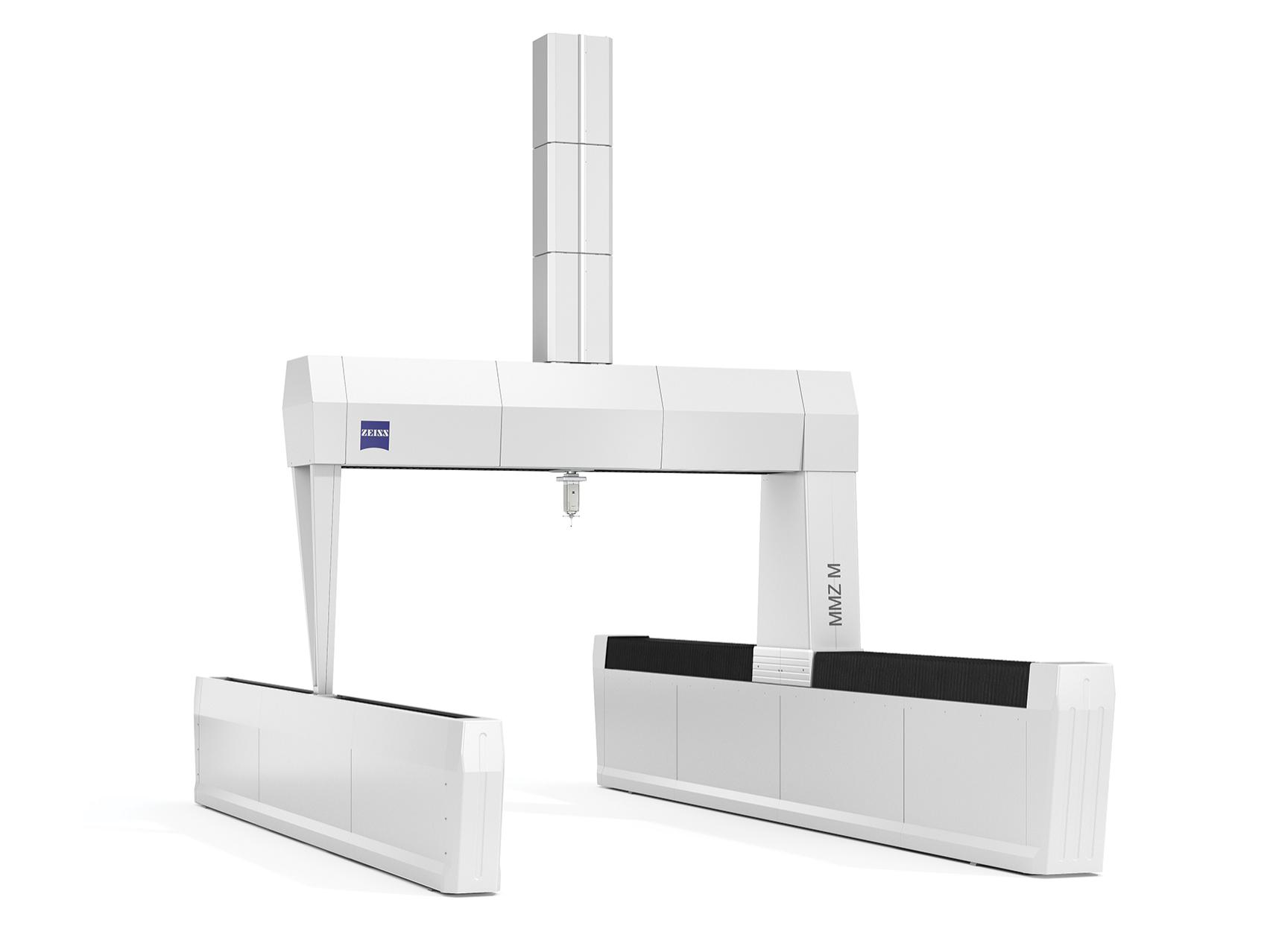

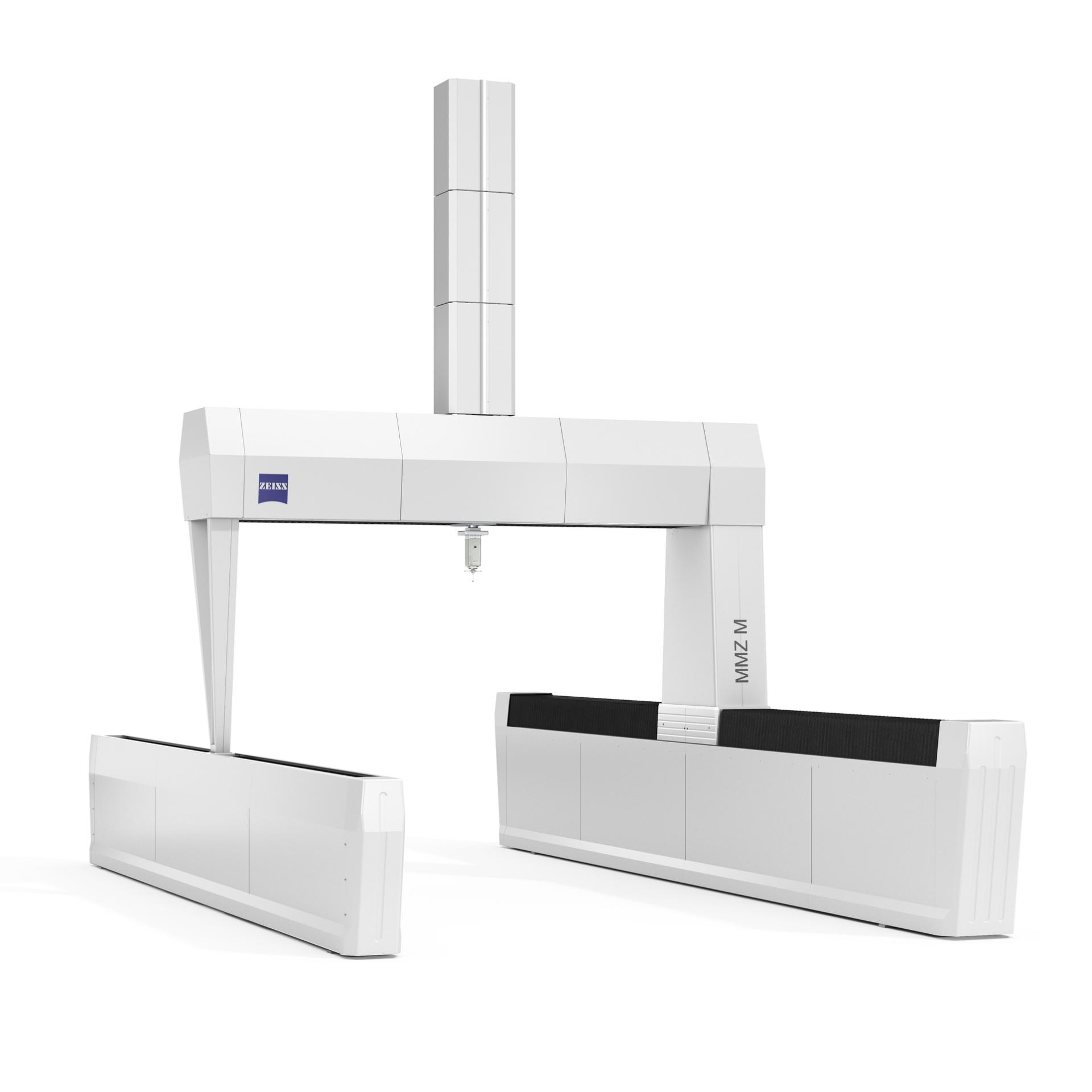

ZEISS MMZ M

For large, complex components with tight tolerances
Learn more
MMZ G

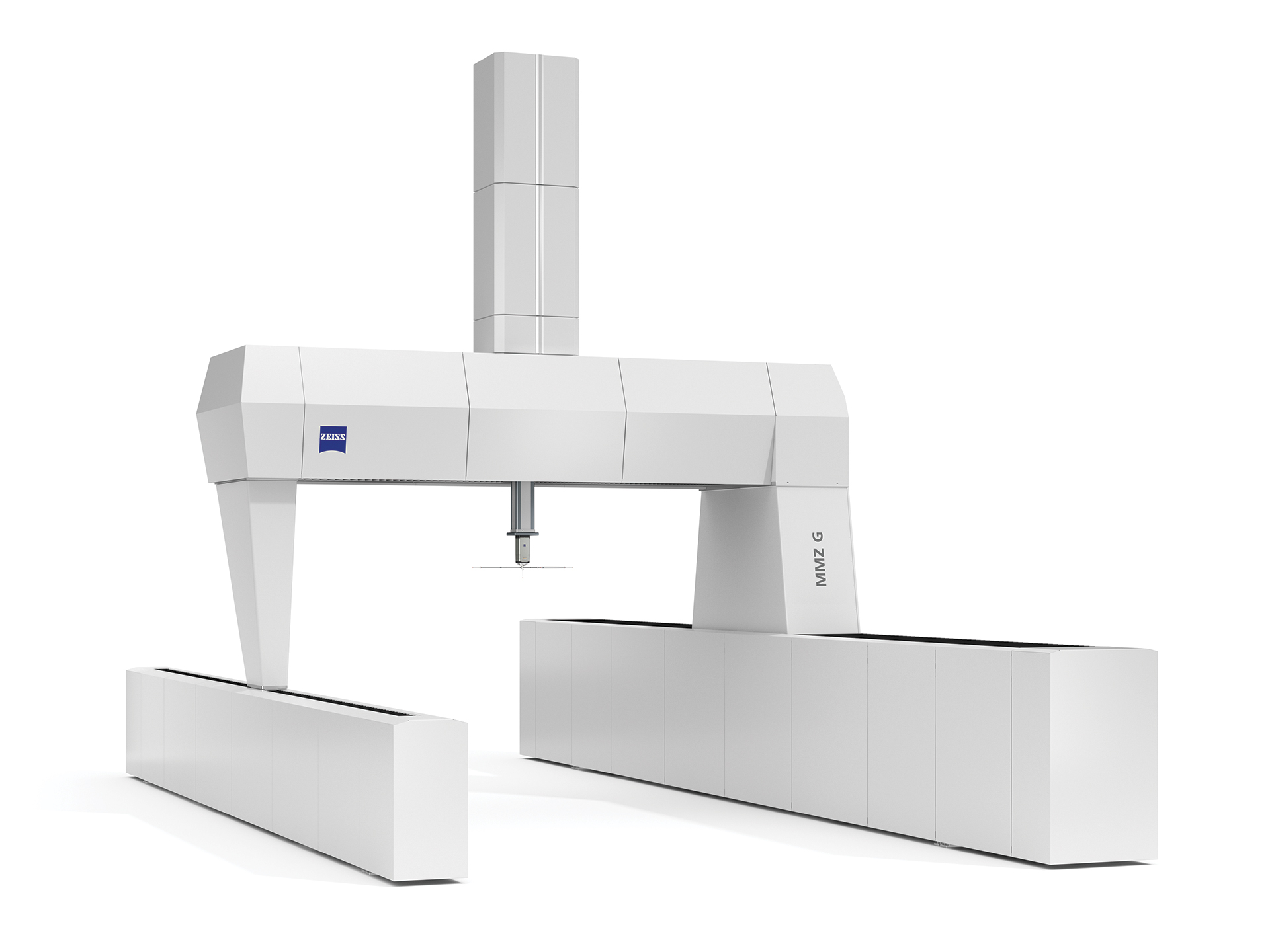

ZEISS MMZ G

For large, complex components with tight tolerances
Learn more

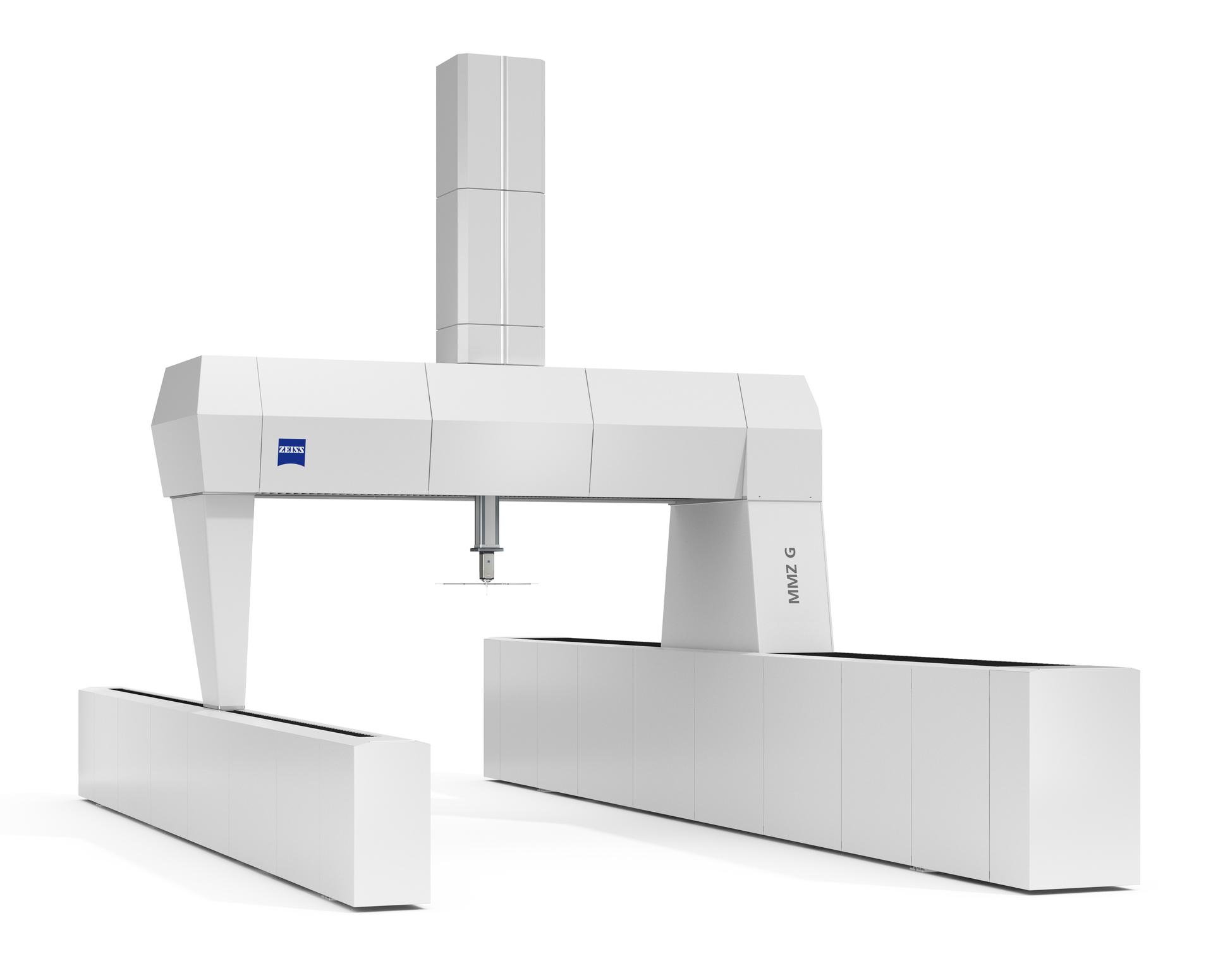

The largest CMM in the ZEISS portfolio

ZEISS MMZ G can be configured in more than 200 different combinations
  • 8m

    Maximum length in x

  • 10m

    Maximum length in y

  • 3,5m

    Maximum length in z

Technical comparison

ZEISS MMZ 1 table
ZEISS MMZ 1 table
ZEISS MMZ T
ZEISS MMZ T
ZEISS MMZ M
ZEISS MMZ M
ZEISS MMZ G
ZEISS MMZ G

Specifications

Type

Bridge

Bridge

Large Bridge

Large Bridge

Sizes

20/30/15
20/40/15

X: 21
Y: 32; 44; 52
Z: 12; 16

X: 20; 30
Y: 30; 45; 60
Z: 12; 16; 20

More than 200 possible combinations
Xmax: 80
Ymax: 100
Zmax: 35

Compatible probehead

VAST XT gold, VAST gold, VAST XTR,
RDS – VAST XXT

VAST XT gold, VAST gold, VAST XTR
RDS – VAST XXT

VAST XT gold, VAST gold, VAST XTR
RDS – VAST XXT

VAST XT gold, VAST gold, VAST XTR
RDS – VAST XXT

Accuracy

3,6 + L/250 µm

From 2,4 + L/400 µm

From 2,2 + L/400 µm

From 2,2 + L/400 µm

Max. workpiece weight

5 t

10 t

Depending on foundation thickness

Depending on foundation thickness

Foundation needed

No*

No*

Yes

Yes

*if the floor can carry the load
