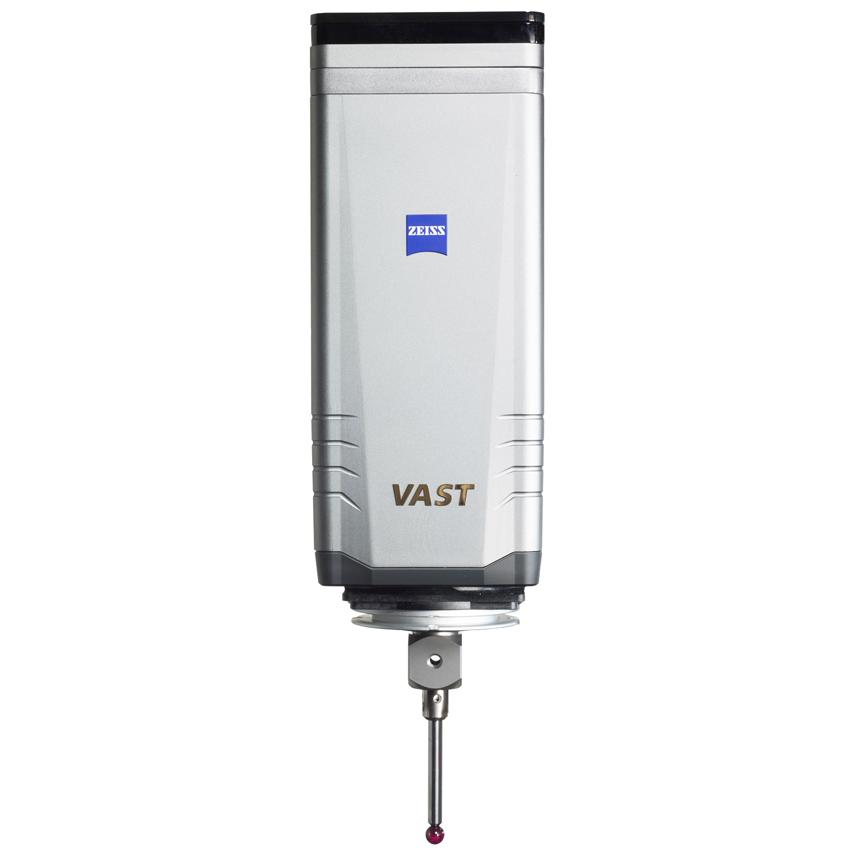

Active scanning sensor

ZEISS VAST gold

Peak scanning performance guaranteed

The active scanning sensor ZEISS VAST gold offers higher dynamics through optimized moving masses and higher rigidity resulting from optimized joints. The sensor is the ideal choice for contact scanning and single-point measurements.

  • Fast scanning with navigator technology
  • Increased measuring performance and productivity
  • High flexibility with ZEISS Articulating Stylus

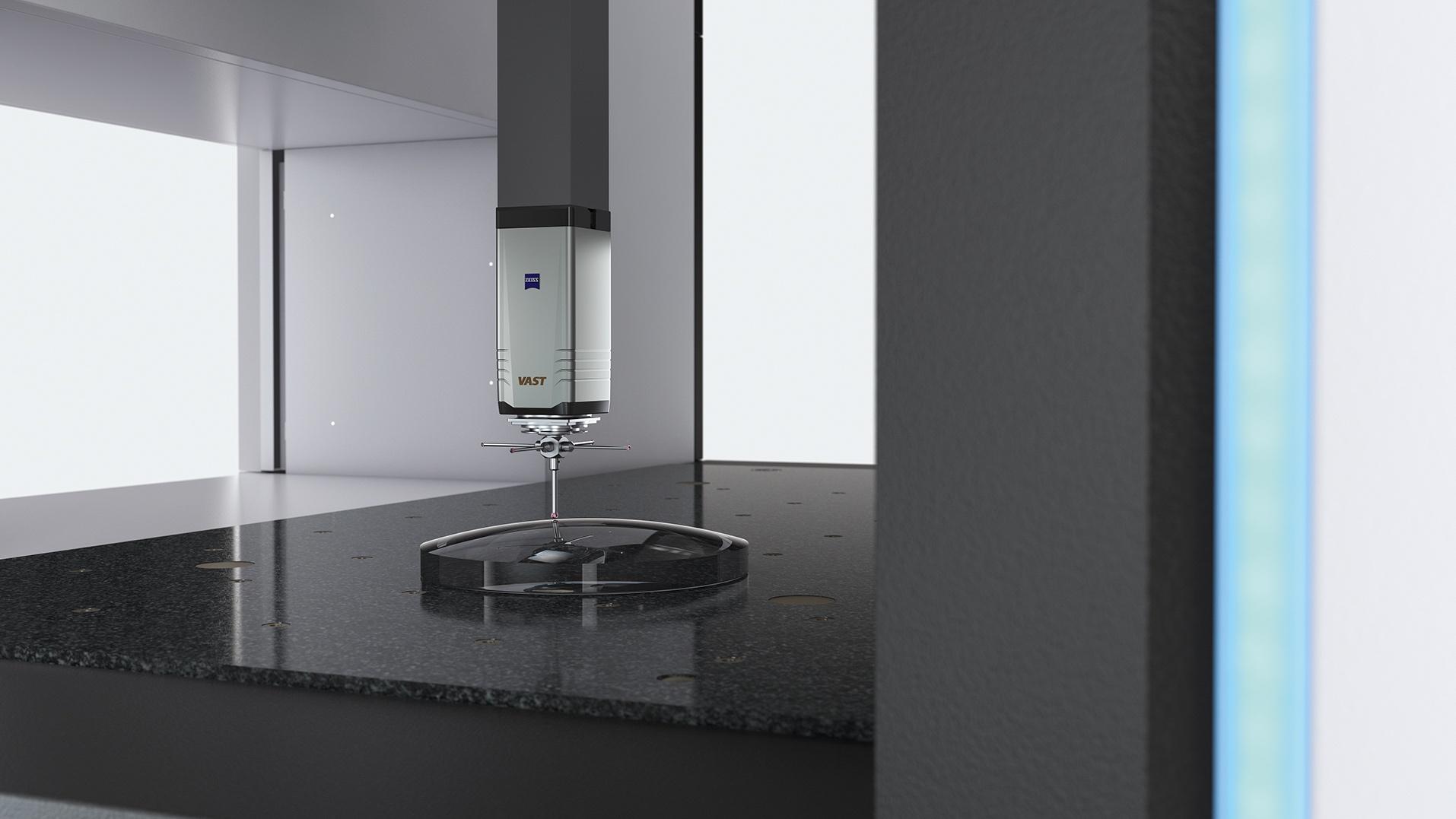

VAST Gold enables tactile scanning and single point measurement with maximum performance.

Features

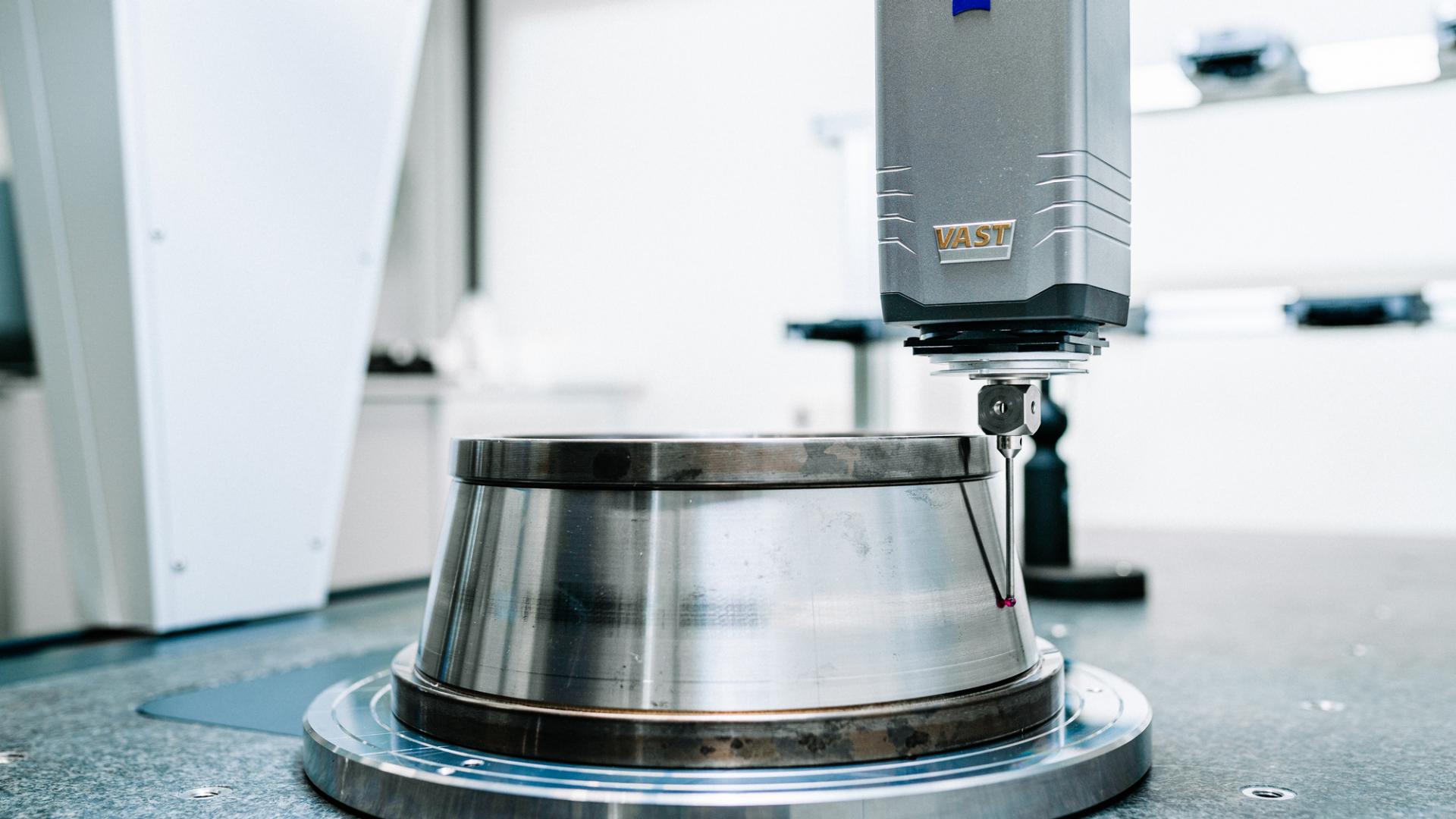

Fast scanning with navigator technology

ZEISS VAST gold is the ideal sensor for contact scanning and single-point measurements with long styli up to 800 mm and stylus weights up to 800 g. Asymmetrical stylus configurations can also be used with ZEISS VAST gold.

ZEISS VAST gold is also known for its high scanning speeds with navigator technology. Thanks to the integrated collision protection, ZEISS VAST gold is extremely robust. Dynamic damping enables continuous operation.

The probing force can be adjusted to the stylus geometry and the workpiece material, and is always constant – it can be programmed between 50 and 1,000 millinewtons.

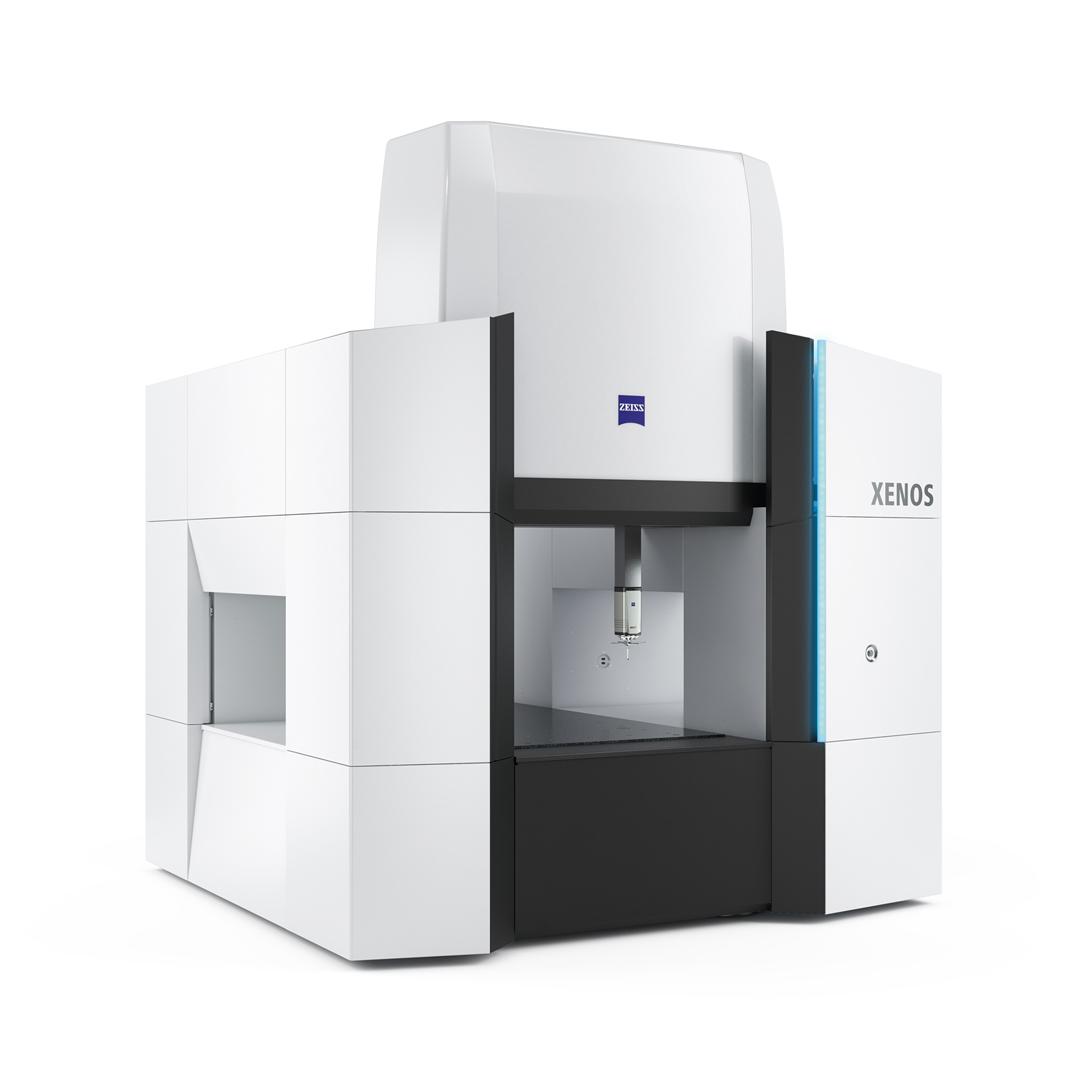

VAST Gold in combination with ZEISS Xenos for highest measuring performance

Increased measuring performance

In combination with navigator technology in particular – object-oriented ZEISS CALYPSO software featuring automatically generated measurement strategies – ZEISS VAST gold increases the measuring performance and thus productivity considerably. The FlyScan and QuickChange technologies in the Performance Package ensure maximum productivity.

The short travel path on FlyScan results in time savings of up to 40 percent. The QuickChange function accelerates the automatic change out of measuring styli by up to 60 percent.

Due to the combination with the high-precision ZEISS VAST gold measuring head, the stability of the articulating stylus delivers high accuracy.

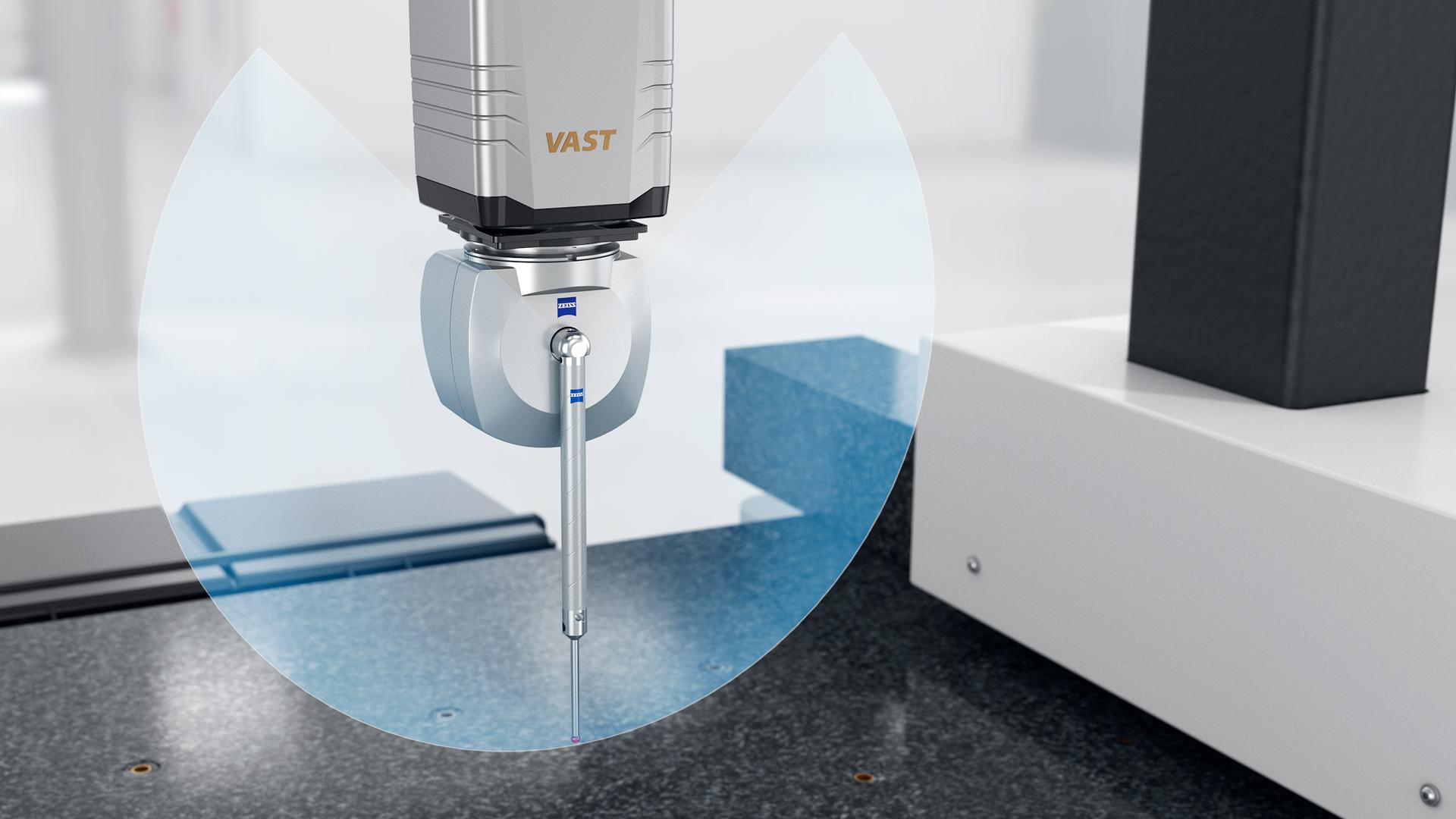

Highest flexibility

With the ZEISS Articulating Stylus, the stylus can be adjusted to any angular position between -135° and 135°. A new angular position can be set in just a few seconds, saving both time and storage space for fixed position stylus systems.

Due to the combination with the high-precision ZEISS VAST gold measuring head, the stability of the articulating stylus delivers high accuracy.

Download more information

  • Contact probing systems Manual, EN

    Pages: 142
    File size: 6 MB
  • VAST Probe System Equipment Catalogue, EN

    Pages: 72
    File size: 15 MB

See how other customers use this product

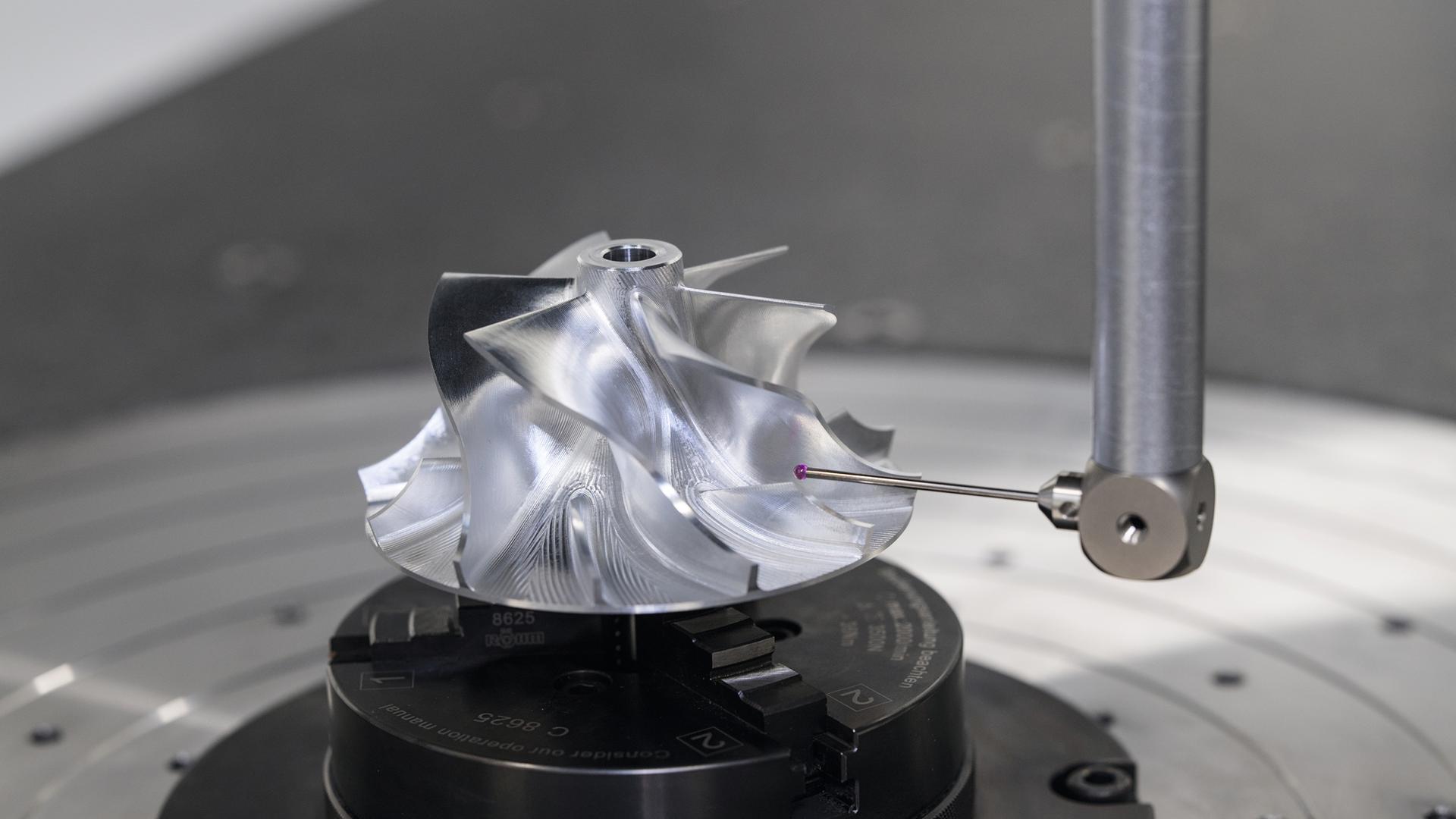

Pole position in terms of precision

Pole position in terms of precision

Thanks to ZEISS XENOS, precision technology manufacturer Stangl & Co. GmbH is moving into the pole position of precision and thus creates even more customer trust.
