ATOS Compact Scan

Mobile 3D scanner for a wide range of applications

ATOS Compact Scan is a portable 3D scanner designed for a wide range of applications. It offers precision and flexibility, making it an ideal choice for various scanning needs.

  • All-round inspection
  • Scalable field of view
  • Stress-free operation for users
Page Content
Contact

Features

ATOS Compact Scan provides benchmark level quality in terms of accuracy, sharpness and completeness.

  • Third-party Content Blocked

    The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

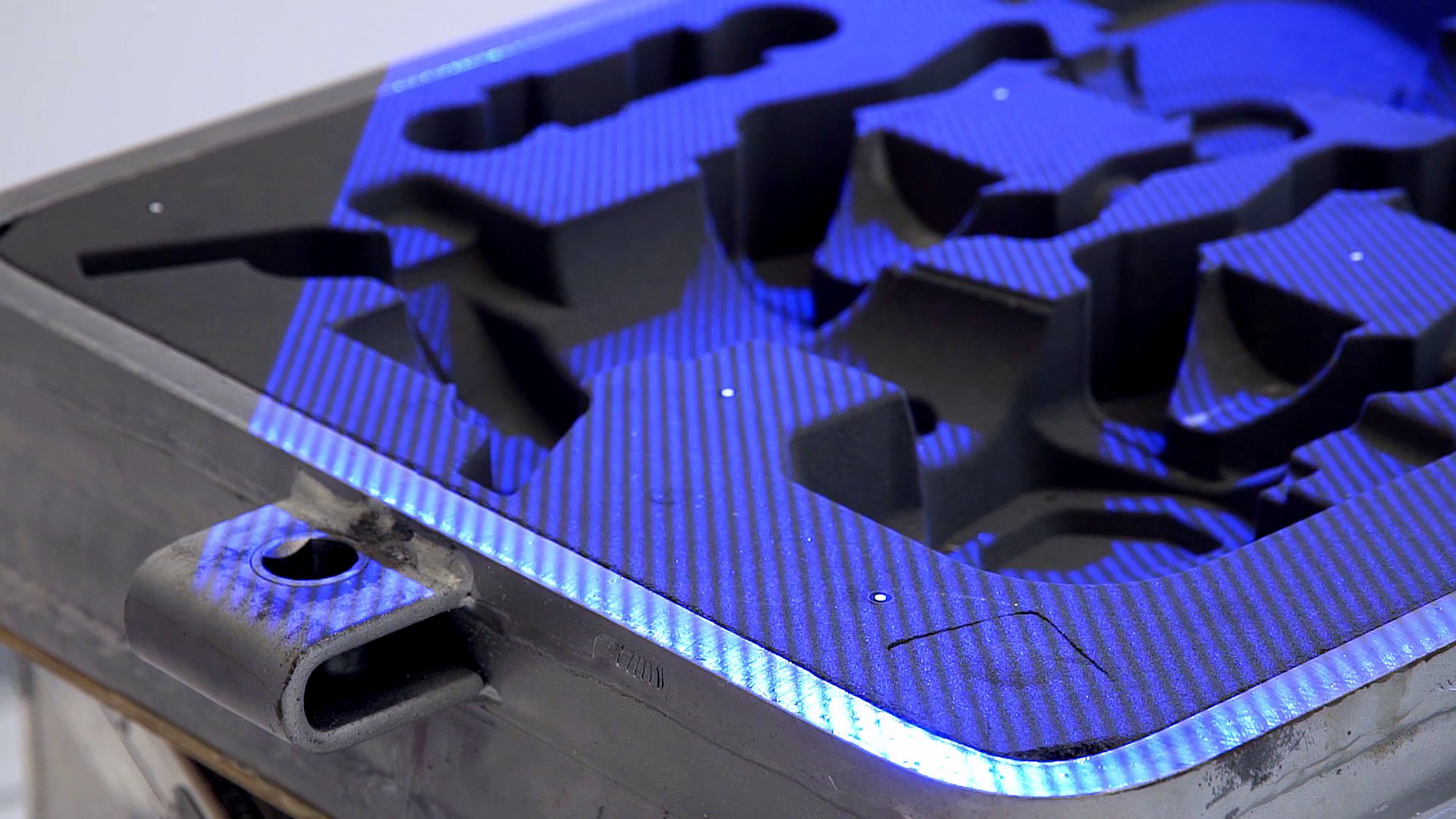

    Work with sharp and precise scan results. The perfect start for reverse engineering and inspection.
    Scanning

  • Third-party Content Blocked

    The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

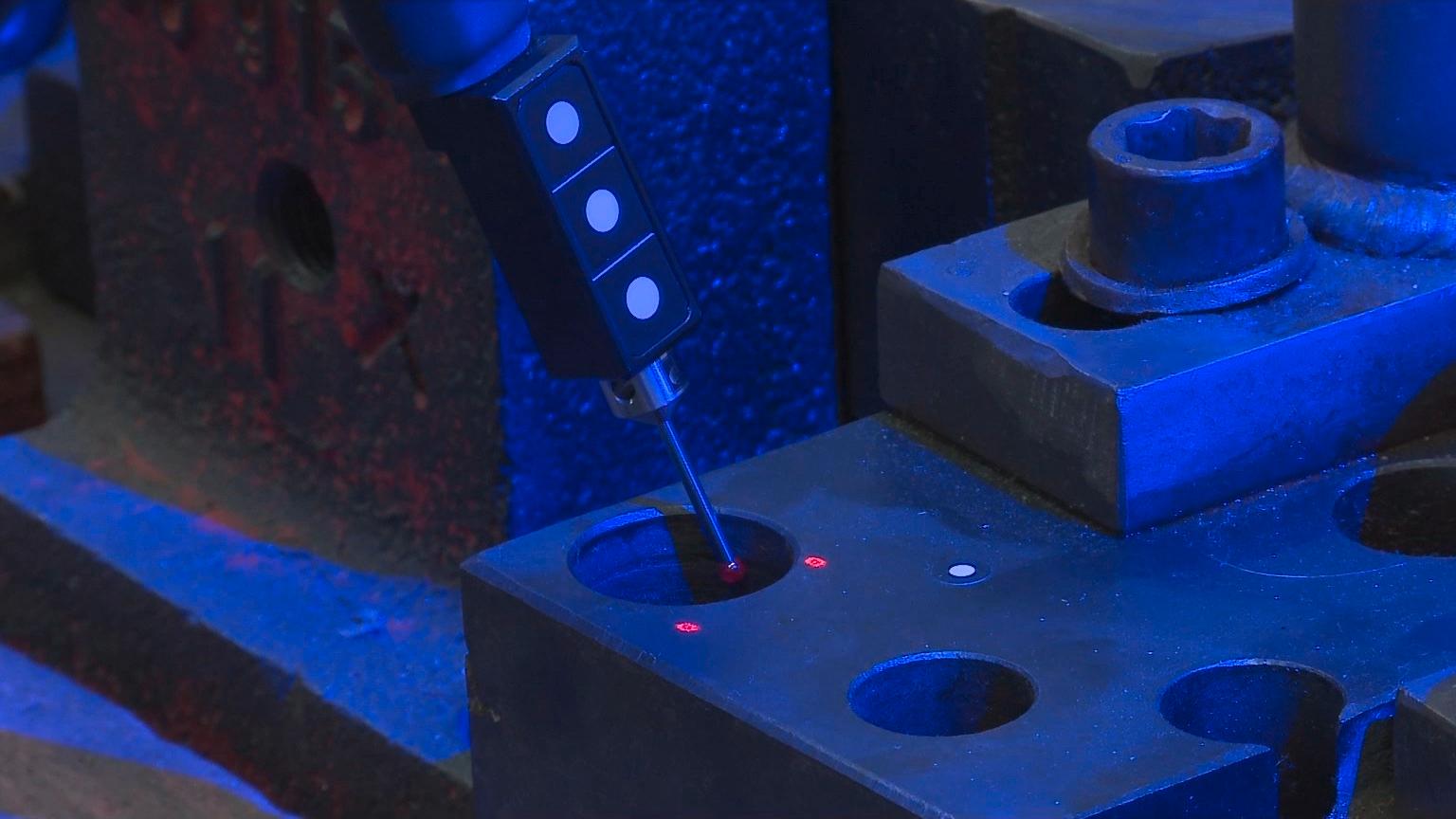

    Digitize deep pockets, bore holes or areas that cannot be accessed optically. The ultimate addition to 3D scanning.
    Probing

  • Third-party Content Blocked

    The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

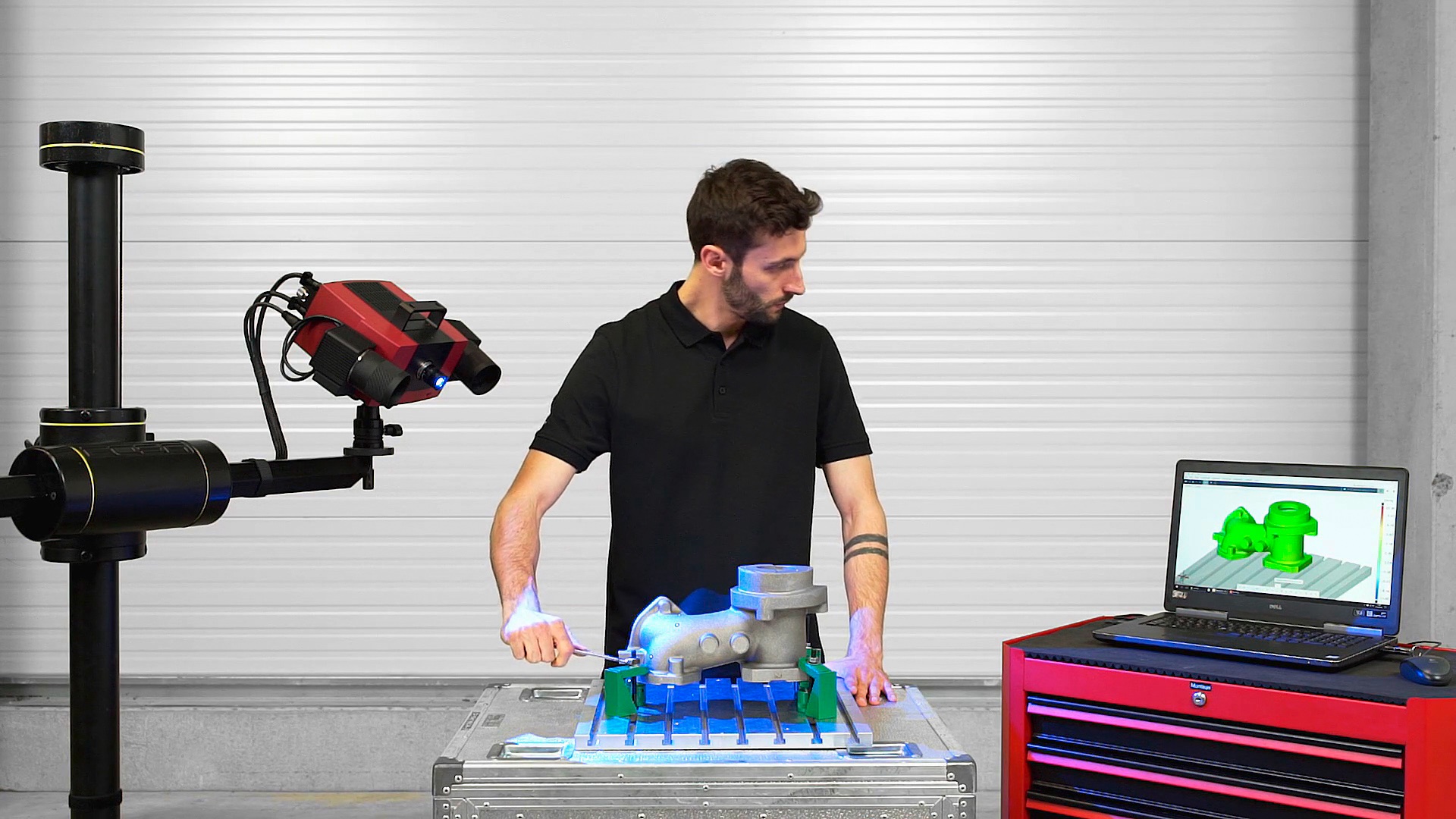

    Position your parts during assembly or for alignment before milling. A useful add-on in the production process.
    Tracking

  • Third-party Content Blocked

    The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

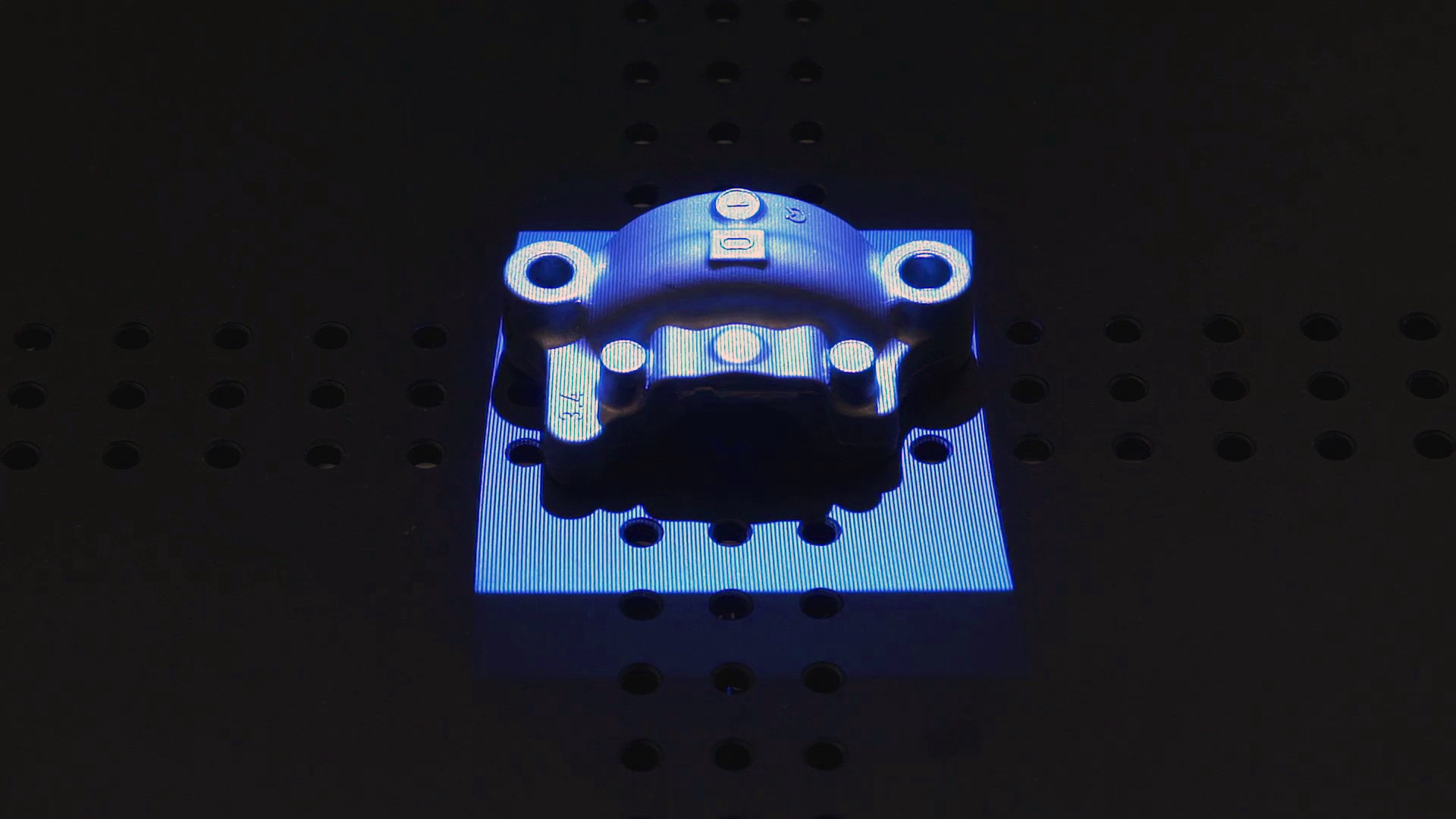

    Benefit from interchangeable lenses that provide small to large fields of view with high detail accuracy.
    Scalable use

  • Third-party Content Blocked

    The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

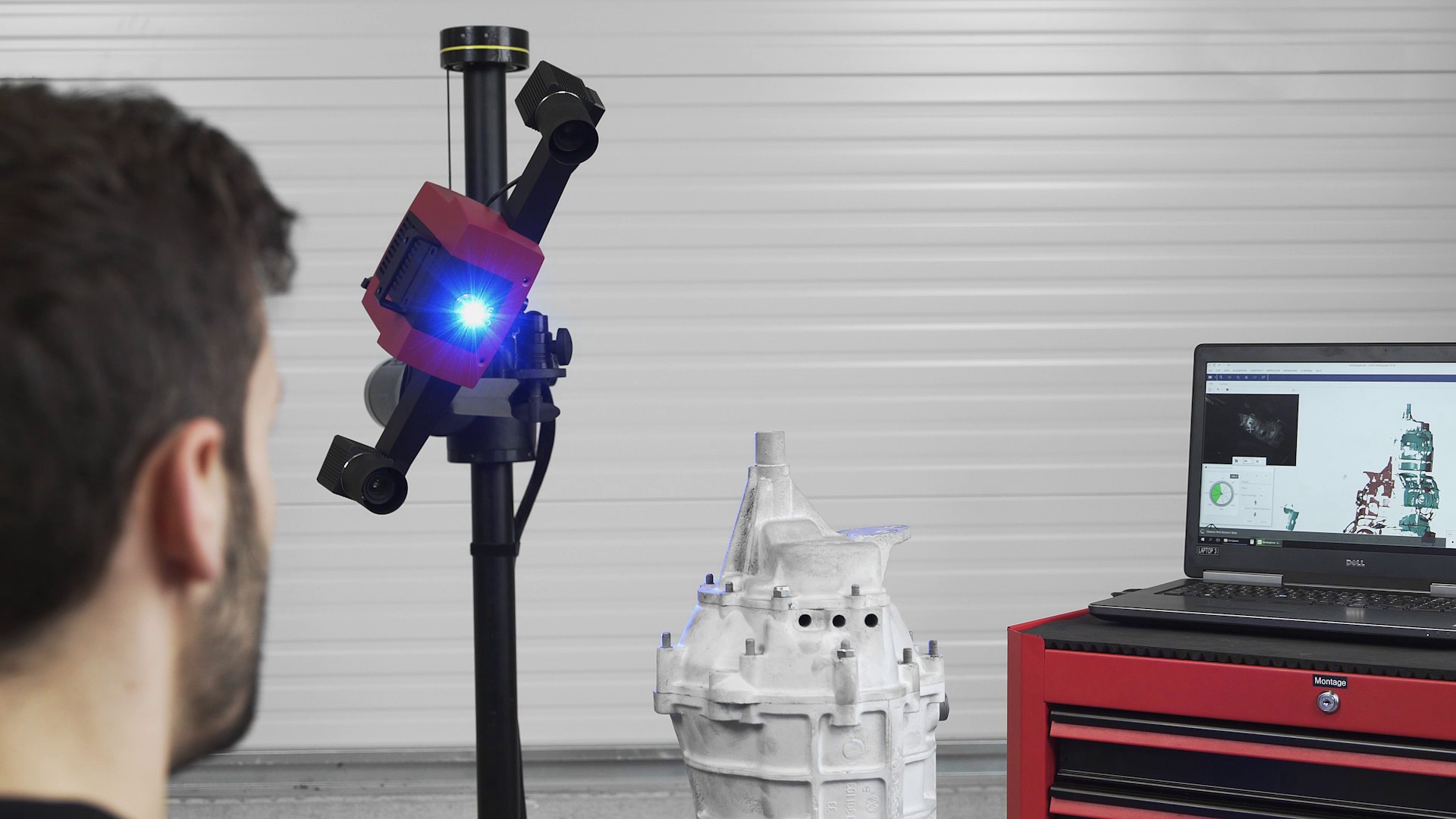

    Enjoy the ease of use of the 3D scanner, especially for big objects. ATOS Compact Scan does not need to be held in hand all the time.
    Simple handling

  • Third-party Content Blocked

    The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

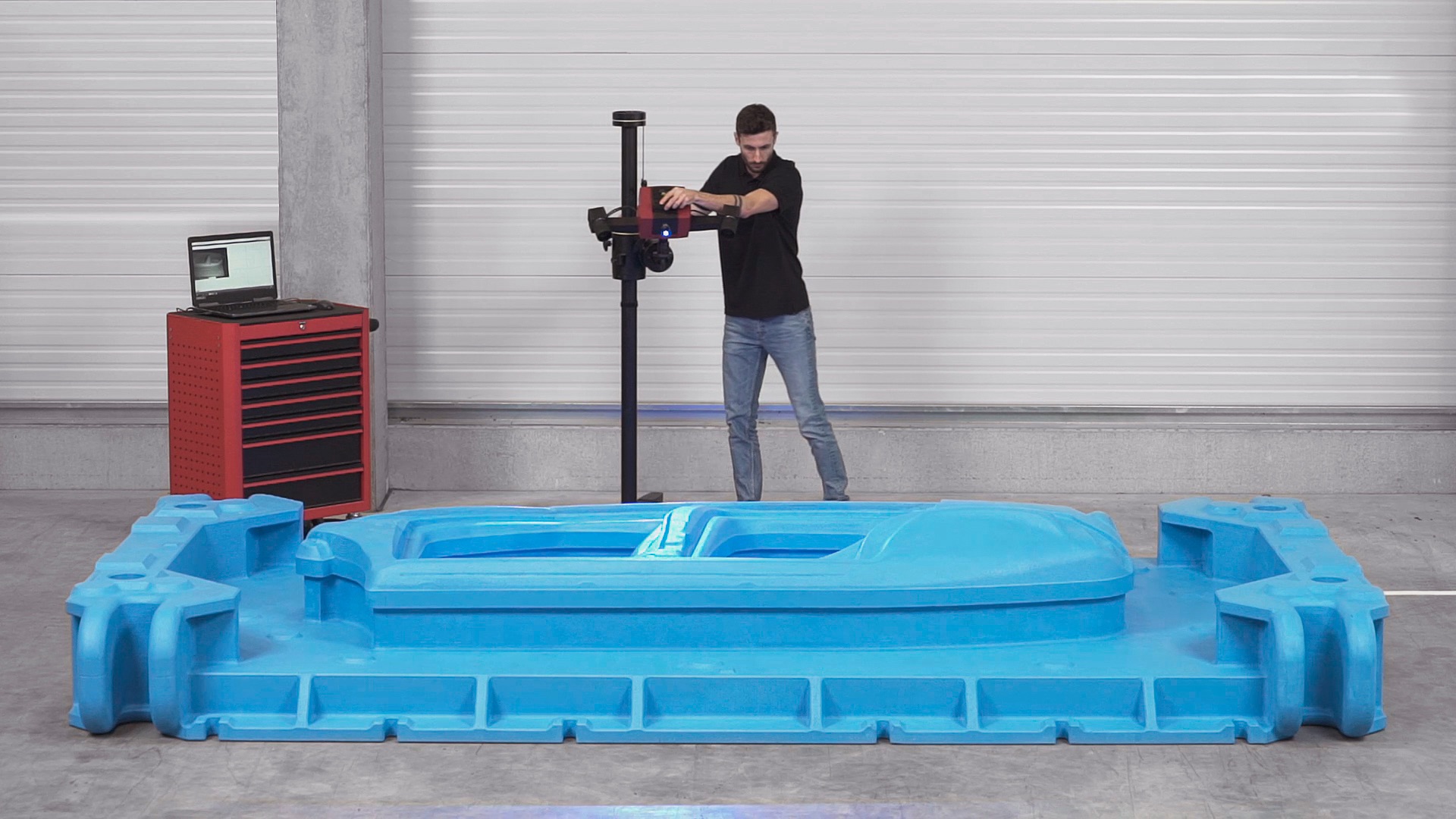

    Inspect or reverse engineer at the production line or wherever the part may be.
    Mobility

Benefit from

  • All-round inspection

    Scanning, probing, tracking in a single system.

    Digitize and analyze your part within a short period of time.

  •

    Flexibility

    Scalable field of view and high precision.

    Use different measuring volumes and scan coins to cars.

  •

    Mobility

    Stress-free operation for the user.

    Mobile coordinate metrology in a lightweight portable product.

Technical data

ATOS Compact Scan comes with the proven technologies of the ATOS series and offers the right resolution for all requirements.

  • Sensor

    • Power supply: AC 110/230 Volt, 50-60 Hz
    • Weight: approx. 4 kg
    • Distance adjustment: Laser pointers
    • Operating temperature: 5 °C to 40 °C (non-condensing)
    • Cable length: 10 m

    Camera

    • Resolution: 8 or 12 megapixels
    • Connection: Gigabit Ethernet
    • Scanning speed: approx. 1 second

    Computer

    • Stationary: Workstation
    • Mobile: Laptop (via Thunderbolt 3)
    • Operating system: Windows 10
  		•

    Camera Frame Small Objects

    Camera Frame 300

    Camera Frame 500

    MV170: 170 x 130 mm²

    MV600: 600 x 500 mm²

    MV1200: 1200 x 1000 mm²

    MV80: 80 x 60 mm²

    MV350: 350 x 250 mm²

    MV700: 700 x 500 mm²

    MV45: 45 x 35 mm²

    MV170: 170 x 130 mm²

  • Contains

    • Touch Probe
    • Calibration object
    • Point markers
    • Stand
    • Transport case

    Options

    • Reference frames
    • Touch Probe Kit
    • Manual rotation table with threaded hole pattern
    • 1-axis automation: mobile, motorized rotation table
    • 3-axis automation: Motorization Kit with tilt and swivel unit and vertical axis
    • Photogrammetry

Fields of application

Thanks to a scalable measuring area, integrated scanning and tracking functionality, the optical 3D scanner adapts ideally to the challenges of the respective measuring task.
  • ZEISS ATOS Compact Scan understand

    Understand

    Get dimensional insight into the production process.

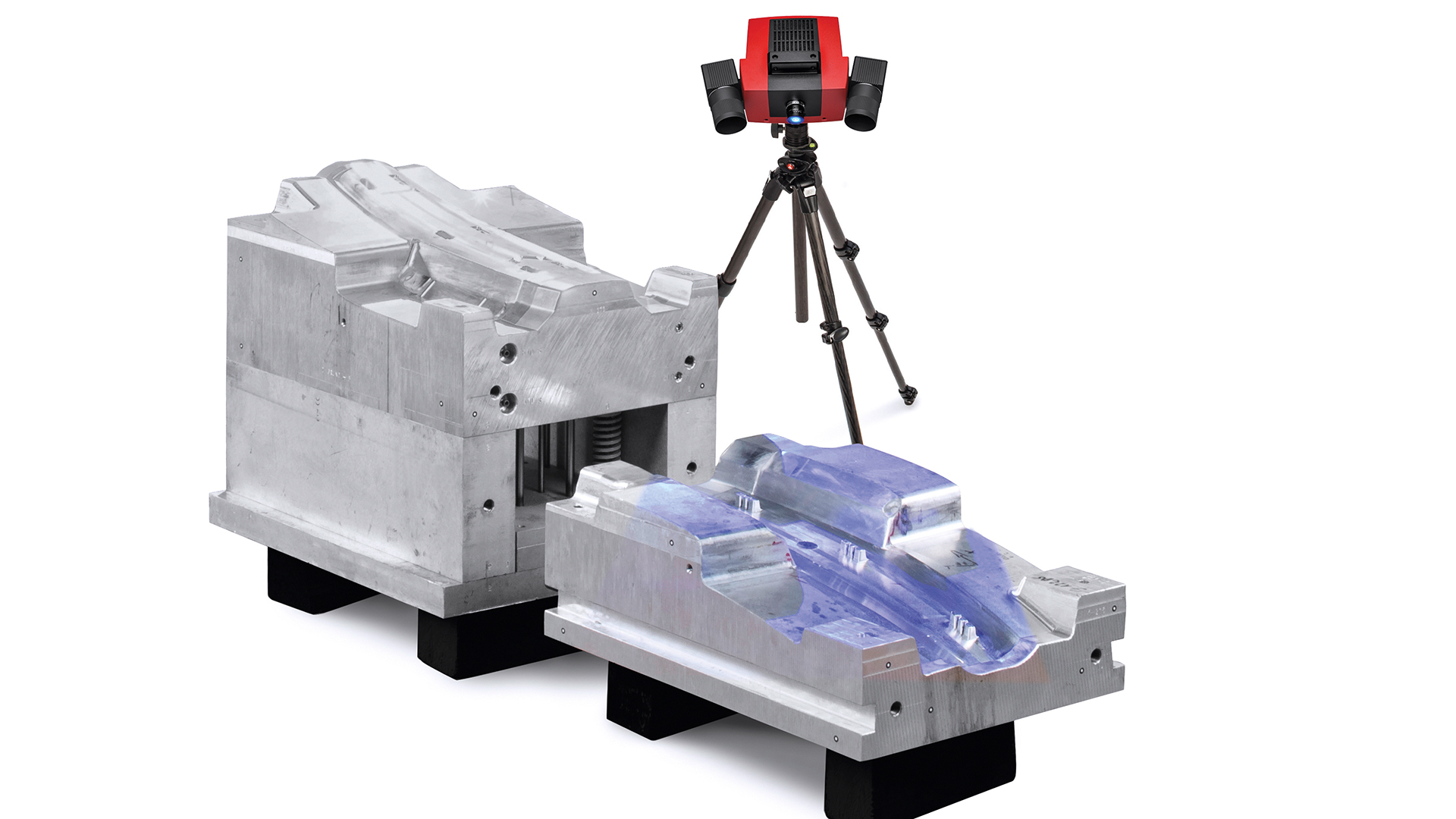

  • ZEISS ATOS Compact Scan inspect

    Inspect

    Check tooling and parts to CAD or drawing.

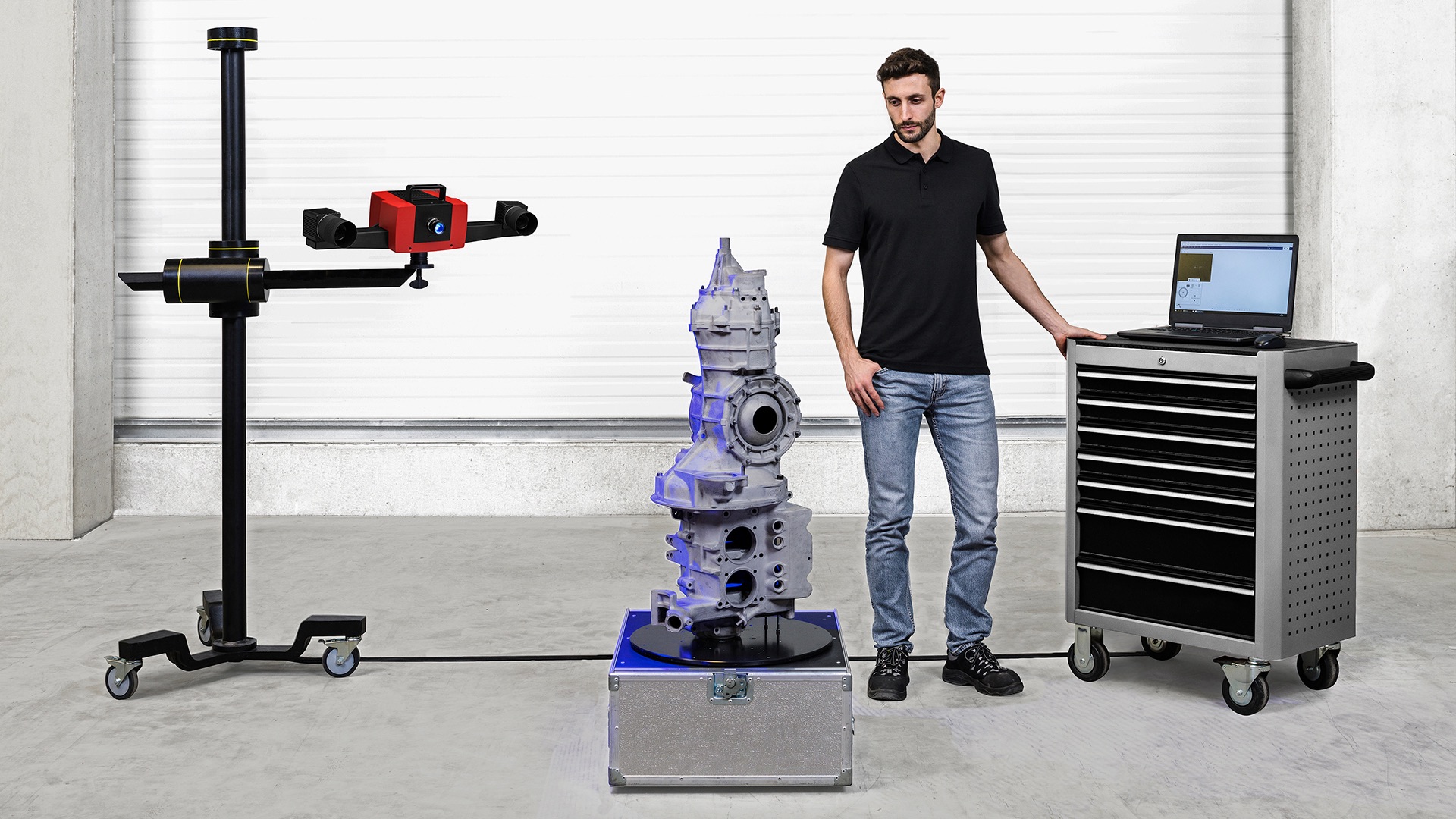

  • ZEISS ATOS Compact reverse engineer

    Reverse engineer

    Create digital twins of parts

  • Scan and probe

    Scan and probe

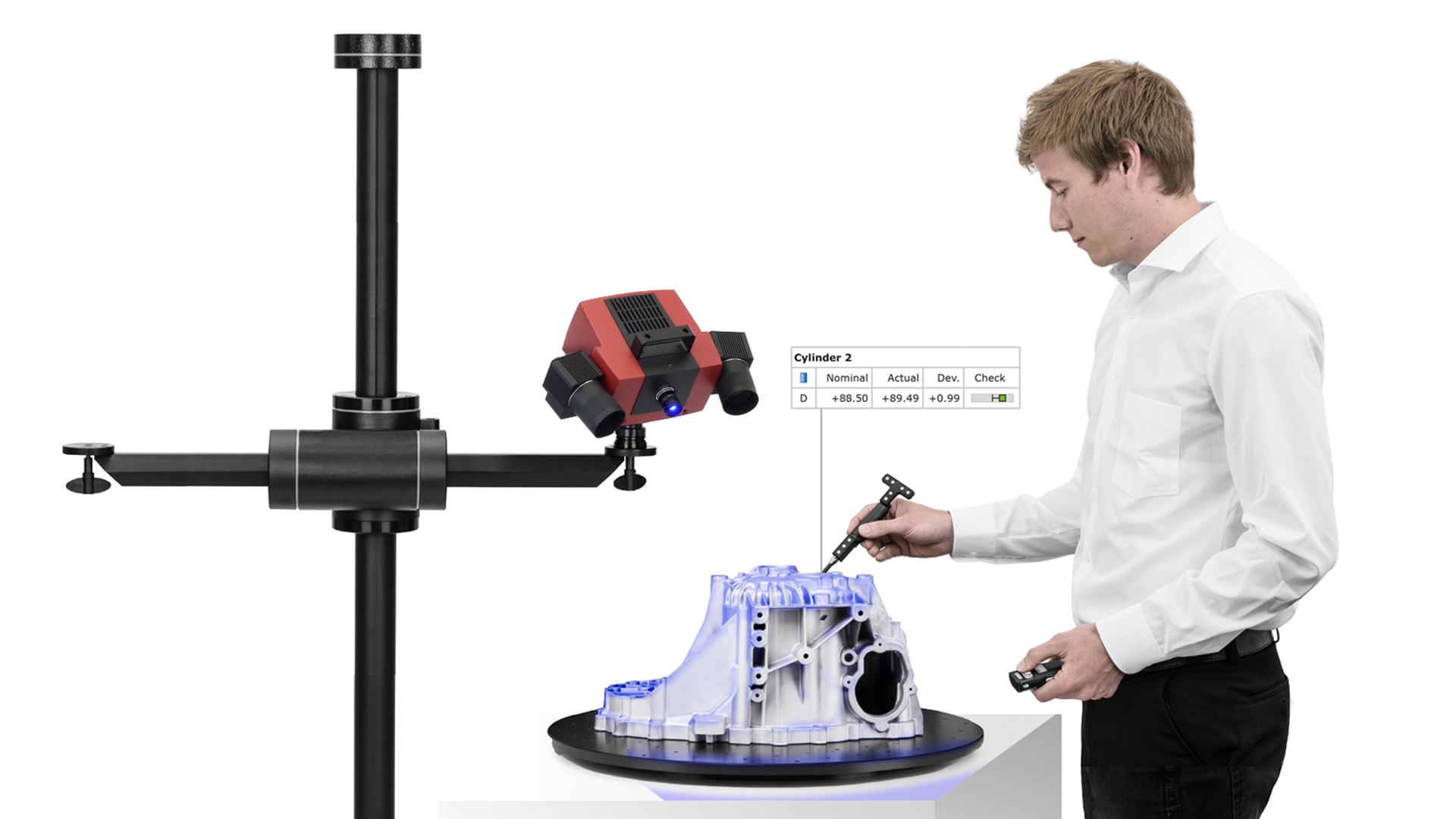

    Scan, probe and track in a single system.

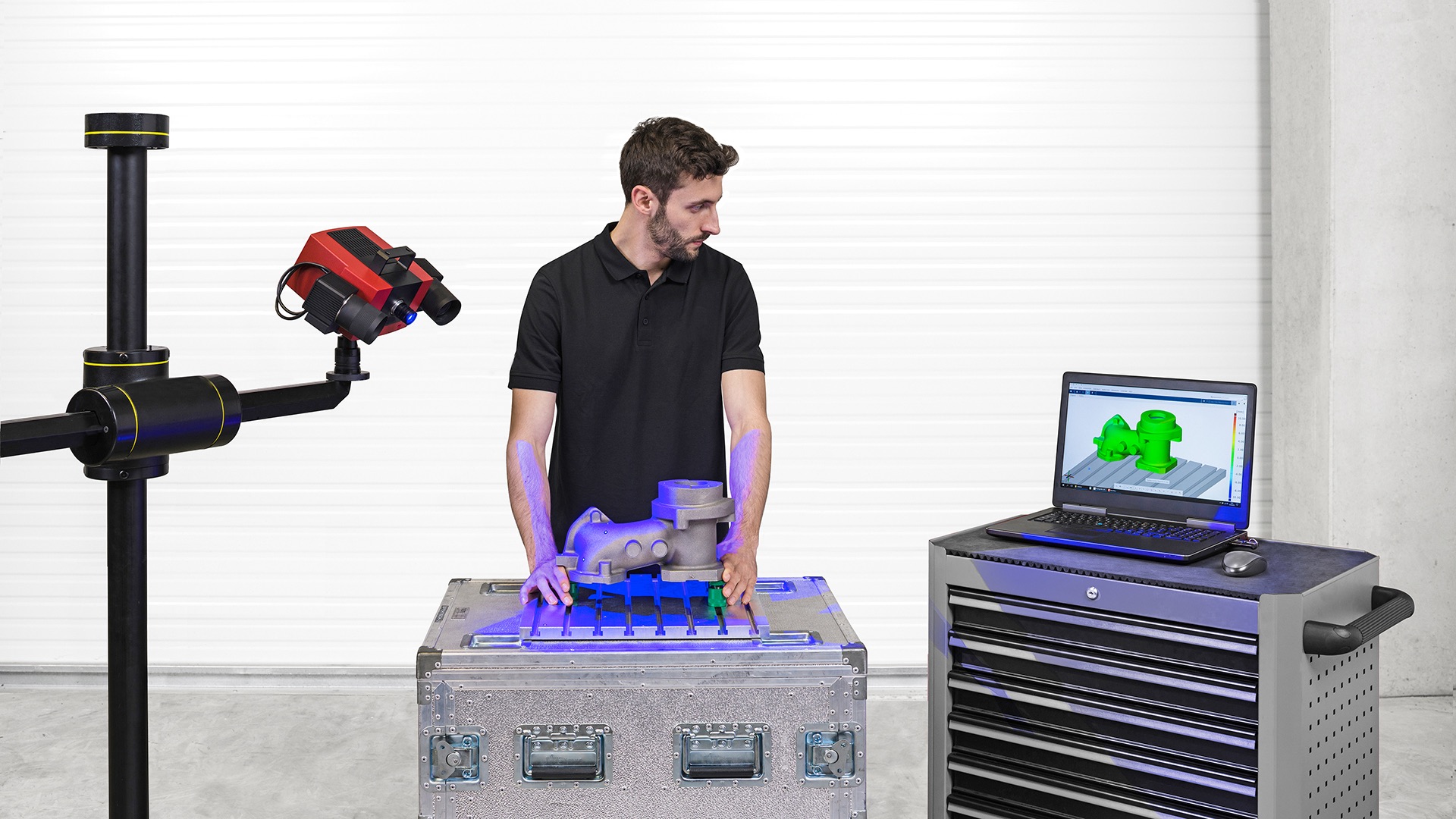

  • ZEISS ATOS Compact optimize

    Optimize

    Align parts with real time tracking technology.

  • ZEISS ATOS Compact enjoy

    Benefit from

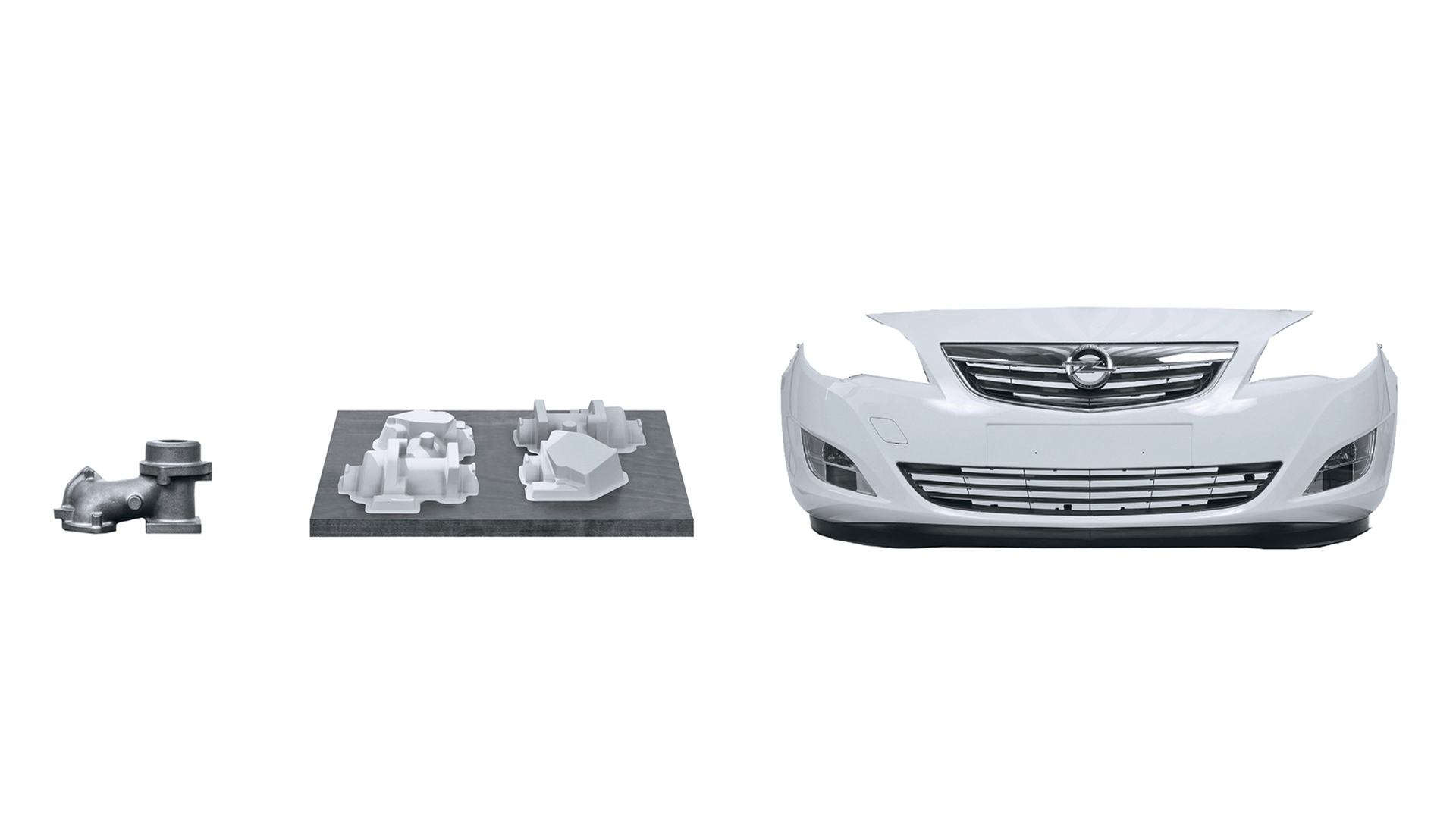

    High-resolution full-field results whether scannnig small or large objects.

ZEISS INSPECT
ZEISS INSPECT

Effective tool for analysis

ZEISS INSPECT offers everything from a single source

Scanning, inspection and reporting: The software guides you through the entire workflow. Examine nominal-actual comparisons as well as GD&T tolerances. Implement necessary corrections directly thanks to easy-to-understand results. Use ZEISS INSPECT to analyze completely, receive comprehensive reporting and integrate measurement results into existing processes.

Find more information
