Optical 3D scanning

ZEISS ATOS LRX

The specialist for 3D scanning of large-volume parts

ZEISS ATOS LRX offers fast, precise, full-field data acquisition for large measuring areas. With an ultra-bright laser light source and a measuring area of up to 4 square meters, it captures up to 2 × 12 million coordinate points in a single scan, thus, speeding up the measurement process.

Precise data acquisition for large parts
High-resolution data even for complex geometries
Robust design for industrial applications


      Fast, full-field data acquisition of large measuring areas

    With an ultra-bright laser light source and a large measuring area of up to 4 square meters, ZEISS ATOS LRX delivers precise, full-field data in short time. The sensor captures up to 2 × 12 million coordinate points with just one scan.

Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

3D scanning system for industrial requirements

The sensor meets the high metrological demands of industrial users. Operating with ZEISS INSPECT, the widely recognized standard in 3D metrology, the 3D scanner seamlessly guides you through the complete workflow of scanning, inspection, and reporting.

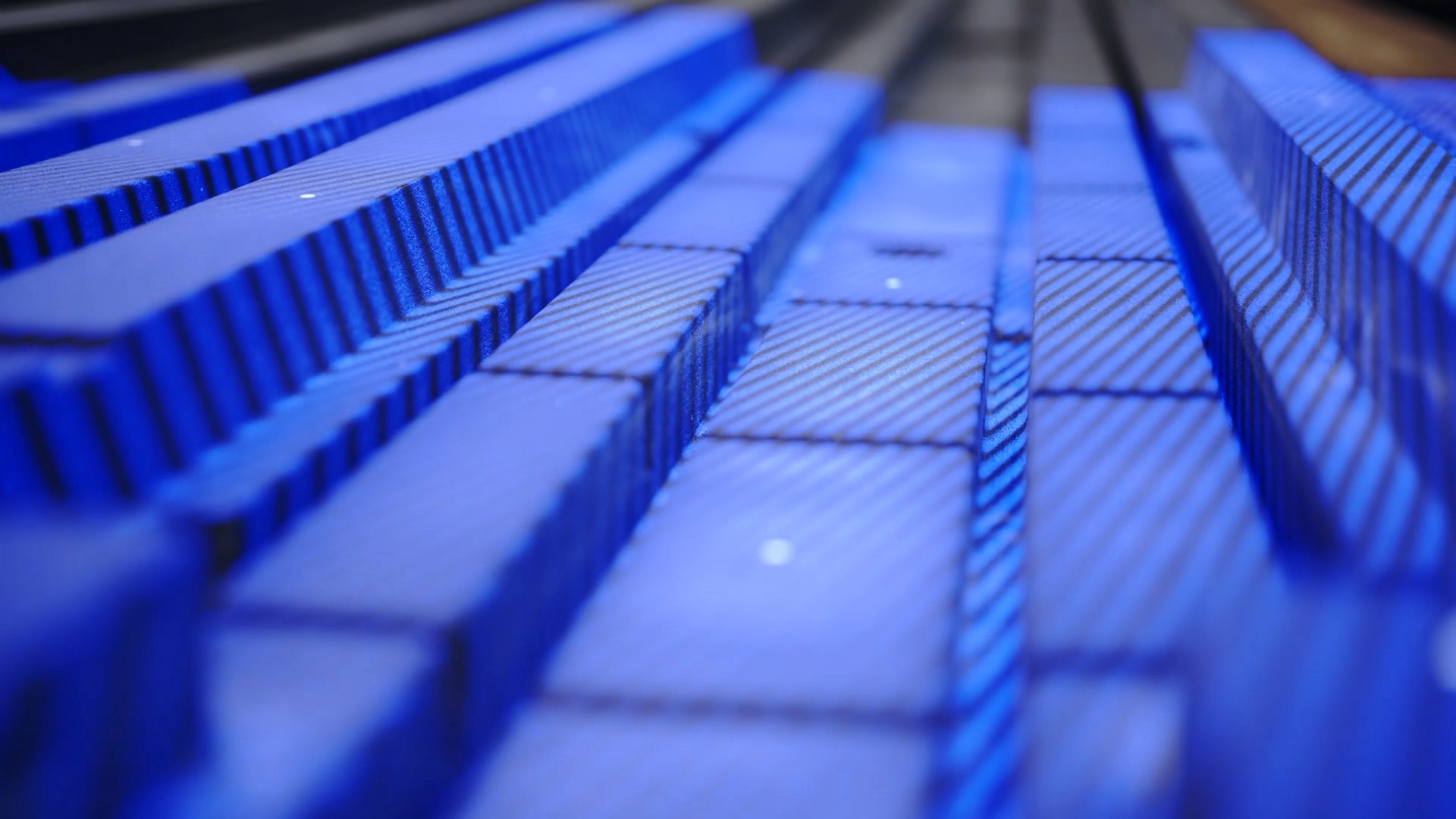

Fast digitization, high-resolution data

ZEISS ATOS LRX provides precise, full-field data with a high-resolution – even of complex geometries and freeform surfaces. The ultra-bright laser light source in combination with the large measuring area reduces the number of scans required.

Robust design

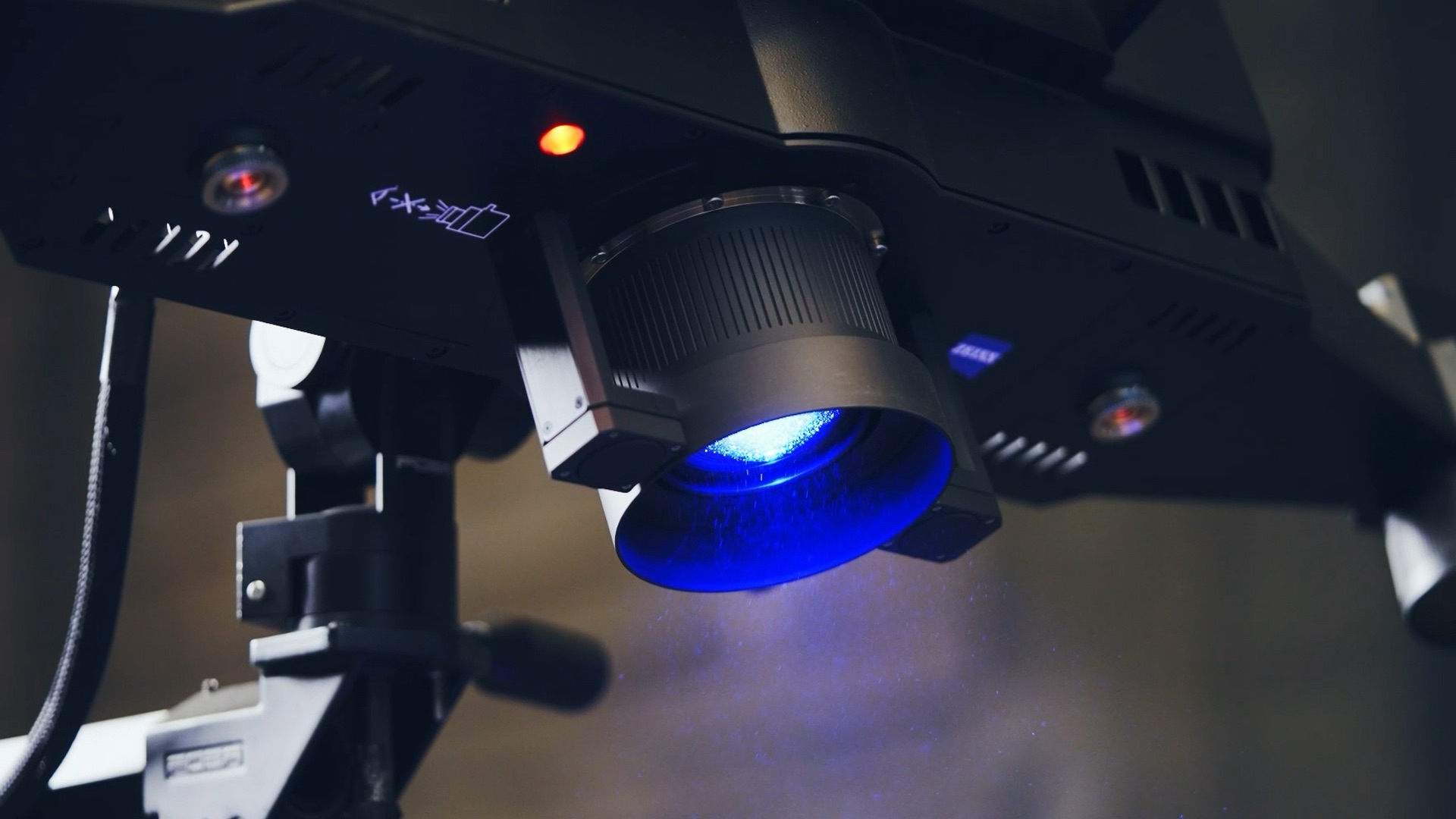

The sensor is designed for industrial applications. The robust housing is protected against dust and splash water. To work reliably and precisely even in harsh production environments, the system monitors its calibration status by itself.

All-in-one software

Scanning, inspection, and reporting in one single software: The sensor is managed by ZEISS INSPECT. The software supports 3D scanning and inspection processes by providing detailed analyses and reporting functions.

Next generation laser light source

ZEISS ATOS LRX is equipped with an advanced, ultra-bright laser light source allowing for 3D scans even in challenging ambient light conditions. By capturing large measuring areas, the system is the first choice for fast scanning of large surfaces, even if they are dark or shiny, and delivers precise, high-resolution data.

The integrated laser light compressor bundles several laser sources and generates a very bright light. It can illuminate the entire measuring area of up to four square meters at short exposure times, thus, speeding up the scan process.

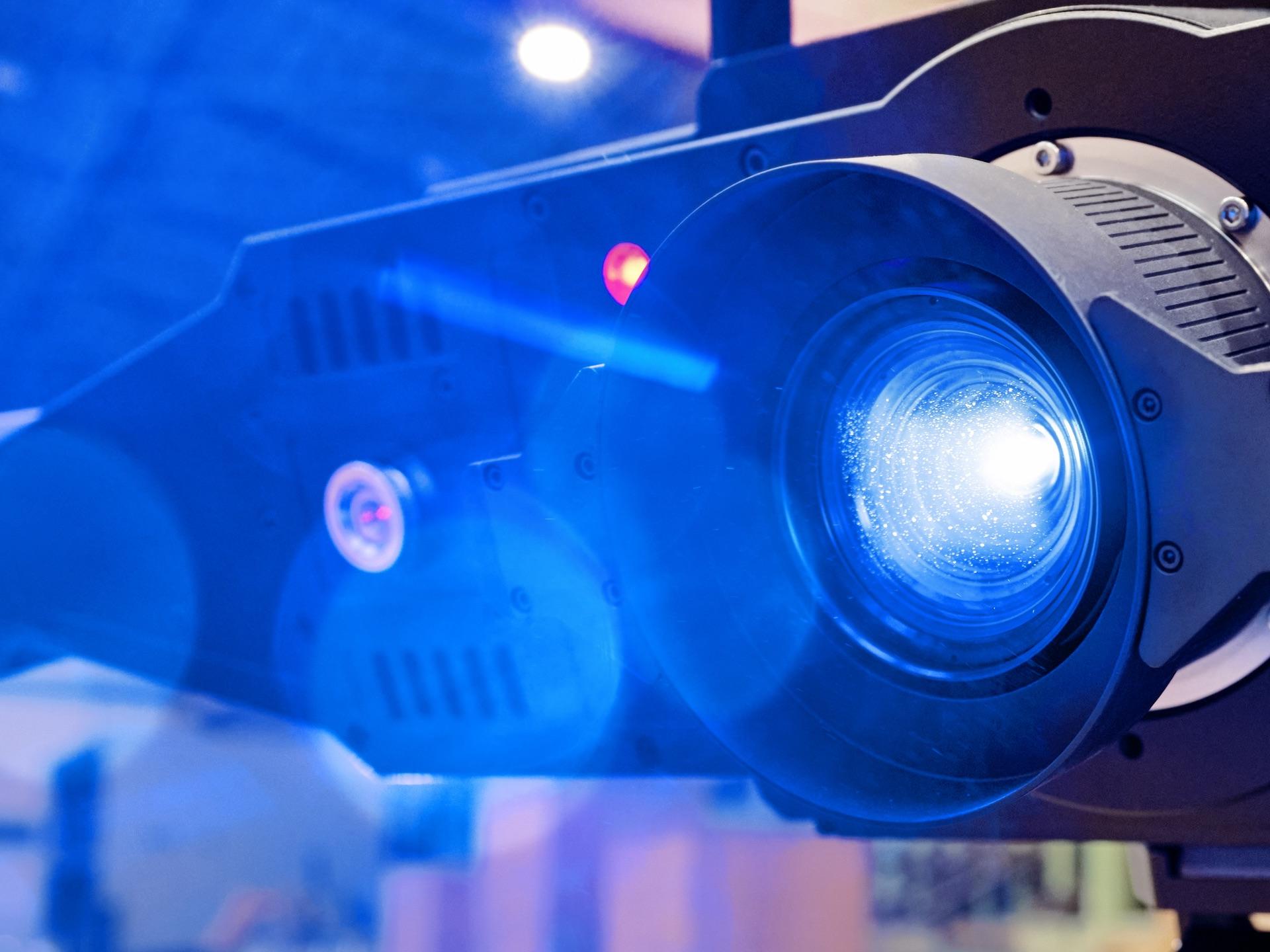

ZEISS ATOS LRX offers maximum safety in manual use despite the laser light: An integrated sensor monitors the safety distance to the user via radar and reduces the luminous intensity, if necessary. The resulting assignment to the uncritical laser protection class 2 allows the system to be operated without any further protective measures.

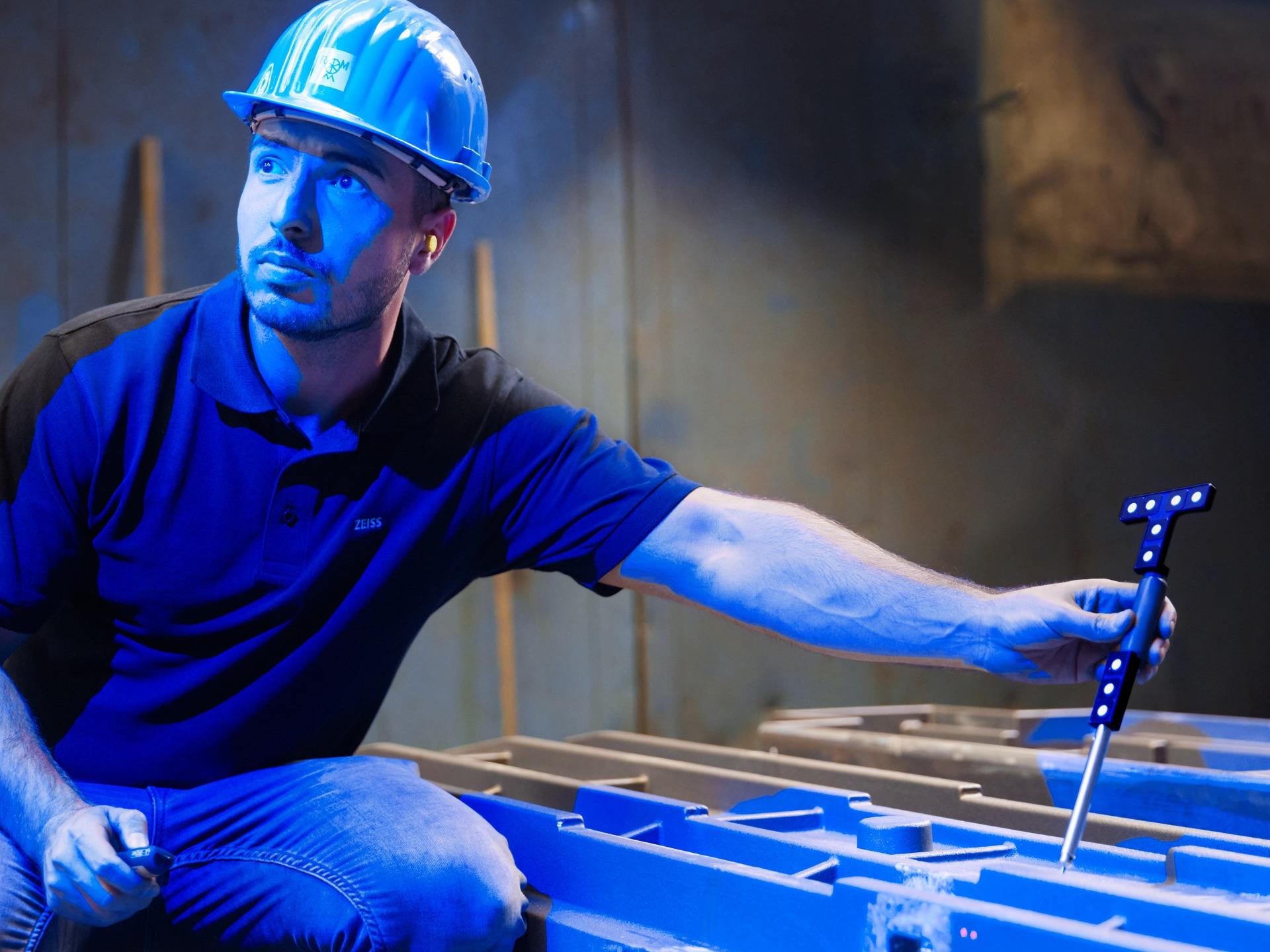

ZEISS ATOS LRX supports interactive features such as touch probe measurements, live tracking, and back projection. The sensor can be controlled either by computer or remote control.

Effective tool for analysis

ZEISS INSPECT offers everything from a single source

Scanning, inspection and reporting: The software guides you through the entire workflow. Examine nominal-actual comparisons as well as GD&T tolerances. Implement necessary corrections directly thanks to easy-to-understand results. Use ZEISS INSPECT to analyze completely, receive comprehensive reporting and integrate measurement results into existing processes.

Find more information

Easy to use and reliable

ZEISS INSPECT

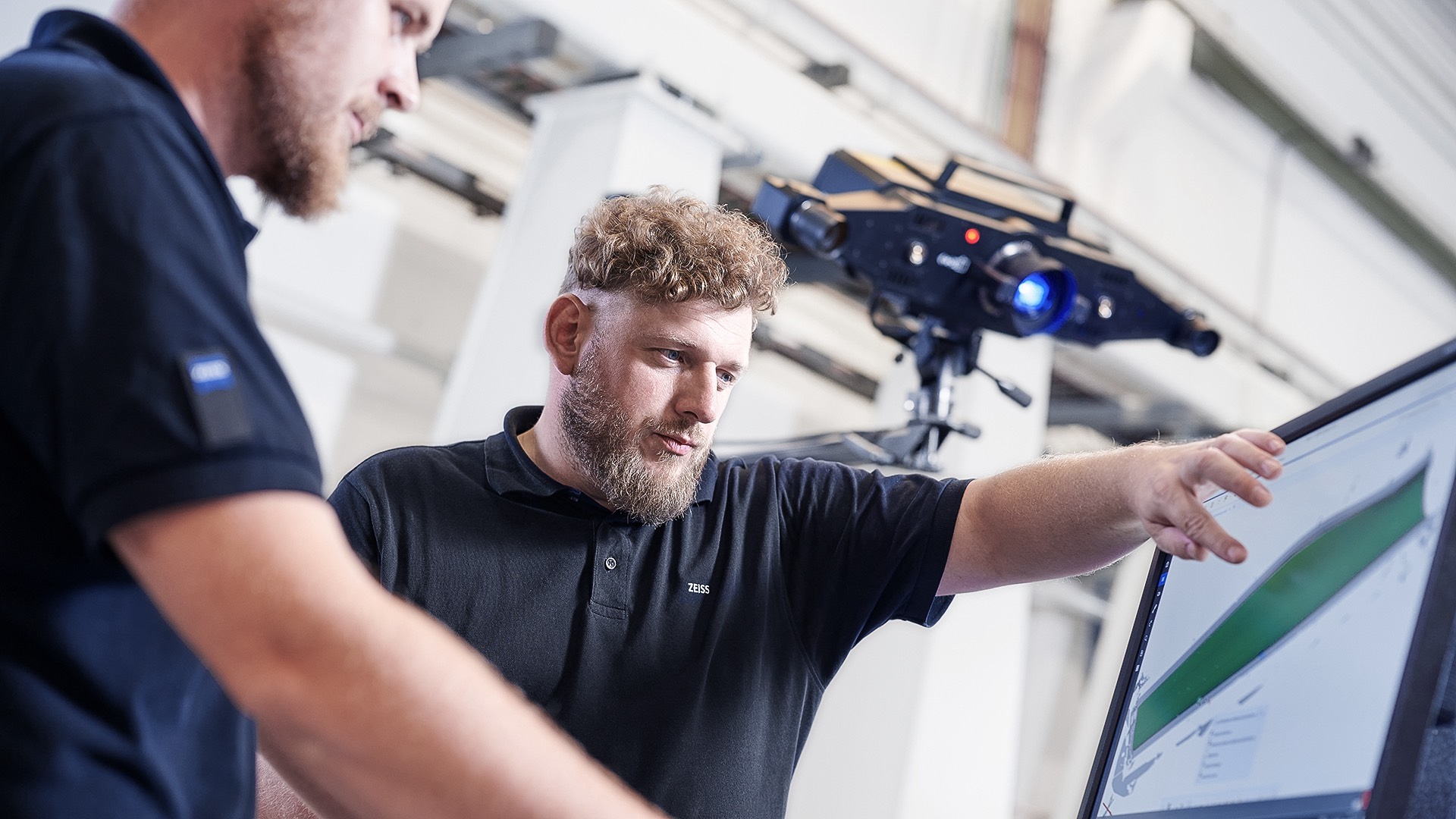

The entire workflow is controlled by the powerful software ZEISS INSPECT: The 3D scanner generates full-field data and allows any required inspection or analysis to be derived from it. This makes operation intuitive and easy for the user, who is guided by a consistent user interface - from data acquisition to inspection and reporting.

Learn more

HyperScale – Recalibration without delay

The new HyperScale software function is designed for very fast on-site calibration. With just one single measurement of a DAkkS-certified length standard, the calibration is completed.

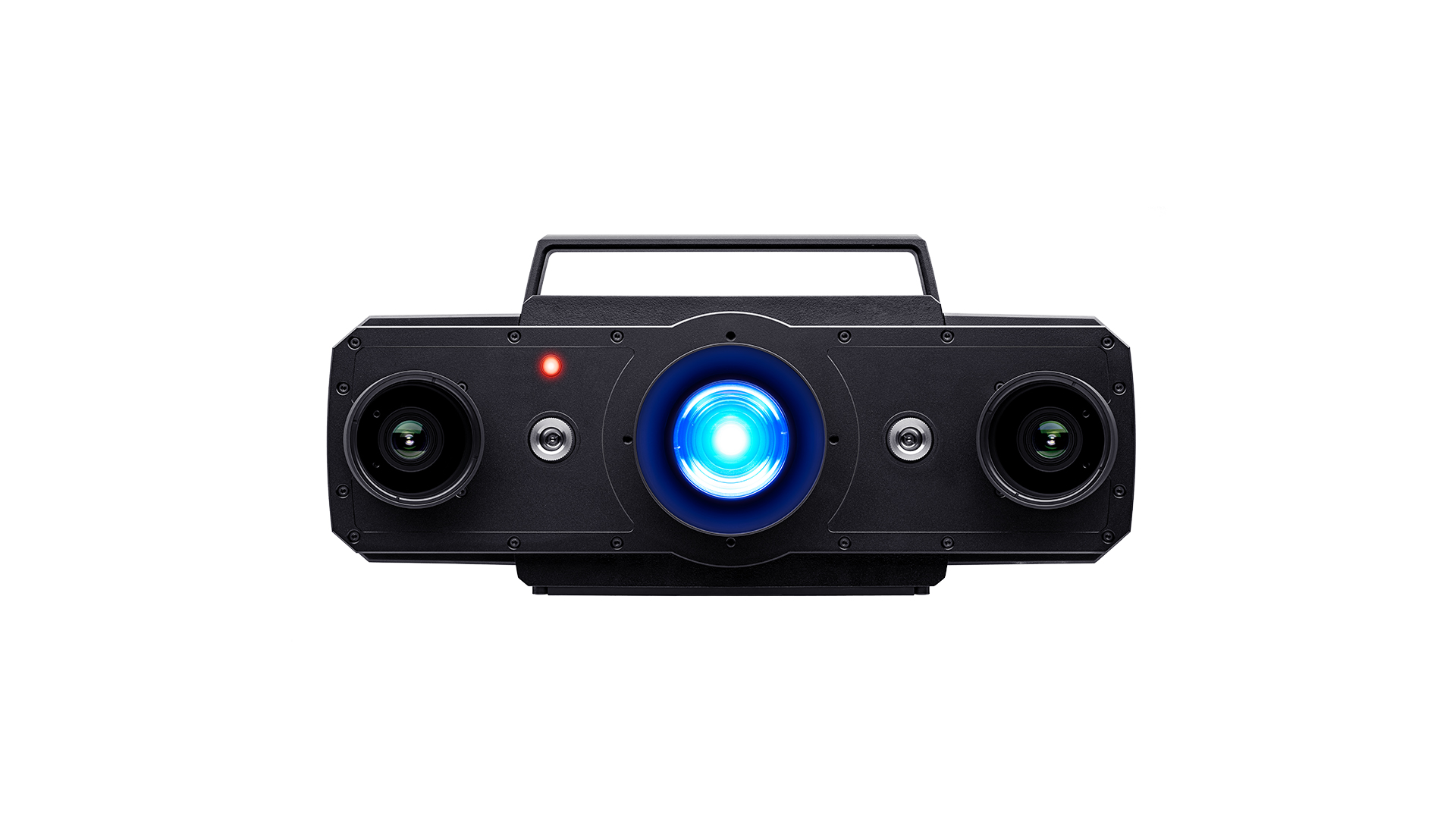

ATOS 5 family

ATOS sensors have been custom-built to meet metrological requirements in industry. They deliver absolutely accurate and traceable measuring results – even under harsh conditions. The 3D sensors work with structural blue light and carry out non-contact scanning operations.

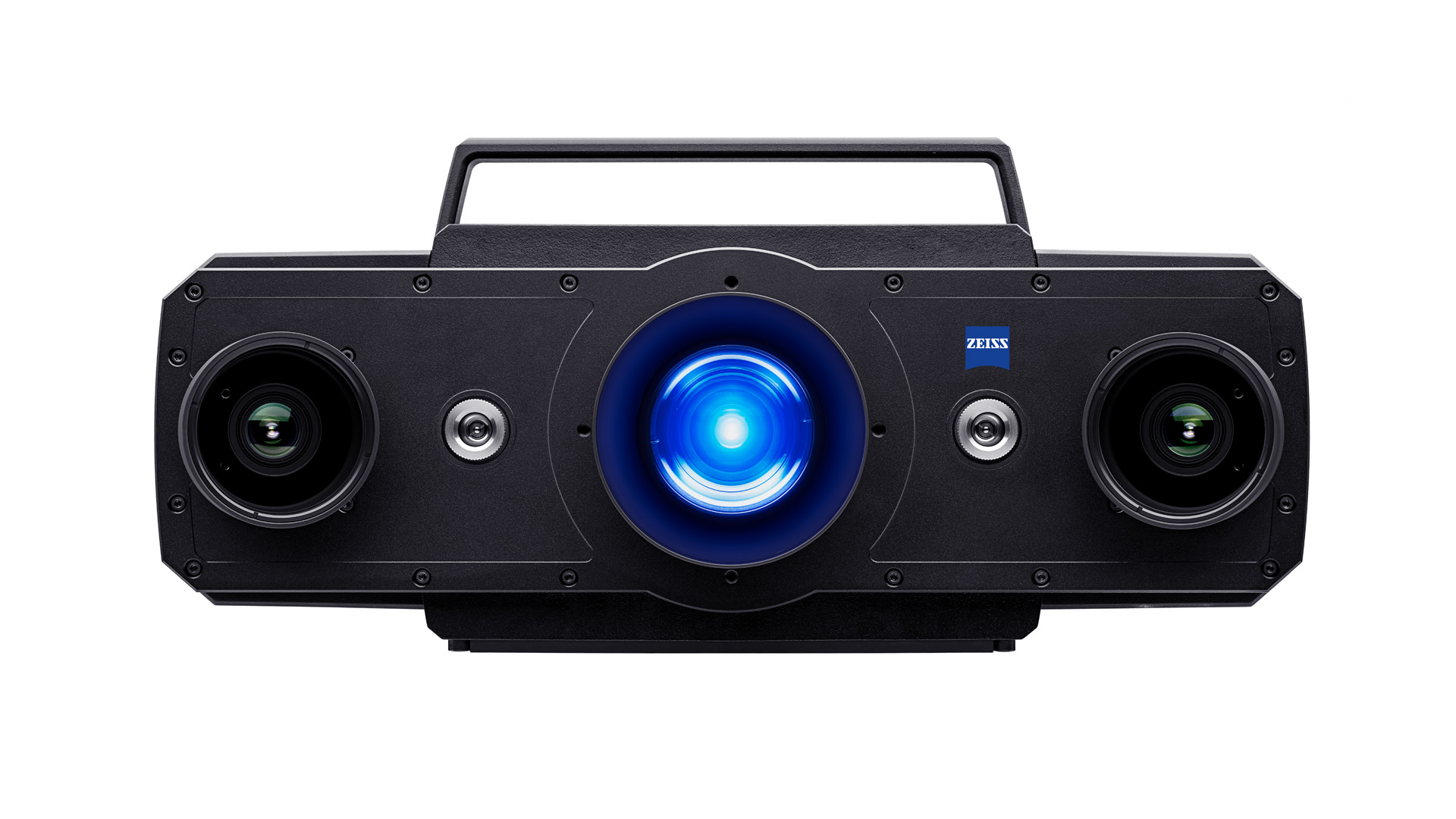

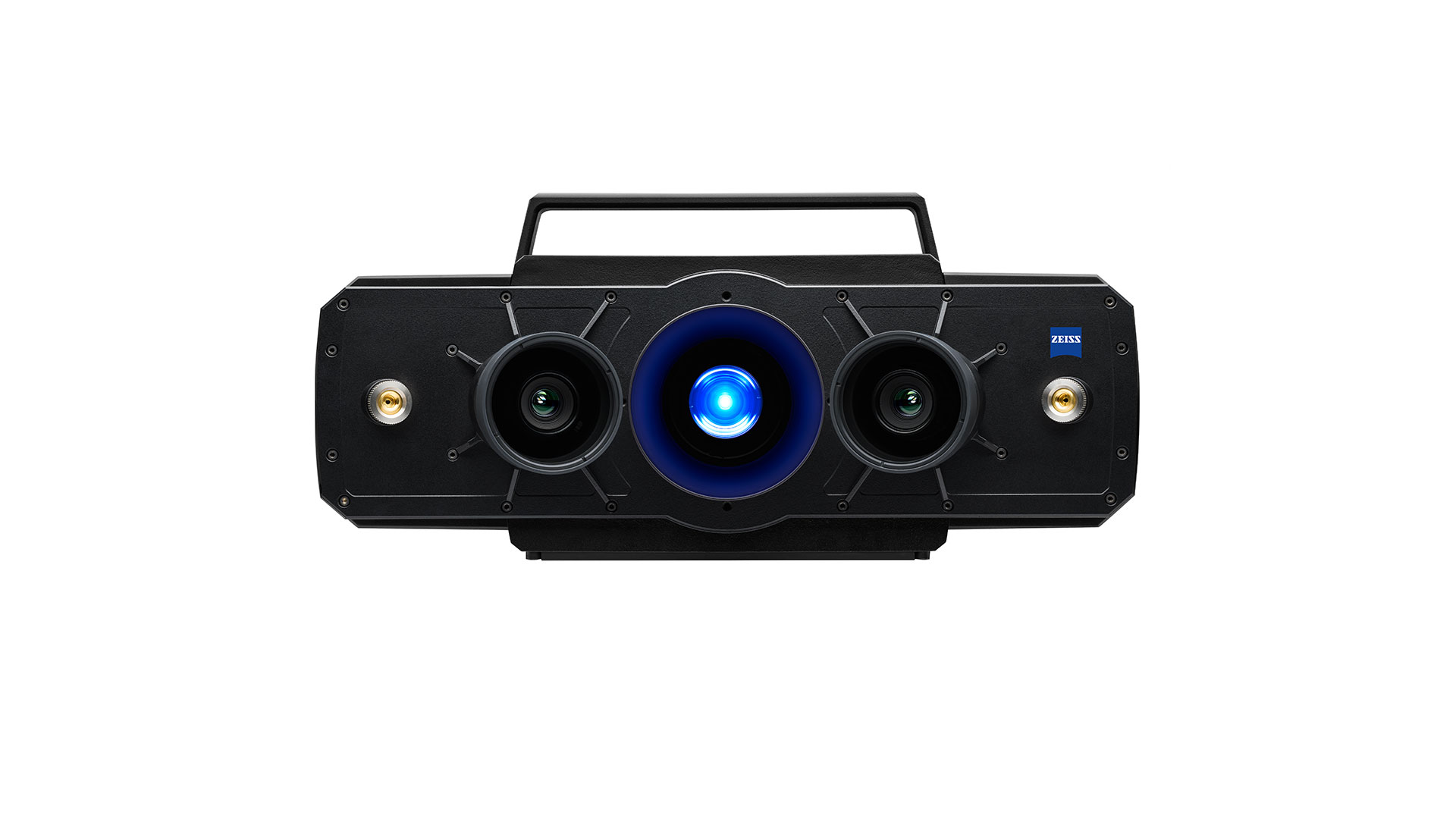

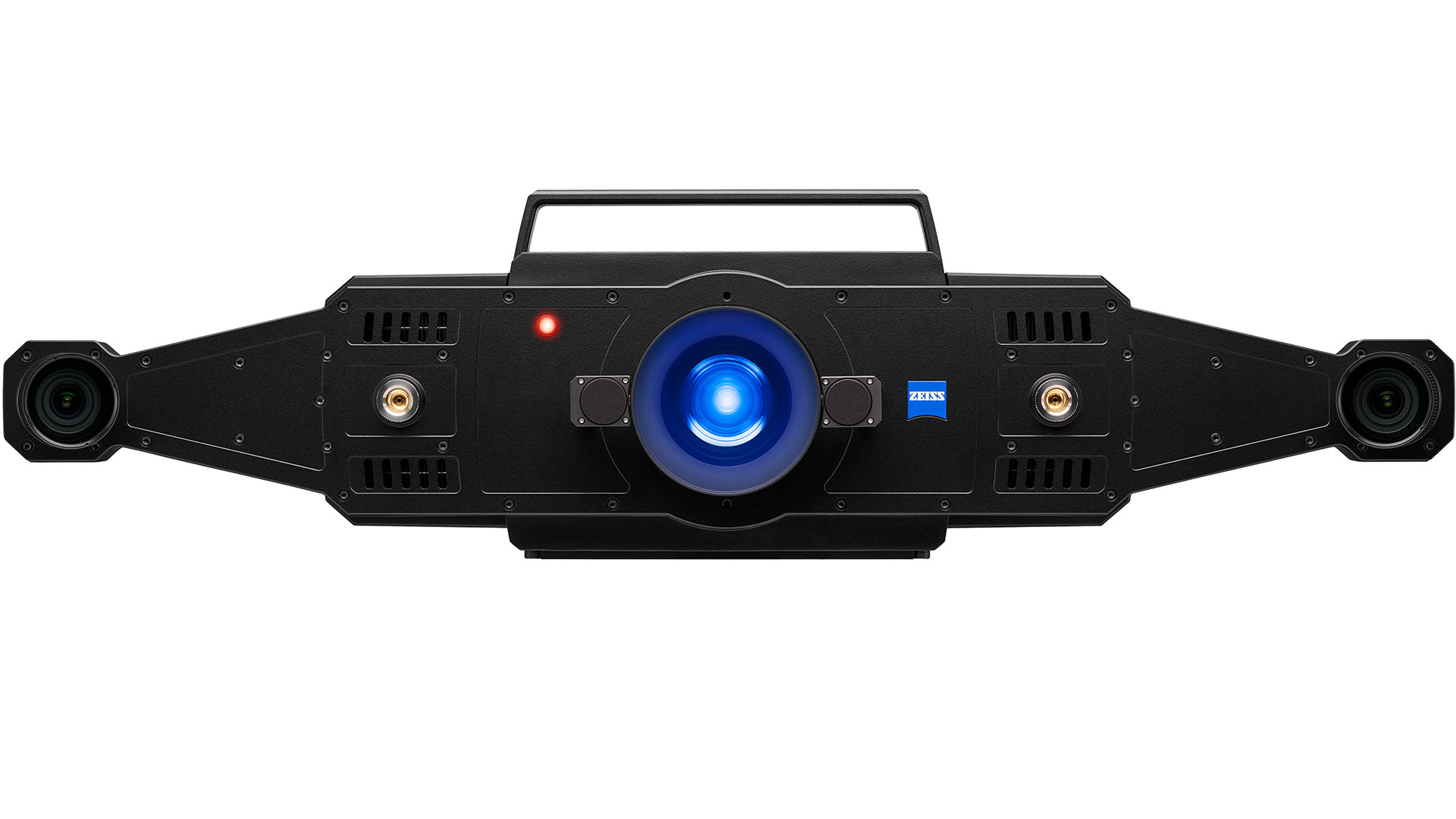

	ZEISS ATOS LRX	ATOS 5 for Airfoil	ATOS 5	ATOS 5X
Technical Data
Your system for:	3D scanning for very large volumes	precise scanning of smallest details	high-speed 3D scanning system	automated scanning for large volumes
Light source	LASER	LED	LED	LASER
Mearsuring points per scan	12 m	12 m	8 or 12 m	12 m
Working distance	1810 mm	530 mm	880 mm	880 mm
		Learn more	Learn more	Learn more

Powerful in many industries

Aerospace

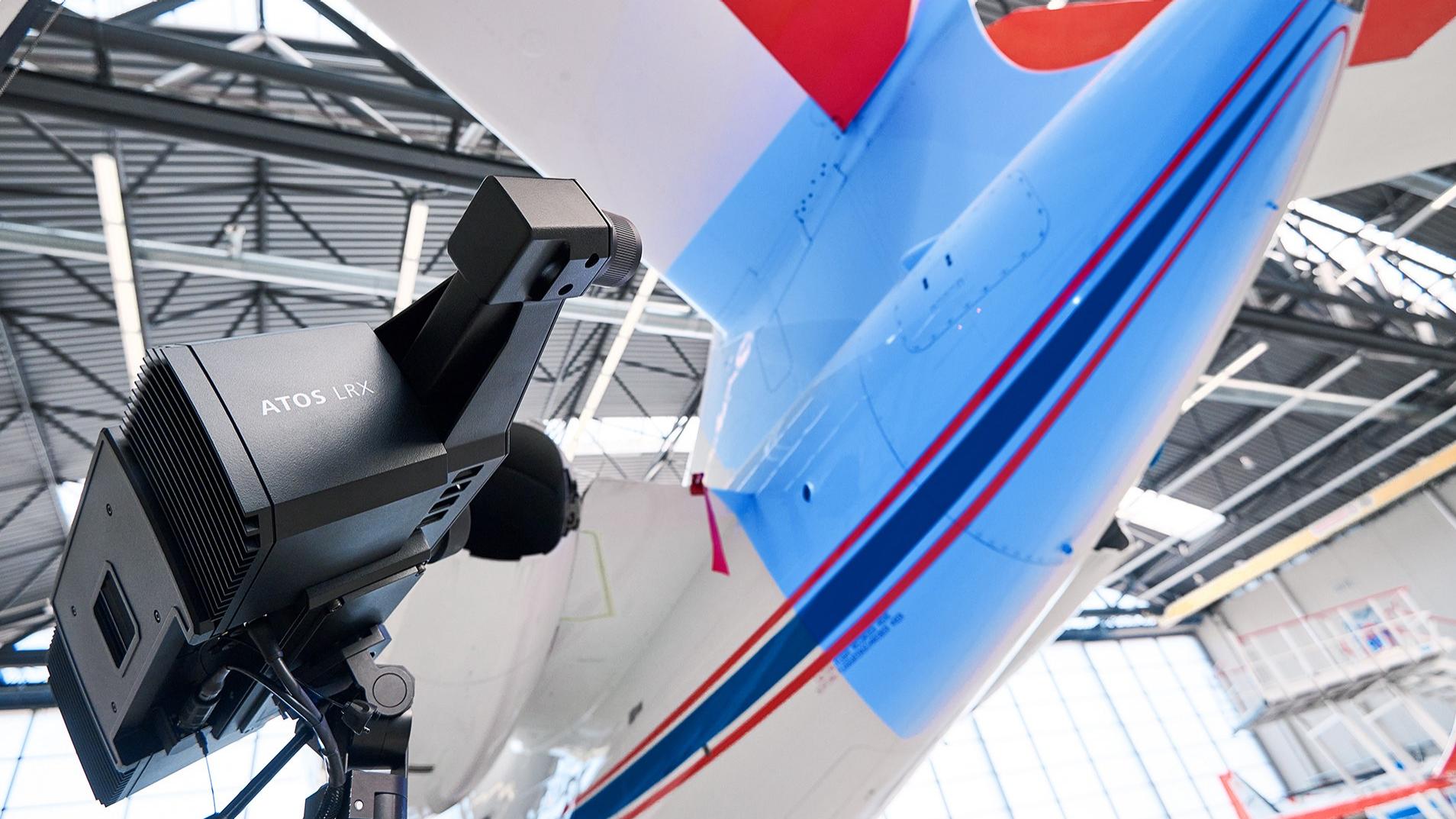

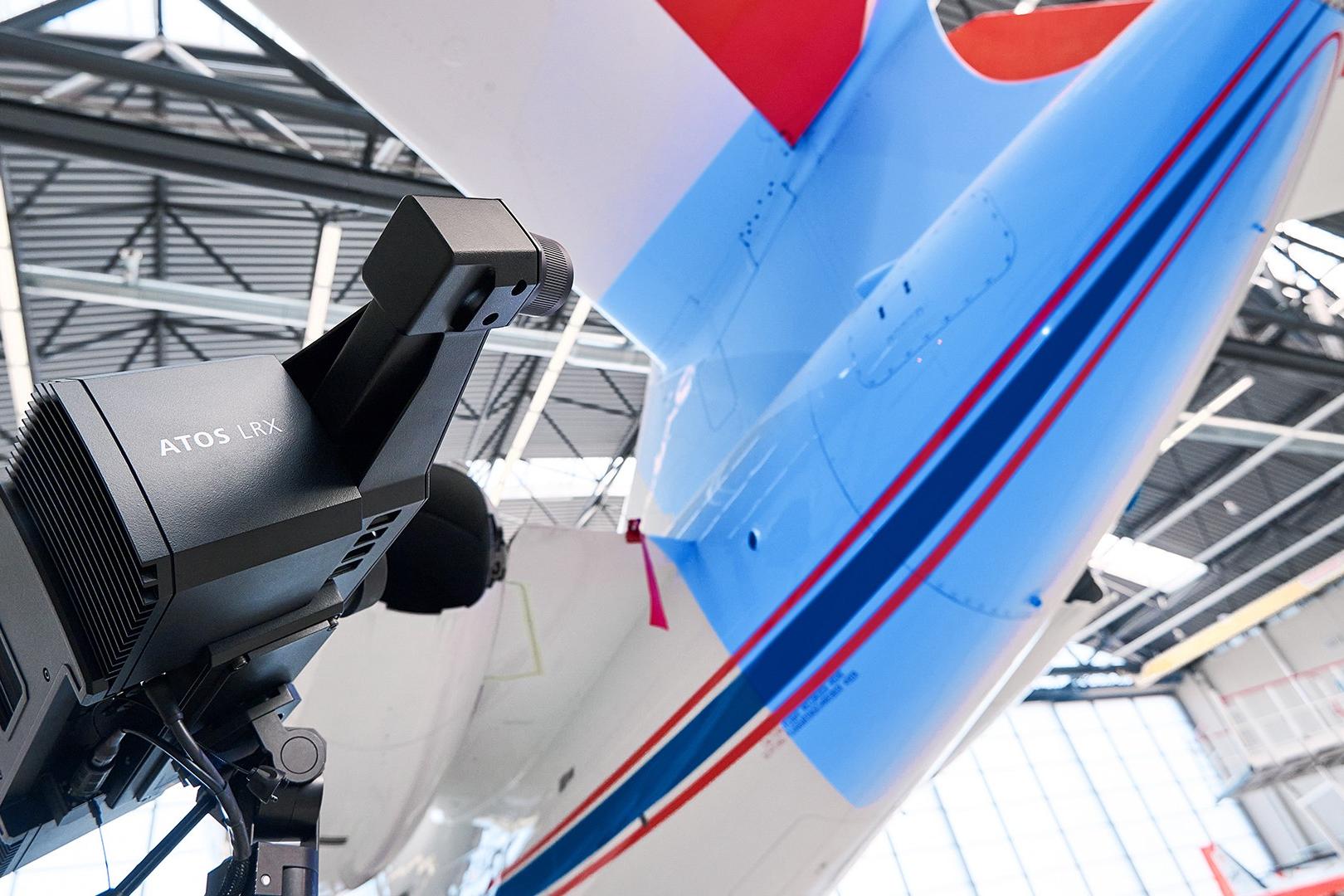

In aerospace, ZEISS ATOS LRX inspects structural components such as the fuselage, ribs, tails, and wings. The sensor is also used for digitizing the outer skin of the fuselage, for example to check rivets and flushness between panels. The measuring results also speed up maintenance and repair, as they show surface defects.
Automotive

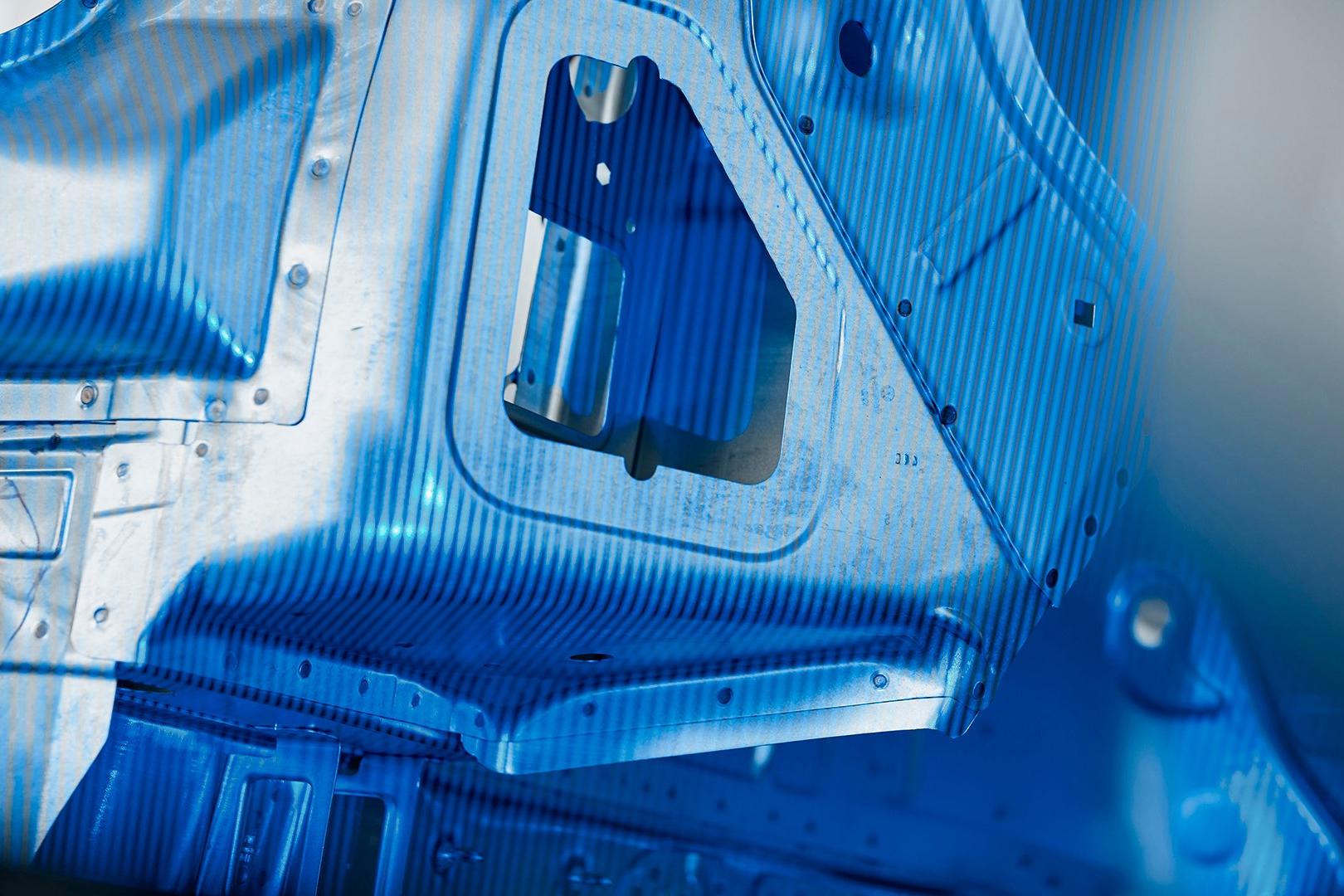

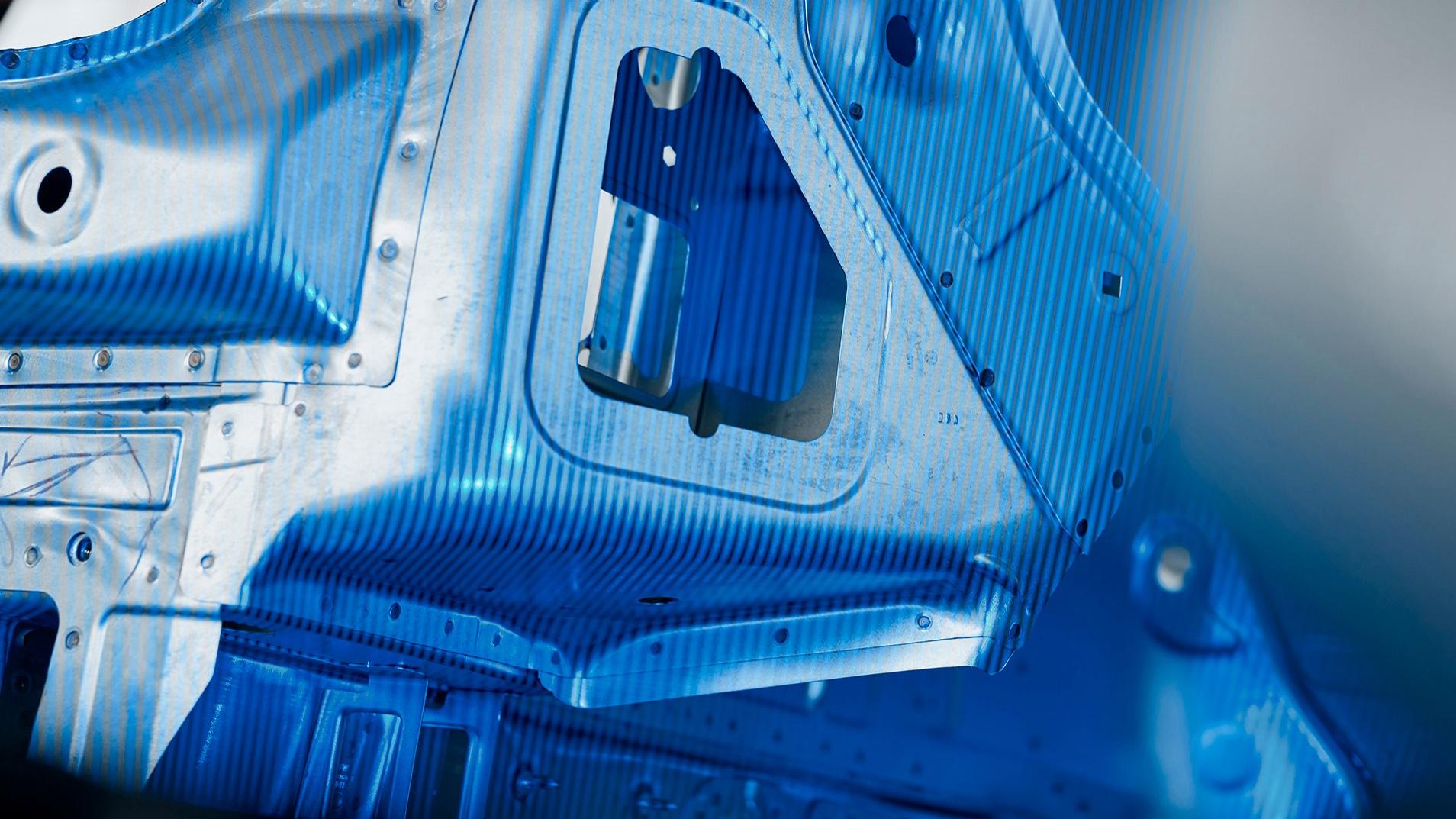

ZEISS ATOS LRX is used for digitizing surfaces like clay models in automotive design. Due to the large measuring area, the sensor provides a fast nominal-actual comparison after applying the clay to the model. In crash tests, ZEISS ATOS LRX allows for fast 3D scanning of crash vehicles.
Shipbuilding

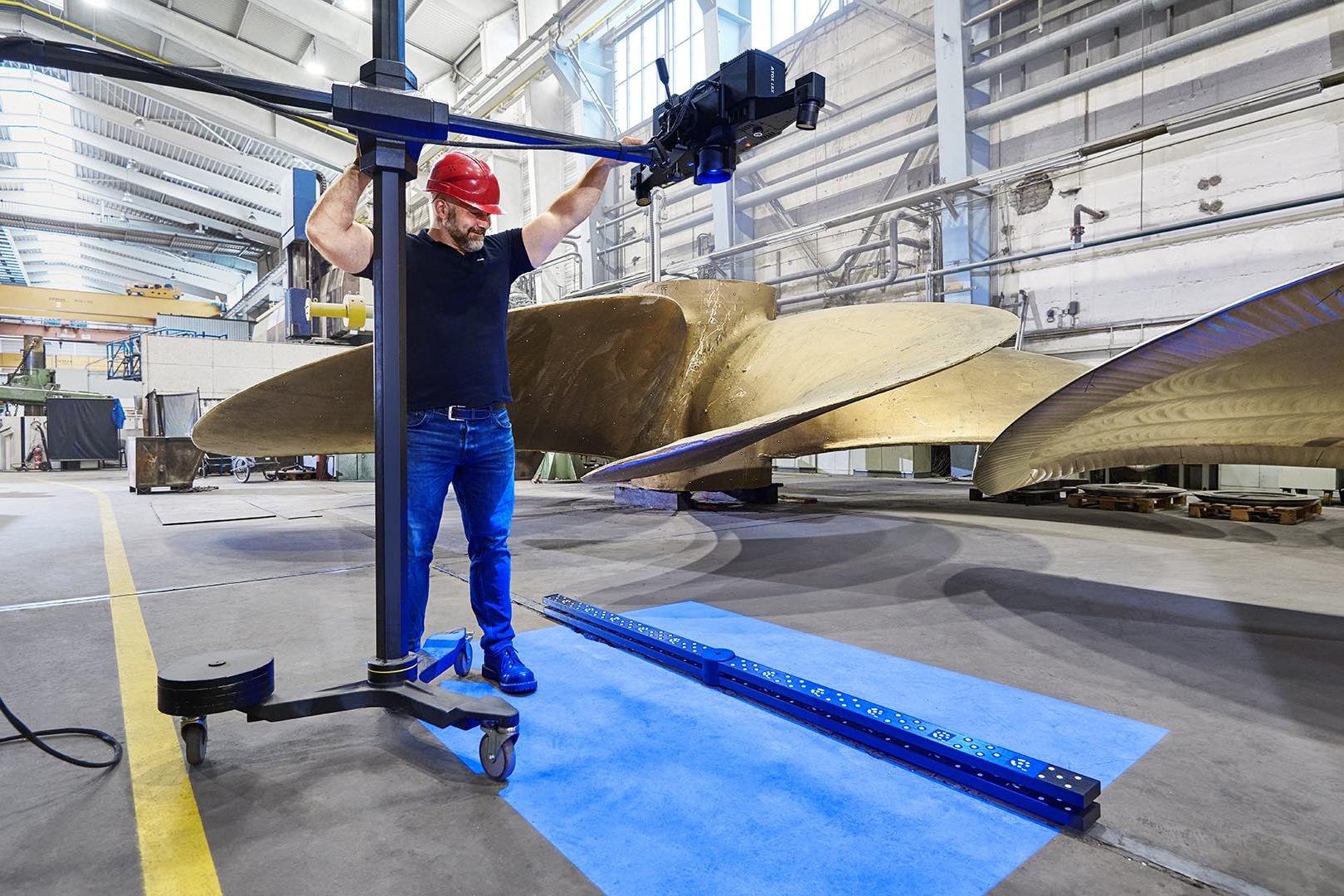

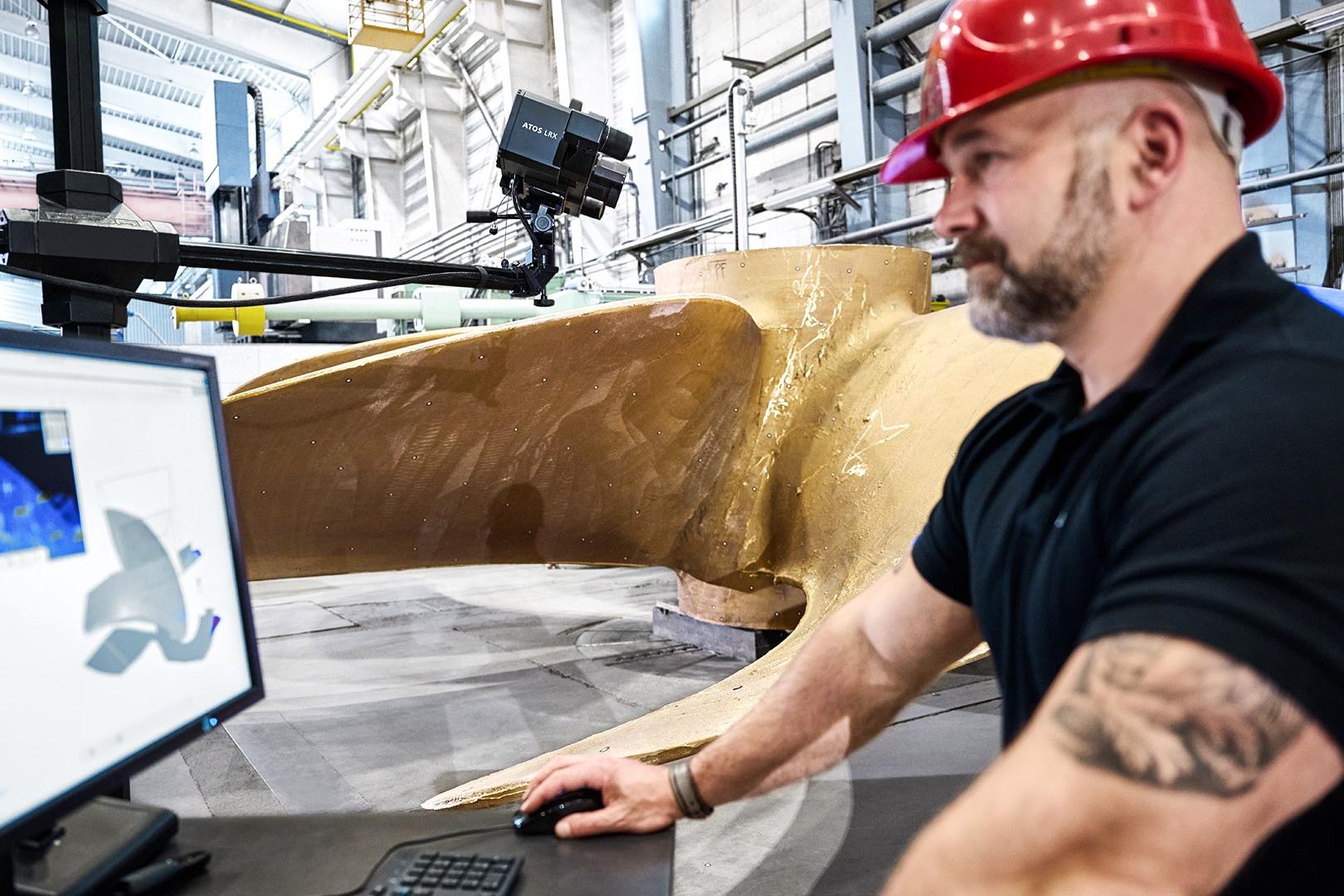

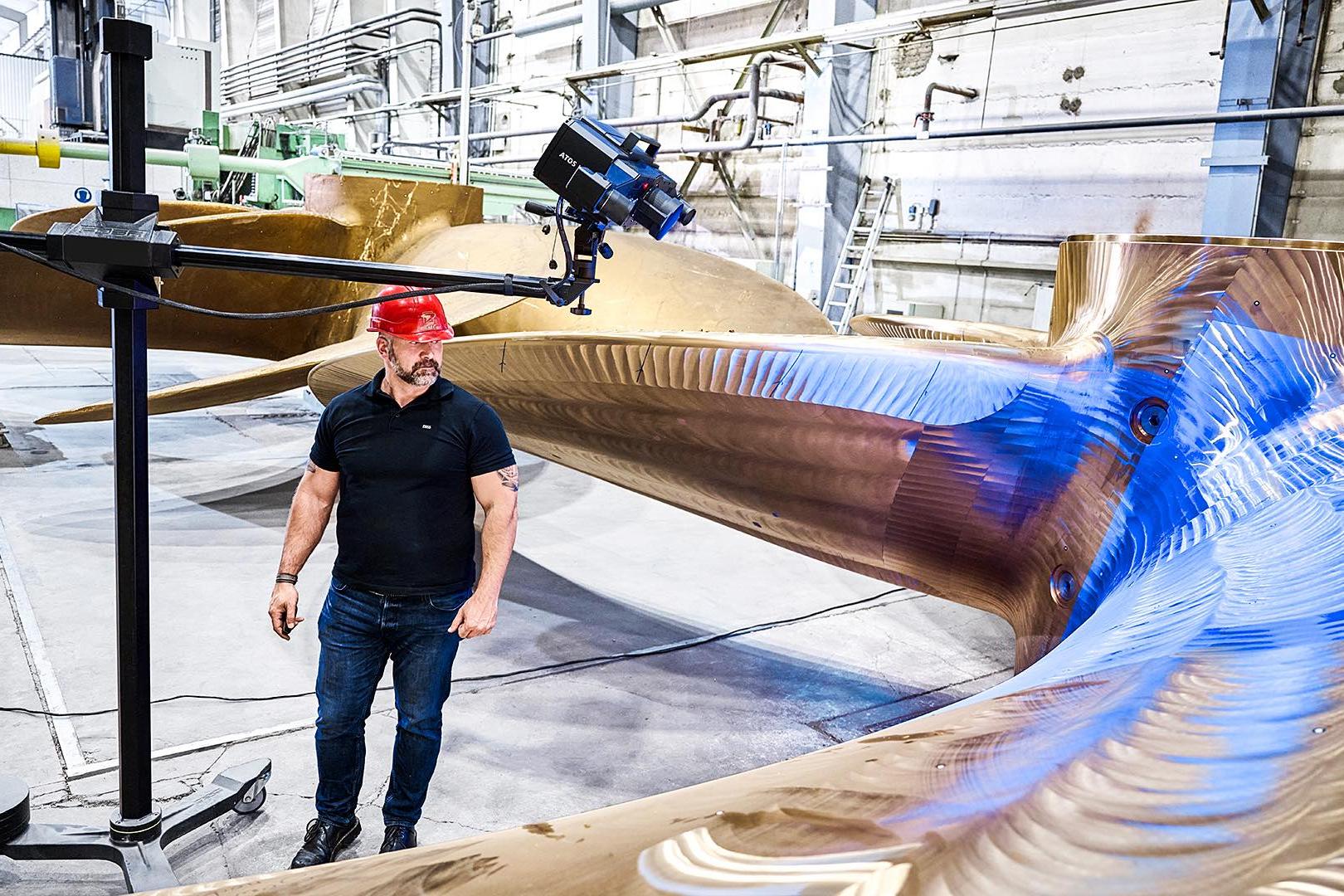

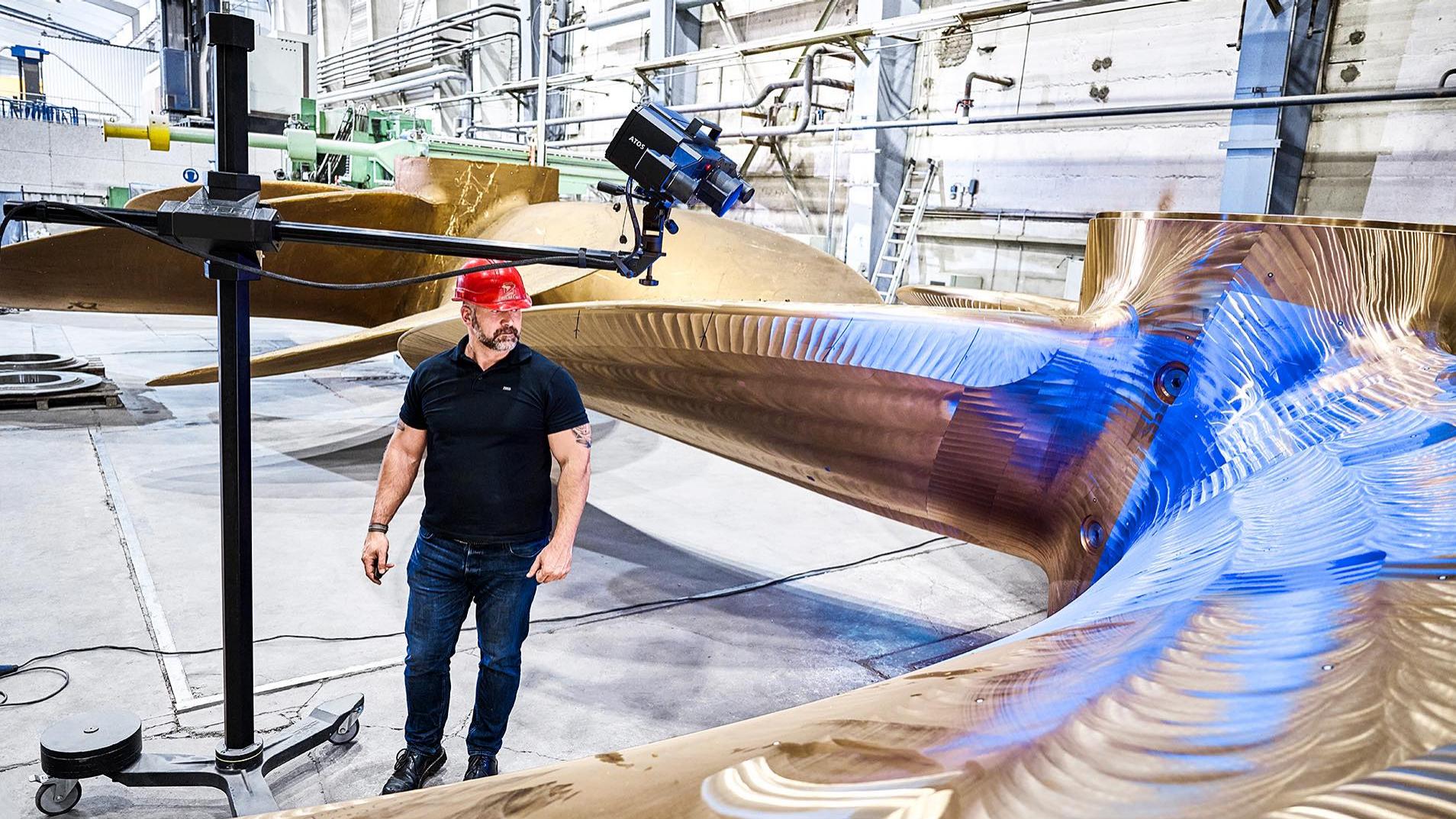

The 3D scanner digitizes the entire surface of marine propellers and provides important information for maintenance and repair, such as damage to the ship's hull.
Toolmaking and mechanical engineering

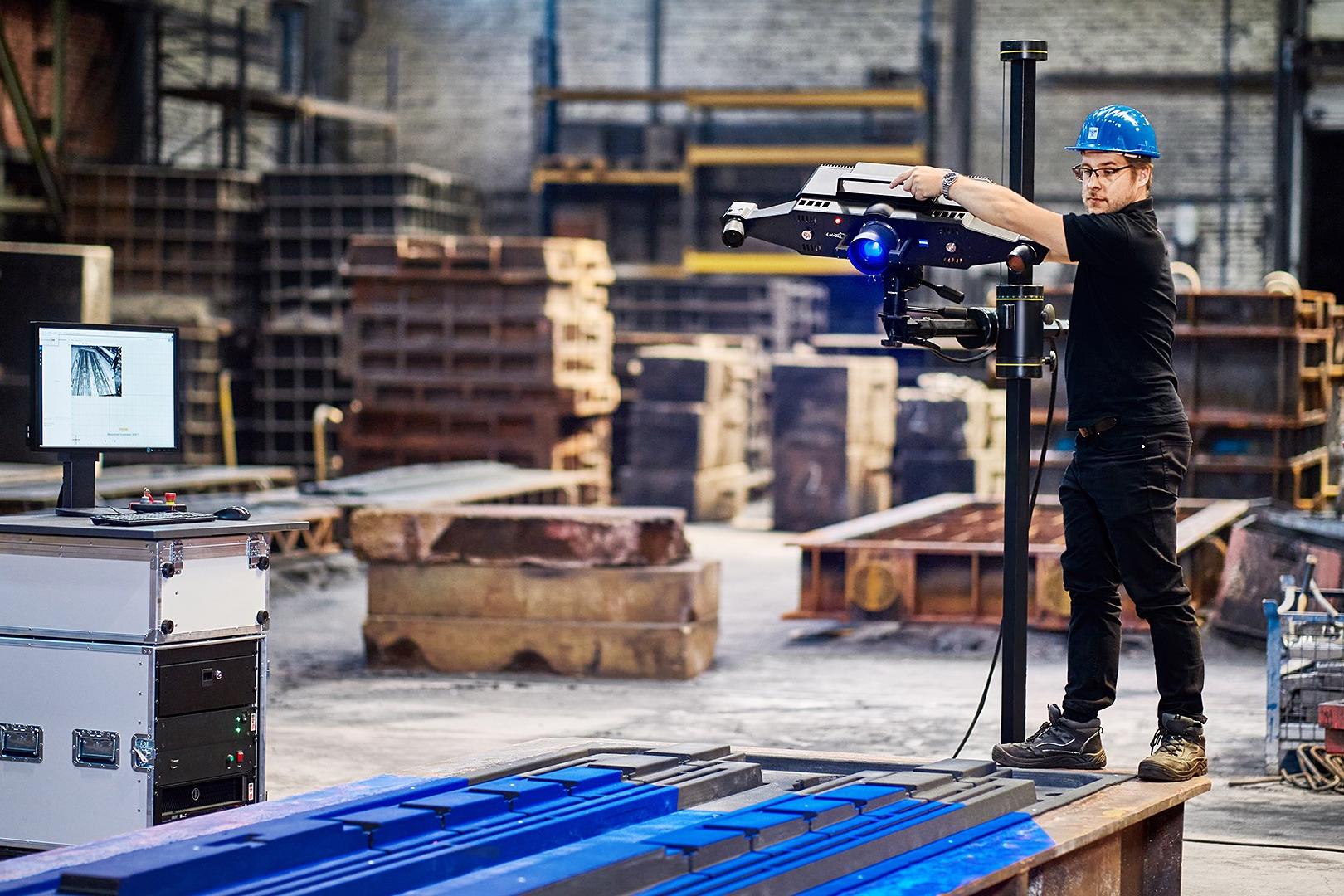

ZEISS ATOS LRX optimizes the design of parts and tools. With the sensor, models, mold halves, and cast blanks, such as for forming tools, can be digitized in high resolution. In mechanical engineering, the 3D scanner speeds up the quality control of large, welded assemblies.
Wind energy

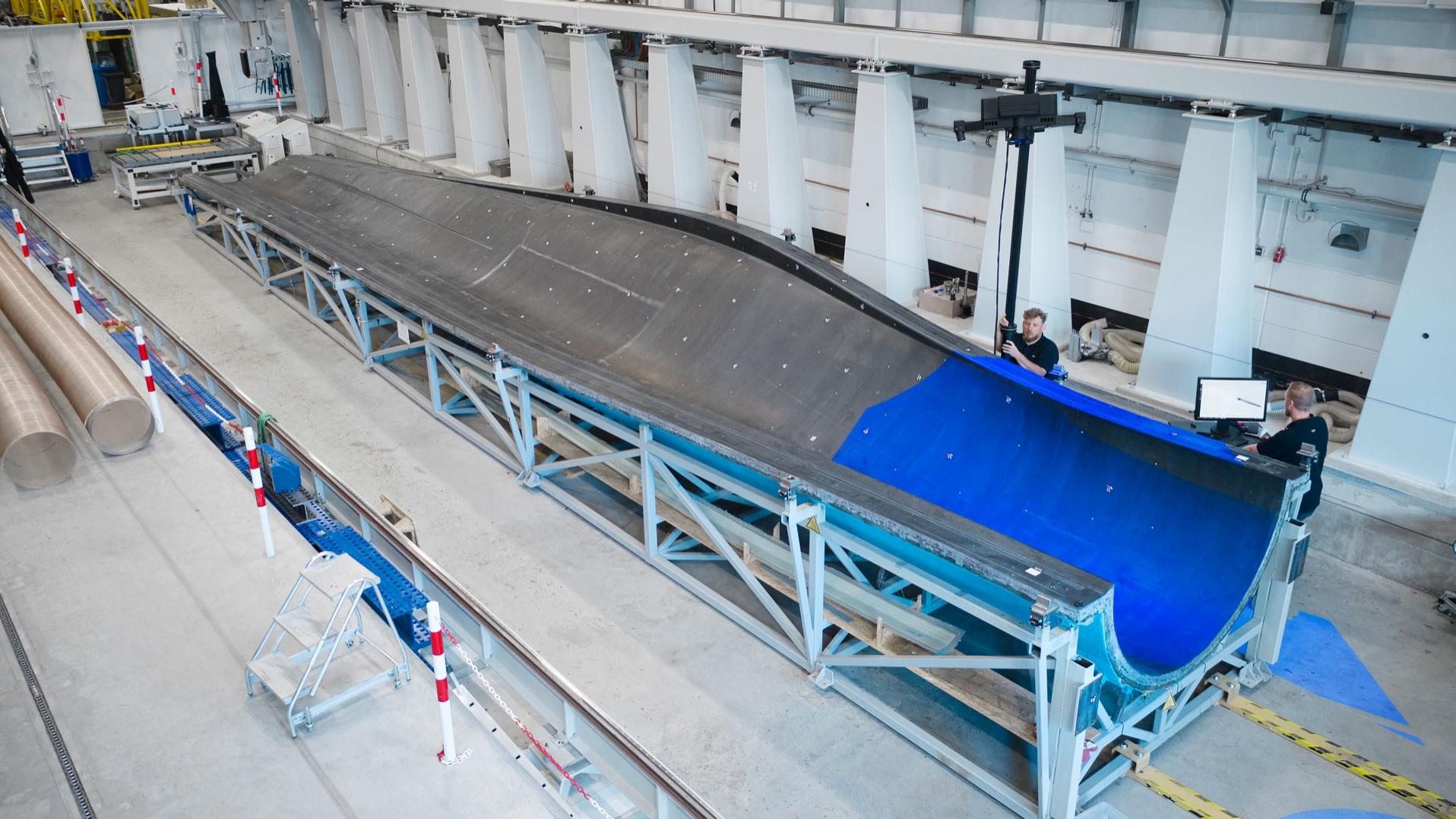

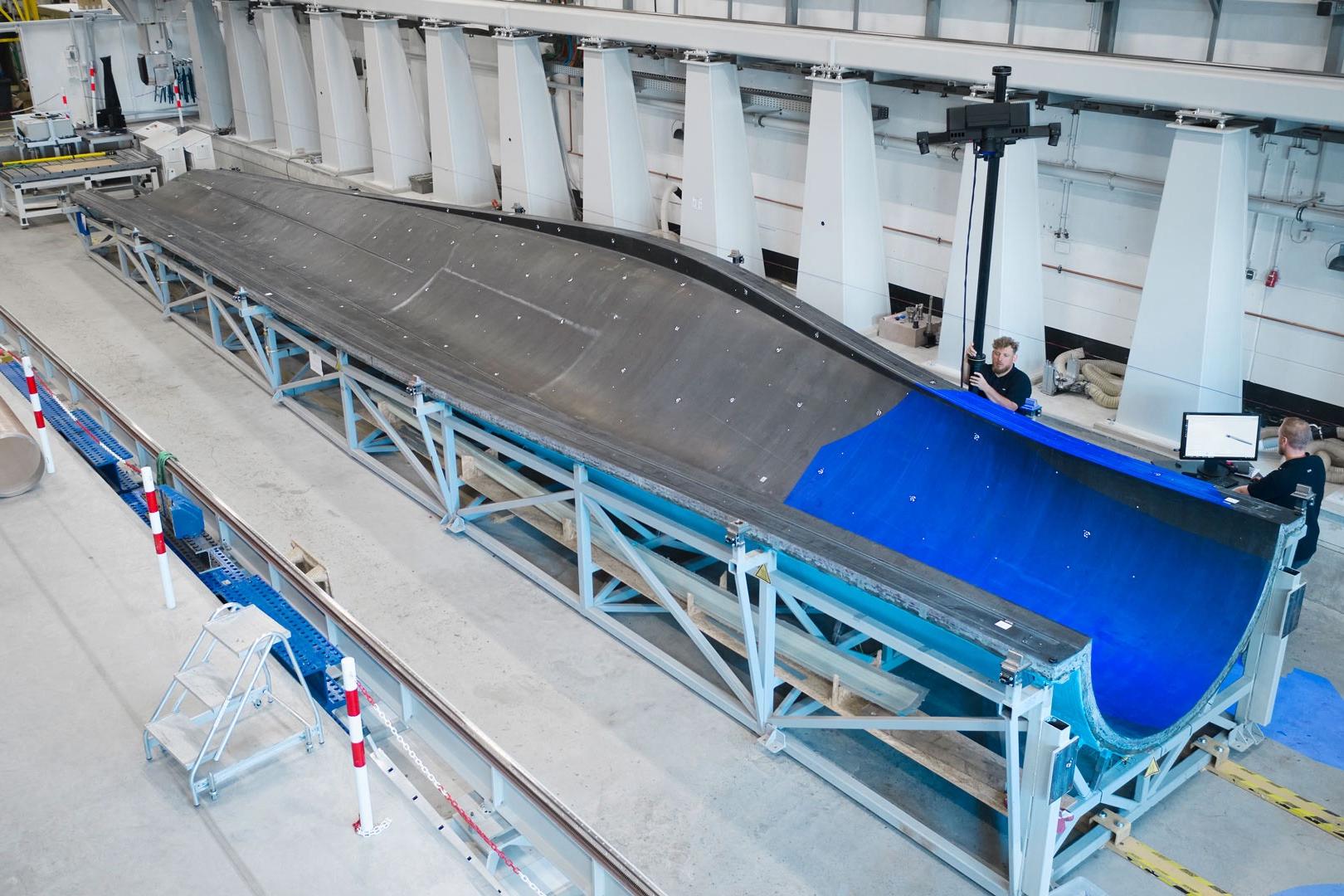

In the design and production of wind turbines, ZEISS ATOS LRX captures rotor blades and molds as well as wind turbine housings.


      Exclusive customer insights: Siempelkamp Gießerei

    Together with ZEISS, the German Siempelkamp Gießerei has installed the world's largest non-contact robot measuring cell. The heart of the measuring cell is the 3D scanner ZEISS ATOS LRX, which has been specially developed for large measuring fields and robust environments. Thanks to its powerful laser light source, it delivers full-field data in a very short time. The software automatically visualizes full-field deviations between actual 3D coordinates and the CAD data. Based on this information, the foundry can identify, analyze, and remedy quality deviations as quickly as possible.
