3D measurement system

ARGUS

Optical solution for forming analysis

ARGUS supports the optimization of sheet metal forming processes through reliable and precise measurements of surface strains on components. The System uses photogrammetry principles to determine a three-dimensional image of a component in order to evaluate its forming and validate simulations.

Fast evaluation of forming processes
Simple validation of simulations
Mobile solution for components of any size

Evaluation of forming conditions and surface strains

Holistic shape change analysis

ARGUS records 3D coordinates of components in order to evaluate forming conditions and surface strains of sheet metal components after forming. The System compares the measurement data obtained from the photogrammetry camera with the material's forming limit curve and determines whether areas are too deformed or are still within a certain tolerance range. Regardless of the size of the components, the optical sensor system captures surfaces holistically and generates reliable measurement data for the validation of simulations.

Simple optimization of forming processes

The optimization of sheet metal forming processes with regard to the correct choice of materials and optimization of tools is a decisive factor for competitiveness. The forming analysis system ARGUS supports such optimization processes particularly by convincing and precise results of the surface strain on the components. The ARGUS results are areal and intuitively interpretable.

ZEISS INSPECT Correlate

Full-surface information on the deformation distribution

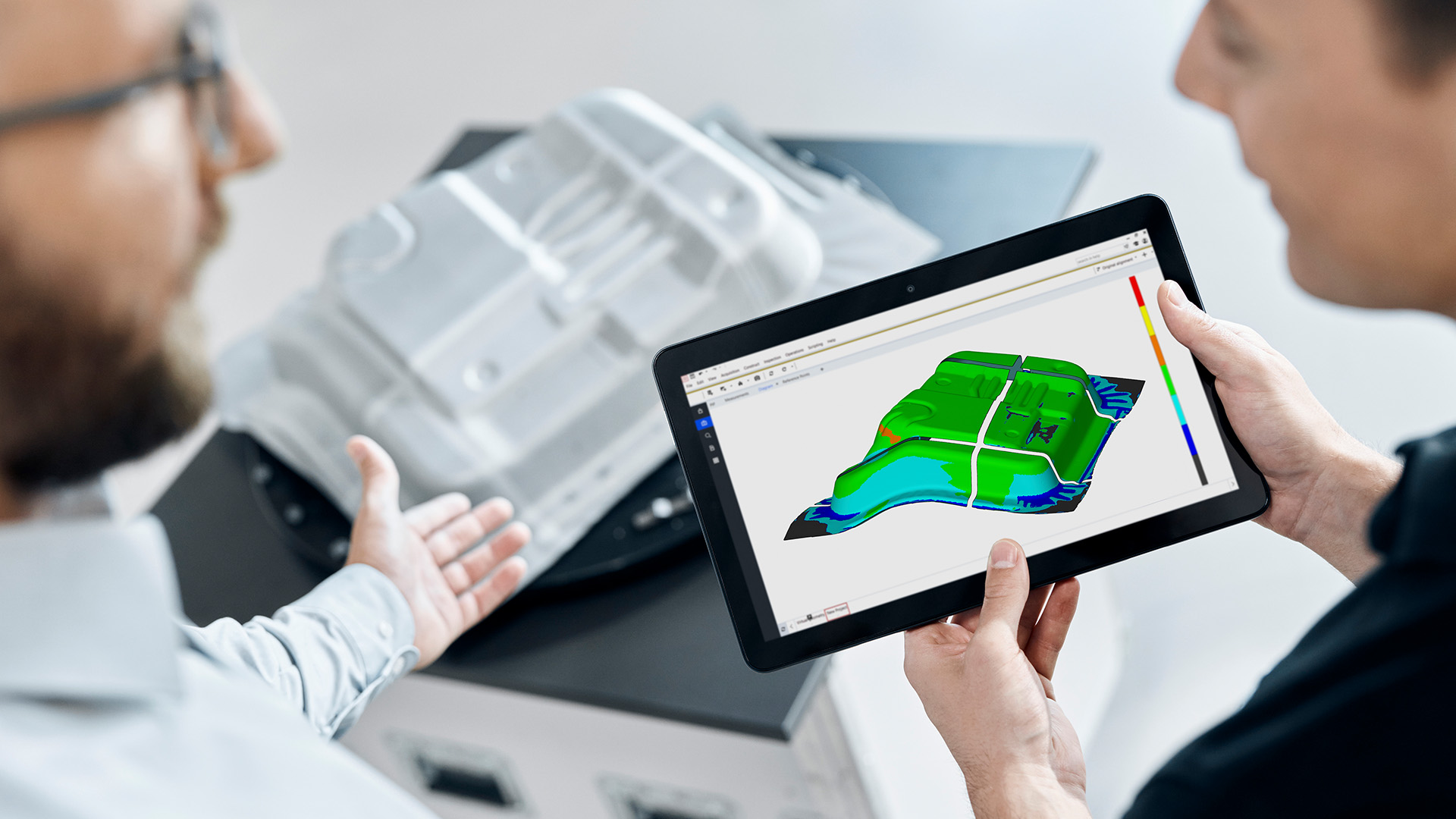

The measurement data generated with ARGUS can be displayed and analyzed in ZEISS INSPECT Correlate. Besides that, the software supports the free exchange of measuring results between colleagues, across departments and plants worldwide for further analysis.

Learn more

Quick and easy to measure

Unlike conventional methods of deformation analysis, ARGUS offers a simple and fast measurement process and accurate results on deformation. Even complex and large parts can be measured within a short period of time.

Before the component is prepared, the measuring fields must be defined according to the desired area to be evaluated. This can include the complete component or specific critical areas that are known from the production process or from numerical simulation.

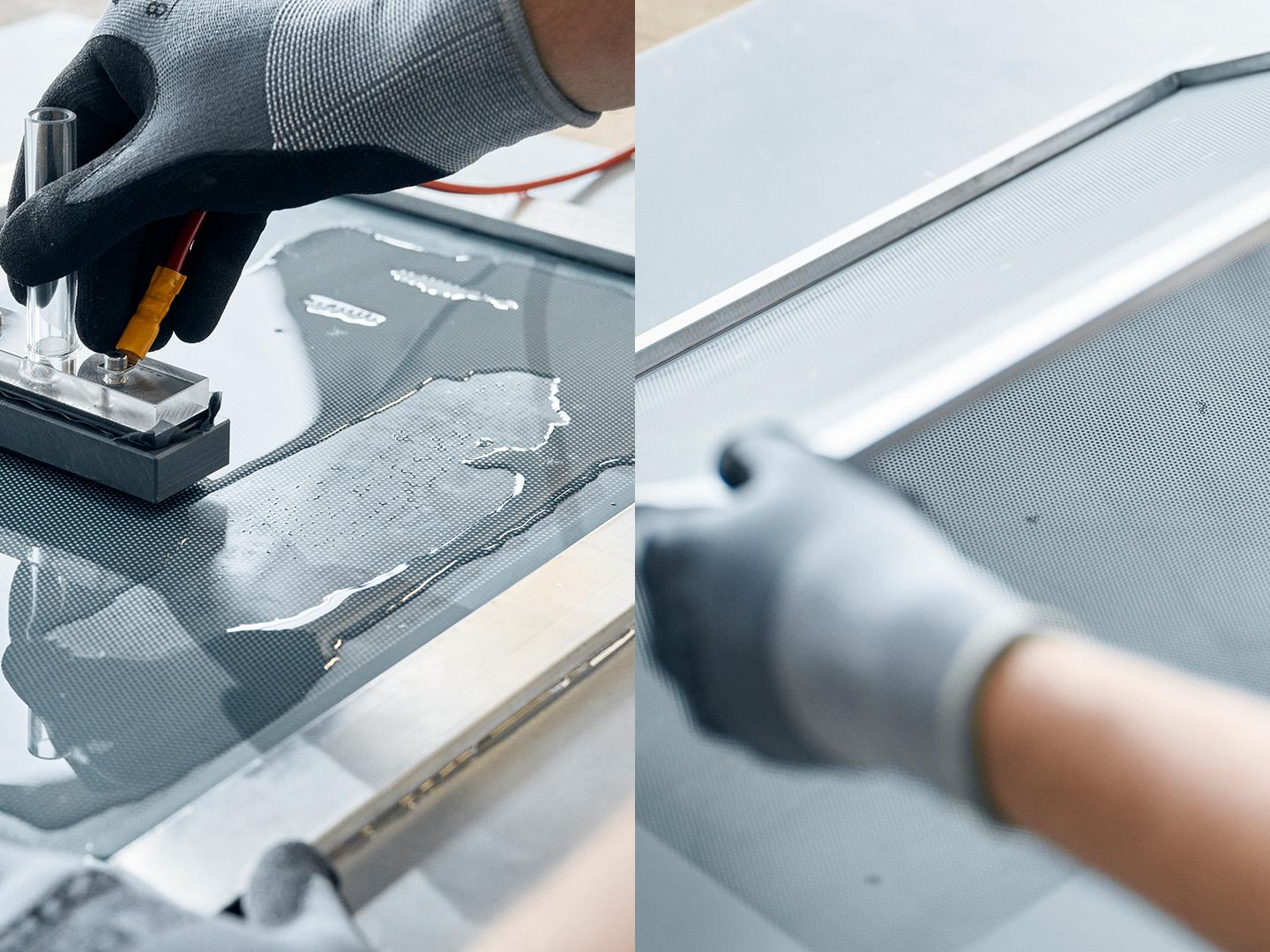

Before forming, sheet metal blanks are first labeled (verb) with a hexagonal dot pattern using electrochemical etching or lasers.

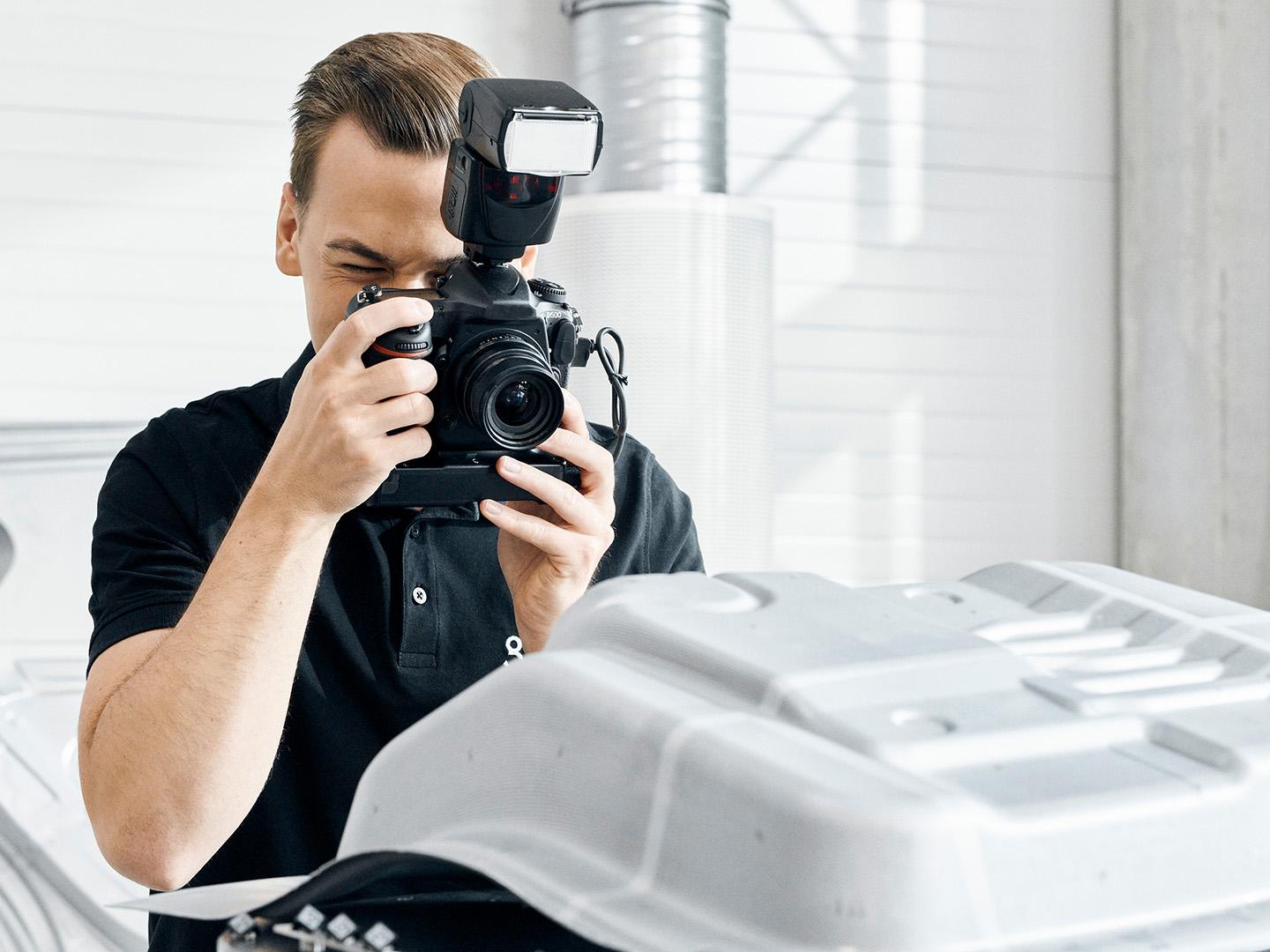

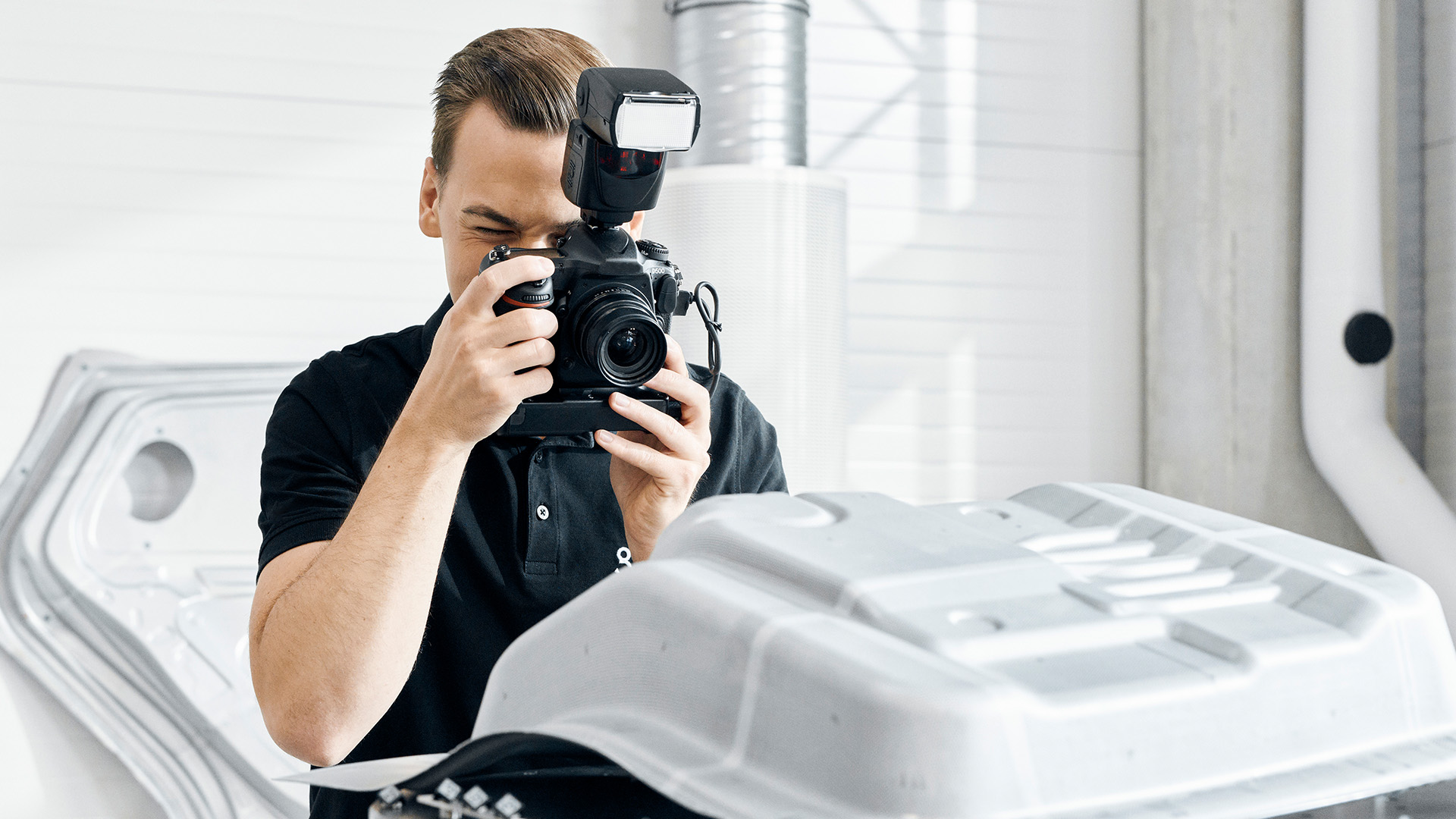

After forming, the sheet metal part is captured from different viewing angles by using the hand-held ARGUS system. Small and large parts can be measured very fast with the same hardware.

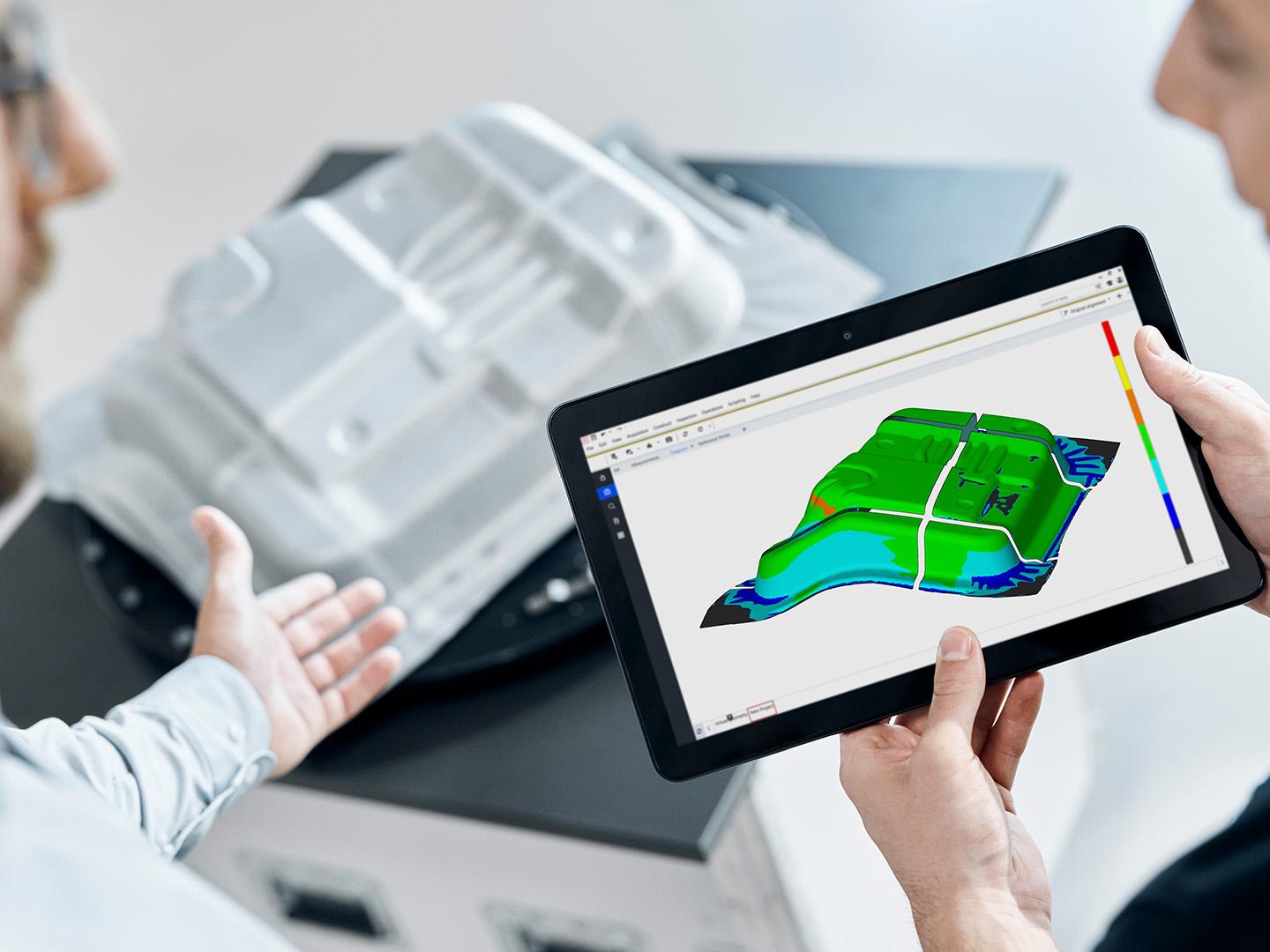

The measurement results provide full-surface information about the deformation distribution on the components, e.g. main and secondary deformation, thickness reduction, forming limit changes, formability, etc.

Applications

Tool try-out
Validation and optimization of forming simulations
Series production ramp-up
Material acceptance test (material batches)
Research and development to forming processes
Detection of critical deformation areas
Solving complex forming problems

ZEISS INSPECT Correlate

ZEISS INSPECT Correlate offers a fast and efficient evaluation of shape change analyses based on the measurement data generated with the ARGUS photogrammetry camera.

Formability
Simulation
Parametric project templates
Automated grid generation

Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

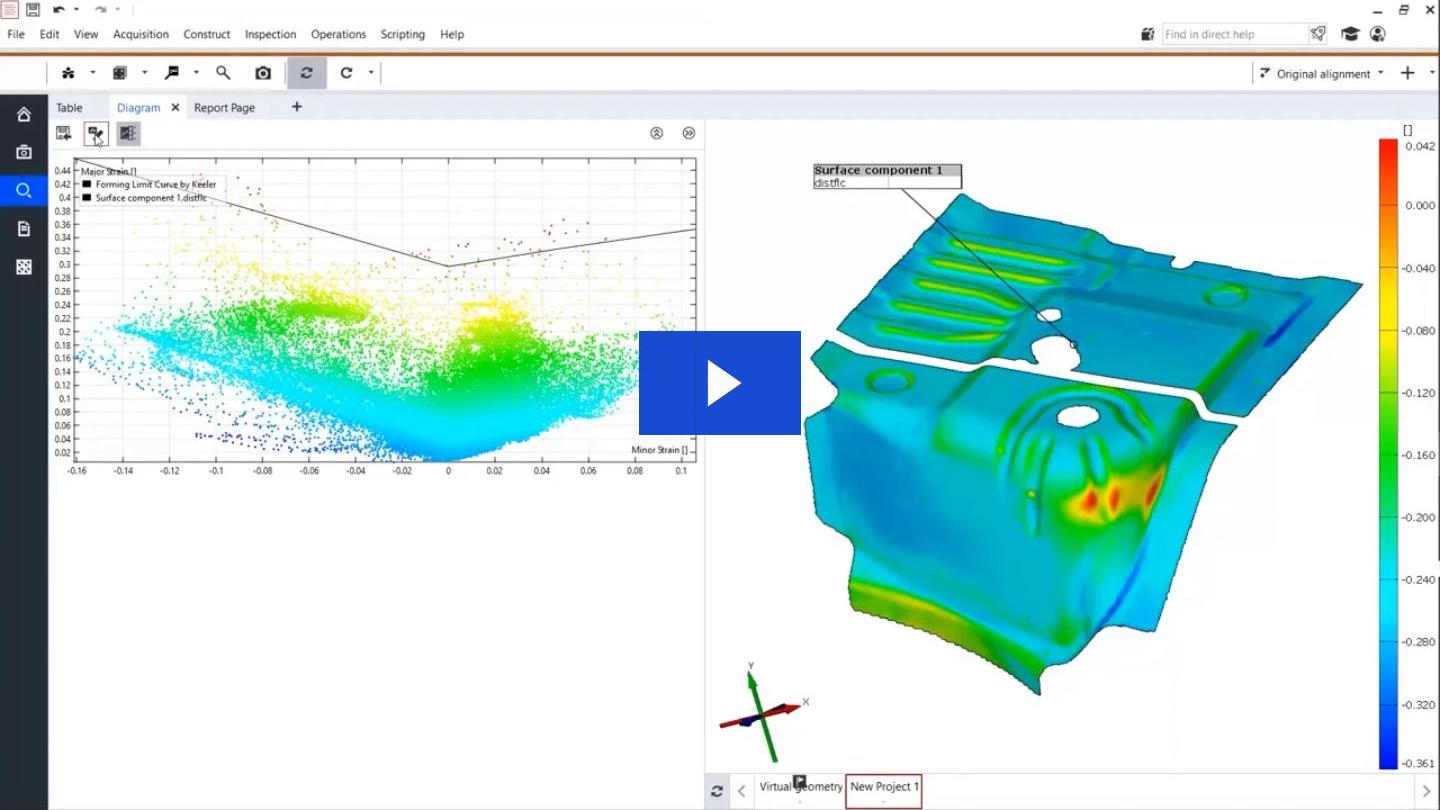

FLD / FLC
Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

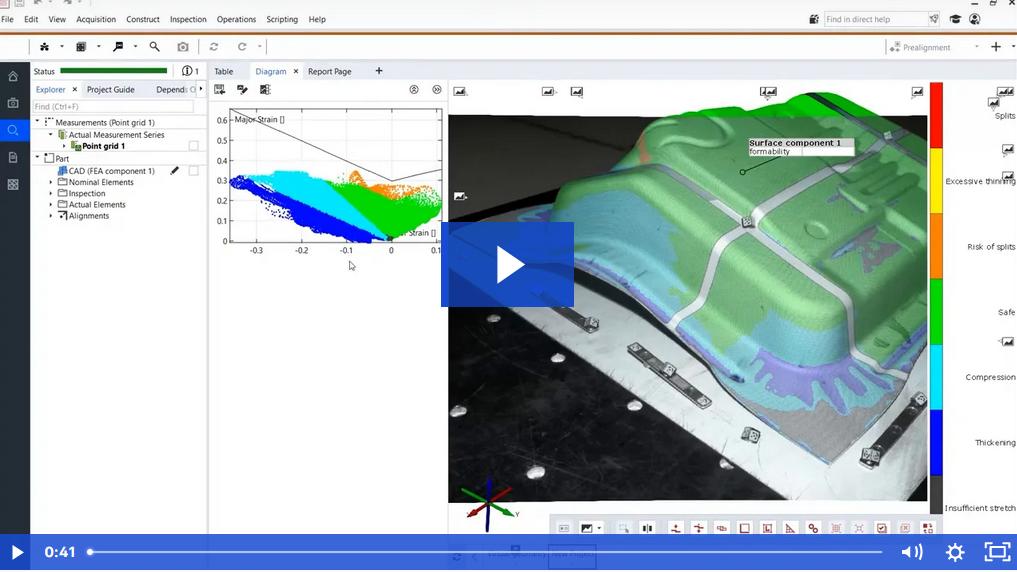

Formability
Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

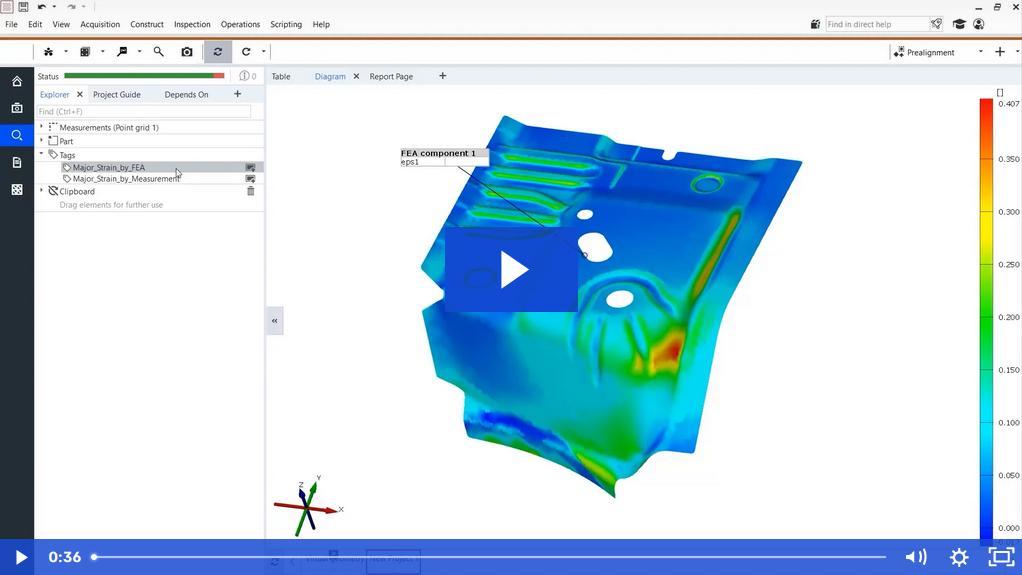

Simulation
Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

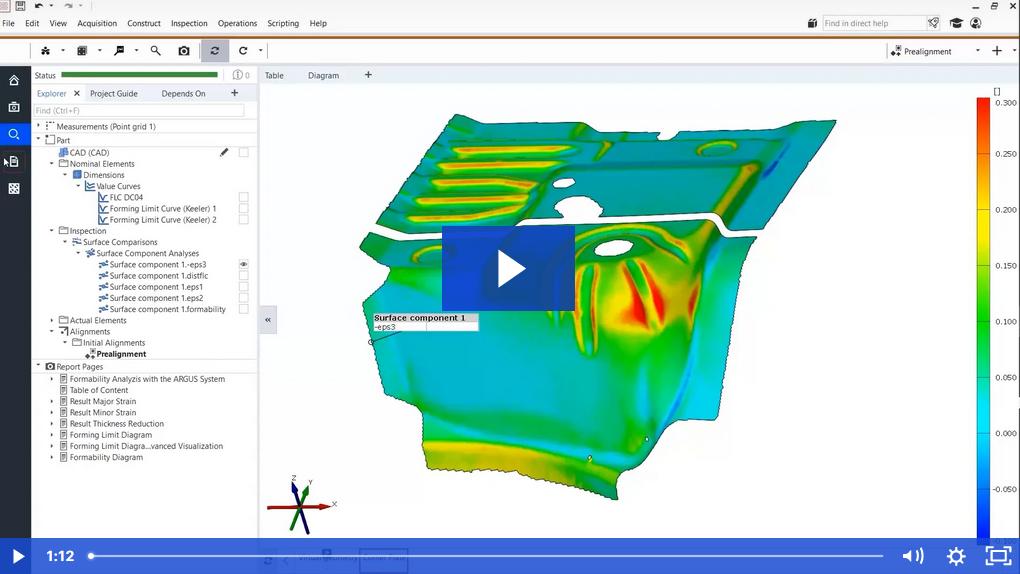

Parametric project templates
Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

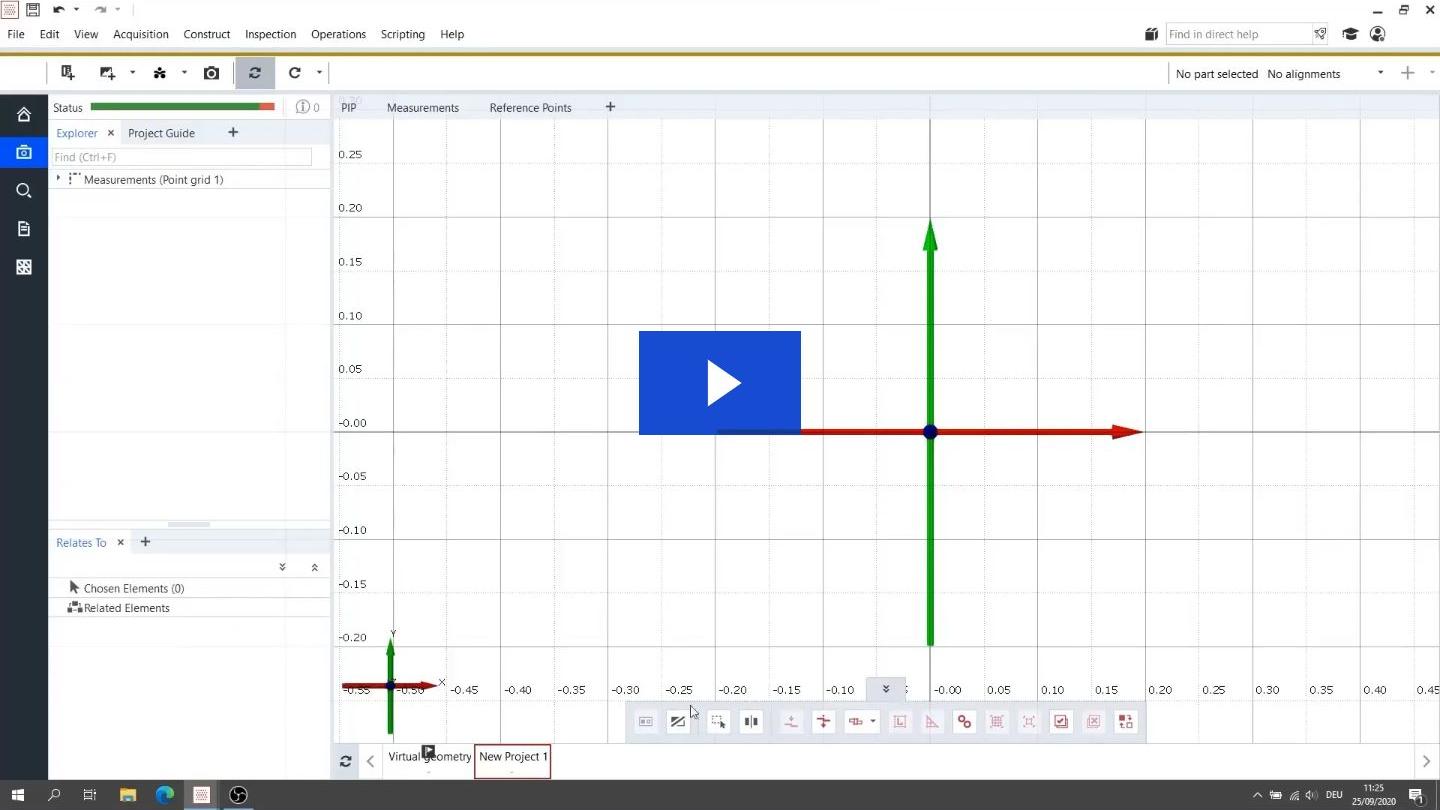

User-guided data acquisition
Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

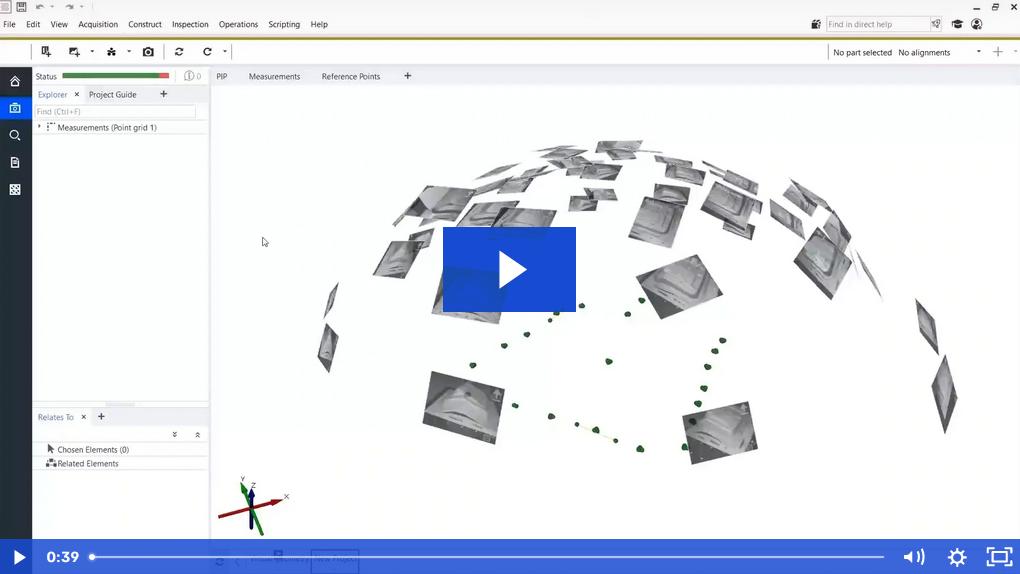

Automated grid generation
