ATOS ScanBox Series 6

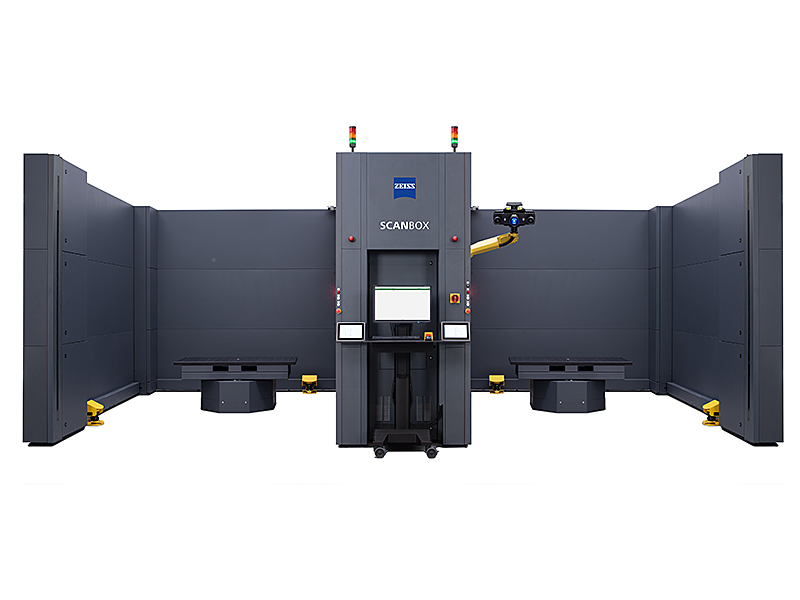

With the optical 3D measuring machine ATOS ScanBox 6235, you can increase your throughput - thanks to two working areas that can be operated independently of each other. You can place your parts, such as doors, tailgates or battery modules with a size of up to 3500 mm and a maximum weight of 5000 kg, in both working areas or on the rotation tables. Both working areas are operated safely due to the automatic doors.

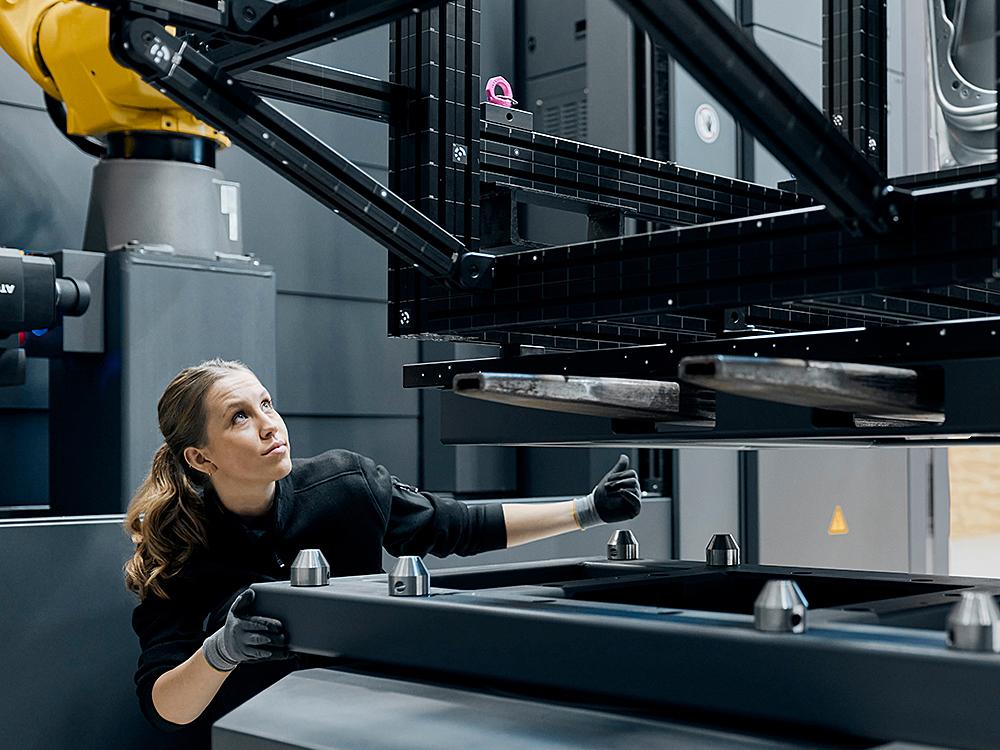

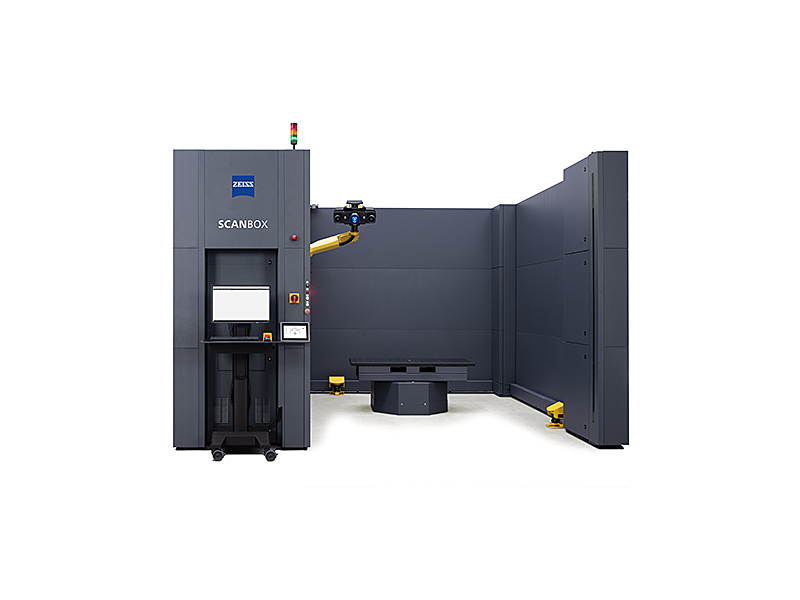

The entry areas are constructed very wide and allow an uncomplicated use of loading machines such as cranes, forklift trucks or pallet trucks. Hang-on parts can be measured more quickly with ATOS ScanBox 6135 and 6235 with a multi-part fixture, as it is not necessary to change the measuring fixture. The multi-part fixture can be easily positioned via the Human Machine Interface (HMI), allowing the hang-on parts to be changed from the front.

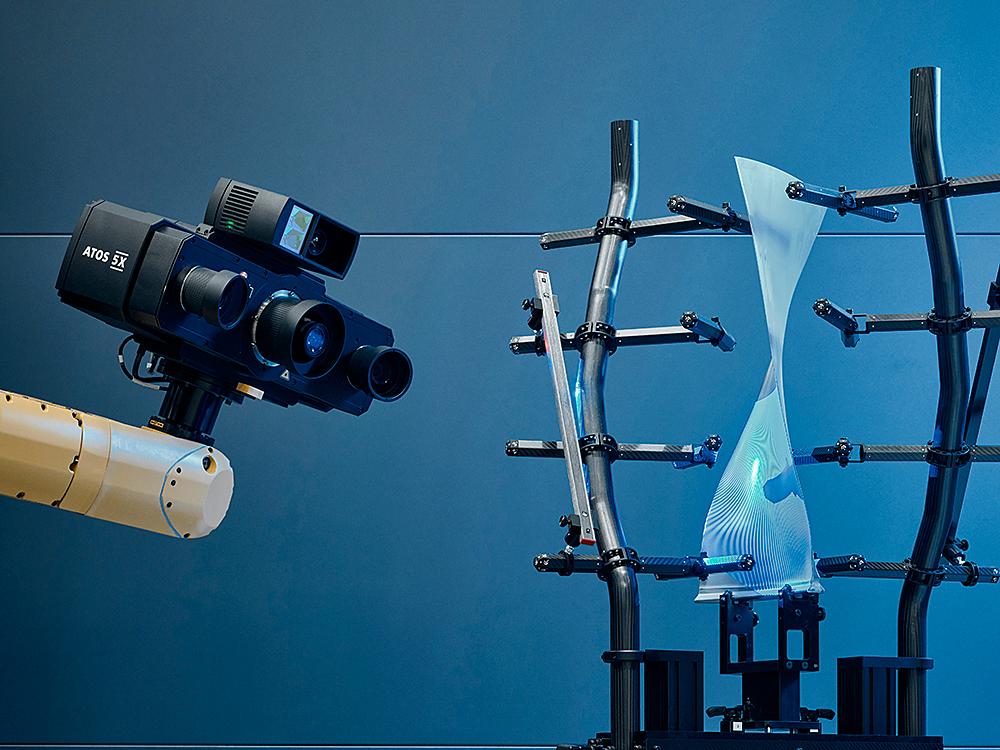

Due to its advanced camera technology, a powerful light source and high-performance software, ATOS 5 achieves a new level of performance, especially when measuring shiny and dark surfaces, fine structures and edges. The technology accelerates the total measuring time, while providing precise 3D measurement data at the same time. ATOS 5X uses the integrated Laser Light Compressor to generate ultra-bright light. This enables measuring fields of up to 1000 mm with very short exposure times.

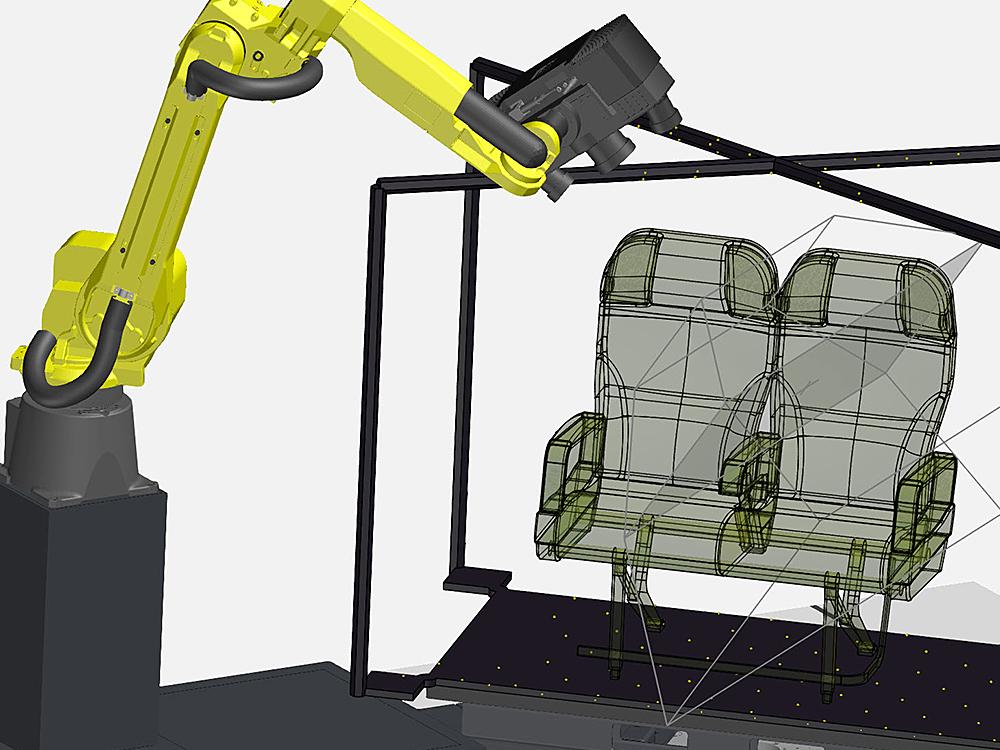

The virtual measuring room (VMR) is the central control and measurement planning software for all elements of the optical 3D measuring machine. It offers the functional representation of a real measurement environment in a virtual simulation. The VMR consists of a robot with a sensor, the programming, including the kinematics of the robot paths, the part and the measurement plan. Thanks to the VMR, the user can work with the system without requiring specific robot programming skills. All robot movements are simulated and checked for safety in the virtual measuring room before execution.
