3D measuring machine

ZEISS ScanBox Series 4 RC

Automated loading and measurement of parts

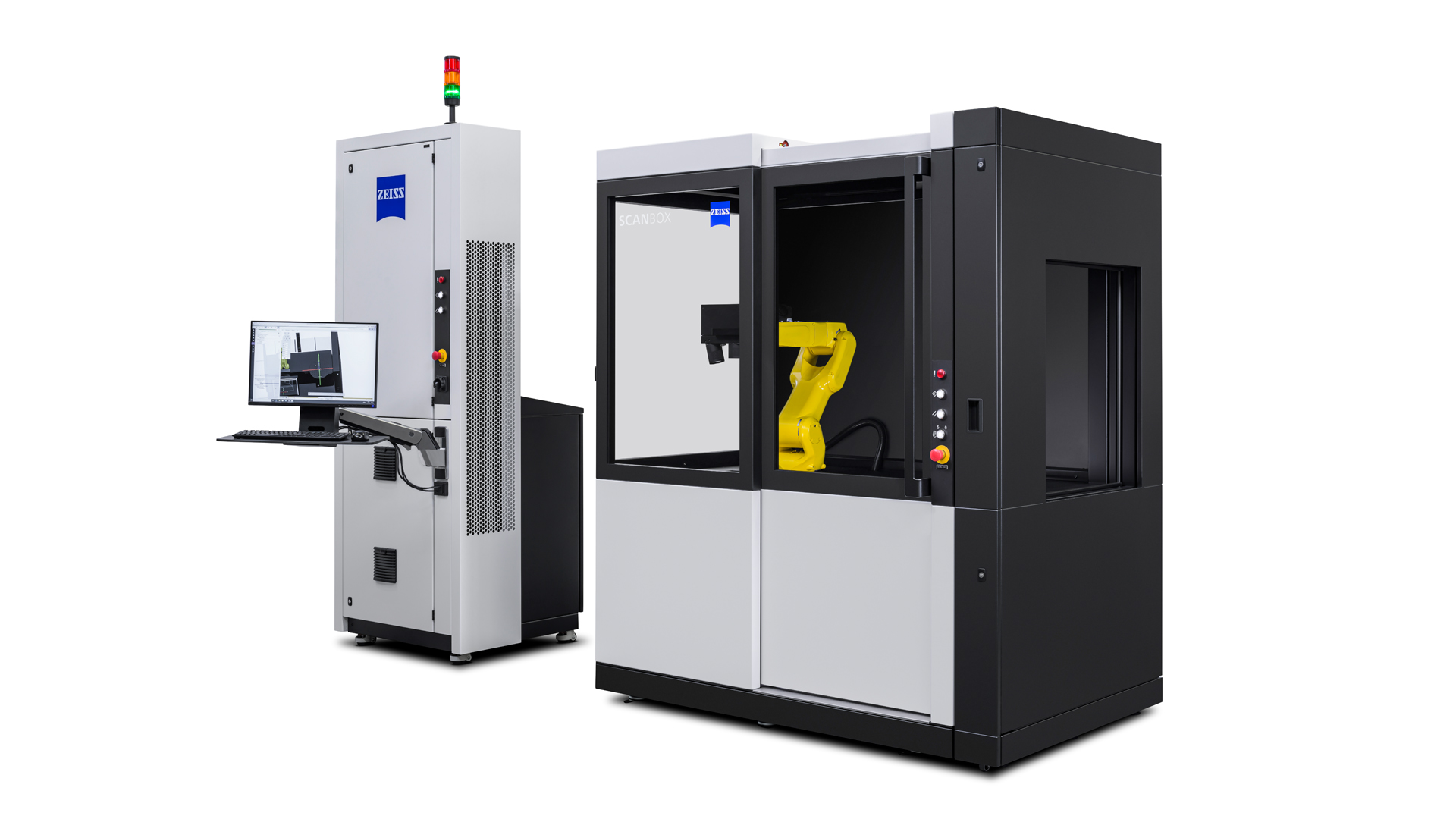

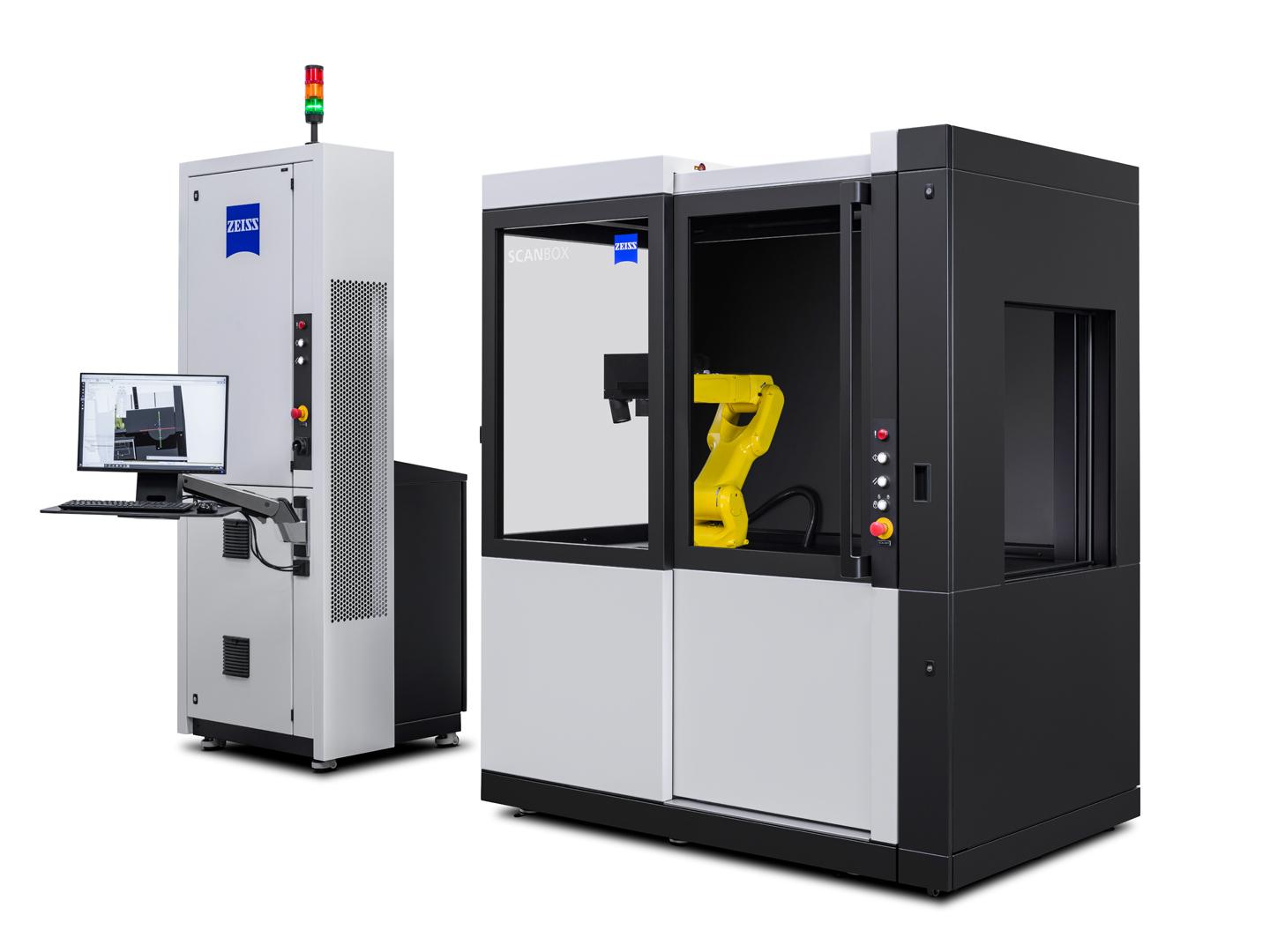

ZEISS ScanBox 4105 RC (Remote Control) is an optical 3D measuring machine with a motorized sliding door. Parts up to 500 mm in size can be loaded into the ZEISS ScanBox 4105 RC with a robot or an individually configured feeding system and placed on the rotation table module. The elimination of manual individual placement significantly reduces the time required and thus ensures a higher throughput in quality assurance.

  • Automated loading of parts for short cycle times
  • High throughput in series operation
  • Easy operation and precise measurement results

Autonomous part inspection

The autonomous operation of the ZEISS ScanBox Series 4 RC increases machine utilization, speeds up measurement cycle times and allows you to deploy your personnel more efficiently. The system was specially developed for applications that require a high degree of throughput and integration.

High throughput for serial monitoring

Repeatable and precise measurement sequences

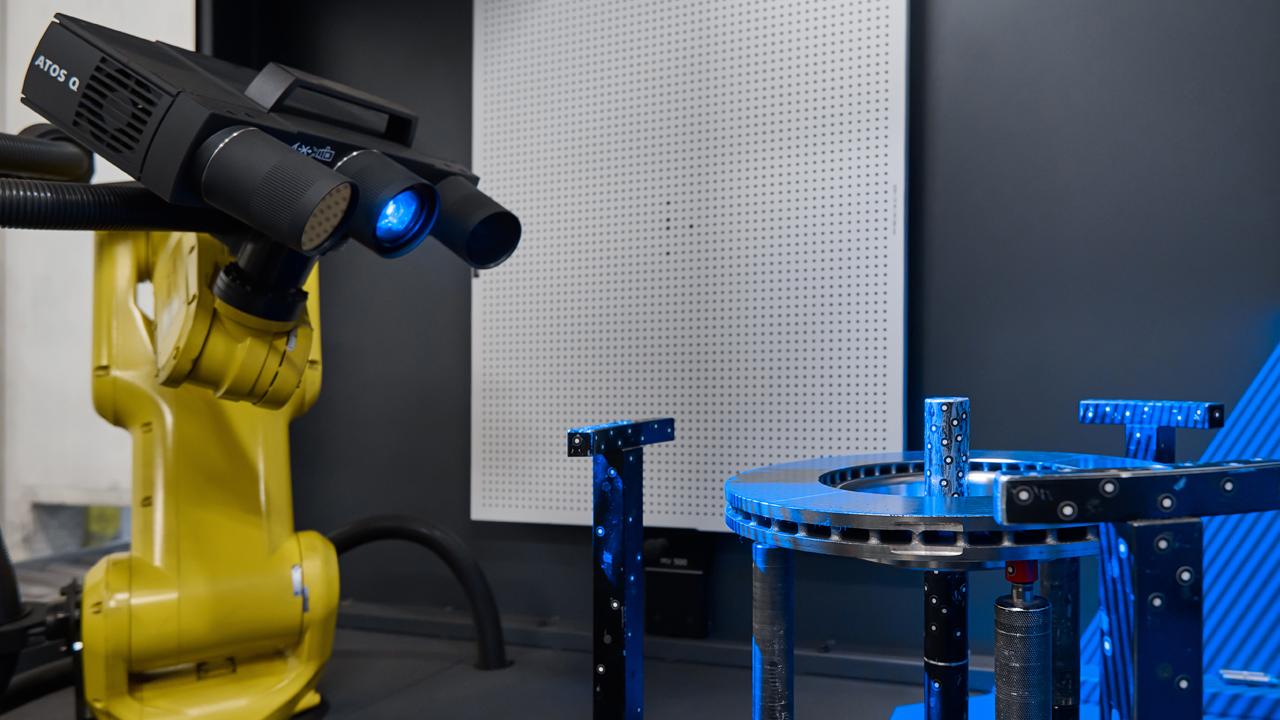

For efficient quality assurance of series products, production processes must be monitored, scrap reduced and cost-intensive reworking minimized. The optical 3D measuring machine ZEISS ScanBox Series 4 RC with the ATOS Q sensor supports you in this: The full-field actual data of the series parts can be compared directly with the CAD model or with specifications from the measurement plan. Create inspection reports directly at the production facilities and export the data directly to statistical process-control systems.

Automated process control

Quick set-up and low personnel costs

Program the optical 3D measuring machine via the ergonomic user interface integrated into the control tower. With the ZEISS ScanBox 4105 RC, automated part inspection is carried out via a start signal from a higher-level controller. ZEISS offers communication interfaces based on fieldbuses (CC-Link, ProfiBus, ProfiNet, EtherCat, EtherNet/IP, OPC UA).

Maximum machine utilization and optimized processes

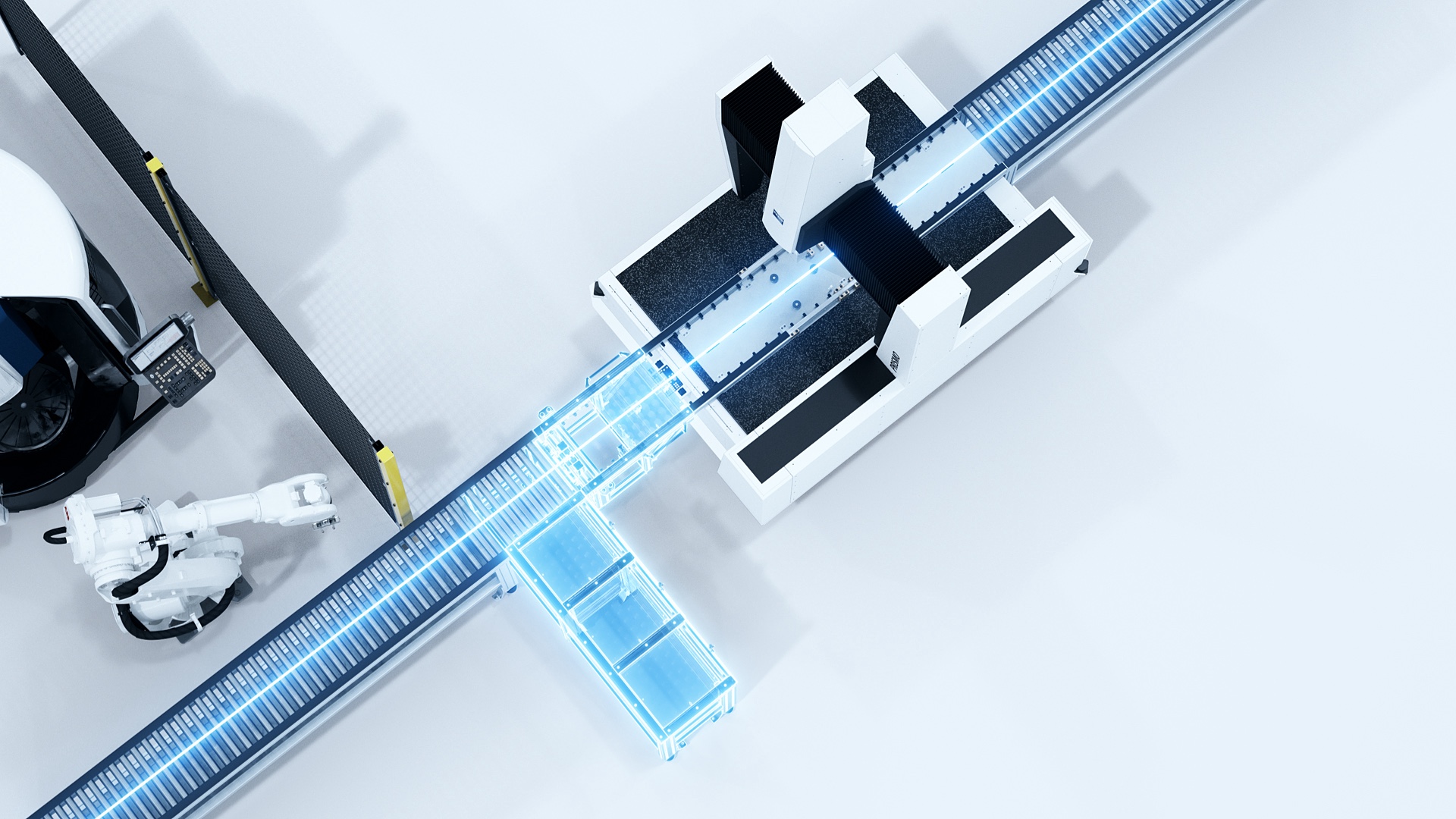

Individually configurable loading systems

Exploit the full potential of the ZEISS ScanBox Series 4 RC with a feeding and loading system from ZEISS. With the ZEISS Integration Series, you can automate the loading of parts and avoid downtimes. The flow of parts and the operating time are optimized.

Fully automated quality assurance of stators and hairpins

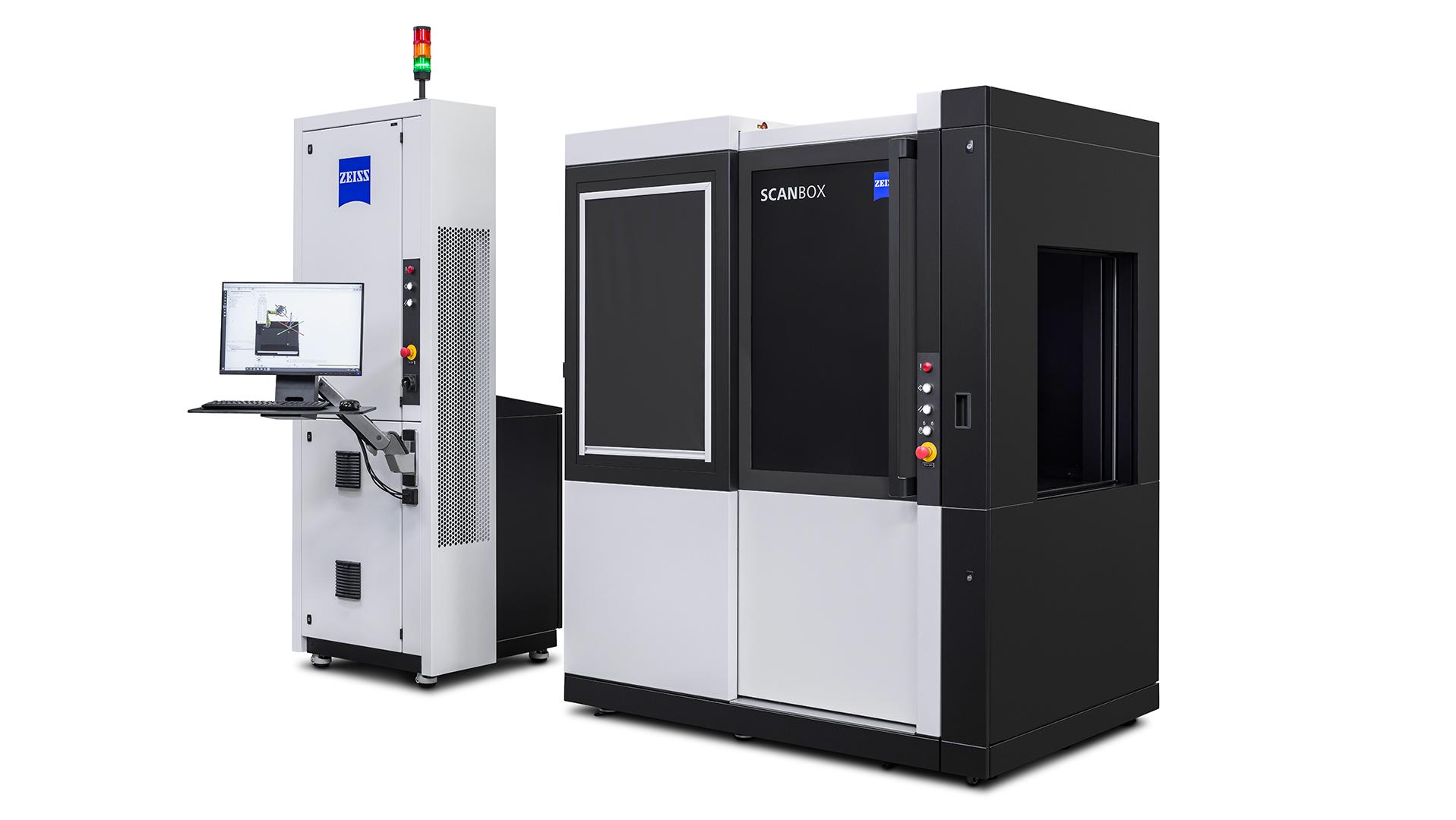

  • ZEISS ScanBox 4105 RC for eMotors

    Digitization and inspection without manual intervention

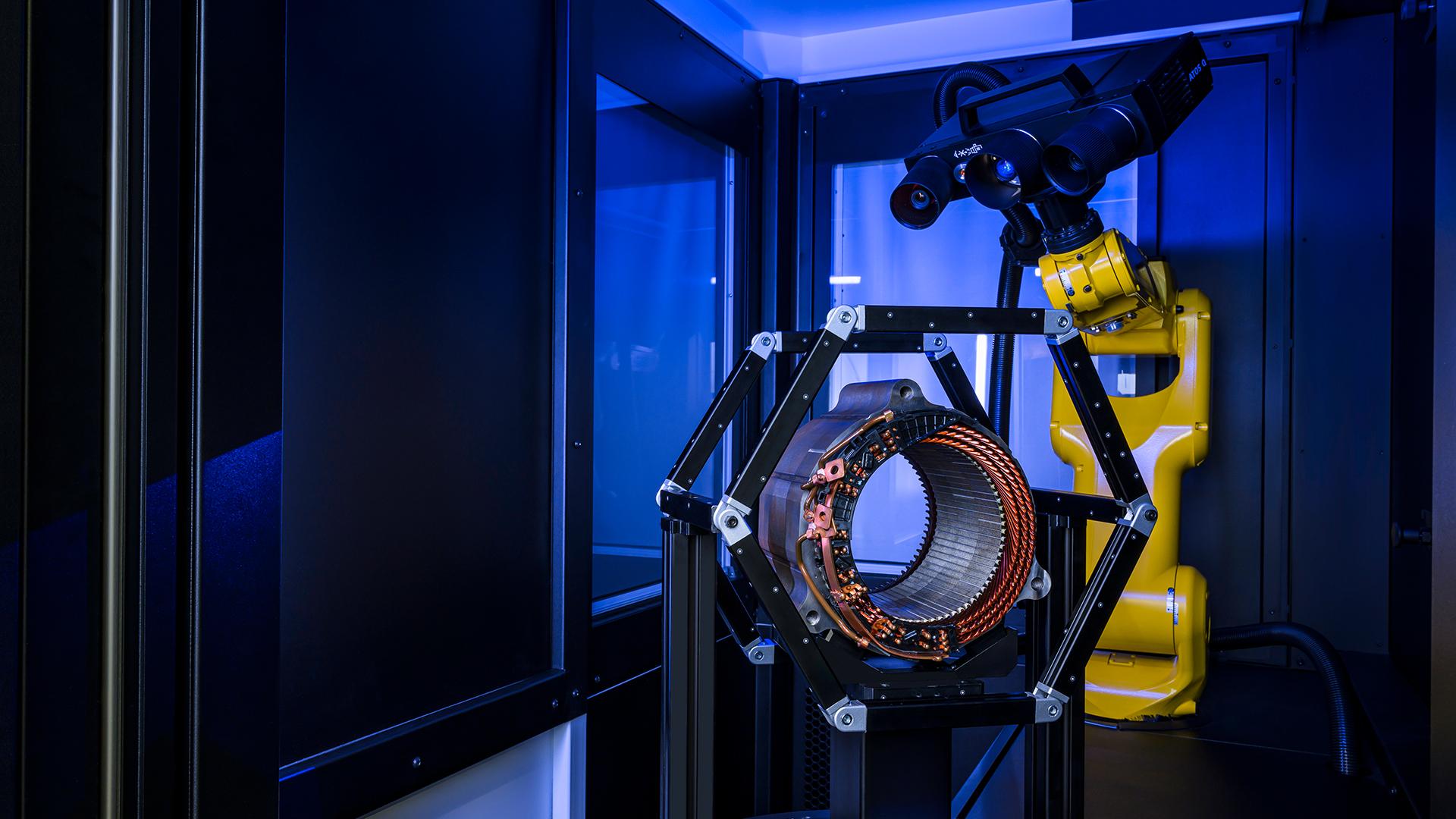

    The optical 3D measuring machine ZEISS ScanBox 4105 RC for eMotors specializes in the digitization and inspection of hairpins and stators. Thanks to automated loading, you can significantly increase your throughput.

  • ATOS Q for eMotors

    Non-contact fringe projection for fragile structures

    The integrated ATOS Q for eMotors sensor provides quality information in a short time and with a high level of detail for subsequent analysis. The Blue Light Equalizer enables high-speed fringe projection and is so powerful that short measurement times can be achieved even on uncooperative or isolated surfaces.

ZEISS INSPECT

The industry standard for 3D inspection and evaluation

  • Virtual measuring room

    Real environment in a virtual simulation

    The virtual measuring room (VMR) is the central control and measurement planning software for all elements of the optical 3D measuring machine. It offers the functional representation of a real measurement environment in a virtual simulation. The VRM consists of a robot with a sensor, the programming, including the kinematics of the robot paths, the component and the measurement plan. Thanks to the VMR, the user can work with the system without requiring specific robot programming skills. All robot movements are simulated in the virtual measuring room before execution and checked for safety.

  • Effective tool for analysis

    ZEISS INSPECT offers everything from a single source

    Scanning, inspection and reporting: Evaluate nominal-actual comparisons as well as geometric dimensioning and tolerancing. Implement necessary corrections directly thanks to easy-to-understand results. With ZEISS INSPECT, you can carry out complete analyses, receive comprehensive reporting and integrate measurement results into existing processes.

Technical data

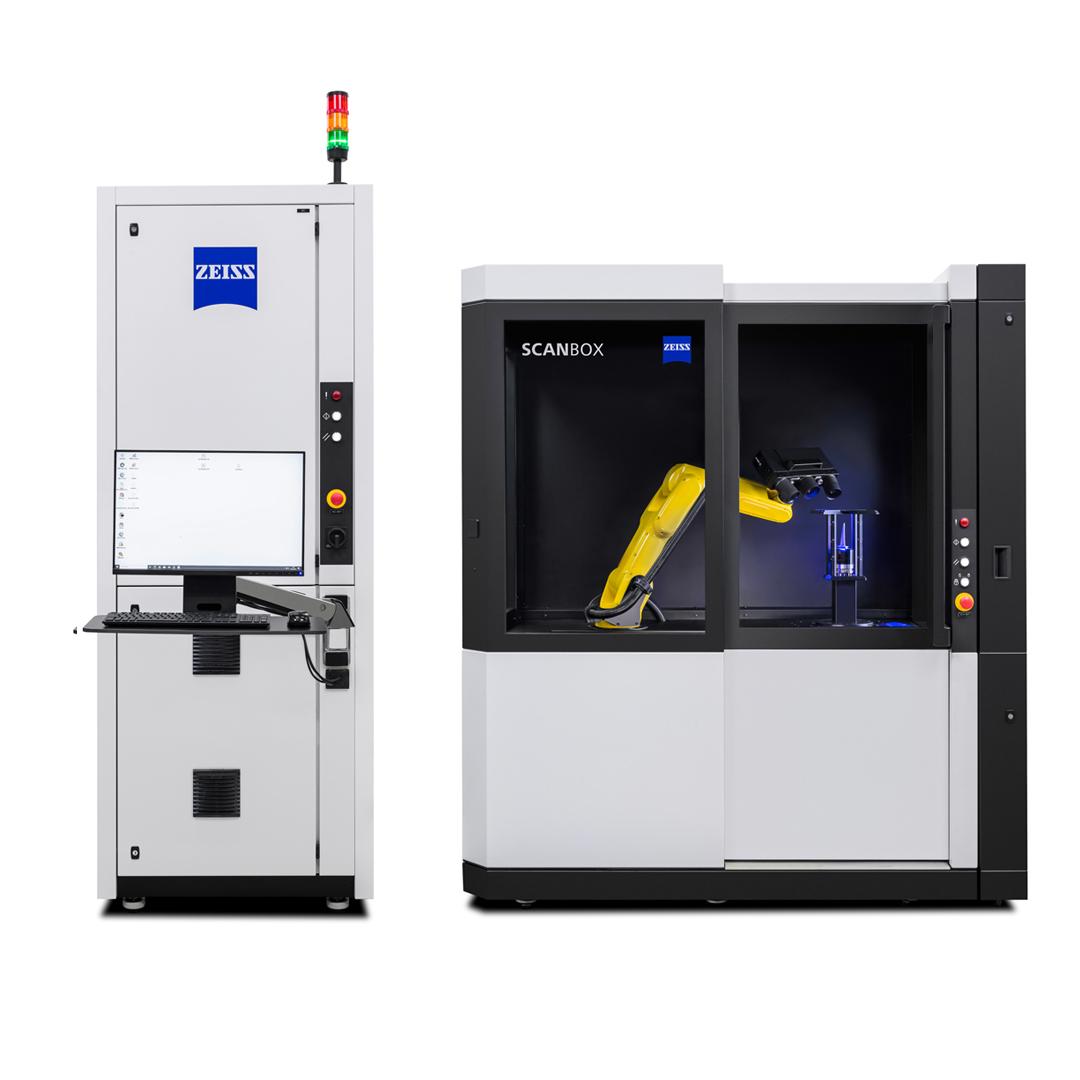

ZEISS ScanBox 4105 RC

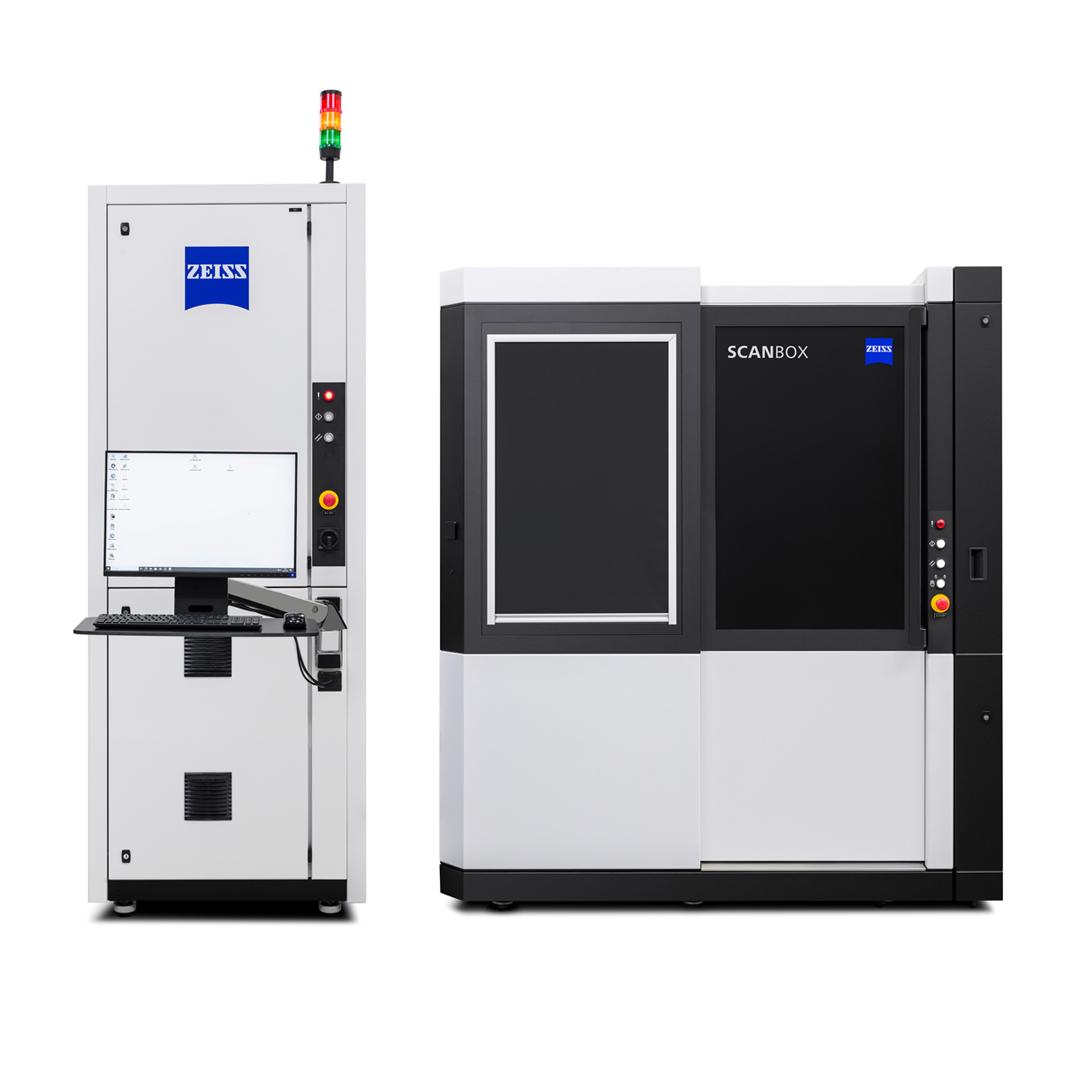

ZEISS ScanBox 4105 RC for eMotors

Dimensions

1860 x 1200 x 2120 mm
Control Tower: 870 x 800 x 2650 mm

1860 x 1200 x 2120 mm
Control Tower: 870 x 800 x 2650 mm

Power supply

200–500 V (3-phase, 16 A)

200–500 V (3-phase, 16 A)

Max. part size

Ø 500 mm

Ø 500 mm

Max. part weight

100 kg

100 kg

Opening width

680 mm

680 mm

Sensor compatibility

ATOS Q

ATOS Q for eMotors
