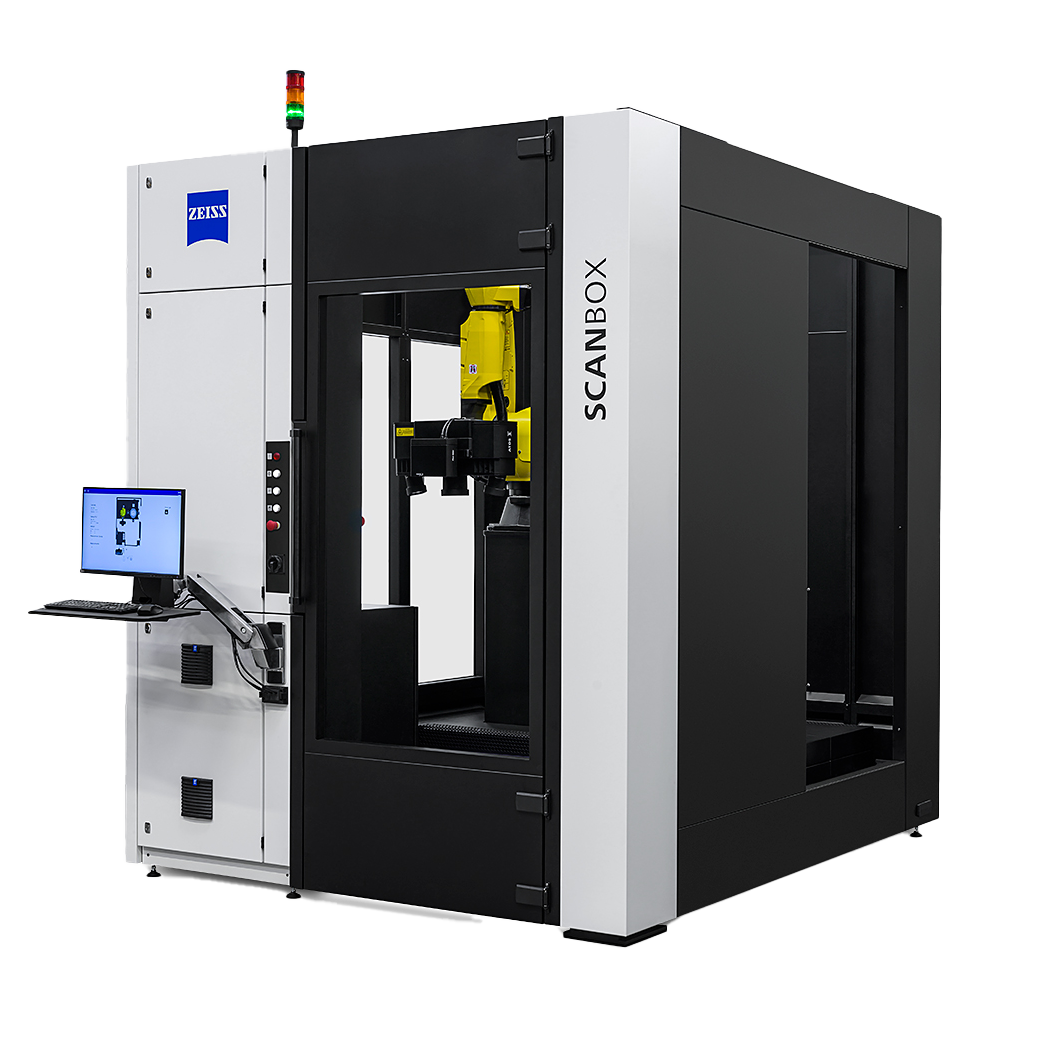

ZEISS ScanBox Series 5 RC

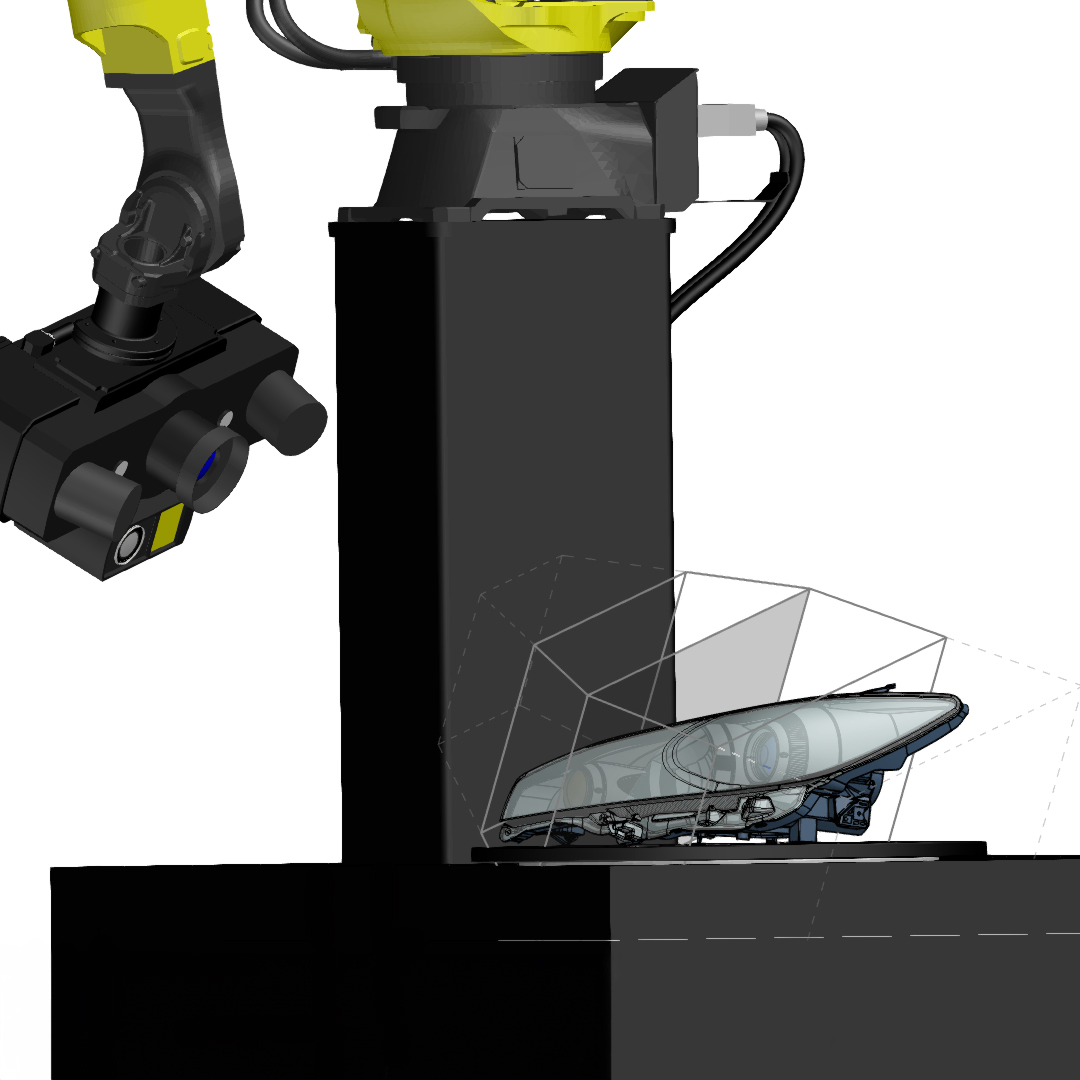

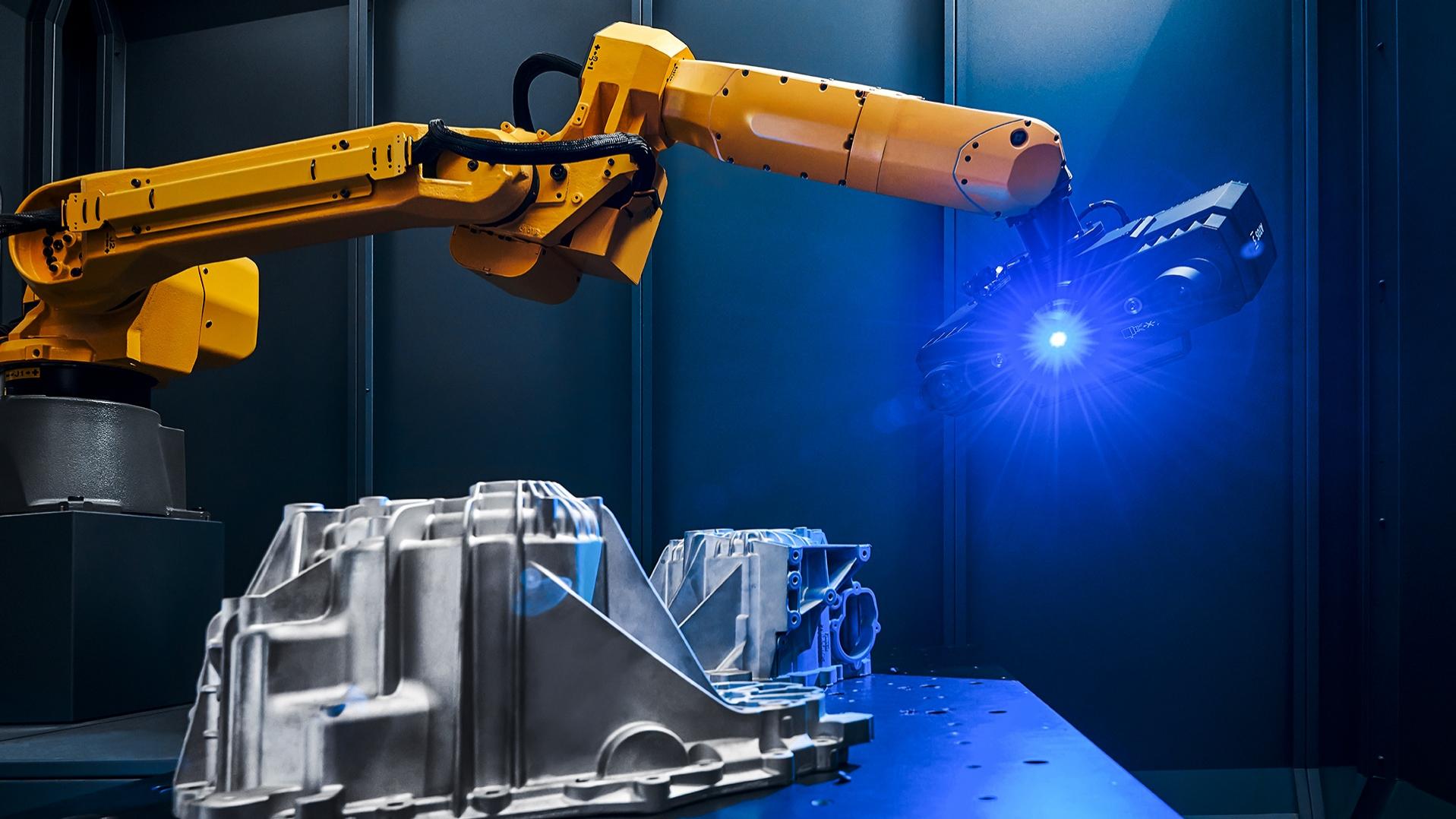

Quality assurance during series production is all about monitoring production processes, reducing scrap and minimizing the need for rework. For this application, the ZEISS ScanBox Series 5 RC optical measuring machine is the ideal solution. Directly compare the actual coordinates of serial parts that were created entirely in 3D with an ATOS 5 sensor with the CAD model or with specifications from a measurement plan. Create inspection reports directly at your production facilities and export them to statistical process-control systems.

If you want to use the full potential of ZEISS ScanBox Series 5 RC, combine the optical measuring machine with a feeding and loading system by ZEISS. ZEISS Integration Series enables you to automate the loading of parts and thus prevent downtimes. Both the part flow and the operation time are optimized.

Integrating a magazine loading system increases cycle times and reduces the staff requirement – the system measures autonomously for up to 11 hours. The magazine loading system is manually stacked with part batches such as turbine blades. Each fixture is labeled with a unique RFID chip for identification. Based on its information, the suitable measuring program is automatically selected. After the inspection, the part is automatically returned.
