zeiss integration series

Automating solutions

Simple interfaces for automated loading of CMMs

The software solutions in the ZEISS Integration Series enable the simple automation of CMMs and accessories through to the control of fully automated cells or, for example, the start of complex individual measurements. Thanks to the intuitive interfaces, the applications can even be operated by untrained personnel.

Simple automation
Intuitive user interfaces
Without engineering effort

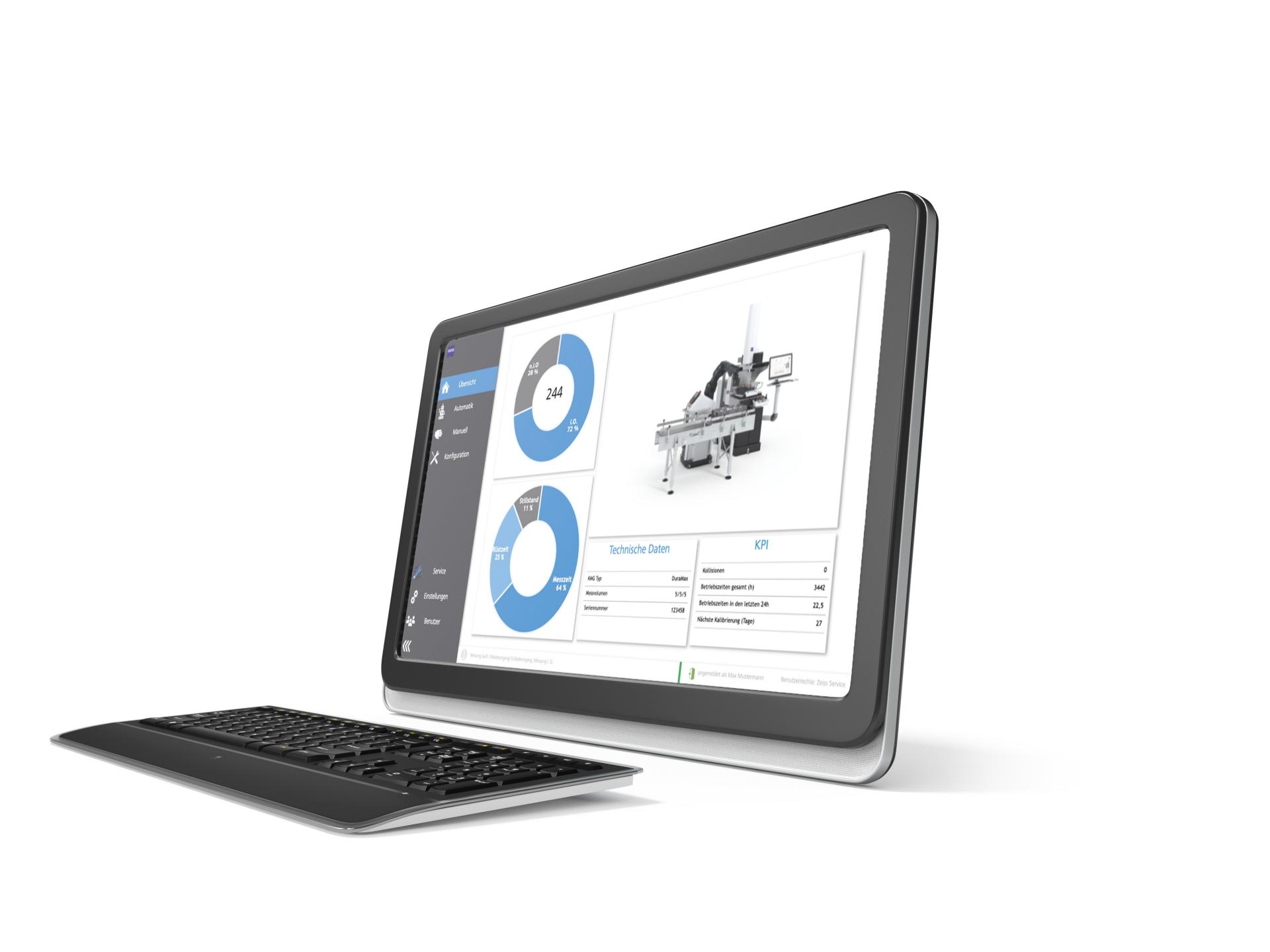

Automation Interface

Simple automation of CMM and accessories

The Automation Interface from ZEISS makes it easy to automate your coordinate measuring machine without any engineering effort. In addition to starting measurement plans and providing feedback on measurement results or machine status, the application enables the CMM peripherals to be controlled. For example, the control of automatic fixtures or the pallet infeed can be easily configured in just a few clicks. Customized fixtures that you developed can also be controlled via configuration.

Standardized communication interfaces: OPC UA, Profinet, EthernetIP
User management with role assignment
Can be used in both automatic and manual mode – even by untrained personnel
Simple configuration via the user interface, without complex PLC programming

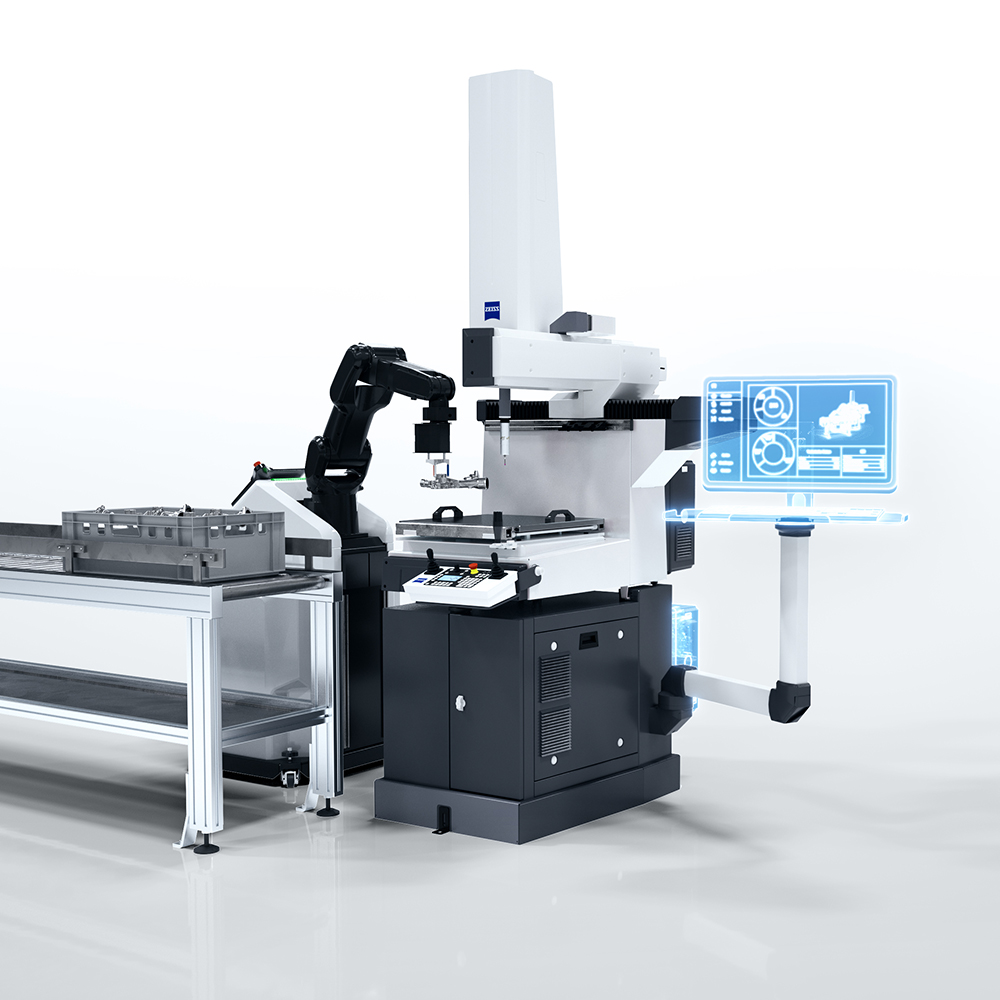

FACS

The customized software solution for complex tasks

If your requirements go beyond the standardized automation interface, the Flexible Automation & Connectivity System (FACS) provides another software solution. FACS makes it possible to automate recurring quality assurance procedures in complex processes. Programmed and customized for your needs.

Automated start of individual measurements through to complex pallet measurements
Coordinator with I4.0 connectivity for individual automation processes
Networking of several CMMs in automated applications
Automatic component identification with 1D/2D scanner or RFID system
Intuitive user interface for untrained personnel
User management with automatic user recognition
Tested in medical technology according to FDA
