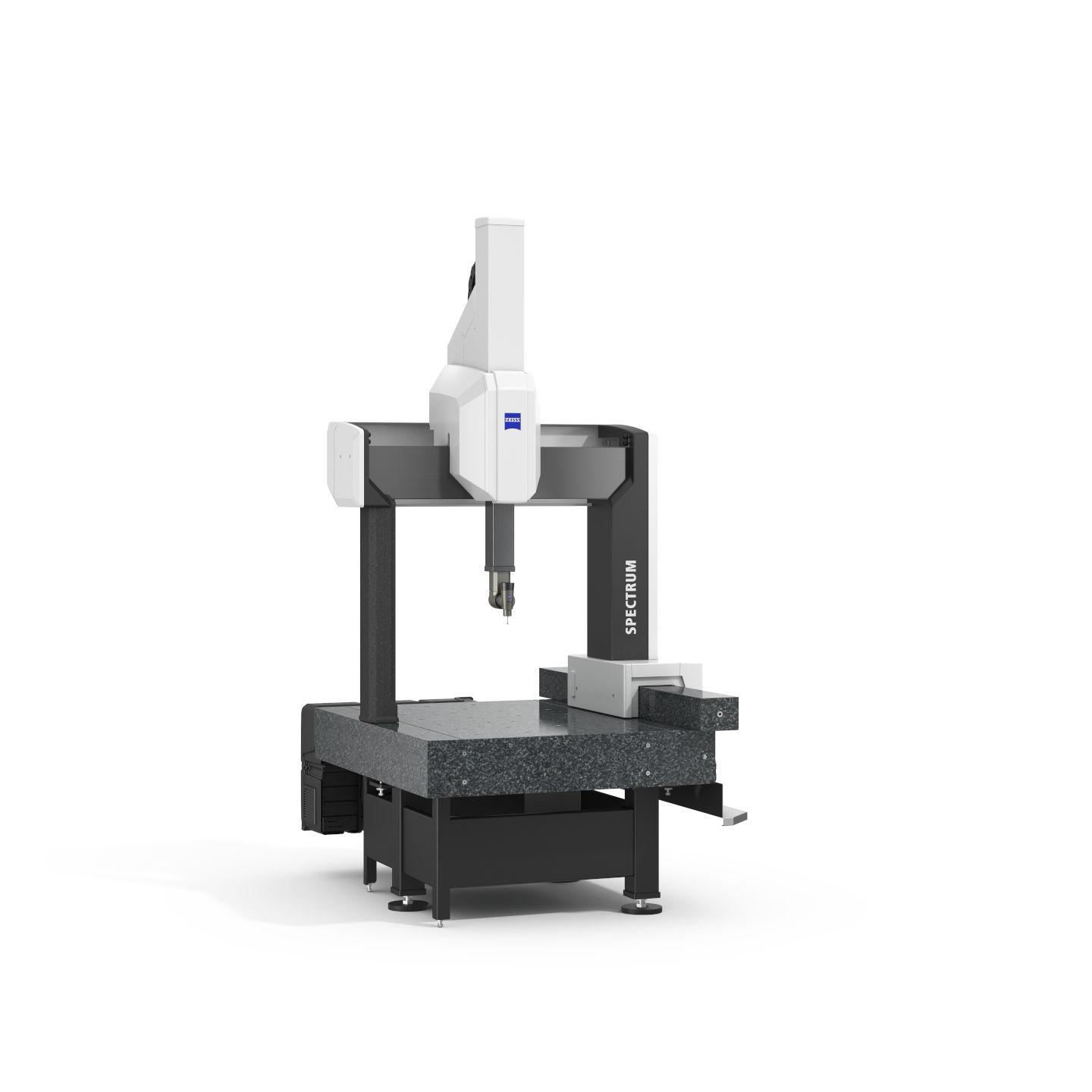

ZEISS SPECTRUM bridge CMMs

ZEISS SPECTRUM verity

Affordability with great accuracy for reliable results

This bridge-type coordinate measuring machine provides great accuracy values and sensor flexibility. Benefit from advanced technology and efficient processes. In addition to reliable tactile measurements, ZEISS SPECTRUM verity offers optical scanning through its compatibility with our new laser scanner LineScan One. Optical scanning is a highlight in this class, offering an excellent price-performance ratio.

Get a Demo

Greater accuracy for complex parts
2.5 degrees to offer 20,736 possible positions
SoftTouch Mode for increased efficiency

Tactile measuring with ZEISS Scanning Technology

ZEISS SPECTRUM verity is equipped with advanced features for tactile scanning to achieve greater accuracy. Single-point measurements estimate conditions between measuring points via interpolation, which potentially overlooks significant deviations. ZEISS Scanning technology, on the other hand, enables the capture of thousands of data points within just a few seconds for truly reliable tactile quality assurance.

The technology offers greater operational safety, accuracy, and throughput than single-point measurements. As entire parts are measured in one fluid and continuous movement, scanning enables faster speeds, the removal of environmental influences, and the capture of far more data. This allows for high throughput and accurate results, which are vital for manufacturing.

Learn more

For Scalable Measuring Requirements

The ZEISS Spectrum Verity is a smart, scalable investment for growing shops. Its modular design allows for easy upgrades, letting you expand capabilities as your measurement needs evolve. With ZEISS' precision and reliability, this system adapts to both simple and complex tasks, ensuring long-term value without the need for a full system replacement.

Cost effectiveness

The RDS probe head with integrated CAA (Computer-Aided Accuracy) reduces operating time while the compact sensor design significantly increases the available measuring volume on the machine.
Tailored to your needs

ZEISS SPECTRUM verity comes in different packages for either single point measurement, scanning mode or with RDS for complex structures as well as optical measurement solutions. This enables easy decision-making based on the application.
Robustness and reliability

ZEISS SPECTRUM is the most stable and reliable high-end CMM in its class. The glass ceramic scales provide temperature resistance over a wide range of temperatures without the need for temperature sensors. A stiffer base frame and tripod construction offer perfect force transition and earthquake protection.
Improved productivity

ZEISS SPECTRUM verity boasts high scanning speed with VAST XT gold without compromising accuracy. SoftTouch Mode furthermore provides great accuracy, repeatability and measuring speed for deflecting parts.
Reduced preparation effort

The extremely quick and easy installation of ZEISS SPECTRUM verity reduces costs and facilitates a fast system start-up.

Technical details

	ZEISS SPECTRUM verity
Type	Bridge CMM in measuring room
Sizes	7/7/6;7/10/6 9/12/6; 9/18/6
Compatible sensors	RDS-CR1-CAA / VAST XXT TL3 / TL1 RDS-CR1-CAA / VAST XXT TL3 Compact design VAST XXT direct
Accuracy	Up to: 1.7+L/300
Software	ZEISS CALYPSO
Angle positions	Step angle 2.5 degree 20,736 possible positions
Optical sensors	ZEISS LineScan One
Options	ZEISS SoftTouch Mode

Applications

Industry

With ZEISS SPECTRUM, you can measure industrial parts such as CNC parts, housings for accessories and mechanical components.
Electronics

ZEISS SPECTRUM is ideal for scanning small electronics including connectors, housings, middle frames or thin foils.
Automotive

In the automotive industry, ZEISS SPECTRUM is suitable for small housings, stamped parts, CNC-machined parts, and plastic parts.
Job workshops

ZEISS SPECTRUM is a great match for measuring manufacturing parts, sheet metal parts, stamping parts, and plastic parts.

Sensors and sizes

ZEISS SPECTRUM verity opens the world of active scanning for more reliability, stability, performance and flexibility of your CMM.

ZEISS SPECTRUM verity with ZEISS VAST XXT direct

ZEISS SPECTRUM verity with ZEISS VAST XXT compact design

For increased measuring volume

Sizes:
7/7/6 
7/10/6 
9/12/6 
9/18/6

ZEISS SPECTRUM verity with ZEISS RDS C CAA incl. ZEISS VAST XXT

ZEISS SPECTRUM verity with ZEISS RDS-CR1-CAA incl. ZEISS VAST XXT

For complex parts with multiple angular positions

Sizes:
7/7/6
7/10/6
9/12/6
9/18/6

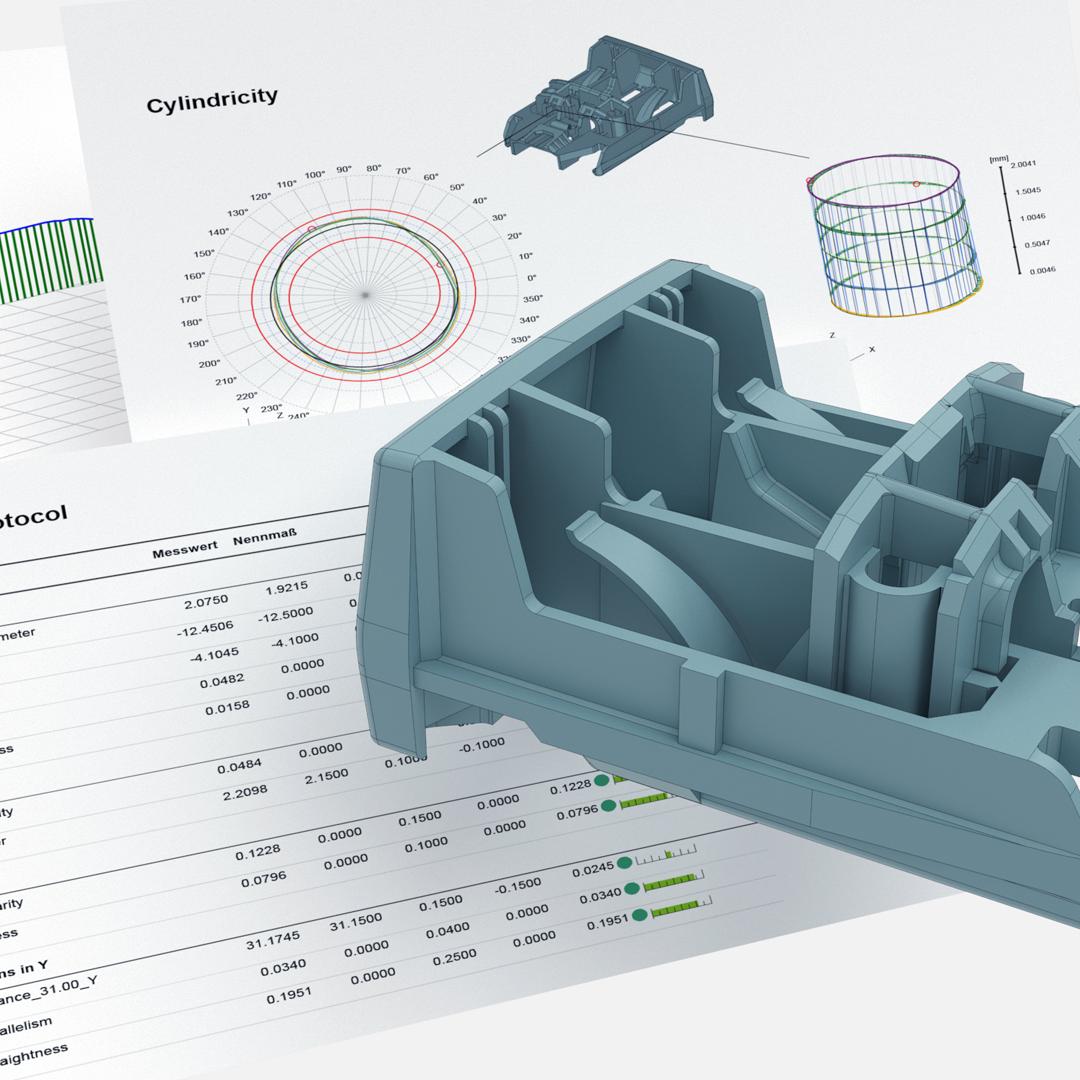

ZEISS CALYPSO Software

Software for dimensional measurement technology

ZEISS CALYPSO measures standard geometries simply, quickly and reliably. Program inspection plans easily by clicking on the desired features. Travel paths are generated automatically and optimally by the software. Thanks to numerous optional extensions, ZEISS CALYPSO also offers the right tools for special requirements, for example with ZEISS CALYPSO VAST probing and ZEISS CALYPSO pallet optimizer. These functions allow measurements to be carried out up to 25% faster.
