Mobile Surface Measuring Instrument Featuring an Elegant Design

HANDYSURF+

The simple solution to measure, evaluate and document surface roughness – from incoming goods to production all the way to final inspection.

  • Easy-to-use
  • Sleek and compact design
  • Up to 10 nanometers of resolution
Page Content

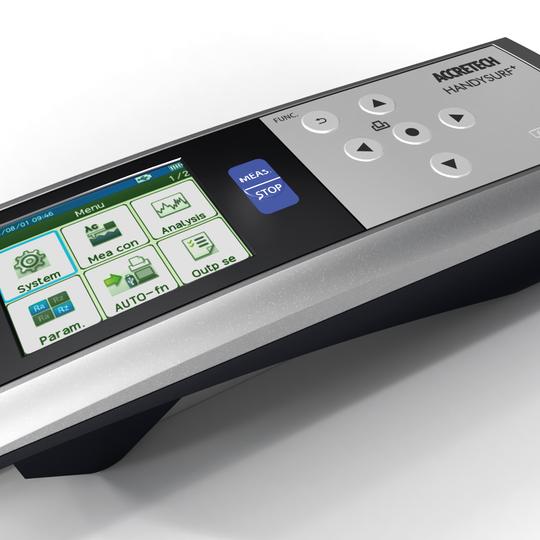

HANDYSURF+

Mobile Surface Measuring Instrument

With a sleeker design, new 2.4-inch color LCD screen, and improved user interface for intuitive operations, HANDYSURF+ offers a simple quality assurance option for measuring surface parameters throughout production. It is an ideal solution for the automotive, mechanical engineering and medical technology industries.

Flexible use

HANDYSURF+ is flexible and robust, with horizontal, vertical and overhead surface measurement capabilities that travel to the workpiece

User-friendliness

HANDYSURF+ meets all common surface standards (ISO, DIN, CNOMO, ASME and JIS), features 20 languages and can be connected to a PC, printer or flash drive via built-in USB

Wider measuring range

HANDYSURF+ covers a 370 µm measuring range -
the widest in its class - without compromising its 0.0007 µm resolution

Enhanced analysis

HANDYSURF+ offers graphic representations of measurements for on-site verification with parameter and waveform, and is capable of a variety of analyses including BAC, ADC, peak count and motifs

Advantages

  • Easy-to-use, mobile and flexible for measuring, analysis and logging
  • Compact design
  • Work quickly using the automatic function for the measuring range, total path, cut-off and magnification
  • Can be connected to any ZEISS 3D measuring machine via a ZEISS CALYPSO interface
  • Surface analyses in accordance with all common standards: ISO, DIN, CNOMO, ASME and JIS
  • Interface connects to separate analysis computer
  • Measure in various positions: horizontally, vertically and overhead
  • Optional horizontal tracing driver to measure in the axial direction in tight spaces
  • Resolution: up to 10 nanometers
  • Extensive accessories (printer, columns, extensions, cables, printer paper)

Technical Data & Specifications

  • Available in three models: 35, 40 and 45, with stylus tip radiuses of 2 or 5 µm (45 only available with 5 µm stylus tip radius)
  • Z measuring range: -210 to +160 µm
  • Z measuring resolution: 0.0007 µm
  • Stylus tip material: Diamond
