Large Measuring Range for Heavy Workpieces

RONDCOM 73A and RONDCOM 76A

The working range of the RONDCOM 73A and RONDCOM 76A is exactly where other form testers reach their limits. The form measuring stations feature excellent rotational accuracy and a substantial measuring range in spite of its compact design.

High rotational accuracy
Reduced measuring times
Reliable results

Features

RONDCOM 73A and RONDCOM 76A

With extensive accessories and fixture designs tailored to your needs, RONDCOM 73 A and RONDCOM 76 A are versatile and reliable. The spindle form testers are ideal for measuring jobs such as cylinder heads, engine blocks, crankshafts and camshafts, and for highly accurate measurements on heavy workpieces.

Short measuring times

The high travel speed of up to 100 mm/s in all axes (R, X, Y, Z) shortens the measuring time considerably while automated CNC measuring runs enable the excellent efficiency of the featured form testers.

Reliable results

Accurate air bearings in the X, Y, Z and rotary axes make this spindle form tester extraordinarily reliable and low-maintenance. Even heavy workpieces can be fed in without friction or disruption because the spindle form testers feature an integrated anti-vibration table with active damping.

Easy and intuitive handling

Comprehensive collision protection, fully automated workpiece alignment, and automated CNC measuring runs set the RONDCOM 73 A and RONDCOM 76 apart. The included ACCTee PRO software offers an intuitive user interface and guides the user through the entire measuring process.

Advantages you gain

for measuring heavy workpieces

Reduced measuring times through an extremely high travel speed
Outstanding cost effectiveness thanks to fully-automated CNC runs
Automatic measurement of different diameters without manually moving the sensor
Excellent rotational accuracy with a large measuring range
Long-term stability thanks to the high-quality granite construction of all axes
Granite construction ensures long-term stability
Collision protection in all directions
Fast CNC inspection plans via Teach-in or offline programming

Options

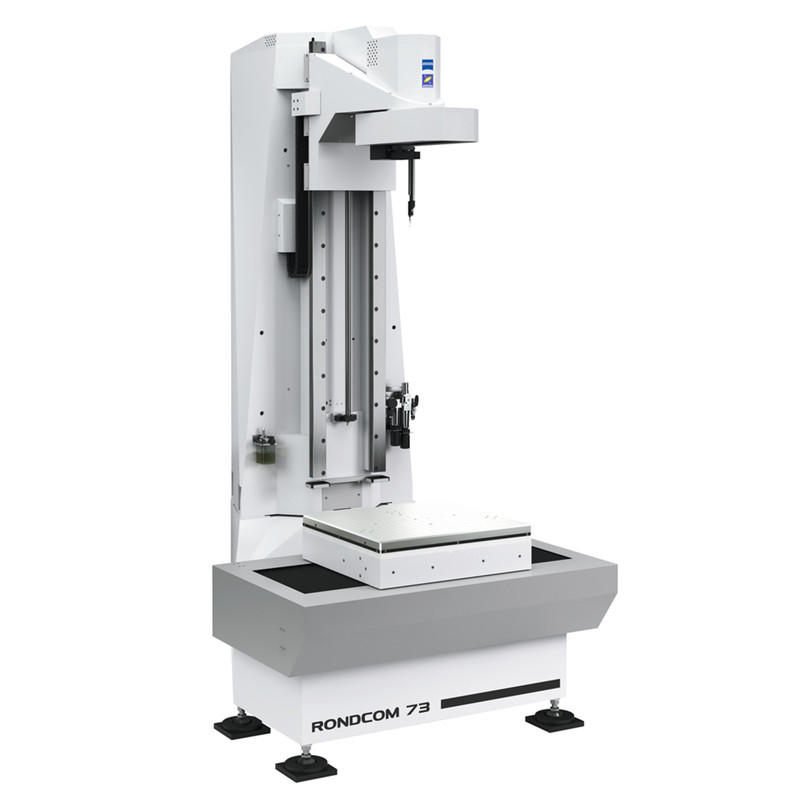

RONDCOM 73A

- Safety device and automatic weight counterbalance of the R axis
- Automatic alignment and measurements for increased throughput
- Different applications with optional accessories

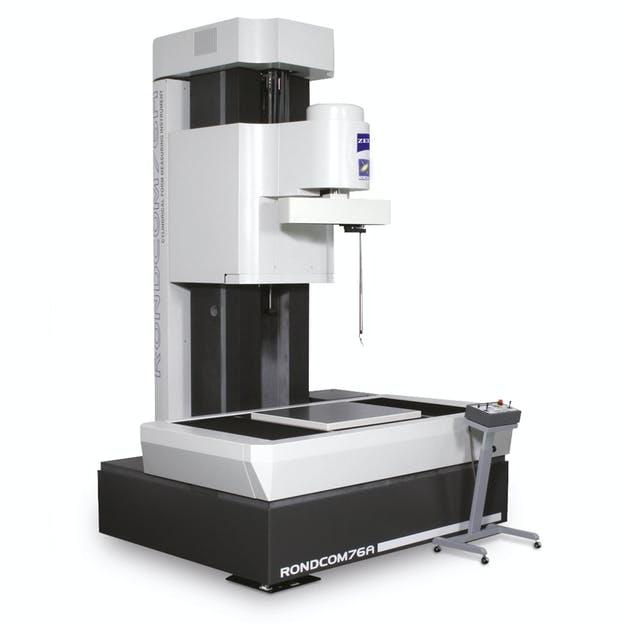

RONDCOM 76A

- Fully automatic control of the 7 axes
- Excellent straightness values in all axes
- Parallelism measurements via accurate and specified axes
- Informative multi-flatness evaluation in the R axis
- Precise diameter measurements
- Granite construction ensures long-term stability
