Profile Detection for Every Application

SURFCOM NEX Series

Full flexibility for your application

The contour and surface measuring machines from ZEISS offer different, sometimes combinable sensors for roughness measurements, contour measurements or both.
Future-proof flexibility

With two different sizes of granite measuring table and three different sizes of columns to choose from, ZEISS offers a wide range of solutions for various applications.

Future-proof thanks to multi-sensor capability with optical and tactile sensors.
All tactile styli are exchangeable without tools or screws.

Furniture solutions

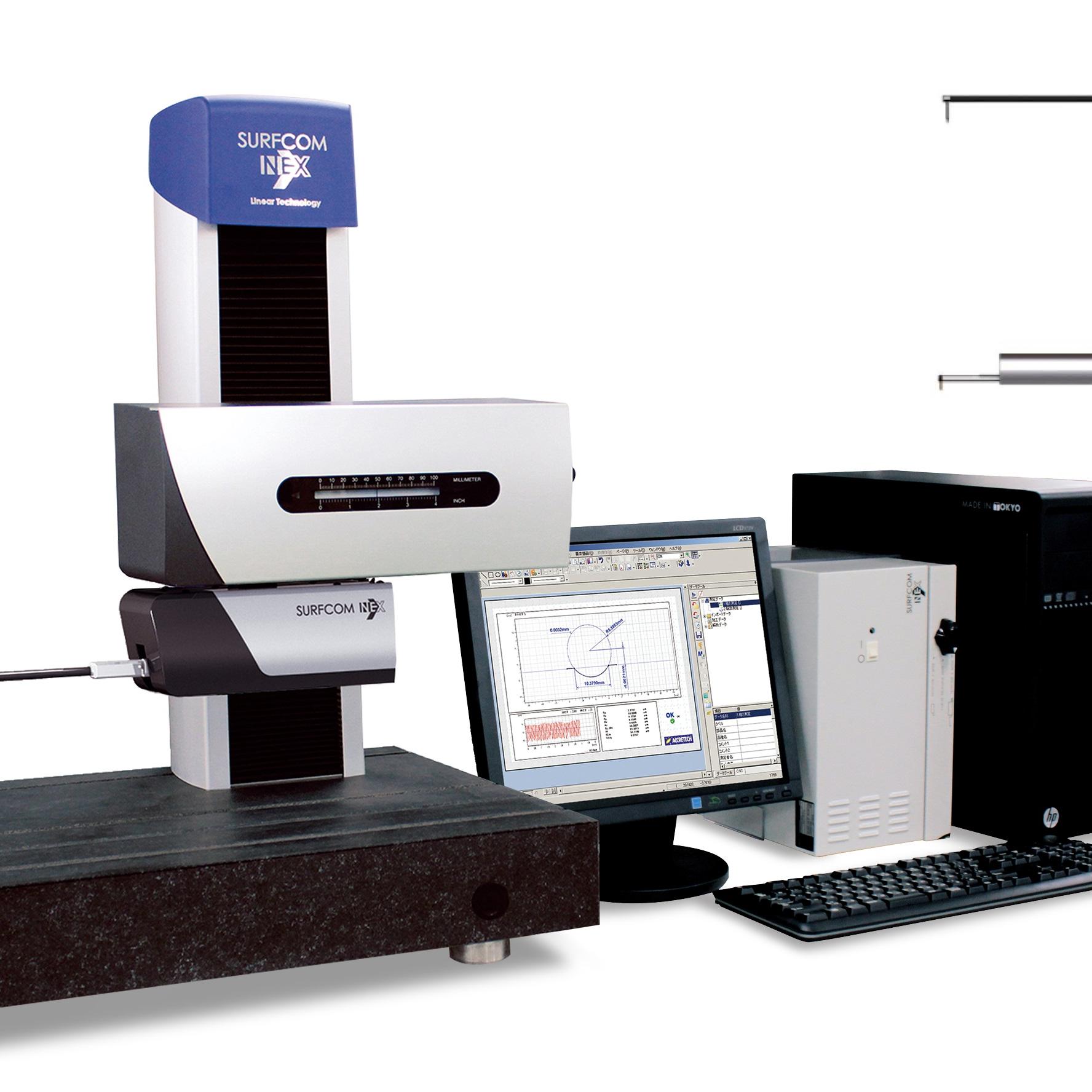

Different packaging options complete the SURFCOM NEX Series:

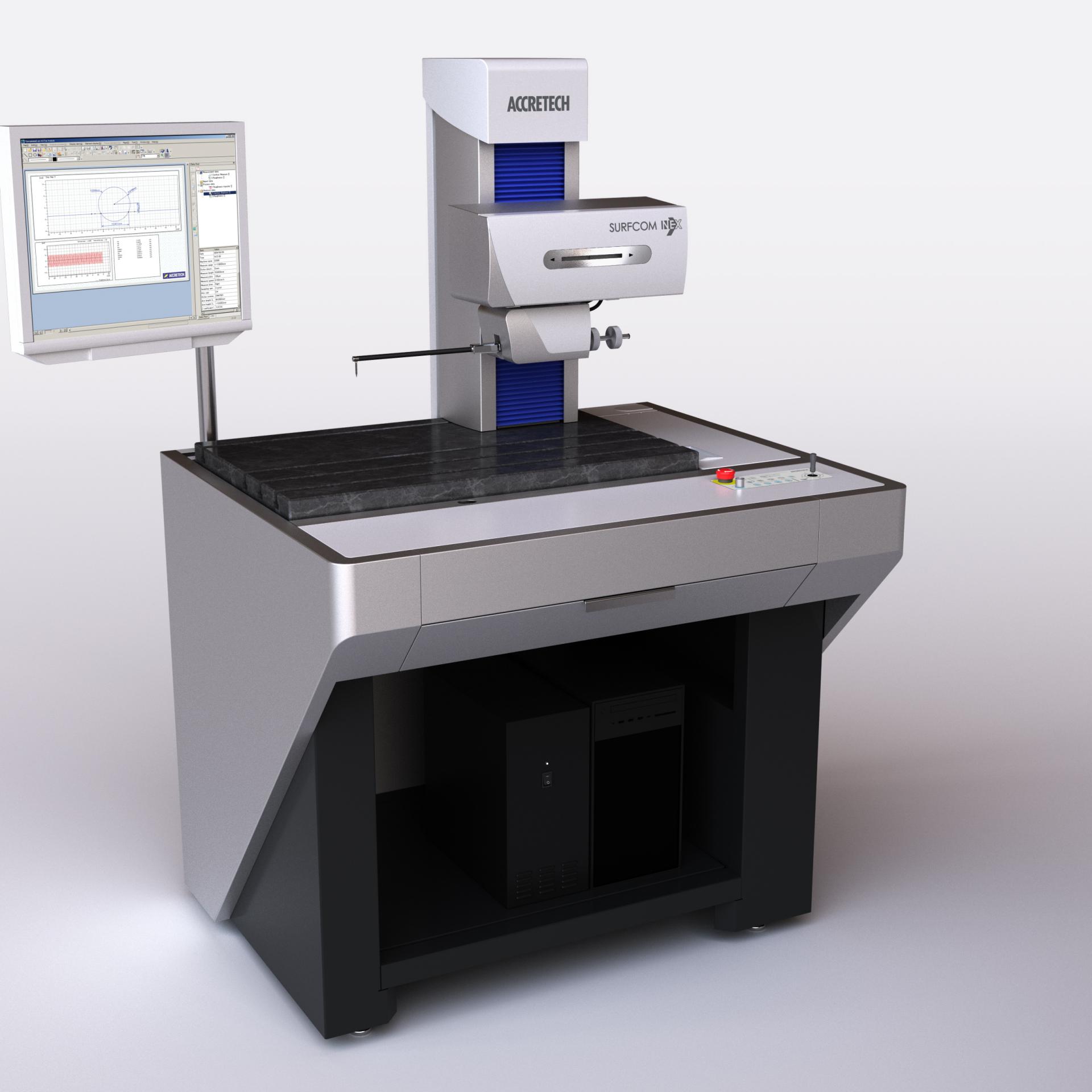

Space-saving DX variation suitable for production
Solid, attractively-priced DX version with integrated active vibration damping or comprehensive SD desk furniture

Optional features
The optional CNC kit, consisting of linear and rotary positioning axis, allows higher productivity due to fully automatic measurements. Optional topography measurements.

Williams Racing Success with Surfcom NEX 240DX2-25

Patented magnetic linear drive for higher efficiency

The patented contact-free magnetic linear drive makes SURFCOM NEX highly efficient and low-maintenance. It enables a positioning speed that is up to seven times faster.

SURFCOM NEX Series Options

The SURFCOM NEX series offers wide range of solutions. In this way we provide the best solution for your application.

SURFCOM NEX 001 Best-in-class residual noise (Rz 0) thanks to a low-vibration linear drive.
Resolution of up to 0.1 nm at a 6.4 µm range and 20 nm at a 1,000 µm range.
With the optional tracing driver tilting unit it is possible to manually tilt the tracing driver +/-5 degrees

SURFCOM NEX 030 Efficient contour measurements with collision protection as a standard feature.
Standard styli up to 529 mm – for measurements on deep features.
With the optional tracing driver tilting unit it is possible to manually tilt the tracing driver +/-15 degrees.

SURFCOM NEX 040 High-precision contour measuring station.
CNC measuring station with increased accuracy and automated probing force configuration.
Standard styli up to 529 mm – for measurements on deep features.
With the optional tracing driver tilting unit it is possible to manually tilt the tracing driver +/-15 degrees.
SURFCOM NEX 031 Combined roughness and contour measuring station.
Combines the advantages of the SURFCOM NEX 001 and SURFCOM NEX 031.

SURFCOM NEX 041 Combined CNC measuring station with increased precision.
Combines the advantages of the SURFCOM NEX 001 and SURFCOM NEX 041.

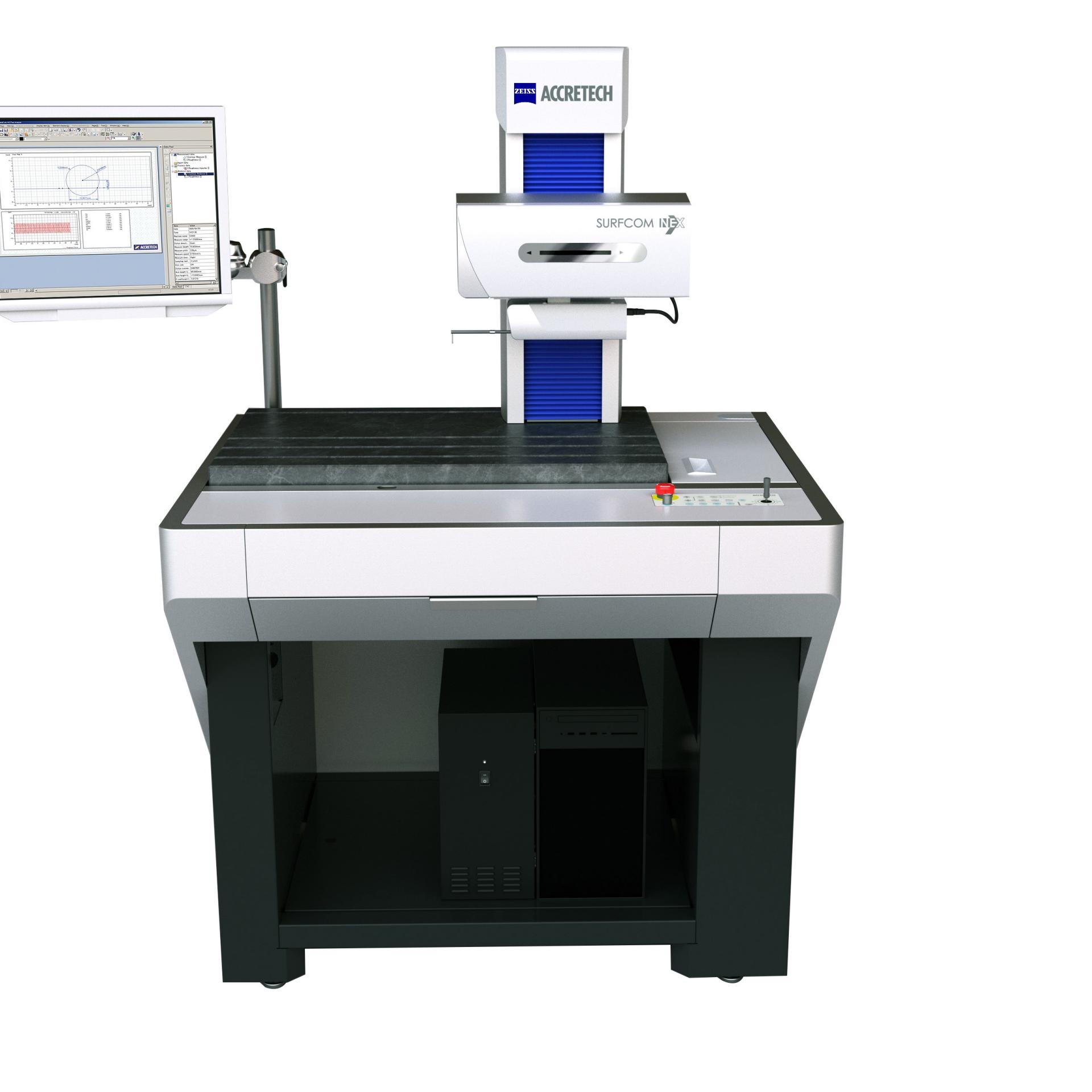

SURFCOM NEX 200 Universal hybrid measuring station. The highly precise dual probe enables roughness and contour measurements in one run without exchanging the sensor.
SURFCOM NEX with white light sensor Optical sensor for roughness measurements.
The SURFCOM NEX with white light sensor uses light to perform non-contact measurements, making the measuring machine especially suitable for sensitive surfaces.
