Intuitive Surface Texture Measuring Instruments

SURFCOM TOUCH Series

Your surface roughness solution for any measurement challenge. Easily complete roughness measurements of various types of workpieces with surface measuring instruments designed for intuitive operation.

Intuitive and easy-to-use
Multiple variations to meet your needs
Quickly print measurement results

Features

SURFOM TOUCH Series

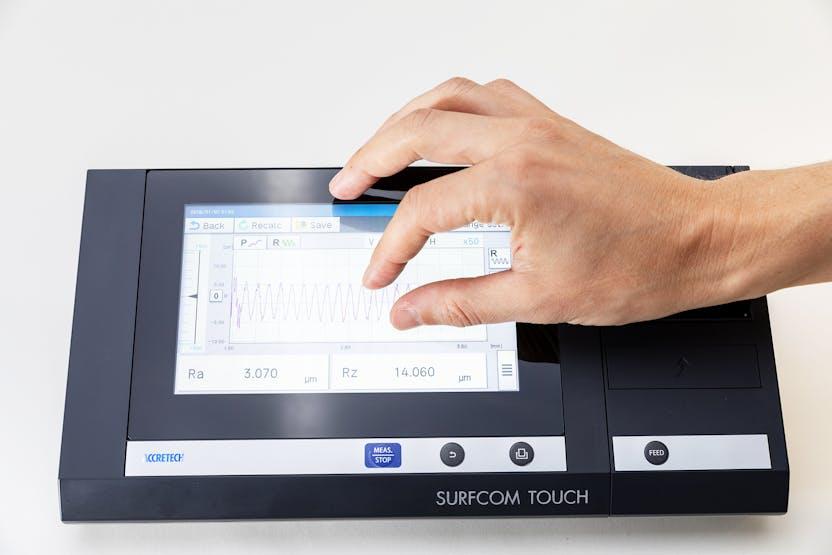

All SURFCOM TOUCH systems come with an intuitive and easy-to-use screen for condition setting, calibration, measurement and analysis. An amplifier with a 7-inch wide touch panel and a new interface provides higher operability. Easy-to-use operation eliminates the need of instructions.

Advantages you gain

Set your language, icon layout, management of internal memories and USB memories
Multi-language support available worldwide
Easy-to-follow user’s guide/quick reference guide
USB/micro USB ports as standard equipment
Quickly print measurment results

SURFCOM TOUCH 35/40/45

Portable surface roughness solution for any measurement challenge

The system is available with three small and lightweight skidded tracing drivers for measurement with different attitudes. In addition to horizontal surfaces, measurement on vertical surfaces can be performed in narrow areas with a transverse trace.

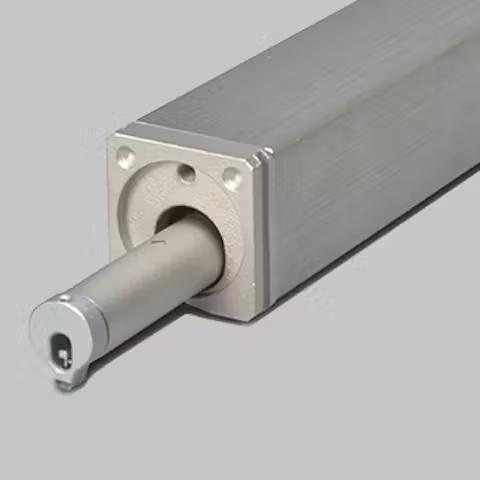

SURFCOM TOUCH 35

Standard type

The standard-type with different attitudes to measure horizontal, inclined, vertical and ceiling surfaces.

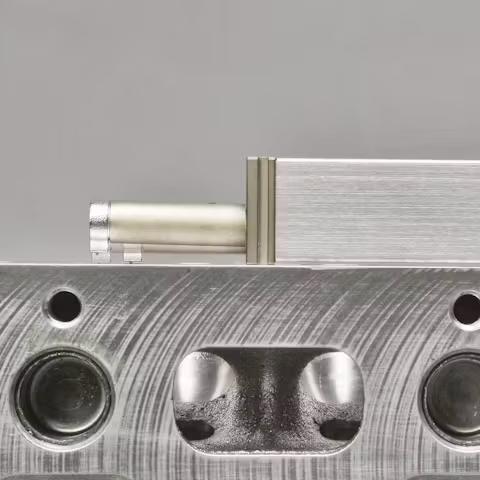

SURFCOM TOUCH 40

Retraction type

Retract-type that reduces damage to the stylus and pickup by raising the pickup while waiting for measurement or at the end.

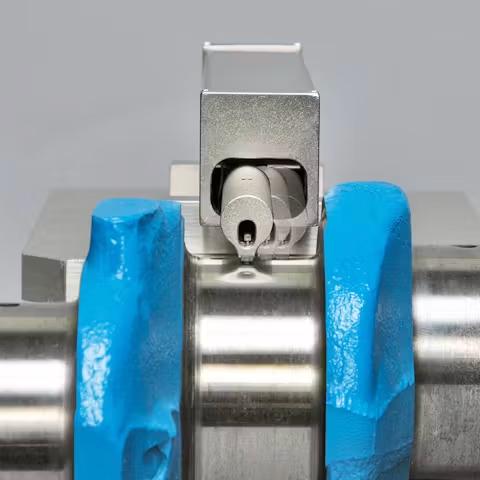

SURFCOM TOUCH 45

Horizontal tracing type

The transverse trace-type where the pickup moves sideways.

Advantages of the portable surface roughness solutions

Palm-sized tracing drivers selectable for workpieces and measurement areas
A calibration table offered as an accessory makes calibration work easy
Optional pickups allow for various types of measurement

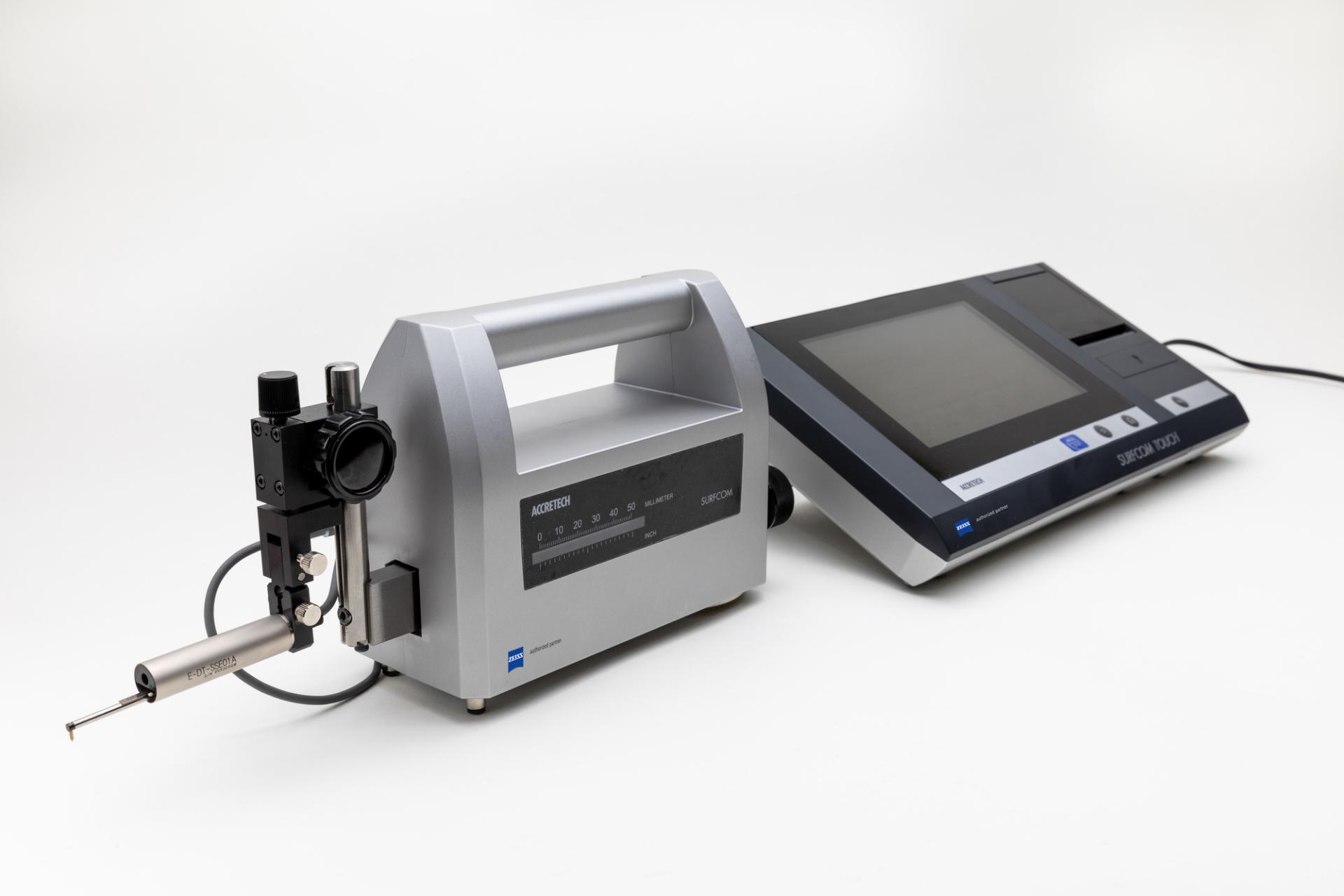

SURFCOM TOUCH 50

Surface roughness and straightness in one compact machine

Extended Z-axis measurement range

The high performance pickup with an extended measurement range from 800 to 1,000 μm and a Z-axis minimum resolution of 0.0001 μm allows for wide-range and high resolution skidless measurement. In addition to a flat surface, the roughness or waviness on an undulating surface such as a stepped or round surface can be evaluated with one trace.

Full flexibility

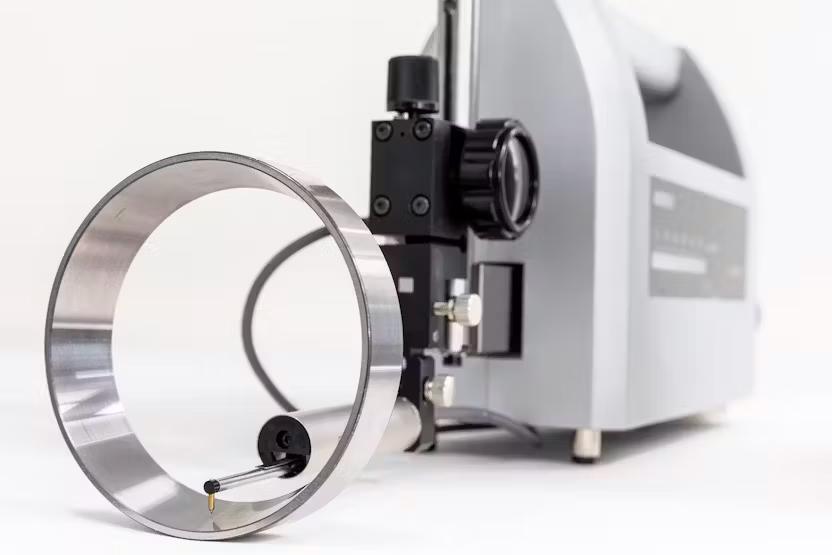

Skidless measurement with a high performance pickup while having high resolution and with a wide measuring range. Various types of workpieces can be measured by changing the stylus for deep, long, or small holes or a round surface.

Advantages of SURFCOM TOUCH 50

Suited for measuring cylindrical workpieces, a tracing driver can be placed on work piecies by using an optional roll footing

SURFCOM TOUCH 50 can be connected with a handytype tracing driver
Optional compact measurement stand for measuring high workpieces or measuring with jigs

Extended measuring range

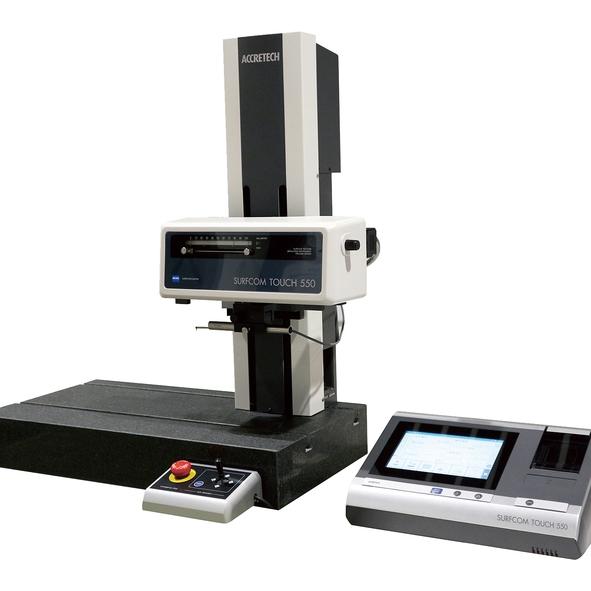

SURFCOM TOUCH 550

High-end solution with an electric column offering high accuracy and size variation

The high performing pickup with an extended measurement range from 800 to 1,000 μm and a Z-axis minimum resolution of 0.0001 μm allows for wide-range and high resolution skidless measurement. No need to consider measurement range. In addition to flat surface, the roughness or waviness on undulating surface such as stepped or round surface can be evaluated with one trace. Leveling and zeroing before measurement can also be performed easily. SURFCOM TOUCH 550 allows you to select a combination of the size of the granite base, the height and type of the column and the drive range in the X-axis direction.

	SURFCOM TOUCH 35	SURFCOM TOUCH 40	SURFCOM TOUCH 45
Z direction	-210 to +160 μm	-210 to +160 μm	-210 to +160 μm
Drive axis	X direction 16 mm	X direction 16 mm	Y direction 4 mm
Movement type	Standard type	Retraction type	Horizontal tracing type
Evaluation length	0.2 to 16 mm	0.2 to 16 mm	0.2 to 4.0 mm
Measurement speed	0.5, 0.6, 0.75, 1.0 mm/s	0.5, 0.6, 0.75, 1.0 mm/s	0.6 mm/s

	SURFCOM TOUCH 50
Z direction	±500 μm
X direction	50 mm
Evaluation length	0.1 to 50 mm
Straightness accuracy	0.3 μm/50 mm
Detector vertical movement volume	50 mm
Measurement speed	0.15, 0.3, 0.6, 1.5, 3 / 0.05, 0.1, 0.2, 0.5, 1 mm/s

	SURFCOM TOUCH 550
Z direction	±500 μm
X direction	100 mm to 200 mm
Drive distance	100 mm to 200 mm
Straightness accuracy	(0.05 + 1.5L/1000) μm
Measurement speed	0.03, 0.06, 0.15, 0.3, 0.6, 1.5, 3, 6 / 0.05, 0.1, 0.2, 0.5, 1, 2, 5 mm/s
