OPTICAL 3D scanning

ATOS 5X

For car body inspection

ATOS 5X offers advanced 3D scanning technology for the inspection of car bodies. The powerful light source and high-speed technology enable fast and precise measurements of complete car bodies.

Extremely bright laser light source
Robust sensor design
High data quality

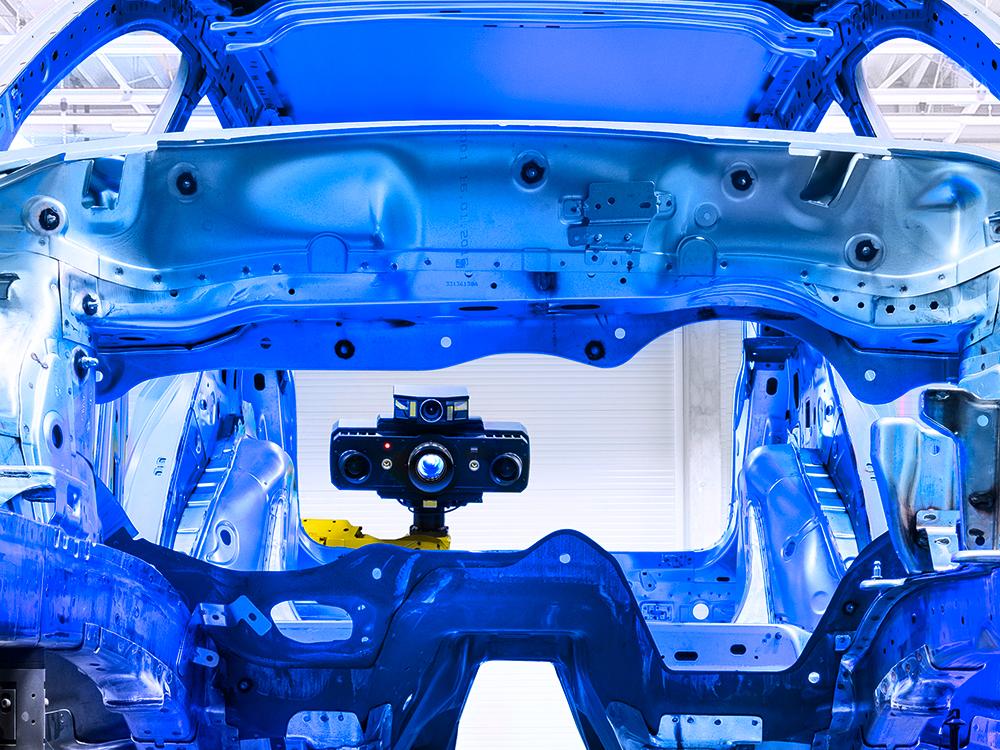

The automated 3D scanner ATOS 5X

Automated scanning of large measuring areas

With its powerful light source, ATOS 5X enables the use of large measuring volumes for maximum speed. Combined with the ATOS ScanBox series, ATOS 5X is a high-end scanning system for toolmaking, press and body shops.

High-speed technology

ATOS 5X uses the integrated Laser Light Compressor to generate ultra-bright light. This enables measuring areas of up to 1000 mm with very short exposure times. As a result, the ATOS 5X achieves acquisition times of 0.2 seconds.

Extremely bright laser light source

Insensitive to ambient light
Short exposure times

Even for dark and shiny surfaces
High detail resolution

Low noise level and precise coverage of complex geometries
Robust sensor design

High accuracy in rough environments
Interference-free data transfer

Intelligent sensor communication using fiber optic cables
Process reliability

In industrial applications

Fast inspection with ZEISS data quality

Speed up your process

The automated measurement of a complete car body both outside and inside typically takes 30 minutes with ATOS 5X – including the precise coverage of complex geometries. The system enables the highest possible throughput, with the main application areas in master jig and cubing, inspection of complete vehicles and quality control in the body shop.
Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Get the highest data quality

ATOS 5X delivers full-field data for comprehensive process and quality control of hang-on parts, side panels and complete car bodies. The data quality generated by the sensor is particularly evident in the detail sharpness of the 3D models, allowing an advanced inspection of character lines, radii, trimmed edges and hole patterns.


      Features

    Prior to the actual physical assembly, the measured parts can be virtually aligned. Information on gap and flush or functional dimensions can be evaluated at an early stage. Measuring results deriving from different departments or even from suppliers can be evaluated centrally. This way, a car body can be analyzed irrespectively of Meisterbock or cubing.

Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Virtual assembly of a car body.

Effective tool for analysis

ZEISS INSPECT offers everything from a single source

Scanning, inspection and reporting: The software guides you through the entire workflow. Examine nominal-actual comparisons as well as GD&T tolerances. Implement necessary corrections directly thanks to easy-to-understand results. Use ZEISS INSPECT to analyze completely, receive comprehensive reporting and integrate measurement results into existing processes.

Find more information

Technical specifications

ATOS 5 product family

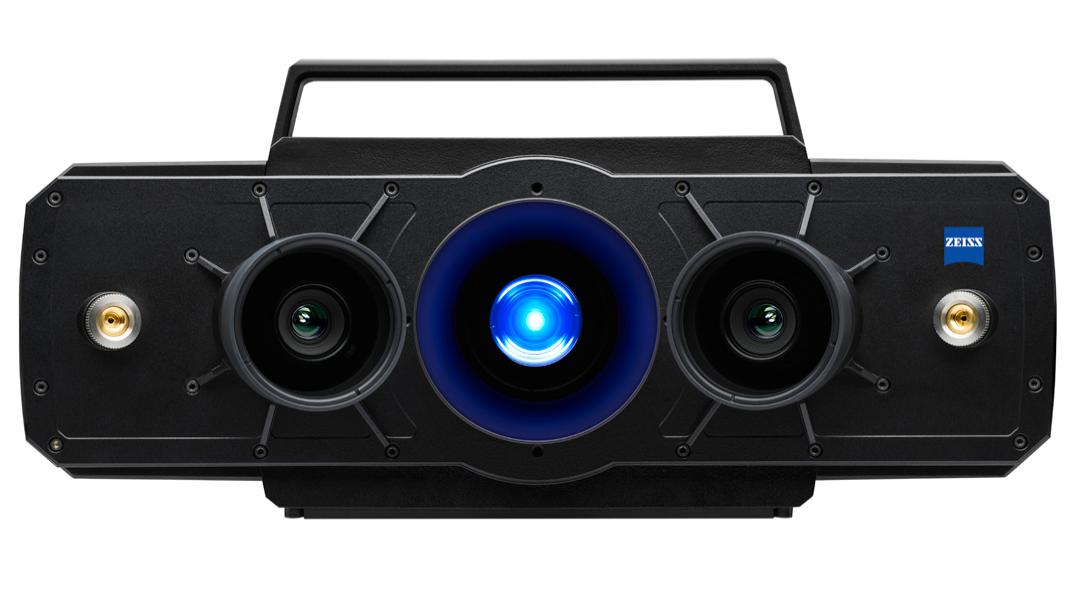

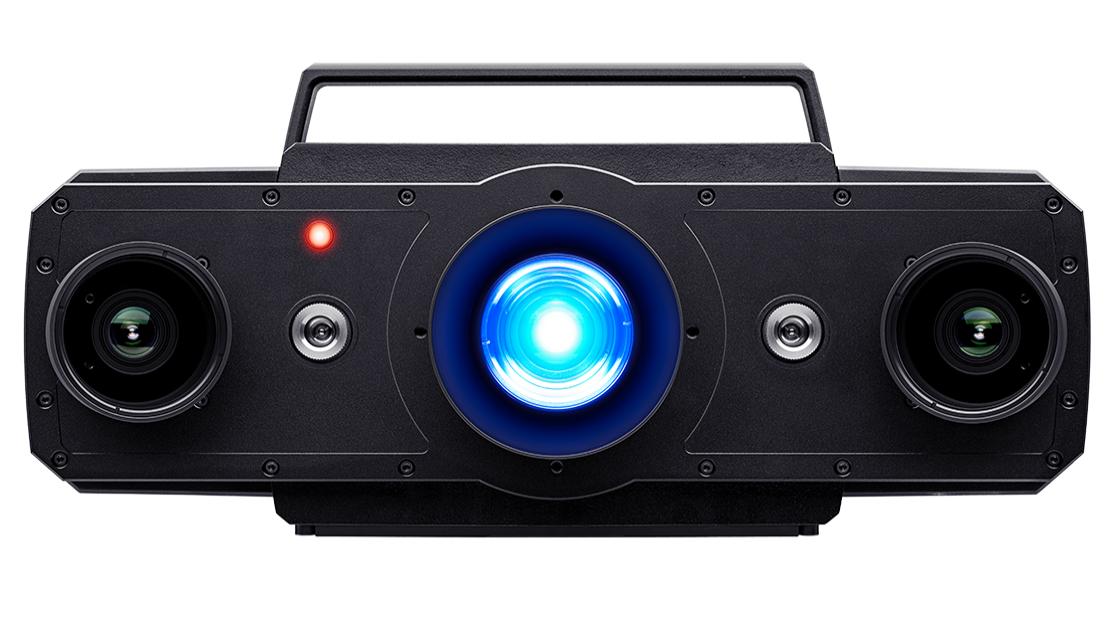

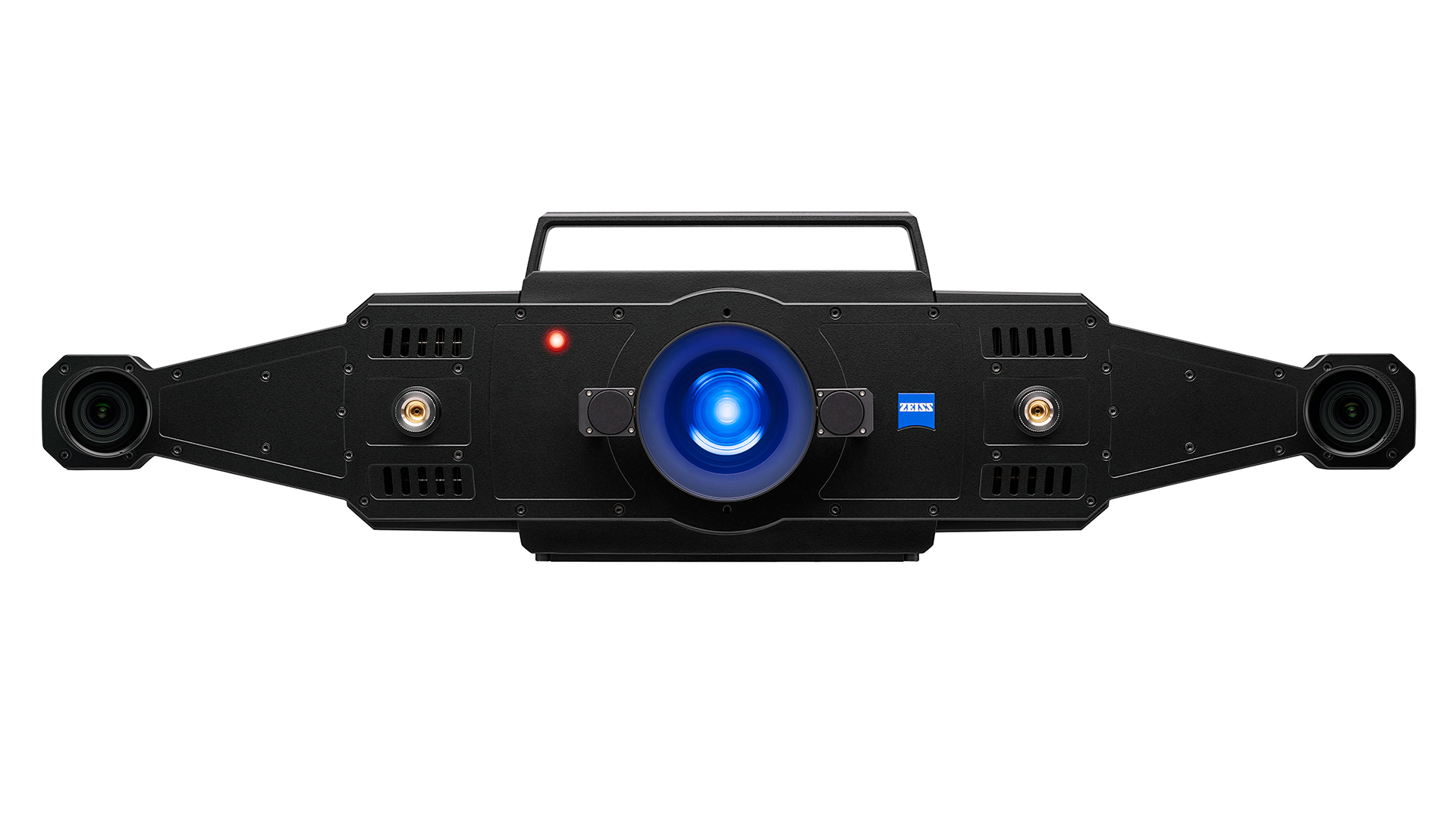

	ATOS 5	ATOS 5X	ATOS 5 for Airfoil	ZEISS ATOS LRX
The system for:	High-speed 3D scans	Automated scanning for large volumes	Precise scanning of smallest details	3D scanning for very large volumes
Light source	LED	LASER	LED	LASER
Measuring points per scan	8 or 2 million	12 million	12 million	12 million
Working distance	880 mm	880 mm	530 mm	1810 mm
	Learn more		Learn more	Learn more
