OPTICAL 3D SCANNING

ATOS Q

Quality starts with a Q.

ATOS Q is an industrial 3D scanner that can be used in a variety of applications due to its wide range of measuring areas. In addition to incorporating many of the features of our high-end automated systems, ATOS Q's lightweight design makes it easy to transport from one location to another, providing users with added convenience and flexibility.

  • Compact
  • Mobile
  • Flexible
Page Content
Contact

The new ATOS compact class

ATOS Q is reliable and versatile and therefore perfectly suited for complex measurement and inspection tasks. The compact system meets high metrological demands.

  • Third-party Content Blocked

    The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Reliable – a real ATOS sensor

In almost all industries, ATOS sensors have established themselves as optical 3D measuring systems. Their success is based on precise optoelectronics, robust sensor design and powerful software. ATOS Q takes this success story further: The sensor perfects the triad of design, technology and performance. The result: a versatile and compact system with real ATOS DNA.

  • ATOS design

    ATOS Q is specifically developed for industry use and delivers fully traceable measurement results—even under harsh conditions. The optical and electronic systems of the robust, optical 3D sensor are dustproof and splashproof, making all ATOS Q sensors ideally suited for the move from the measuring room to the shop floor. Users will appreciate the ATOS Q sensor because of its simple and convenient operation.

  • ATOS technology

    ATOS Q captures quality information quickly and with a high degree of detail, providing a reliable basis to easily interpret this information. Its Triple Scan Principle offers advantages for measuring reflective surfaces and objects with indentations. The Blue Light Equalizer increases the brightness of the light source and transfers uniform, speckle-free light to the projection unit.

  • ATOS performance

    Thanks to the Blue Light Equalizer and fast data processing, ATOS Q impresses with an outstanding performance. The Blue Light Equalizer enables high-speed fringe projection and is so powerful that even on uncooperative surfaces short measuring times can be achieved. Industrial ports with fiber optic cables and robust plug-in connections allow for high data throughput.

Versatile – ATOS Q rises to the challenge

The compact ATOS Q sensor is very versatile. It solves complex measurement and inspection tasks in manual, semiautomated or fully automated operation on the ZEISS ScanCobot and in the ATOS ScanBox 4105.

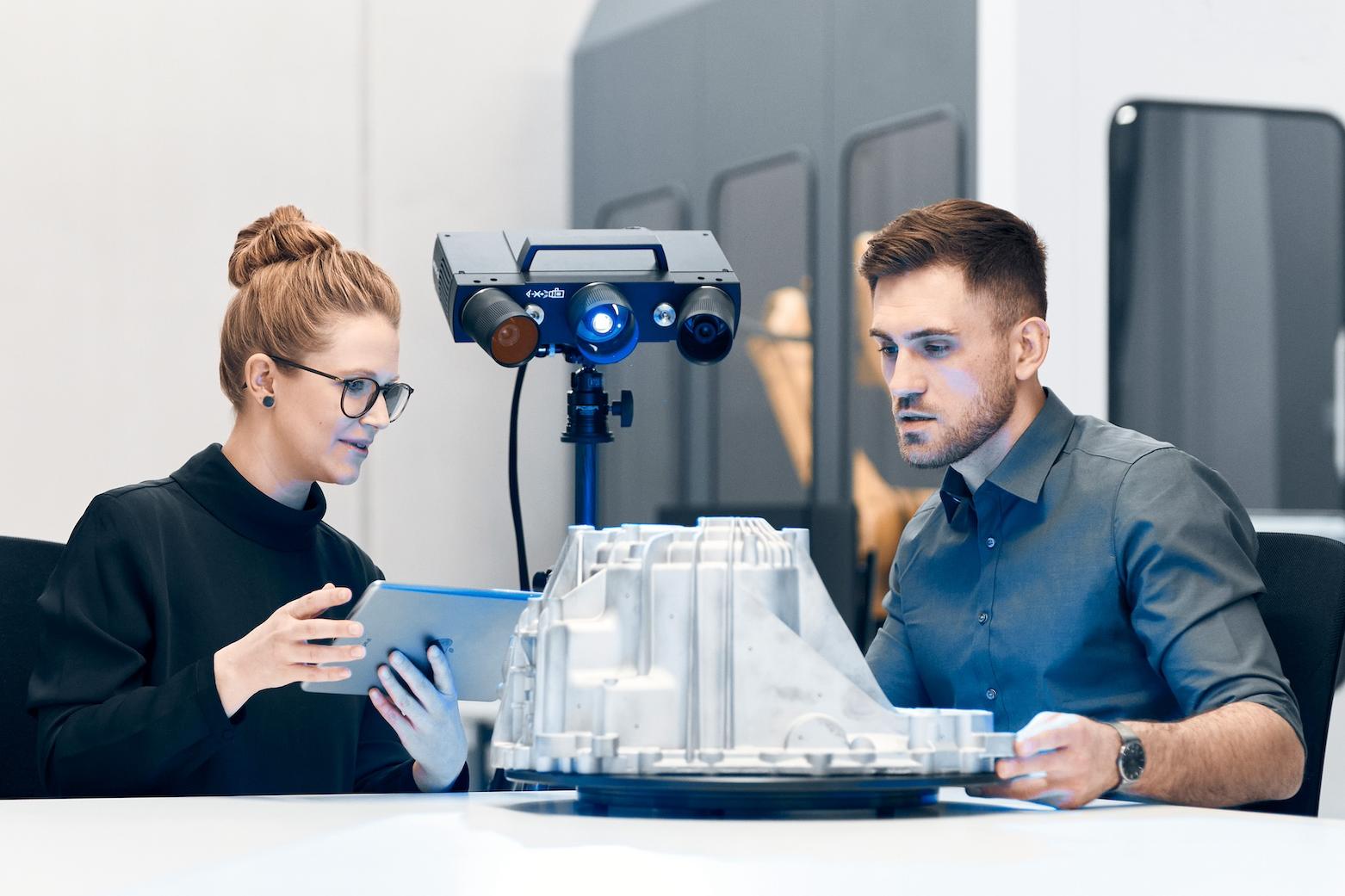

Manual

With a weight of only 4 kg and its compact design, ATOS Q is light and can be easily moved. It can be used on a tripod in the measuring room but also mobile in production.

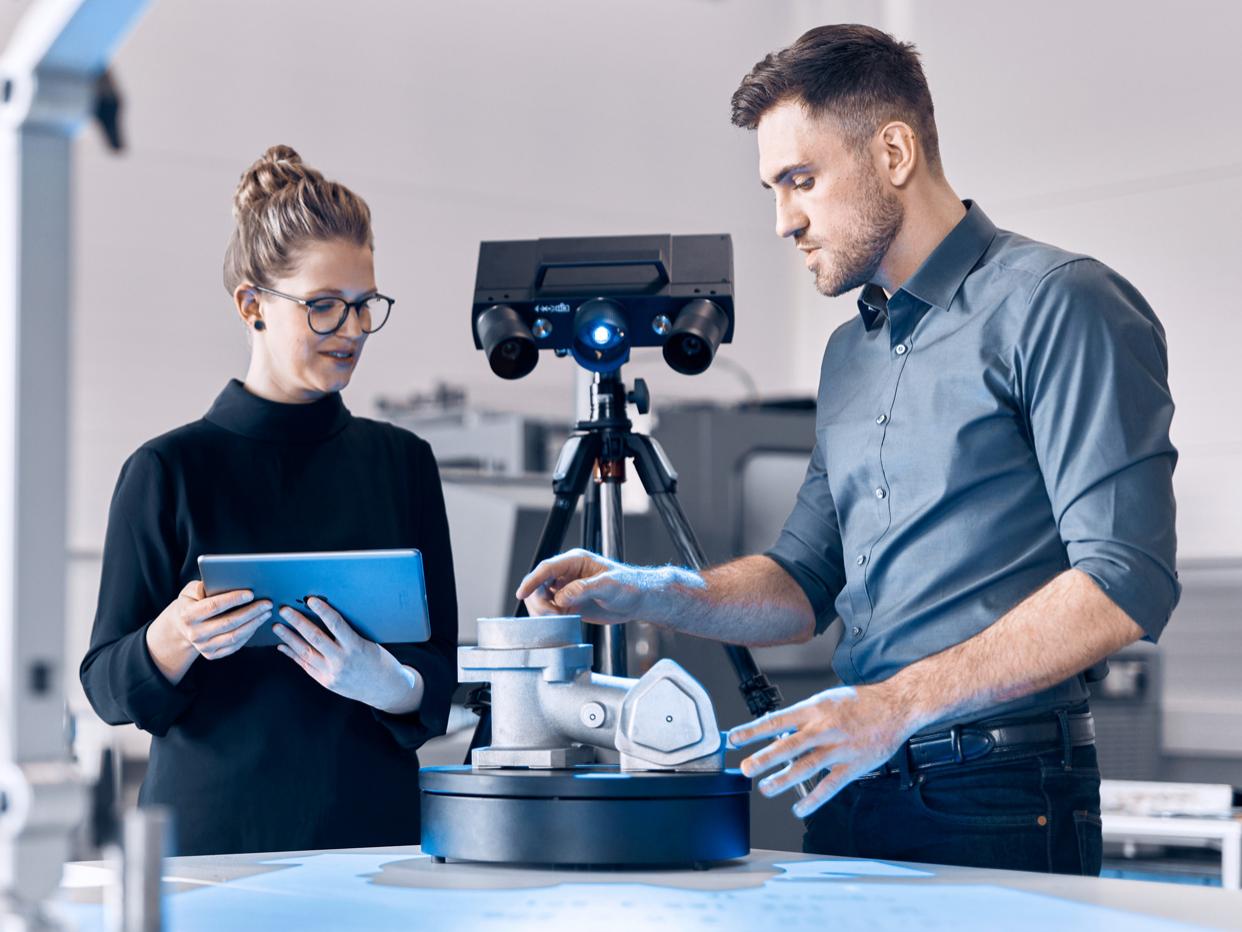

Semiautomated

Combined with a tripod or alternatively a desk stand and a rotation table or a Motoriaztion Kit, ATOS Q can be used in semiautomated operation.

Automated

ATOS Q reaches its maximum efficiency on the ZEISS ScanCobot and in the ATOS ScanBox 4105. The systems enable serial quality control with high throughput and high process reliability.

ATOS Q

Member of our #HandsOnMetrology 3D scanning network

Learn more about ATOS Q delivering 3D scanning excellence on our #HandsOnMetrology platform.

Discover

Flexible 3D scanner for different industries

ATOS Q is designed as a flexible 3D scanner for complex measurement and inspection tasks in different industries. Interchangeable lenses ensure high-precision measurements of small to medium-sized parts. Changing from the smallest to the largest measuring volume is easy thanks to the fixed camera position.

Quality assurance of additively manufactured parts

Accelerating the product development and launch phase

Quality assurance of plastic parts

Speeding up all phases in injection molding, blow molding and thermoforming processes

Quality assurance of cast parts

Optimizing sand casting, pressure die casting and investment casting processes

Quality assurance of sheet metal parts

Optimizing metal forming (punching, bending, drawing and pressing) process chains

ZEISS INSPECT
ZEISS INSPECT

Effective tool for analysis

ZEISS INSPECT offers everything from a single source

Scanning, inspection and reporting: The software guides you through the entire workflow. Examine nominal-actual comparisons as well as GD&T tolerances. Implement necessary corrections directly thanks to easy-to-understand results. Use ZEISS INSPECT to analyze completely, receive comprehensive reporting and integrate measurement results into existing processes.

Find more information

One series, two versions

ATOS Q is available in the 12M and 8M versions. The sensors capture up to 2 × 12 million or 2 × 8 million coordinate points during scanning. The precision, the resolution and the measuring area size can be freely defined.
ATOS Q 8M
ATOS Q 12M

Light source

LED

LED

Points per scan

8 million

12 million

Measuring area [mm²]

100 × 70 – 500 × 370

100 × 70 – 500 × 370

Point distance [mm]

0.04 – 0.15

0.03 – 0.12

Working distance [mm]

490

490

Weight

approx. 4 kg

approx. 4 kg

Dimensions

approx. 340 mm x 240 mm x 83 mm

approx. 340 mm x 240 mm x 83 mm

Cable length

10 m fiber optic cable

10 m fiber optic cable

Operating system

Windows 10

Windows 10

Measuring volumes

50, 100, 170, 270, 350, 500

50, 100, 170, 270, 350, 500
