Advanced Packaging and 3D Heterogeneous Integration
Improve Productivity with Submicron Imaging & Analysis
With today’s semiconductor devices, transistor scaling alone is no longer sufficient to increase performance and system miniaturization. Innovations in semiconductor packaging, such as new 2.5D/3D designs using through-silicon vias (TSVs) and chiplets using hybrid bonding, enable system-in-package (SIP) and heterogeneous integration. Characterization and failure analysis of these advanced technologies are critical for overall development and delivery of high-yielding, reliable products.
New package architectures introduce new types of defects buried deep below many layers, challenging the entire failure analysis workflow – from electrical characterization to physical analysis and root cause determination. Traditional workflows for high-resolution package analysis of buried features lack the required combination of speed, resolution, and 3D information to understand the problems.
Non-destructive 3D Tomography of Heterogeneous Integration Package

3D X-ray Image of Heterogeneous Package

3D Analysis of Heterogeneous Integration Package

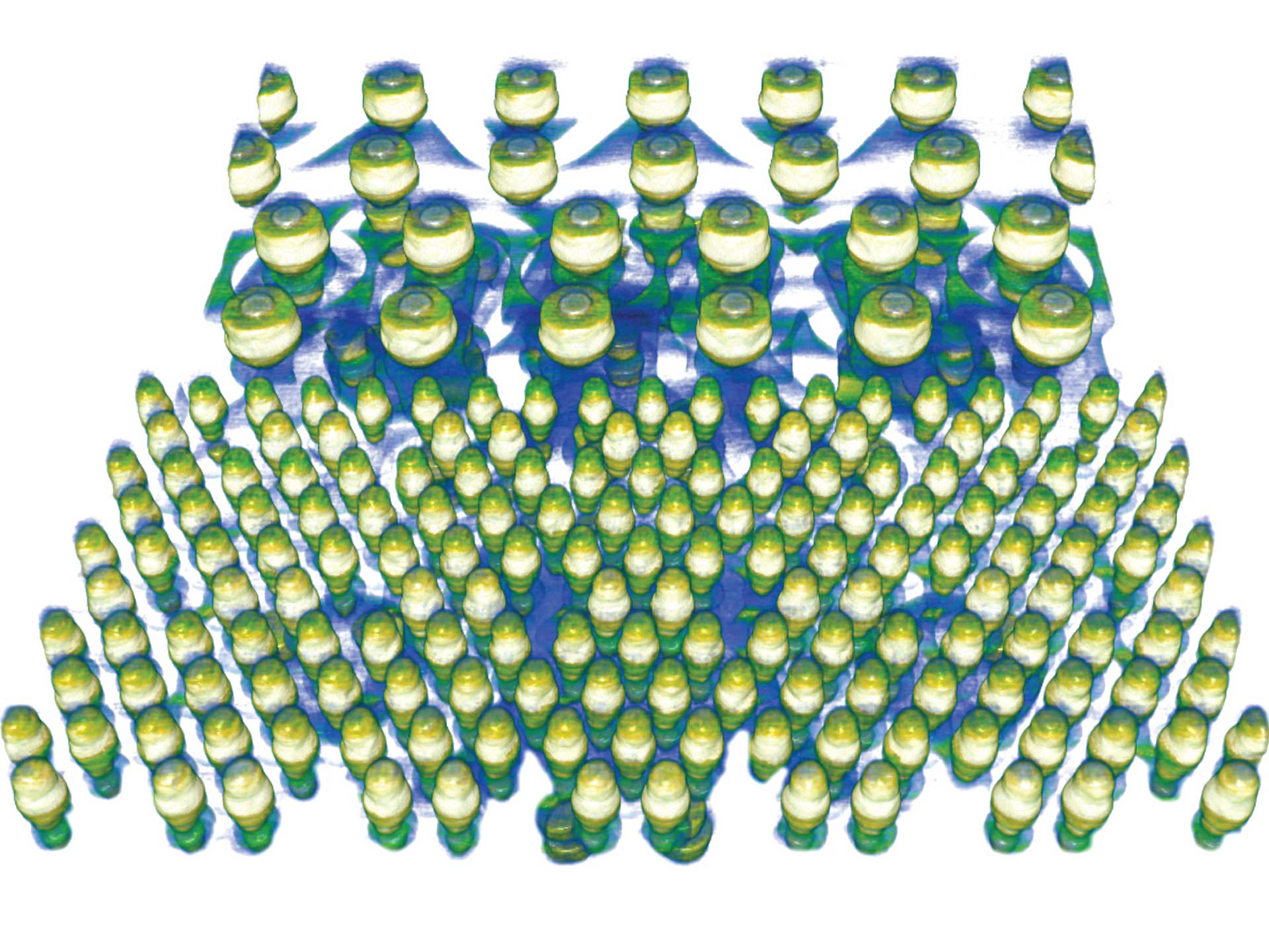

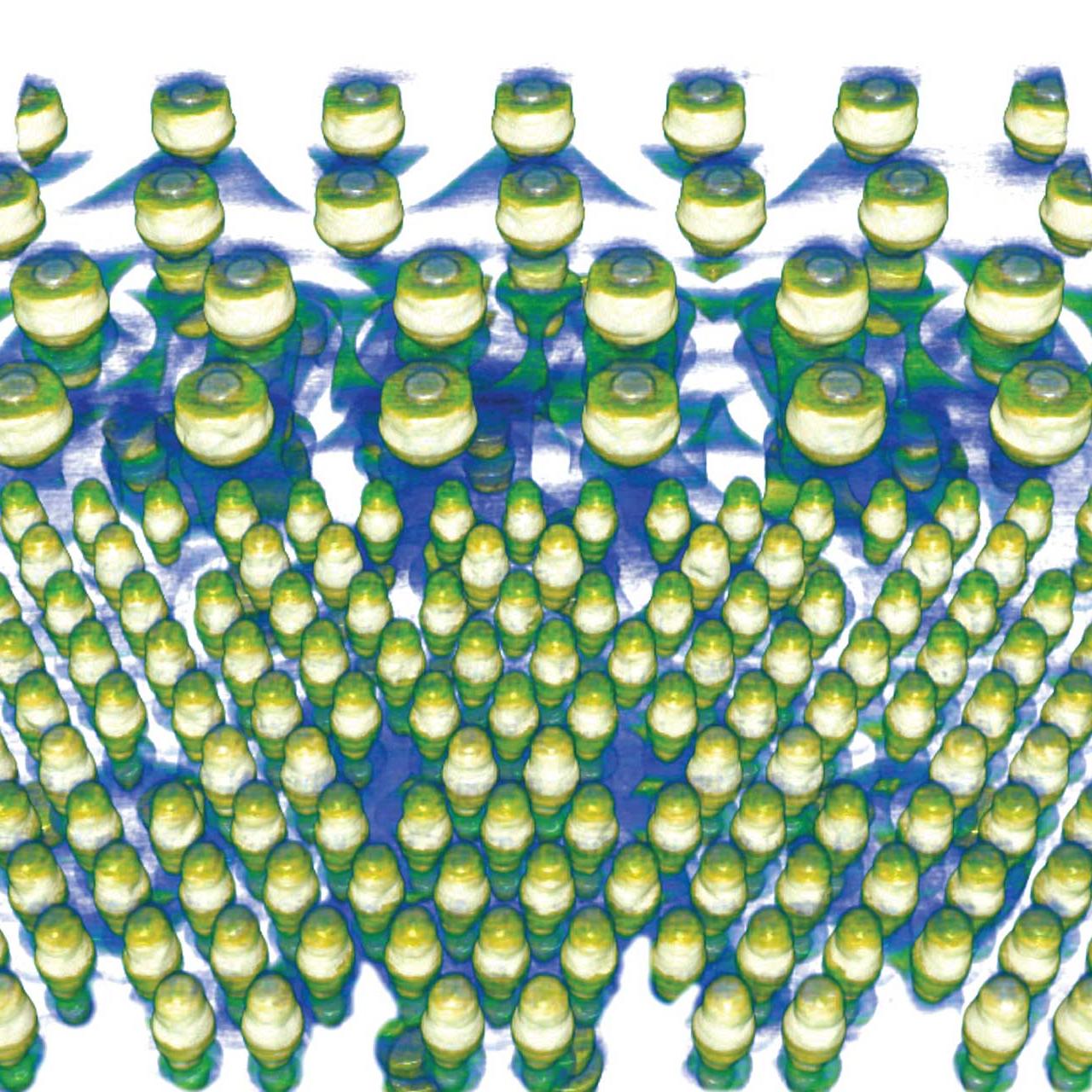

3D X-ray microscopy reconstruction highlights interconnect bridge connecting multiple chips.
75 µm C4 bumps and 30 µm microbumps are clearly visible.
Acquired by ZEISS Xradia Versa X-ray microscope

Virtual Cross Section of Microbumps

Virtual Cross Section of Microbumps

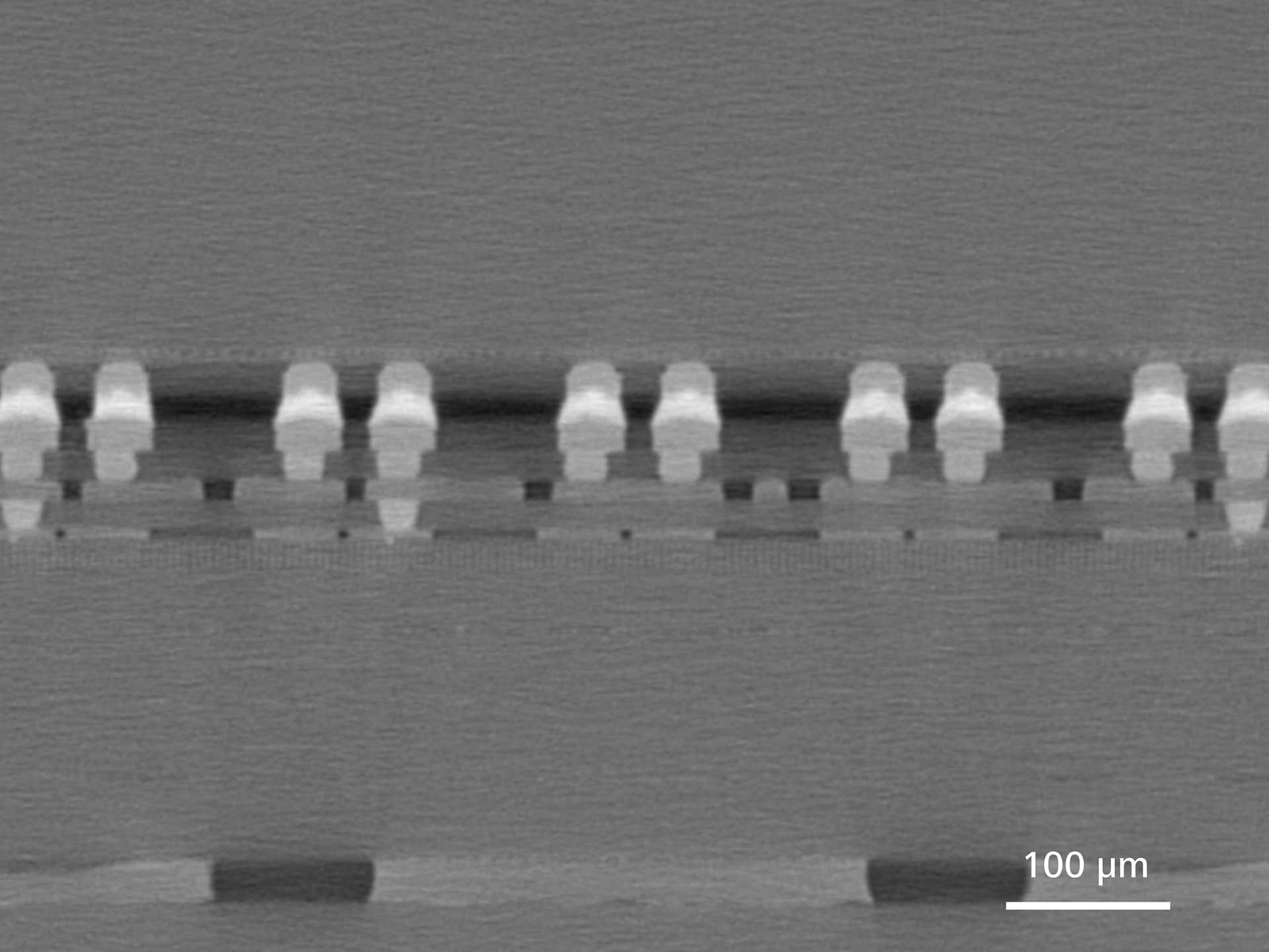

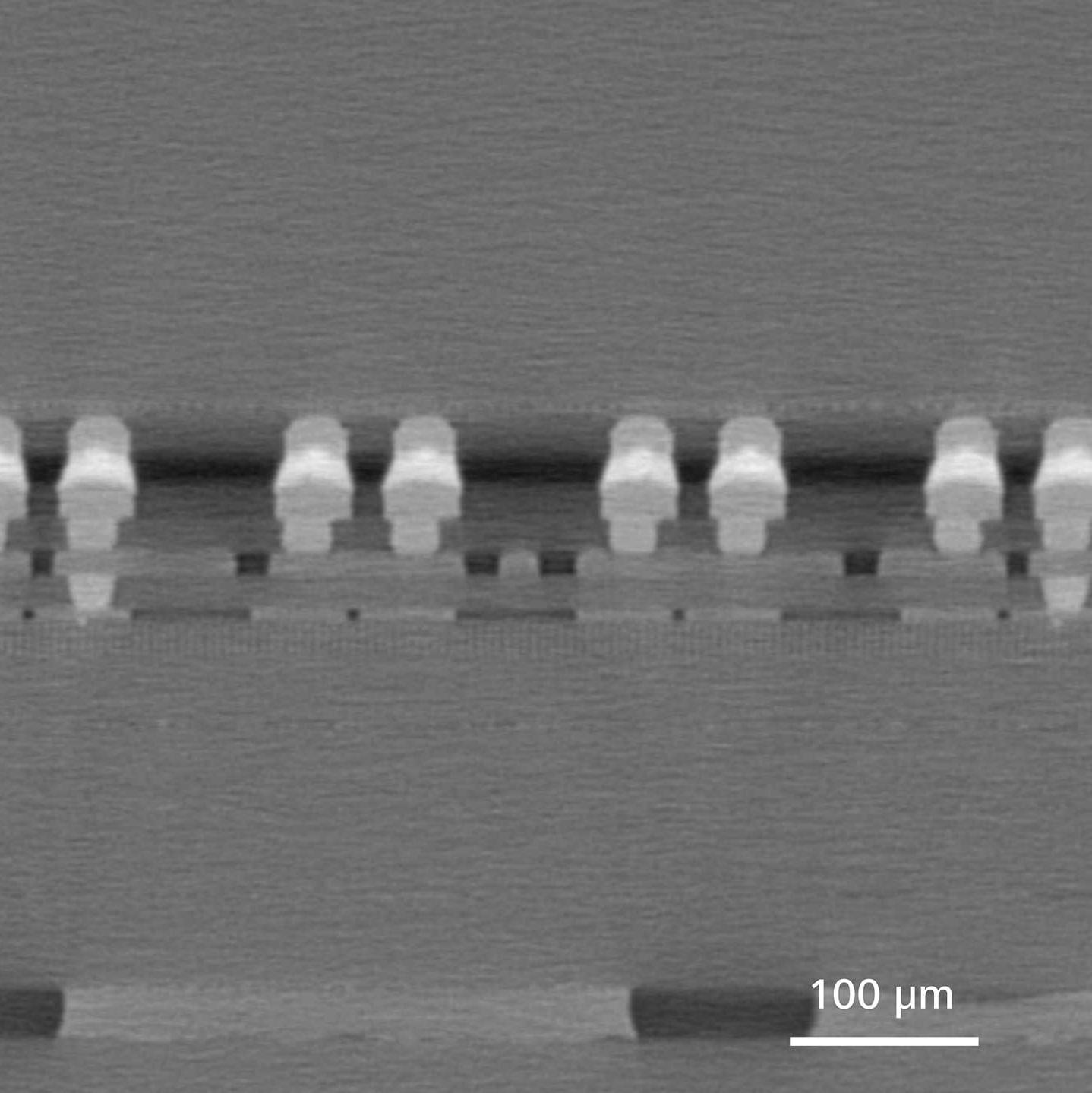

Virtual cross section from same analysis highlights 30 µm microbumps imaged at 0.8 µm/voxel resolution.
Acquired by ZEISS Xradia Versa X-ray microscope

Virtual Cross Section of C4 Bumps

Virtual Cross Section of C4 Bumps

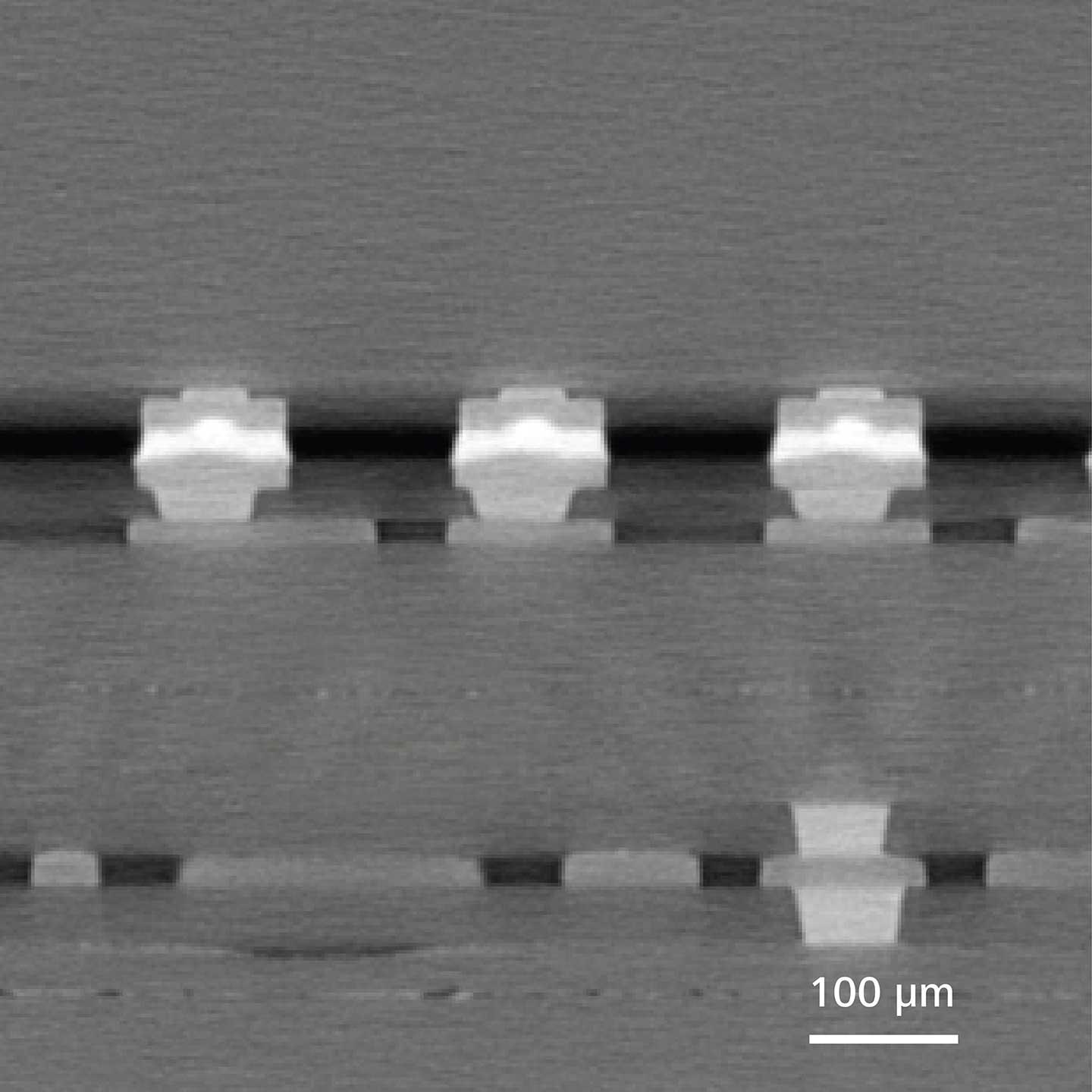

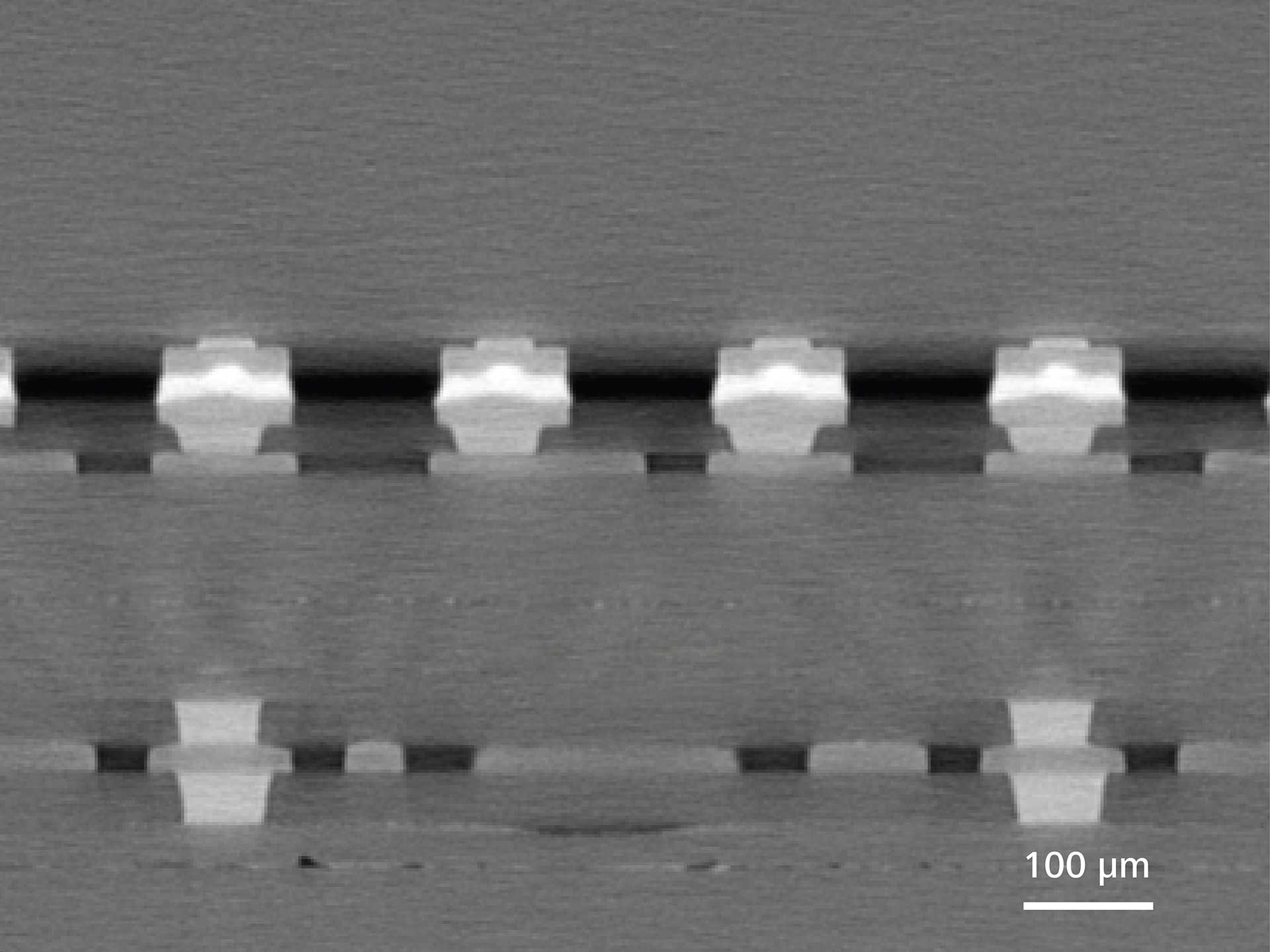

Virtual cross section from same analysis details 75 μm C4 bumps imaged at 0.8 μm/voxel resolution.
Acquired by ZEISS Xradia Versa X-ray microscope
Nanoscale 3D X-ray Imaging of Smartphone Mainboard

3D X-ray Image of Smartphone Main Control Board

X-ray Image of Complete Mainboard

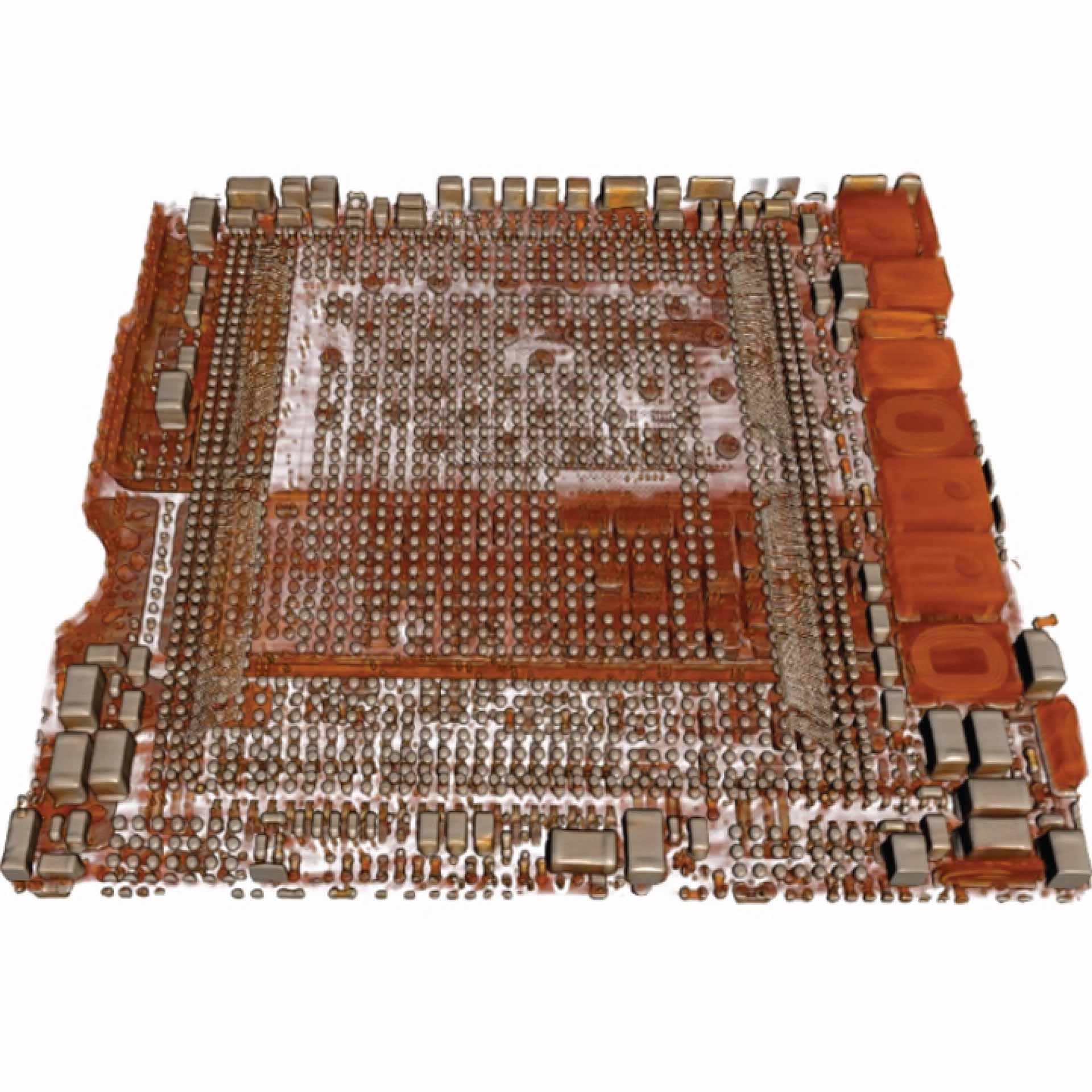

Large field of view 3D X-ray scan of package-on-package (POP) from a smartphone main control board imaged at 10 µm/voxel.
Acquired by ZEISS Xradia Context microCT

Solder Balls in Smartphone Main Control Board

Virtual Cross Section of Solder Balls

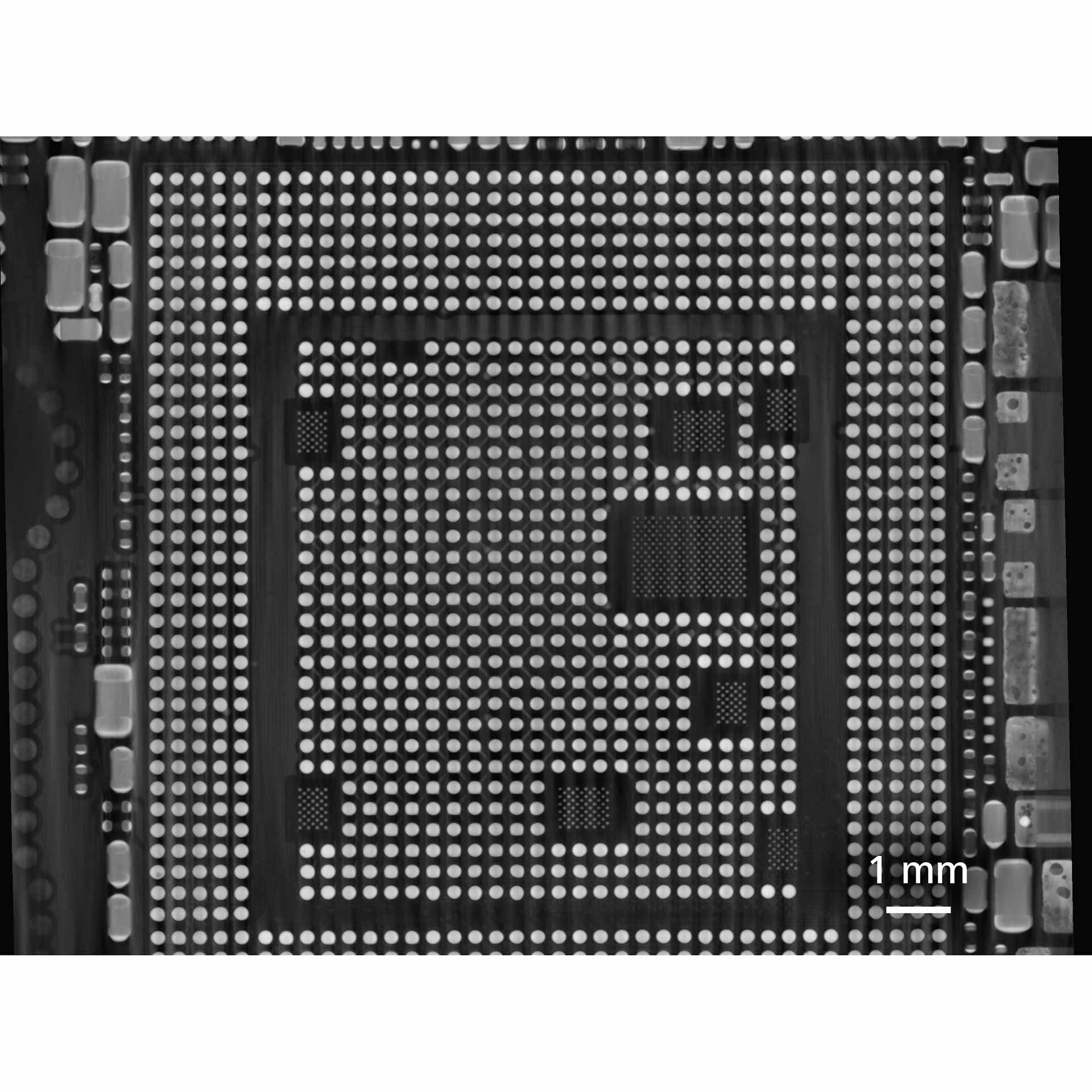

Virtual cross section from same analysis showing solder balls connecting the bionic chip to the main substrate imaged at 10 µm/voxel.
Acquired by ZEISS Xradia Context microCT

Solder Bumps in Smartphone Main Control Board

Virtual Slice of Solder Bumps

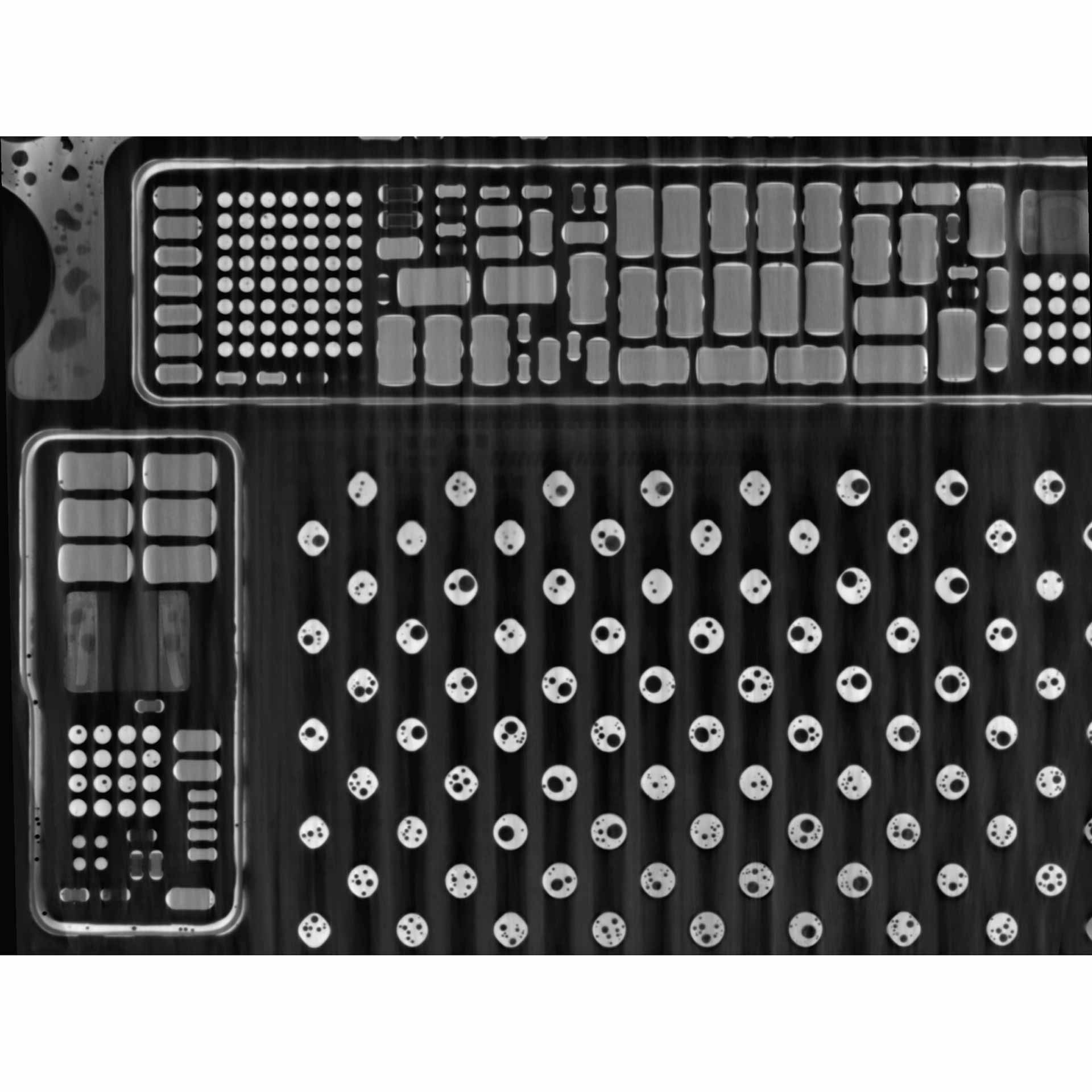

Virtual cross section of a different layer in the same sample showing solder bumps connecting the 3D NAND flash chip to the main substrate imaged at 10 µm/voxel.
Acquired by ZEISS Xradia Context microCT

3D Package Interconnects

Rapid Analysis of Deeply Buried 3D Package Interconnects

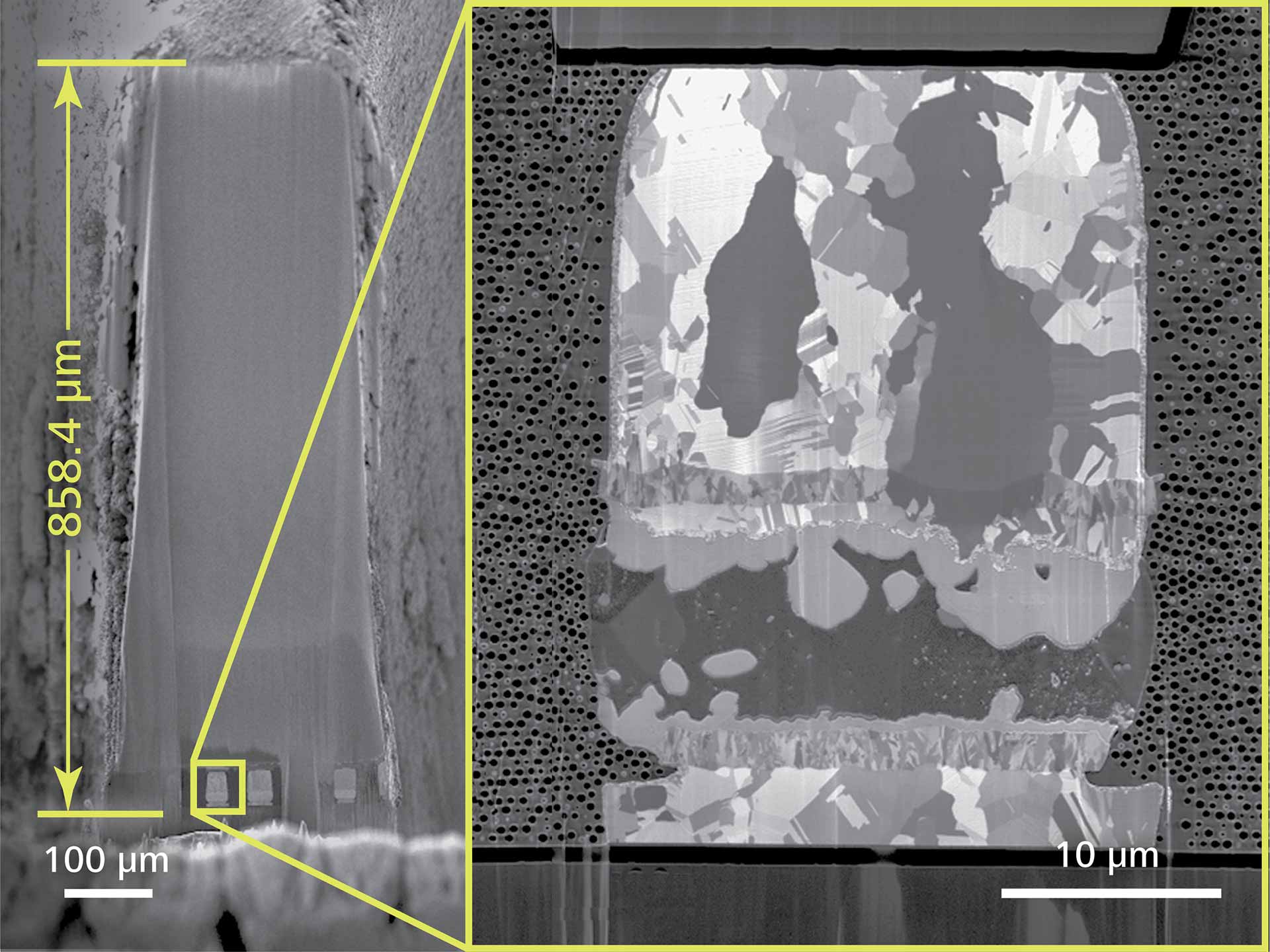

Crossbeam laser FIB-SEM provides fast, high-quality cross sections of 25 µm diameter Cu-pillar microbumps and BEOL structures buried 860 µm deep in a 3D integrated circuit (IC) package with total time to results of <1 hour. Left: 3D IC prepared using laser ablation and FIB polishing. Right: Backscattered electron image of microbump.

Large FOV of 2.5D Package Interconnects

High-resolution, Extreme Field of View Imaging for 2.5D Package Interconnects

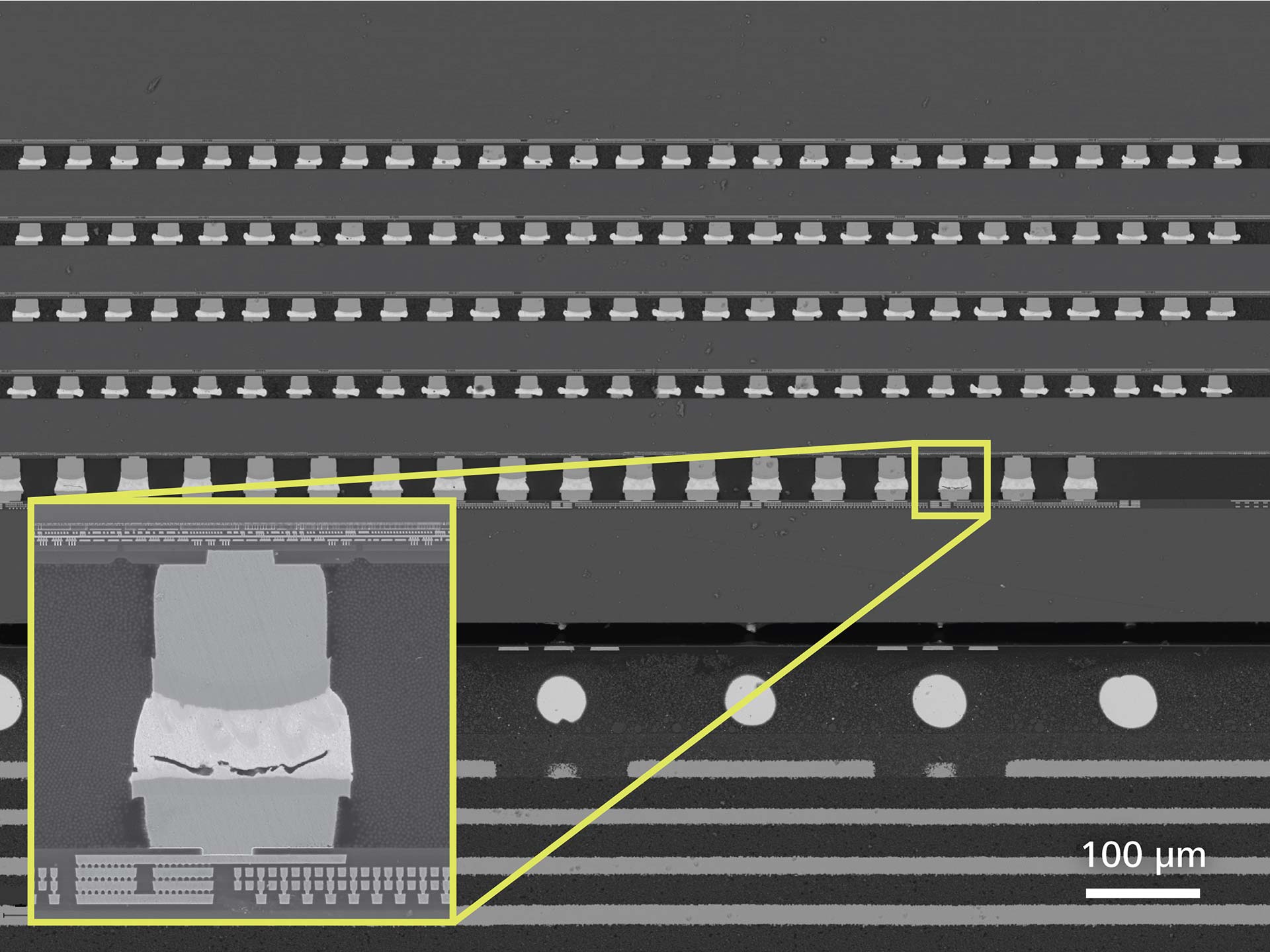

The distortion-free, large field of view provided by GeminiSEM FE-SEM enables high productivity and efficient analysis of package and BEOL structures.
Inset: Close up of 2.5D package cross section shows grain structure and solder crack in 20 µm microbump.

Intermetallic Layers in Solder Bumps

Intermetallic Layer Analysis of Solder Bumps

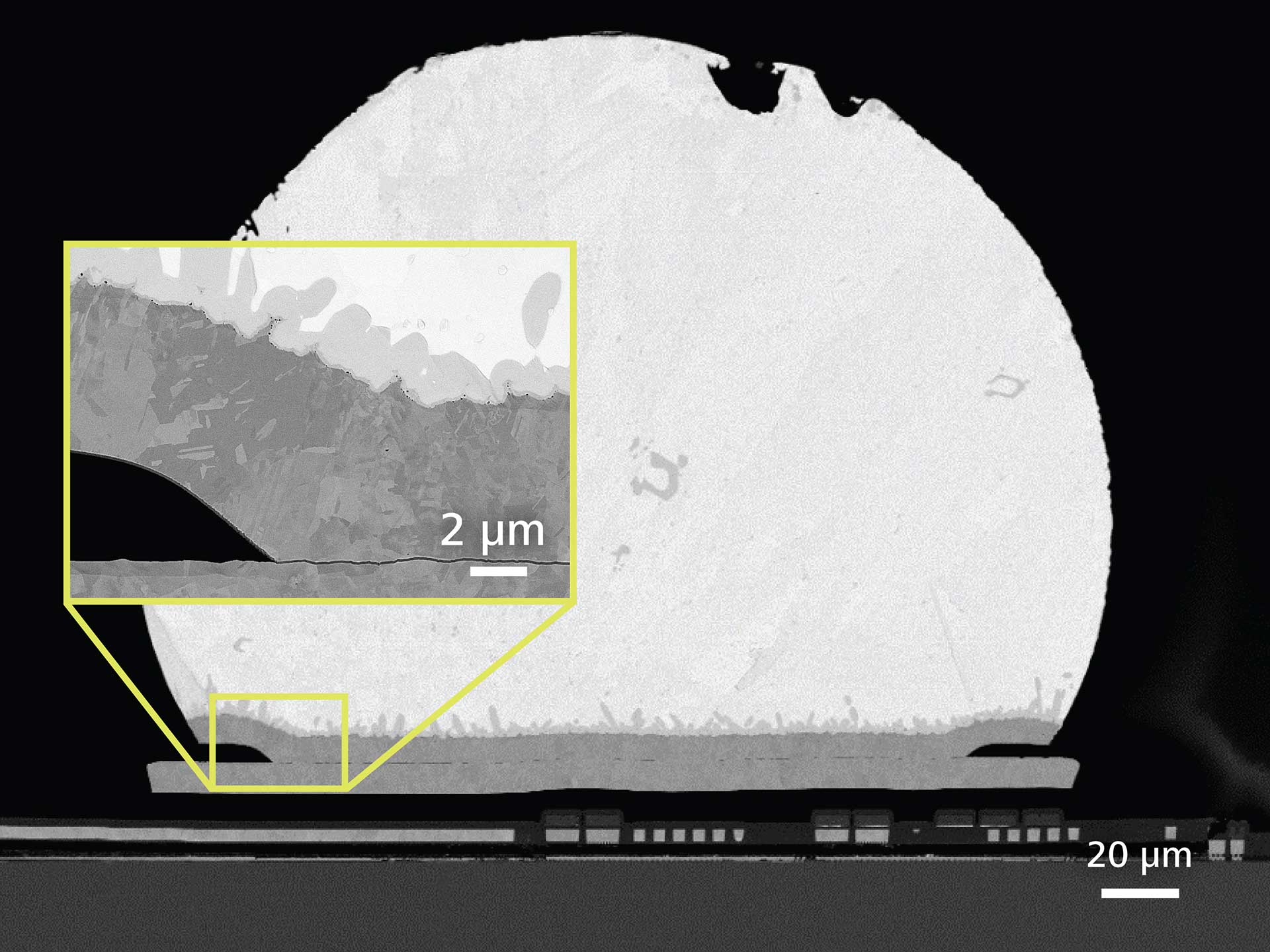

Cross section of a flip-chip solder bump shows material contrast, channeling contrast of grain structure, and adhesion.
Inset: Failure at the UBM RDL interface.
Imaged with GeminiSEM FE-SEM
