ZEISS Axiocam 208 color
Cameras

ZEISS Axiocam 208 color

Your Fast, 4K Microscope Camera for Smart Digital Documentation

Axiocam 208 color is your smart versatile 8 megapixel color  microscope camera suitable for education, documentation and routine applications. This CMOS camera delivers crisp,  detail rich live images with high color fidelity at full 4k  resolution in outstanding 30 fps.

Axiocam 208 color

Choose Between Three Modes of Operation:

  1. In stand-alone mode, you don’t need a PC to acquire microscope images. The camera automatically adjusts brightness and white balance and offers live image
    enhancement functions like sharpening, denoising and HDR. Digital documentation of your specimen has never been easier.
  2. Alternatively, connect the CMOS camera via USB or to a network and control it wirelessly with the easy-to-use imaging app Labscope. Since you can connect multiple cameras to the network, Axiocam 208 color is the ideal solution for digital classroom applications and for connected laboratories, too.
  3. In addition, you can use the powerful imaging software ZEN with your Axiocam 208 color.
brightfield rat tongue
Rat tongue in transmitted light brightfield

Rat tongue in transmitted light brightfield

ZEISS Axiocam 208 color is Recommended for

  • Documentation
  • Education/Teaching
  • Routine tasks
  • Materials research
  • Quality assurance/Quality control
  • Fast high resolution live image for co-observation

Caption: Rat tongue in transmitted light brightfield

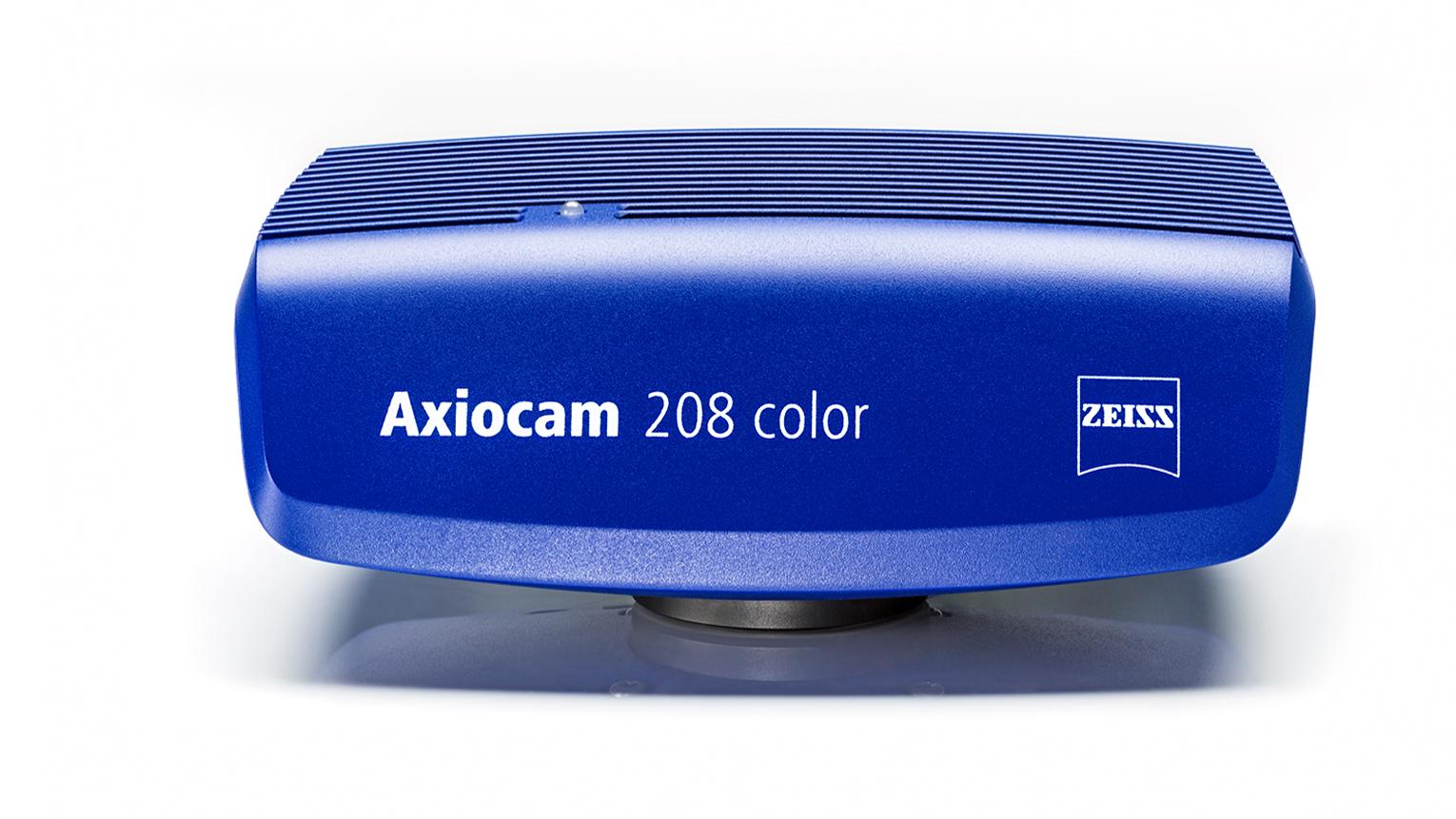

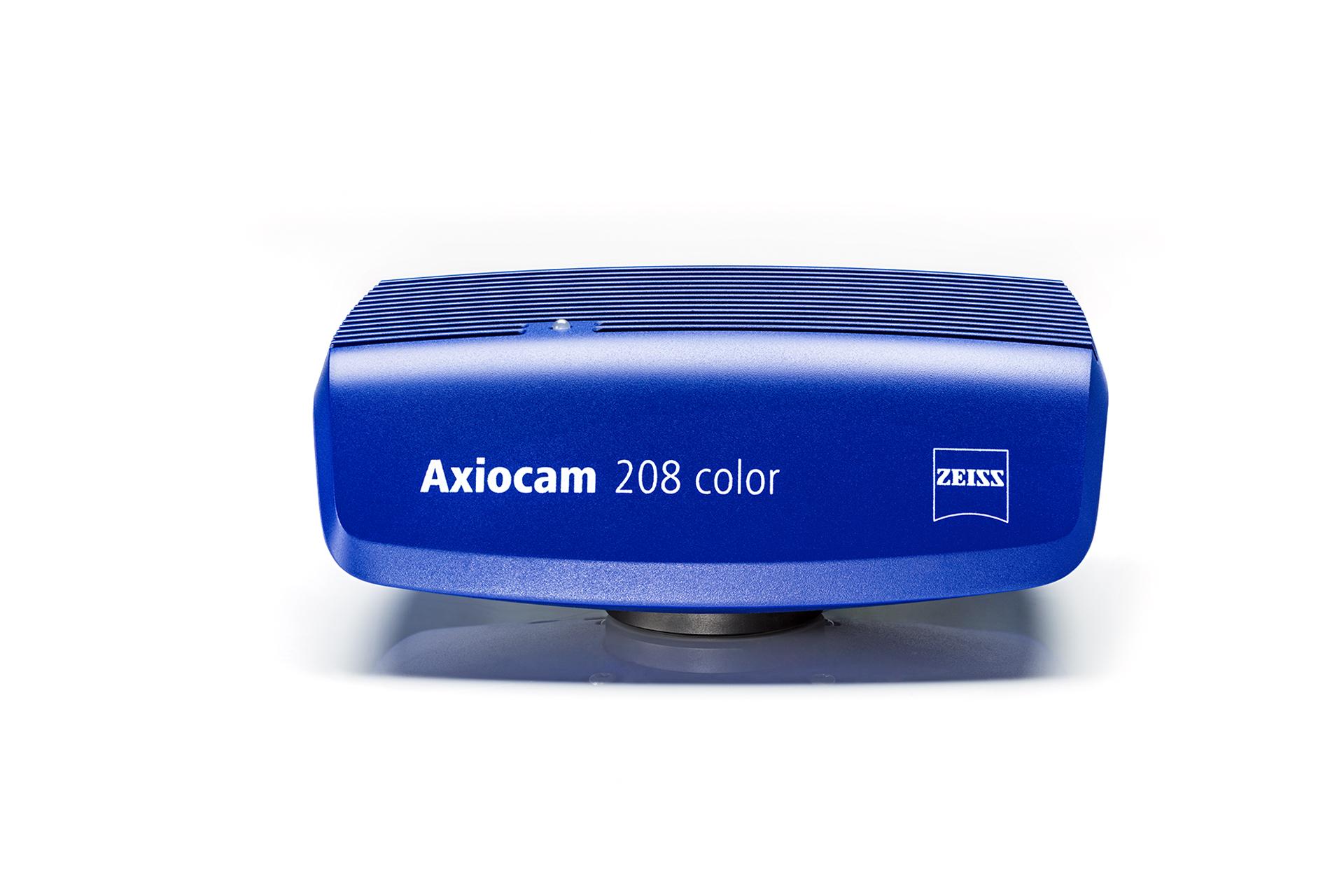

  • Axiocam 208 color - front

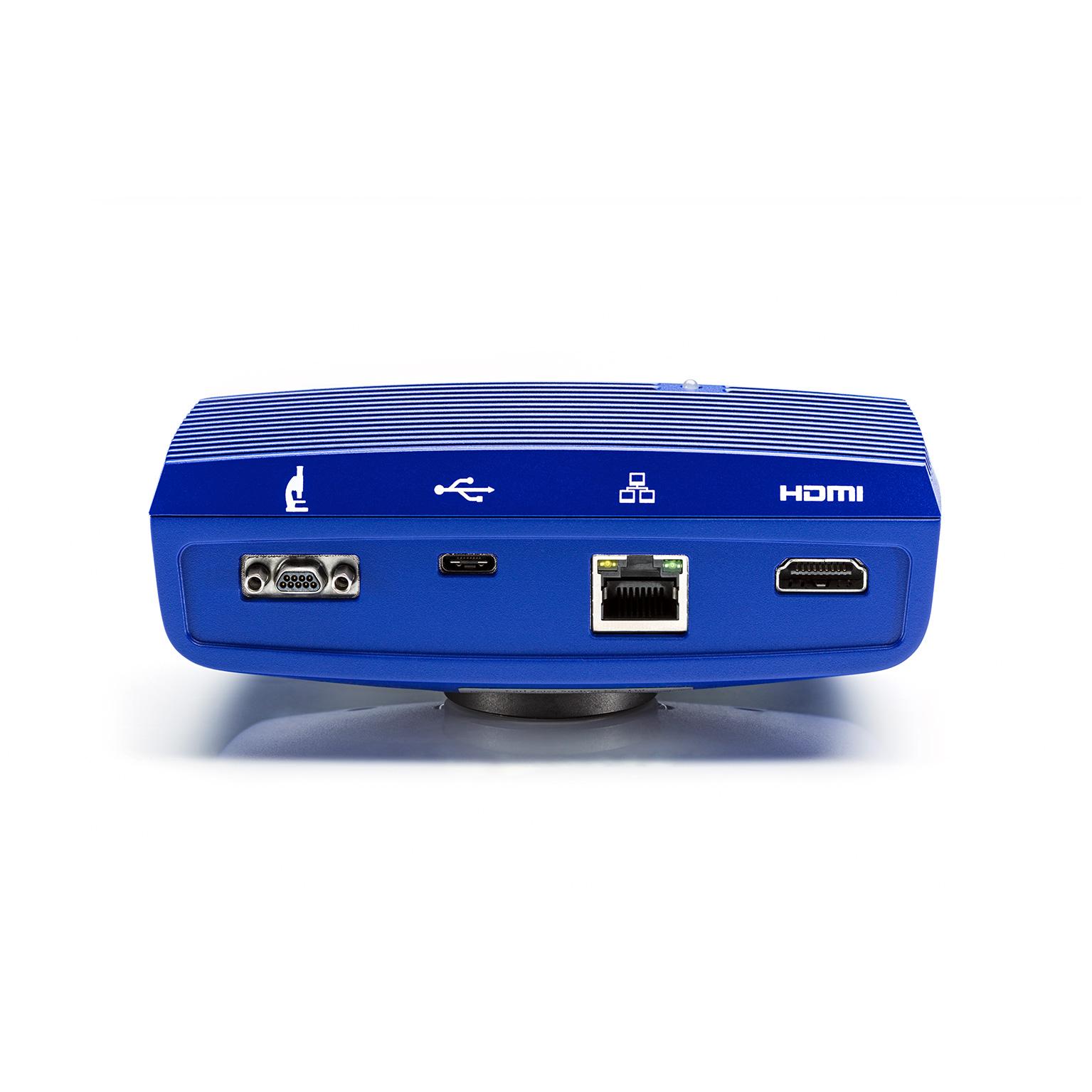

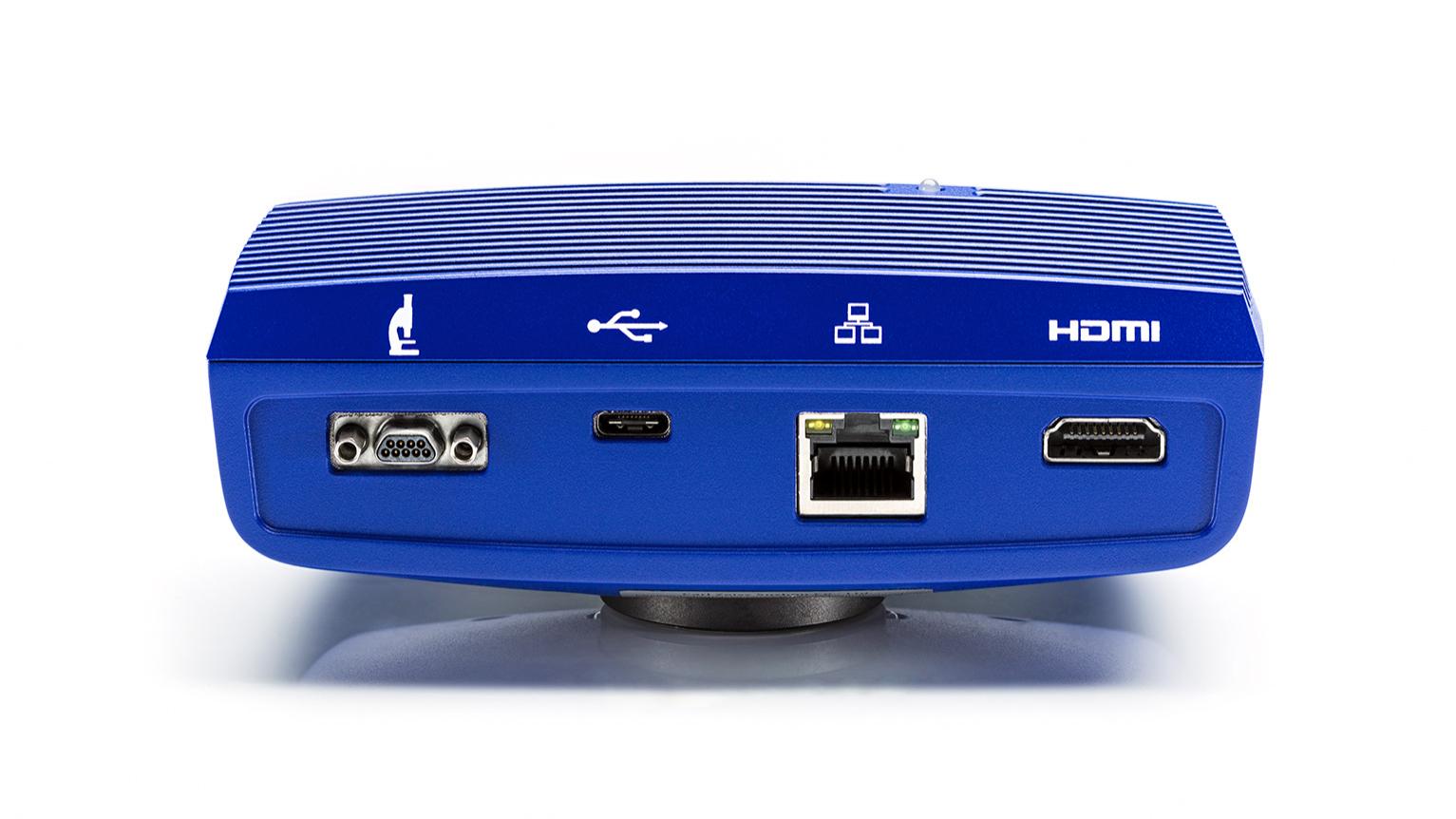

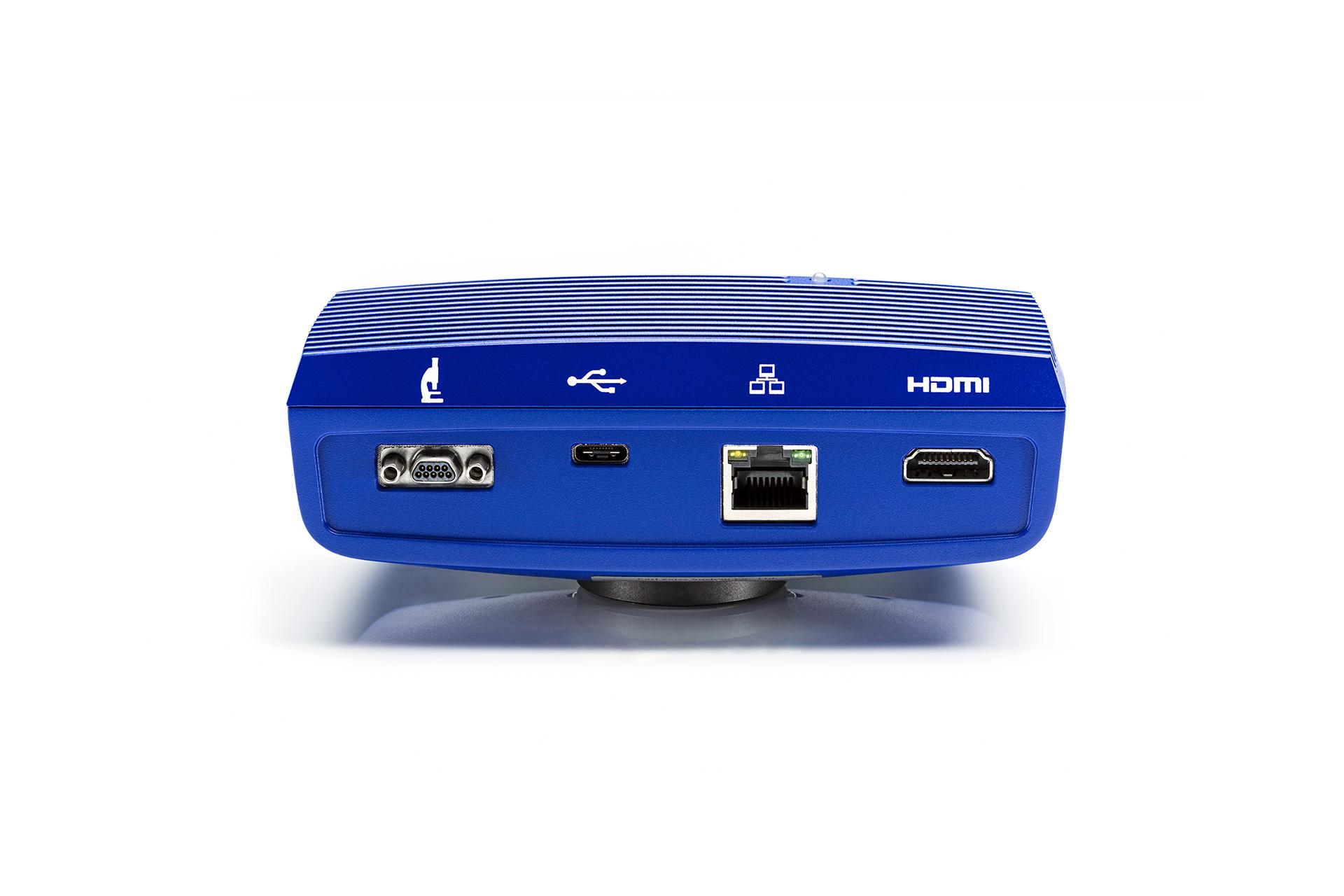

  • Axiocam 208 color - back
  • Axiocam 208 color - front
  • Axiocam 208 color - back

For Smart Digital Documentation

With smart microscopy, digital documentation of your samples has never been easier.
Axiocam 208 color is your 8 Megapixel color microscope camera for Smart Microscopy. This CMOS camera is suitable for education, fast digital documentation and all your routine applications.

Axiocam 208 color delivers:

  • crisp, detail rich live images
  • with high color fidelity
  • at full 4K resolution
  • in outstanding 30 fps and
  • easy operation due to automatic functions

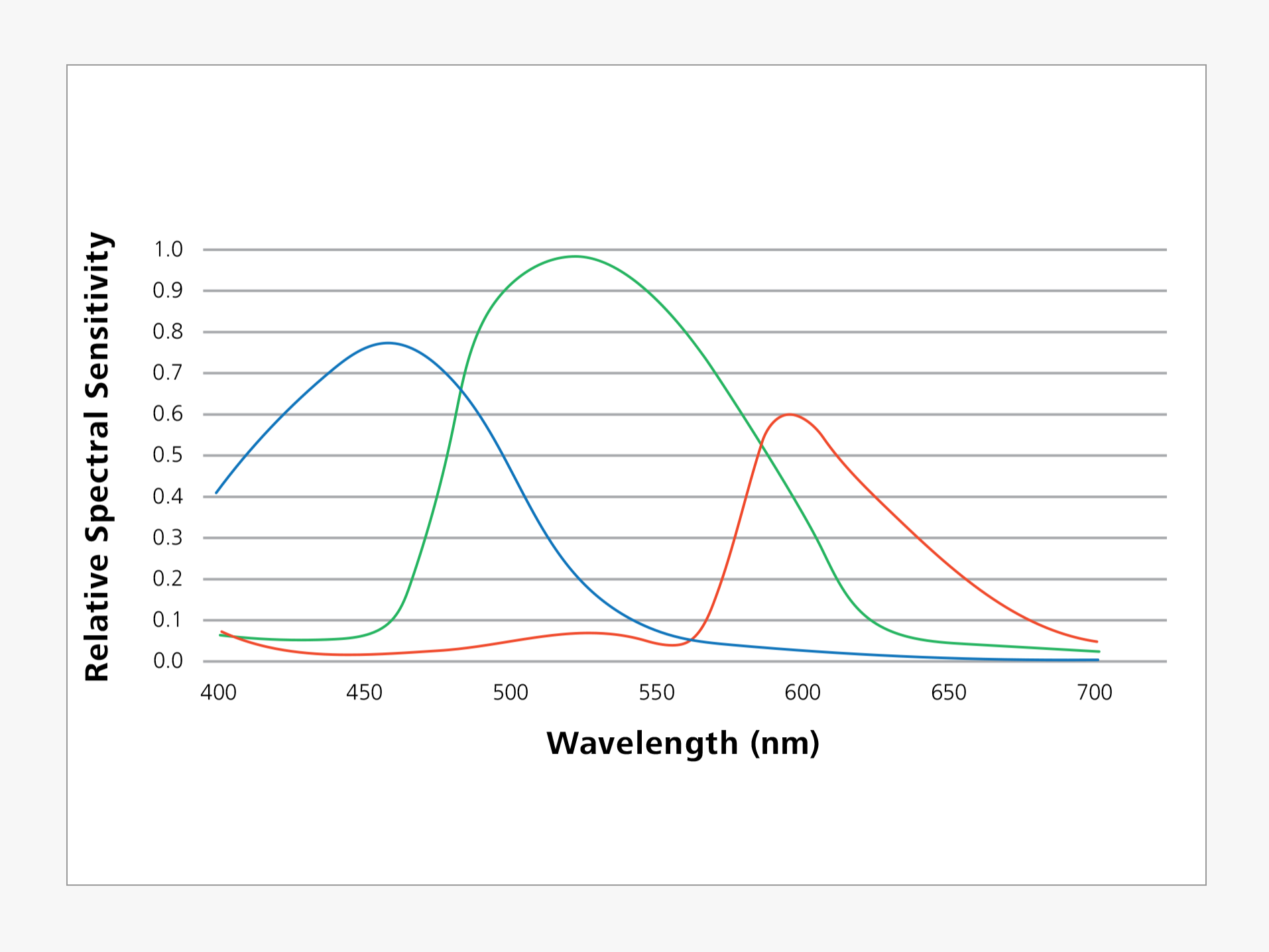

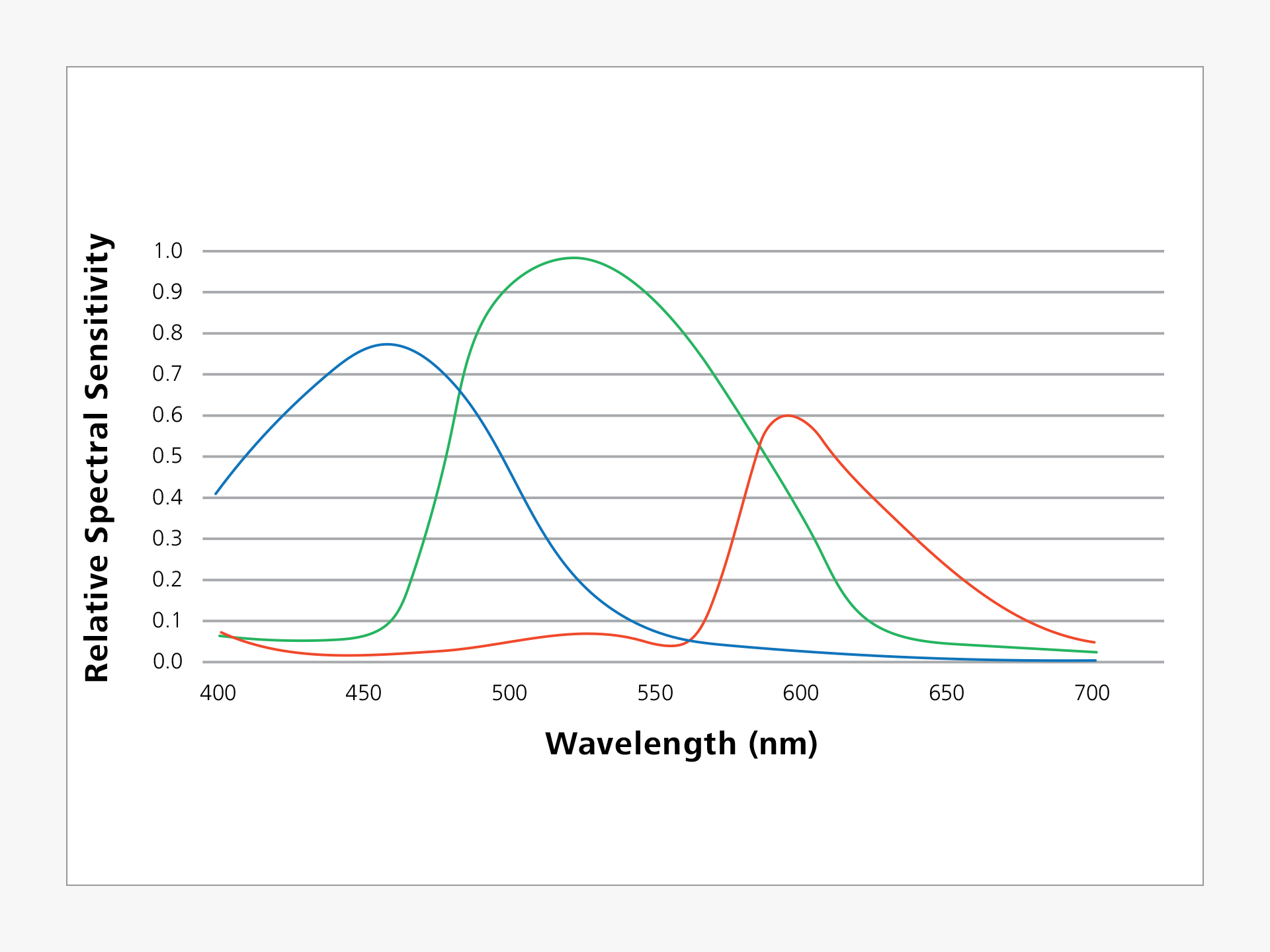

Relative Spectral Sensitivity
Relative Spectral Sensitivity

Relative spectral sensitivity

Relative spectral sensitivity

Highlights of Axiocam 208 color

  • Full 4K resolution in outstanding 30 fps
  • Brilliant color rendering
  • Live image enhancement functions like sharpening, denoising and HDR
  • Use in stand-alone mode and save images on USB flash drive, use Labscope imaging app or ZEN imaging software
  • Easy and effortless digital documentation – especially suitable for education, digital classroom and routine documentation
  • Ethernet or USB 3.0 as digital data interface
  • Use the optional WiFi stick and Labscope imaging app to control and transfer data wirelessly
  • Document your samples as you see it in the eyepieces
  • Stand-alone operation with camera control by intuitive On Screen Display via mouse and keyboard without a PC
  • Connect directly to a monitor by a HDMI cable for live image display for search and focussing and review of acquired images
  • Perform secure image data transfer to TWAIN-compatible 3rd party software solutions with the TWAIN driver.

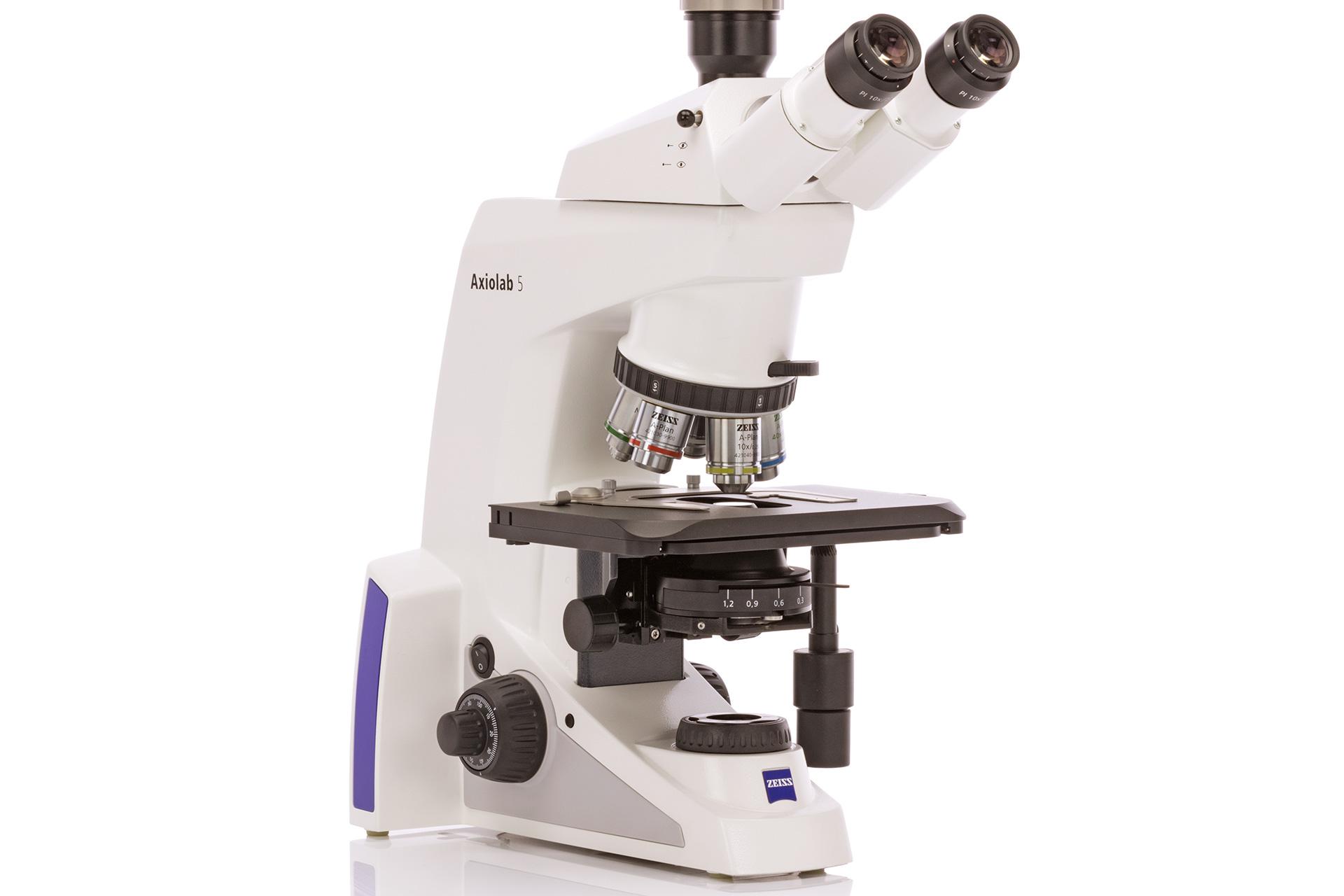

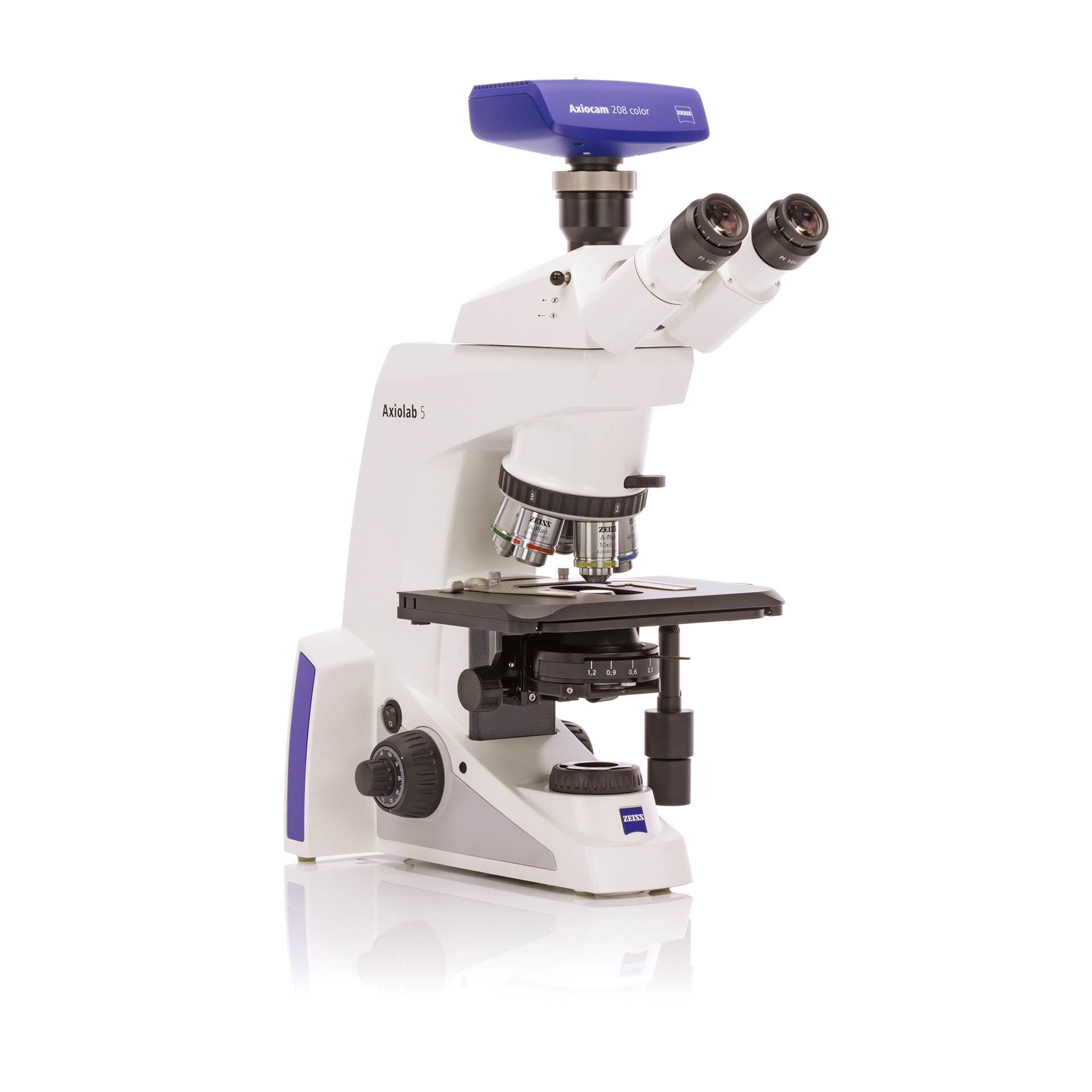

  • Axiolab 5 with Axiocam 208 color
  • Axiocam 208 color - back
  • Axiolab 5 with Axiocam 208 color
  • Axiocam 208 color - back

Smart Microscopy

Boosts Your Efficiency and Reduce the Time to Result

Combine Axiocam 208 color with Axiolab 5 or Axioscope 5 light microscopes to experience the full power of smart microscopy. The camera itself controls the microscope illumination and can read the microscope's status.

You benefit from:

  • Automatic adjustments in the camera for high color and contrast reproducibility.
  • An integrated system that saves you both space and money because no extra computer is needed.
  • Image data completeness since all metadata, including scaling, are automatically stored with your images.

… and all it takes is just a simple press of the Snap button.

Application Examples

  • Corylus avellana in transmitted light brightfield
  • Blood smear in transmitted light brightfield
  • Rat kidney in transmitted light brightfield
  • Varroa mite in transmitted light brightfield
  • Corylus avellana in transmitted light brightfield

    Corylus avellana in transmitted light brightfield

  • Blood smear in transmitted light brightfield

    Blood smear in transmitted light brightfield

  • Rat kidney in transmitted light brightfield

    Rat kidney in transmitted light brightfield

  • Varroa mite in transmitted light brightfield

    Varroa mite in transmitted light brightfield

Downloads

    • ZEISS Axiocam 208 color

      Your Fast, 4K Microscope Camera for Smart Digital Documentation

      694 KB
    • ZEISS Axiocam Family

      Your Guide to Microscope Camera Technology from ZEISS

      14 MB


    • Axiocam 208 color 202 mono

      Instruction Manual (English)

      4 MB
    • Axiocam 208 color 202 mono

      Instruction Manual (Italian)

      4 MB
    • TWAIN for Axiocam 202/208

      Quick Guide (English)

      2 MB
    • ZEISS Axiocam 208 color 202 mono

      Instruction Manual (Spansih)

      4 MB
    • ZEISS Axiocam 208 color 202 mono

      Instruction Manual

      5 MB


    • ZEISS Axiocam 208 color (Italian Version)

      La fotocamera in 4K per la documentazione digitale intelligente al microscopio

      478 KB
    • ZEISS Axiocam 208 color (Russian Version)

      Смарт-камера для быстрой микросъемки в разрешении 4K

      1 MB
    • ZEISS Axiocam 208 color (Turkish Version)

      Akıllı Dijital Dokümantasyona Yönelik Hızlı 4K Mikroskop Kameranız

      464 KB
    • ZEISS Axiocam 208 color (Vietnamese Version)

      Camera hiển vi kỹ thuật số thông minh 4K tốc độ cao

      646 KB


Visit the ZEISS Download Center for available translations and further manuals.
