ZEISS Axiocam 212 color

Your Clever 12 Megapixel Microscope Camera for Smart Digital Documentation

ZEISS Axiocam 212 color is your smart 12 megapixel color microscope camera suitable for education, documentation and routine applications. This CMOS camera delivers crisp, detail rich live images with high color fidelity at full 4k resolution in up to outstanding 30 fps.

Flexible use: choose between modes of operation
Fast live images: full 4K resolution in up to outstanding 30 fps
Supports smart microscopy: the camera automatically adjusts parameter for you

On-screen display of Axiocam 212 color - TL acquisition screenshot

Choose Between Modes of Operation

Stand-alone mode: you don’t need a PC to acquire microscope images. The camera automatically adjusts brightness and white balance and offers live image enhancement functions like sharpening, denoising and HDR.
Alternatively, connect the CMOS camera via USB, Ethernet or wirelessly via Wi-Fi dongle to a computer and the imaging software Labscope or ZEN. Since you can connect multiple cameras to the network, Axiocam 212 color is the ideal solution for digital classroom applications and for connected laboratories, too.

ZEISS Axiocam 212 color is Recommended for

Documentation
Education/Teaching
Routine tasks
Materials research
Quality assurance/Quality control
Fast high resolution live image for co-observation

^{Caption: Retina in brightfield, mouse embryo. Azan staining}

Smart Digital Documentation

If you combine Axiocam 212 color with ZEISS Axiolab 5, Axioscope 5 or Axioscope 7 microscope stands you can experience the full concept of smart microscopy. The camera communicates with the microscope and always extracts the correct scaling information.

You benefit from:

Automatic adjustments for high color and contrast reproducibility.
An integrated system that saves you both space and money because no extra computer is needed.
Image data completeness since all metadata, including scaling, are automatically stored with your images.

… and all it takes is just a simple press of the Snap button.

Spectral Sensitivity of Axiocam 212 color (incl. IR Filter)

Relative spectral sensitivity of

ZEISS Axiocam 212 color

Full 4K resolution in up to outstanding 30 fps
Live image enhancement functions like sharpening, denoising and HDR
Use in stand-alone mode, review and save all images on USB flash drive or use the imaging software Labscope or ZEN
Easy and effortless digital documentation – especially suitable for education, digital classroom and routine documentation in life sciences
Connections via USB, Ethernet, Wi-fi and HDMI
Wi-Fi compatible – use Labscope imaging software to control your camera wirelessly
Stand-alone operation with camera control by intuitive on-screen display (OSD) via mouse and keyboard without a PC

Application Examples

Representative image of human bone marrow in brightfield
Representative image of human blood vessel in brightfield
Oenothera vascular bundle in brightfield
Camellia leaf vascular bundle in brightfield, cross section

ZEISS Axiocam 203 mono and Axiocam 212 color are supported from ZEISS Labscope 4.4 You can download the software via the portal or the app stores for free.
You can do measurements in the live image in stand-alone mode via the OSD. No additional hardware or software is required.
The automated functions such as white balance are available via USB, Ethernet, Wi-Fi and HDMI.
ZEISS Axiocam 203 mono and Axiocam 212 color get their power via an external power supply.
Yes, TWAIN plugin is available.
Yes, you can control the cameras via ZEISS Labscope or ZEN and simultaneously show the image on HDMI monitor. But, you cannot control by OSD while the camera is controlled by ZEN or Labscope.
Axiocam 203 mono and 212 color are not Wi-Fi cameras - but you can buy a ZEISS Wi-Fi adapter separately (5 GHz / 2.4 GHz) to connect to network.
The sensor diagonal for full sensor is 9.3 mm, for lower resolution 8.2 mm. A C-mount adapter of 0.5x is recommended for the adaptation to the microscope. With a 0.5x adapter a large field with an image diagonal of approximately 18.6 mm would be captured for full sensor acquisition, for lower resolution an image diagonal of approximately 16.4 mm would be captured. If necessary, the use of shading correction function is available to keep the image free from vignetting.

Downloads

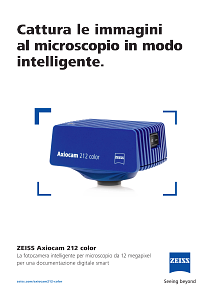

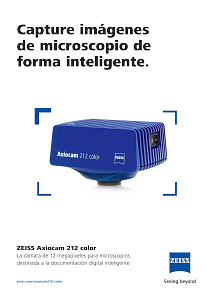

ZEISS Axiocam 212 color
