ZEISS Axioscope

Your Smart Microscope for Biomedical Routine and Research

In your clinical lab, such as a pathology lab, smart features and ergonomic handling are particularly valuable. While working with Axioscope 5 all you have to do is focus and press Snap. You're done. This allows you to fully concentrate on analyzing and documenting your samples. You'll work more efficiently, save time and produce high contrast images with best image quality. What's more: this even works without any PC involved.

Acquire four fluorescence channels with just one click. Camera settings such as white balanced are done automatically.
Keep an eye on your and your colleagues health. Axioscope 5 is designed with ergonomics in mind.

Watch the ZEISS Axioscope 5 Product Videos

Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

ZEISS Axioscope 5 – 10 Highlights in 90 Seconds: Acquire multichannel fluorescence images with ease with Axioscope 5 and Smart Microscopy.

4 Multichannel Fluorescence Channels with Just One Click

Acquiring fluorescent images has never been so easy. Combine Axioscope 5 with the LED light source Colibri 3 and the sensitive, standalone microscope camera Axiocam 202 mono to have the perfect setup for easy multichannel fluorescence documentation.
Switch effortlessly between the channels for UV, blue, green and red excitation. Just select the relevant channels and press Snap. The system then takes over and automatically adjusts the exposure time, acquires the image, switches the channel and starts again. That's it: you get your overlayed multichannel fluorescence image including scale bar – even without a PC.

Smart Microscopy Makes Digital Documentation Faster

Axioscope 5 makes documenting your specimens very efficient. The color impression shows up in the camera image exactly the same as it appears through the eyepieces. This smart microscope makes automatic adjustments for brightness and white balance to keep digital documentation easy. All you have to do is focus on your sample, press the ergonomic Snap button on the microscope, and that's it.

Close-up image of the ZEISS Axioscope 5 microscope with the adjustable ergophototube

Enhance Ergonomics in Your Clinical Lab

Axioscope 5 is designed with ergonomics in mind. The microscopes feature an adjustable ergotube, allowing you to modify the eyepiece height and angle to match your natural posture. All essential buttons and controls are within easy reach, reducing the risk of repetitive strain injuries. The light manager automatically adjusts the illumination, you don't need to manually adjust lamp brightness, saving time and reducing eye fatigue.

This is Smart Microscopy

Digital Documentation Made Easy

Used in combination with Axiocam 202 mono or Axiocam 208 color, you have the full advantage of a smart standalone microscope system. Camera settings such as white balance, contrast and exposure time are done automatically. Without needing additional imaging software or even a computer, you can:

Snap images and record videos directly from your stand
Use the mouse to control your camera via on-screen display (OSD)
Save settings
Store images with all metadata of the microscope and camera as well as scaling information
Predefine the name or rename your image

Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

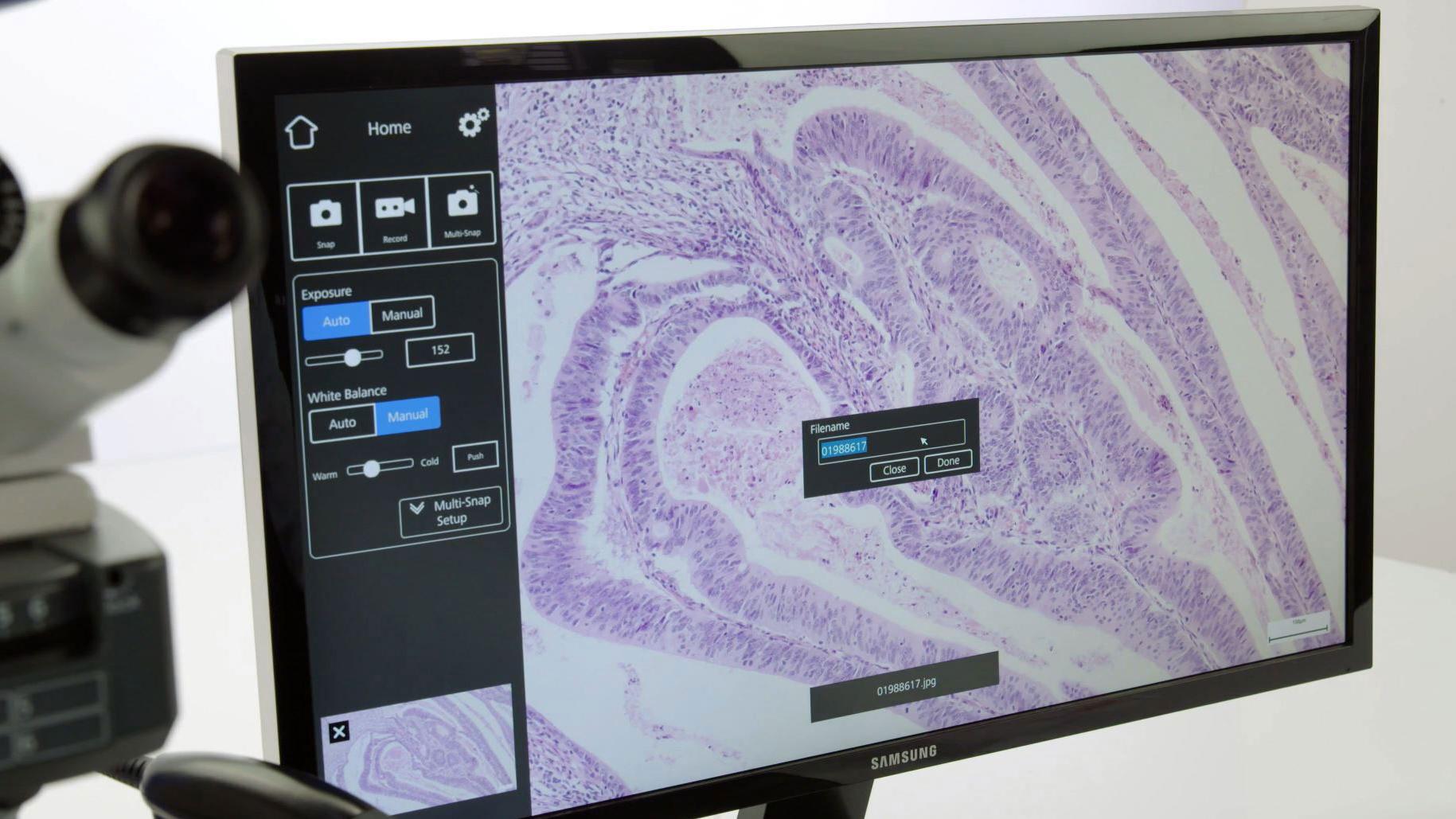

How-to Use a Barcode Reader with Smart Microscopy in Stand-Alone Mode

Faced with a high volume of samples or with sensitive data – or with both – uncomplicated, precise data management is key: you need to work quickly and with total data accuracy.

That’s where barcode labeling comes into its own, helping you work through even large sample quantities with great ease and reliability. Your smart microscope from ZEISS lets you assign microscope images with the correct scaling information to barcode-labeled samples. Just use your Axiolab 5 or Axioscope 5 microscope with Windows PC or iPad, connect a barcode reader to your Axiocam 208 color microscope camera and you’re good to go.
Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

How-to Use Scan a Barcode with Labscope and Smart Microscopy

Faced with a high volume of samples or with sensitive data – or with both – uncomplicated, precise data management is key: you need to work quickly and with total data accuracy. That’s where barcode labeling comes into its own, helping you work through even large sample quantities with great ease and reliability.

Just use your Axiolab 5 or Axioscope 5 microscope with Axiocam 208 color camera and connect it with your iPad. By scanning the barcode with the built-in camera of the iPad, Labscope will assign that particular barcode-ID to the acquired image.

Ergonomics

Work comfortably

In your clinical or biomedical lab you quickly evaluate the status of tissue to decide on further treatment. You regularly check a huge amount of tissue slides under time pressure. Speed is essential. This work can be tiresome as you sit the whole day in front of your microscope. Therefore, a comfortable and relaxed sitting position is key. All microscope controls need to be ergonomic and comfortable. And fit perfectly to your person.

Configurations

With Axioscope 5 and Smart Microscopy You Are Prepared for Today and the Future. Choose the Configuration, Which Suits Best to Your Lab Workflow:

Stand-alone for basic routine imaging

Axioscope 5 in combination with Axiocam 202 mono or Axiocam 208 color operates independently of a computer system.
ZEISS Labscope for advanced routine imaging

Operating Axioscope 5 and Axiocam 202 mono or Axiocam 208 color with the imaging app Labscope is the ideal choice for connected microscopes and standard multichannel fluorescence imaging.
ZEISS ZEN for research applications

With the imaging software ZEN you can perform advanced imaging tasks with your Axioscope 5.

ZEISS Colibri 3 LED Illumination

Complement your Axioscope 5 with the optional fluorescence LED illumination Colibri 3, and acquire brilliant fluorescence images with ease. Colibri 3 delivers the right wavelength and intensity to excite fluorescent dyes and proteins in a gentle way.

Save time and money thanks to the long LED lifetime, the adjustment-free operation, and the avoidance of warm-up or cool-down times.
Choose up to four configurable wavelengths to fit your needs. Upgrade anytime you need to.
Individually control and switch between channels for UV, blue, green and red excitation – or use selected wavelengths simultaneously.
With direct visual status feedback, you are always sure which FL-LED is in use.
The integrated design saves space and makes for easy and ergonomic operation.

ZEISS Axioscope at Work

With Its Wide Range of Contrasting Techniques, Axioscope Is Perfectly Suited for Routine as Well as for Research Applications In: Biology Research, Human & Veterinary Medicine, Microbiology, Plant Sciences & Botany and Forensics

Histological specimen (human)

Chromosome specimen (human)

Renal tissue (human)

Mink Uterus Endometrium Epithelial Cells

Indian muntiac, fibroblasts

Mouse kidney in fluorescence

Novicula Lyra

Crystal

Trout cartilage
