Unlocking Scientific Discoveries at a Core Imaging Facility: Gaining Perspective from the Champalimaud Foundation in Lisbon
Since August 2017, Dr. Davide Accardi has been leading the Advanced BioImaging and BioOptics Experimental Platform (ABBE Platform) at the Champalimaud Foundation (CF) in Lisbon, Portugal.
Almost seven years ago, Prof. Rui Costa (now director of Columbia's Zuckerman Institute) tasked him with building a world-class imaging facility. With complete trust and freedom, he built the facility to meet the standards of a top neuroscience and cancer research institute.
The ABBE Platform
The ABBE Platform provides the equipment and expertise to support CF researchers in the acquisition of high-quality microscopy data. The platform assists users throughout the complete imaging pipeline, including project discussions to identify the most appropriate imaging strategy, detailed technical training and support in image processing, analysis and visualization.
Within the first four years, the ABBE Platform has grown into a globally recognized facility, serving over 170 users annually and managing ten high-end imaging systems with 20,000+ hours of booked time per year.
Accardi leads a team of two imaging specialists, and together they manage a range of systems, including the ZEISS LSM 980 and LSM 880 confocal microscopes. They serve as a bridge between the CF and microscopy companies, managing equipment maintenance, service, and long-term partnerships. They also seek out innovative technologies and organize demos, seminars and workshops to keep CF at the forefront of imaging advances.
We support users on a daily basis, helping them design and execute their projects by optimizing imaging approaches and training them to use the technology independently.
The Confocal Microscope as the Backbone of Research
In any scientific facility, the instruments that form the core backbone play a critical role in the success of diverse research endeavors. When selecting an instrument like the LSM 980 confocal microscope, essential attributes such as flexibility, reliability, and ease of use are paramount. The specifications and features required must not only meet current scientific demands but also anticipate future needs.
To be efficient and effective, the specifications and features of this instrument should not be limited by complex sample preparation, manual optical fine-tuning or artefact-prone hardware or software limitations.
The LSM in Action
Addressing Multiple Application and Research Questions
Bone marrow biopsy

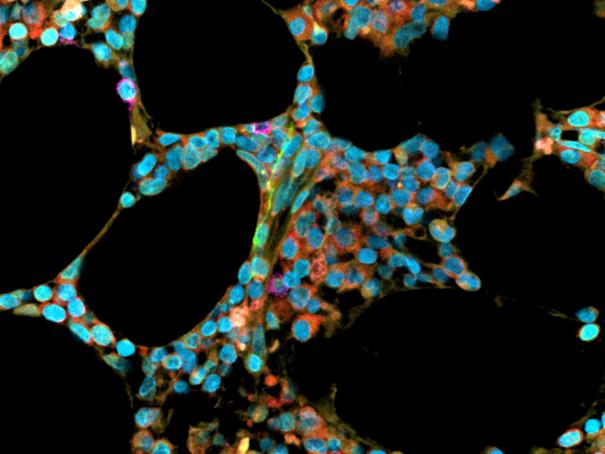

Spectrally unmixed image of a bone marrow biopsy from a patient with asymptomatic Multiple Myeloma, showing nuclei in cyan, plasma cells in red, NK cells in magenta, T cells in yellow, and neuronal fibers in green.
Mouse cortex

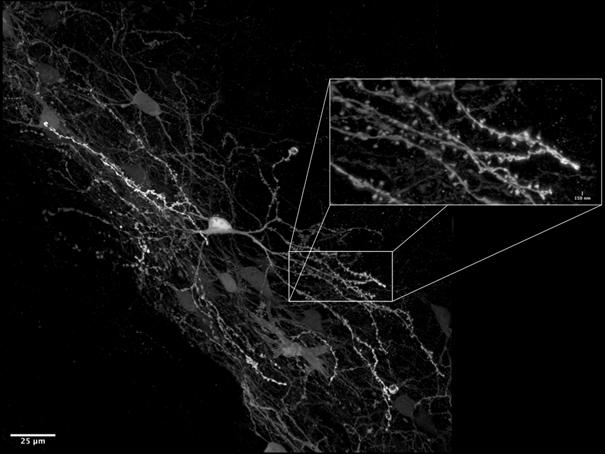

Large area of mouse cortex (250x250x80 µm -X,Y,Z) acquired at 120nm resolution. In front ground, a neuron with its dendrites propagating from the cell body. In the white rectangle, zoomed-in view of dendrites and spines. The size of the spines ranges from 100 to 300nm. Scale bar in the overview image: 25 µm. Scale bar in the zoomed-in views: 150nm.
Usage Frequency and Demand
The LSM 980 confocal microscope is heavily utilized, with core systems booked for approximately 4,000 hours a year, translating to an average of 10 to 12 hours of usage daily.
The dynamics of usage vary significantly among research groups, depending on their specific project phases – whether they are in hypothesis formulation, data collection, analysis, writing, submission, or revision. This leads to periods of tightly compressed experimental activity, where the microscopes are required to operate 24/7, followed by more relaxed phases.
With more than 30 research groups at the institute, the imaging demand is highly diversified. As such, the facility experiences heavy usage not only from groups conducting long experiments but also from those performing numerous short observations.
Comprehensive Training for Efficient Usage
To ensure that researchers and students use the LSM 980 effectively and efficiently, Accardi and team cover essential hardware handling in their trainings, including:
- Turn on/off procedures
- Lens inspection and cleaning
- Stage insert exchange
- CO2 and temperature control module placement and activation
On the software side, they begin by guiding researchers through the AI Sample Finder, a significant improvement that provides an overview of the specimen, acting as a map of coordinates to navigate relevant parts of the sample with multiple objective lenses without needing to switch back and forth between eyepieces and scanning mode.
The automatic channel setup (or Smart Setup) further enhances user experience, making it easier to understand and quick to set up. The animated triangle indicating resolution, speed, and sensitivity serves as an effective tool for explaining the trade-offs involved in different acquisition modalities when using the Airyscan detector or Multiplex mode.
While acknowledging the value of these automated tools, we prefer a hands-on approach with users. We explain the system’s light path—from light sources to detectors—and optimize it according to each user's scientific needs. Researchers learn how to calculate resolution and apply the Nyquist-Shannon sampling principle, enabling them to critically determine acquisition parameters based on the observed structures.
For users requiring higher resolution, fast acquisition modes, or increased detection sensitivity, training includes the use and alignment of the Airyscan detector and Multiplex mode. The LSM 980 has greatly facilitated the Airyscan detector alignment process, allowing automatic alignment across all the tracks needed for the experiment.
We prioritize user training to equip our researchers with the necessary skills and knowledge to effectively harness the full potential of our systems, promoting their autonomy and critical understanding.
Ensuring Reliability and Accuracy
The reliability of the LSM 980 is crucial for our researchers, who engage in both descriptive and quantitative microscopy. Reproducibility in signal detection, structure imaging, and measurements is key.
To ensure the LSM 980 produces consistent and accurate results, we conduct weekly quality check that include laser and lamp power measurements, lens inspections, and system alignment. More thorough assessments are performed quarterly, covering scanner calibration, AI Sample Finder calibration, and sharpness and scan field tests. "Additionally, maintaining premium service contracts with ZEISS guarantees preventive maintenance and rapid responses, which are crucial for minimizing system downtime", Accardi says.
One of the most significant challenges in maintaining microscope reliability and robustness while ensuring efficient facility operations is balancing time and personnel. Achieving an optimal user-to-specialist ratio – approximately 50:1, as outlined in "Advanced light microscopy core facilities: Balancing service, science and career"; Ferrando-May et al. (2016) – is essential for upholding high standards. This balance, alongside systematic scheduling of checks, helps us maintain both efficiency and system reliability.
The ZEISS LSM 980 confocal microscope is the cornerstone of intricate research projects. Through strategic planning, continuous training, and robust maintenance protocols, we ensure that our users get the most out of this critical instrument, leading to groundbreaking discoveries in cancer research and neuroscience.
