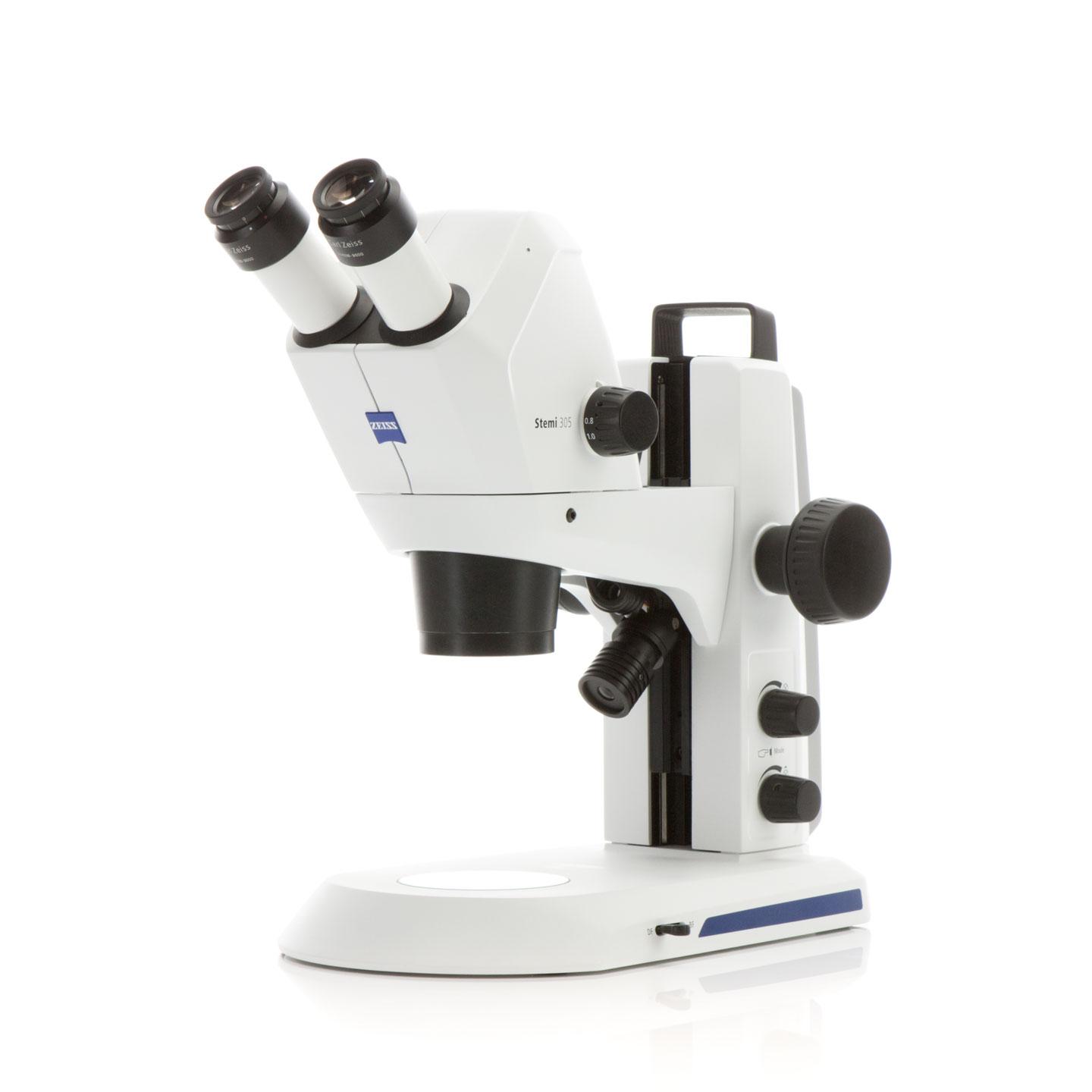

ZEISS Stemi 305 Your Compact Stereo Microscope with 5:1 Zoom

Stemi 305 is your compact, easy-to-use stereo microscope with 5:1 zoom. Everything is integrated: long-living LED illumination for reflected and transmitted light and documentation, too.

All-in-one microscope
Perfectly illuminate your sample
Easily document your results

Request a free Trial

60 days to try your Microscope out

Select a Qualified Microscope of Interest
Request a Risk-Free 60 Day Product Trial
Return within 60 days or Make it Yours

Request your free Trial

Watch the ZEISS Stemi 305 Product Video

Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

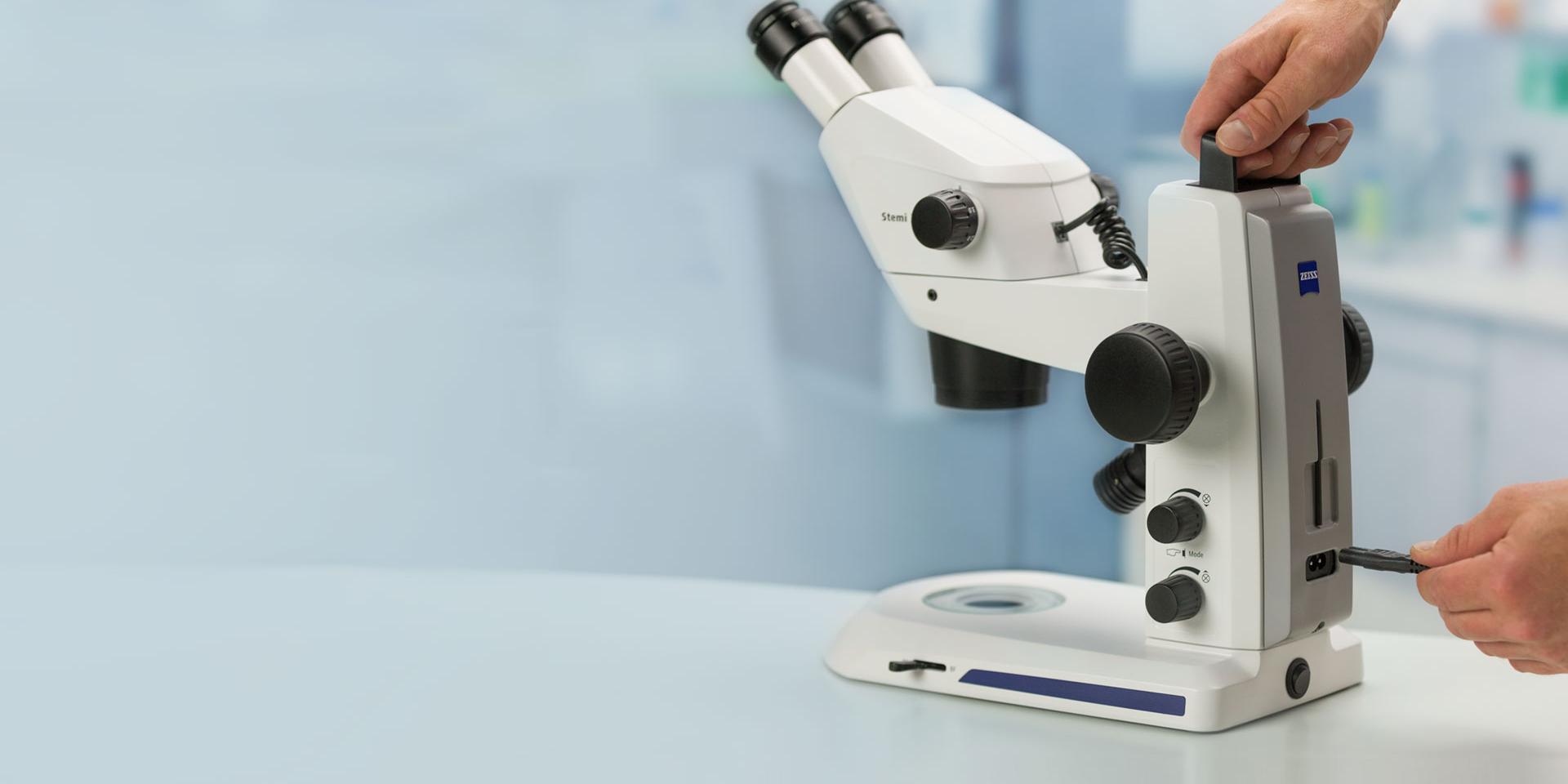

All-In-One Microscope

Stemi 305 integrates everything you need – including varied illumination and documentation.
This compact Greenough stereo microscope comes without additional boxes and cables - just plug it in and switch it on, that’s the installation done.
Stemi 305 can be operated easily, even by untrained users. All you have to do is illuminate your object, focus and start snapping images.

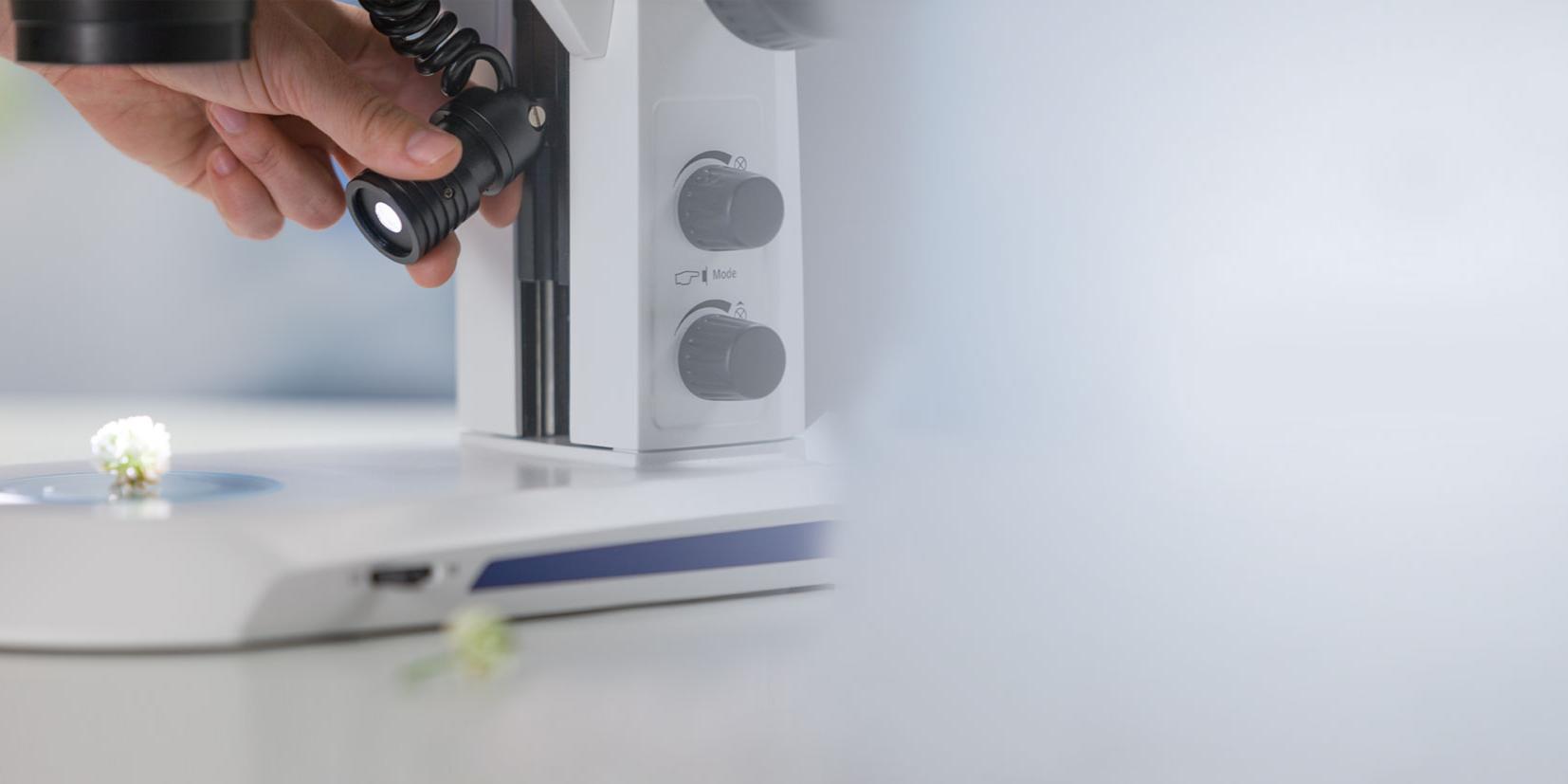

Perfectly Illuminate Your Sample

Easily select and mix the integrated LED illumination: near vertical and oblique reflected light, as well as transmitted light.
The white LEDs generate bright light with the color of daylight, so each image appears crisp and clear.
You profit from long lifetimes and low energy consumption. LEDs stay cool, and they are noiseless and maintenance-free.

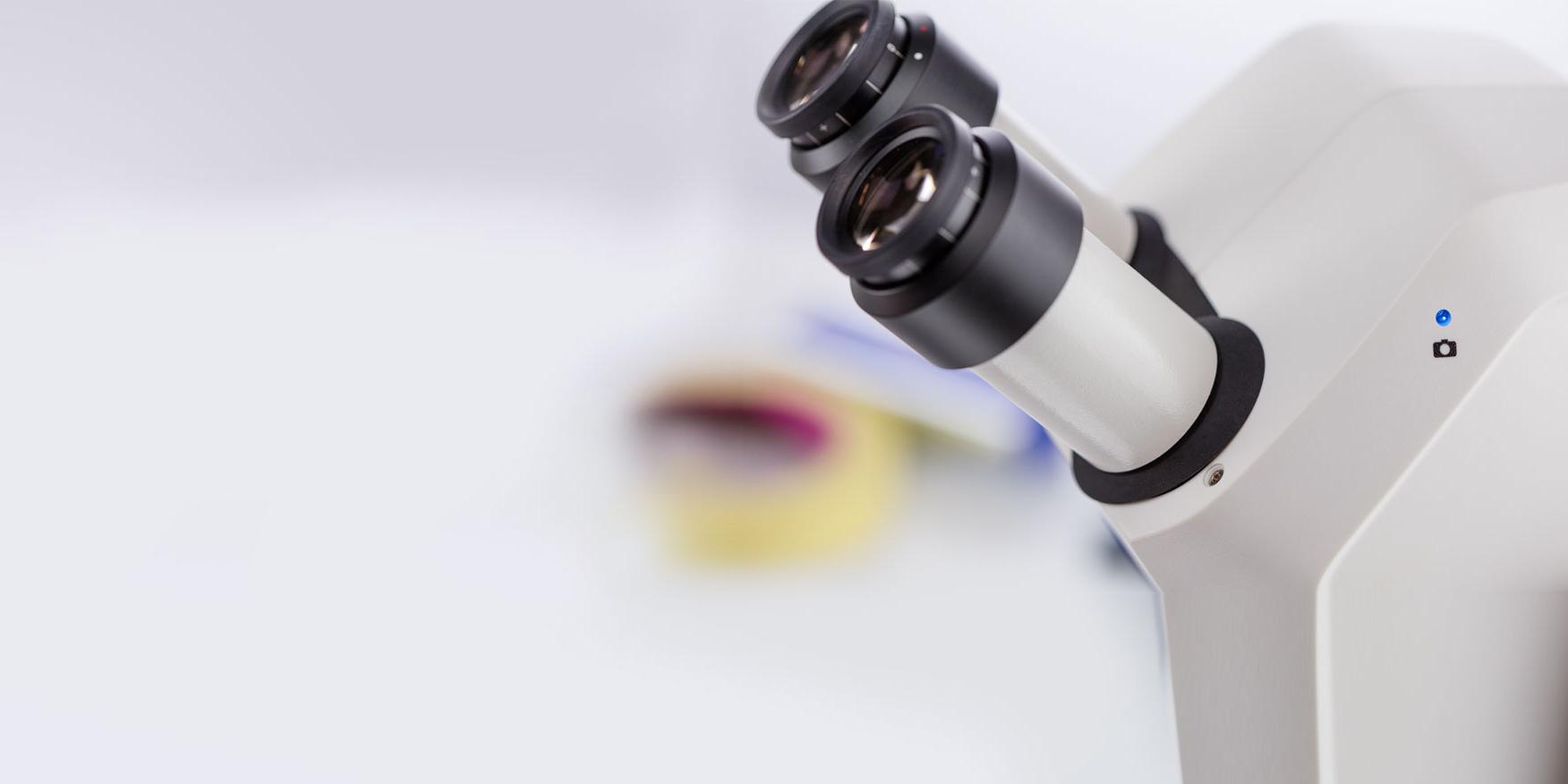

Easily Document Your Results

Choose between two options for documentation:

Decide for the conventional phototube and get access to all ZEISS Axiocam microscope cameras.
Or choose the integrated camera and Wi-Fi router. With the imaging software Labscope you easily acquire and share your images.

Microscope Stands

Choose between predefined microscope sets for education, laboratory and industrial production to get the optimal illumination equipment for your applications.

In education you often have to stow away your systems and set them up again. Storage space is limited. That is why you need the Stemi 305 education set. It has a small footprint, comes with a flat stand base and carrying handle. It's quick to (de)install and easy to shift.

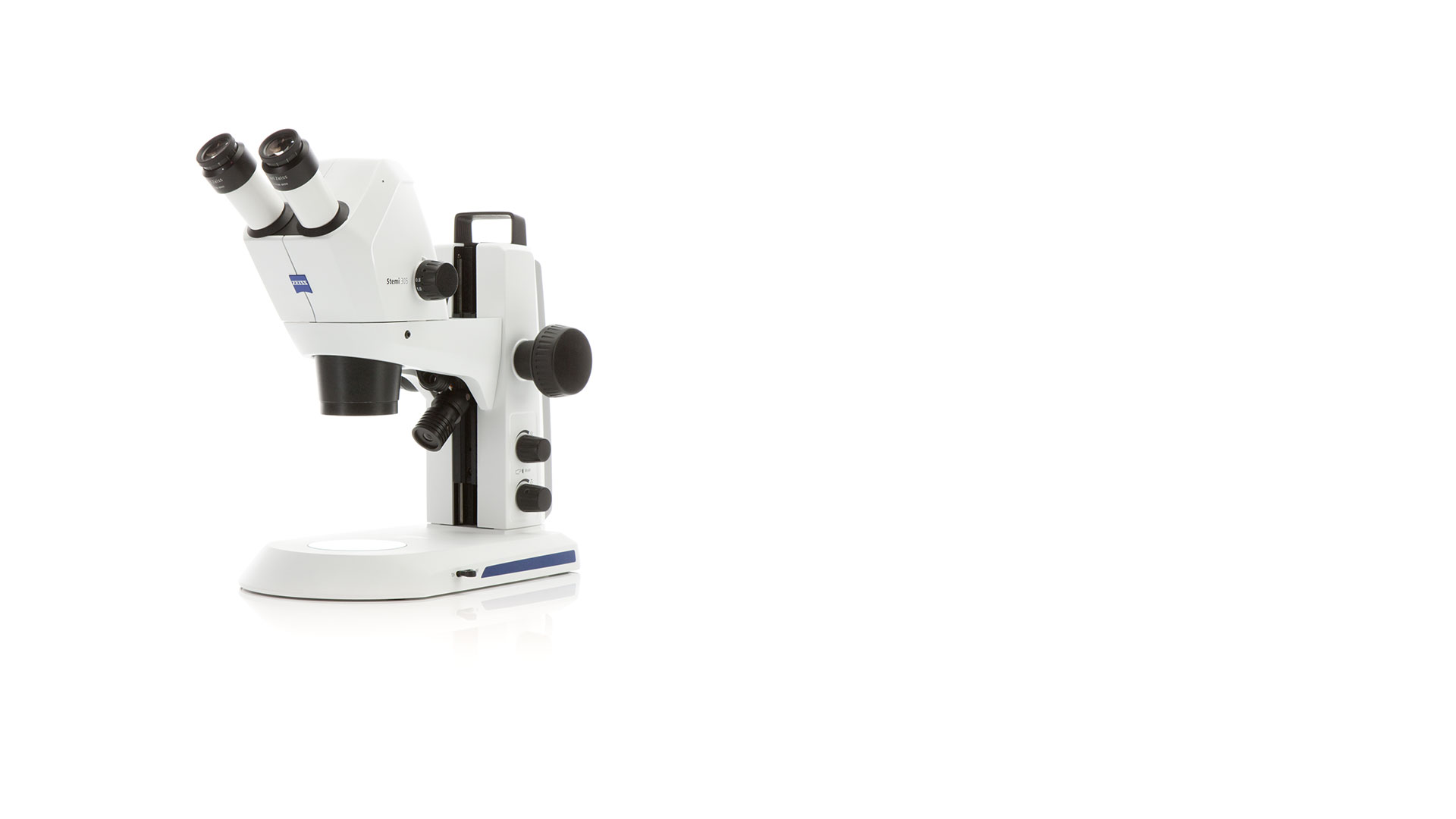

Stand K EDU: Basic configuration for education

In your lab you need variable contrasting methods in transmitted light, but also reflected light. Use the mirror-based transmitted light unit to observe and manipulate even uncolored transparent specimens. Or, combine reflected and transmitted light. Add the ergonomic hand rest to keep your hands relaxed, even during long preparations.

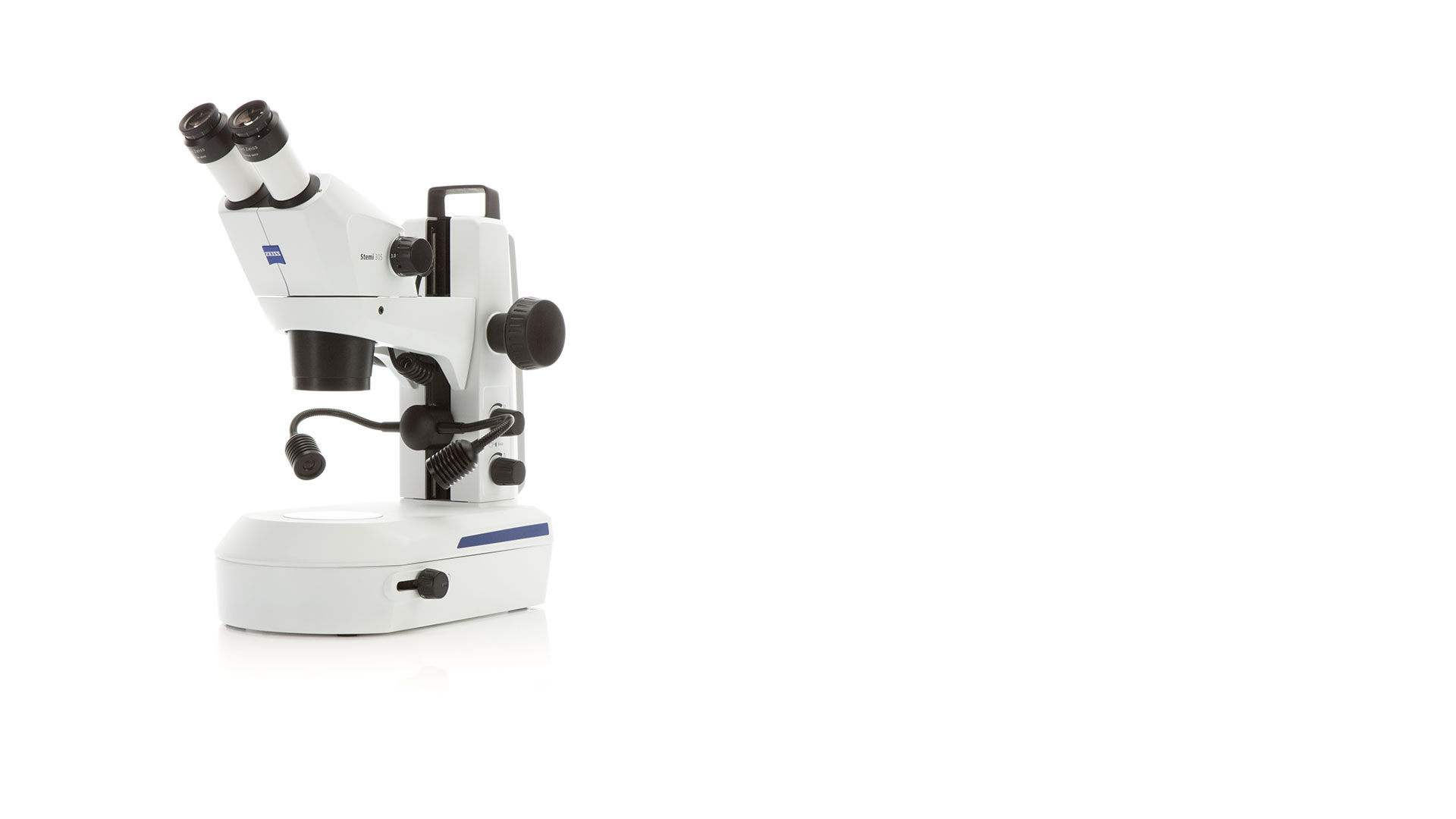

Stand K LAB: Perfect configuration for your laboratory

This configuration is suited for electrostatic protected areas. It also includes two reflected light illuminations: the integrated vertical illuminator to look at holes, threads and cavities - and the segmentable ringlight. Be ready to inspect, assemble or repair electronic or optoelectronic components, small mechanical parts, sensors or measuring devices.

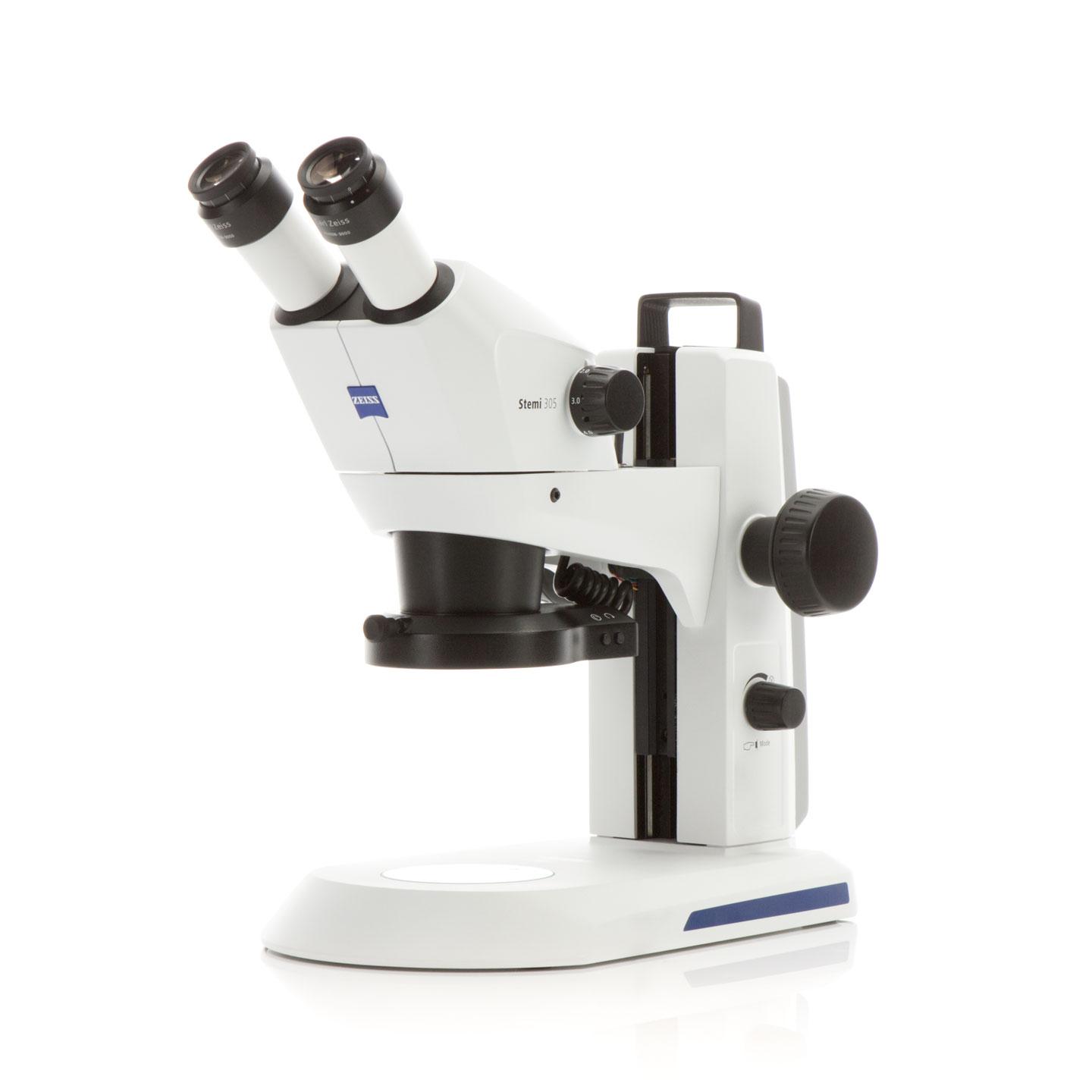

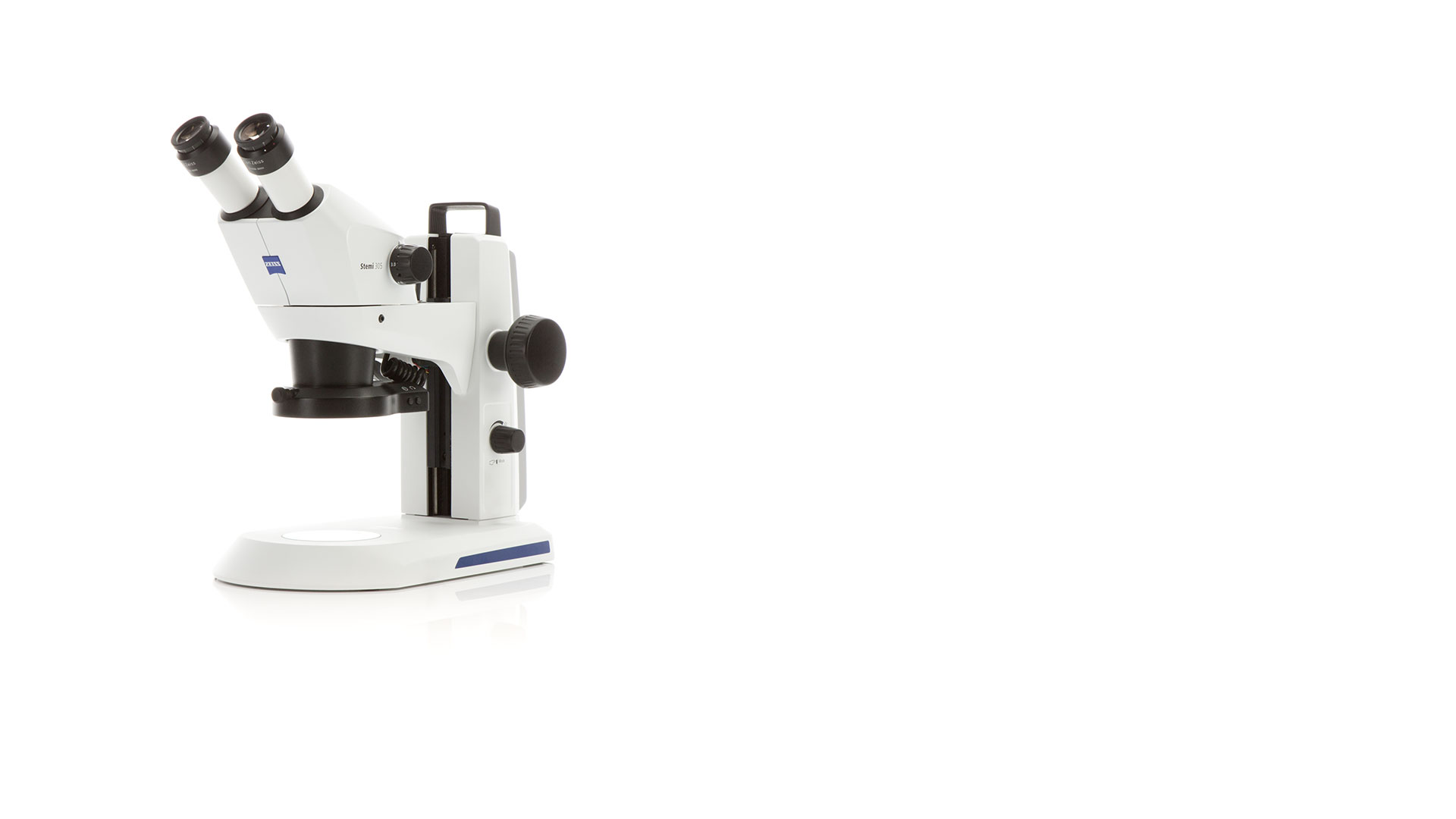

Stand K MAT: Configurated for industrial applications

Illumination

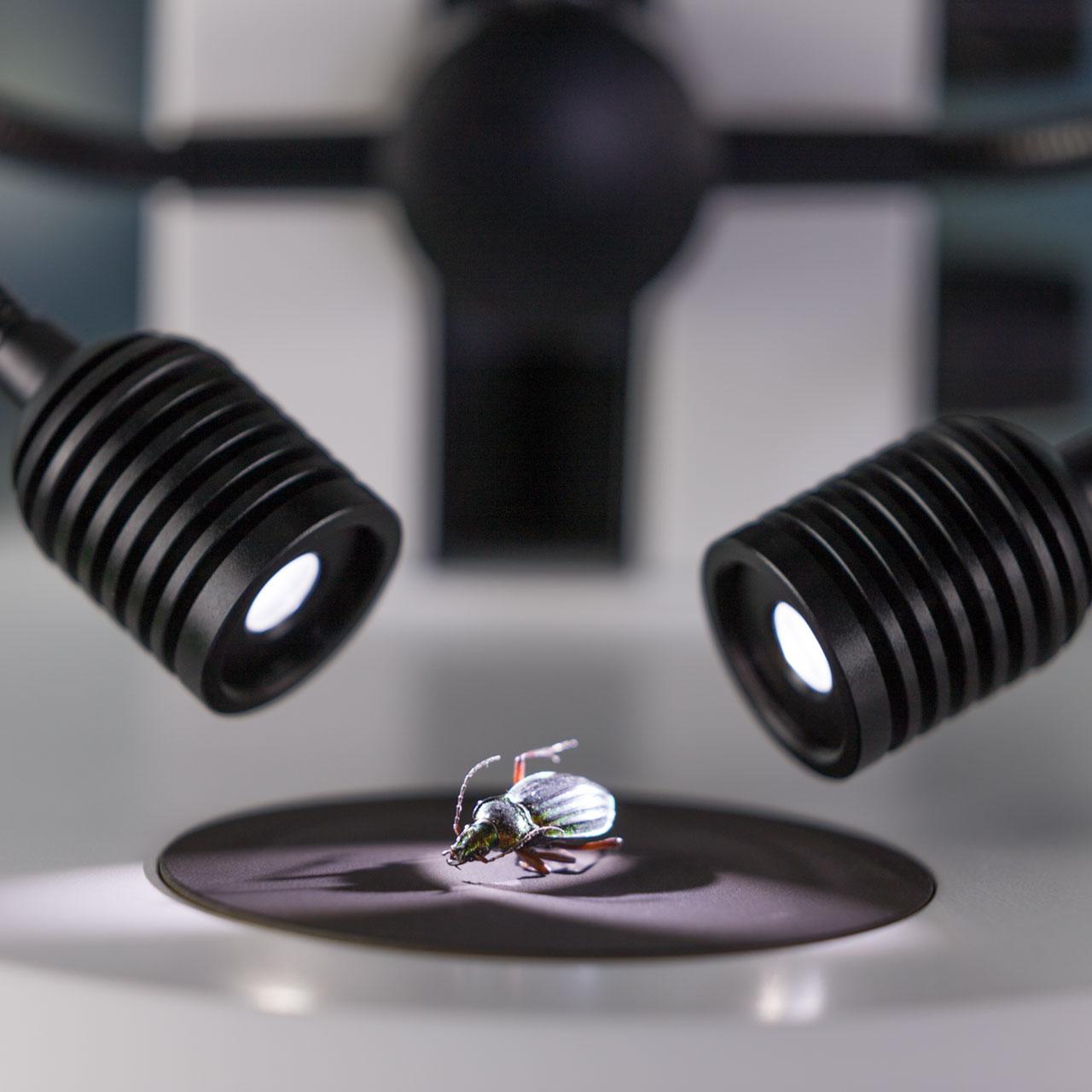

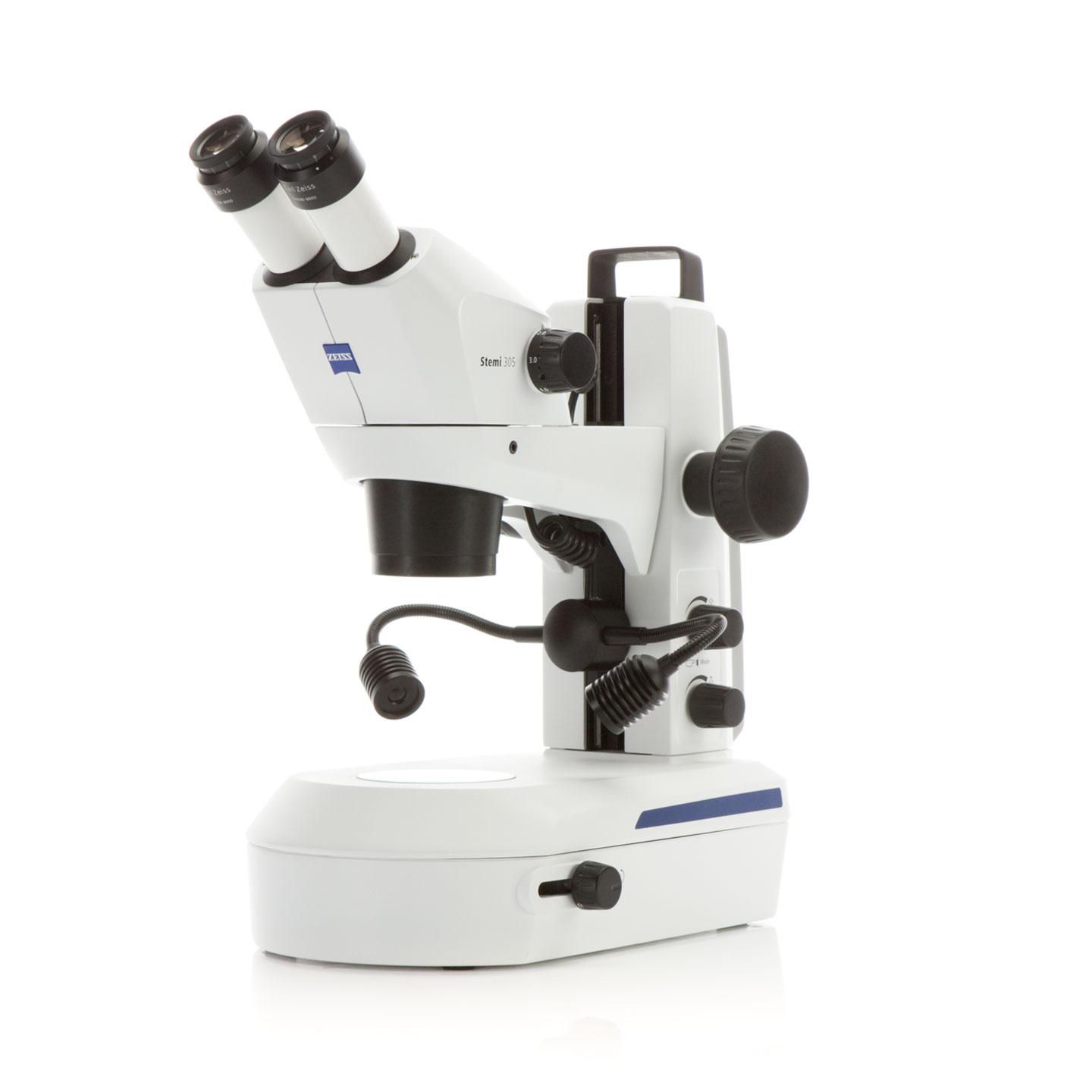

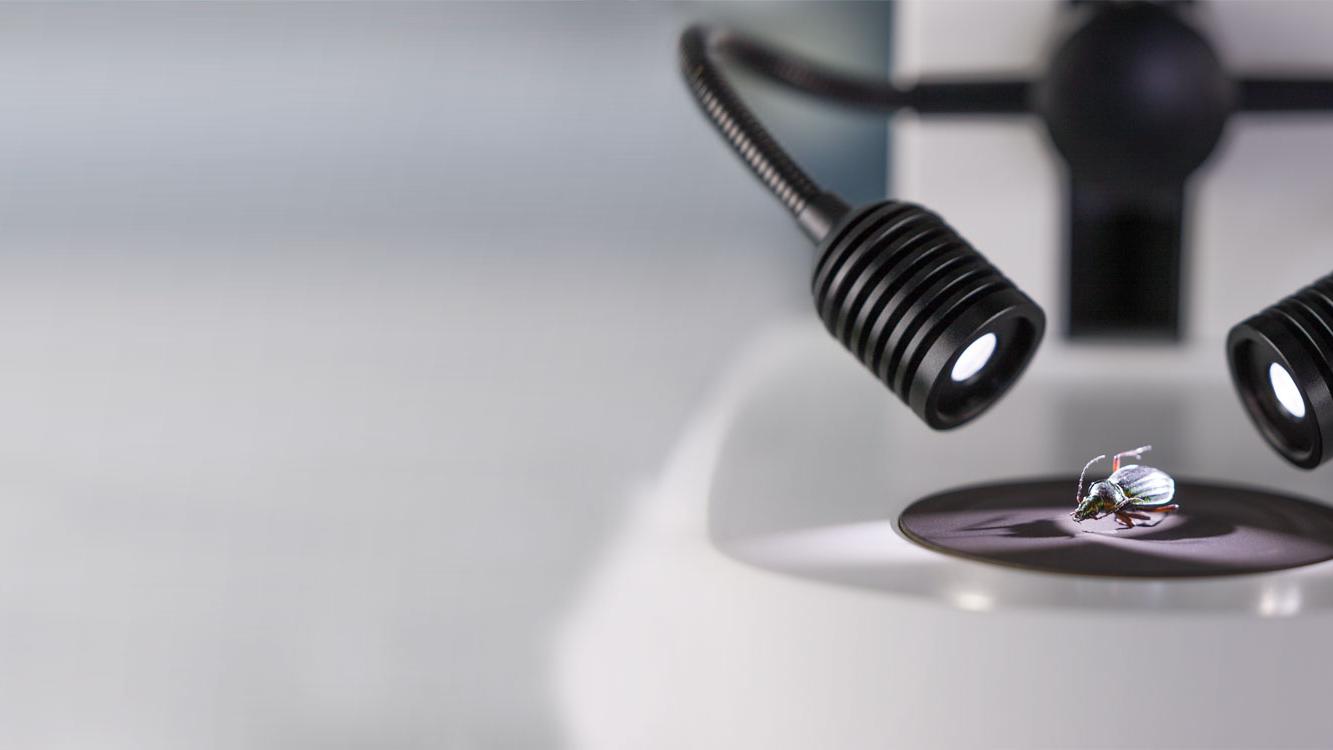

Integrated near vertical illumination LED spot, zoomable and height adjustable, for oblique and grazing light illumination with strong shadow Double arm gooseneck, self-carrying, for variable oblique light illumination with distinct shadow effect LED segmentable ring light for shadow free ring illumination and oblique light segment illumination: half circle, quarter circle, two-spot.

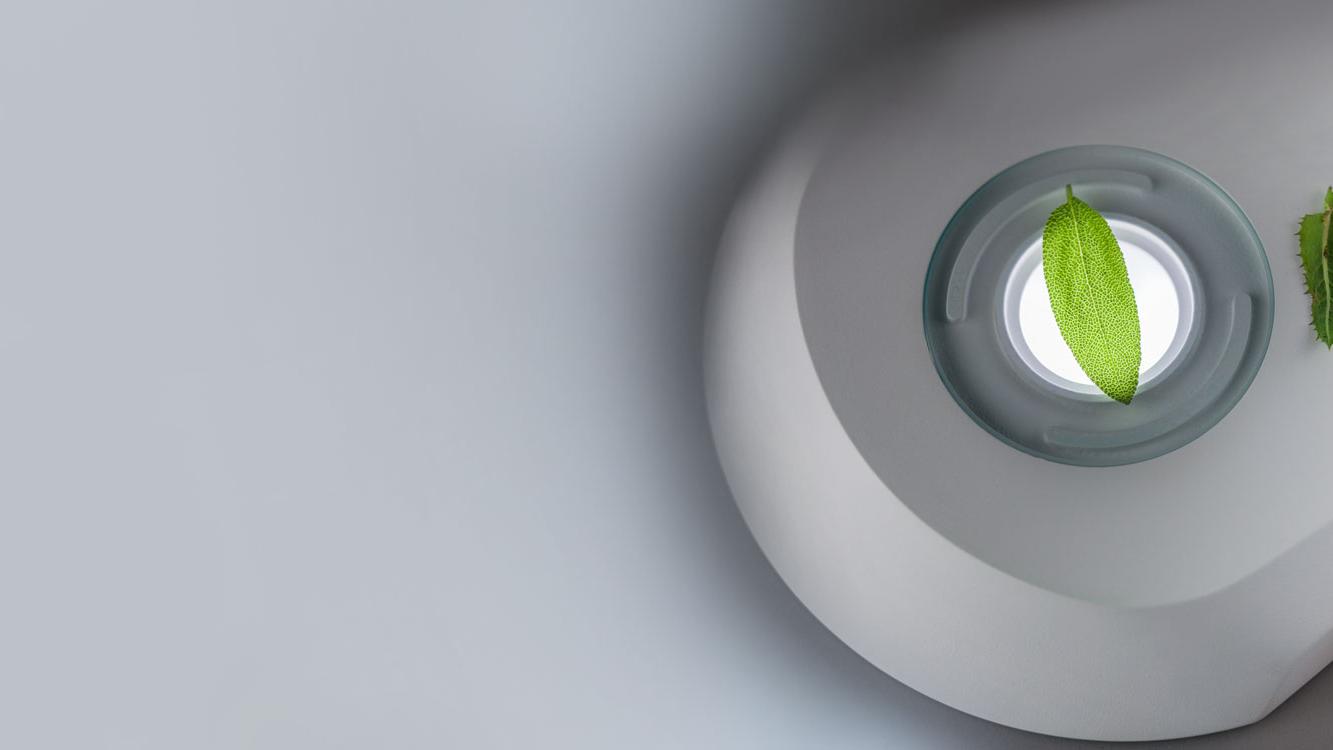

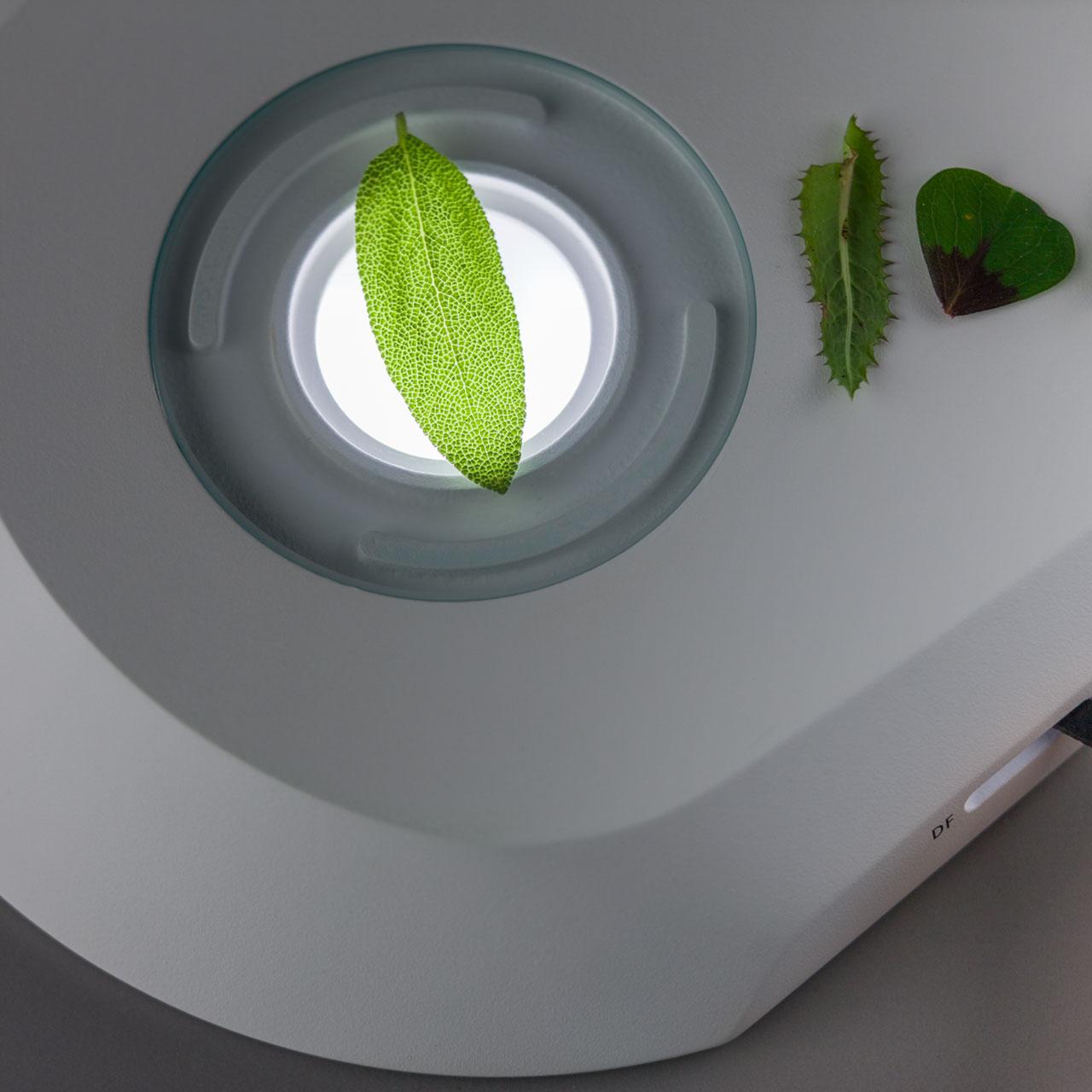

Flat transmitted light base for brightfield and darkfield illumination Tiltable mirror base for brightfield, darkfield and oblique light illumination.

Document Your Results

Documentation is important for your lab, essential for industrial inspection. In the classroom your ability to acquire and share images is key for vivid, exciting science courses.

External Microscope Camera

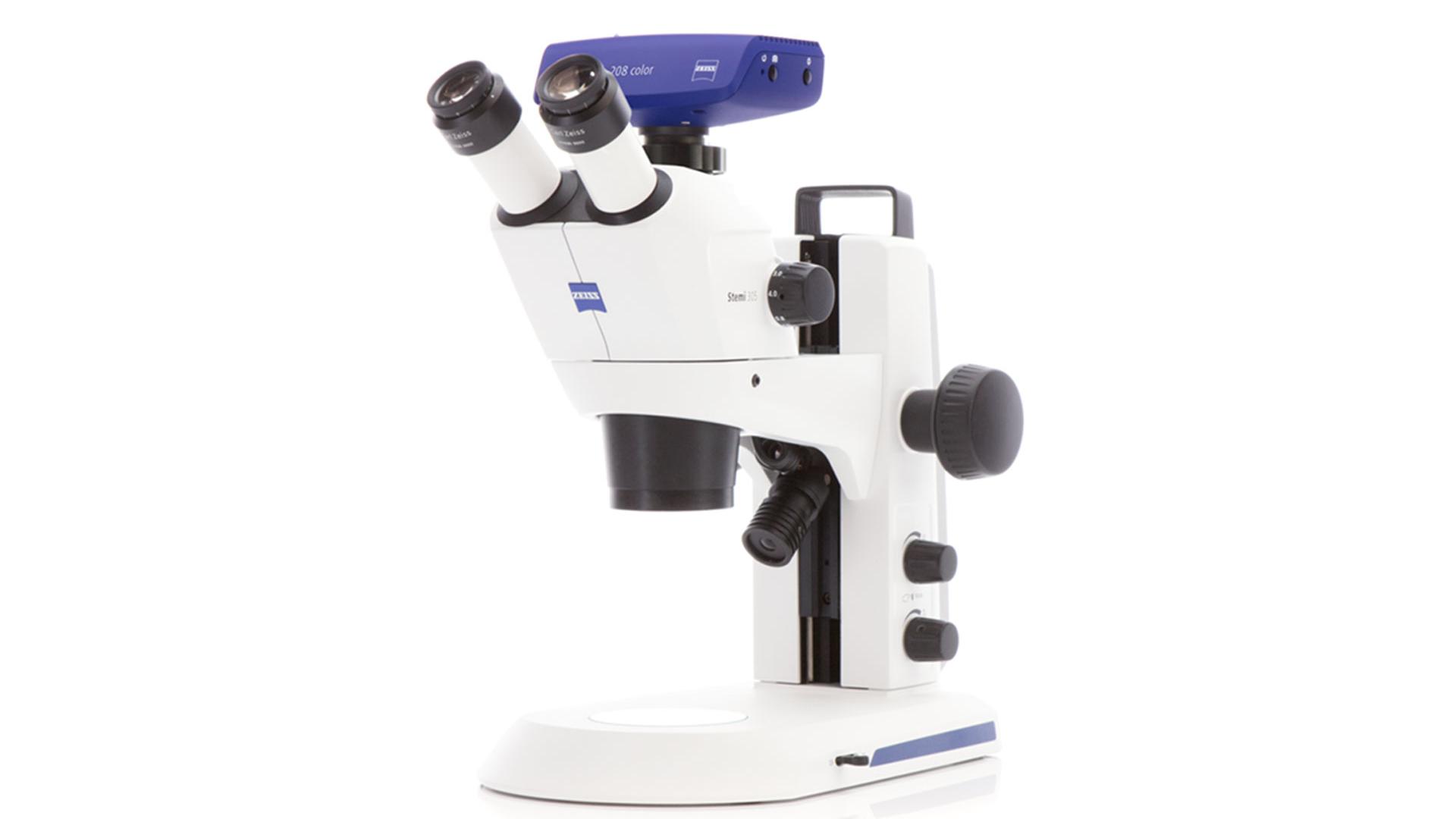

Choose Stemi 305 trino with a phototube for access to any ZEISS Axiocam microscope camera. The fixed 50/50 division is optimal for life demonstrations: your students or customers can follow your microscopic work on the monitor in real-time.
Integrated Microscope Camera

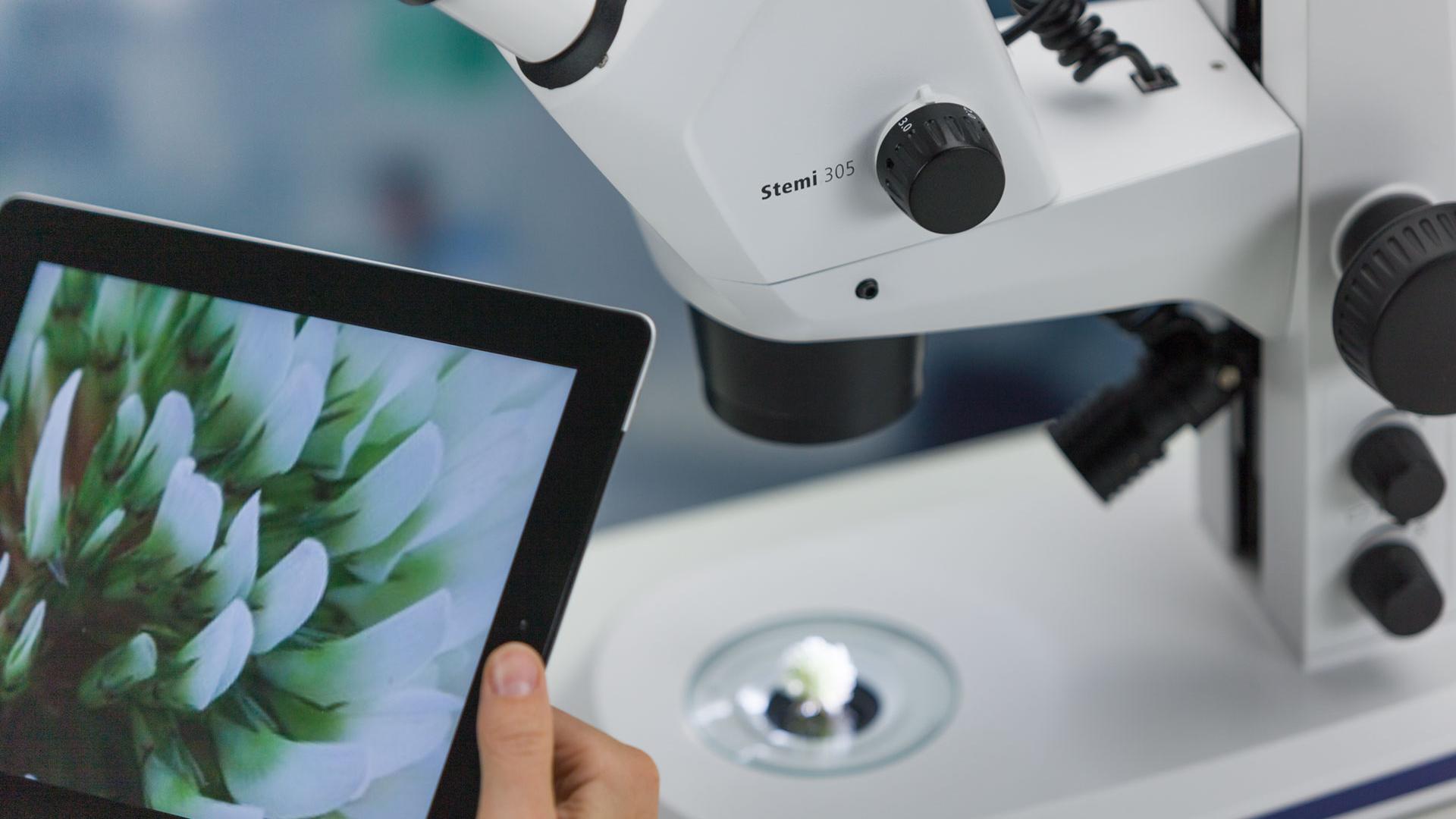

Or opt for Stemi 305 cam ‐ a 4 Megapixel Wi‐Fi/Ethernet camera and WLAN router are already integrated into the microscope body. You will enjoy its ability to stream live images from several microscopes to multiple iPads.

How to connect Stemi 305 to your iPad

Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
How to set up a digital classroom with Stemi 305 cam

Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Discover Applications

Green lacewing acquired with reflected light, brightfield.
Butterfly wing acquired with vertical illumination, brightfield.
Poppy seed acquired with reflected light, brightfield

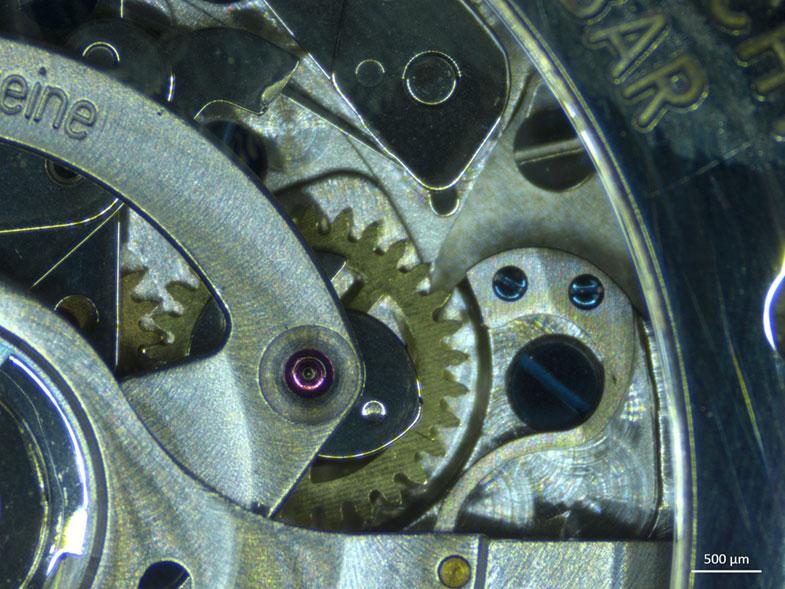

Clock unit acquired with reflected light.
Labradorite acquired with transmitted light

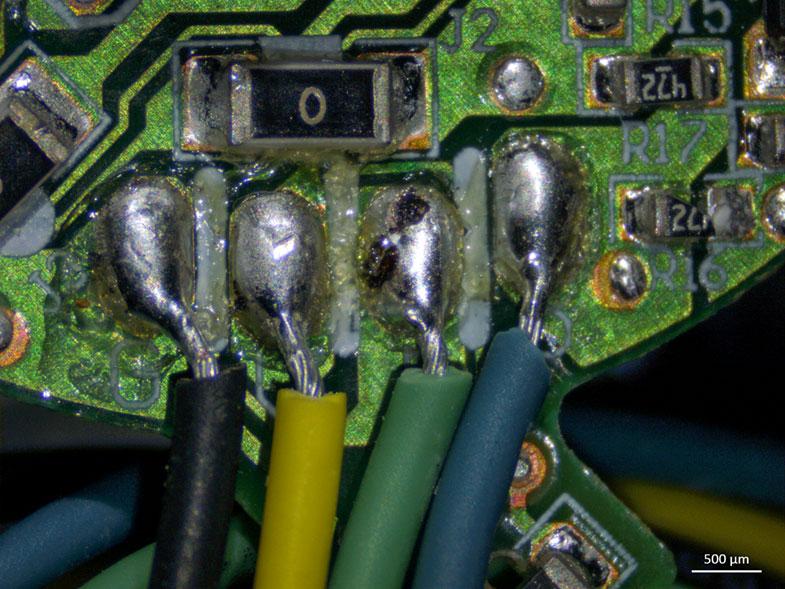

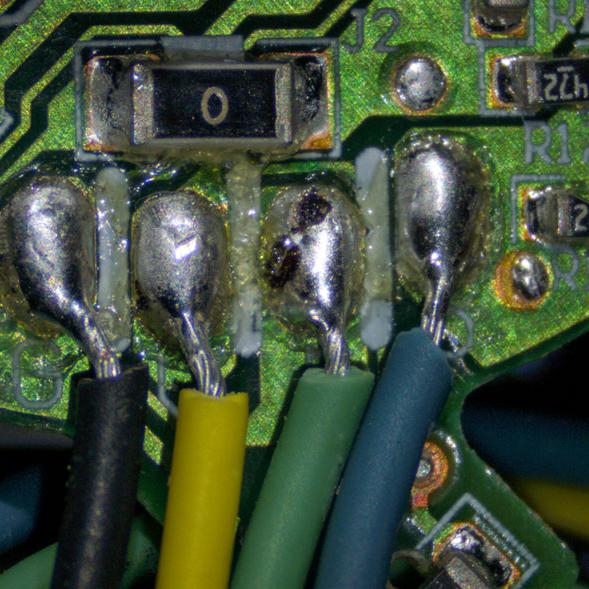

Solder joint acquired with reflected light, brightfield.
