ZEISS Classic Lenses

Proven optical design in a sturdy metal housing.
ZEISS Classic Lenses
Contact

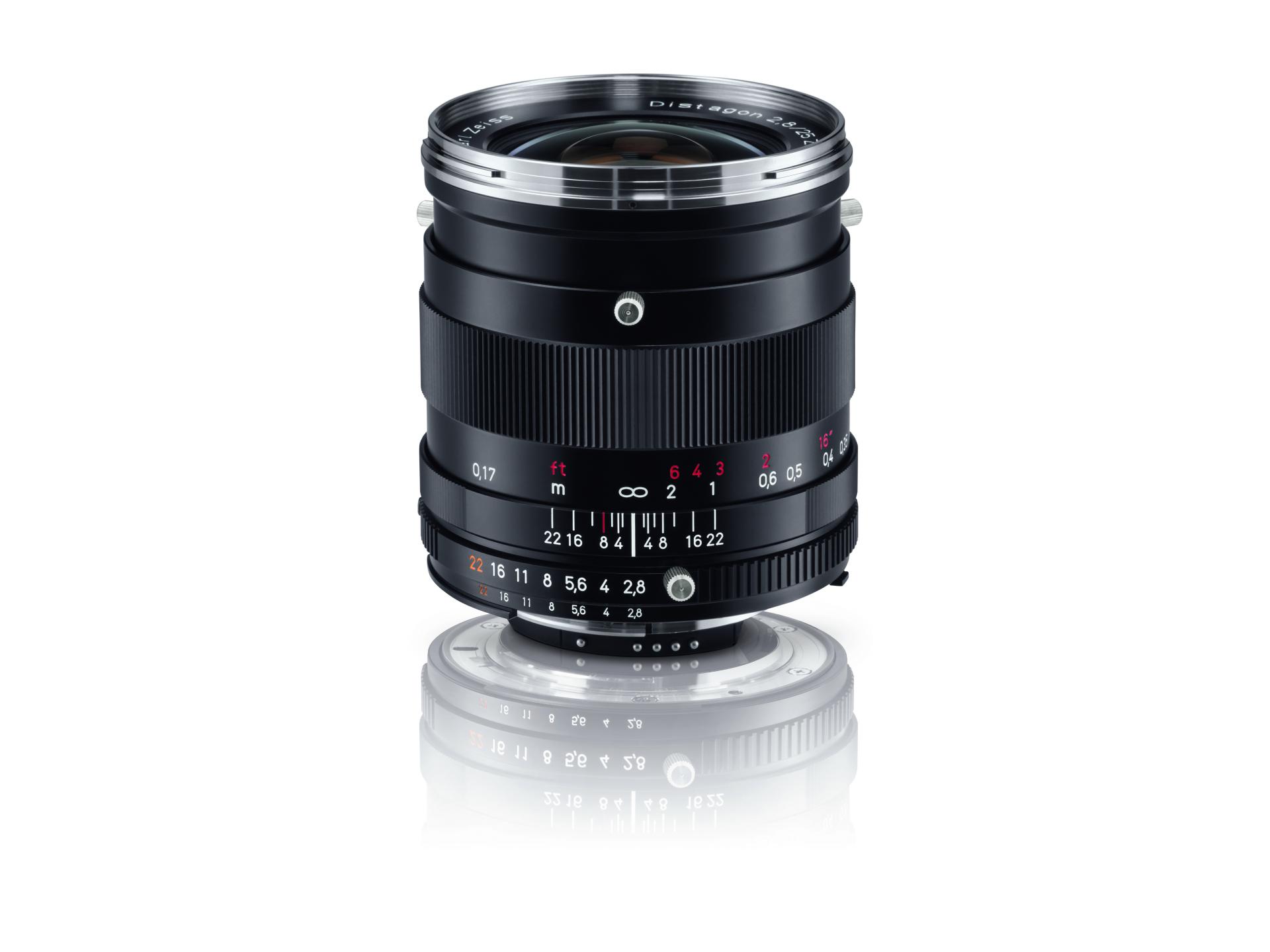

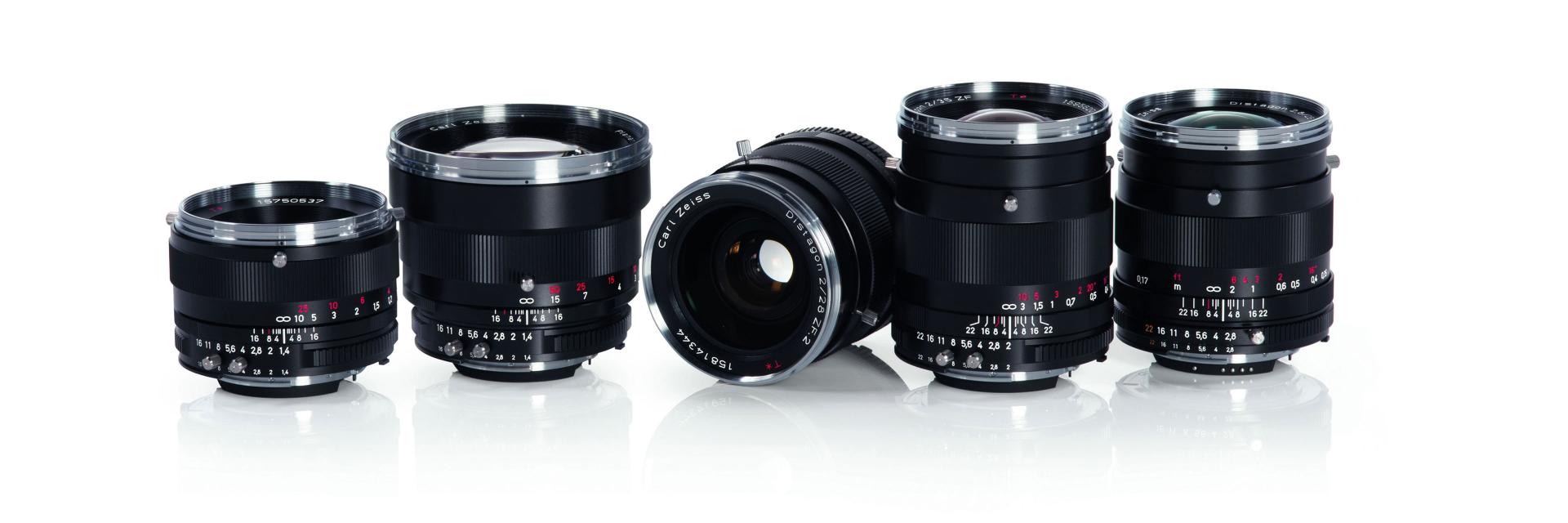

The ZEISS Classis lens family offers extraordinary image quality with high contrast for technical and industrial applications in addition to a precise fixture for focus and aperture. The outer design is characterized by a full-metal housing as well as a focus ring, which allows precise manual focusing.

The lenses cover linescan sensors up to 43 mm (4k to 8k) or full frame area sensors with 24 x 36 mm (up to 42 Mpixel). They are available with F-Mount and M42x1-Mount (45,5 mm Flange Focal Distance) for more stability. The lens family consists of five lenses from 25 mm to 85 mm. This range is completed by the lenses of the ZEISS Interlock family.

ZEISS lenses for technical applications are key components in complex production processes (Machine Vision) as well as in optical metrology, medical applications, traffic enforcement, quality assurance, sports and many other applications. Here they prove their outstanding image performance and reliability. Due to the precise manual adjustment of the helical focusing mount you will gain much better results than with comparable lenses.

Technical Data

ZEISS Classic Lenses
Focal Length
Max. Aperture
Min. Free Working Distance
Min. Working Distance (Sensor to Object)
Filter Thread
Camera Mount

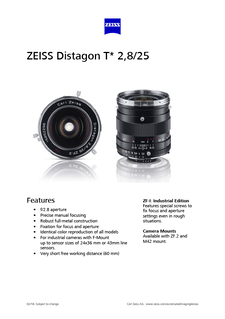

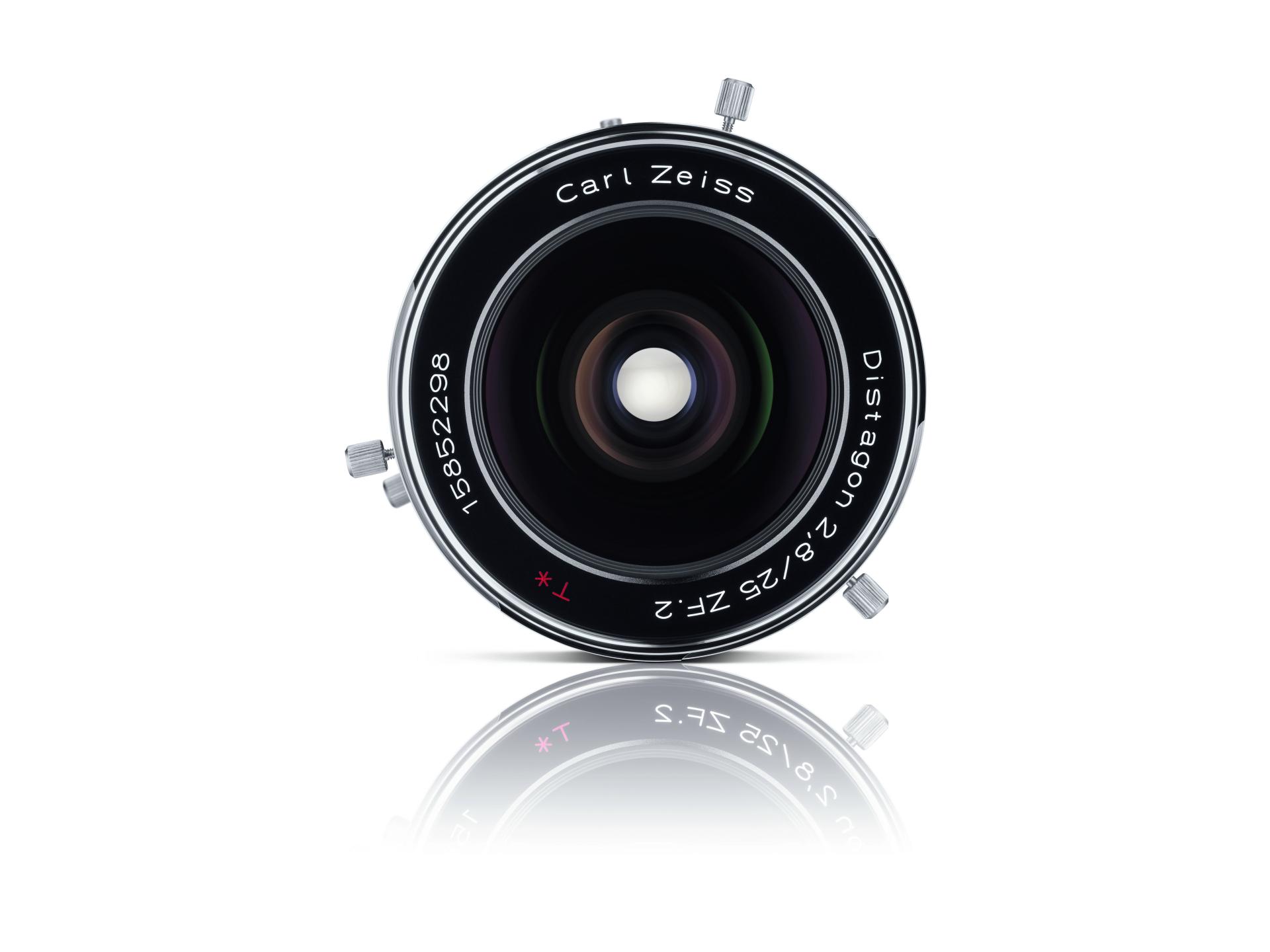

Distagon T* 2.8/25

25 mm

2.8

60 mm

170 mm

M58 x 0.75

F-Mount*, M42**

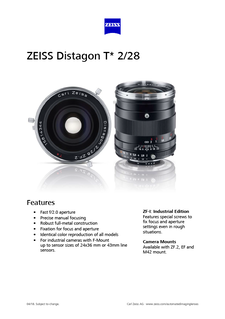

Distagon T* 2/28

28 mm

2.0

120 mm

240 mm

M58 x 0.75

F-Mount*, M42**

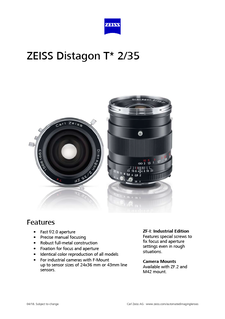

Distagon T* 2/35

35 mm

2.0

180 mm

300 mm

M58 x 0.75

F-Mount*, M42**

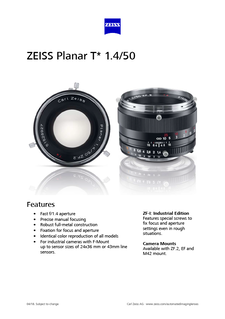

Planar T* 1.4/50

50 mm

1.4

360 mm

450 mm

M58 x 0.75

F-Mount*, M42**

Planar T* 1.4/85

85 mm

1.4

890 mm

1.000 mm

M72 x 0.75

F-Mount*, M42**

Remarks:
* available with fixing screws for focus and aperture or without
** available with fixing screws for focus and aperture

These lenses are developed for industrial cameras up to sensor sizes of 24x36 mm or 43 mm line sensors and are available with M42x1 Mount (26,8 mm Flange Focal Distance).

Focal Length
Max. Aperture
Min. Free Working Distance
Min. Working Distance (Sensor to Object)
Filter Thread
Camera Mount

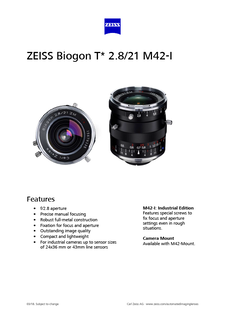

Biogon T*
2.8/21 M42-I

21 mm

2.8

420 mm

500 mm

M46 x 0.75

M42x1*

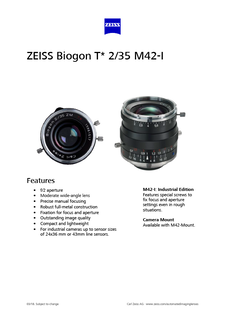

Biogon T*
2/35 M42-I

35 mm

2.0

630 mm

700 mm

M43 x 0.75

M42x1*

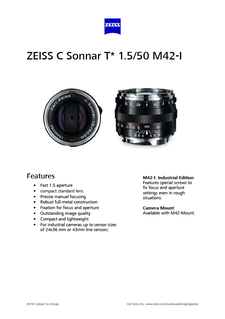

C Sonnar T*
1.5/50 M42-I

50 mm

1.5

830 mm

900 mm

M46 x 0.75

M42x1*

Remark:
* available with fixing screws for focus and aperture

Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
ZEISS Classic Lenses

Stress Test

ZEISS lenses need to operate perfectly in extreme conditions, withstanding everything from scorching heat and bitter cold to sandstorms and severe vibrations. The video shows how ZEISS researchers systematically submit lenses to extreme stresses in order to arrive at findings that can help in future lens design and development. The video explains how a lens with fixing screws was tested regarding following norms:

  • DIN ISO 9022
  • DIN EN 60068-1: 1988-06
  • DIN EN 60068-2 Part 64: 2009-04
  • MIL-Std 810G
ZEISS Classic Lenses

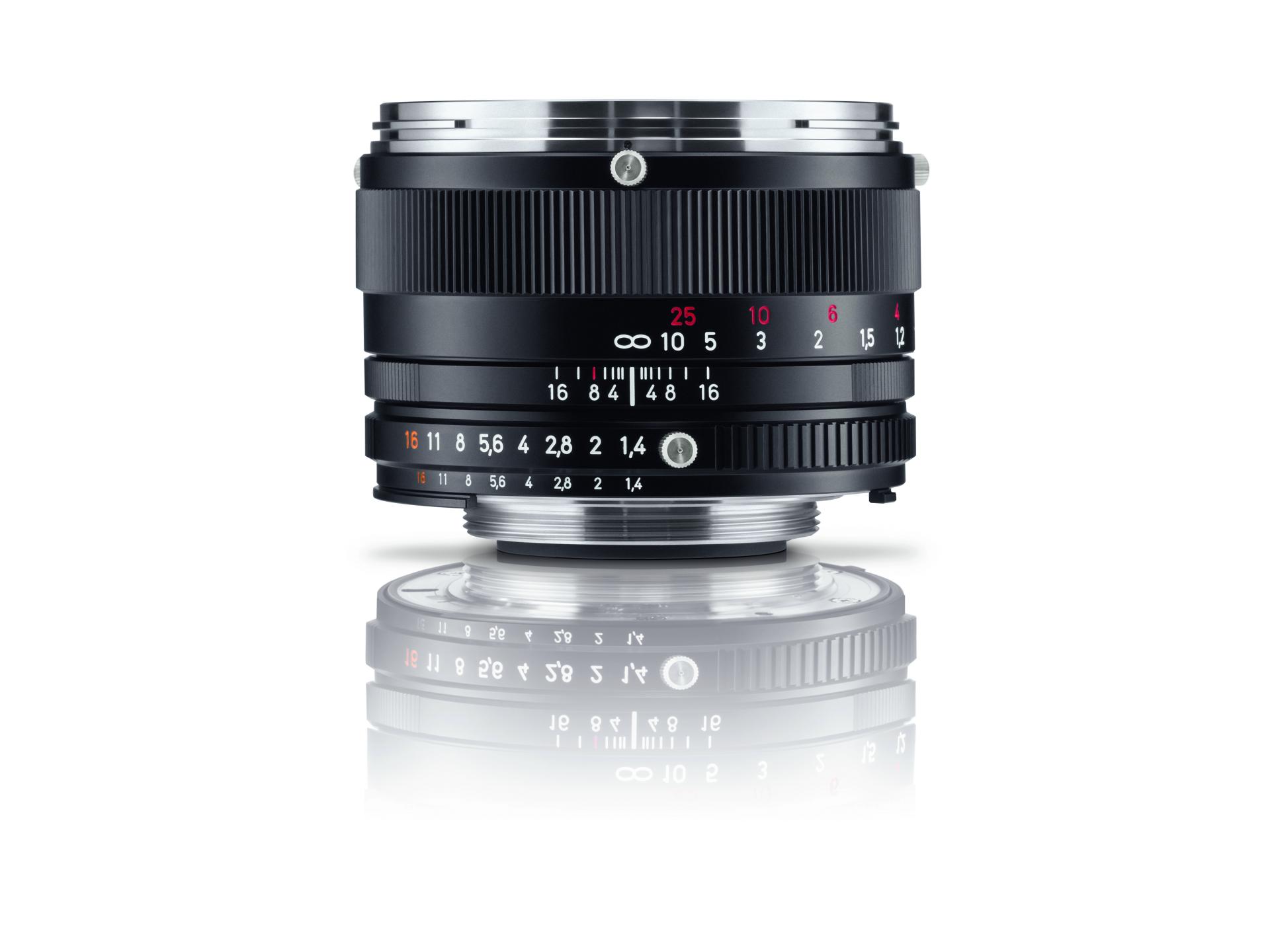

High-quality metal housing

Noticeable quality and high value stability qualify ZEISS lenses for decades of intense use. The high-quality craftsmanship of the all-metal mount, the metal housing and the aperture ring as well as the robust front bayonet ensure reliable results.

ZEISS Classic Lenses

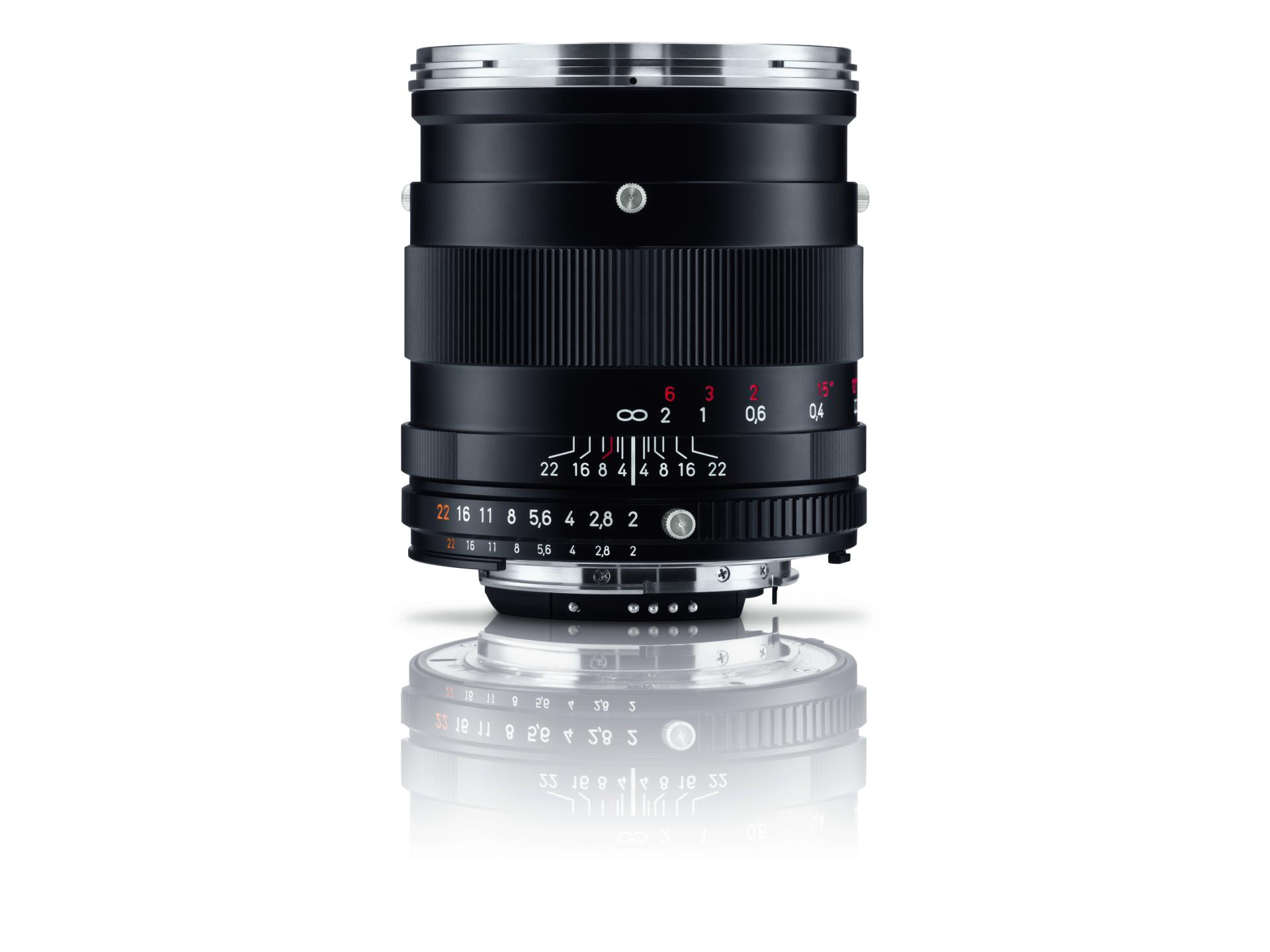

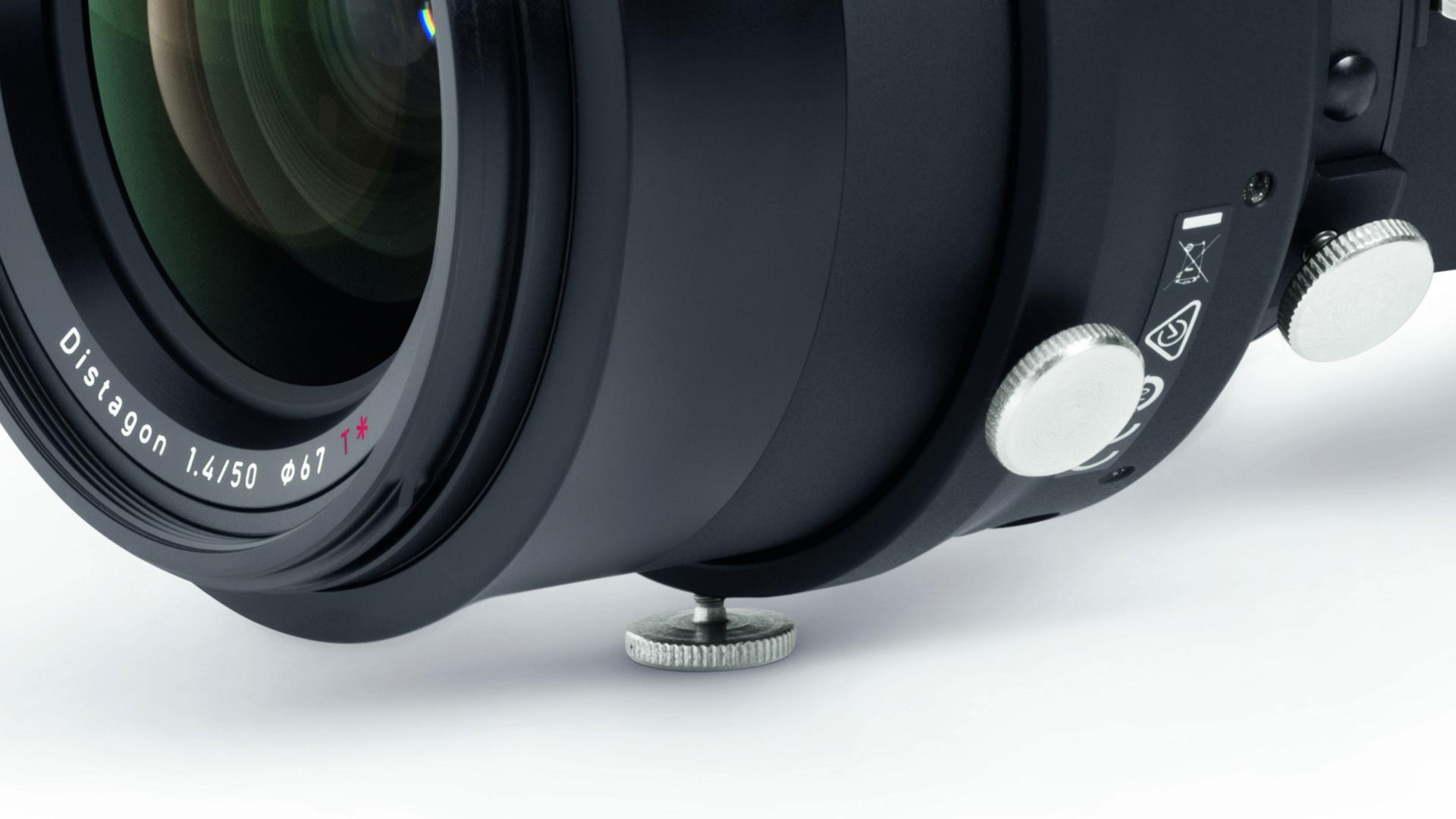

Fixing srews for focus and aperture

ZEISS Classic lenses are equipped with small screws to fix focus and aperture to get stable and reliable measuring results even in rough industrial conditions. Both the locking screws and the stable design make the lens inured to vibrations, improve measuring repeatability and avoid machine downtime.

ZEISS Classic Lenses

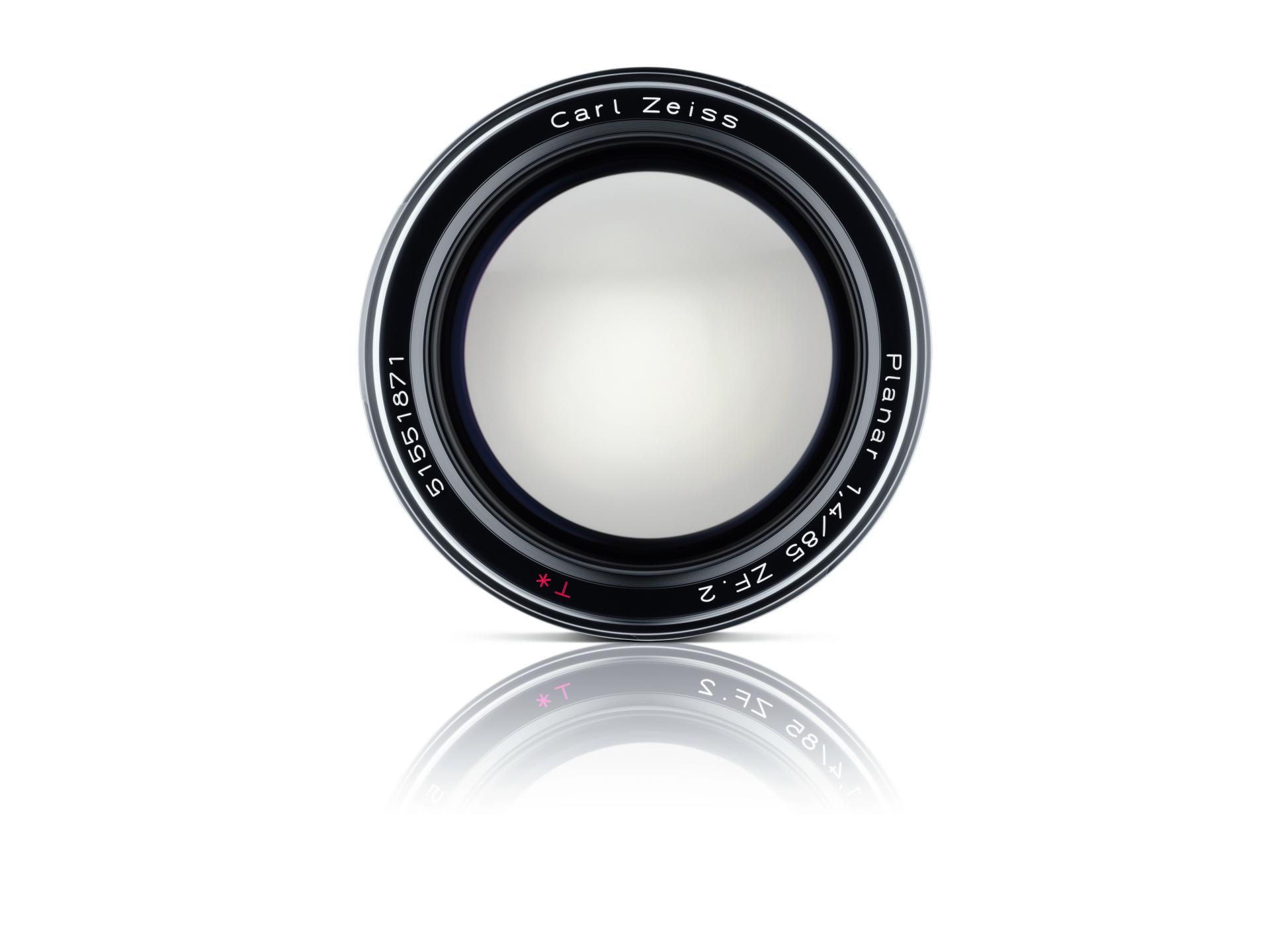

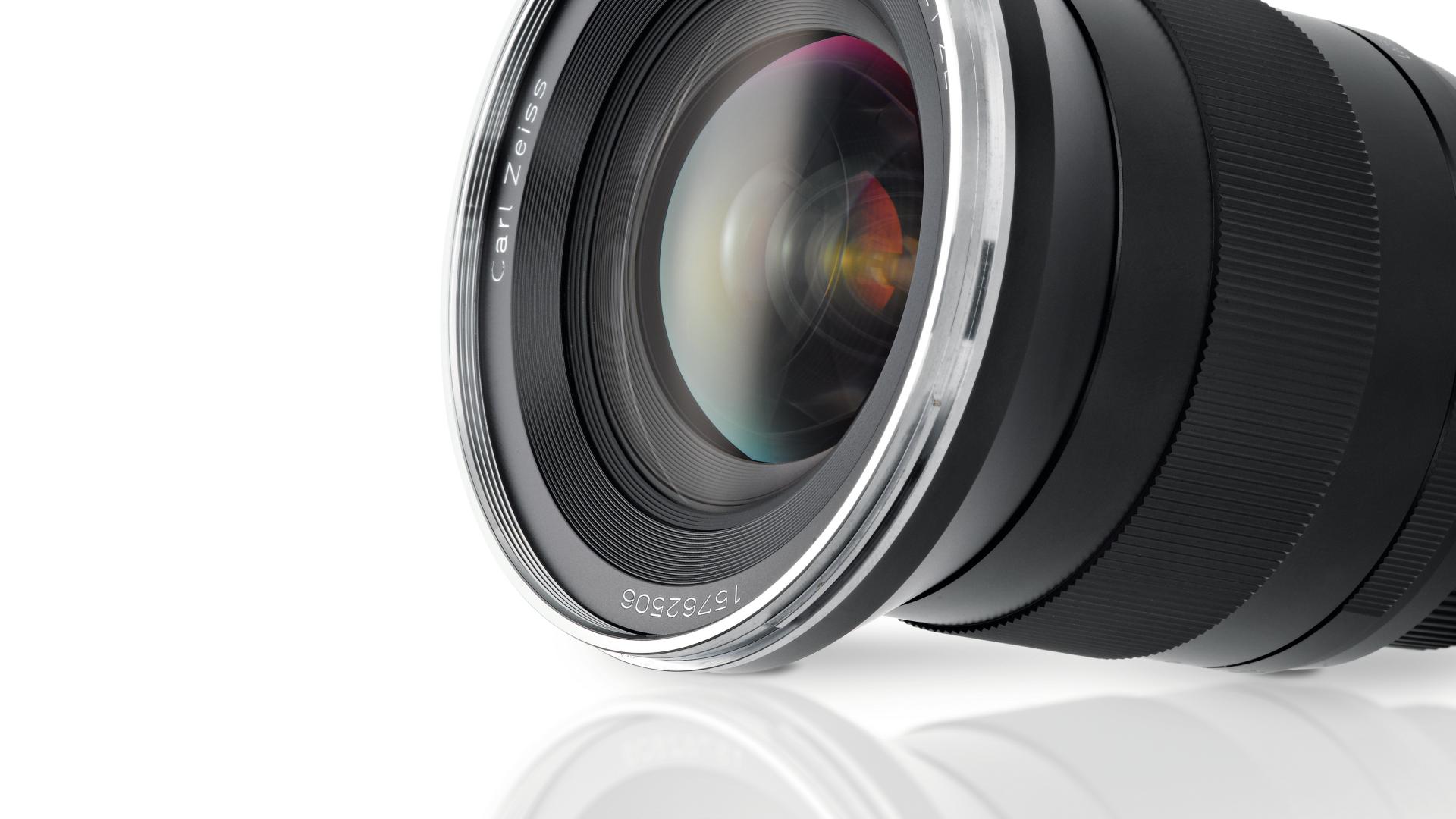

ZEISS T* anti-reflective coating

The optical elements of ZEISS lenses feature T* anti-reflective coating on all surfaces and an optical design that guarantees images of superior brilliance at all times, even in unfavourable lighting conditions. The first coating techniques were employed by ZEISS as long ago as in the 1930s.

ZEISS Classic Lenses

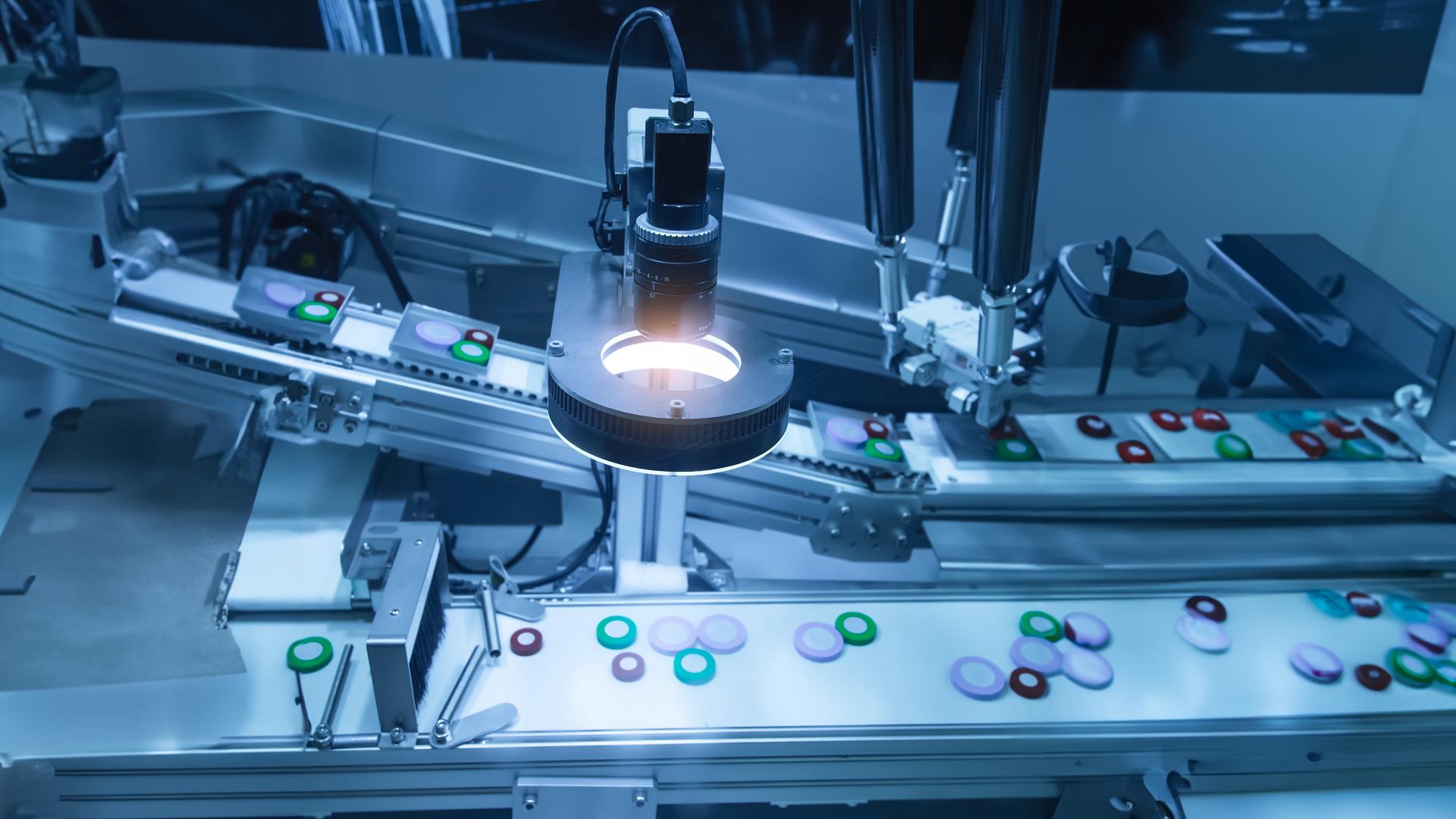

High Speed Lenses

Good optical quality captured in low light always begin with a fast lens for a system or a camera. Because, a fast, high-performance lens captures as much light as possible. And a lens with a large maximum aperture leads to the best results when shooting in unfavourable light.
