ZEISS Interlock Compact Lenses

Compact lenses for large image circles.

The Interlock® Compact lens family impresses with its high and unwavering image quality and precise manual focus. Their low weight, compactness and robust full-metal housing make the lenses suitable for rough industrial use. The lens family features a short M42x1 mount (18 mm FFD) and superior fixture screws that allow exact locking of aperture and focus.

They fit to line scan cameras with sensors of 43 mm (4k – 8k) and area scan cameras with full frame sensors of 36 x 24 mm (up to 42 Mpixel). The outstanding difference of ZEISS Interlock Compact lenses against traditional F-Mount types is the M42x1 mount with a very short flange focal distance (FFD) of only 18,0 mm.

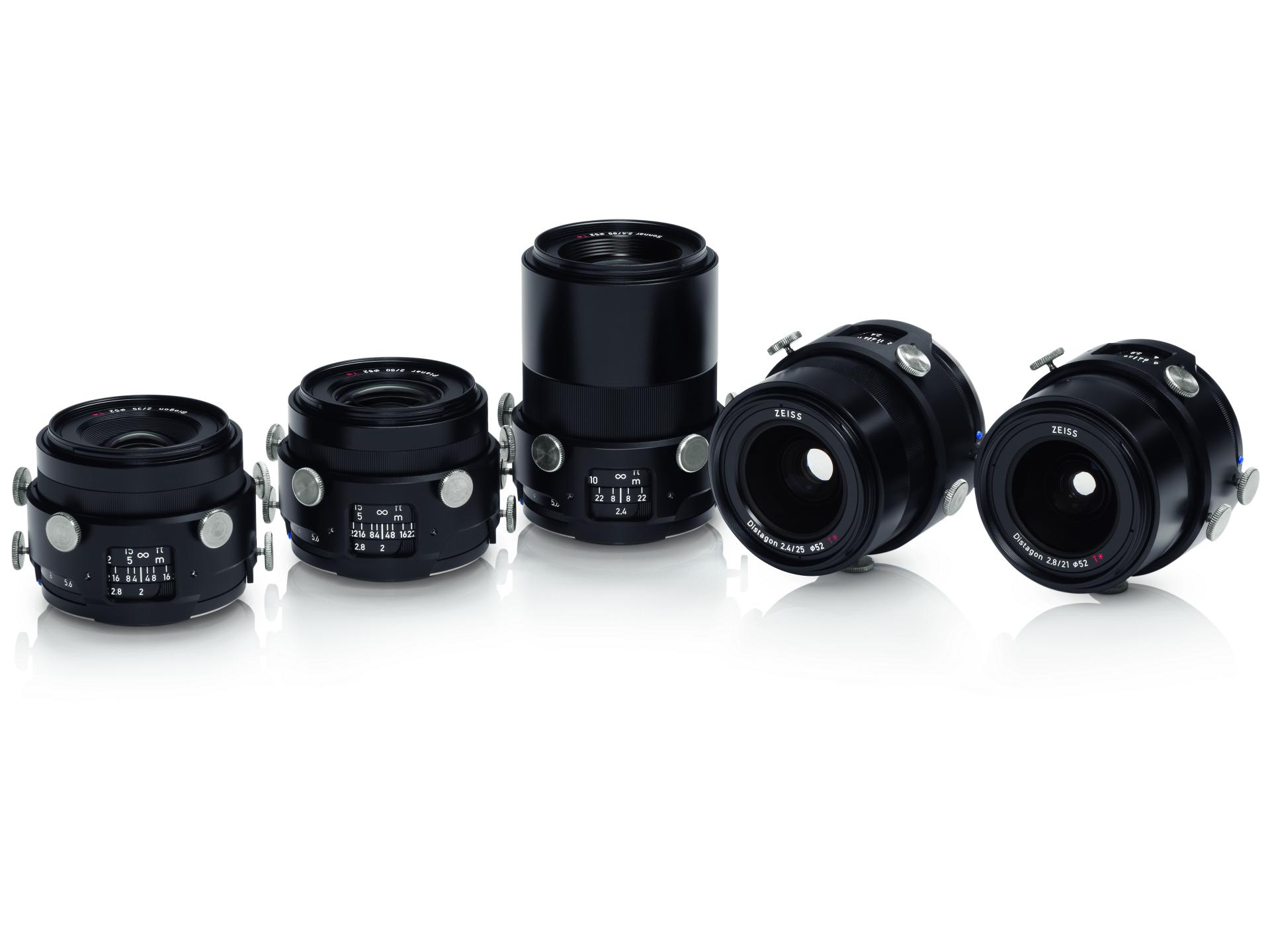

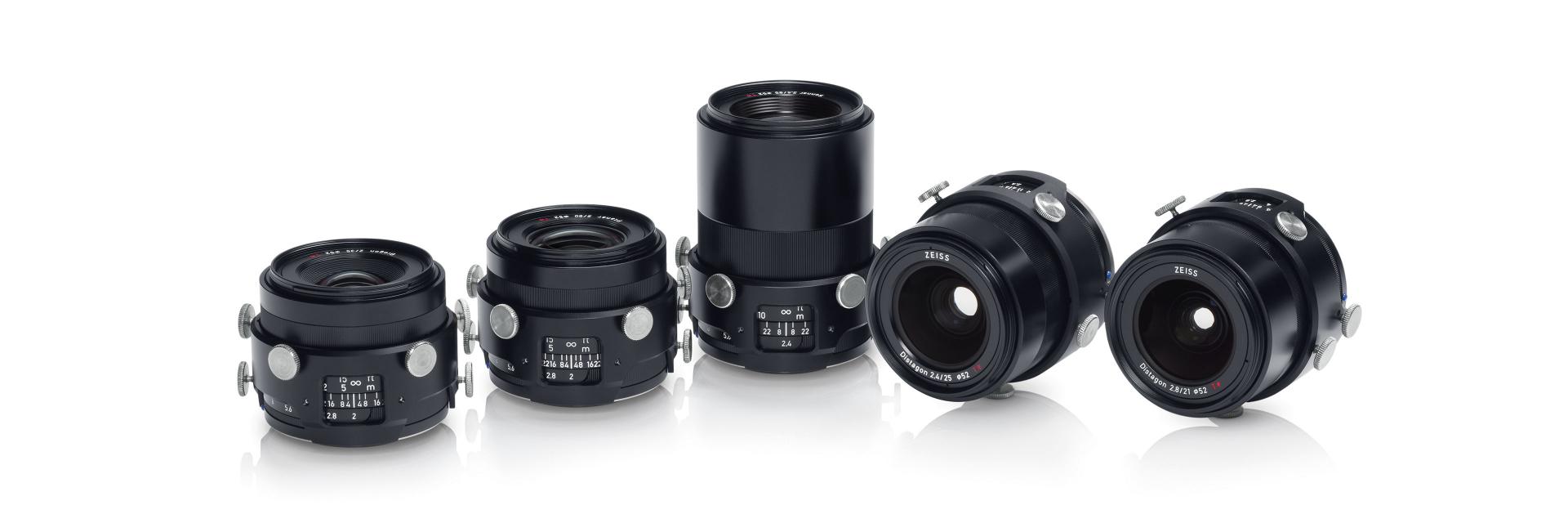

The Interlock® Compact lens family from ZEISS consists of five focal lengths from 21 mm to 85 mm and are key components in complex production processes (Machine Vision) as well as in optical metrology, medical applications, traffic enforcement, quality assurance, sports and many other applications.

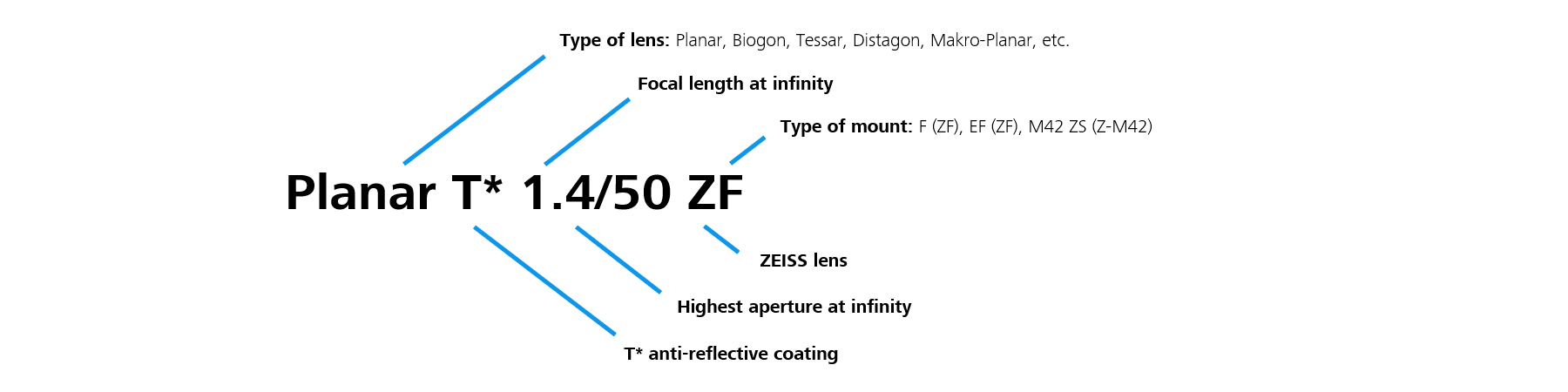

Technical Data

ZEISS Interlock Compact Lenses

Focal Length
Max. Aperture
Min. Free Working Distance
Min. Working Distance (Sensor to Object)
Filter Thread
Camera Mount

Interlock Compact 2.8/21

21 mm

2.8

160 mm

250 mm

M52 x 0.75

M42 Mount / 18 mm FFD*

Interlock Compact 2.4/25

25 mm

2.4

163 mm

250 mm

M52 x 0.75

M42 Mount / 18 mm FFD*

Interlock Compact
2/35

35 mm

2.0

230 mm

300 mm

M52 x 0.75

M42 Mount / 18 mm FFD*

Interlock Compact
2/50

50 mm

2.0

370 mm

450 mm

M52 x 0.75

M42 Mount / 18 mm FFD*

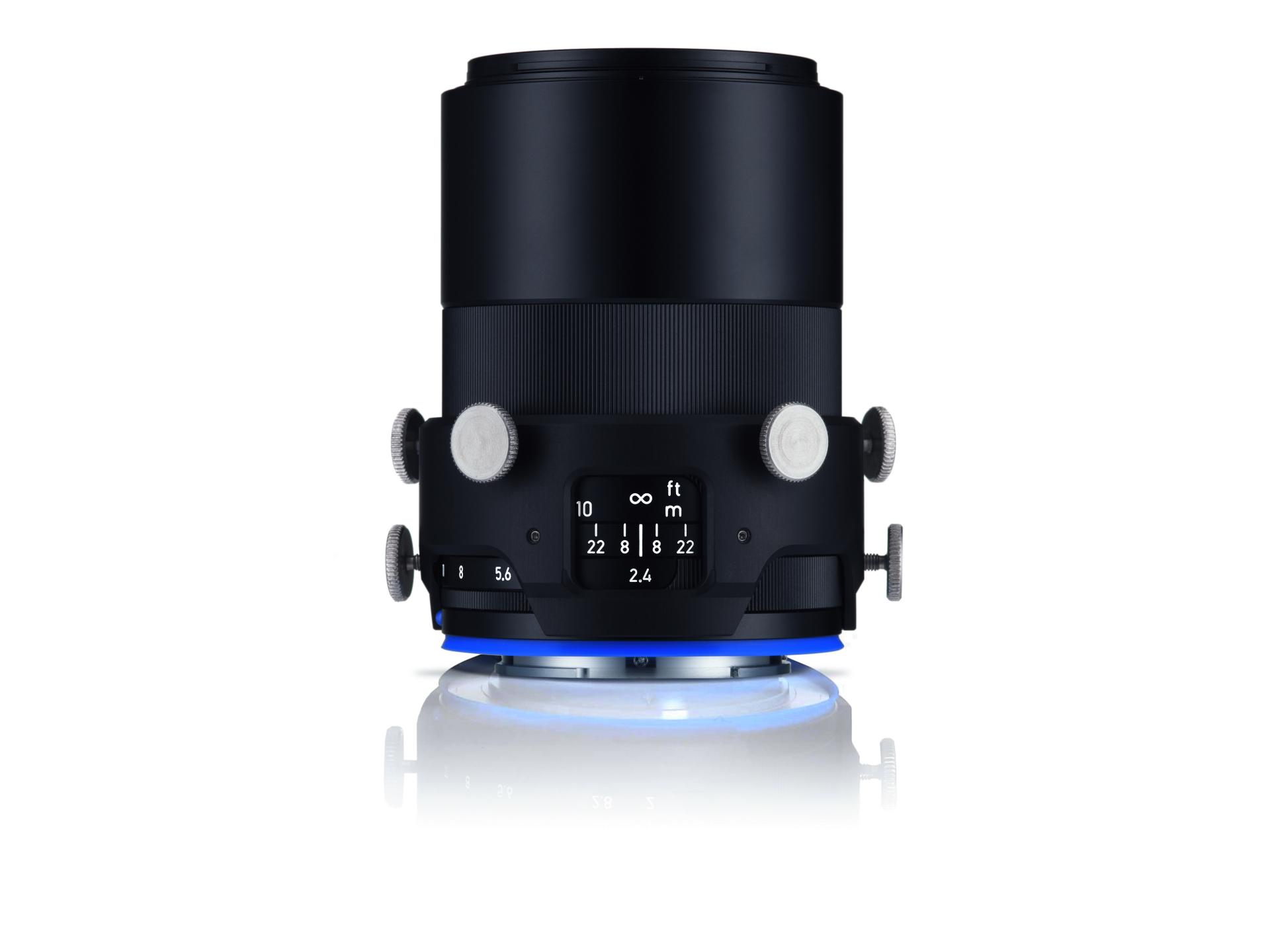

Interlock Compact 2.4/85

85 mm

2.4

685 mm

800 mm

M52 x 0.75

M42 Mount / 18 mm FFD*

Remark:
* Available with fixing srews for focus and aperture.

ZEISS Interlock Compact Lenses

Stress Test

ZEISS lenses need to operate perfectly in extreme conditions, withstanding everything from scorching heat and bitter cold to sandstorms and severe vibrations. The video shows how ZEISS researchers systematically submit lenses to extreme stresses in order to arrive at findings that can help in future lens design and development. The video explains how a lens with fixing screws was tested regarding following norms:

  • DIN ISO 9022
  • DIN EN 60068-1: 1988-06
  • DIN EN 60068-2 Part 64: 2009-04
  • MIL-Std 810G
ZEISS Interlock Compact Lenses

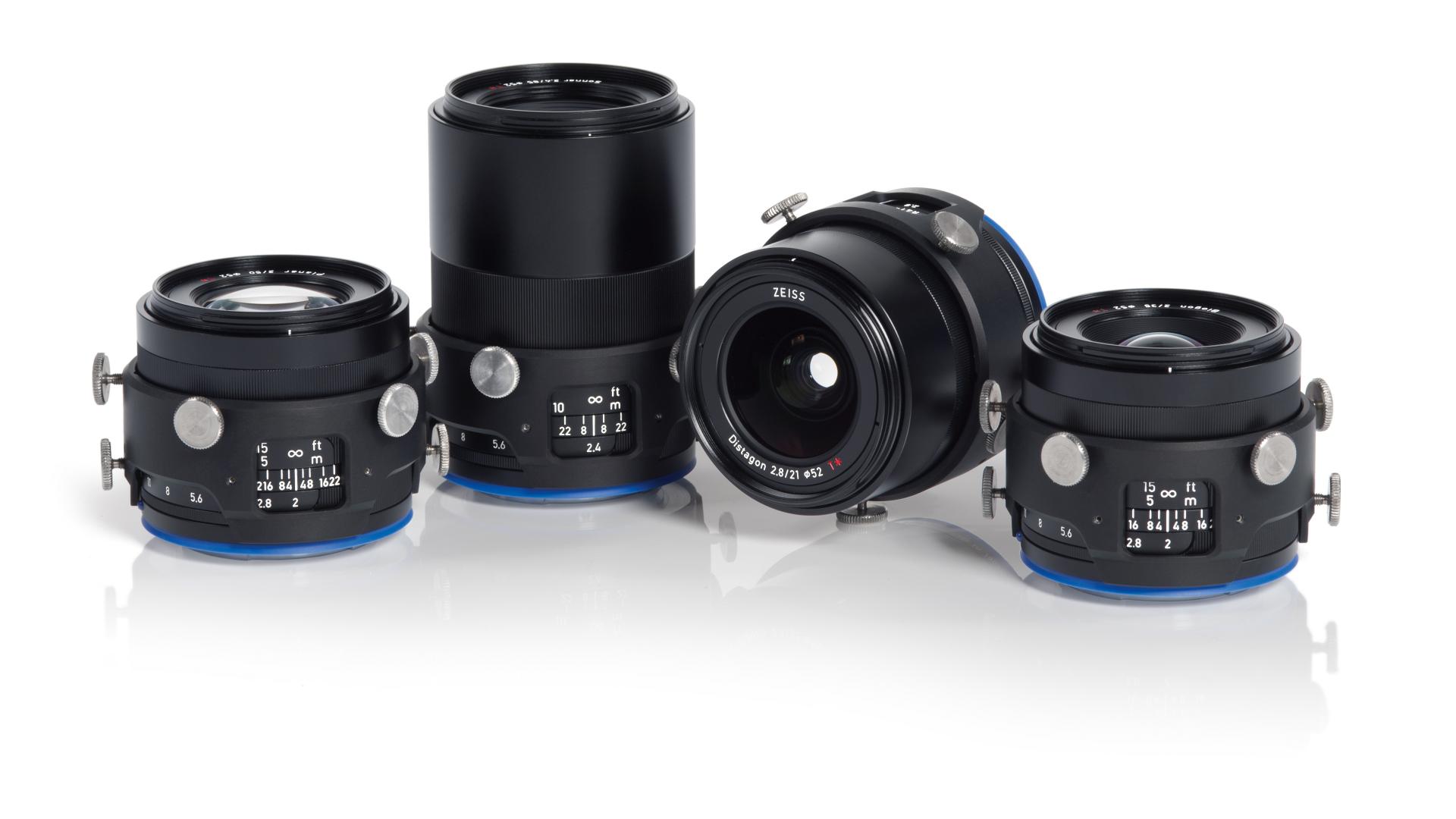

Advantages of the Interlock Compact Lenses

  • Higher stability against shocks and vibrations since the center of gravity is closer to the sensor
  • Higher stability between lens and camera because M42-mount
  • Less volume consumed
  • Higher precision when the aperture is set
  • Optics can be designed more symmetrical which leads to higher performance, lower distorsion etc.
ZEISS Interlock Compact Lenses

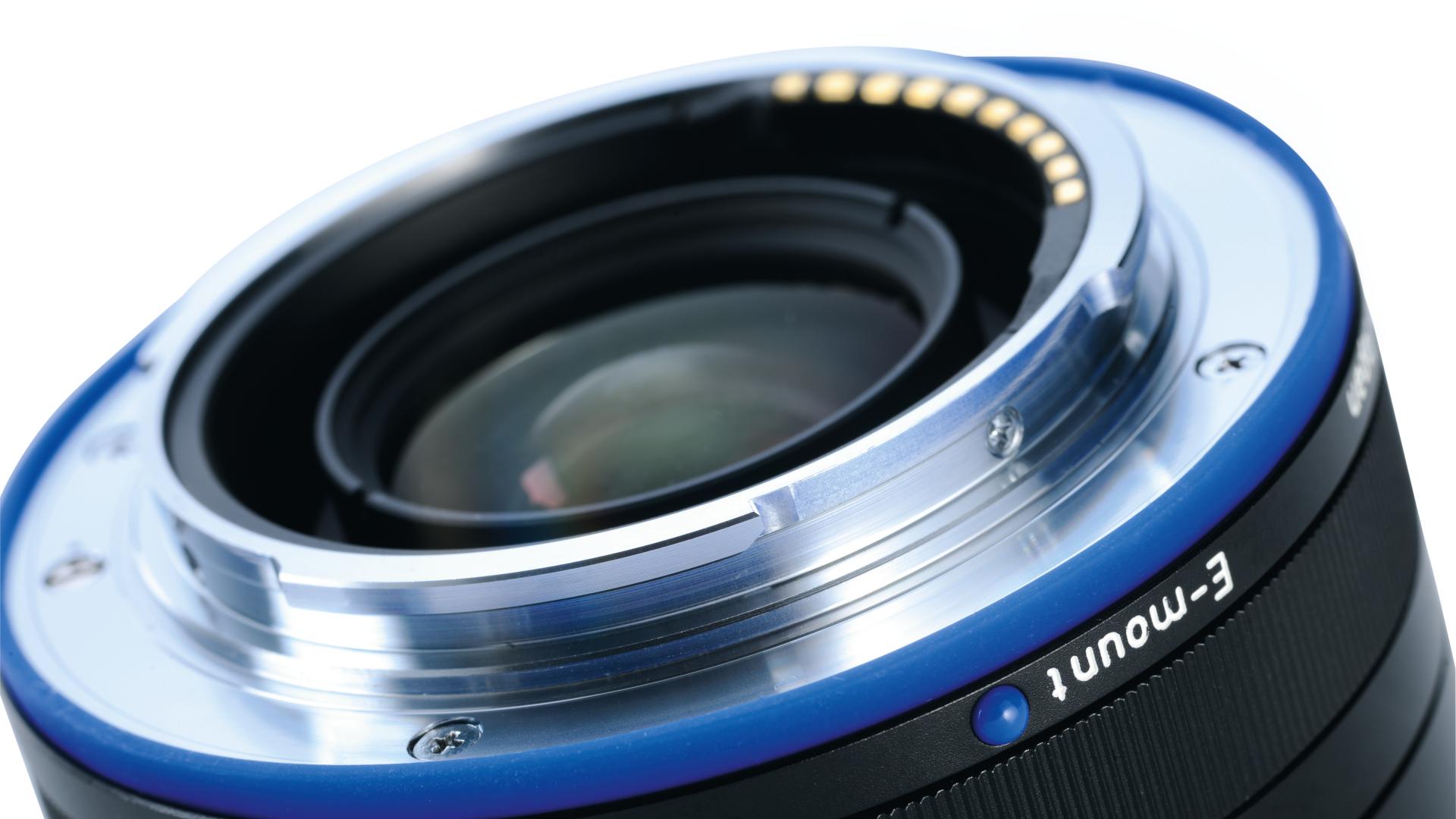

High-quality metal housing

Noticeable quality and high value stability qualify ZEISS lenses for decades of intense use. The high-quality craftsmanship of the all-metal mount, the metal housing and the aperture ring as well as the robust front bayonet ensure reliable results.

ZEISS Interlock Compact Lenses

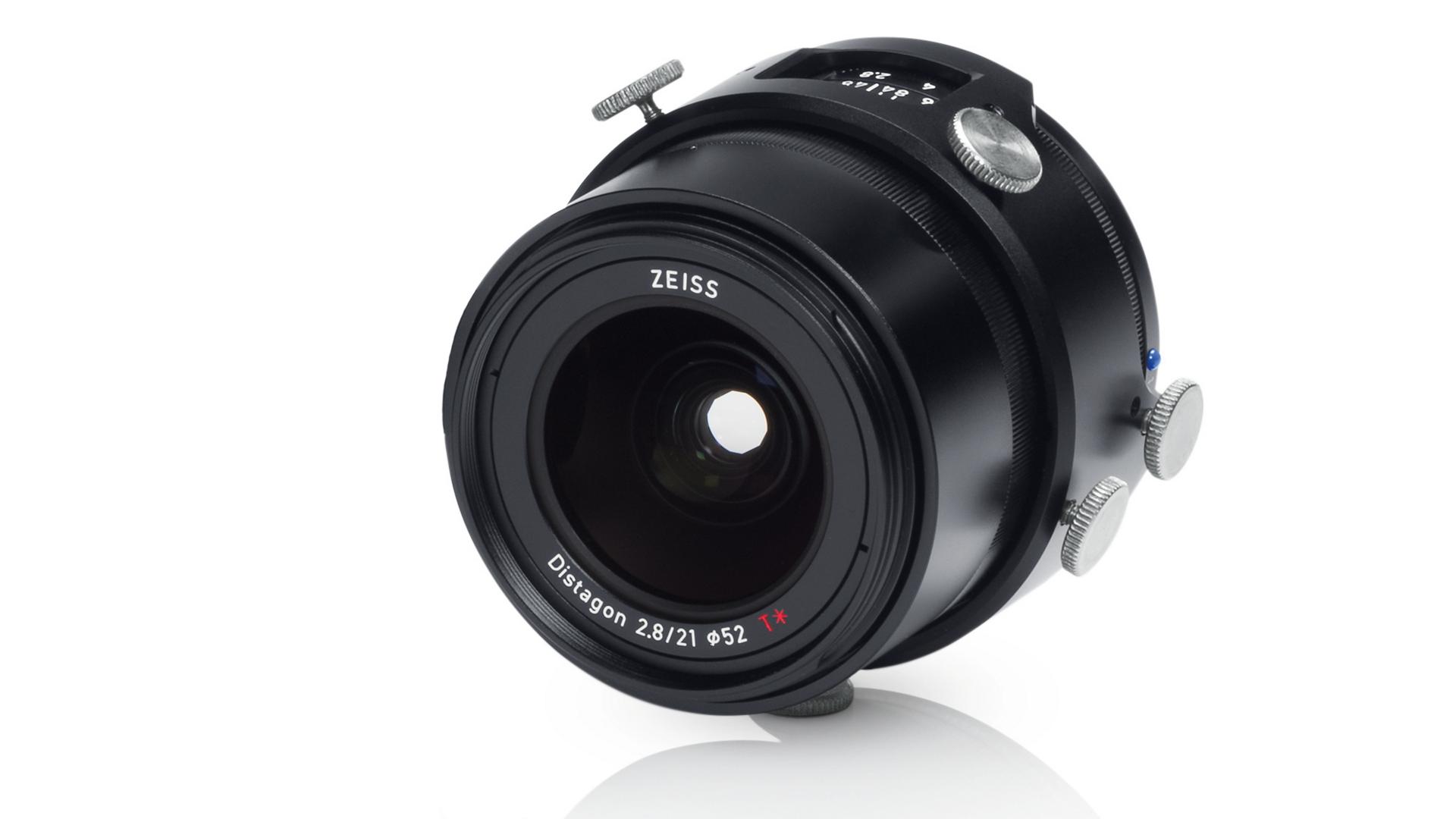

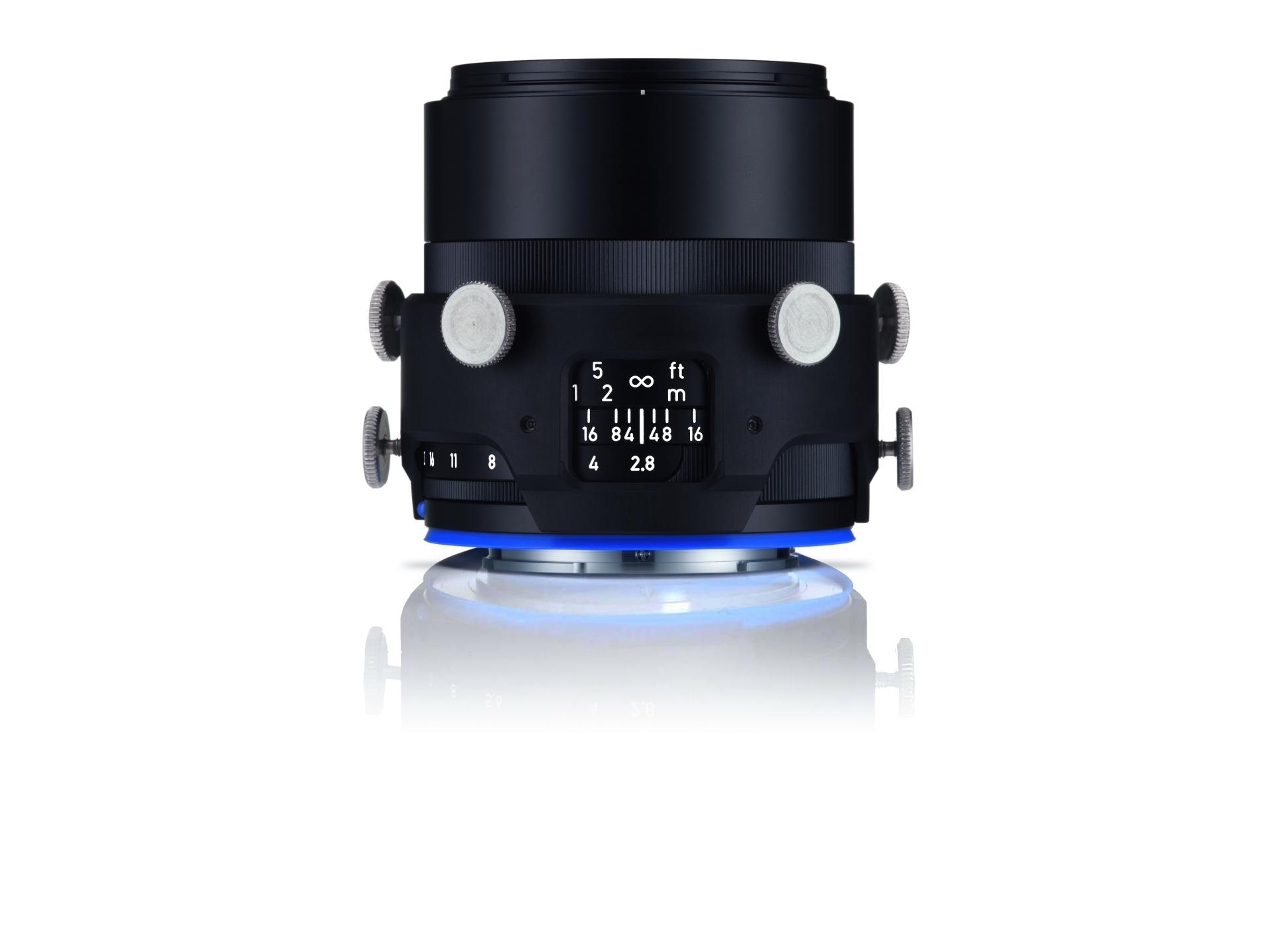

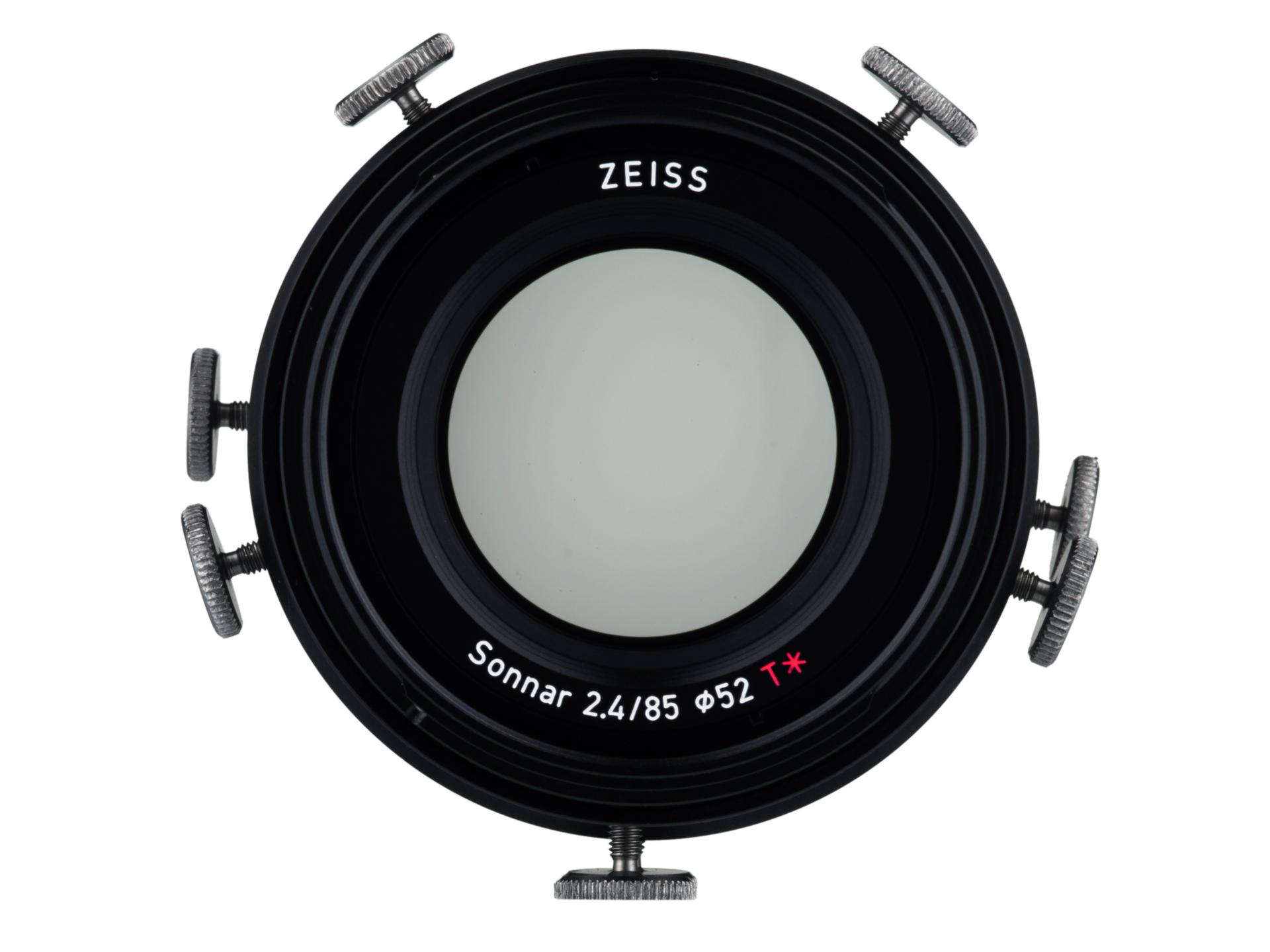

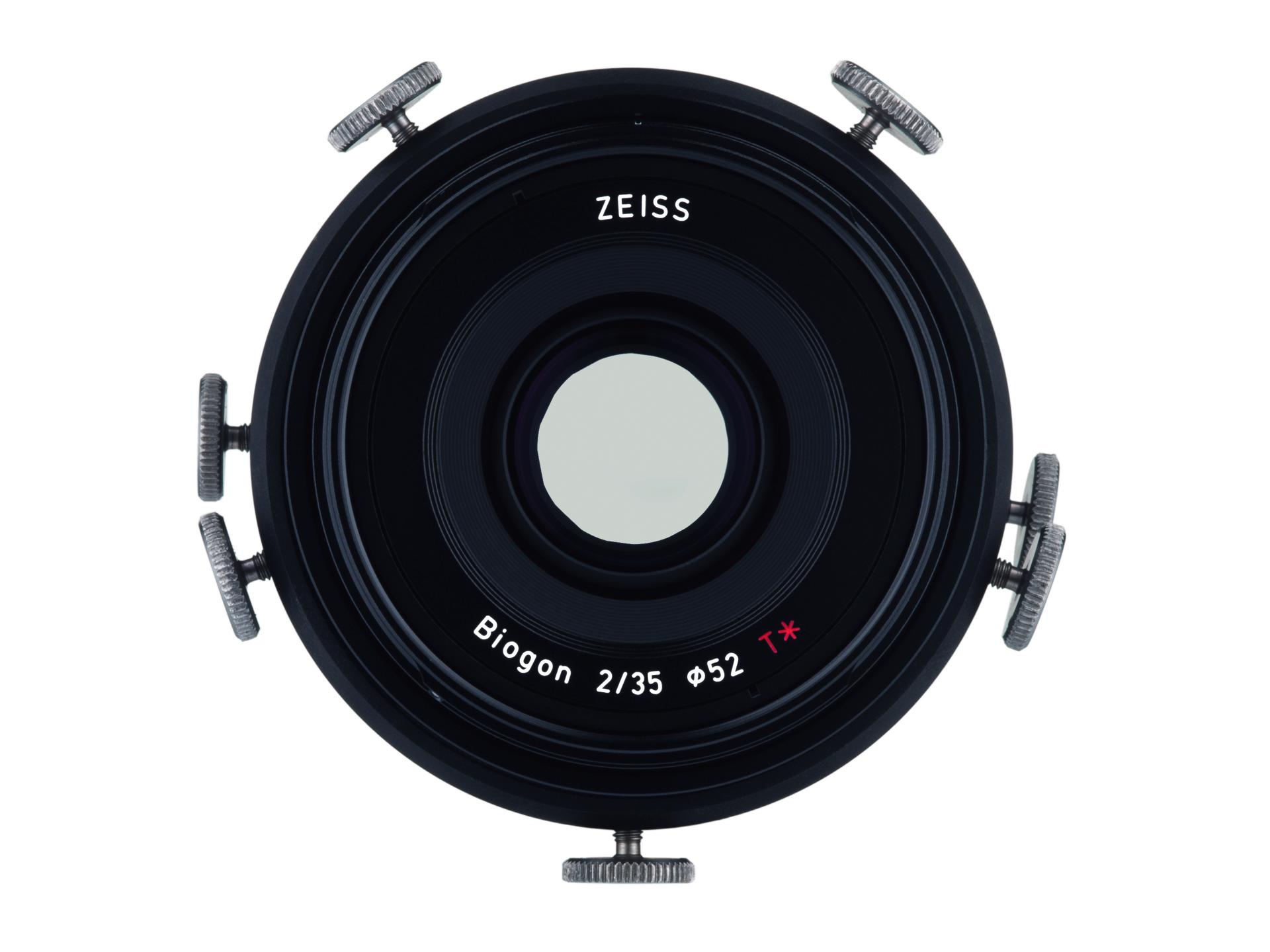

Heavy-duty fixtures for focus and aperture

The optical elements of ZEISS lenses feature T* anti-reflective coating on all surfaces and an optical design that guarantees images of superior brilliance at all times, even in unfavourable lighting conditions. The first coating techniques were employed by ZEISS as long ago as in the 1930s.

ZEISS Interlock Compact Lenses

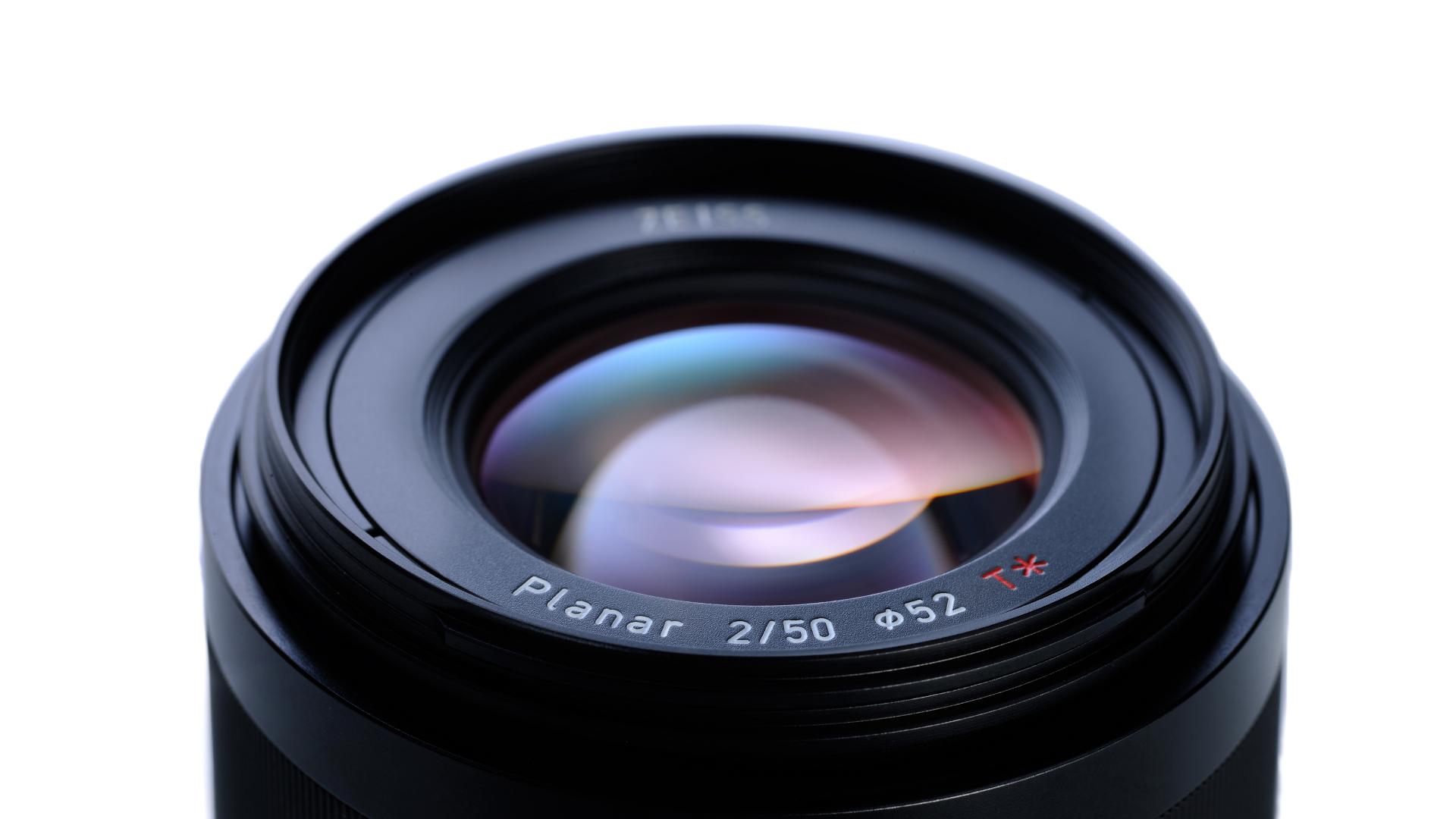

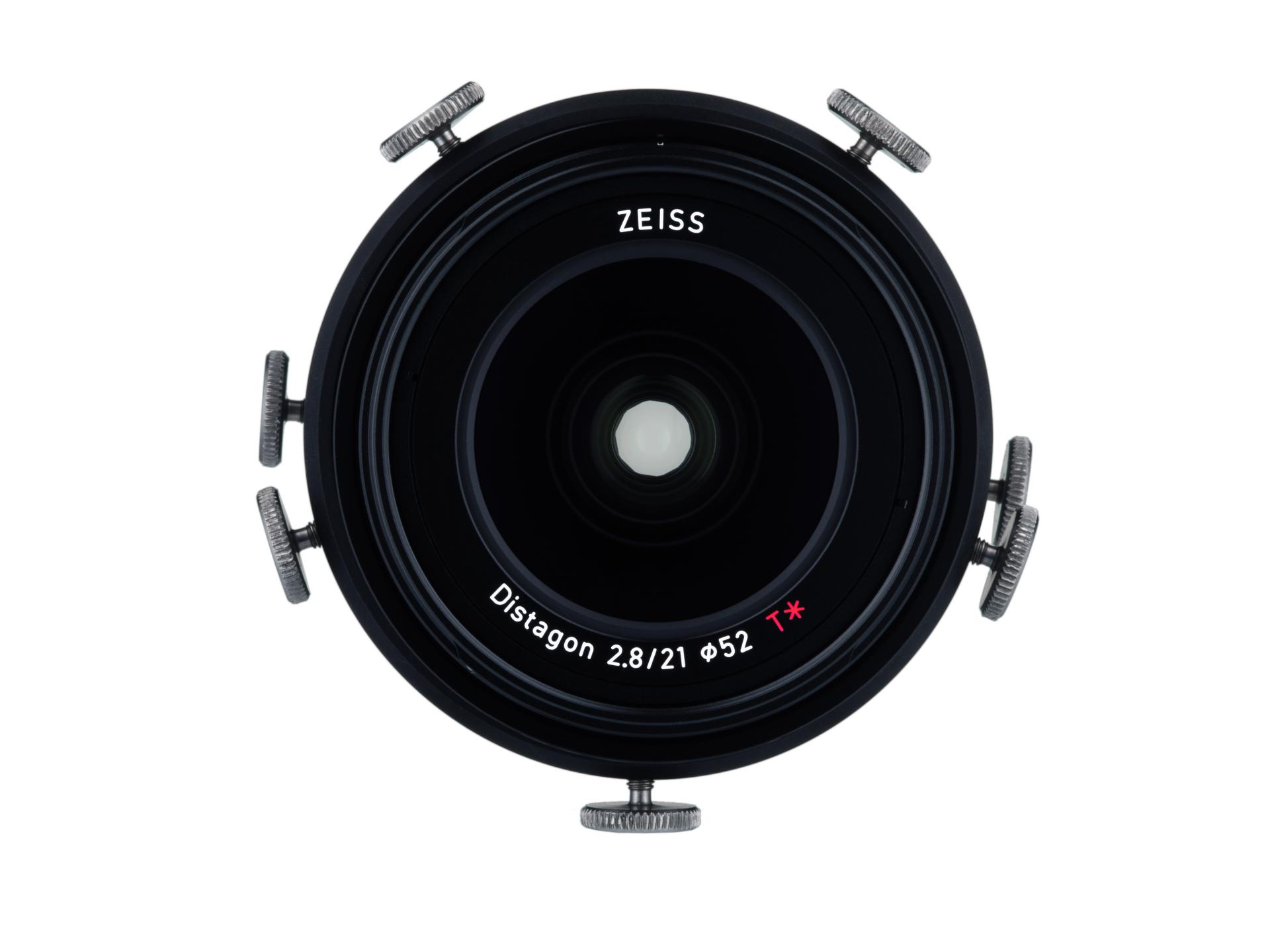

ZEISS T* anti-reflective coating

The optical elements of ZEISS lenses feature T* anti-reflective coating on all surfaces and an optical design that guarantees images of superior brilliance at all times, even in unfavourable lighting conditions. The first coating techniques were employed by ZEISS as long ago as in the 1930s.

ZEISS Interlock Compact Lenses

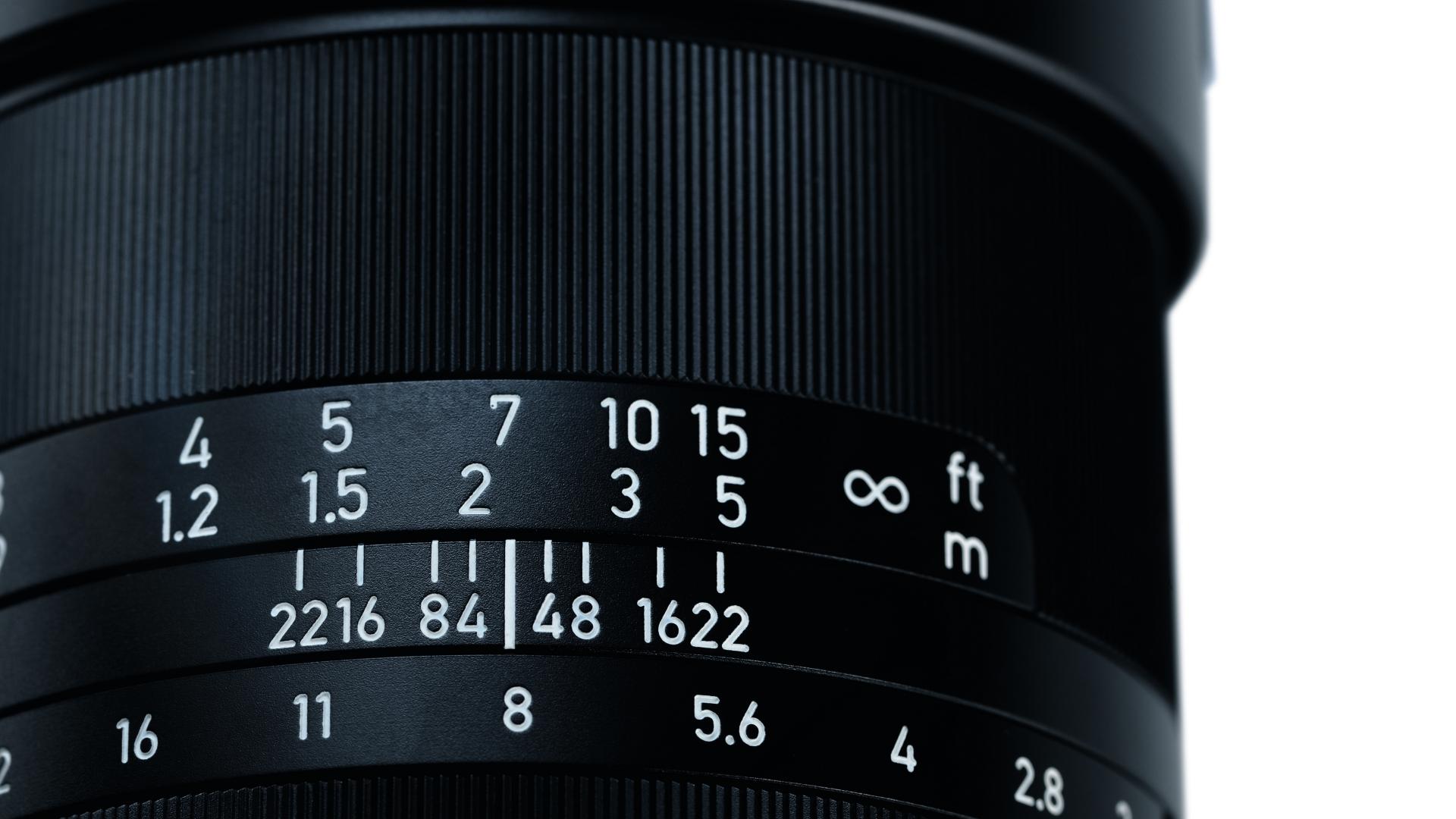

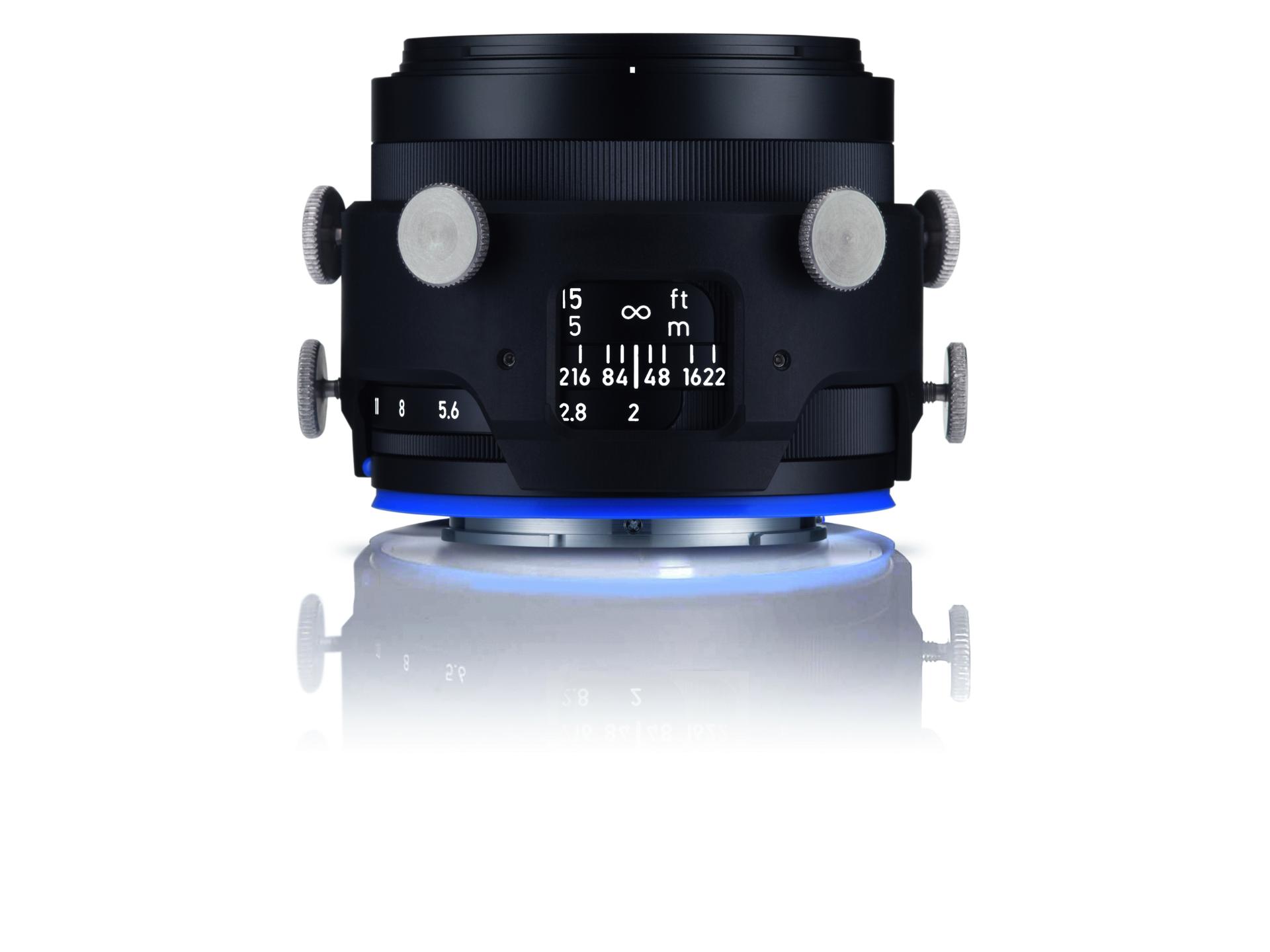

Precise manual focus

Manually focusing a lens means controlling the image result from your fingertips. A good ergonomic design makes all the difference. ZEISS lenses stand out with their large rotation angle which enables precise focusing. Changes are immediately visible in the viewfinder. The high-quality focusing mechanism moves smoothly without play, thus also supporting the intuitive interaction with the focal plane. The precise engraving in meter and feet, and the depth of focus scale provide additional support for manually focusing.

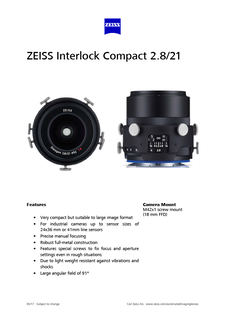

    • ZEISS Interlock Compact 2.8/21

      Datasheet

      419 KB

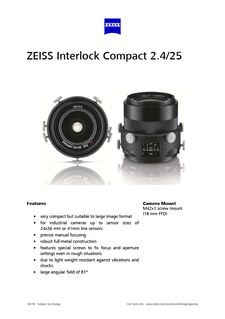

    • ZEISS Interlock Compact 2.4/25

      Datasheet

      639 KB

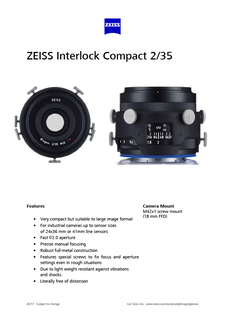

    • ZEISS Interlock Compact 2/35

      Datasheet

      413 KB

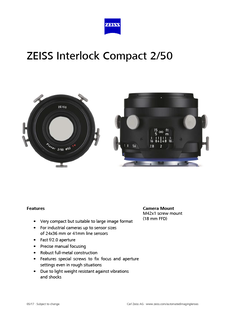

    • ZEISS Interlock Compact 2/50

      Datasheet

      381 KB

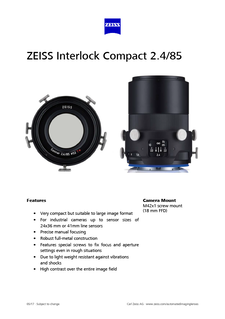

    • ZEISS Interlock Compact 2.4/85

      Datasheet

      376 KB
