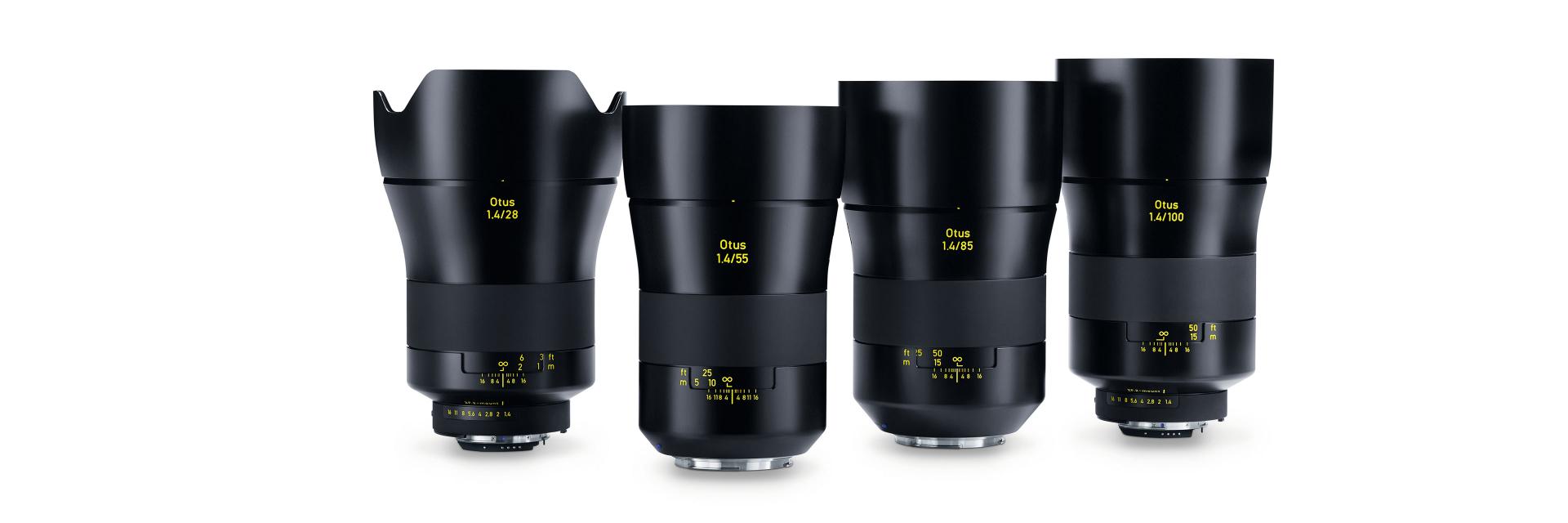

ZEISS Otus Lenses

Uncompromising image quality.

ZEISS Otus Lenses offer the possibility to image fast at low light with practically no aberrations. The lenses operate at f/1.4 without any compromises in performance. At f/1.4 you will hardly see any color fringes even when using 3,5 µm pixels. These lenses will provide you with build quality and extremly smooth rotation angle for the very best usability. All these features make the ZEISS Otus lenses absolutely unique and set new standards.

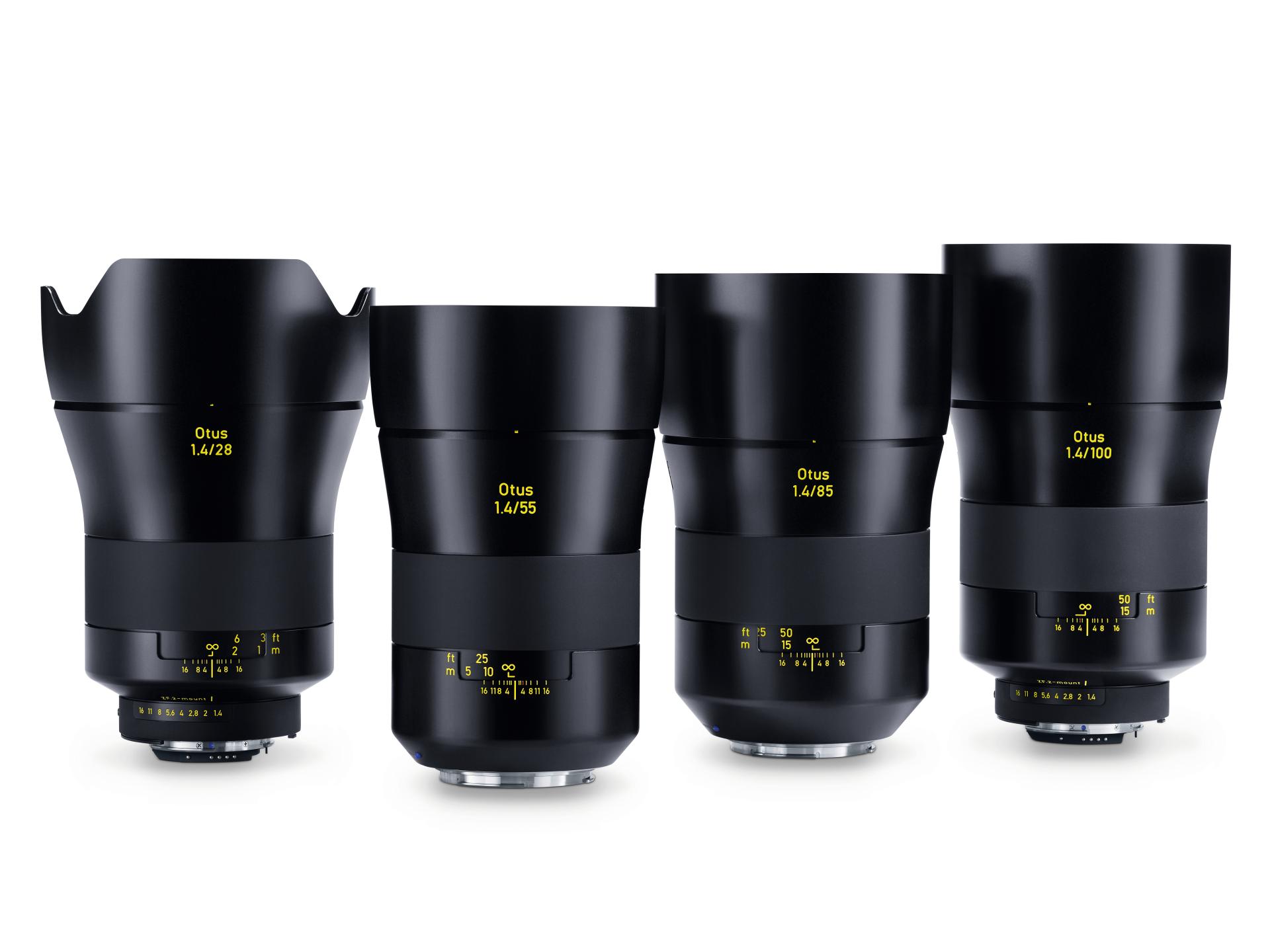

All ZEISS Otus lenses cover linescan sensors up to 43 mm (12k) or full frame area sensor with 24 x 36 mm (71 or more Mpixel) and are available with standard F-Mount. The ZEISS Otus family consits of four focal lengths range from 28 mm to 100 mm and are key components in complex production processes (Machine Vision) as well as in optical metrology, medical applications, traffic enforcement, quality assurance, sports and many other applications. Here they prove their outstanding image performance and reliability.

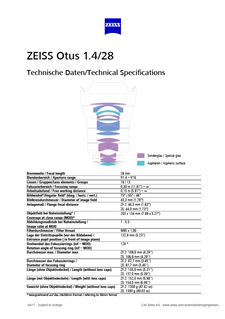

Technical Data

ZEISS Otus Lenses

Focal Length
Max. Aperture
Min. Free Working Distance
Min. Working Distance (Sensor to Object)
Filter Thread

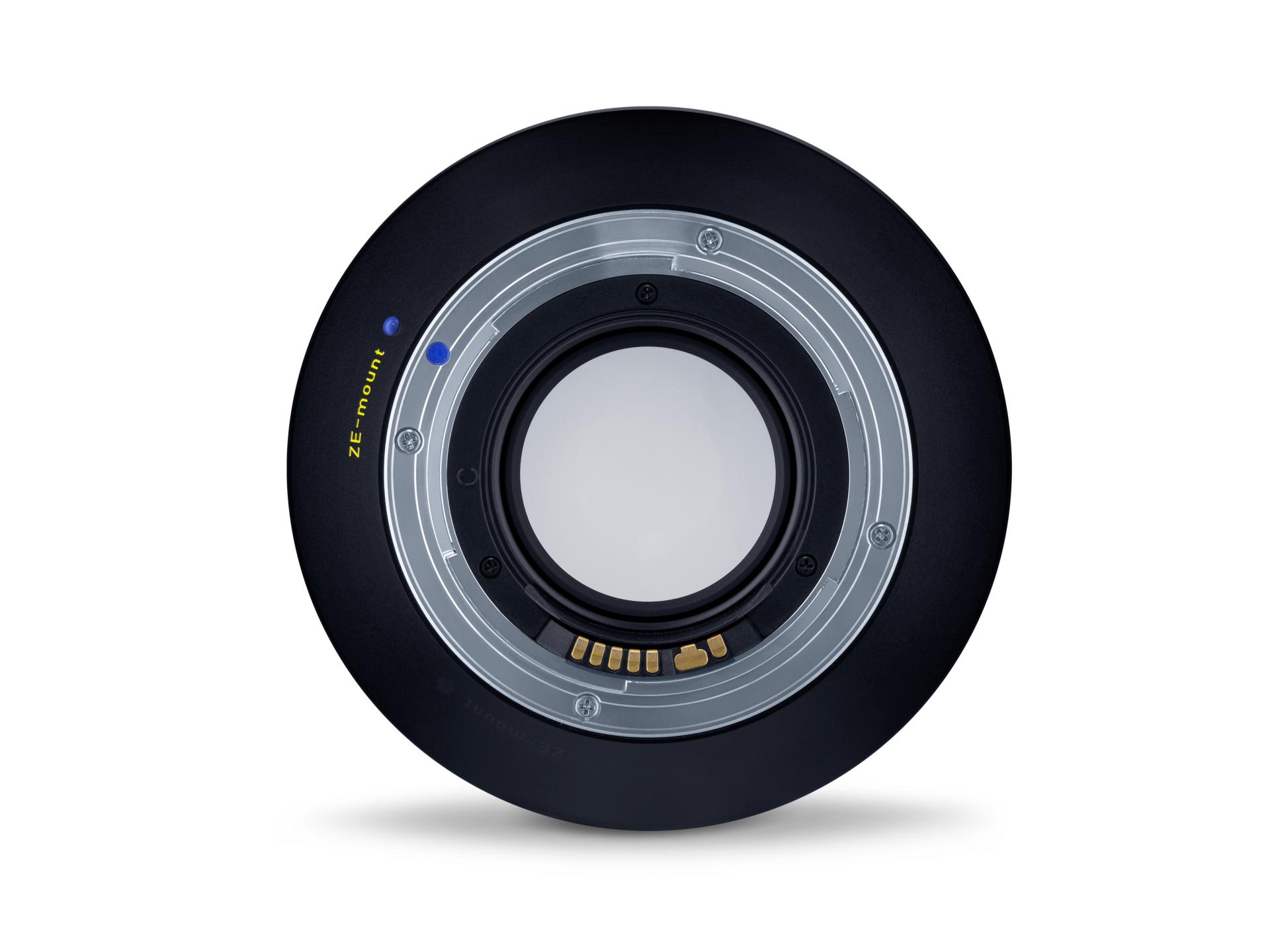

Camera Mount

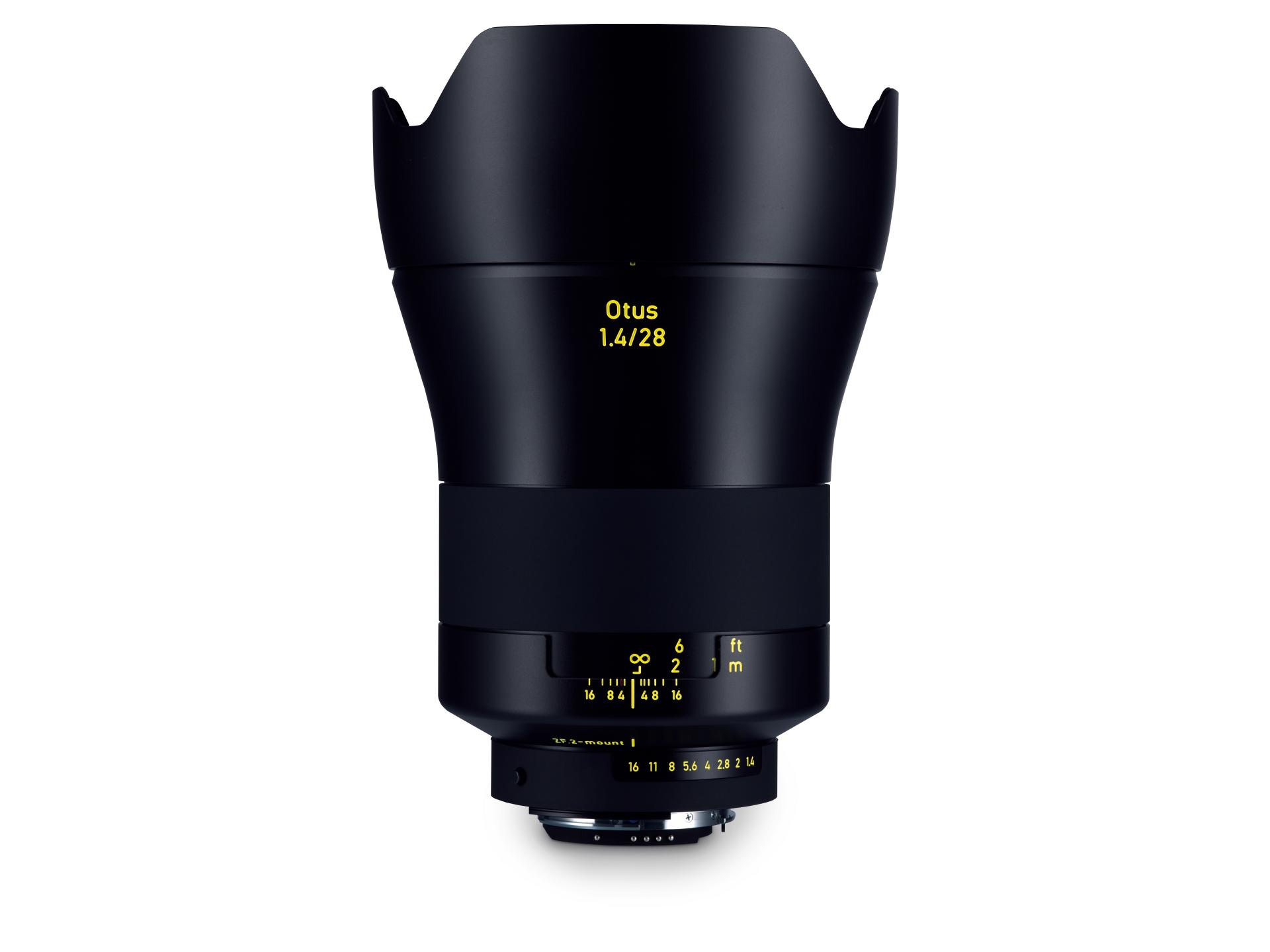

Otus 1.4/28

28 mm

1.4

150 mm

300 mm

M95 x 1.00

F-Mount*, EF-Mount*

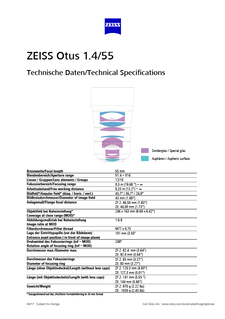

Otus 1.4/55

55 mm

1.4

330 mm

500 mm

M77 x 0.75

F-Mount*, EF-Mount*

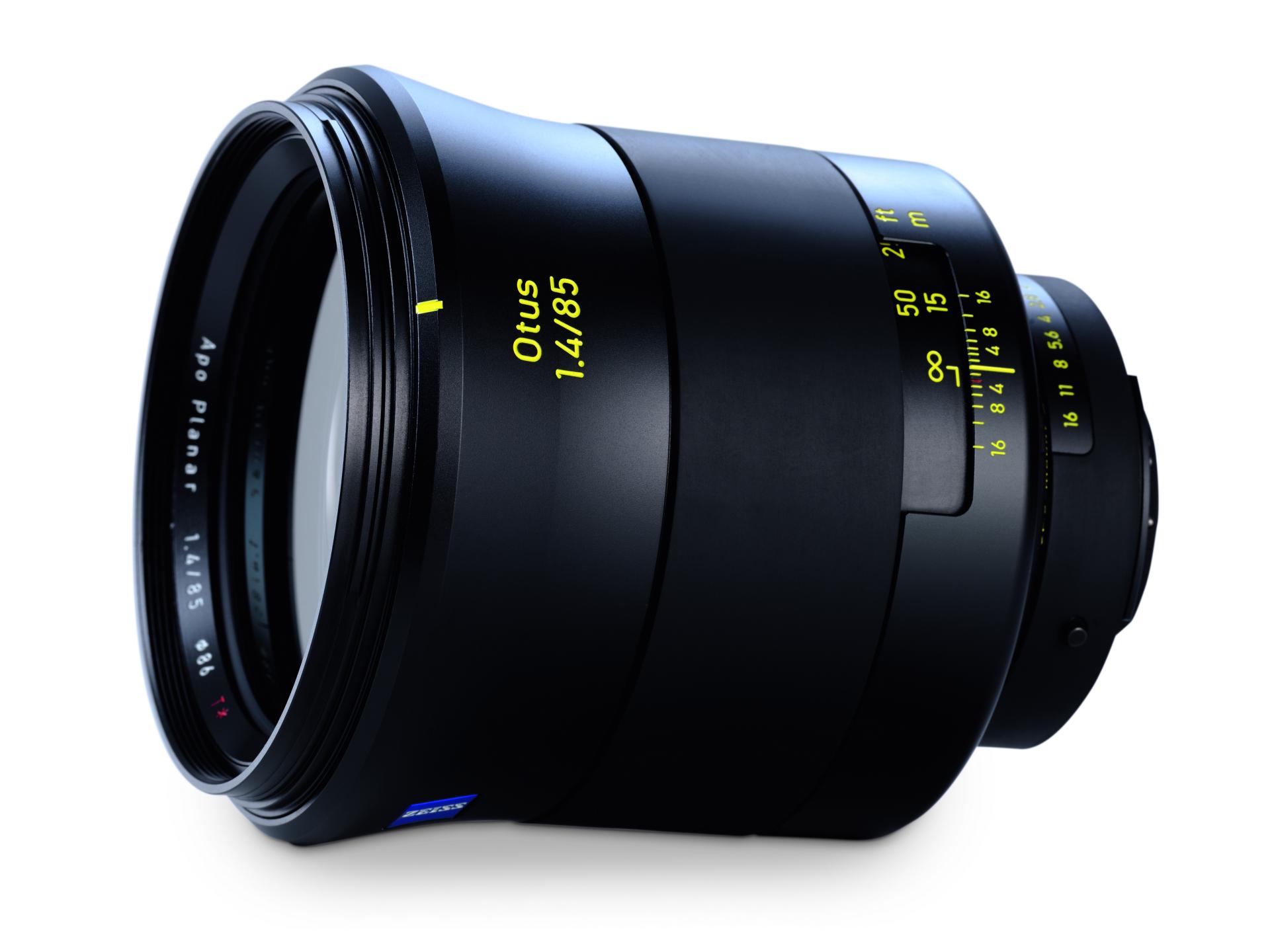

Otus 1.4/85

85 mm

1.4

650 mm

800 mm

M86 x 1.00

F-Mount*, EF-Mount*

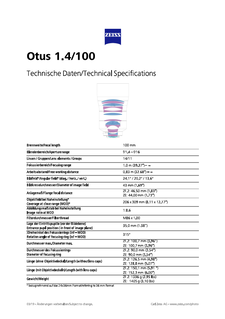

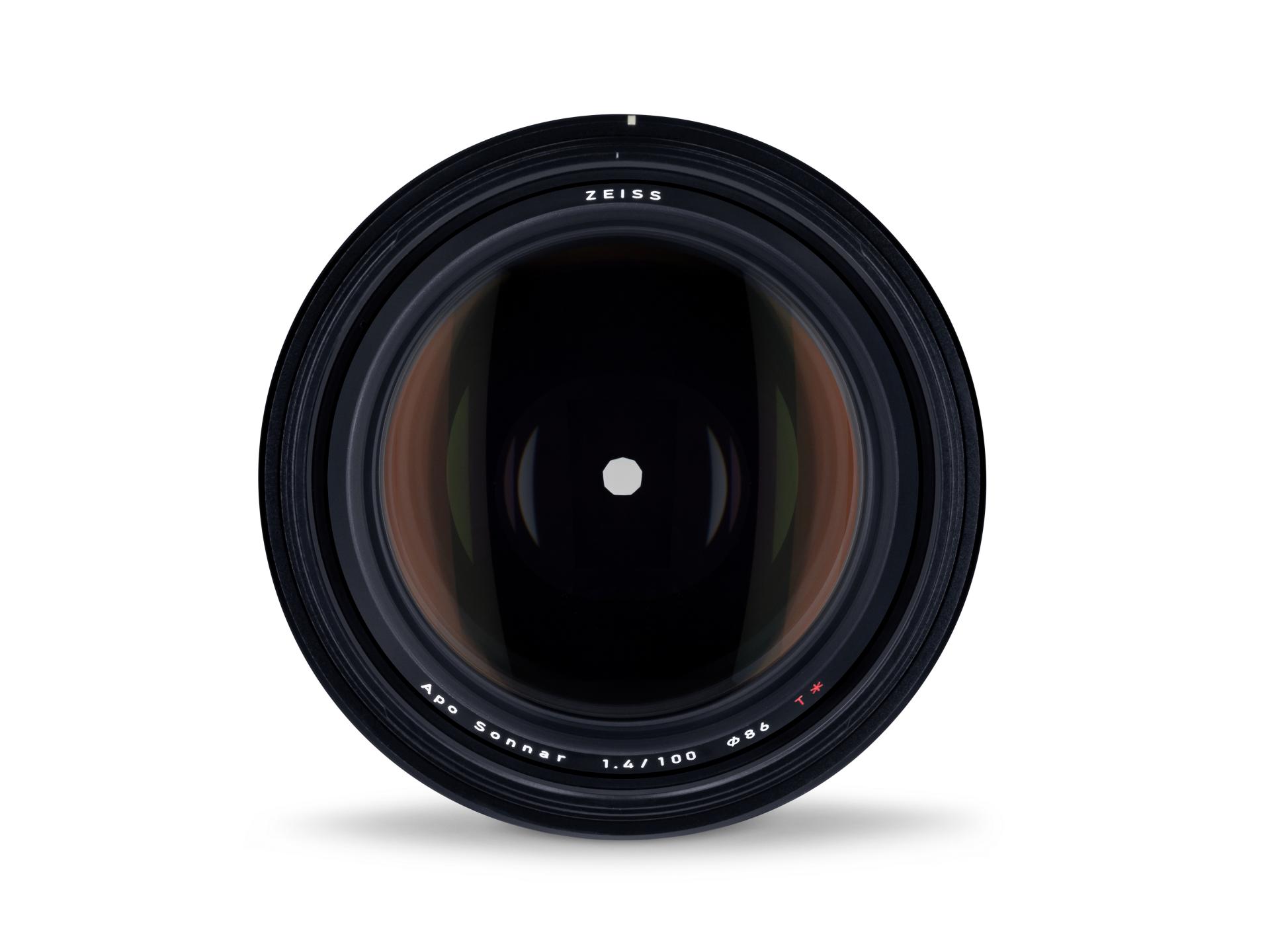

Otus 1.4/100

100 mm

1.4

650 mm

1000 mm

M86 x 1.00

F-Mount*, EF-Mount*

Remark:
* Available with fixing srews for focus and aperture.

ZEISS Otus Lenses

Stress Test

ZEISS lenses need to operate perfectly in extreme conditions, withstanding everything from scorching heat and bitter cold to sandstorms and severe vibrations. The video shows how ZEISS researchers systematically submit lenses to extreme stresses in order to arrive at findings that can help in future lens design and development. The video explains how a lens with fixing screws was tested regarding following norms:

  • DIN ISO 9022
  • DIN EN 60068-1: 1988-06
  • DIN EN 60068-2 Part 64: 2009-04
  • MIL-Std 810G
ZEISS Otus Lenses

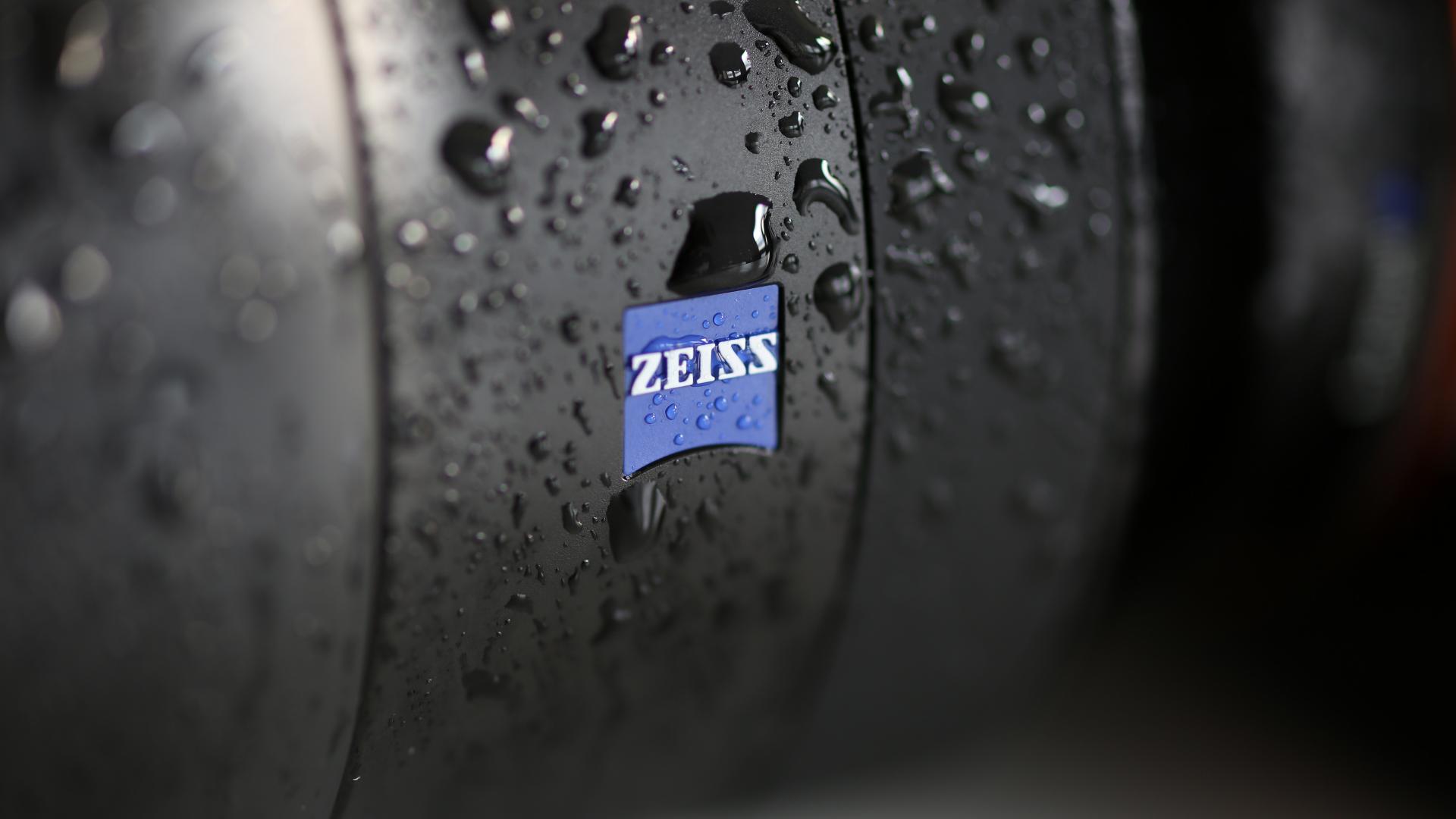

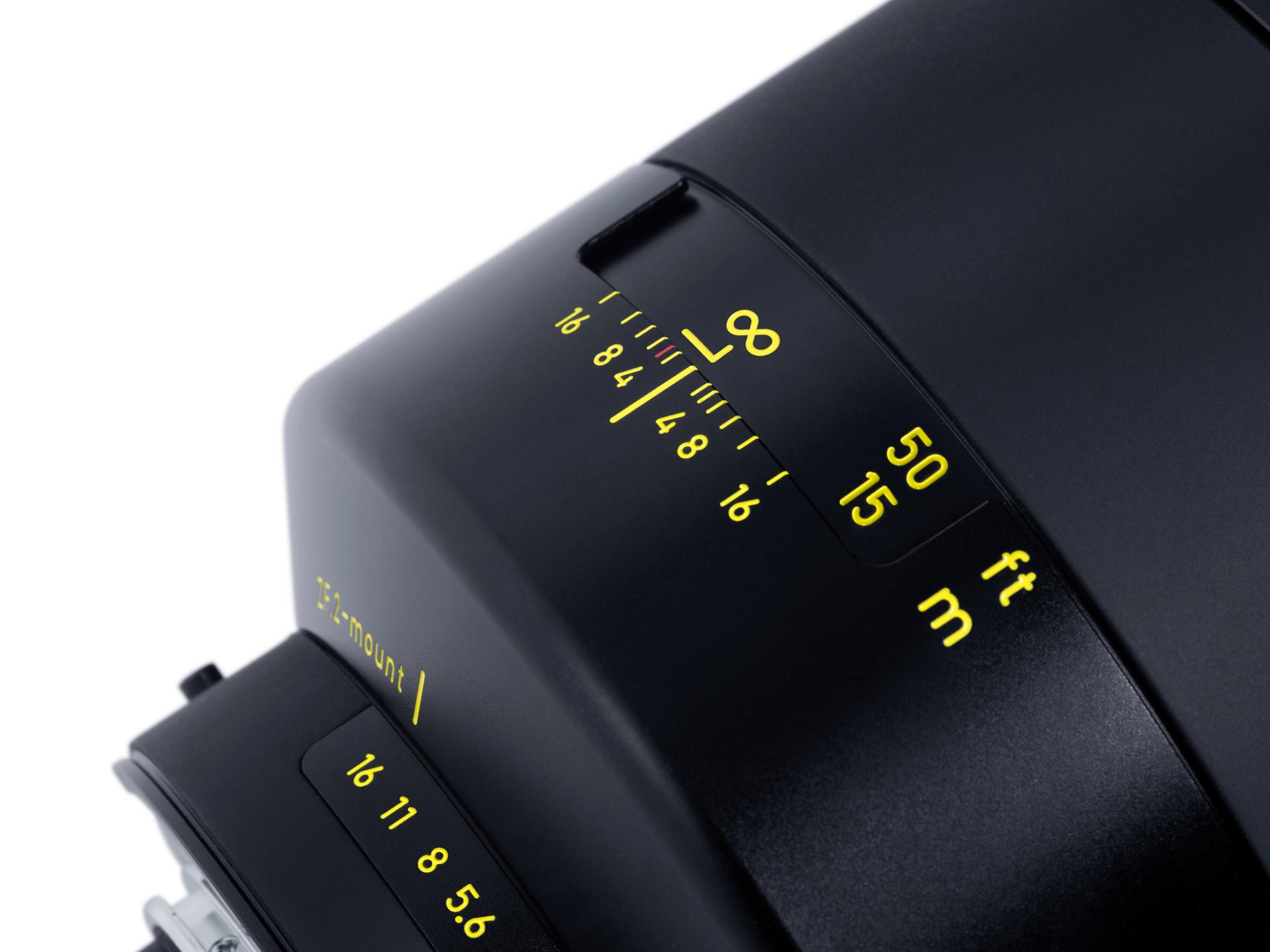

Long-lasting product with protection against environmental influences

The all-metal housing makes every adjustment a haptic experience. The dynamic, precise barrel design sets new trends in the world of camera lenses. However, the ZEISS Otus Lenses will impress you not only due to their visual and haptic excellence, but also thanks to their inner qualities. Special seals for protection against dust and splashes guarantee the system's functional reliability even in environmentally difficult situations.

ZEISS Otus Lenses

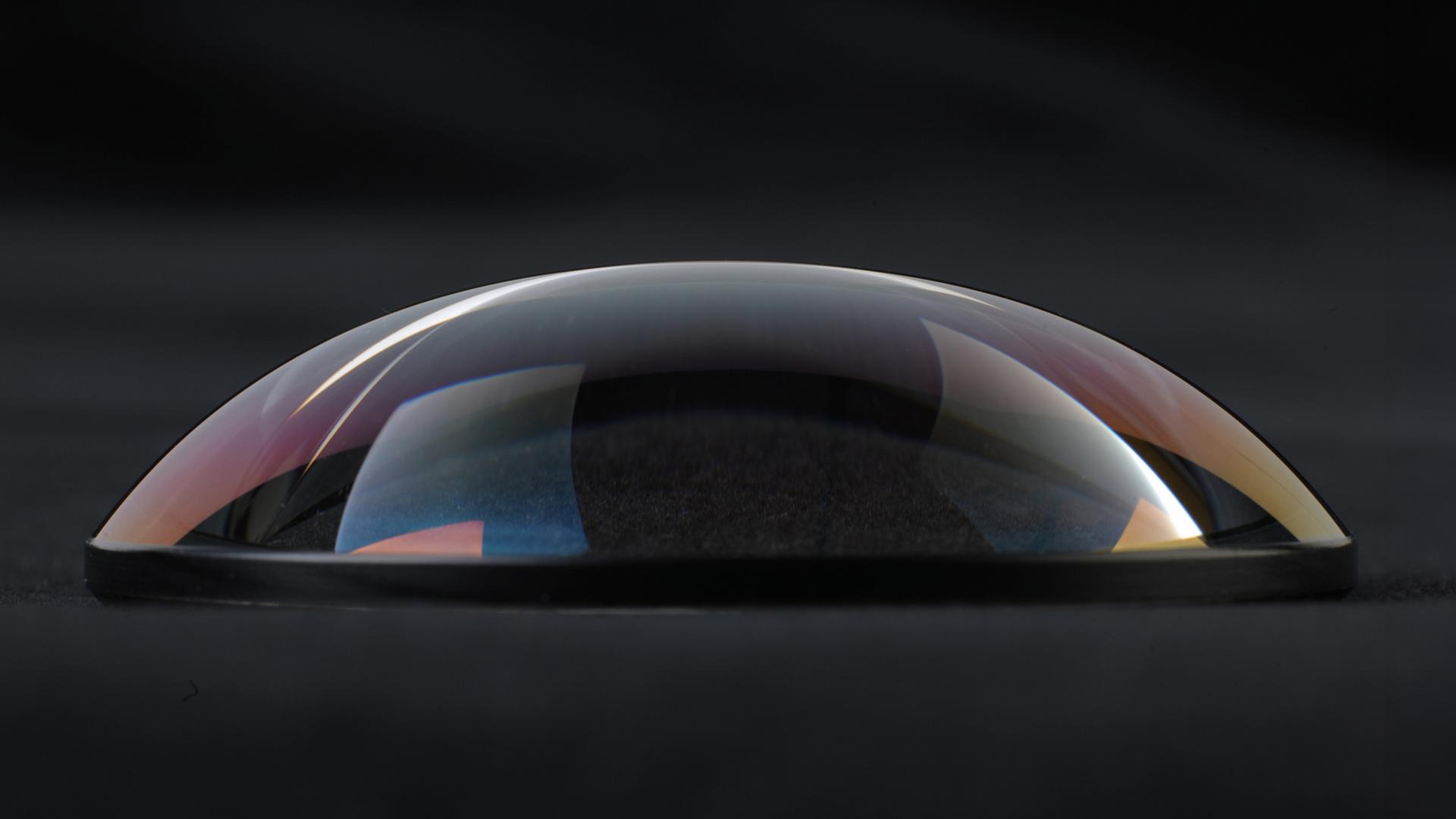

Aspherical design

The aspherical lens design ensures consistent imaging performance throughout the entire focusing range as well as sharpness to the periphery of the image. The asphere's more complex surface profile can reduce or eliminate spherical aberration and also reduce other optical aberrations compared to a simple lens.

ZEISS Otus Lenses

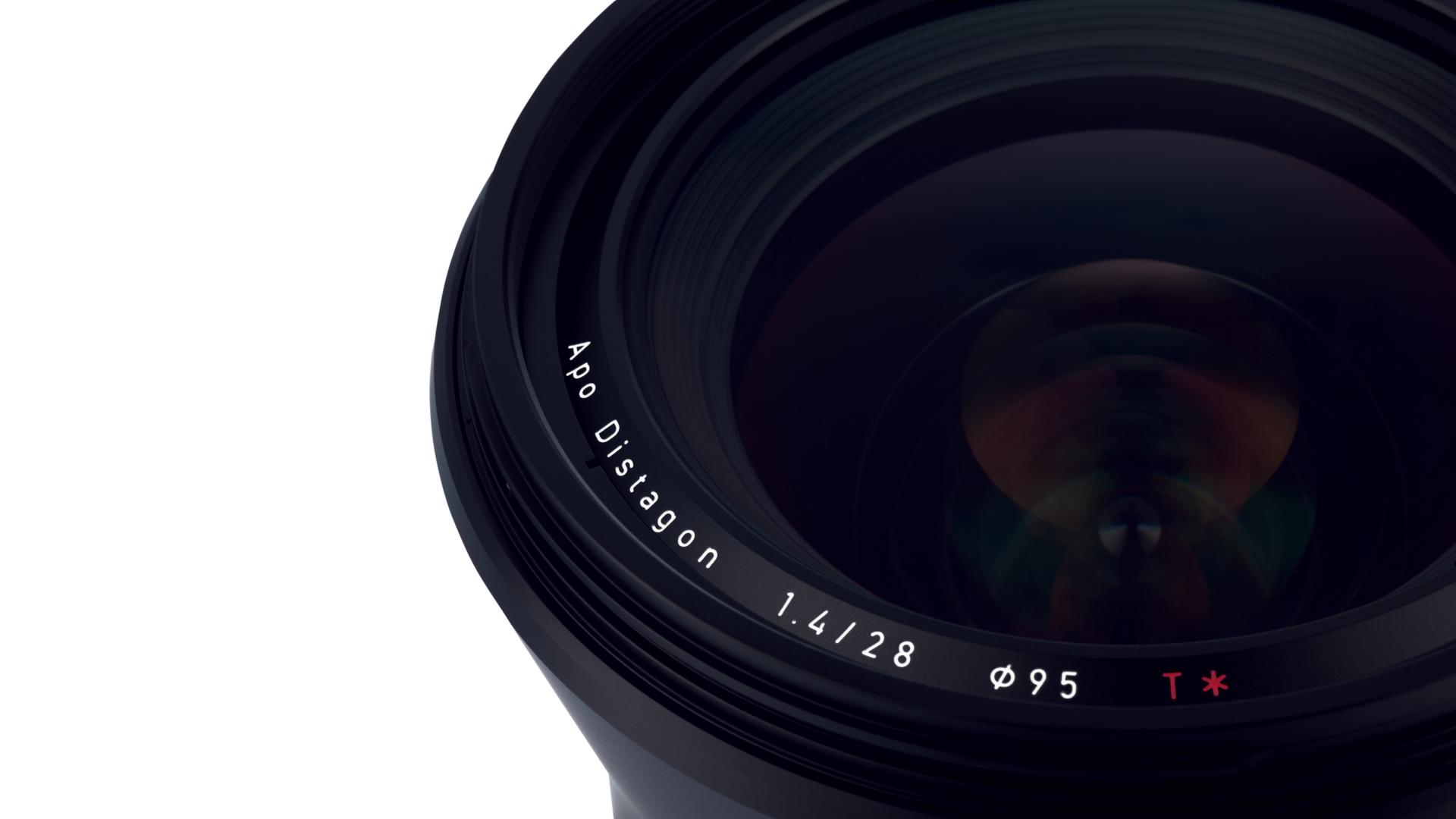

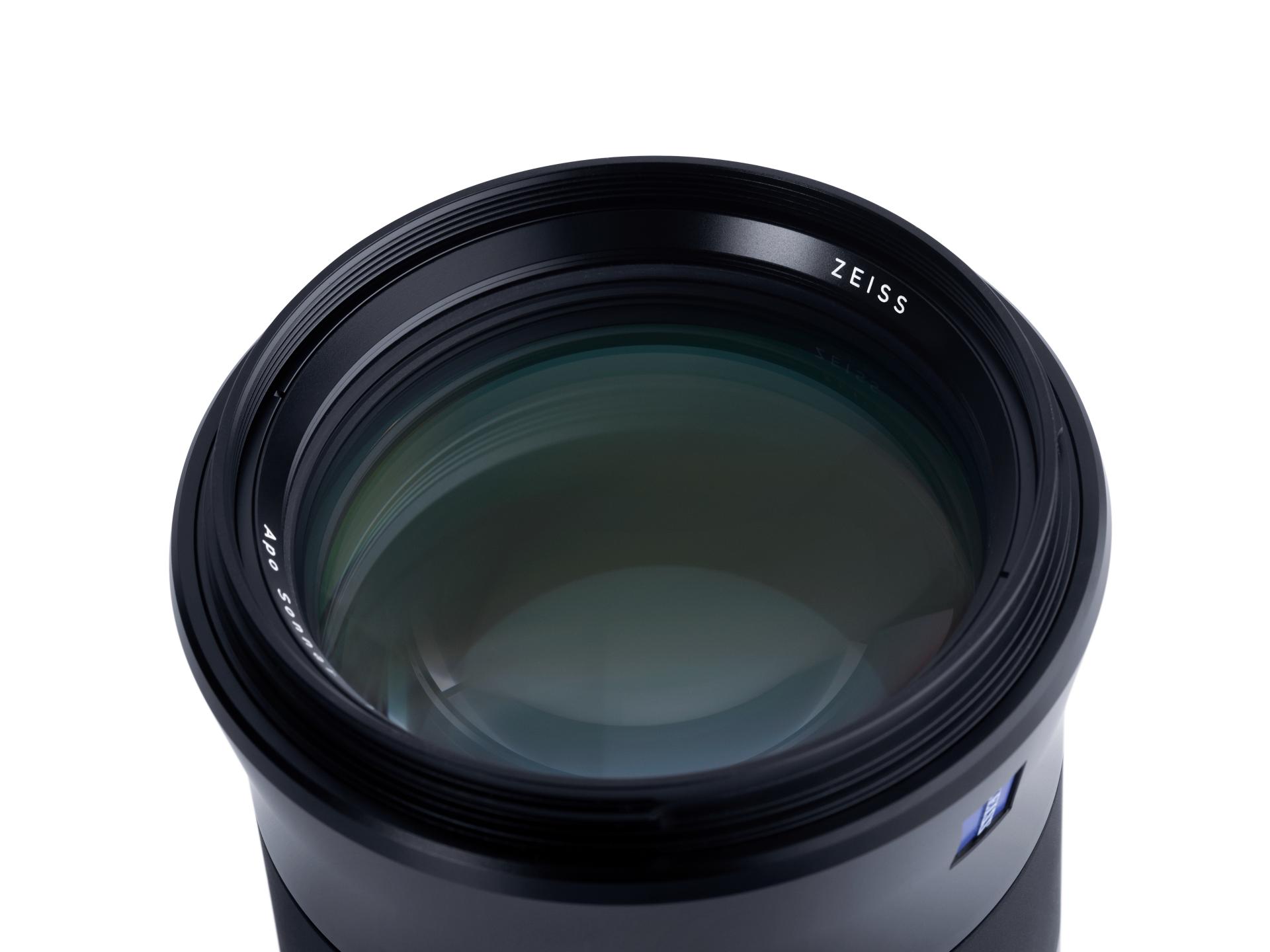

ZEISS T* anti-reflective coating

The optical elements of ZEISS lenses feature T* anti-reflective coating on all surfaces and an optical design that guarantees images of superior brilliance at all times, even in unfavourable lighting conditions. The first coating techniques were employed by ZEISS as long ago as in the 1930s.

ZEISS Otus Lenses

Virtually distortion-free optics

Dramatic perspectives and a view from extraordinary image angles – ZEISS lenses open up new composition possibilities. Distortion would disrupt the composition because straight lines, whose image does not go through the image center, would be reproduced with a curved shape. This annoying effect is accordingly and largely compensated through elaborate optical designs at all focal lengths.

ZEISS Otus Lenses

The ultimate in image contrast

Aberrations caused by extreme differences between shadows and highlights are particularly obvious in images captured at night. Thanks to the outstanding correction of lateral chromatic aberration, the floodlit facade is reproduced with absolute perfection.
