ZEISS Asterion
ZEISS STAR PROJECTORS

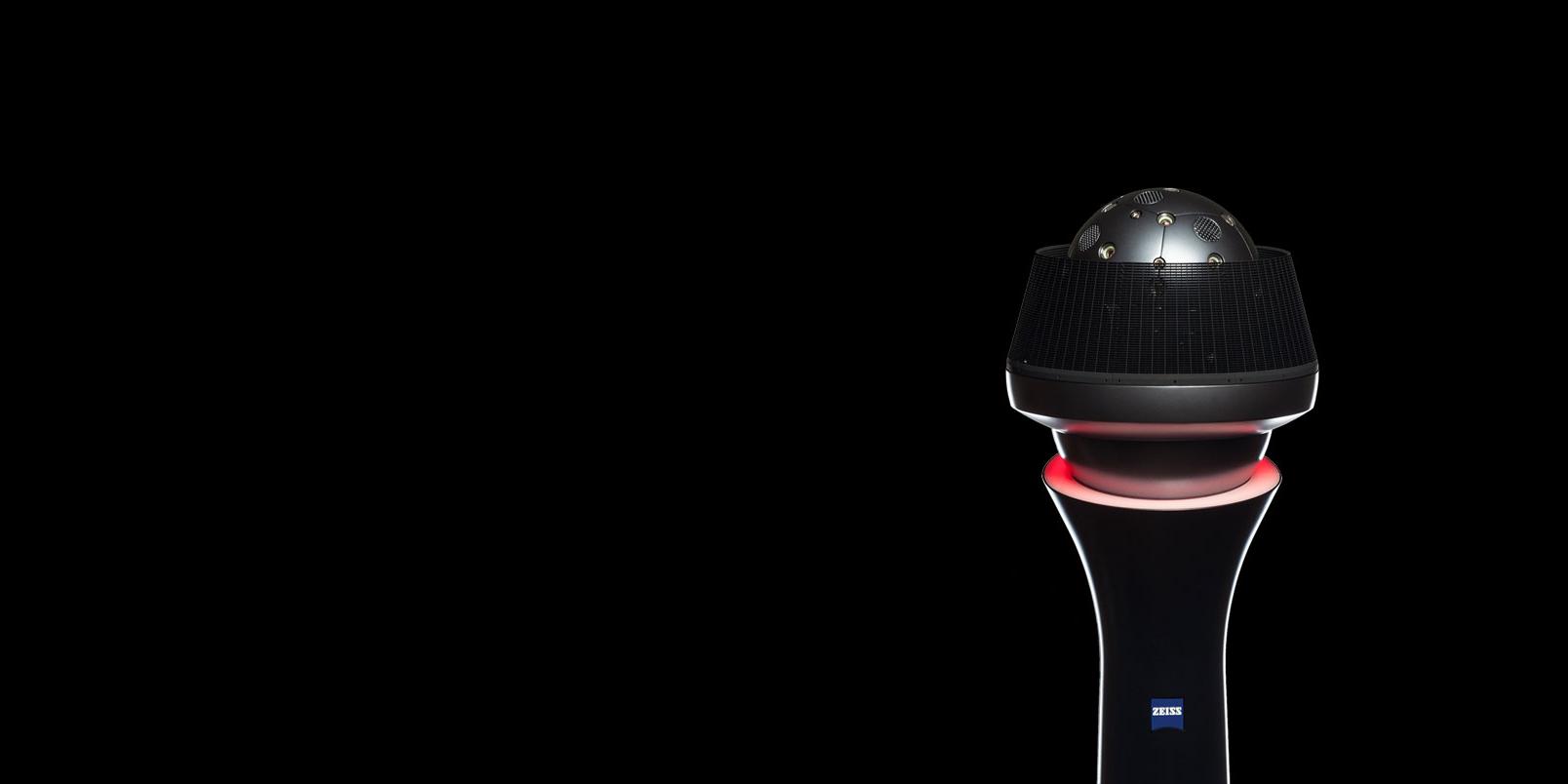

ASTERION® and ASTERION® Premium

The New Star Ball for ZEISS Hybrid Planetariums

Fewer and fewer people have experienced for themselves an unspoiled view of the night sky. Planetariums, therefore, have the task of simulating the starry sky to appear in its most natural way possible. ASTERION is the contemporary answer to this task.

  • Brilliant Night Sky
  • Compact and Elegant
  • Economical and Environmentally Friendly
Page Content
Contact
Asterion and Stars

Realistic

ASTERION is designed as an opto-mechanical hybrid component and shines with exactly what digital projections cannot: with stars, clear and bright, point-like and in natural gradation with a Milky Way that is particularly realistic to the eye.

Premiere Presentation for the IPS 2020 virtual Conference

in English

  • Third-party Content Blocked

    The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
    Recording: International Planetarium Society

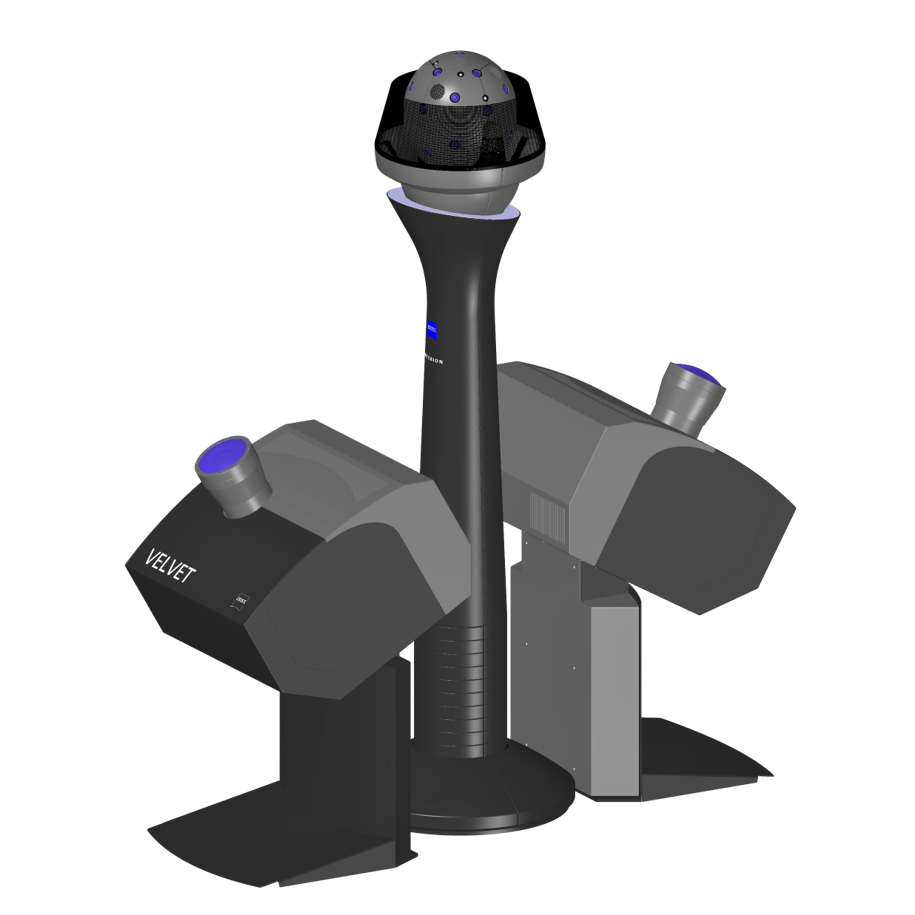

ZEISS Asterion Hybrid System

True Black Hybrid Planetarium

Combine ASTERION with VELVET LED for the uncompromising combination of analogue starry sky projection with digital fulldome projection. Uncompromising, because the digital projection does not interfere with the brilliance of the starry sky and because the digital and analogue planetarium always match one hundred percent.

Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
Typical installation in an 11 m dome with a two-channel VELVET LED system in the centre.
Typical Configurations

ASTERION VELVET for small size planetariums up to 12 m dome diameter

In smaller domes between 8 m and 12 m in diameter, the combination with a two-channel VELVET LED system is recommended. The two VELVET LED projectors in the center of the dome create a shadow-free dome image with nearly 3k resolution.

Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
Typical installation in a 15 metre dome inclined at 25 degrees with a six-channel VELVET LED system at the edge of the dome.

ASTERION VELVET for medium and inclined dome sizes

Example system configuration for an inclined dome of medium size. ASTERION with the projectors for the sun, moon and planets is located in the centre of the dome. Six VELVET LED projectors at the edge of the dome produce a shadow-free dome image with a resolution of almost 5k.

ZEISS Asterion

Compact and Elegant

ASTERION puts high opto-mechanical technology into a miniaturized form and creates the brightest starry sky with the smallest Starball of its class. It offers virtually no obstruction to the visitors.

Inspire audience with your performances, but also with your technology. ASTERION is a technical piece of art, small but prominent, raising curiosity.

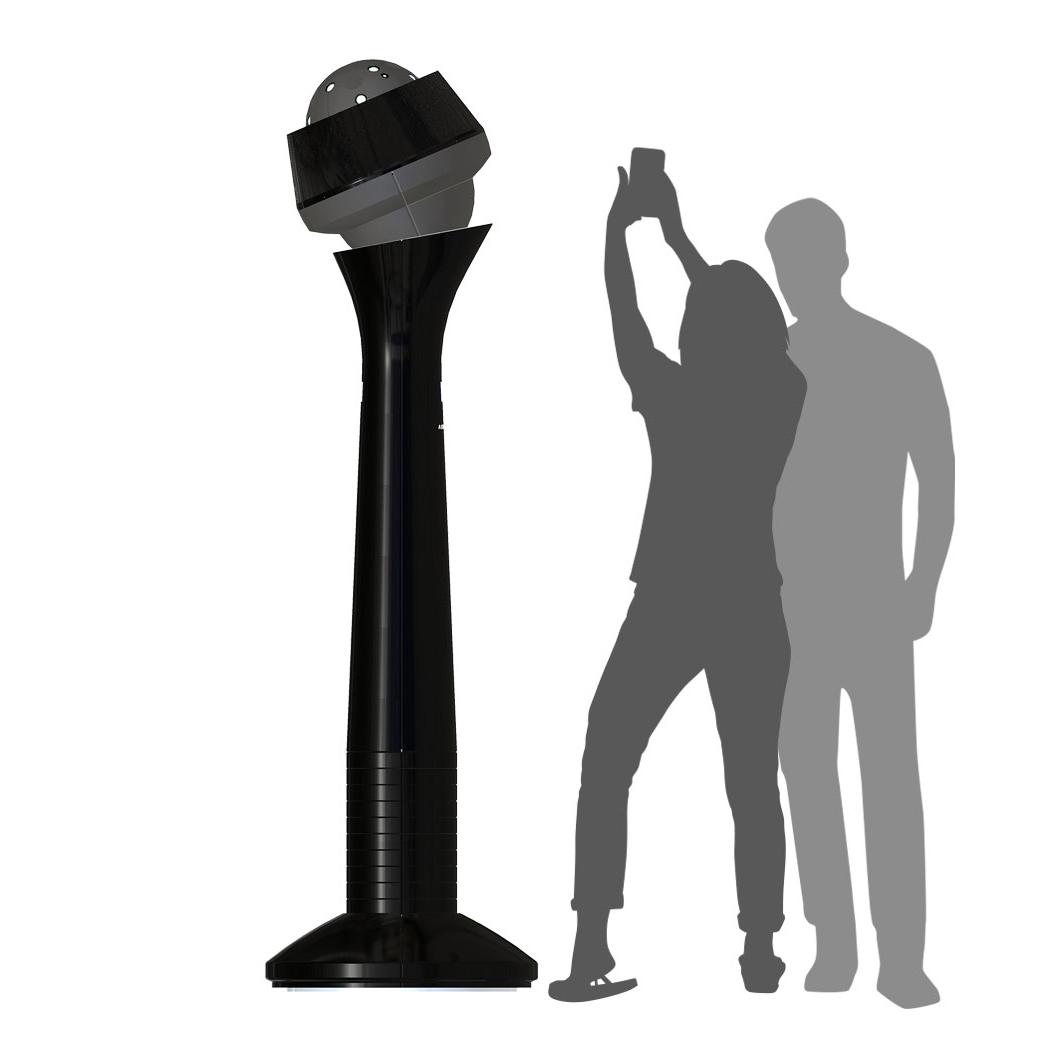

ZEISS Asterion dimensions

Economical and environmentally friendly

With just 220 watts you won’t find ASTERION on your electric bill. ASTERION wants to be looked after, but will not devour your service budget. No consumables anymore to buy, exchange and waste.


Product Details

  • ASTERION

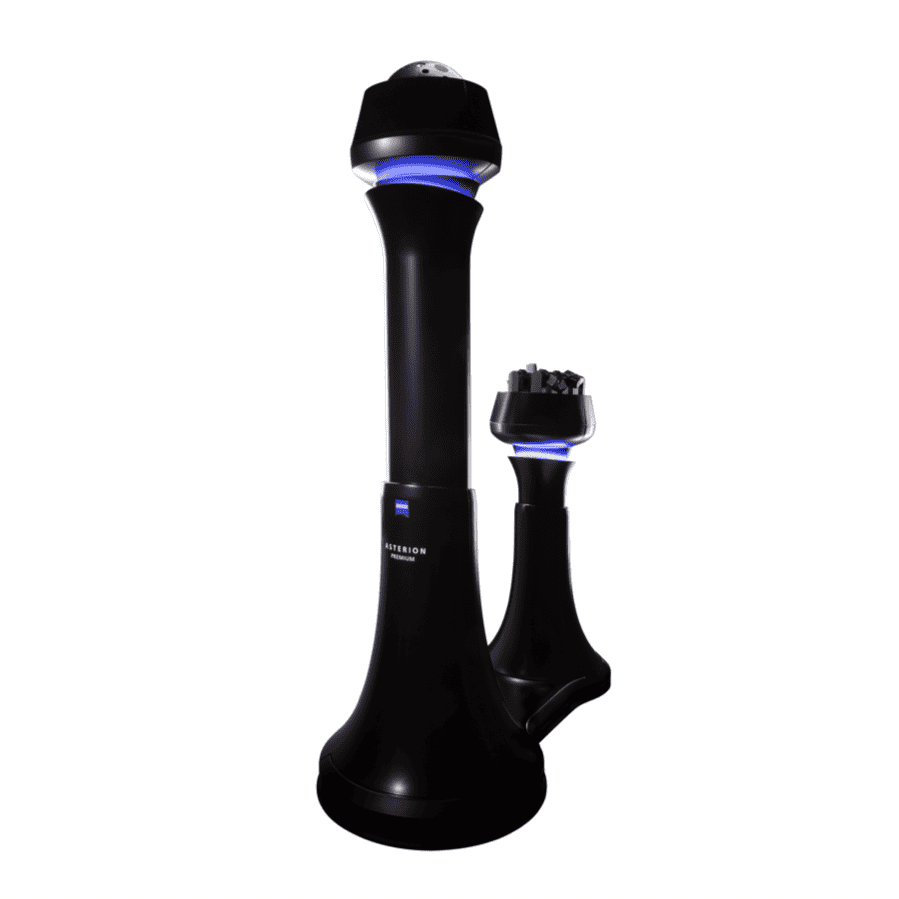

    ASTERION Premium

    Dome diameter / tilt

    8 m – 14 m, 0° – 30°

    15 m – 18 m, 0° – 30°

    Dome Reflectivity

    30 % – 60 %

    45 % – 65 %

    Horizon Height

    1650 mm – 2055 mm (standard)
    min. 400 mm (in consultation)

    2055 mm – 2200 mm (standard)

    Lift

    integrated lift for Starball optional

    integrated lift for Starball optional
  • ASTERION
    ASTERION Premium

    Starry Sky

    approx. 7,000 stars (down to 6.3 mag)

    approx. 9,000 stars (down to 6.55 mag)

    Coloured Stars


    natural tints for all stars down to 1.7 mag

    natural tints for all stars down to 2.1 mag

    Scintillation (all stars)

    optional

    standard

    Milky Way

    optical projection

    (based on Gaia data)

    optical projection
    (based on Gaia data)

    Deep Sky Objects

    77

    200+

    Sun and Moon

    optional

    standard: approx. 1 degree diameter, Moon incl. clear surface details and phase changes

    Planets

    optional

    Merkur, Venus, Mars, Jupiter, Saturn

    (point-like)
  • ASTERION
    ASTERION Premium

    Height max.

    2322 mm

    2377 mm

    Footprint

    approx. 655 mm Dm.

    approx. 760 mm x 1660 mm

    Weight

    approx. 130 kg

    approx. 150 kg

    Starball Diameter

    320 mm

    320 mm

    Starball Rotation

    up to 60° / s

    up to 60° / s

    Effect Lighting

    RGB light ring

    RGB light ring
