ZEISS STAR PROJECTORS

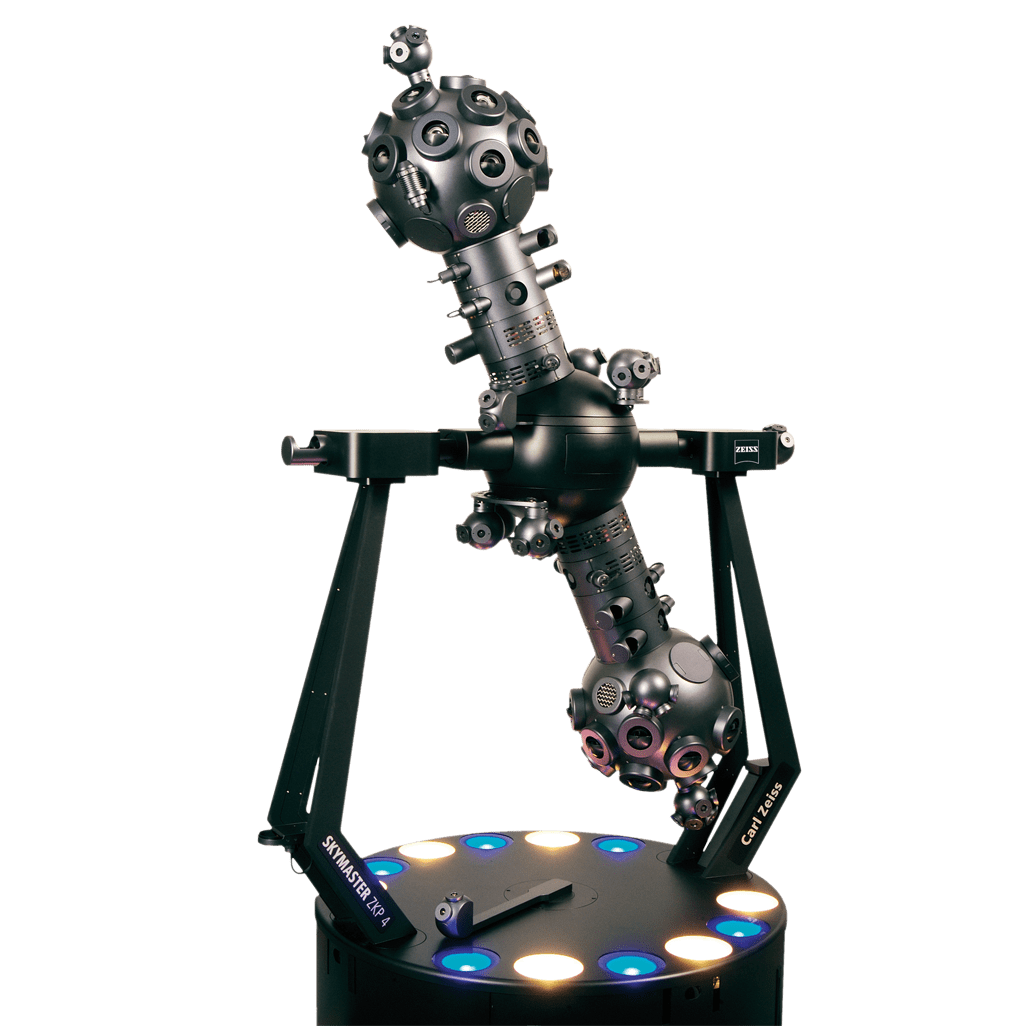

SKYMASTER ZKP 4 LED

The classical Planetarium Projector for Small and Mid-size Domes

The ZEISS SKYMASTER ZKP 4 LED planetarium combines the most advanced technologies for brilliant projections with the latest digital solutions for easy operation. The image of the night sky is extremely natural, the stars are very bright and brilliant. LEDs as light sources not only ensure high light output, but also low consumption costs.

Brilliant Night Sky
Comfortable Operation
Numerous Equipment Options

Brilliant, White and Bright Stars Thanks to Fiber Optics and LED Illumination

SKYMASTER ZKP 4 projects around 7000 tiny stars - the number of stars that the human eye can detect under good visibility conditions and which a smaller planetarium dome does not overload. Each individual star is illuminated directly and with pure white light by an optical fiber. With LEDs, the starry sky is about three times brighter than with halogen lamps. Milky Way, star clusters, nebulae and galaxies appear on the planetarium dome with a high level of detail.

Expanded Range of Functions

The fourth generation of the ZEISS small-size planetarium offers a wide range of functions. Its capabilities are completely similar to those of a large planetarium. Sun, Moon and all planets are positioned with topocentric accuracy. The relationships between the movements and visibility of the celestial bodies are also made easy to understand thanks to numerous didactic projections. SKYMASTER ZKP 4 has a modular design. The degree of equipment can be individually selected by the customer.

Live and Automatic Operation Included

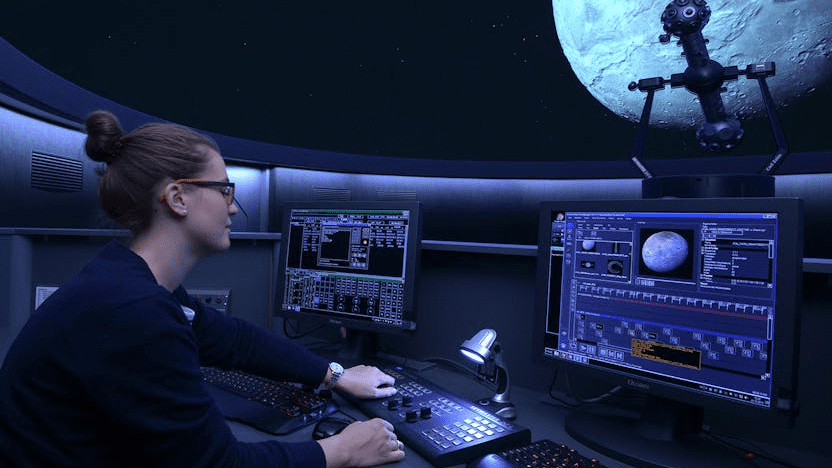

The control system meets the most modern requirements, the hardware ensures very high reliability, the software allows extremely convenient operation, whether live or automatic. SKYMASTER ZKP 4 can be directly combined with the fulldome systems from ZEISS. This connection enables the synchronous coupling of optical-mechanical and digital projection.

Product Details


Starry Sky	Brilliant, white and very bright stars thanks to fibre optics and LED illumination Bright stars with individual colors Milky Way, star clusters, gas nebulae and galaxies
Planets, Sun, Moon	Moon with surface details and automatic phase change Moon phase change can also be demonstrated without moon movement Independent, two-axis motion control for planet projectors
Control	Direct control of sky positions and observation times within a few seconds (jumps in time and place) Automatic display of analemma and other movement combinations by means of simple commands
Maintenance & Service	Long-life LEDs reduce operating cost Remote diagnosis and remote maintenance facilitate service and save costs
Additional Features	Heliocentric Solar System Indication of all device statuses and positions Topocentric representations with high accuracy: exact moon positions, planet conjunctions, etc. Built-in lift for shadow-free projections over the centre of the dome Noble color scheme in anthracite

Projections	Entire northern and southern sky, approx. 7 000 stars (down to magnitude 6.3 mag) Sun and Moon Planets / solar system objectsMeridian, Equator, Ecliptic Vertical circle, hour circle Azimuth scale and zenith mark Hour angle scale and celestial pole Precession scale Constellation figures Cardinal points Horizont light east and west Illumination white and blue
Main Motions	Azimuth motion Diurnal motion Annual motion Polar altitude motion Precession motion Projector lift
Additional Equipment	Shooting stars Digital device status display


Projection Dome
Dome diameters Dome reflectivity Horizon height	6 m - 15 m 40 % - 75 % 2055 mm
Projection Instrument
Hight, max./min. Substructure diameter Weight Power supply Power consumption	2750 / 1725 mm 780 mm approx. 280 kg 240/220 V ±10 %, 50 Hz \| 130/110V ±10 %, 60 Hz max. 1,8 kVA, 1,0 kVA (typ.)
