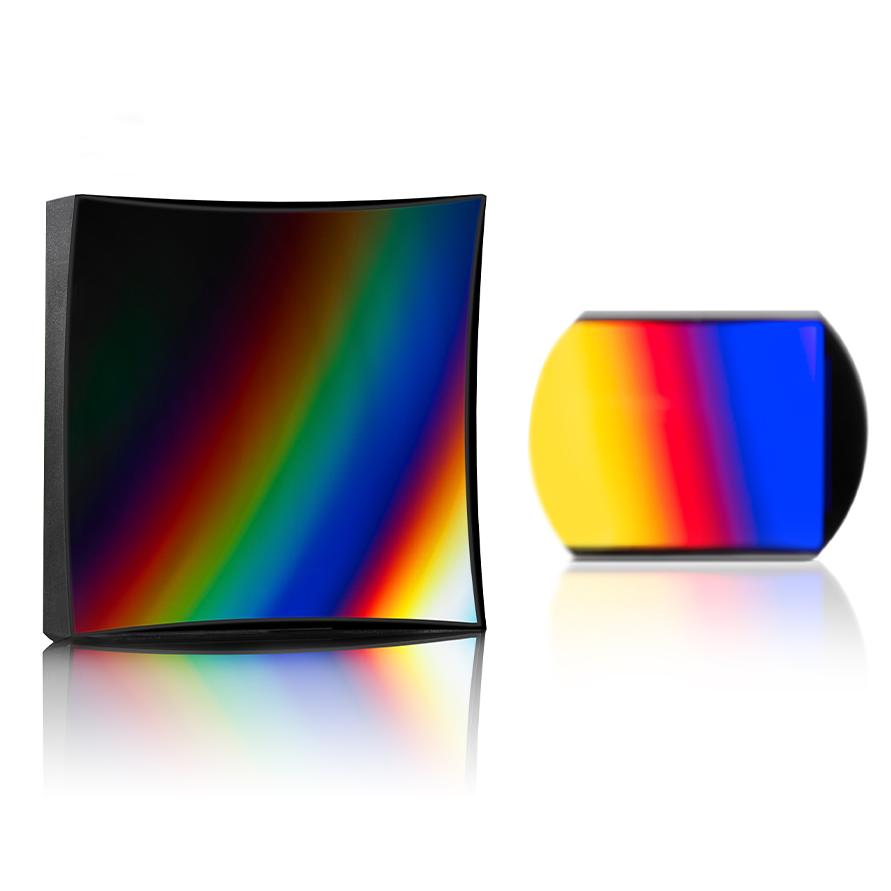

Mono- & Polychromator grating product picture
Concave Gratings

Mono- & Polychromator gratings One element – two benefits

Mono- & polychromator gratings combine dispersive and imaging properties in a single element. This reduces stray light, which when combined with image correction, optimizes spectrometer performance and the signal-to-noise ratio (SNL).  The blaze profile will be applied during the holography ("True Blaze Technology") and especially for curved substrates the blaze profile is aligned to the surface shape.

  • Available at short notice
  • Holographically made
  • Low straylight improving SNL ratio of your spectrometer
  • Optimizes spectrometers
  • Custom design

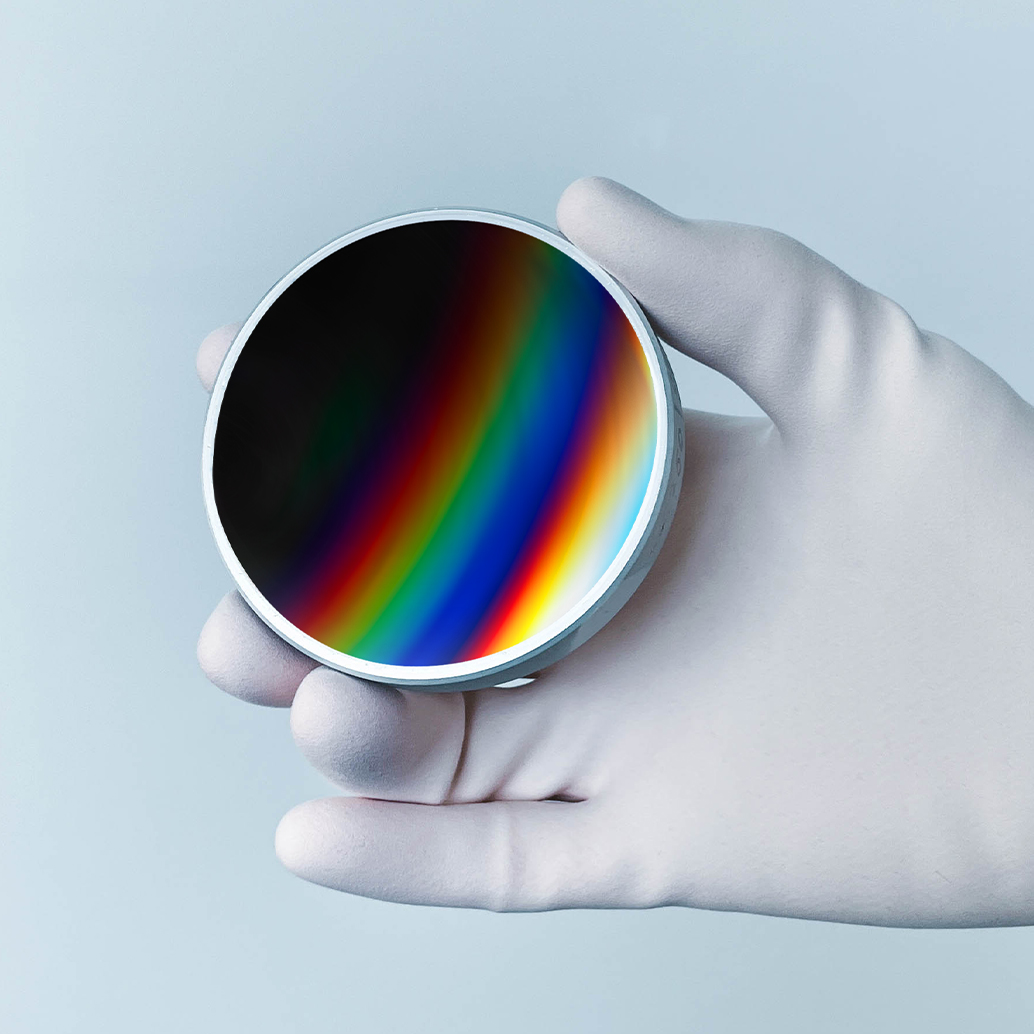

man holding a mono-/polychromator grating in his hand

See the benefits in the optical properties

With excellent aberration correction, ZEISS Mono- & Polychromator gratings provide enhanced optical performance. Errors such as astigmatism, spherical aberration and coma are minimized in a wide spectral range while the focal surface is optimized. Holographically manufactured, a wide range of standard configurations are available and they can also be tailored to your exact specifications.  ZEISS blaze technology enables the blaze profile best suited to the substrate shape during holography.

Improving the image

Image correction during holography can optimize imaging on the detector and minimize errors such as astigmatism, spherical aberration or coma for a wide spectral range in your spectrometer. The spectrum split by the grating can then be projected onto a flat receiver such as a one or two-dimensional CCD sensor in high resolution.

This makes it possible to create compact spectrometers with a minimum of components, which provide high resolution and low stray light at the same time.

Depending on the type of optimization, a distinction is generally made between monochromator and polychromator gratings. Monochromator gratings are optimized for a setup with a fixed entrance and exit slit and a grating that can be rotated around a stationary axis. The focus of a monochromator grating does not shift out of the plane of the exit slit during rotation, which, together with reduced aberration, results in greatly improved resolution.

Polychromator gratings are optimized for setups with a fixed position of entrance slit, grating and planar  detection device like CCD, PDA and CMOS.

Mono- & Polychromator gratings catalogue

Groove density [l/mm]

Nominal blaze wavelength [nm]

Corrected wavelength range [nm]

Dimensions [mm2]
Grating area [mm2]

Radius of curvature [mm]

Mono- (M) / Polychromator (P)

Catalogue number

Download

Request quote / information


1900 (blaze)

400

250-650

Ø 64 x 12
Ø 56

207.1

M

264510-2258-824

Data on request

Send request

1864 (sinus)

830

790-880

Ø 64 x 10
Ø 48

168.7

P

264510-2260-624

Data on request

Send request

1600 (blaze)

210

140-830

Ø 25 x 10
Ø 17

149.7

M / P

000000-1227-541

Datasheet (PDF)

Send request

1600 (blaze)

230

200-400

Ø 25 x 10
Ø 17

149.7

P

264510-2951-924

Datasheet (PDF)
Drawing models

Send request

1500 (sinus)

450

330-850

Ø 64 x 12
Ø 56

206.4

M

264510-2257-824

Data on request

Send request

1400 (blaze)

230

200-750

Ø 50 x 10
Ø 46

149.7

M

000000-1390-410

Data on request

Send request

1400 (blaze)

230

220-530

Ø 25 x 10
Ø 18

149.7

P

000000-1312-649

Data on request

Send request

1400 (blaze)

230

190-315

Ø 50 x 10
Ø 46

136.4

M / P

000000-1305-962

Data on request

Send request

1300 (blaze)

230 / 250

200-890

Ø 52 x 10
Ø 25

175.3

M

792102-0001-010

Data on request

Send request

1300 (sinus)

850

340-800

Ø 30 x 8
Ø 24

109.8

M / P

000000-1224-543

Data on request

Send request

1221 (blaze)

230 / 225

185-900

Ø 34 x 7
Ø 27

116.3

M

792012-0000-000

Data on request

Send request

1221 (blaze)

230 / 250

200-250

Ø 50 x 8
Ø 37

163.1

M / P

792005-0000-000

Data on request

Send request

1200 (blaze)

230

180-800

Ø 30 x 8
Ø 24

109.8

M / P

264510-2951-224

Data on request

Send request

1100 (blaze)

230 / 250

190-410

Ø 50 x 10
Ø 20

193.6

P

264510-2953-124

Data on request

Send request

1053 (blaze)

230 / 250

200-1100

Ø 56 x 10
Ø 36 x 30

260.4

M

000000-1321-172

Data on request

Send request

1000 (blaze)

230

200-900

Ø 52 x 10
Ø 36

94.4

M

792101-0001-010

Data on request

Send request

1000 (blaze)

230

190-1100

Ø 50 x 10
Ø 40

193.6

M

264510-2951-724

Data on request

Send request

1000 (blaze)

230

190-850

Ø 64 x 8
Ø 50

192.7

M

264510-2950-824

Data on request

Send request

1000 (blaze)

230

190-400

Ø 50 x 10
Ø 39

193.6

P

264510-2952-424

Data on request

Send request

950 (blaze)

230 / 250

200-415

Ø 32 x 7
Ø 26 / 25

150.7

M / P

792060-0000-000

Data on request

Send request

845 (blaze)

230 / 200

170-410

Ø 41 x 10
Ø 35

138.1

P

264510-2952-924

Data on request

Send request

844 (blaze)

220

200-800

Ø 41 x 9
Ø 34

138.1

M / P

000000-1329-190

Datasheet (PDF)
Drawing models

Send request

844 (blaze)

220

200-800

Ø 41 x 9
Ø 34

138.1

M / P

000000-2336-884

Datasheet (PDF)
Drawing models

Send request

651 (blaze)

230

200-800

Ø 64 x 10
Ø 56

214.8

M / P

264510-2951-124

Data on request

Send request

600 (blaze)

230

180-800

Ø 30 x 8
Ø 24

109.8

M / P

264510-2951-324

Datasheet (PDF)
Drawing models

Send request

527 (blaze)

300

200-1100

Ø 56 x 10
Ø 30 x 34

141.3

M

792024-0000-000

Data on request

Send request

355 (sinus)

1800

1400-2400

Ø 64 x 8.1
Ø 50

119.1

P

264510-2260-924

Data on request

Send request

324 (sinus)

380 / 290

190-510

Ø 67 x 10
Ø 57

160.8

P

792017-0000-000

Data on request

Send request

320 (blaze)

230

200-900

Ø 64 x 12
Ø 39

109.8

P

264510-2952-624

Datasheet (PDF)
Drawing models

Send request

320 (blaze)

230

200-800

Ø 30 x 8
Ø 26

109.8

P

264510-2952-724

Datasheet (PDF)
Drawing models

Send request

258 (blaze)

230 / 250

190-600

Ø 34 x 7
Ø 27

116.3

P

792011-0000-000

Data on request

Send request

250 (blaze)

230 / 250

375-750

Ø 34 x 7
Ø 28

116.3

P

792004-0000-000

Data on request

Send request

200 (blaze)

230

200-415

Ø 64 x 10
Ø 50

180.3

P

264510-2950-324

Data on request

Send request

163 (sinus)

560

470-1100

Ø 67 x 10
Ø 57

160.8

P

792015-0000-000

Data on request

Send request

157 (blaze)

230

200-900

Ø 50 x 10
Ø 35

163.1

P

000000-1077-583

Data on request

Send request

148.8 (blaze)

230

200-1100

Ø 64 x 10
Ø 30

181.5

P

000000-1996-915

Data on request

Send request

100 (blaze)

230

190-820

Ø 64 x 10
Ø 50

181.5

P

264510-2952-224

Data on request

Send request
