MCS 700 Robust VIS-NIR process spectrometer


Our complete VIS-NIR spectrometer solutions can be configured for various applications to measure layer properties in both batch and in-line production processes.

  • Easy integration
  • Fast
  • Accurate

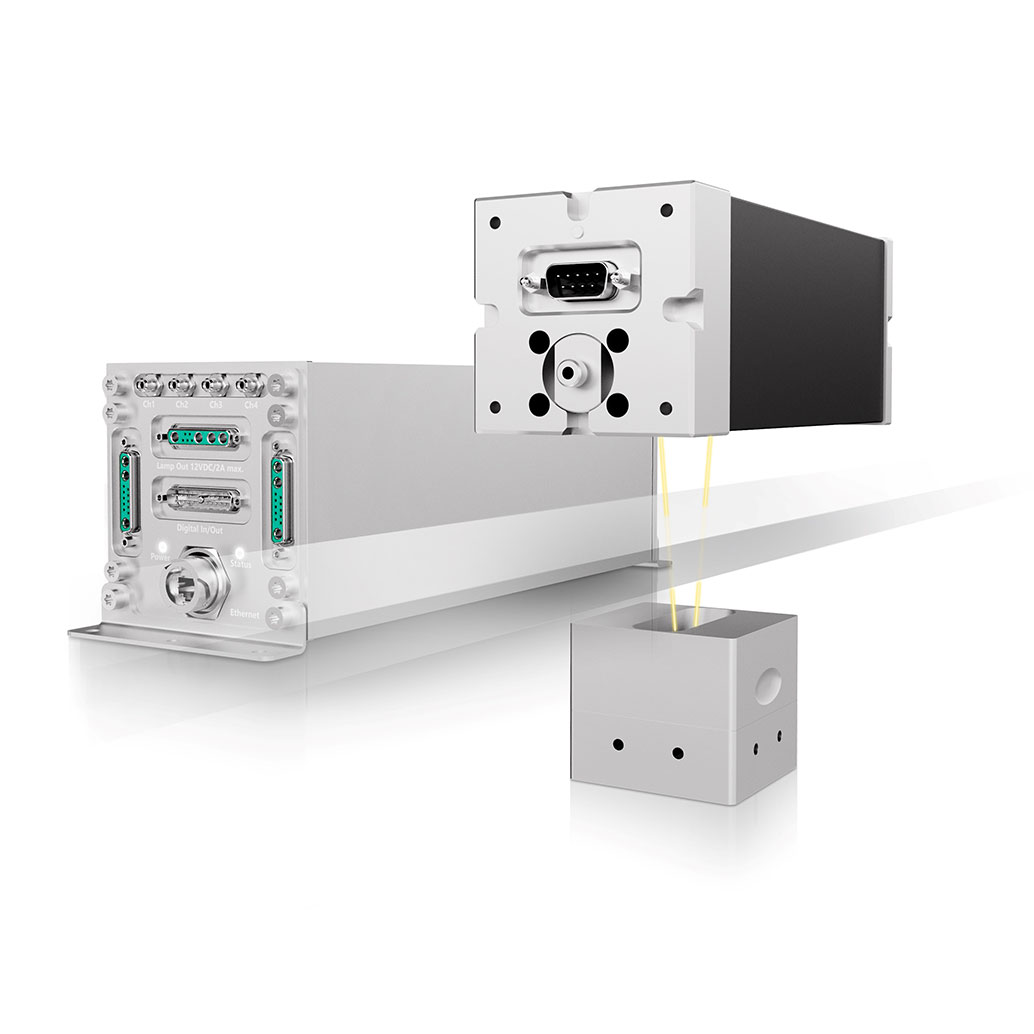

MCS 700 spectrometer system during measuring process

Reliable, real-time intelligence Keep a constant eye on your process

ZEISS MCS 700 spectrometers are the ideal system to reliably support your coating process in real time. They feature a continuous bus system up to the measuring head, which means that there’s much less effort when it comes to integration. We also offer a wide variety of interfaces, providing you with a complete solution, configured for a variety of applications.

Foils on rolls

Versatile performance Out of the box, or built to your specifications

The choice is yours: ZEISS MCS 700 spectrometers can either be used with ThinProcess® or customized for your own system together with matching measurement heads using the ZEISS OSIS SDK. Complete solutions can be configured for the widest variety of applications, with MCS 700 as the core element for measuring layer properties in batch and in-line processes.

Click on the circle markers on the image to open the information box with more details.

Discover the details

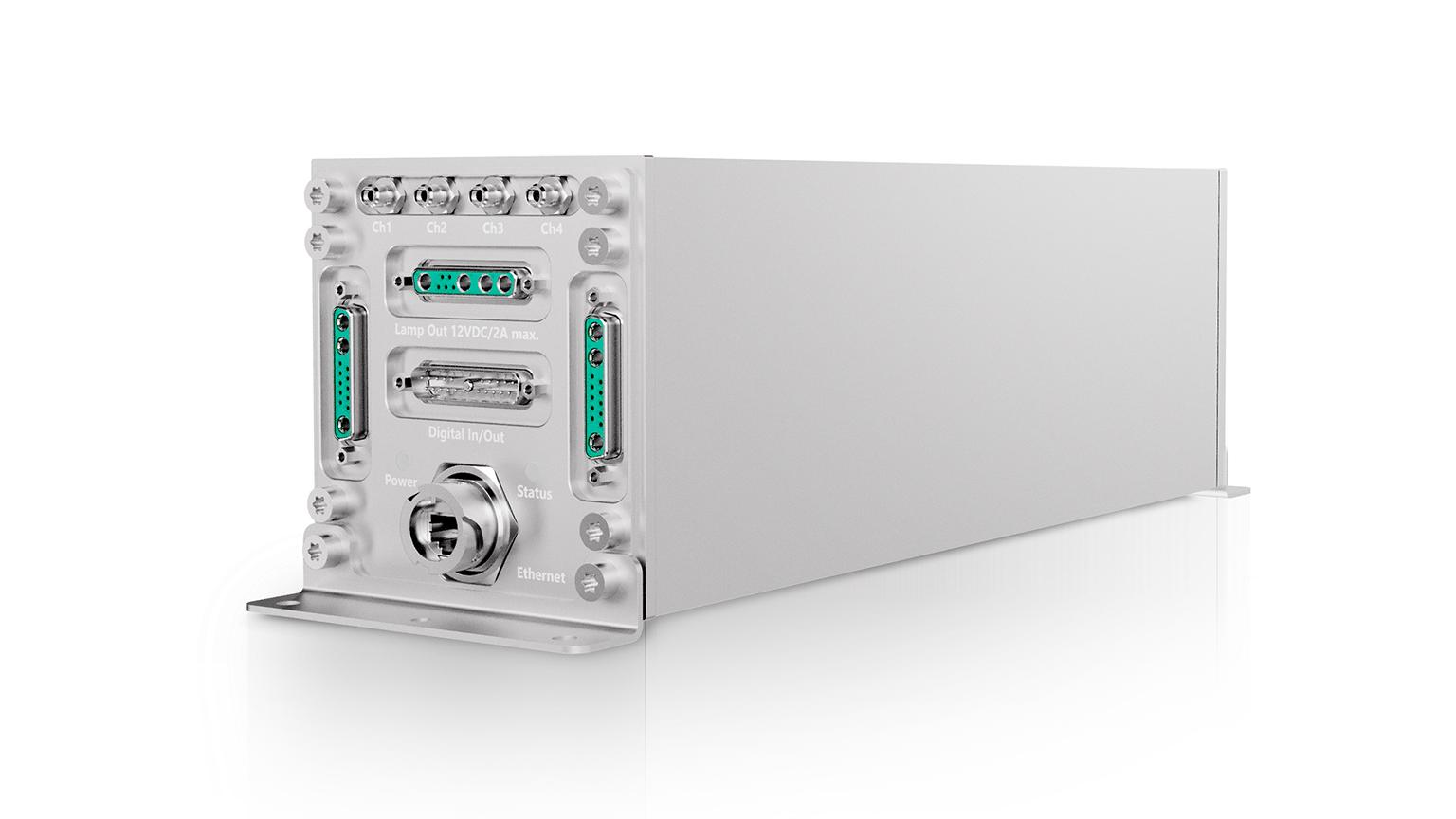

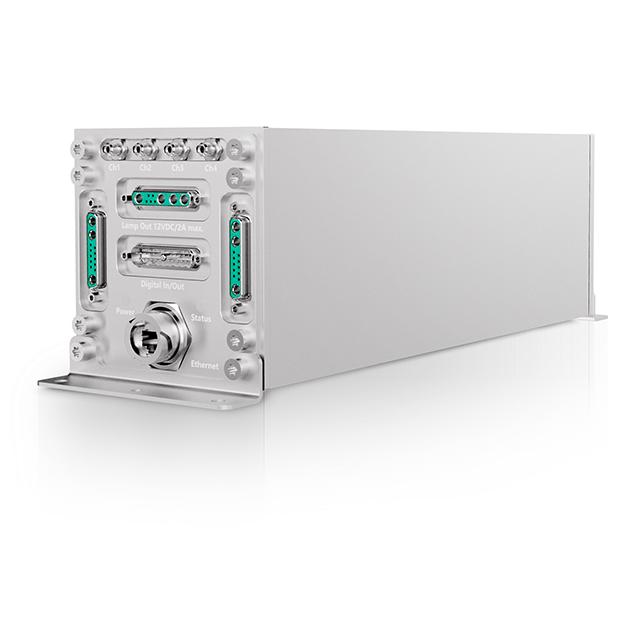

MCS 700 description of interfaces
SMA Coupler

optical "input connection" for a measurement head
RJ 45 communication port

internal communication with control computer
Digital in/out (8 bit)

interface to automation equipment like trigger input, status of system and tolerance warnings
CAN bus connector

Power supply and CAN bus connector / bridge to next MCS 700 systems



The MCS 700 family features a continuous bus system up to the measuring head, which means less integration effort. It's also possible to connect additional MCS 700 spectrometer or CLH 711 lamp modules with the “Power supply and CAN bus connector / bridge” and you can drive autonomous measuring heads like the OFR A10c as well.
Power supply

for measurement heads with internal light source

Specifications

  • MCS 721 / MCS 722 / MCS 723 (the last digit indicates the number of measurement channels)
    MCS 731 / MCS 732 (the last digit indicates the number of measurement channels)

    Spectral range(1)

    340 - 1050 nm

    340 - 1650 nm

    Polychromator

    MMS 1

    MMS1 & PGS

    Number of diodes

    256

    512

    Mean spectral pixel pitch

    3.3 nm / VIS

    3.3 nm / VIS, 3.0 NIR

    Fiber connector

    SMA

    SMA

    Protection standard

    IP54, protection class III

    IP54, protection class III

    Dimensions (WxHxD)

    120 x 120 x 370 mm3

    120 x 120 x 370 mm3

    Weight

    4.2 / 4.5 / 4.8 kg

    4.7 / 5.4 kg

    Power supply

    24 V DC (12 - 36)

    24 V DC (12 - 36)

    Operating temperature

    5 ... 45 °C

    5 ... 45 °C

    (1)  The measurement systems range depends on the combination of light source, measurement head, light guides and the spectrometer. Given is the maximal wavelength range of the spectrometer.

  • CLH 711

    Spectral range (1)

    380 - 2500 nm (340 - 2500 nm with filter)

    Shutter

    integrated shutter

    Filter (switchable)

    integrated filter ("blue enhancement")

    Fiber connector

    1 x SMA

    Protection standard

    IP54, protection class III

    Dimensions (WxHxD)

    120 x 120 x 370 mm3

    Weight

    3.8 kg

    Power supply

    24 V DC (12 - 36)

    Operating temperature

    5 - 45 °C

    (1)  The measurement systems range depends on the combination of light source, measurement head, light guides and the spectrometer. Given is the maximal wavelength range of the lamp.

Expand your possibilities

With the right software for your hardware

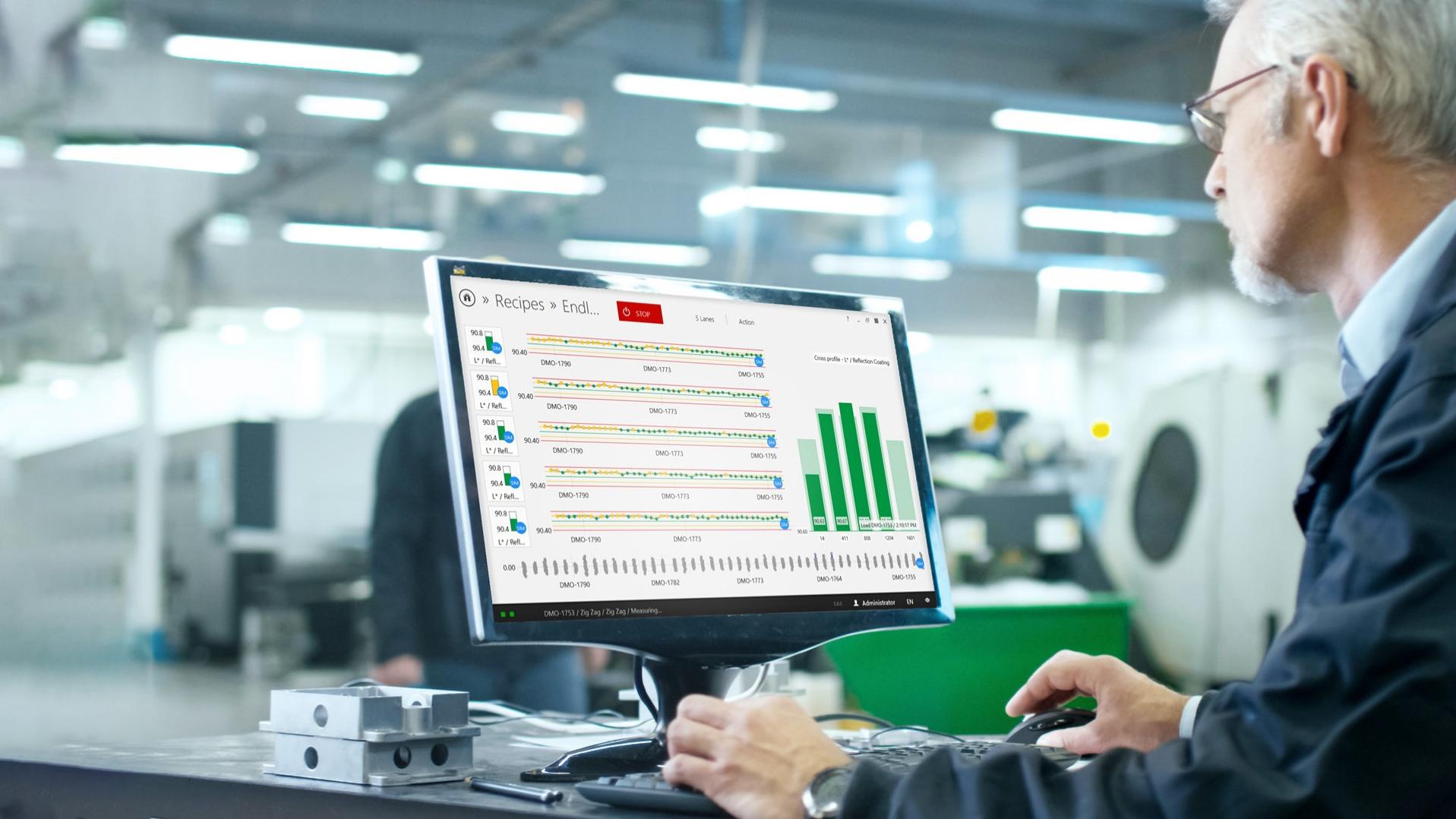

engineer sits in front of the computer in a production environment in his office, the screen show the interface of the thinprocess software

ThinProcess® Software

ThinProcess® software is specifically designed for the ThinProcess® spectrometer family. Keep an eye on process information and reference values with data visualization and communication with higher-level control systems via ProcessLinker.
From color and thickness to spectral evaluation and absorbance, ThinProcess® software performs various calculations and measurements and can be customized to suit your exact needs.

Accessoires for MCS 700

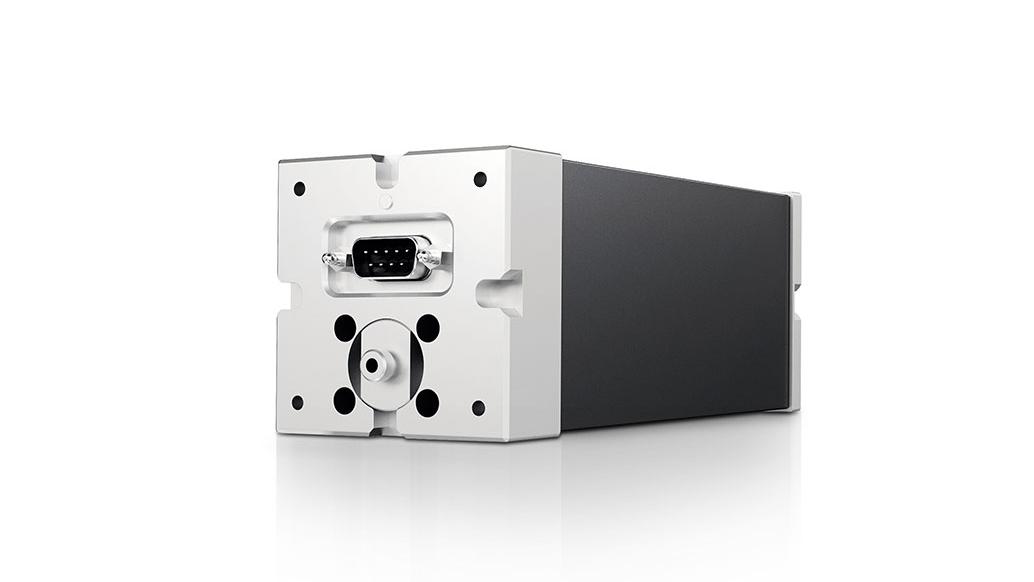

  • OFR A10c accessory for MCS 700

    OFR A10c

    With the OFR A10c measuring probe, it is possible to perform absolute transmission and reflection measurement. There is no need for reference materials with known properties.

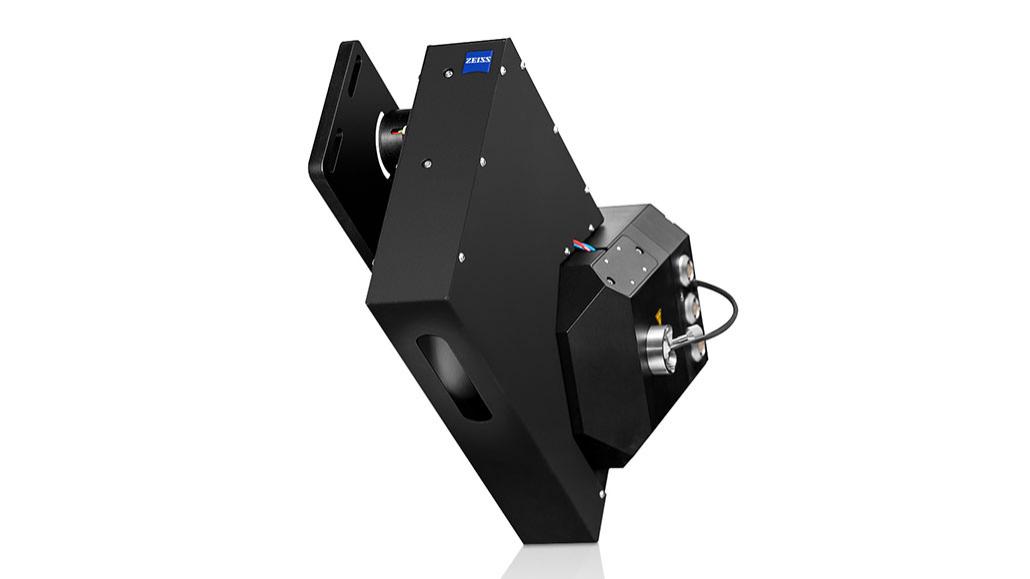

  • OFR 155 accessory for MCS 700

    OFR 155

    The OFR155 Angular Color Measurement Head is capable of in-line measurement and is used for color evaluation and spectral reflection measurement with an observation angle of 55°. It can be used in production lines as a fixed measurement station or mounted on ThinProcess® traversing systems.

  • OFR 104 accessory for MCS 700

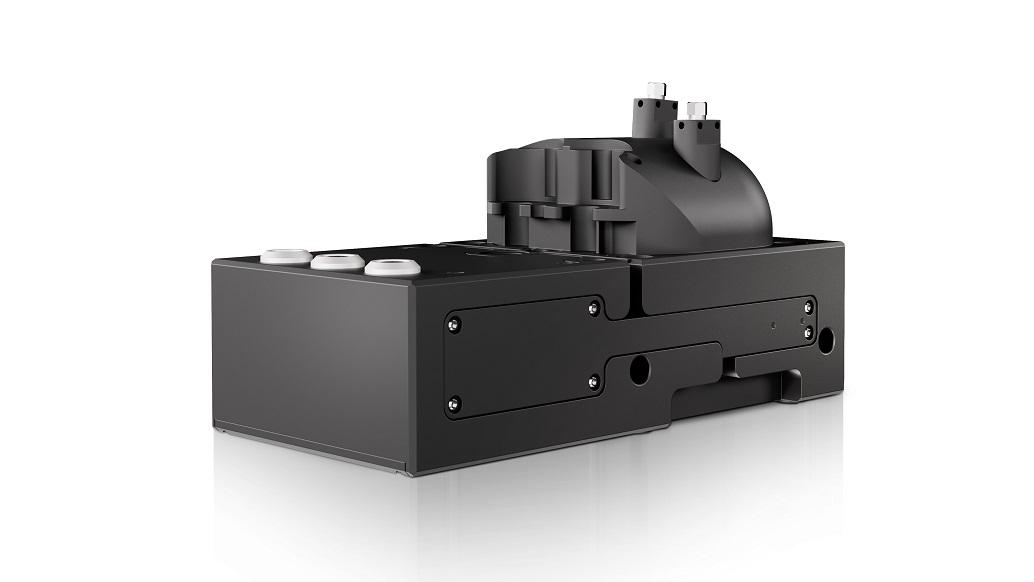

    OFR 104

    The OFR 104 Standard Color Measurement Head is capable of in-line measurement and is used for color evaluation and spectral reflection measurement with an observation angle of 4°. It can be used in production lines as a fixed measurement station or mounted on ThinProcess® traversing systems.

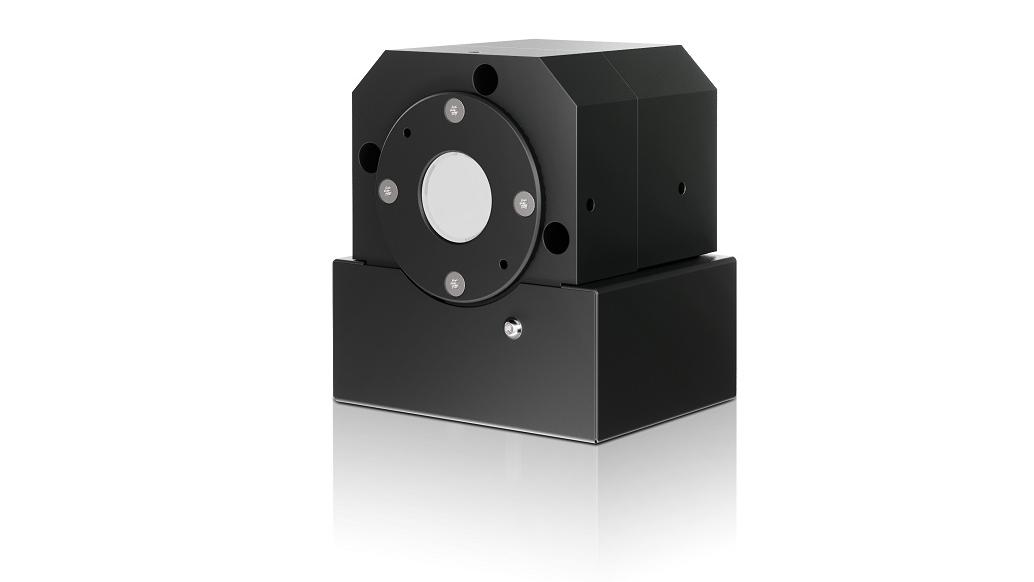

  • OFR H2c accessory for MCS 700

    OFR H2c

    OFR H2c is an illumination sphere with internal redundant light source for spectral transmittance measurement of specular samples

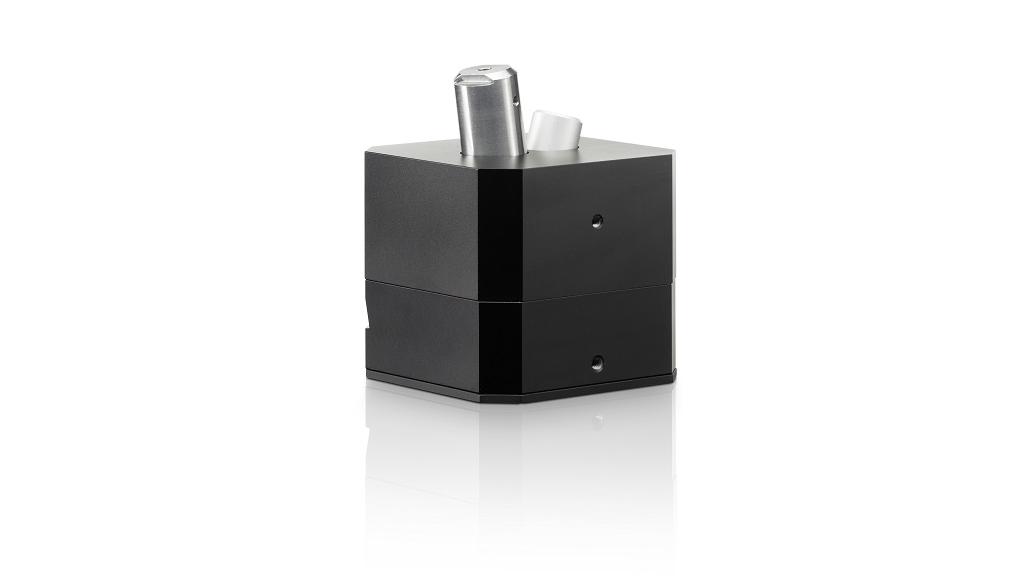

  • OFR d/8° accessory for MCS 700

    OFR d/8°

    OFR d/8° is a reflection measuring head designed for non-contact, reflection measurement of glossy and scattering samples

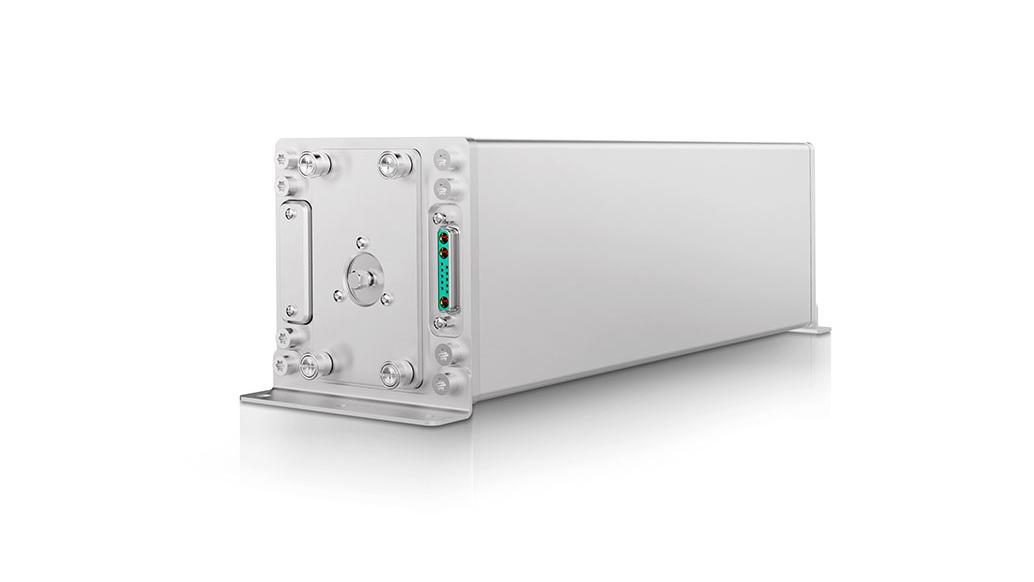

  • CLH 711 accessory for MCS 700

    CLH 711

    To drive fibre coupled optics with a light source.
    Fully compatible with the MCS 700 system, CLH 711 is controlled with a power supply and bus bridge cable from the spectrometer unit. CLH 711 is equipped with a switchable filter and shutter.
    Spectral Range: 320 nm – 2200 nm
    Fibre Connector: SMA

  • Optics, accessory for MCS 700

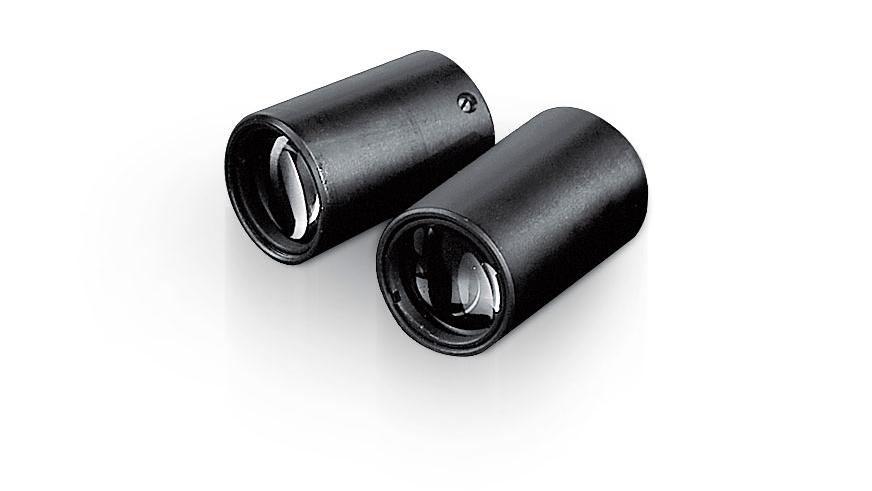

    Optics

    For transmission and reflection measurements with different images and measurement spot sizes.

OFR A10c

Absolute transmission and reflection measurement
OFR A10c accessory for MCS 700

Achieve accurate measurement

Upgrade your thin film thickness measurement capabilities with the OFR A10c, a calibration free optical measuring head with excellent system integrability. As a self-referencing measuring head, OFR A10c is designed for use in vacuum applications and enables thin film in-situ measurement in vacuum coating systems and in air. As a highly precise and accurate tool, it enables real-time analysis of the optical properties of materials in applications such as film coating (roll-to-roll), architectural glass and automotive.
