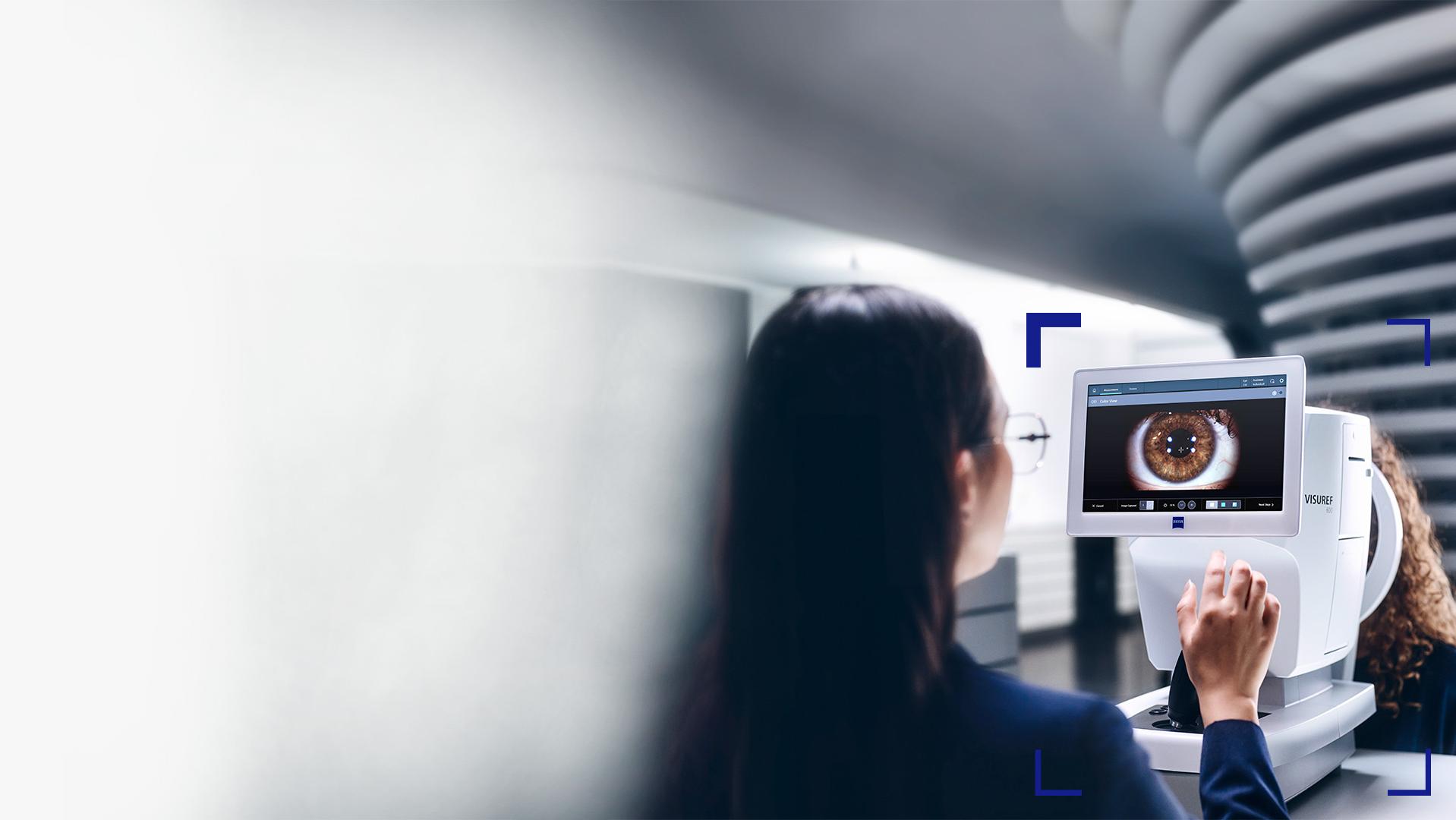

A female optician looking at the ZEISS VISUREF 600 screen showing an image of an eye.
ZEISS FOR EYE CARE PROFESSIONALS

ZEISS VISUREF 600

Power up your business. One device. Many possibilities.

The VISUREF® 600 offers a distinctive combination of possibilities, making it both a comprehensive and affordable solution if you want to get reliable results and enhance your service offering to give your practice a competitive edge.

Get in touch
  • Precise wavefront refraction - and beyond
  • Differentiation through customization
  • Increased efficiency
Page Content
Get in touch

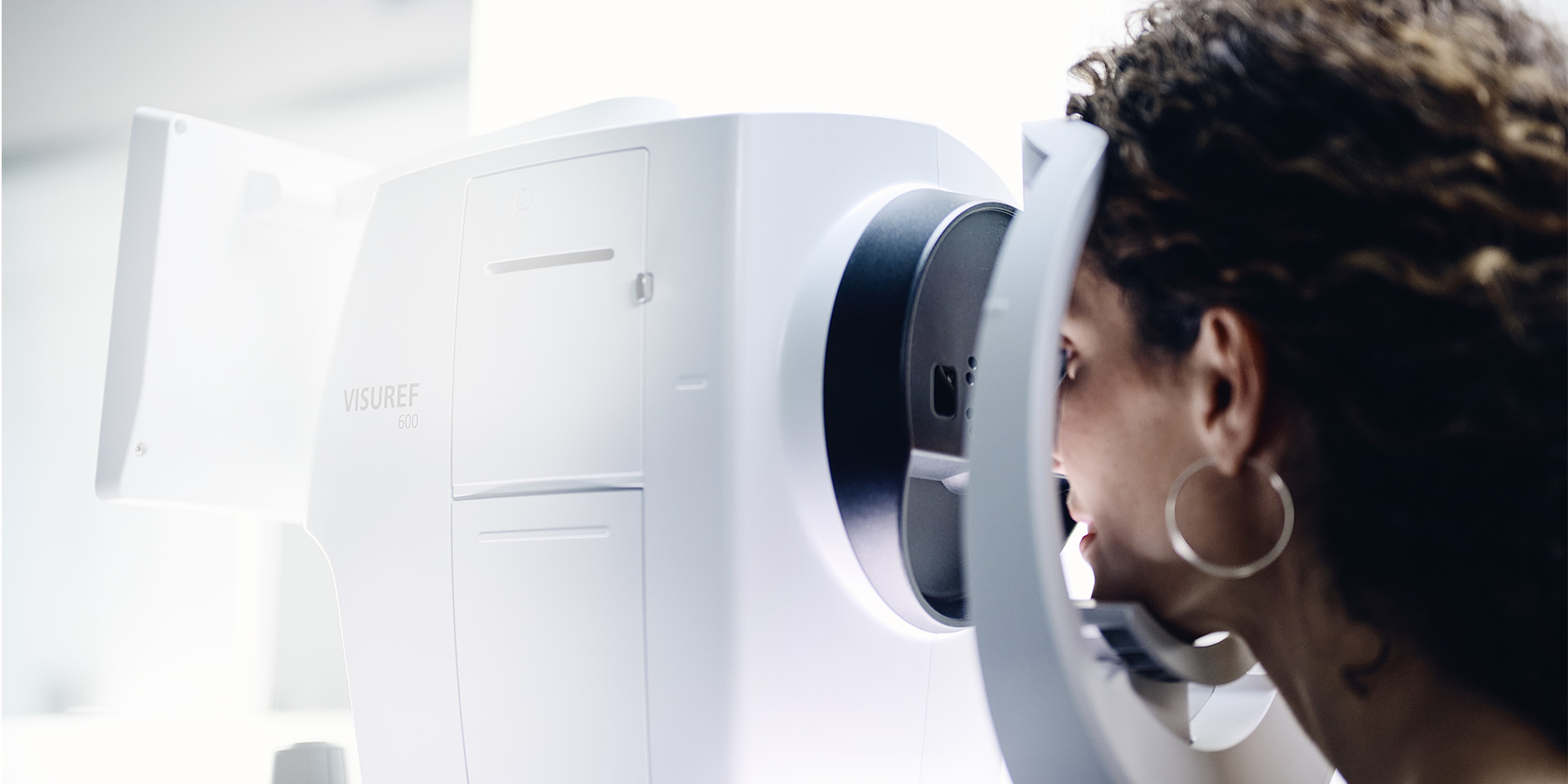

Woman looking through ZEISS VISUREF 600

Wavefront refraction – and beyond

Precise refraction forms the foundation of premium vision care, which is why ZEISS VISUREF 600 utilises ZEISS-adopted advanced ocular wavefront technology to measure and analyze the irregularities of the eye, providing valuable information for diagnosing and correcting vision problems.

The wavefront refraction is complemented by a variety of measurement capabilities that go beyond refraction results to provide a comprehensive view of the optical condition of the eye:

  • Keratometry
  • Monocular Visual Acuity
  • Opacity
  • Colour View
  • Pupillometry and White-to-White (WTW)
  • Tear Film Break-up Time
  • Meibomian Gland Assessment
Learn more
Wavefront refraction – and beyond

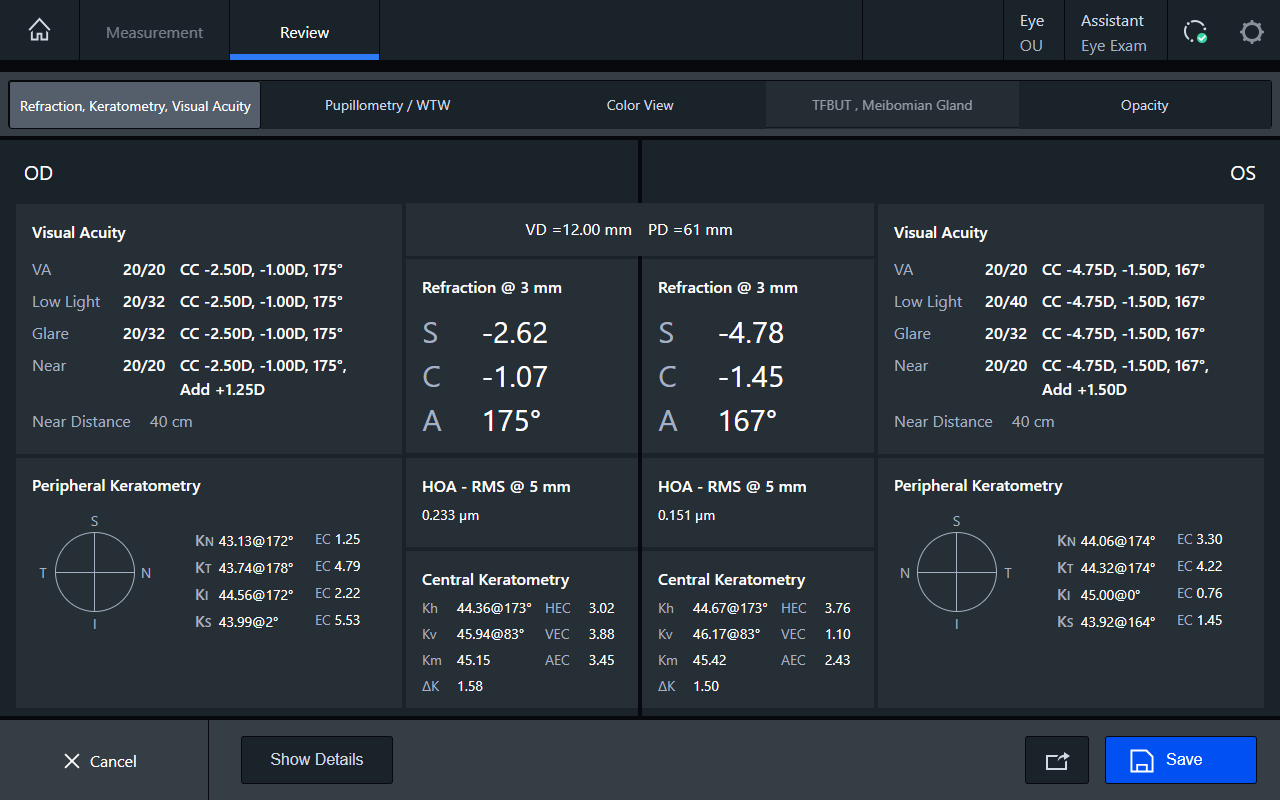

Refraction, Keratometry and Visual Acuity

With the VISUREF 600 you get a comprehensive overview of refraction values, Central and peripheral measurements of the corneal curvature and monocular Visual Acuity values for in standard, near view, low light and glare conditions.

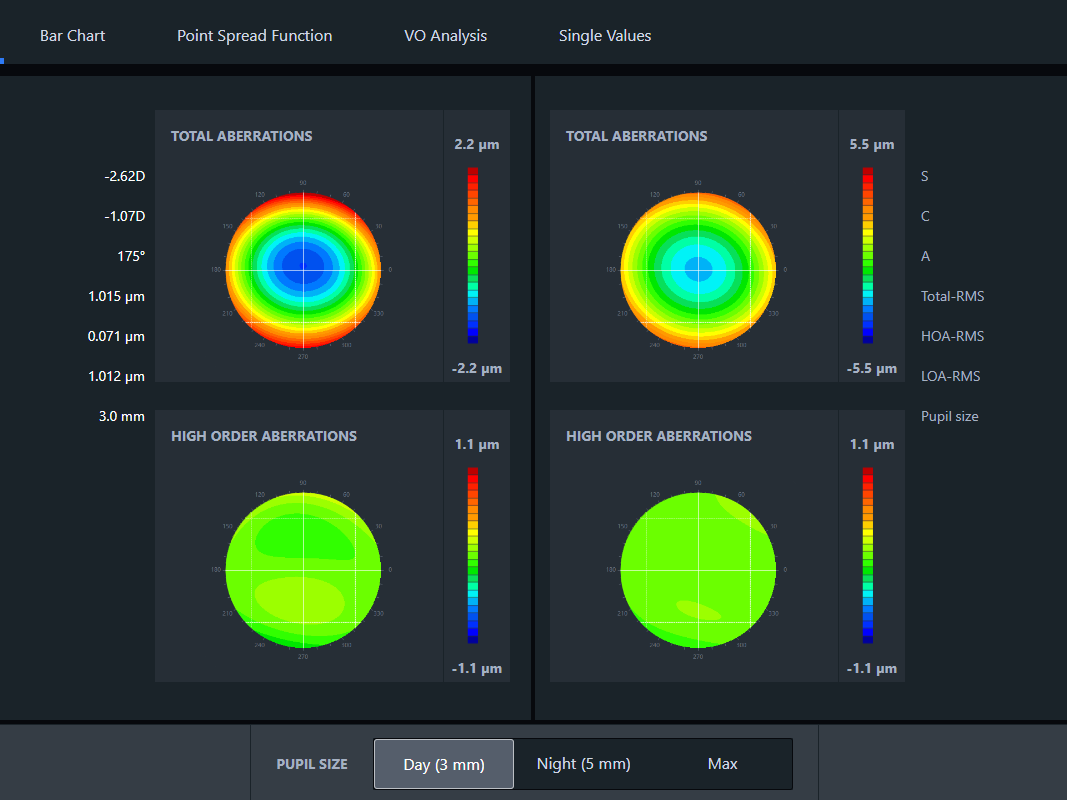

Refraction Insights

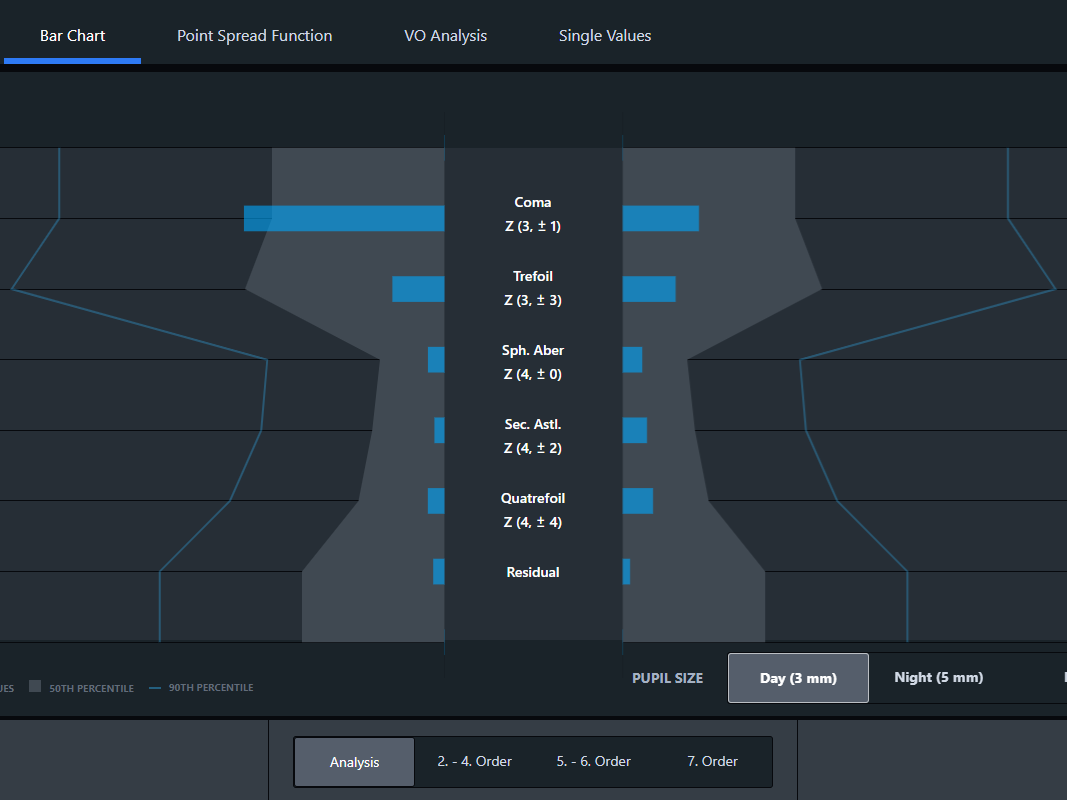

The analysis of the collected data allows for the calculation of the refraction of the eyes with the relevant sphere, cylinder, and axis, and the identification of higher-order aberrations with Zernike polynomials.

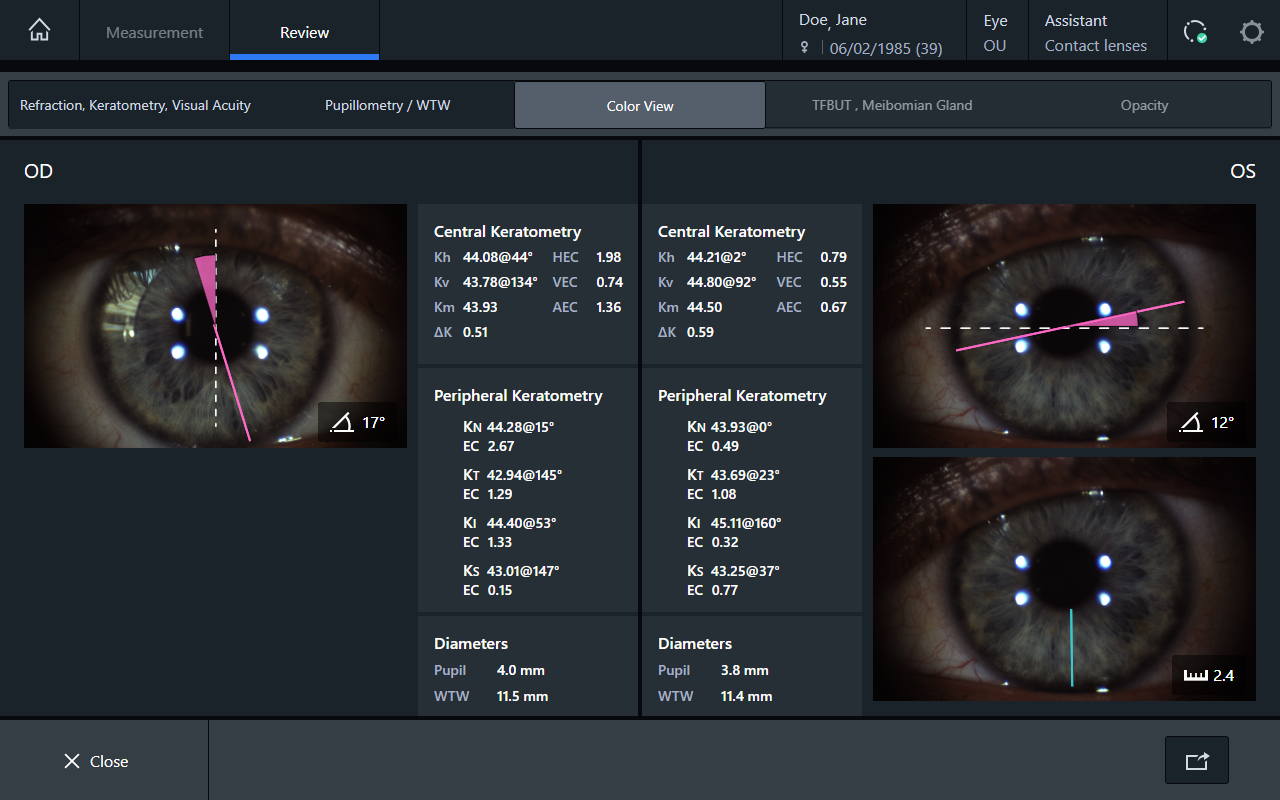

Color View

With the image taken for color view several tasks can be performed according to the needs of the examiner

  • Record an overview of the anterior eye
  • Checking on small blood vessels
  • Measuring the rotation angle of a toric soft contact lens
  • Measuring the size of a structure visible in the picture

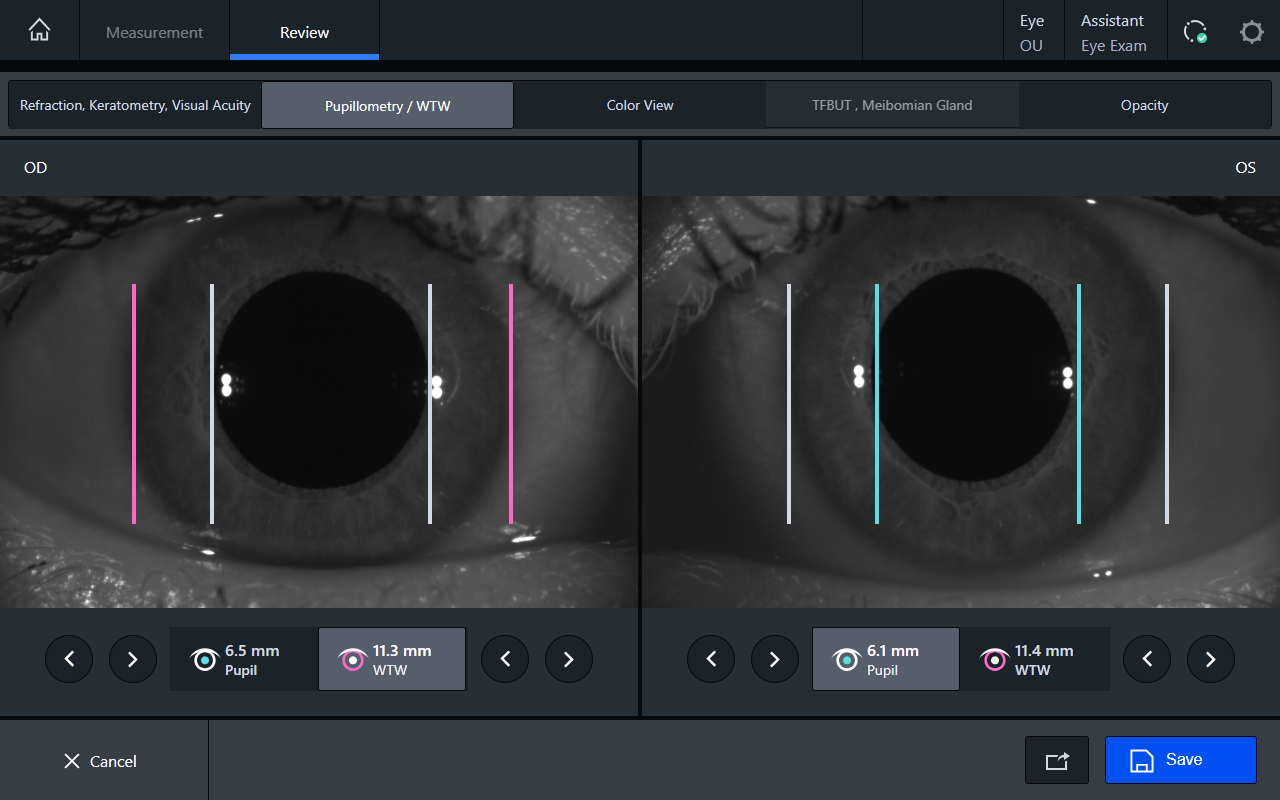

Pupillometry and White-to-White

The black-and-white images taken in Pupillometry and WTW can be used to determine the pupil size and the corneal size.

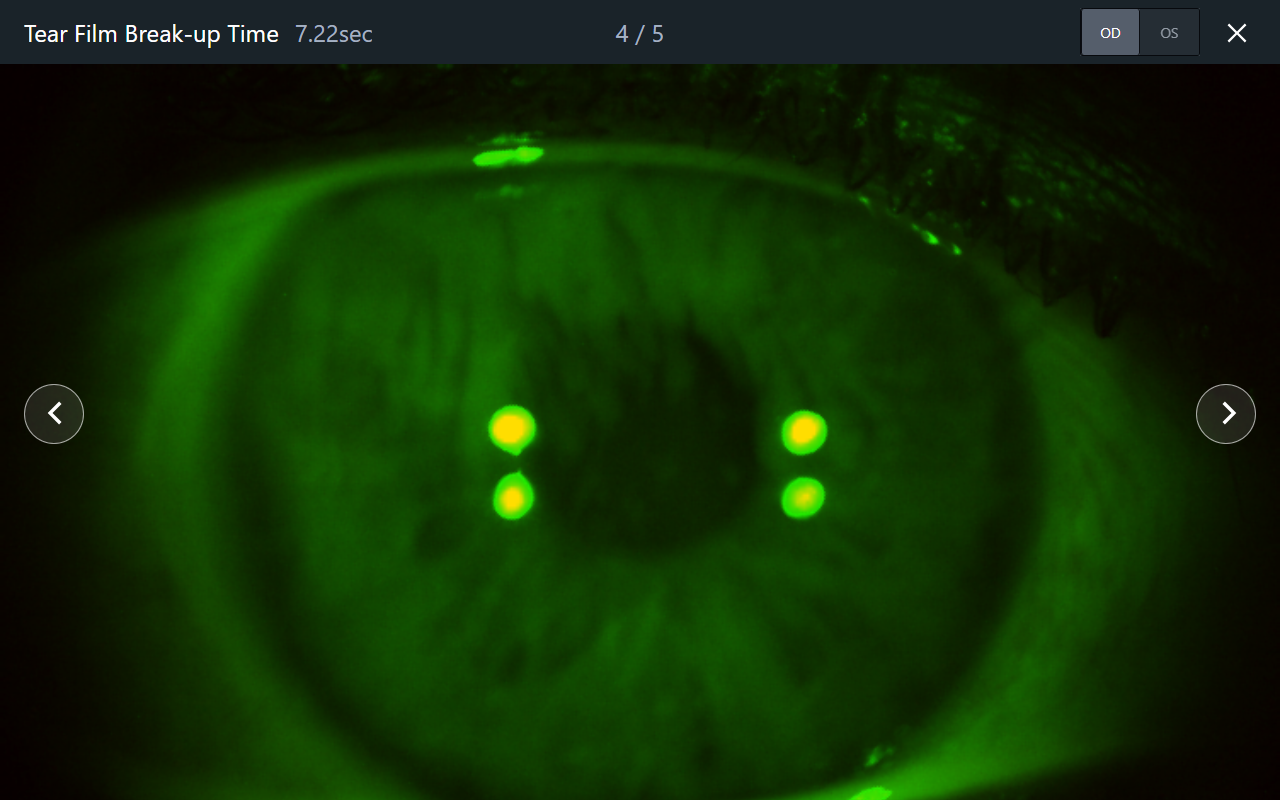

Tear Film Break-up Time

The Tear film break-up time measurement can support evaluating the stability and quality of the tear film.

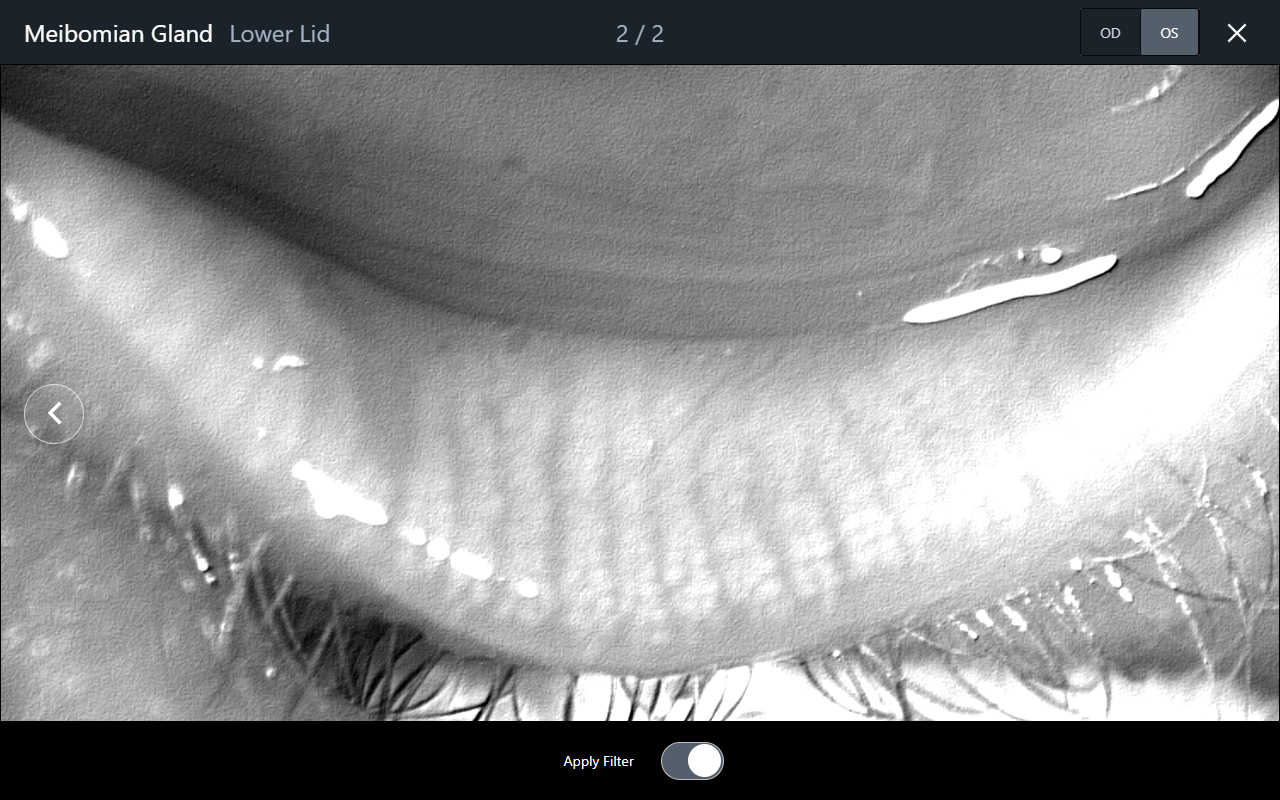

Meibomian Gland Assessment

An image of Meibomian Glands for assessment of their function and structure can be taken. For better visibility of the Meibomian Glands, a filter can be applied in VISUREF 600.

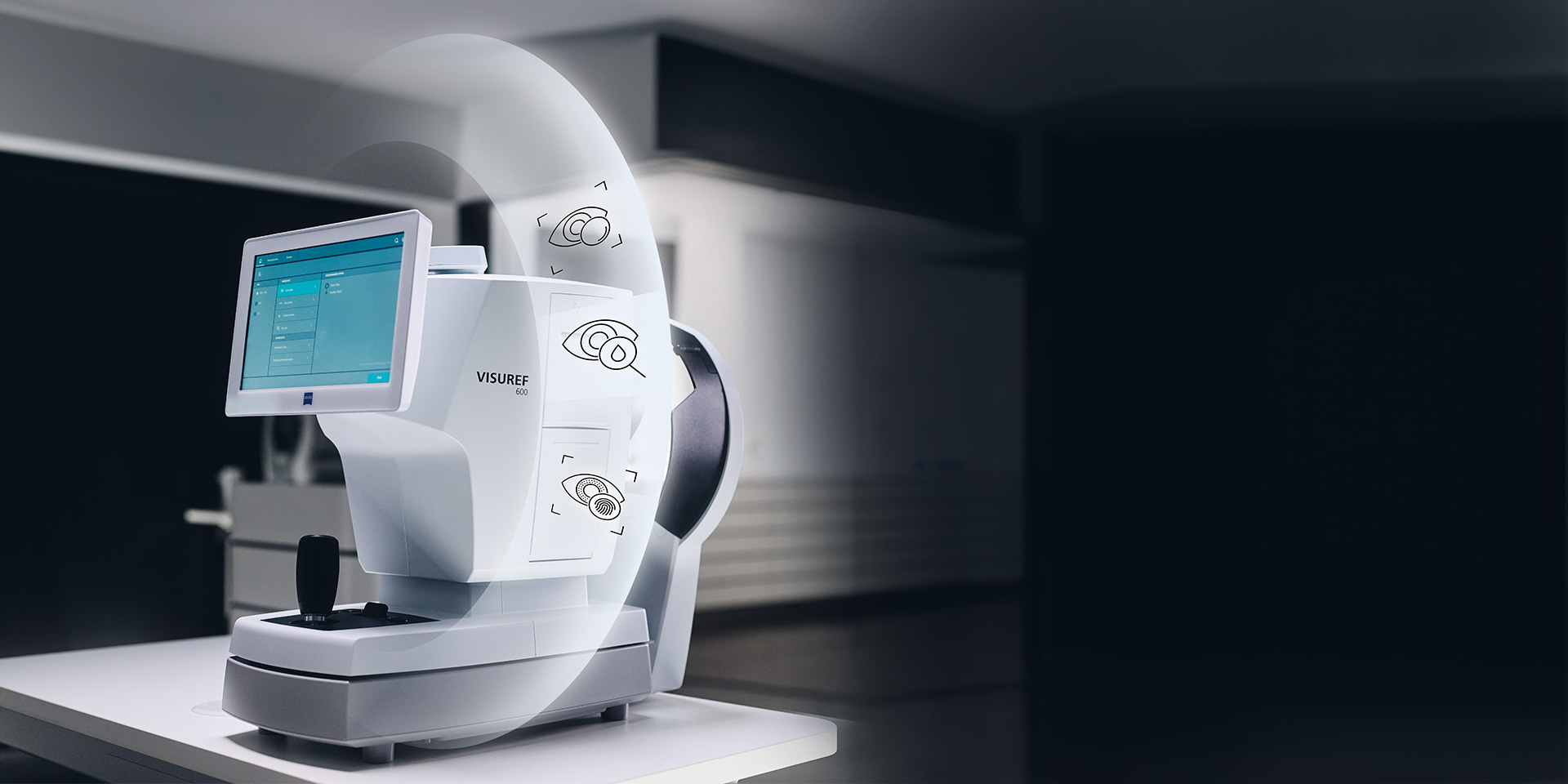

An image showing the ZEISS VISUREF 600 on a table with an illustration of a semi-transparent circle with icons around it.

Differentiation through customization

VISUREF 600 is more than just an autorefractor. It enables you to extend your service offering to give your customers the personalised care and individual solutions they want and need.

  •

    Individualised i.Scription lenses by ZEISS

    With i.Scription Technology you can create a personal vision fingerprint to offer each patient a unique lens solution with improved vision, day and night. The individualized lenses based on wavefront enhance and improve your patient’s vision by considering the impact of low and high-order aberrations.

    Available as an add-on for all ZEISS branded lenses

    Learn more

  • Dry eye screening

    Dry eye is a common condition that affects a significant number of people. There are different types of dry eye, which can be classified based on the underlying cause or contributing factors.
    By identifying the underlying cause of dry eye, you can develop an appropriate and individual treatment plan to alleviate

    Learn more

  • Soft contact lens fitting

    VISUREF 600 provides a variety of measurements that support offering, fitting, and personalising the recommendations for soft contact lenses to the patient’s specific needs. Additionally, the measurement results can support identifying underlying eye conditions or issues that may be affecting the patient’s ability to wear contact lenses, allowing for early intervention and treatment.

    Learn more

Increased Efficiency

Customisable Workflow Wizards for a smooth and efficient measurement flow.

VISUREF 600 not only enables additional services for your store – it also supports you by providing them smoothly and efficiently. The customisable workflow wizards (specially integrated measurement assistants) will guide you through the steps for each application:

  • Eye exam
  • Spectacles
  • Contact lenses
  • Dry eye

Each assistant features a standard workflow sequence with mandatory steps. The assistants can also be configured according to your practice workflow or individual preferences.

A female optician looking at her tablet sitting in front of the ZEISS VISUREF 600 and talking to her customer.

Seamless integration into the ZEISS ecosystem

ZEISS VISUREF 600 can be seamlessly integrated into the ZEISS ecosystem for a more efficient and less error-prone workflow. This will save time and ensure that your data is always accurate and up to date. Say goodbye to tedious management tasks and hello to a more streamlined and enjoyable consultation process.

  • Connected to ZEISS VISUCONSULT 500
  • Easy connectivity to ZEISS-supported patient management systems
  • Full connectivity to the ZEISS medical ecosystem with ZEISS Forum

Did you know?

  • 85 %

    of customers say that individual treatment is a key driver for them.

  • 95 %

    of wearers prefer lenses optimised with i.Scription® technology by ZEISS versus ZEISS freeform lenses without i.Scription.

  • 1/100

    i.Scription technology fine-tunes the refraction to 1/100th of a diopter.


Features and Details

An image of the ZEISS VISUREF 600 from the side.
Light Shield (optional)

The light shield gives you more flexibility in setting up your device. If light conditions are not ideal, the shield can easily be attached to the device.
Thermal Printer

Measurement results can easily be printed with the integrated thermal printer if the device is used in a stand-alone mode and not connected to the ZEISS ecosystem.
Earthrise Target

The fixation target in VISUREF® 600 is the iconic “Earthrise” image taken on December 24, 1968, showing the Earth rising over the lunar horizon. The lens used to capture this image was a ZEISS Biogon ƒ/5.6/38mm, chosen for its high optical performance and compact size.
Joystick with auto-tracking

The device is easily positioned in front of the patient’s eye with a joystick. Once in position, the device automatically starts the refraction measurement thanks to integrated auto-tracking.
Tiltable Screen

The device is controlled via a touchscreen that can be swivelled for easy operation and optimal placement in your practice set-up.

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Technical data

  • Software version

    1.0

    Mains voltage

    100 V – 240 V AC

    Mains frequency

    50 Hz – 60 Hz

    Input

    100–240 V AC, max. 1.0 – 0.6 A, 50–60 Hz

    Max. consumption

    150 VA

    Mains fuse

    T 3.15 A, 250 V

    Main circuit board battery

    CR 2032

    Protection class

    I

    Laser class

    I according to 21CFR 1040.10 and IEC 60825-1: 2014

    Laser wavelength

    850 nm

    Reported wavelength

    555 nm

    Service life

    8 years

  • Overall dimensions (L x W x H)

    53 cm x 30 cm x 50 cm

    Max. 53 cm x 34 cm x 50 cm

    Weight

    23 kg

    Chinrest travel distance (up and down)

    60 mm ± 3 mm

    Auto travel distance

    Up and down

    ± 15 mm (± 3 mm)

    Left and right

    ± 5 mm (± 2 mm)

    Front and back

    ± 5 mm (± 2 mm)

    Automatic tracking scope

    Up and down

    ± 5 mm

    Left and right

    ± 5 mm

    Front and back

    ± 5 mm

  • Method

    Hartmann-Shack

    Number of measurement points

    Up to 289

    Measurement range of spherical aberration
    (at a vertex distance of 12 mm)

    - 20 D to + 20 D

    Measurement range for cylindrical and axial refraction

    -12 D to +12 D 0° to 180° (i ncrements of 1°)

    Measurement accuracy

    -10 to +10: ± 0.25
    < -10 or > +10: ± 0.5

    Display increments

    0.01 / 0.12 / 0.25 D

    Accuracy corresponds to the results of measurements performed with the test eye in accordance with ISO 10342

  • Corneal radius

    5 to 13 mm
    Increment 0.01 mm

    Corneal refraction (at corneal RI = 1.3375)

    25.96 to 67.5 D (n=1.3375)

    Corneal astigmatism

    0 to 15 dpt

    Accuracy K

    ± 0.05 mm

    Accuracy in accordance with ISO 10343

  • Ext. VIDEO

    Analog RGB

    LAN

    LAN 10/100 Mbps

    USB

    2 ports: for service

    Built-in printer

    Thermal electric printer with auto-cut function

    Monitor

    10.1“ LCD 1280x800 Resistive Touch panel
