ZEISS ClearView FSV Lenses

Stand out with stock that is definitely not standard.

With ZEISS ClearView FSV Lenses you can offer your customers all the benefits of freeform optimisation, at the same cost and delivery time frame of a stock lens.

Get in touch

Freeform technology in FSV lenses
Thin and flat without optical compromise
On average 3x larger areas of excellent vision clarity¹

Freeform Finished Single Vision Lenses in stock

Point-by-point design optimisation for a highly complex surface. This results in an FSV lens that is both very flat and thin and achieves excellent optics – with clear viewing from the lens centre to the periphery.
ZEISS UVProtect Technology

ZEISS ClearView FSV Lenses come standard with ZEISS UVProtect Technology embedded in the lens material.

Standard FSV stock lenses compromise on optics.

With their distinct advantages of lower cost and fast delivery time, finished single vision (FSV) “stock” lenses are globally the most sold ophthalmic lens type. However, FSV lenses have fallen behind in one of the most important features for every spectacle lens wearer: they typically do not provide great optics away from the lens centre. In particular, the demand for flatter and thinner FSV lenses has compromised the peripheral optical performance.

More information

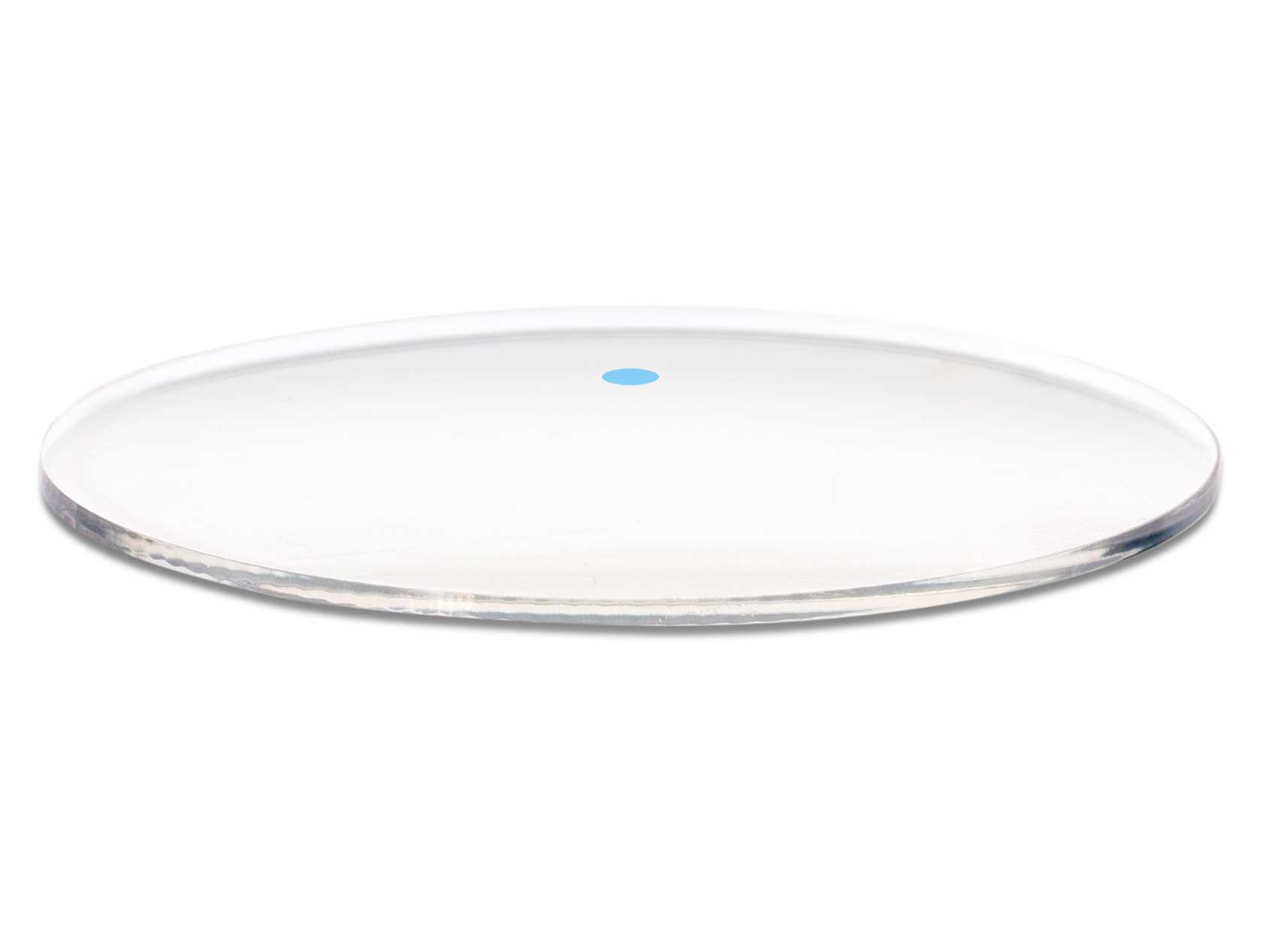

Standard Spherical (SPH) Lenses

Optimised by using only 1 free parameter in the lens radius
Peripheral rays are more strongly refracted than rays at the lens centre (spherical aberrations) resulting in optical compromise
Any acceptably flat lens results in peripheral blur for the wearer

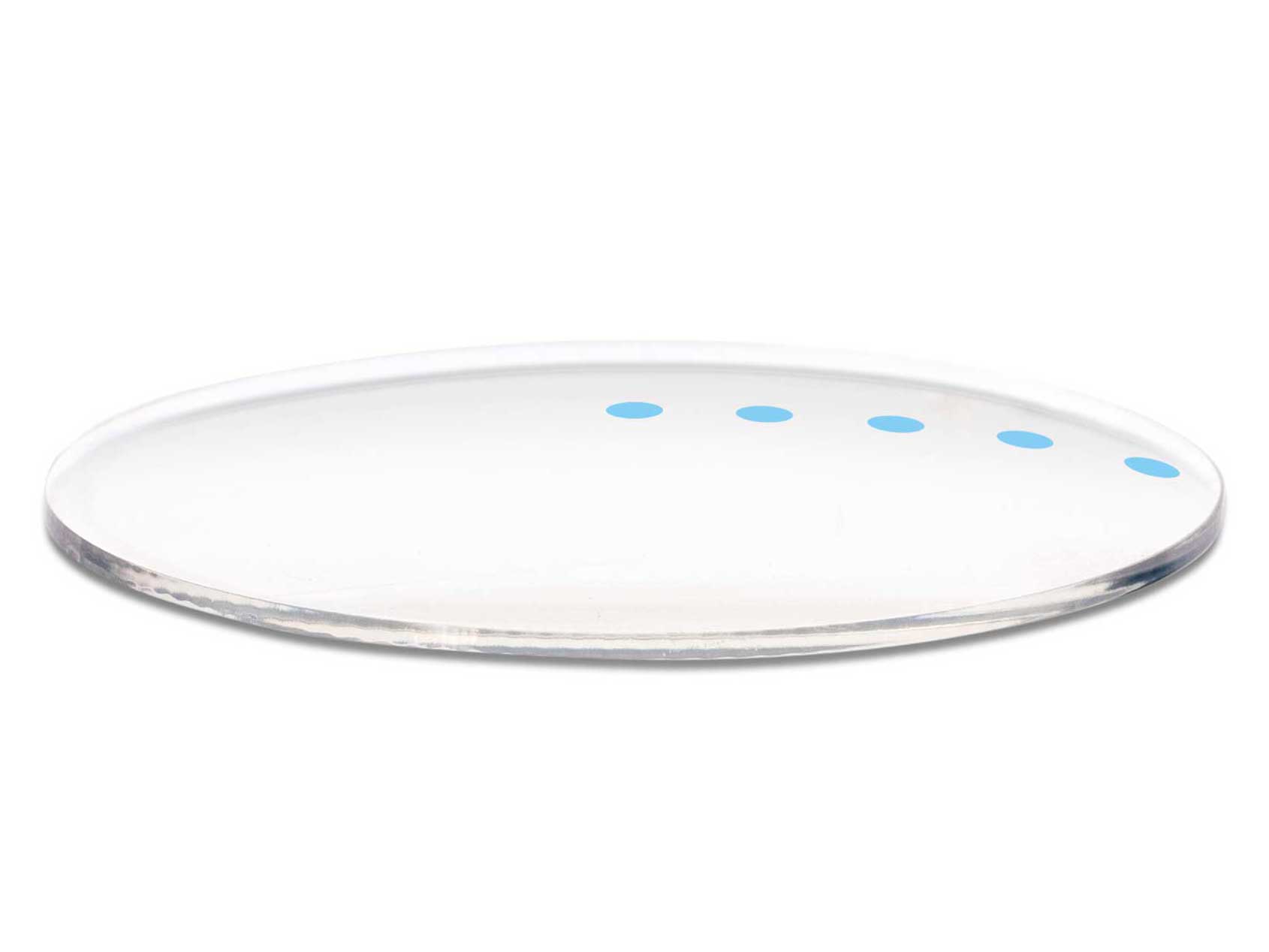

Good Aspherical (AS) Lenses

Optimised by using 5 free parameters in one meridian
One aspherical surface, usually on the front, but the back surface remains a simple toric (2 spheres at 90°)
Provides optics similar to SPH, while improving on flatness
When sph and cyl power increase, the same constraints result in increasing optical errors

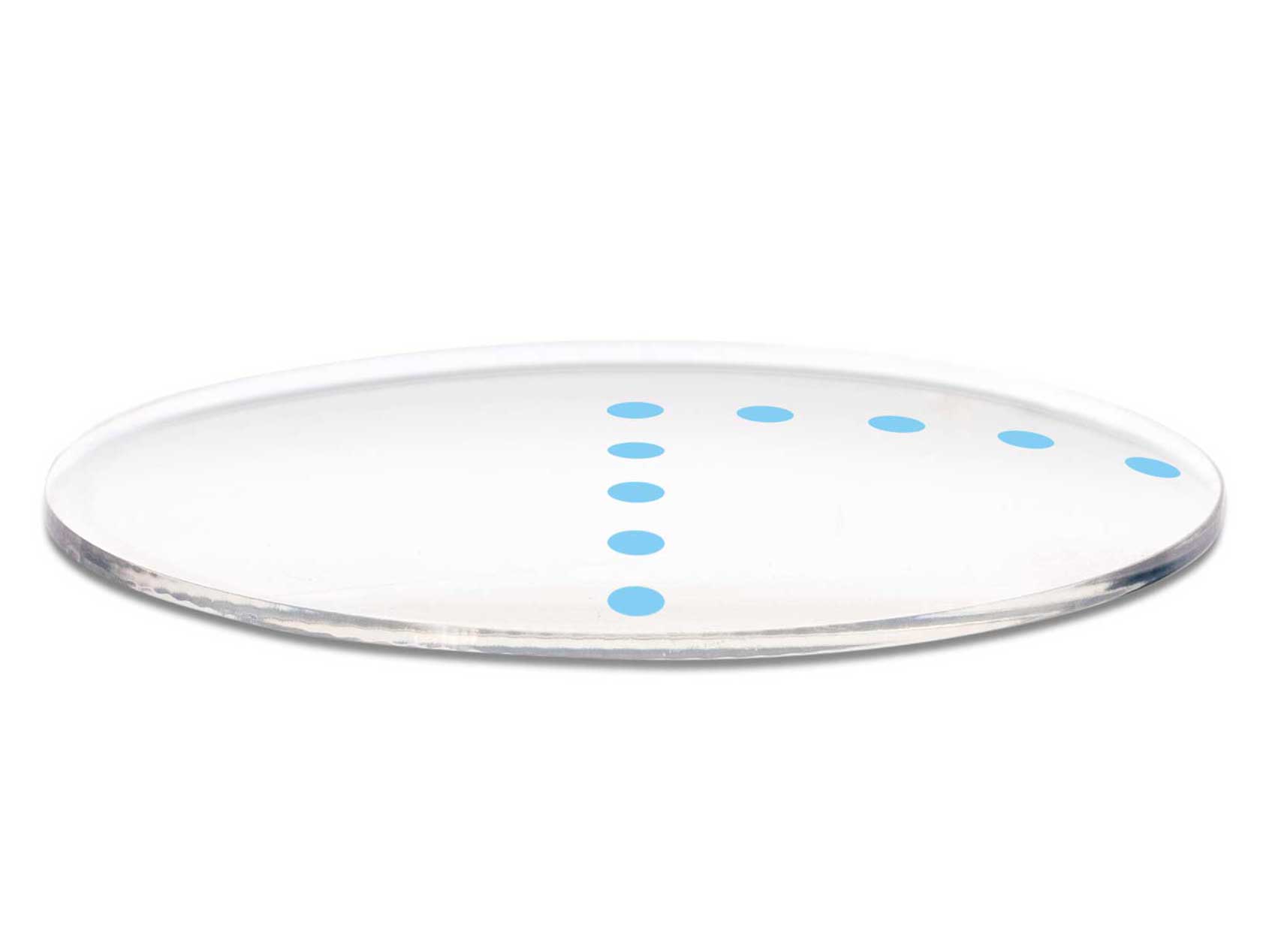

Better Double Aspherical (DAS) Lenses

Optimised using 9 free parameters in two perpendicular meridians and blended in between
Replaces the toric back surface of an AS with 2 aspherical shapes perpendicular to each other (atoric)
Improvement on an AS design, but blended area still compromises the optics

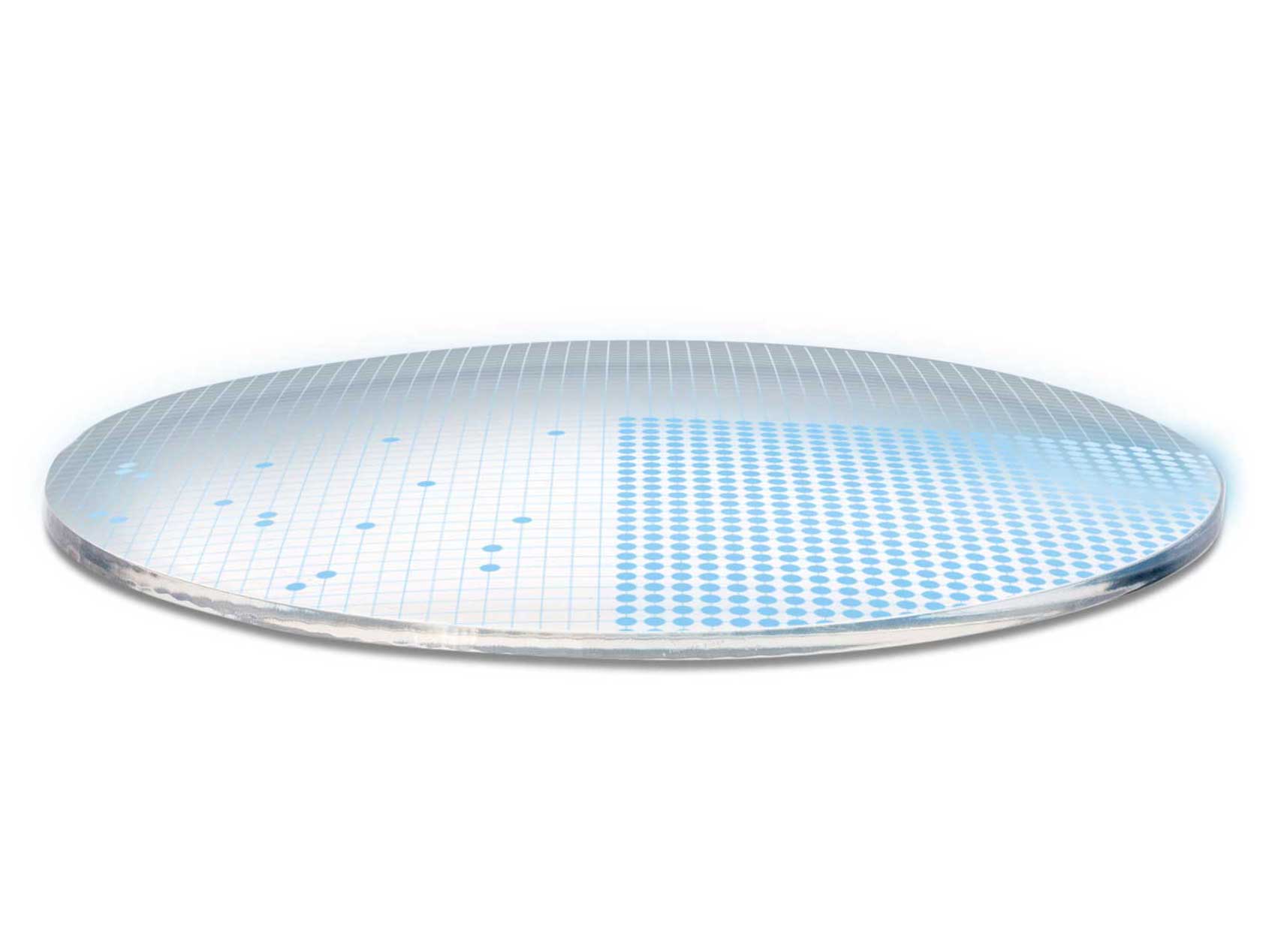

Best Freeform Single Vision Lenses

Point-by-point lens design optimisation for a highly complex lens surface
The result is an FSV lens that is both very flat and thin and achieves excellent optics – with clear viewing from the lens centre to the periphery

ZEISS ClearView FSV Lenses

Inspired by customer demand

Customer demand comfort and clarity, but standard stock lenses compromise on optics.² ZEISS tackled the big opportunity for optical improvement of conventional FSV lens designs by identifying a method to evaluate optical quality and improve lens optimisation.

A breakthrough in optics and aesthetics.

With ZEISS ClearView FSV Lenses, customers will experience excellent vision clarity from the lens centre to the periphery, in a lens that is flatter, thinner, and more attractive-looking than conventional lens designs that rely on steeper base curves to provide acceptable optical performance.

More information

Freeform on stock

Point-by-point optimisation across the lens surface
700 free calculation parameters in every lens design
Maximum level of optimisation

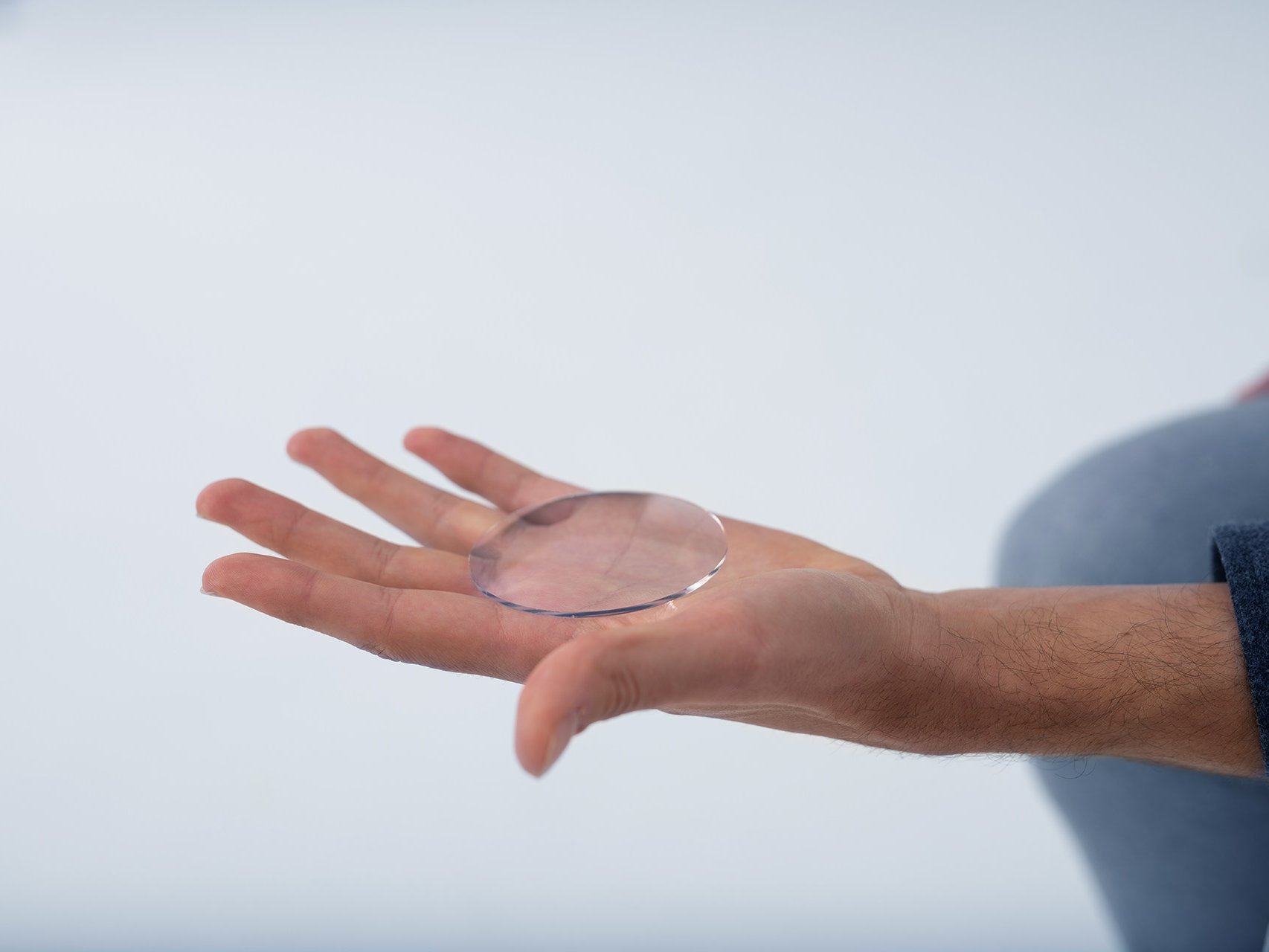

Up to 16% thinner

Up to 16% thinner³ than ZEISS spherical (SPH) FSV
Up to 8% thinner⁴ than ZEISS aspherical (AS) FSV - without compromising vision
Point-by-point optimisation and ZEISS ClearForm^TM Manufacturing Technology allows for flatter lenses with a thickness reduction at the lens edge for minus lenses and in the lens centre for plus lenses

Up to 49% flatter

On average 36% flatter lenses across all prescription⁵ when compared to ZEISS AS 1.6 FSV
Up to 49% flatter lenses for the minus range⁶
Up to 25% flatter lenses for the plus range⁷
No optical compromises

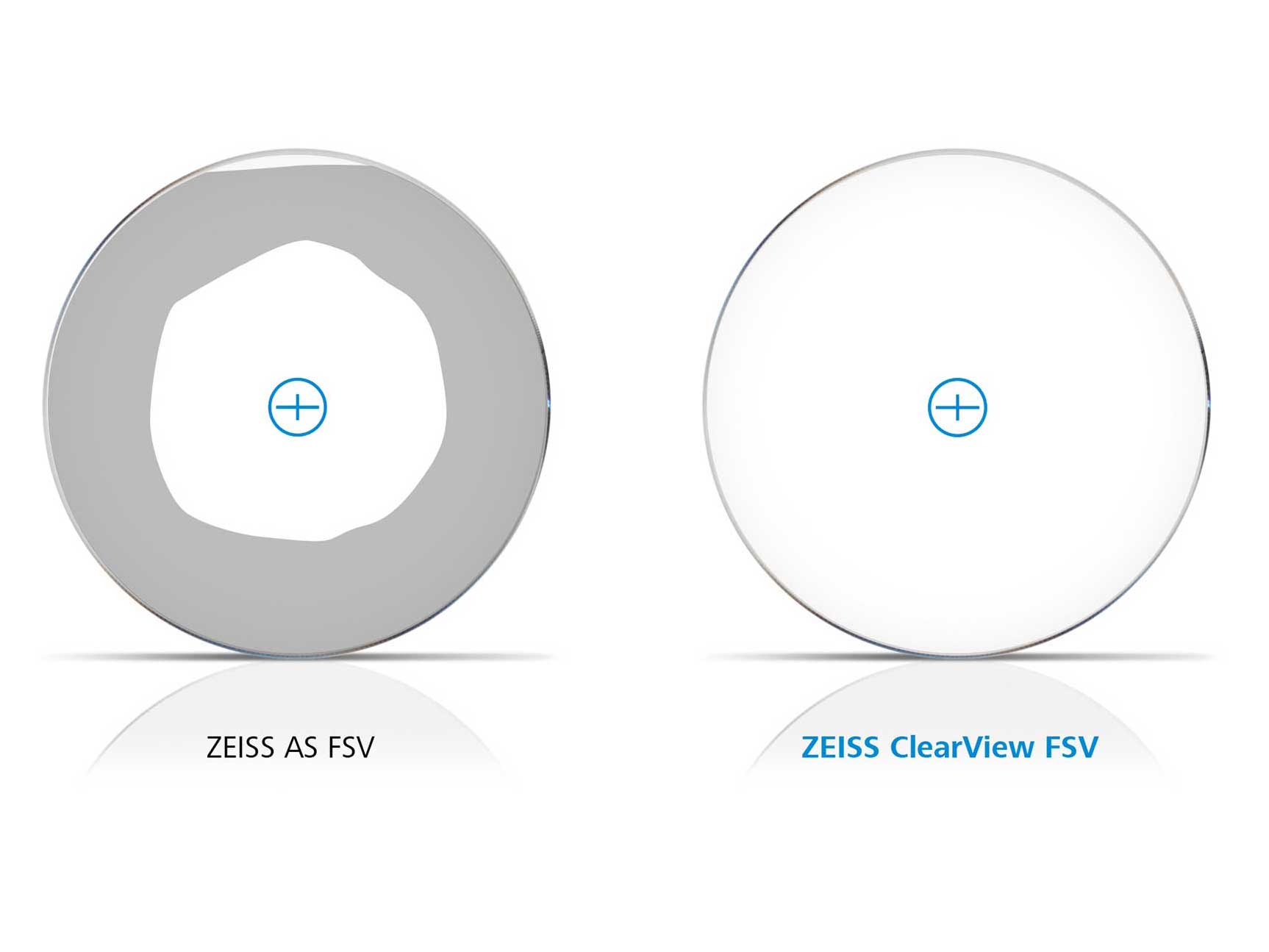

3x larger zone of clarity

Clear viewing from the lens centre to periphery
On average 3x larger zone of excellent vision clarity when compared to ZEISS AS FSV lenses¹
Up to 4.6x larger area for higher myopic prescription, and up to 5.1x larger area for higher hyperope prescriptions¹

Proven customer satisfaction with ZEISS ClearView FSV Lenses

Confirmed by a wearer trial with single vision lens wearers using a blind product testing procedure, ZEISS ClearView FSV Lenses are proven superior to conventional FSV lenses.²

100 %

had a very good/good immediate impression with ZEISS ClearView FSV.²
78 %

After 1 week of wear, 78% of study participants preferred the vision performance of ZEISS ClearView FSV compared to ZEISS AS FSV.²
89 %

of wearers strongly agreed or agreed that they had experienced all day visual comfort with ZEISS ClearView.²
79 %

of wearers strongly agreed or agreed that ZEISS ClearView provides clear vision across the entire lens for near, intermediate and distance vision.²

Third-party Content Blocked

The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

ZEISS ClearView Lens Design

Complex mathematical simulation tools are used to calculate the required mould designs.
Freeform Mould Generation

The complete freeform shapes are incorporated into the moulds by using highly accurate numerically controlled (CNC) generators.
CMM Metrology Measurement

Using ZEISS' industrial metrology expertise, final moulds are checked for accuracy and precision with a ZEISS coordinate measuring machine (CMM) where over 1500 points on the surface of each mould are analysed.
Specialised Mould Pairing

Special optimisation of front and back mould pairings to deliver the complex free-form optics across the entire prescription range. 2D Data Matrix Code (DMC) is used in the manufacturing process to precisely track moulds and lenses as part of an automated industry 4.0 process.
Casting/Coating/Quality Checks

Finally, finished lenses are checked by means of CMM against the ZEISS Vision Clarity Simulation to ensure the final delivers on the optical promise.

Contact Us

How can we help you?

Form is loading...

The information entered in the contact form will be used to answer your request by Carl Zeiss Vision International GmbH by E-Mail or phone. Click here to read our statement on data protection.

¹
Based on a visual clarity simulation of a 50 mm diameter lens area for 1.60 index ZEISS ClearView FSV lenses compared to 1.60 ZEISS AS FSV lenses. Average of +5D, +3D, +1D, -1D, -3D, -5D, and -7D with and without a cylinder of -2D. Quantitative analyses by Technology & Innovation, Carl Zeiss Vision GmbH, 2020.
²
Study participants were asked to rate how important different aspects (“price”, “to see clearly across the entire lens”, “easy to adapt to”, “comfortable vision across the entire lens”, “aesthetics”, “available coatings”, “matches the frame”) are for them, when choosing new spectacle lenses. Wearer trial comparing 1.60 ZEISS ClearView FSV and 1.60 ZEISS AS FSV in a laboratory setup and in everyday life. N=20 study participants. Technology & Innovation, Carl Zeiss Vision GmbH, 2020.
³
Measurements of lens thickness on 1.60 ZEISS ClearView FSV lenses compared to ZEISS SPH FSV lenses over a range of prescriptions (-5, -3, -1, +1, +3, +5D with and without cyl -2D). Maximum reduction of 16% for centre thickness of +5.00/-2.00. Quantitative analyses by Technology & Innovation, Carl Zeiss Vision GmbH, 2020.
⁴
Measurements of lens thickness (edge thickness at 50mm diameter for minus lenses; center thickness for plus lenses) on 1.60 ZEISS ClearView FSV lenses compared to ZEISS AS FSV lenses over a range of prescriptions (-7, -5, -3, -1, +1, +3, +5D with and without cyl -2D). Maximum reduction of 8% for centre thickness of +3.00/0.00. Quantitative analyses by Technology & Innovation, Carl Zeiss Vision GmbH, 2020.
⁵
Measurements of lens flatness (base curve) on 1.60 ZEISS ClearView FSV lenses compared to ZEISS SPH FSV lenses over a range of prescriptions (-5, -3, -1, +1, +3, +5D with and without cyl -2D). Maximum reduction of 49% of -5.00D with and without cyl -2D. Quantitative analyses by Technology & Innovation, Carl Zeiss Vision GmbH, 2020.
⁶
Measurements of lens flatness (base curve) on 1.60 ZEISS ClearView FSV lenses compared to ZEISS AS FSV lenses over a range of prescriptions (-7,-5,-3,-1,+1,+3,+5D with and without cyl -2D). Maximum reduction of 32% for -5.00D with cyl -2D. Quantitative analyses by Technology & Innovation, Carl Zeiss Vision GmbH, 2020.
⁷
Measurements of lens ﬂatness (base curve) on 1.60 ZEISS ClearView FSV Lenses compared to ZEISS SPH FSV Lenses. Average of -5D, -3D, -1D, +1D, +3D, +5D with and without cyl -2D. Maximum reduction of 49 % of -5.00D with and without -2D cyl for minus lenses. Maximum reduction of 25 % of 5.00D with and without -2D cyl for plus lenses. Quantitative analyses by Technology & Innovation, Carl Zeiss Vision GmbH, 2020.
