ZEISS VISUSCOUT 100
ZEISS FOR EYE CARE PROFESSIONALS

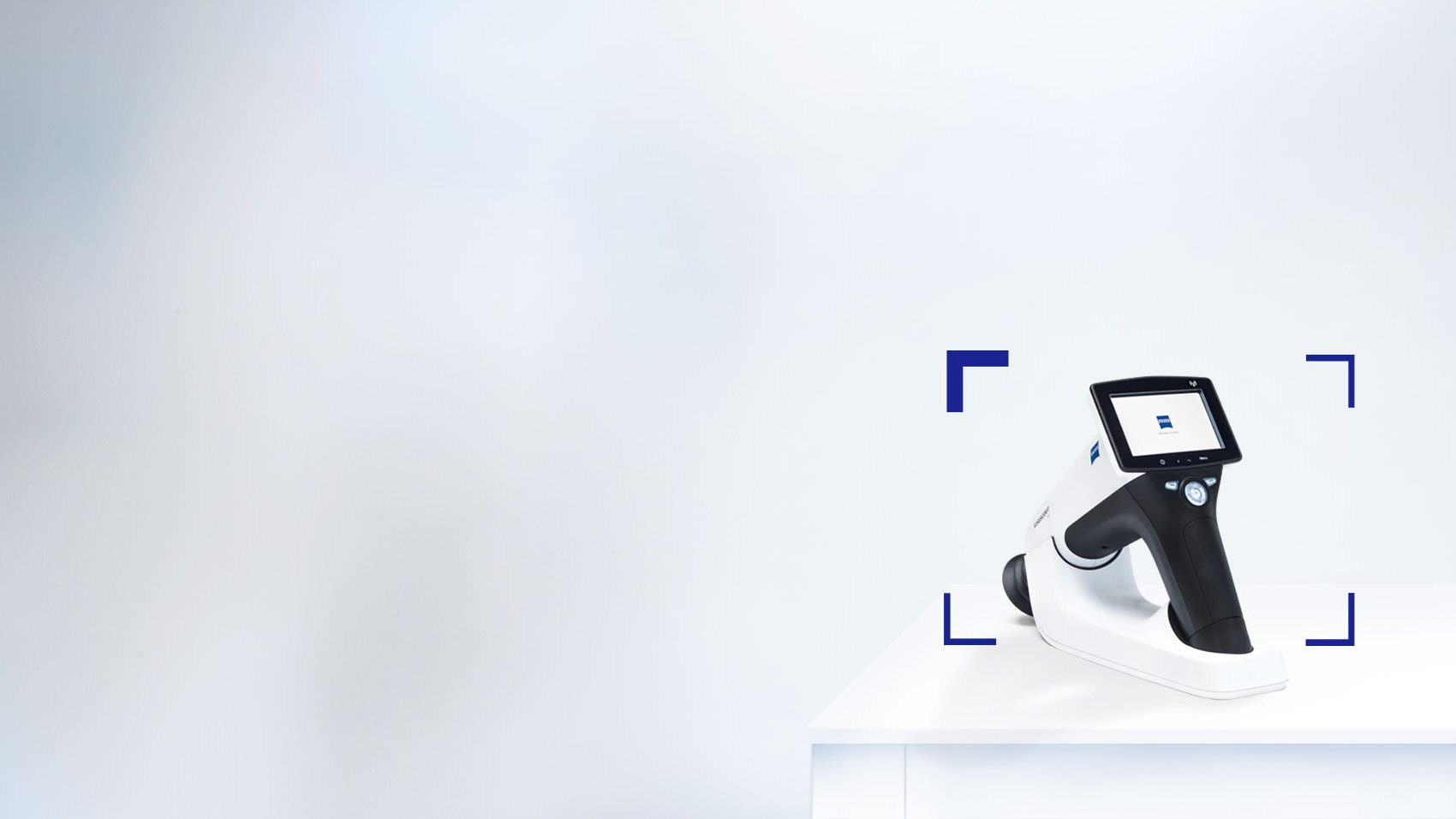

ZEISS VISUSCOUT 100 Retinal imaging that reaches every patient.

Reliably detecting and monitoring retinal disorders is key to ensuring high-quality care and maintaining the vision of your patients. The VISUSCOUT® 100 from ZEISS lets you do precisely that. As a mobile fundus camera, it is the perfect retinal imaging companion.

  • Simple mobile retinal imaging
  • Easy capture of fundus images and videos
  • Built-in simplicity

Simple mobile retinal imaging

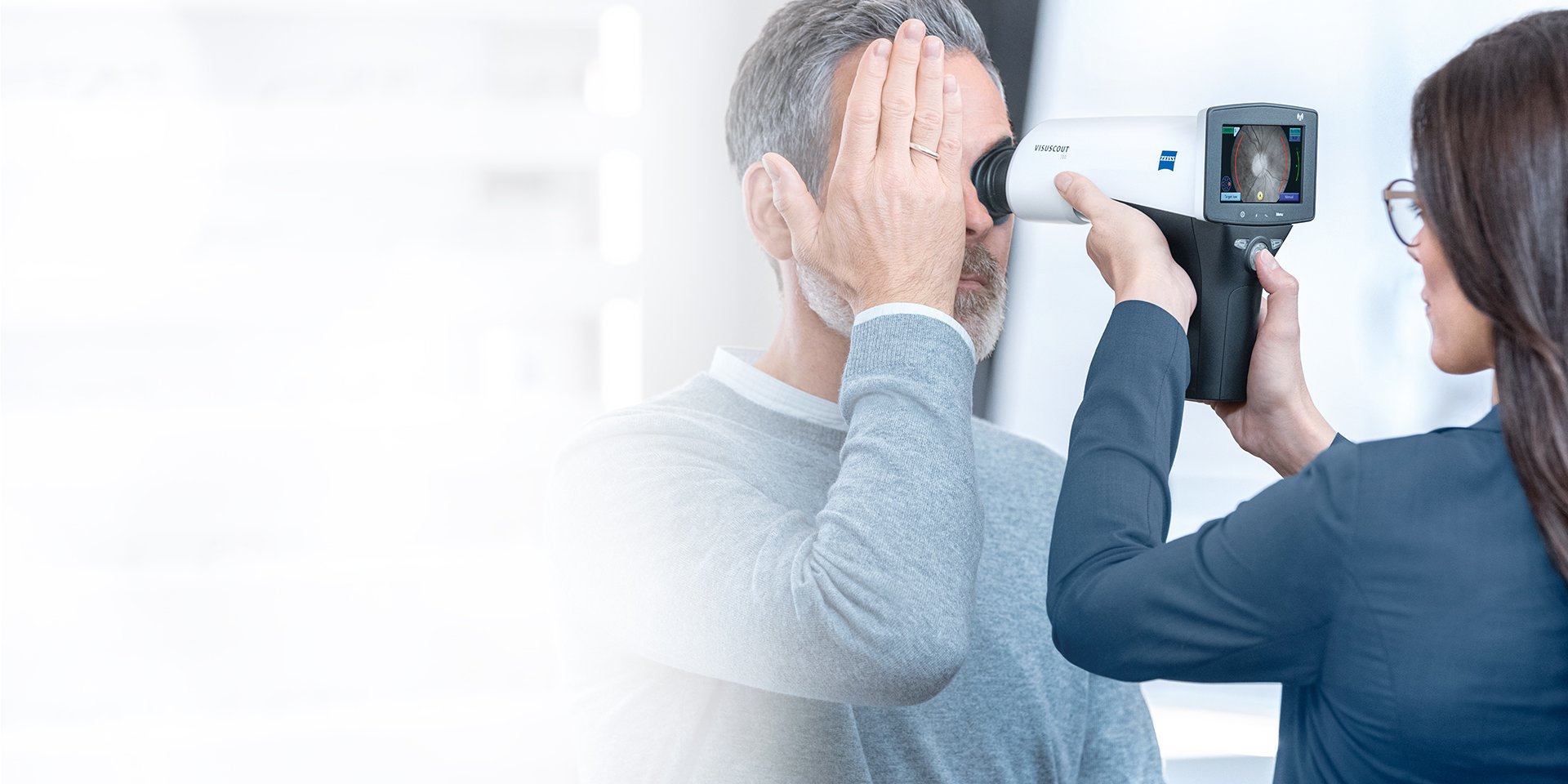

With its lightweight, compact design, the ZEISS VISUSCOUT 100 allows simple retinal imaging and wireless flexibility wherever you need it:

  • For checkups and documentation of retinal conditions, such as diabetic retinopathy, glaucoma and macular degeneration (AMD).
  • As a secondary device for immobile patients.
  • Ideal for outreach programs, mobile eye care and satellite offices.
  • For general consultations, home visits and working with children.
  • As a simple fundus camera for small practices.

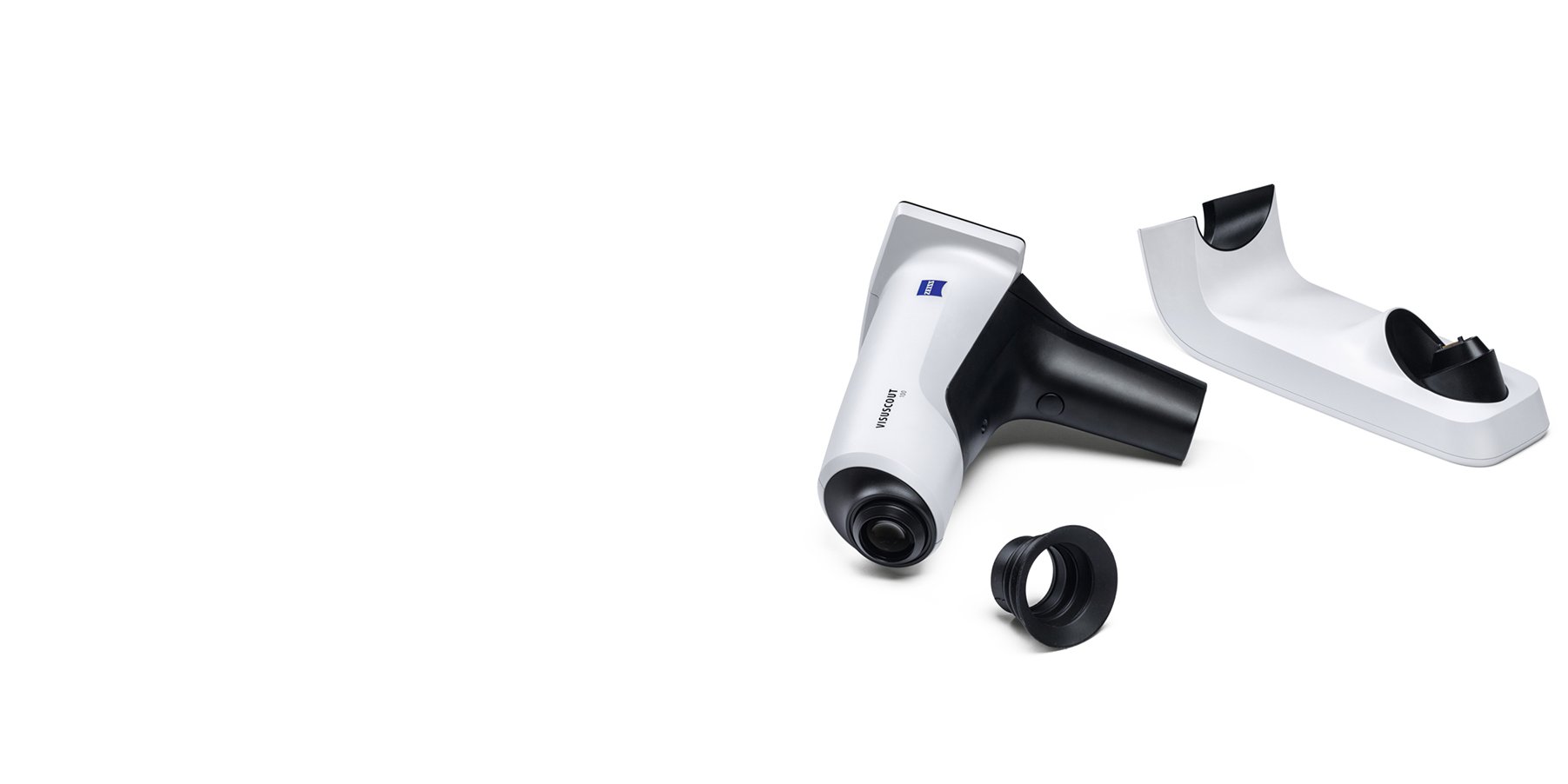

Packed into a small, rugged carrying case, the ZEISS VISUSCOUT 100 can be conveniently transported and easily fits into any practice setup. With the camera’s non-mydriatic operation and precise autofocus function, dilation of the eyes is not required. Its battery power provides added flexibility. The Wi-Fi functionality enables instant transfer of images to a PC.

Easy capture of fundus images and videos

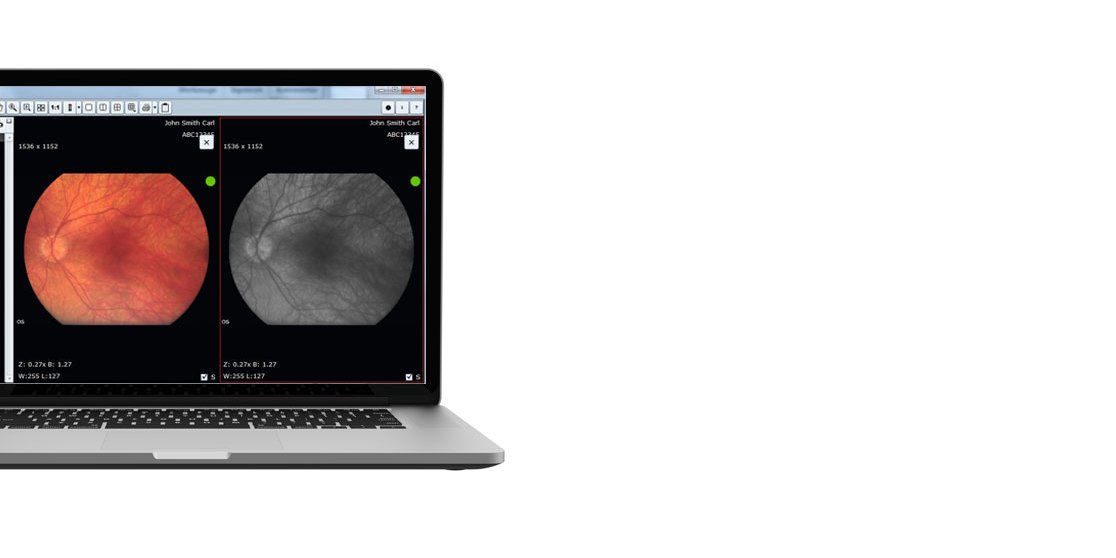

Take color and red-free fundus images instantly with the 40° field of view. The device fulfills all relevant ISO 10940 fundus camera standard requirements.

With its on-screen targeting aid and integrated autofocus function, using the portable retinal camera is easy and convenient. Nine internal fixation LEDs help align the patient correctly and also facilitate the capture of peripheral images.

Built-in simplicity

Operating the ZEISS VISUSCOUT 100 handheld fundus camera is simple and straightforward following a brief training session. Examinations are quickly performed and reviewed without needing to move the patient. Even non-medical staff can operate the device, enabling cost-effective image capturing prior to the examination.

Specifications

Dimensions (W x D x H)
115 x 216 x 199 mm
Weight
800 g
Sensor resolution / type
5 MP / CMOS
Protection class
1
Charging station
100 - 240 V ~0.4 A 47 - 63 Hz
Output
9 V, 1.1 A, 10 W
Battery
Rechargeable Li-ion 3.6 V, 2.350 mAh
Field of view
40°
Capture mode
Color, red-free, IR
Focus range
-20 D to + 20 D
Fixation
9 x LED, internal
Minimum pupil size
3.5 mm
Display
4’’, TFT-LCD, 800 x 480 px, 16.7 M colors, anti-glare coating
Data connectivity
USB Wi-Fi (802.11 b/g/n) on 2.4 GHz band
Data formats
JPEG, MPEG4/1 (DICOM)
Memory
Wi-Fi SDHC card
