ZEISS VISUCORE 5001

Two-in-one: Refraction simplified.

A refraction unit that combines precise2 objective and subjective refraction in one cycle. It saves space and increases efficiency with faster refraction, without compromising on accuracy.

Get in touch
  • A complete objective and subjective refraction unit suitable for small spaces
  • Fast and reliable refraction – easy to use by optometrists and staff
  • The new standardized Guided Mode takes users through the refraction process step-by-step

Simplifying refraction with a combined refraction unit.

  • Compact: a complete refraction unit suitable for small spaces.
  • Straightforward: new and standardized Guided Mode takes users through the refraction process step-by-step.
  • Fast: reduced chair time4, increased capacity and more time for patient’s consultation.
  • Accurate: faster refraction does not compromise the accuracy of the results.
  • Connected: complete integration into the ZEISS ecosystem enables a seamless workflow and convenient data transfer.

An entire refraction unit that fits into one small space.

Thanks to the combination of objective and subjective refraction integrated in an ergonomic, height-adjustable table, ZEISS VISUCORE 500 only has a footprint of under 2.6ft2 (0.8m2). This reduces the refraction room footprint dramatically, leaving space for another refraction lane to expand your exam capabilities, or to use valuable space more efficiently.

More information
An entire refraction unit that fits into one small space.

The combined refraction unit consists of

ZEISS VISUSCREEN 100 Compact and ZEISS VISUCORE 500 Refractor.

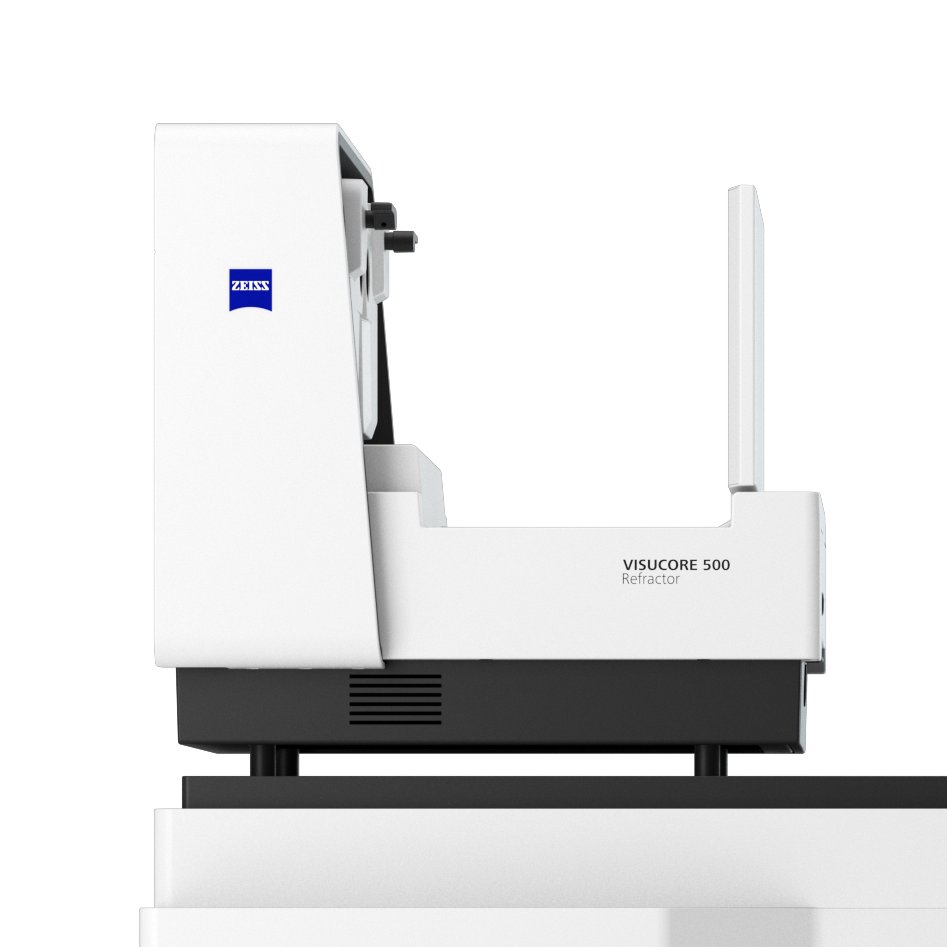

ZEISS VISUCORE 500 Refractor

A state-of-the-art binocular wavefront autorefractor enabling ZEISS i.Scription lenses. It features open-field simulation, integrated into a fully-automated digital phoropter with ZEISS specific optics with red/green separation; and a dual cross-cylinder utilising a split-prism that enables side-by-side comparison of visual impressions for patients. In addition, it holds a foldable near-vision test screen, with a variable distance and multi-scale ruler

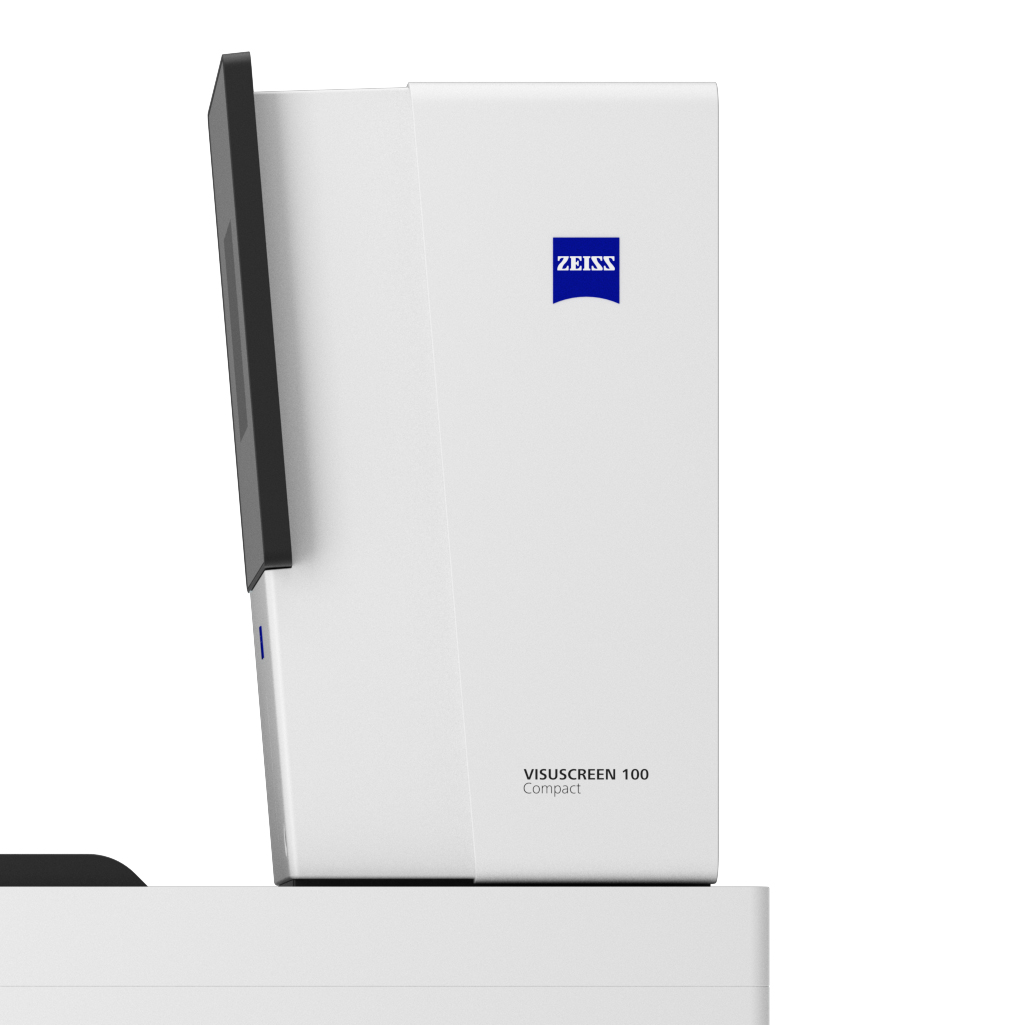

ZEISS VISUSCREEN 100 Compact

A digital chart viewer with internal mirrors vergence control system reduces the length of the refraction lane to 1 m compared to a full refraction lane of 5 m. It includes a wide variety of commonly used tests for visual acuity and binocular vision ancillary tests.

More effective without losing quality focus.

ZEISS VISUCORE 500 enables you and your team to offer accurate refraction results (VA 20/20) with different user modes3 – all while you will be able to:

  • Reduce chair time for refraction by 46%  compared to conventional ZEISS set-up
  • Experienced examiners can do objective and subjective refraction in < 4:30 minutes

This leaves you with more flexible use of staff hours and frees up valuable time for patient consultations.

  • Third-party Content Blocked

    The video player is blocked due to your tracking preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

ZEISS VISUCORE 500 Refractor

Technical specifications

  • Software version

    1.0

    Utility voltage

    100 V – 240 V AC

    Network frequency

    50 Hz – 60 Hz

    Consumption

    ≤ 300 VA

    Mainboard battery

    CR 2032

    Protection class

    I

    Overvoltage category

    II

    Size (W×L×H)

    290 mm x 470 mm x 490 mm

    Weight

    25 kg

    Pollution degree

    2

    Laser class

    Class 1 according to 21CFR 1040.10 and IEC 60825-1:2014

    For additional technical information, please contact your sales manager or customer service.

  • Corneal measurement diameter

    3.5 mm

    Measurement range

    6 mm – 9 mm (56.25 D – 37.5 D)

    Max cylinder

    6 D

    Accuracy K

    +/- 0.15 D
    Axis

    0 – 180

    Axis step

    1°

    Measurement step

    0.1 mm

  • Method

    Shack-Hartmann

    Pupil diameter range for measurement

    2.5 – 7.5 mm

    Pupil presentation

    3 mm / 5 mm or min / max pupil

    Number of measurement points

    1050 points on 7 mm pupil (emmetropic)

    Measurement wavelength

    780 nm

    Reported wavelength

    550 nm

    Spherical power range

    -19 D to +17 D (for vd = 12 mm)

    Cylinder power range

    0 D to 6 D

    Sphere / cylinder power step

    0.01, 0.12, 0.25

    Axis

    0 – 180

    Axis step

    1°

    Higher order measurement

    Up to 7th order

    Vertex distance

    0, 12, 13.5, 15 mm

  • Temperature

    [°C]

    +10 to +35

    Rel. humidity (not condensing)

    [%]

    30 to 95

    Max. geographic altitude

    [m]

    3000

    Atmospheric pressure

    [hPa]

    700 to 1060

  • Storage temperature

    [°C]

    -10 °C to +55 °C

    Relative humidity (not condensing)

    [%]

    10 to 95

  • Transportation temperature

    [°C]

    -40 °C to +70 °C

    Relative humidity (not condensing)

    [%]

    10 to 95

  • Spherical lenses

    [dtp]

    -20 to +20

    Cylindrical lenses

    [dtp]

    -6.00 to +6.00

    Axis

    [°]

    0 to 180

    Prisms

    [dtp]

    0 to 20

    Cross cylinder

    [dtp]

    ± 0.25 D / ± 0.5 D

    Dual cross cylinder

    [dtp]

    ± 0.5 (0° – 359°)

    Polarized filter

    [°]

    45 / 135

    Red/green filter

    Right eye: red / Left eye: green

    Red Maddox

    Right eye: horizontal / Left eye: vertical

    Retinoscopy lenses

    [dtp]

    +1.5 D / +2.0 D

    Fixed cross cylinder

    [dtp]

    ± 0.5

    Occluder

    Opaque and frosted

    Cross-hair reticle

    Yes

    Diaphragm (pinhole)

    [mm]

    45047

  • range

    [mm]

    250 to 700

    size

    [inch]

    7

    resolution

    [pixel]

    1024 x 600

  • wavelength

    [nm]

    780

    Beam size

    [mm]

    < 1.5

    Output power

    [uW]

    < 30  (Class 1 laser product)

ZEISS VISUSCREEN 100 Compact

Technical specifications

  • Software version

    1.0

    Utility voltage

    100 V – 240 V AC

    Network frequency

    50 Hz – 60 Hz

    Consumption

    ≤ 60 VA

    Mainboard battery

    CR 2032

    Protection class

    I

    Overvoltage category

    II

    Size (W×L×H)

    315 mm x 660 mm x 320 mm

    Reading distance

    5 m

    Luminance

    250 cd / m²

    Maximum contrast

    1000 / 1

    Resolution

    1920 x 1200 pixels

    Screen type

    7" LCD

    For additional technical information, please contact your sales manager or customer service.

  • Temperature

    [°C]

    +10 to +40

    Rel. humidity (not condensing)

    [%]

    30 to 90

    Max. geographic altitude

    [m]

    3000

    Atmospheric pressure

    [hPa]

    700 to 1060

  • Storage temperature

    [°C]

    -10 °C to +55 °C

    Relative humidity (not condensing)

    [%]

    10 to 95

  • Transportation temperature

    [°C]

    -40 °C to +70 °C

    Relative humidity (not condensing)

    [%]

    10 to 95

VISUCORE 500 Table

Technical specifications

Weight

67 kg

Safe working load

80 kg

Max. height

950 mm

Min. height

700 mm

Width

620 mm

Length

1165 mm

Elevation speed

12 mm/s

Main supply

100 - 240 V 50/60 Hz 220 VA

IP degree of protection

IPX0

For additional specifications, please refer to the user manual or contact our customer service
